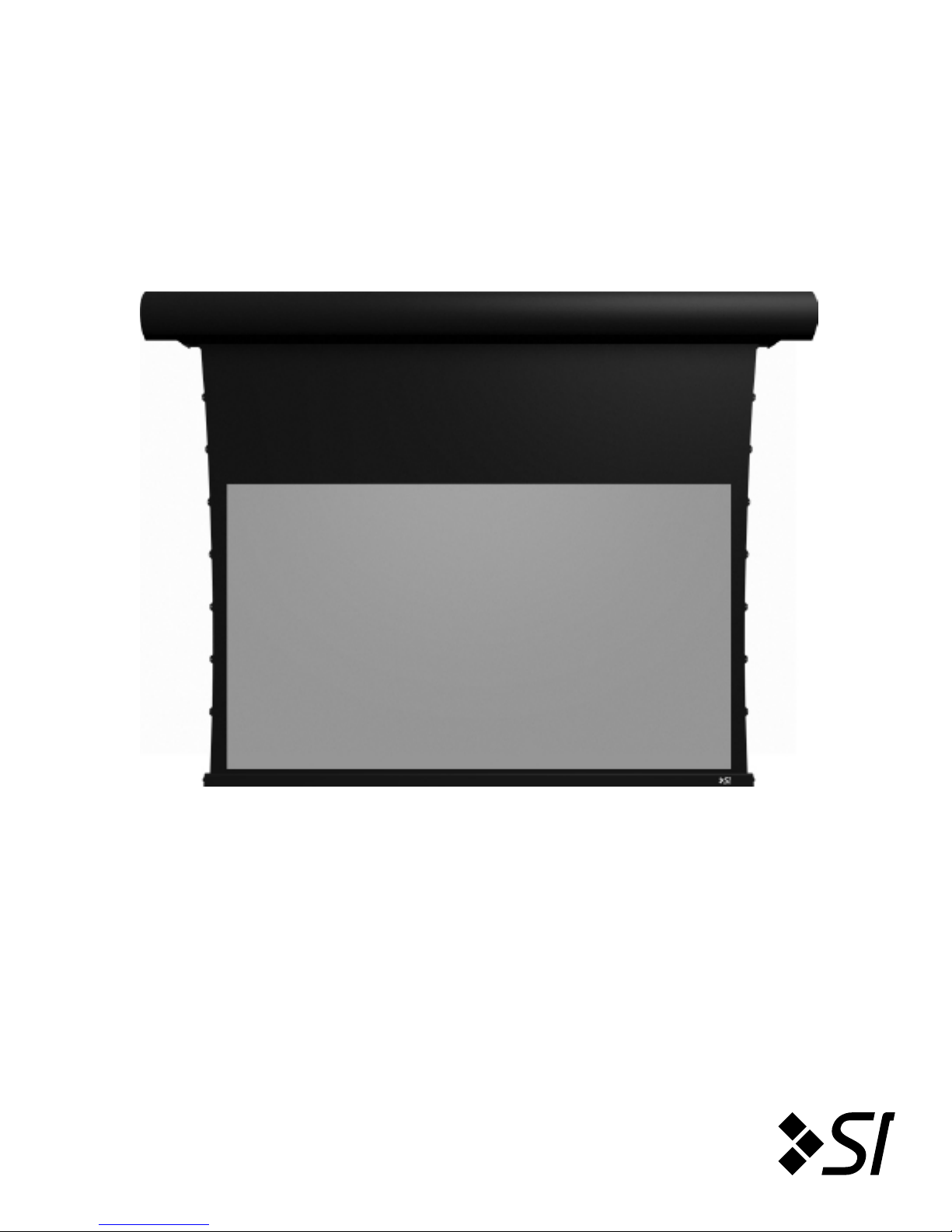

SI 3 series User manual

5 SERIES
MOTORIZED
Instructions for
Screen Replacement or
Screen Shipped Seperate
TM
3 and 5 Series
Motorized
®

Screen Innovations warrants its products, to the original purchaser only, to be free from defects in
materials and workmanship for a period of one (1) year from the date of purchase by the original
purchaser provided they are properly operated according to Screen Innovations’instructions and are
not damaged due to improper handling or treatment after shipment from the factory.
This warranty does not apply to equipment showing evidence of misuse, abuse, or accidental damage,
or which has been tampered with or repaired by a person other than authorized Screen Innovations
personnel.
Screen Innovations’ sole obligation under this warranty shall be to repair or to replace (at Screen
Innovations’ option) the defective part of the merchandise. Returns for service should be made
to your Screen Innovations’ dealer. If it is necessary for the dealer to return the screen or part to
Screen Innovations, transportation expenses to and from Screen Innovations are payable by the
purchaser and Screen Innovations is not responsible for damage in shipment. To protect yourself
against damage or loss in transit, insure the product and prepay all transportation expenses.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WARRANTIES AS TO FITNESS FOR USE AND MERCHANT ABILITY. Any implied warranties of tness
for use, or merchantability, that may be mandated by statute or rule of law are limited to the one
(1) year warranty period. This warranty gives you specic legal rights, and you may also have other
rights, which vary from state-to-state. NO LIABILITY IS ASSUMED FOR EXPENSES OR DAMAGES
RESULTING FROM INTERRUPTION IN OPERATION OF EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR
CONSEQUENTIAL DAMAGES OF ANY NATURE.
In the event that there is a defect in materials or workmanship of a Screen Innovations product, you
may contact our Sales Partners at 9715-B Burnet Road Suite 400, Austin, TX 78758, [phone].
IMPORTANT: THIS WARRANTY SHALL NOT BE VALID AND SCREEN INNOVATIONS SHALL NOT BE
BOUND BY THIS WARRANTY IF THE PRODUCT IS NOT OPERATED IN ACCORDANCE WITH SCREEN
INNOVATIONS’WRITTEN INSTRUCTIONS.
Keep your sales receipt to prove the date of purchase and your original ownership.
LIMITED ONE YEAR WARRANTY
ON SCREEN INNOVATIONS PRODUCTS
®
APPLY S/N
STICKER HERE

?
512-832-6939
9715-B Burnet Road Suite 400, Austin,TX 78758
screeninnovations.com
Installation requires 3 or more people. Bend knees when lifting.

Table of Contents
REMOVE TRIM� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
DISCONNECT POWER AND CONTROLS (IF REPLACING A SCREEN) � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
REMOVE SCREEN (IF REPLACING A SCREEN)� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
SMALL TUBE � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
REMOVE MOTOR IF REPLACING A SCREEN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
REMOVE IDLER IF REPLACING A SCREEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
UNPACK REPLACEMENT SCREEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
INSTALL MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
INSTALL IDLER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
LARGE TUBE � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 14
REMOVE MOTOR IF REPLACING A SCREEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
REMOVE IDLER IF REPLACING A SCREEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
UNPACK REPLACEMENT SCREEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
INSTALL MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
INSTALL IDLER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
INSTALL SCREEN� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 18
RECONNECT POWER AND CONTROLS � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 20
RESET LOWER LIMIT � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 21
RESET UPPER LIMIT � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 22
INSTALL TRIM� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 23

03312017SR 5
1
1
2
3
2

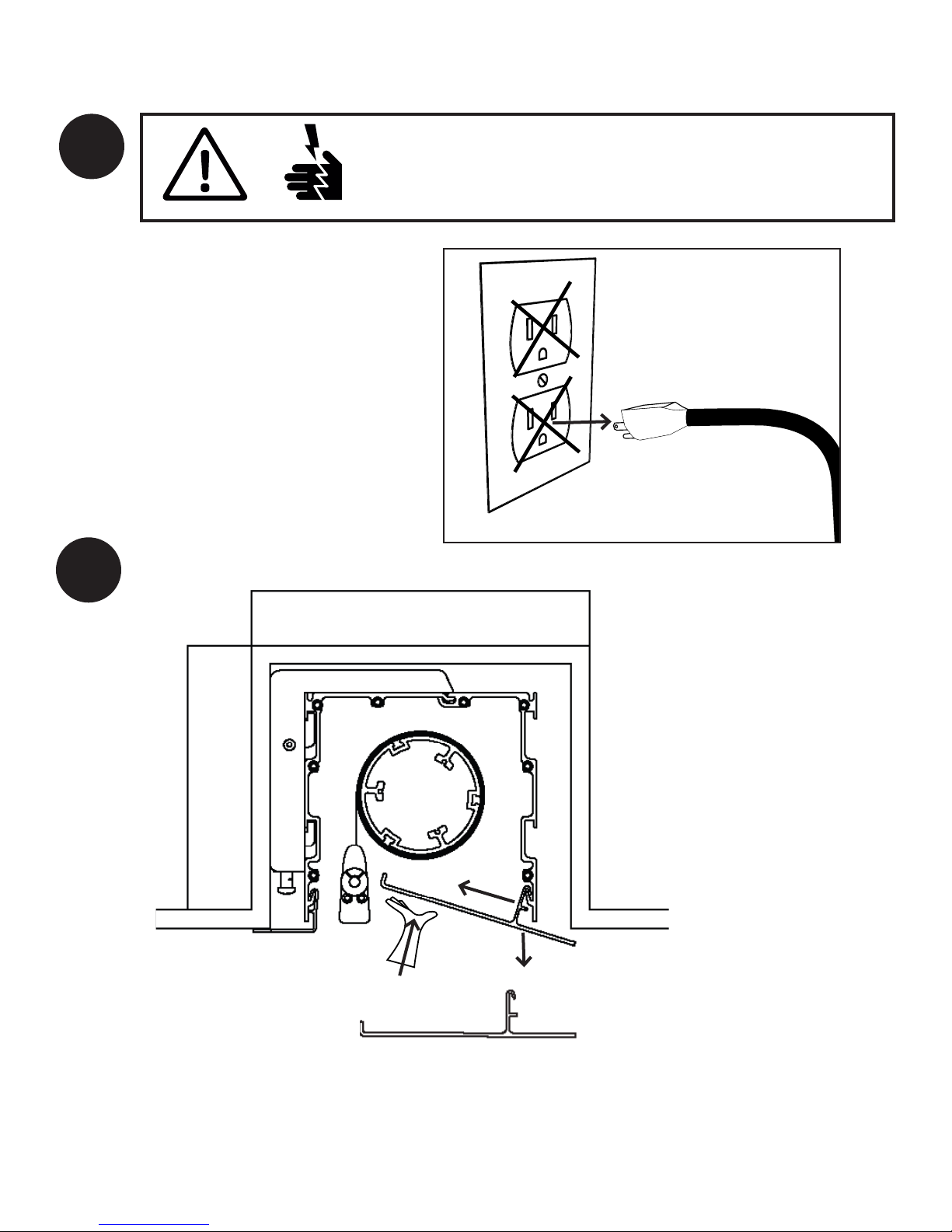

DISCONNECT POWER BEFORE SERVICING!
REMOVE TRIM
Remove the larger trim piece from the case as shown.

6
1
DISCONNECT POWER AND CONTROLS IF REPLACING A SCREEN
Disconnect the control, power, and grounding cables from the left side of the
case. NOTE: On above ceiling applications with pigtails/hardwired you will need
to access the junction box above the ceiling through the ceiling access hatch to
disconnect and pull the wire through the end plate.

03312017SR 7
2
1
2+
3
2+

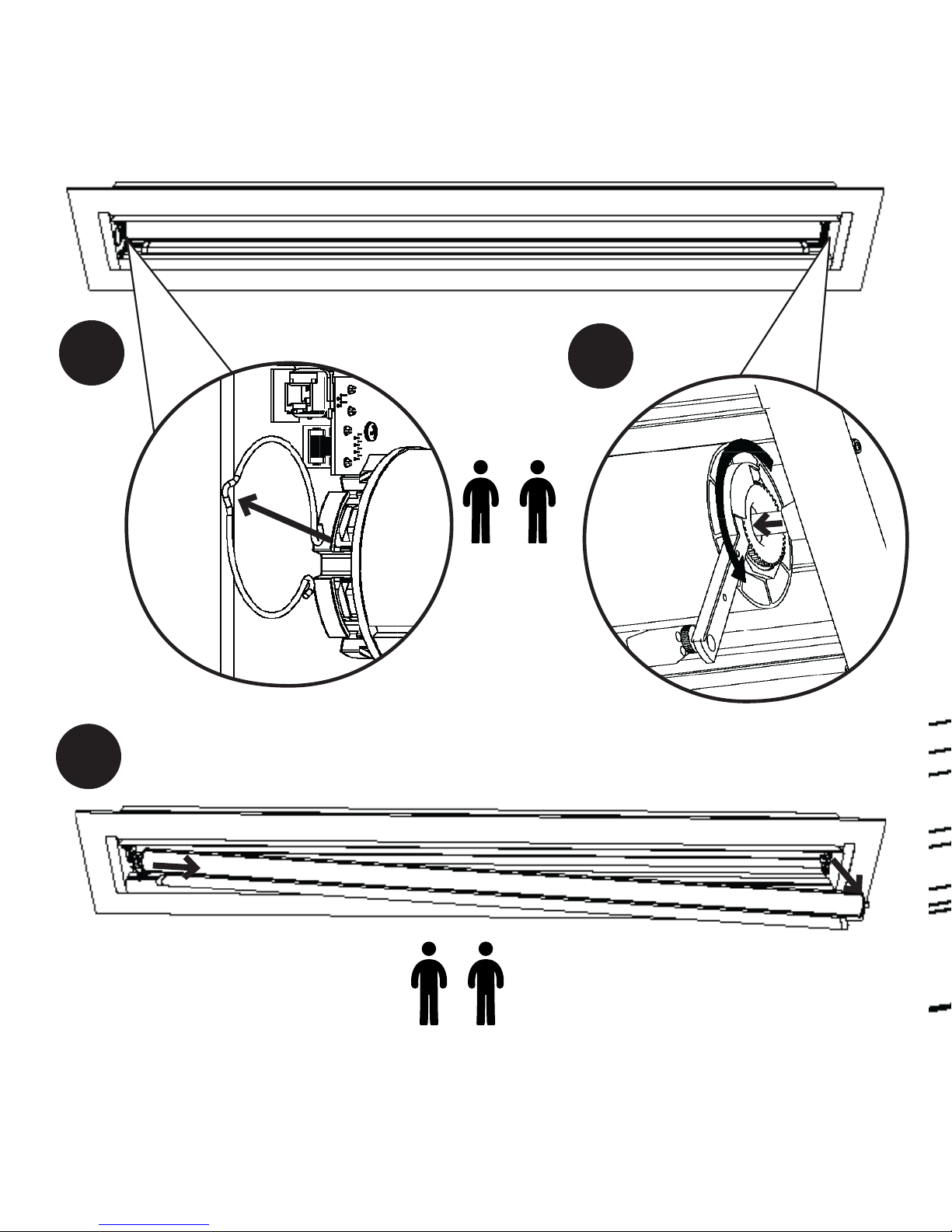

REMOVE SCREEN IF REPLACING A SCREEN
Remove the motor retaining ring from the left end of the case. Turn the teeth on
the idler counterclockwise with the included tool to retract the idler. Then lower
the screen asembly down and out of the case.

8
9
3 1/4’’
(8.26cm)
14
4 1/2’’
(11.43 cm)

SMALL TUBE
3 1/4’’
(8.26cm)
03312017SR 9
SMALL TUBE
1
2
3
REMOVE MOTOR IF REPLACING A SCREEN
Slide the motor out to get access to the retaining screws. Remove and set aside
the retaining screws, then completely remove the motor.

SMALL TUBE
3 1/4’’
(8.26cm)
10
1

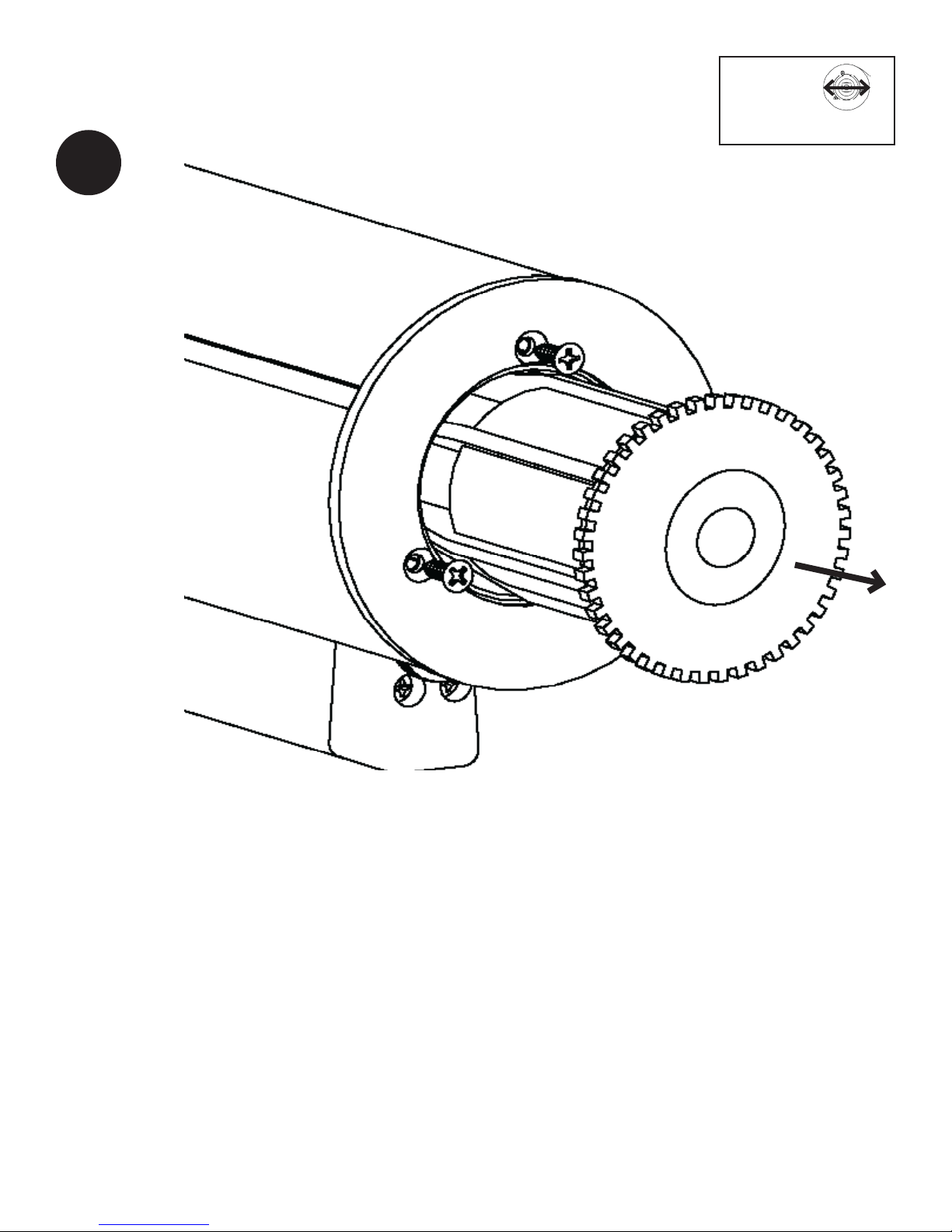

REMOVE IDLER IF REPLACING A SCREEN
Pull the idler assembly out to access the screws, then remove the screws, and
nally remove the idler assembly.

SMALL TUBE
3 1/4’’
(8.26cm)
03312017SR 11
1

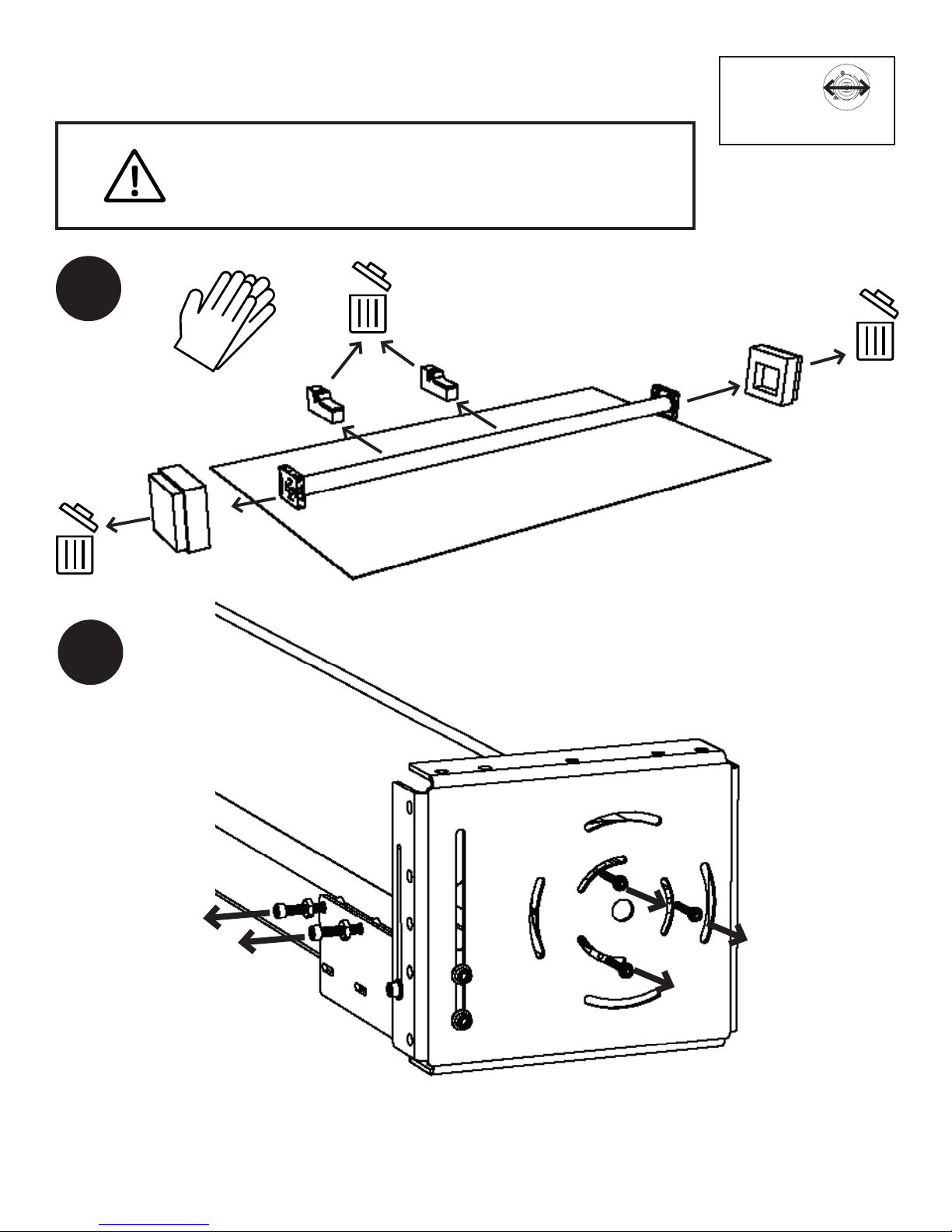

UNPACK REPLACEMENT SCREEN
2
Open the fanfold box and discard the foam. Then remove the straps and screws
from the wieght bar cradles. Then remove the screws from the shipping end
plates.
WEAR GLOVES WHEN HANDLING SCREEN MATERIAL.

SMALL TUBE
3 1/4’’
(8.26cm)
12

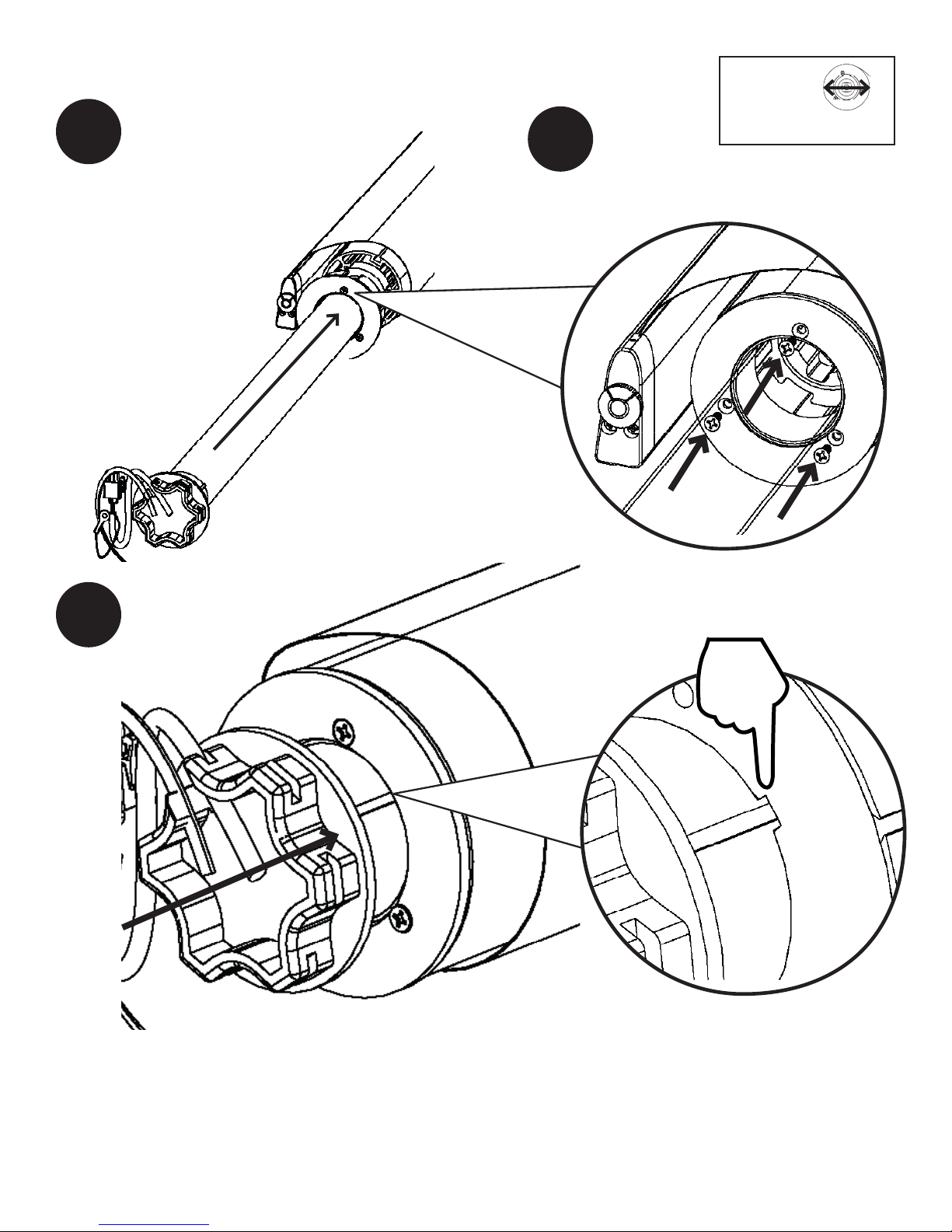

INSTALL MOTOR
12
3Align Key
Slide the motor partially into the tube and secure the black plastic piece on the
motor to the tube with the phillips head screws. Then push the motor all the way
into the tube making sure to align the key on the motor with the key in black
piece scured to the tube.

SMALL TUBE
3 1/4’’
(8.26cm)
03312017SR 13

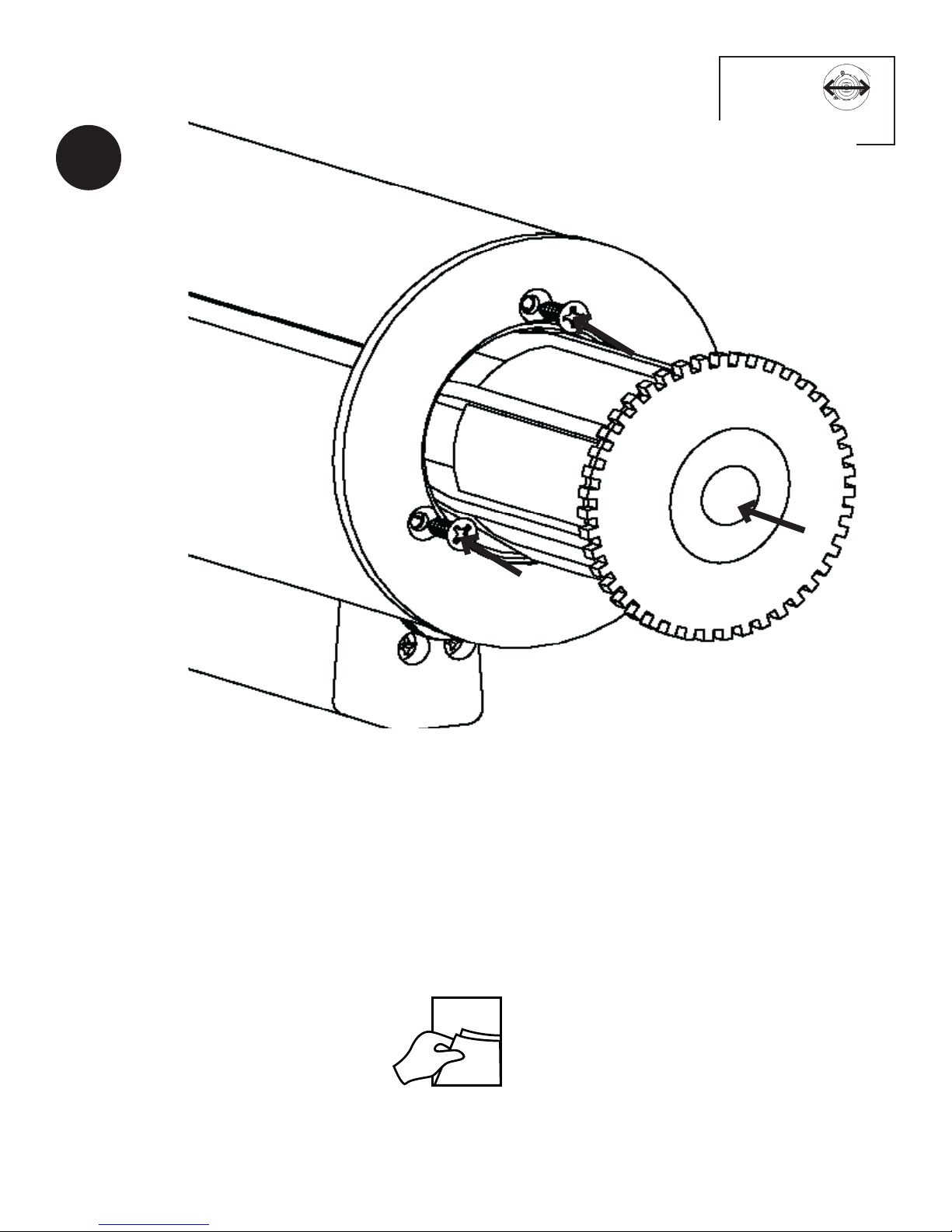

INSTALL IDLER
1
18
Slide the idler into the opposite end of the tube and secure with 3 phillips head
screws. Make sure the idler is retracted all the way in preperattion for installation
into the case. Turn to page 18 to install the screen in the case.

4 1/2’’
(11.43 cm)
LARGE TUBE
14
1
1
REMOVE MOTOR IF REPLACING A SCREEN
REMOVE IDLER IF REPLACING A SCREEN
LARGE TUBE
Pull the motor assembly completely out of the tube.
Pull the idler assembly completely out of the tube.

4 1/2’’
(11.43 cm)
LARGE TUBE
03312017SR 15
1
UNPACK REPLACEMENT SCREEN
2
WEAR GLOVES WHEN HANDLING SCREEN MATERIAL.
Open the fanfold box and discard the foam. Then remove the straps and screws
from the wieght bar cradles. Then remove the screws from the shipping end
plates.

4 1/2’’
(11.43 cm)
LARGE TUBE
16

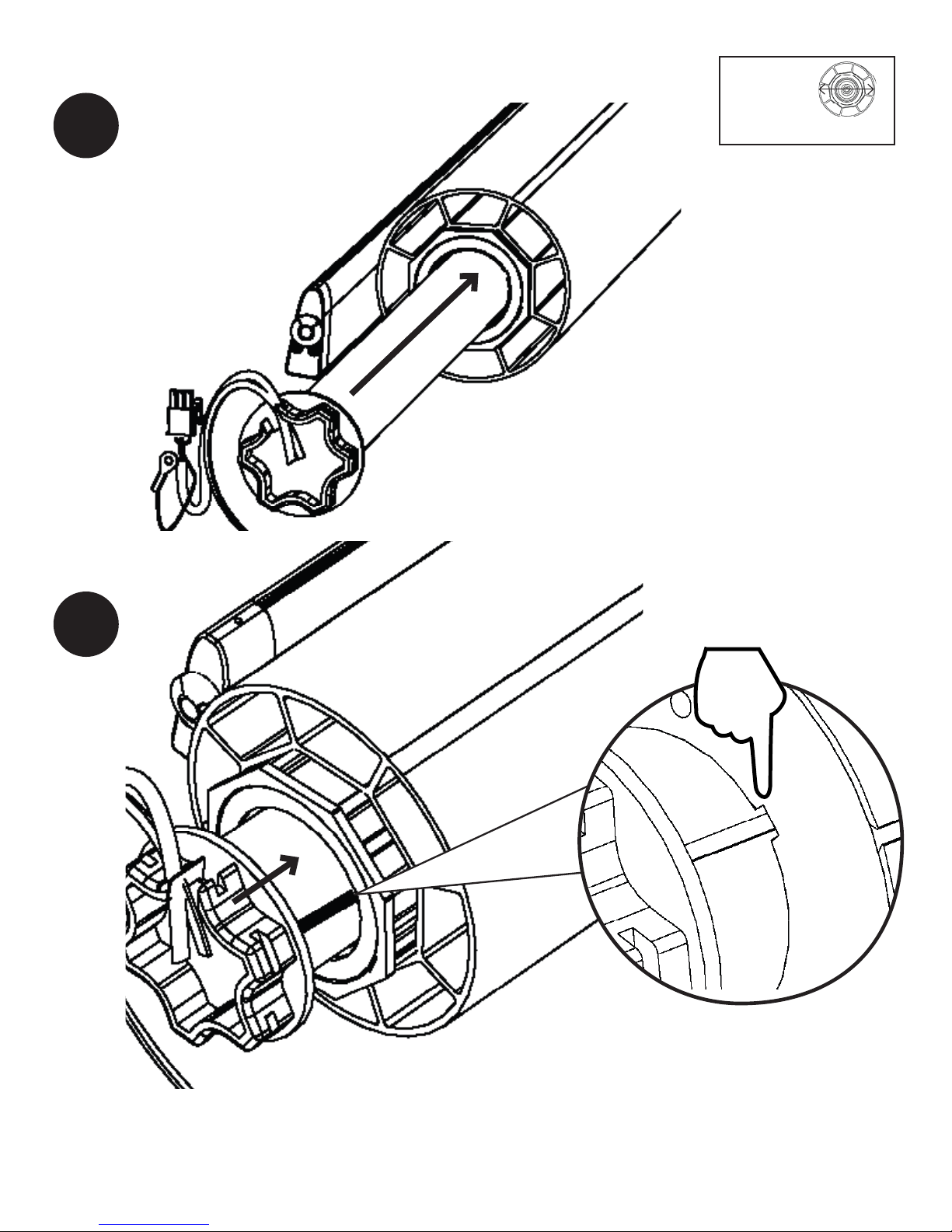

INSTALL MOTOR
1
2Align Key
Push the motor all the way into the tube making sure to align the key on the
motor with the key in black piece inserted into the tube.

4 1/2’’
(11.43 cm)
LARGE TUBE
03312017SR 17
1
INSTALL IDLER
18
Slide the idler assembly into the opposite end of the tube.

18

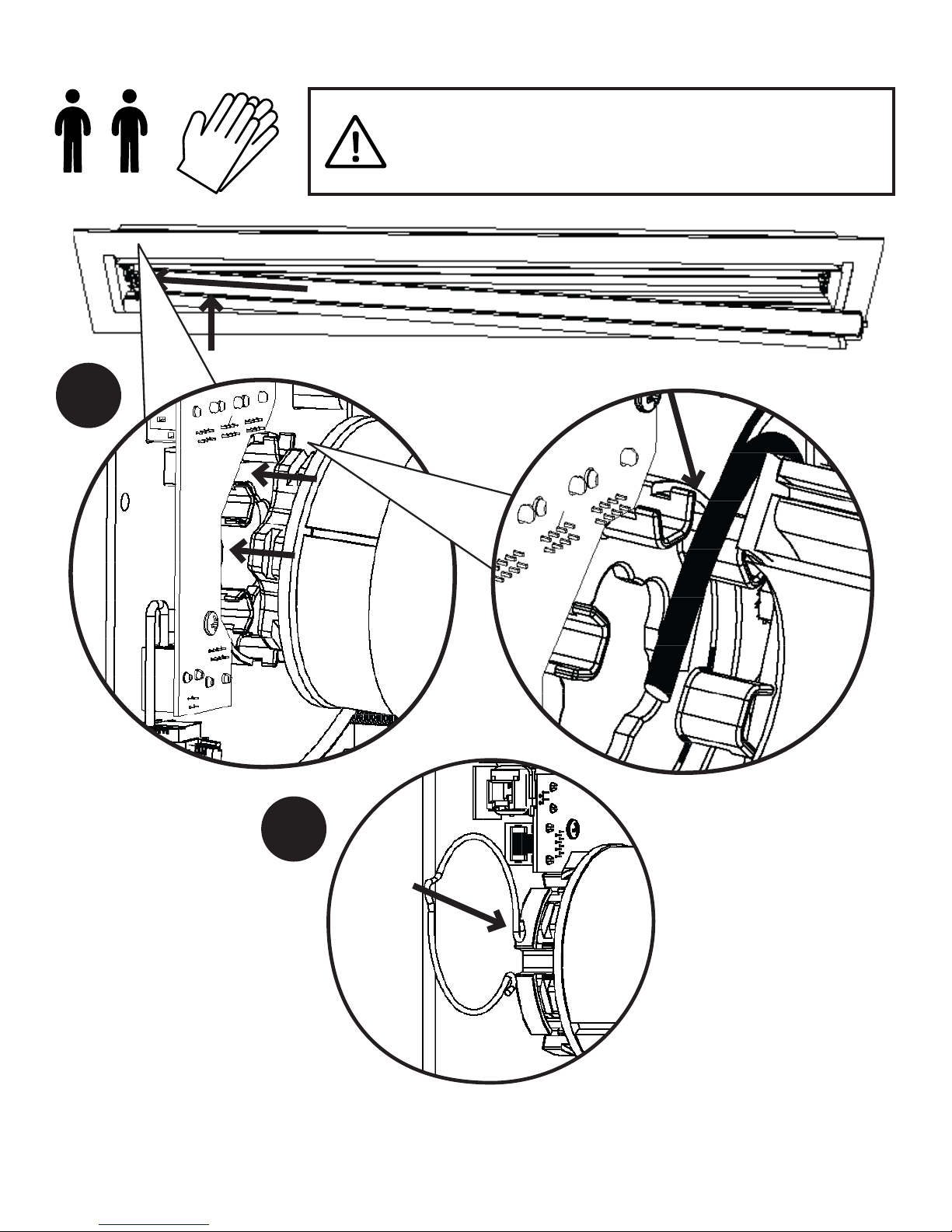

INSTALL SCREEN
2+
1
Correct cable exit location
WEAR GLOVES WHEN HANDLING SCREEN
MATERIAL.
Push the motor into the motor bracket at the left end of the case taking care to
make sure the motor power and control cables do not become pinched and exit
at about 1 o-clock as shown. Then install the motor retaining ring.
2

03312017SR 19

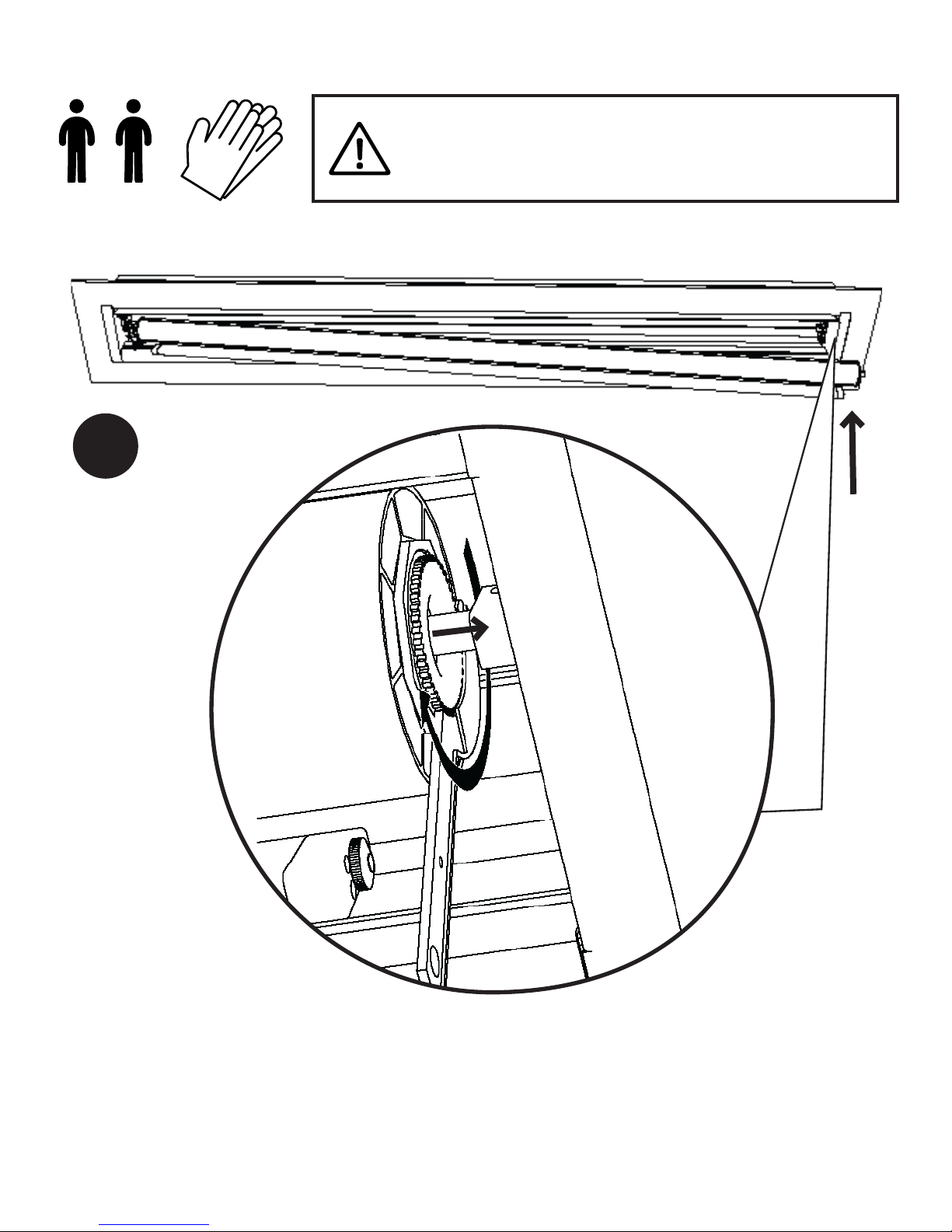

INSTALL SCREEN
Raise the right end up and align the idler shaft with the bushing on the right side
of the case, then turn the teeth on the idler clockwise to extend the idler shaft
into the bushing hole. Keep turning until the you feel the teeth stop.
3
2+
WEAR GLOVES WHEN HANDLING SCREEN
MATERIAL.

20
1
RECONNECT POWER AND CONTROLS
Plug in the motor control, power, and grounding wires making sure all cables are
routed away from the moving tube.
