Sibel OVERTONE User manual

1. APPLICATION
Hand held microprocessor metal detector OVERTONE is intended for
detection of metal objects in dielectric and poorly conducting mediums.
Metal detector is intended for operation under the following
environmental conditions:
- relative humidity: up to 98 % (temperature +25°С)
- atmospheric pressure: from 630 to 800 mm mercury
- operating temperatures: -10 ... +45°С
2. BASIC COMPLETE SET
1. Metal detector - 1
2. Storage battery - 4 (set)
3. Case for transportation and storage - 1
4. Charger for storage batteries - 1
5. Operating manual - 1
3. MAIN SPECIFICATIONS
1. Maximal distance of the metal objects detection, cm:
Sensitivity
MAX MIN
Makarov pistol 30 22
RGD grenade 26 13
Stainless knife (blade 20 cm) 20 10
Safe razor blade 5 2
Screw M3х7 6 2
Brass plate (130х80 mm) 25 17
Copper disk (∅25х2 mm) 14 7
Bullet (calibre 7,62 mm) 8 5
Golden ring (∅16, 1g) 5 3
Silver ring (∅16, 4g) 5 4
2. Power supply
(4 standard storage batteries or AA elements), V 4,8 - 6
3. Operating time
powered from one set of storage batteries
at the temperature of 20°С, hour, no less 20
4. Dimensions, mm 410х140х60
5. Weight
(with the set of storage batteries), g, no more 350

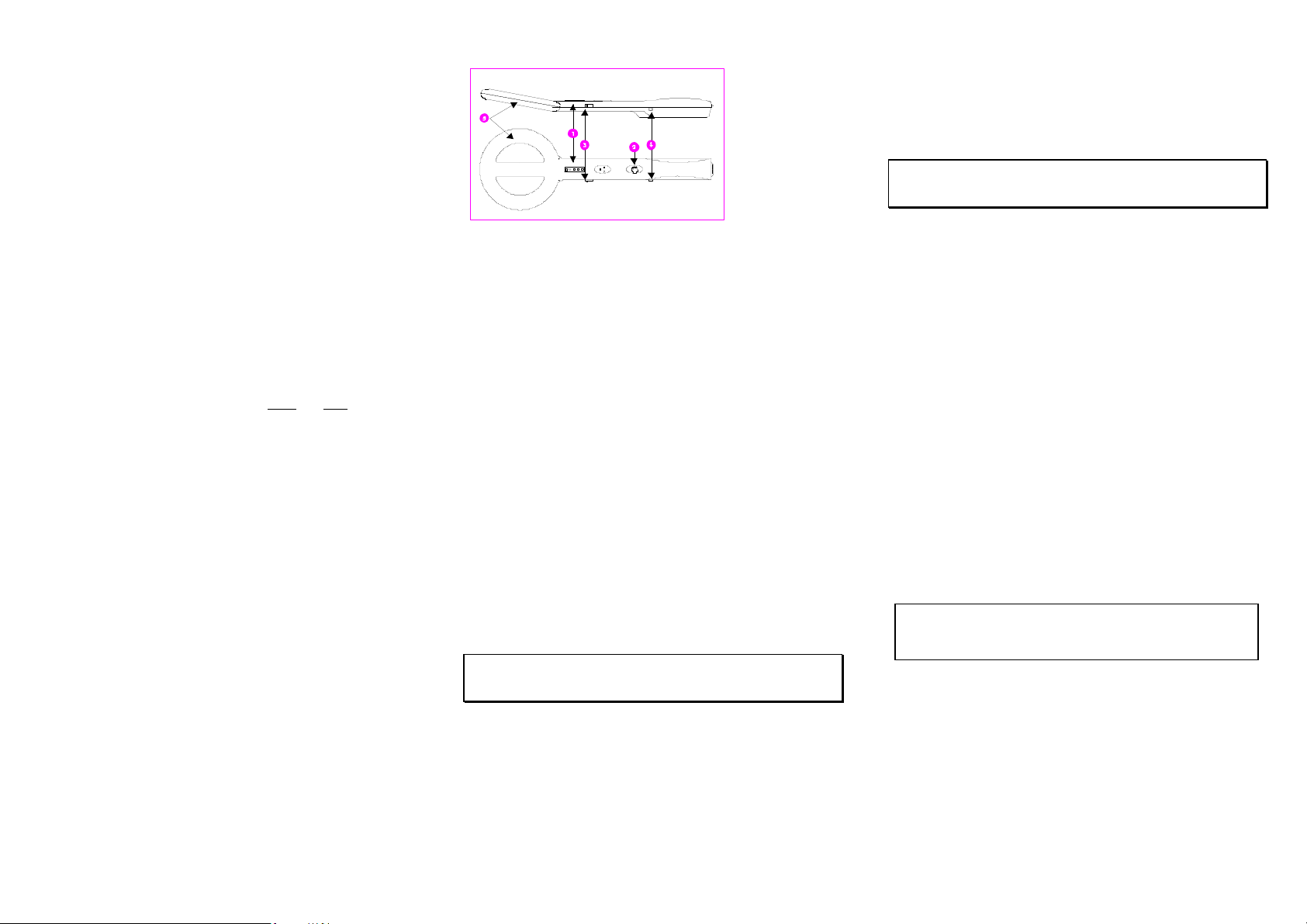

4. BRIEF DESCRIPTION
1. LED bar indicator (indicator of the signal level, power voltage and
operating mode)
2. Power button
3. Sensitivity level switch
4. Charger connector
5. Detector’s antenna disk
Detector is equipped with audio-visual indication of metal detection.
Detector is equipped with the switch of sensitivity levels (2 levels), which
are used depending on the purposes of search or examination.
The casing of detector is made of break-resistant plastics.
Detector is able to adjust itself to the environmental conditions.
There is a storage batteries charge level control in the detector.
During 1 second after power switching on LEDs glow, indicating a value
of power voltage: glowing of all LEDs corresponds to a voltage of 6 V,
glowing of one LED - voltage of 4 V; if the voltage is under 4 V, the
detector becomes non-operable, gives 5 single-tonal sound signals and
then switches off.
Detector is protected by the program from durable overloading of
receiving signal. In case of constant LED glowing during 15 seconds,
detector automatically switches off with a characteristic sound.
5. PREPARATION FOR WORK AND OPERATION
WITH THE DETECTOR
1. Open the battery compartment and insert the elements, observing a
polarity, indicated on the casing.
2. Get the detector from large metal objects for more than 50 cm. Switch
on the device by the power button. LED indicator should be on for one
second accompanying with the triple sound signal.
ATTENTION!
Constant LEDs glowing and steady sound signal indicate the presence
of large metal objects near the detector (see p. 5.2.)
3. The device is ready to operate.
4. Red mark at the sensitivity level switch corresponds to the maximal
sensitivity.
5. Recommended speed of scanning by the detector is from 0,5 to 1 m/s.
When operating, place the detector’s antenna parallel to the scanned
object at the distance from 5 to 15 cm.
In order to avoid false alarms, make sure that no large metal
objects are in the examined area in a radius of about 1,5 m, and that there
is no other metal detector (low frequencies generator) working in a radius
of 4 m.
6. Upon operation completion switch off the detector by the same power
button.
Switching off the detector is accompanied by a sound signal, all LEDs
flash and blow out fluently.
If the detector stays operating and no sound or visual alarms occur, it will
automatically switch off in 5 minutes with a characteristic sound.
7. During the operating process short clicks are heard, indicating the
operability of the device. Short clicks’ frequency increases while storage
batteries discharging.
ATTENTION!
It is allowed to use power supply elements of AA type (batteries)
instead of storage batteries.
6. TRANSPORTATION AND STORAGE
1. Complete set of the detector can be transported by any kind of
transport.
2. Transportation is allowed under the air temperature from -30 °Сto
+50 °Сand maximal air humidity no more than 98% (temperature
+25°С).
3. Under the sharp change of temperature, keep the detector switched off
and unpacked within one hour.
4. Under long-term storage keep the detector in the case for transportation
and storage.
5. Long-term storage of the detector is allowed in dry heated places at air
temperature from +5 °Сto +30 °Сand maximal air humidity no more
than 80% (temperature +25°С).
7. OPERATION WITH THE CHARGER
1. Switch off the detector.
2. Make sure, that the detector is charged exactly by the storage batteries.
3. Connect the charger connector to the detector’s socket.
4. Connect the charger to the main of 220 V – the LED at the charger’s
block lights up.
6. Switch on the detector.
During the storage batteries charging the LED indicates the charging
process and the batteries’ supply level.
Charging process lasts for 15 hours.
ATTENTION!
To provide maximal period of storage batteries exploitation,
charge only fully discharged storage batteries!
8. HOW TO USE SENSITIVE PROPERTIES OF THE
DEVICE TO THE BEST ADVANTAGE
1. In case of constant glowing of all LEDs, increase the distance between
the detector’s antenna and scanned objects or (and) set the detector to the
lowest sensitivity mode - put the sensitivity level switch to the position
farthest from the detector’s antenna.
2. To increase the detector’s sensitivity decrease the distance between the
detector’s antenna and scanned objects or set the detector to the maximal
sensitivity mode (see p. 5.4.).

9. POSSIBLE FAULTS AND THEIR ELIMINATION
FAULT REASON RECOMMENDATIONS
The detector does
not switch on
The polarity of AA
elements is not
observed
Insert AA elements
according to the figure at
the detector’s corpus
The LED blinks
five times
simultaneously with
five sound signals,
the detector
switches off
The storage batteries
Or AA elements are
discharged
Charge the storage
batteries
Or replace AA elements
Constant sound
alarm is heard
during 15 seconds
at switching on the
detector and the
detector switches
off
Large metal object
is located near the
detector.
Get the detector from the
large metal objects for
more than 50 cm.
The LED indicator
does not glow at the
charger’s block
There is no circuit
voltage Or the
charger is broken
Refer to repair shop or to
the Supplier
10. GUARANTEE
1. Guarantee period - 36 months from the date of sale.
2. Manufacturer assures the detector’s operability in accordance with
main specifications if all the hereabove requirements are observed by the
customer.
3. Customer should pass the detector to the Manufacturer for guarantee
repair via the Supplier.
4. Manufacturer does not bear guarantee obligations in case of injury of
the detector’s seals.
5. Storage batteries set is not a subject of the present guarantee.
Manufacturer: Sibel Ltd.
Russia, 630117, Novosibirsk, Arbuzov 1/1
Tel.: [phone]
fax: [phone]
E-mail: [email protected]
11. PACKING CERTIFICATE
Hand held microprocessor metal detector OVERTONE, serial number
________________is packed by Sibel Ltd. according to the requirements
given in technical documentation.
Date of packing ________________________
Packed by______________ _______________
Signature, Stamp
