SICK Flexi Classic User manual

OPERATING INSTRUCTIONS
Flexi Classic
Safety controller

Described product
Flexi Classic
Manufacturer
SICK AG
Erwin-Sick-Str. 1
79183 Waldkirch
Germany
Legal information
This work is protected by copyright. Any rights derived from the copyright shall be
reserved for SICK AG. Reproduction of this document or parts of this document is
only permissible within the limits of the legal determination of Copyright Law. Any modi‐
fication, abridgment or translation of this document is prohibited without the express
written permission of SICK AG.
The trademarks stated in this document are the property of their respective owner.
© SICK AG. All rights reserved.
Original document
This document is an original document of SICK AG.
2O P E R A T I N G I N S T R U C T I O N S | Flexi Classic 8011509/1IWE/2023-05-17 | SICK
Subject to change without notice

Contents
1 About this document........................................................................ 7
1.1 Purpose of this document........................................................................ 7
1.2 Scope......................................................................................................... 7
1.3 Target groups of these operating instructions........................................ 7
1.4 Symbols and document conventions...................................................... 7
2 Safety information............................................................................ 11
2.1 General safety notes................................................................................ 11
2.2 Intended use............................................................................................. 11
2.3 Requirements for the qualification of personnel.................................... 12
3 Product description........................................................................... 13
3.1 Specific features....................................................................................... 13
3.2 Design........................................................................................................ 14
3.2.1 Main module UE410-MU......................................................... 14
3.2.2 Main module UE410-GU......................................................... 14

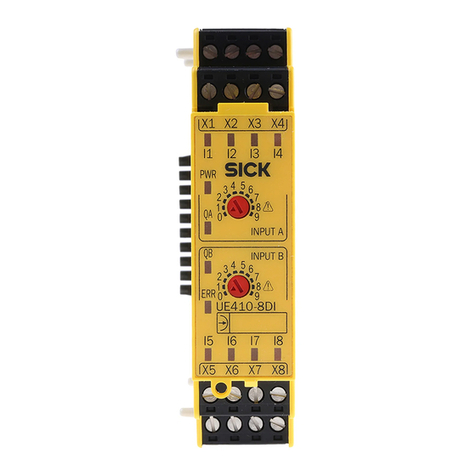

3.2.3 Input expansion module UE410-8DI...................................... 15
3.2.4 Input/output extension module UE410-XU............................ 15
3.2.5 UE410-2RO/UE410-4RO output modules............................. 16
3.2.6 Gateways.................................................................................. 16
3.2.7 Module overview, adjustments and facilities for connecting
sensors..................................................................................... 16
3.3 Main module UE410-MU.......................................................................... 18
3.3.1 Operating elements and status indicators............................. 21
3.3.2 Terminal assignment............................................................... 22
3.3.3 Outputs..................................................................................... 22
3.4 Main module UE410-GU.......................................................................... 23
3.4.1 Operating elements and status indicators............................. 24
3.4.2 Terminal assignment............................................................... 25
3.4.3 Global emergency stop with the UE410-GU........................... 25
3.4.4 Local emergency stop on the UE410-GU............................... 27
3.4.5 Inputs........................................................................................ 28
3.4.6 Outputs..................................................................................... 28
3.4.7 Connection of one UE410-8DIswitch.................................... 29
3.4.8 Power-up delay and response time of the UE410-GU........... 29
3.4.9 Diagnostics and troubleshooting for the UE410-GU............. 30
3.5 UE410-SD main module.......................................................................... 31
3.5.1 Status indicators...................................................................... 31
3.5.2 Terminal assignment............................................................... 33
3.5.3 Wiring the inputs...................................................................... 34
3.5.4 Wiring the outputs................................................................... 35

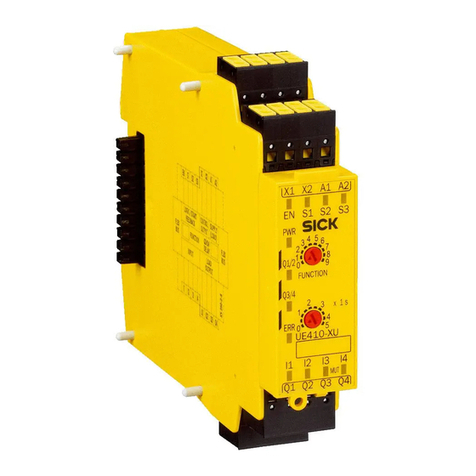

3.6 UE410-XU module.................................................................................... 35
3.6.1 Operating elements and status indicators............................. 35
3.7 UE410-MU/UE410-XU programs............................................................. 36
CONTENTS
8011509/1IWE/2023-05-17 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi Classic 3
Subject to change without notice

3.7.1 Program1................................................................................. 37
3.7.2 Program2................................................................................. 38
3.7.3 Programs3.1 and3.2............................................................. 39
3.7.4 Program4................................................................................. 40
3.7.5 Programs5.1 and 5.2............................................................. 41
3.7.6 Program6................................................................................. 42
3.7.7 Program7................................................................................. 43
3.7.8 Program8................................................................................. 44
3.7.9 Program9................................................................................. 45
3.7.10 Connection of sensors to the UE410-MU/UE410-XU............ 46
3.8 UE410-GU programs................................................................................ 47
3.9 UE410-8DI input exptension module...................................................... 50
3.9.1 AND link.................................................................................... 50
3.9.2 OR link...................................................................................... 51
3.9.3 Bypass...................................................................................... 52
3.9.4 Reciprocal assignment — Mirror mode.................................. 52
3.9.5 Connection of sensors to the UE410-8DI.............................. 53
3.9.6 Operating elements and status indicators............................. 54
3.9.7 Inputs and outputs.................................................................. 55
3.10 UE410-2RO/UE410-4RO output modules.............................................. 55
3.10.1 Output module UE410-2RO.................................................... 56
3.10.2 Output module UE410-4RO.................................................... 56
3.10.3 Operating elements and status indicators............................. 57
3.10.4 UE410-2RO inputs and outputs............................................. 57
3.10.5 UE410-4RO inputs and outputs............................................. 58
4 Special applications and functions................................................. 59
4.1 RE300 magnetic safety switch................................................................ 59
4.2 IN4000 inductive safety switch............................................................... 60
4.3 Testable single-beam photoelectric safety switches.............................. 61
4.4 Two-hand operation/inching mode.......................................................... 64
4.5 OR function............................................................................................... 65
4.6 Muting function......................................................................................... 66
4.6.1 Muting with two sensors......................................................... 67
4.6.2 Muting cycle............................................................................. 67
4.6.3 Muting sensors........................................................................ 67
4.7 Placement of muting sensors.................................................................. 68
4.7.1 Muting with two sensors (a sensor pair), crossed place‐
ment......................................................................................... 69
4.7.2 4-sensor muting, sequential layout........................................ 70
4.7.3 Muting with UE410-MU/UE410-XU........................................ 70
4.8 SICK muting sensors................................................................................ 71
4.9 Bypass....................................................................................................... 71
4.10 Wiring S1, S2, S3...................................................................................... 72
4.10.1 Operation with restart interlock.............................................. 72
4.10.2 Operation without restart interlock........................................ 72
CONTENTS
4O P E R A T I N G I N S T R U C T I O N S | Flexi Classic 8011509/1IWE/2023-05-17 | SICK
Subject to change without notice

4.10.3 Operation with external device monitoring (EDM)................. 72
4.11 Retriggering of the delayed OSSDs.......................................................... 73
4.12 Grouping of subsystems........................................................................... 75
4.13 ENABLE input............................................................................................ 76
5 Mounting............................................................................................. 77
5.1 Mounting the modules............................................................................. 77
5.2 Removing the modules............................................................................. 78
5.3 Removing the anti-manipulation cover.................................................... 79
6 Electrical installation........................................................................ 80
6.1 Electrical installation................................................................................ 80
7 Application and connection diagrams........................................... 82
7.1 L21 on the UE410-MU/XU....................................................................... 82
7.2 Emergency stop on the UE410-MU/XU................................................... 82
7.3 RE300 on the UE410-MU/XU.................................................................. 83
7.4 Two-hand IIIC on the UE410-MU/XU........................................................ 83
7.5 C2000 and emergency stop on the UE410-MU/XU, twohazardous
areas.......................................................................................................... 84
7.6 i11 on the UE410-MU/XU, two independent hazardous areas............. 84
7.7 IN4000 on the UE410-MU/XU................................................................. 85
7.8 C4000 on the UE410-MU/XU, 2-sensor muting..................................... 85
7.9 Global emergency stop with two UE410-GU........................................... 86
8 Configuration..................................................................................... 87
8.1 Accepting the system configuration........................................................ 87
9 Commissioning.................................................................................. 89
9.1 Changing the Telnet password................................................................. 89
9.2 Final acceptance of the application........................................................ 89
9.3 Checks before initial commissioning....................................................... 89
9.4 Regular thorough check of the protective device by qualified safety
personnel.................................................................................................. 90
10 Troubleshooting................................................................................. 91
10.1 Response to faults.................................................................................... 91
10.2 Replacement of a module........................................................................ 91
10.3 Fault indicators......................................................................................... 92
10.4 Anti-manipulation measures.................................................................... 93
11 Decommissioning............................................................................. 94
11.1 Disposal..................................................................................................... 94
12 Technical data.................................................................................... 95
12.1 Regular testing.......................................................................................... 95
12.2 Data sheet................................................................................................. 95
12.2.1 UE410-MU/UE410-XU modules............................................. 95
CONTENTS
8011509/1IWE/2023-05-17 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi Classic 5
Subject to change without notice

12.2.2 UE410-GU module................................................................... 99
12.2.3 Data sheet UE410-SD............................................................. 102
12.2.4 Input extension module UE410-8DI....................................... 104
12.2.5 UE410-2RO/UE410-4RO output modules............................. 107
12.3 Dimensional drawings.............................................................................. 110
13 Ordering information........................................................................ 113
13.1 Ordering information for modules........................................................... 113
13.2 Accessories/Spare parts.......................................................................... 115
13.2.1 Single-beam photoelectric safety switches............................ 115
13.2.2 Non-contact safety switches................................................... 116
13.2.3 Safety light curtains and multiple light beam safety devi‐
ces............................................................................................ 116
13.2.4 Safety laser scanners and safety camera system................. 116
13.2.5 Muting lamp and cable............................................................ 117
13.2.6 Anti-manipulation cover.......................................................... 117
14 Glossary.............................................................................................. 118
15 Annex.................................................................................................. 121
15.1 Conformities and certificates................................................................... 121
15.1.1 EU declaration of conformity................................................... 121
15.1.2 UK declaration of conformity.................................................. 121
15.2 Checklist for initial commissioning and commissioning........................ 121
16 List of figures..................................................................................... 123
17 List of tables....................................................................................... 125
CONTENTS
6O P E R A T I N G I N S T R U C T I O N S | Flexi Classic 8011509/1IWE/2023-05-17 | SICK
Subject to change without notice

1 About this document
1.1 Purpose of this document
These operating instructions are designed to address the technical personnel of the
machine manufacturer or the machine operator in regards to safe mounting, configu‐
ration, electrical installation, commissioning, operation and maintenance of the Flexi
Classic modular safety control.
These operating instructions do not provide instructions for operating machines on
which the safety controller is, or will be, integrated. For information about this, refer to
the operating instructions of the specific machine.
1.2 Scope
Product
These operating instructions are original operating instructions.
These operating instructions are valid for all FlexiClassic safety controller modules with
the following type label entry in the Operating Instructions field: “E-01” or higher.
Document identification
Document part number:
•This document: 8011509
•Available language versions of this document: 8011562
You can find the current version of all documents at www.sick.com.
1.3 Target groups of these operating instructions
Some sections of these operating instructions are intended for certain target groups.
However, the entire operating instructions are relevant for intended use of the product.
Table 1: Target groups and selected sections of these operating instructions
Target group Sections of these operating instructions
Project developers (planners, developers,
designers)
"Configuration", page 87
"Technical data", page 95
Installers "Mounting", page 77
Electricians "Electrical installation", page 80
Safety experts (such as CE authorized repre‐
sentatives, compliance officers, people who
test and approve the application)
"Configuration", page 87
"Commissioning", page 89
"Technical data", page 95
Operators "Troubleshooting", page 91
Maintenance personnel "Troubleshooting", page 91
1.4 Symbols and document conventions
The following symbols and conventions are used in this document:
Safety notes and other notes
DANGER
Indicates a situation presenting imminent danger, which will lead to death or serious
injuries if not prevented.
ABOUT THIS DOCUMENT 1
8011509/1IWE/2023-05-17 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi Classic 7
Subject to change without notice

WARNING
Indicates a situation presenting possible danger, which may lead to death or serious
injuries if not prevented.
CAUTION
Indicates a situation presenting possible danger, which may lead to moderate or minor
injuries if not prevented.
NOTICE
Indicates a situation presenting possible danger, which may lead to property damage if
not prevented.
NOTE
Indicates useful tips and recommendations.
Instructions to action
►The arrow denotes instructions to action.
1. The sequence of instructions for action is numbered.
2. Follow the order in which the numbered instructions are given.
✓The check mark denotes the result of an instruction.
LED symbols
These symbols indicate the status of an LED:
oThe LED is off.
ÖThe LED is flashing.
OThe LED is illuminated continuously.
Symbols for sensors
Table 2: Sensor symbols
Icon Sensors
Electro-mechanical safety switches
Emergency stop pushbutton
Electro-sensitive protective equipment (ESPE)
Testable sensors (e.g. photoelectric switches)
Inductive safety sensors (e.g. IN4000)
Two-hand operating panel (IIIA)
1 ABOUT THIS DOCUMENT
8O P E R A T I N G I N S T R U C T I O N S | Flexi Classic 8011509/1IWE/2023-05-17 | SICK
Subject to change without notice

Icon Sensors
Two-hand operating panel (IIIC)
Inching mode via two-hand operating panel (IIIA) (time limit 5s)
Muting lamp and Reset required lamp (not monitored)
Lamp permanently ON: Muting active
Lamp flashing 1Hz: Reset required
Pressure sensitive mats (4-wire system)
Reset button
Flexi Loop
Table 3: Module function symbols
Icon Module functions
Bypass function with electromechanical, dual-channel, equivalent switch (e.g.
enabling switch),
Bypass function limited to 60s
Muting station with two inputs for muting sensors
Retriggering
Monitored semiconductor output
Off delay
ENABLE (EN)
Table 4: Input assignment symbols
Icon Input assignment
Single channel N/C contact
Single-channel N/C contact, cross-circuit detecting
Single-channel N/C contact at two inputs
Dual-channel N/C contact, equivalent, cross-circuit detecting, with monitoring of
synchronization (1,500ms)
ABOUT THIS DOCUMENT 1
8011509/1IWE/2023-05-17 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi Classic 9
Subject to change without notice

Icon Input assignment
Dual-channel N/C contact, equivalent, cross-circuit detection
Dualchannel N/C contact, equivalent
Dual-channel N/C / N/O contact, complementary, cross-circuit detecting
Dual-channel N/C / N/O contact, complementary, cross-circuit detecting, with
monitoring of synchronization (1,500ms), (e.g. magnetically coded switch
RE300)
Dual-channel semiconductor input, monitored (ESPE)
Single-channel N/C contact/semiconductor input (e.g. testable sensors)
Switching mats, pressure-sensitive (4-wire system)
Table 5: Logic symbols
Icon Logic
OR link
AND link
1 ABOUT THIS DOCUMENT
10 O P E R A T I N G I N S T R U C T I O N S | Flexi Classic 8011509/1IWE/2023-05-17 | SICK
Subject to change without notice

2 Safety information
2.1 General safety notes
Product integration
DANGER
The product can not offer the expected protection if it is integrated incorrectly.
►Plan the integration of the product in accordance with the machine requirements
(project planning).
►Implement the integration of the product in accordance with the project planning.
Mounting and electrical installation
DANGER
Death or severe injury due to electrical voltage and/or an unexpected startup of the
machine
►Make sure that the machine is (and remains) disconnected from the voltage
supply during mounting and electrical installation.
►Make sure that the dangerous state of the machine is and remains switched off.
Repairs and modifications
DANGER
Improper work on the product
A modified product may not offer the expected protection if it is integrated incorrectly.
►Apart from the procedures described in this document, do not repair, open, manip‐
ulate or otherwise modify the product.
2.2 Intended use
The FlexiClassic modular safety controller is a configurable controller for safety applica‐
tions.
Opto-electronic and tactile safety sensors (e.g. light curtains, laser scanners, safety
switches, sensors, emergency stop pushbuttons) are connected and logically linked to
the modular safety controller. The corresponding actuators of the machines or systems
can be switched off safely via the switching outputs of the safety controller.
The category according to ISO13849 or the SIL according to IEC61508 and IEC62061
depend on the external wiring, the type of wiring, the choice of control switches and
their arrangement on the machine.
The device corresponds to up to category 4 according to ISO13849, applications can
reach up to SIL3 according to IEC61508/IEC62061 or PLe according to ISO13849.
The emergency stop function of the device corresponds to stop category 0 or 1 accord‐
ing to EN60204--1.
To meet the safety-related parameters of SIL3 according to IEC61508, the following
proof testing must be performed at least every 365days:
•The supply voltage of the FlexiClassic system must be switched off.
•The supply voltage of the FlexiClassic system must be switched on.
•All safety functions of all connected sensors must be verified.
SAFETY INFORMATION 2
8011509/1IWE/2023-05-17 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi Classic 11
Subject to change without notice

The connected control switches or safety sensors as well as the routing must comply
with the required category.
The FlexiClassic safety controller has been tested according to UL508.
The product may be used in safety functions.
The product is only suitable for use in industrial environments.
The product must only be used within the limits of the prescribed and specified techni‐
cal specifications and operating conditions at all times.
Incorrect use, improper modification or manipulation of the product will invalidate any
warranty from SICK; in addition, any responsibility and liability of SICK for damage and
secondary damage caused by this is excluded.
2.3 Requirements for the qualification of personnel
The product must be configured, installed, connected, commissioned, and serviced by
qualified safety personnel only.
Project planning
You need safety expertise to implement safety functions and select suitable products
for that purpose. You need expert knowledge of the applicable standards and regula‐
tions.
Mounting, electrical installation and commissioning
You need suitable expertise and experience. You must be able to assess if the machine
is operating safely.
Configuration
You need suitable expertise and experience. You must be able to assess if the machine
is operating safely.
Operation and maintenance
You need suitable expertise and experience. You must be instructed in machine oper‐
ation by the machine operator. For maintenance, you must be able to assess if the
machine is operating safely.
2 SAFETY INFORMATION
12 O P E R A T I N G I N S T R U C T I O N S | Flexi Classic 8011509/1IWE/2023-05-17 | SICK
Subject to change without notice

3 Product description
3.1 Specific features
Figure 1: Flexi Classic modular safety controller
The Flexi Classic series is a safety controller concept comprising different modules
that can be interconnected individually. This allows the system to be extended to up to
104inputs or outputs.
Each of these modules has a compact width of 22.5mm. The units are of plug-in style
with communication between the individual units over an internal bus.
The required logic and function is specified by means of rotary switches on the mod‐
ules. An exception thereof are the relay modules and the fieldbus modules that are
used for integration in a higher level controller without a safety function. These modules
are output units and have no effect on the logic set or the function of the upstream
units.
The Flexi Classic series consists of the following modules:
•Main module UE410-MU
•Main module UE410-GU
•Input/output extension module UE410-XU
•Input expansion module UE410-8DI
•Output modules UE410-2RO and UE410-4RO
•Gateways, e.g.
– UE410-PRO (PROFIBUSDP)
– UE410-DEV (DeviceNet)
– UE410-CAN (CANopen)
– UE410-EN1 (EtherNet/IP)
– UE410-EN3 (Modbus® TCP )
– UE410-EN4 (PROFINET IO)
PRODUCT DESCRIPTION 3
8011509/1IWE/2023-05-17 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi Classic 13
Subject to change without notice

3.2 Design
A Flexi Classic system always consists of a single main module (UE410-MU or UE410-
GU) and, if necessary, additional input and output extensions as well as a correspond‐
ing bus module.
Main module
4 inputs/4 outputs
Input/output
extension module
4 inputs/4 outputs
Input extension module
8 inputs
Output module
2/4 outputs
Gateway
UE410 2RO/
UE410 4RO
UE410 8DIUE410 XUUE410 MU E.g. UE4100PRO, UE410-DEV,
UE410-CAN (see operating
instructions Flexi Classic
Gateways)
Fieldbus
Figure 2: Flexi Classic safety controller system construction (example with UE410-MU)
3.2.1 Main module UE410-MU
The UE410-MU is the main module in which the system configuration of the entire Flexi
Classic system is stored.
The UE410-MU has 4 safety inputs, 4 semiconductor outputs and 2 test outputs. The
9 programs that are available can be set by means of rotary switches that ensure the
connection of a large number of safety components. Functions such as EDM, restart,
etc. are selected by means of the wiring of S1, S2 and S3. The UE410-MU can control
two applications acting independently as well as two applications that are dependent
on each other.
The devices listed in the following can be connected to the UE410-MU and the modules
connected to it:
•Emergency stop pushbutton
•Pressure sensitive mats
•Two-hand controllers
•Safety switches
•Non-contact safety switches (e.g. RE300, T4000 Compact, IN4000)
•Safety single-beam sensors (e.g. L21, L41)
•Safety light curtains and safety multibeam sensors (e.g. MSL, miniTwin, C/M2000,
C/M4000)
•Safety laser scanners and safety camera sensors (e.g. S300, V300, S3000)
Typical applications such as muting and OR links can be implemented simply, depend‐
ing on the setting of the program switch. If additional inputs or outputs are required,
the UE410-MU can be supplemented with a UE410-XU input/output expansion module
and/or one or several UE410-8DI input expansion modules.
If relay outputs are required, these can be implemented with the UE410-2RO/
UE410-4RO output modules.
3.2.2 Main module UE410-GU
The UE410-GU is a main module that can be used as an alternative to the UE410-MU.
As in the UE410-MU, the system configuration for the entire Flexi Classic system is
saved in the UE410-GU. The UE410-GU makes possible a global emergency stop
function for several stations connected together that must each be equipped with a
UE410-GU. A local emergency stop is also possible on each UE410-GU.
3 PRODUCT DESCRIPTION
14 O P E R A T I N G I N S T R U C T I O N S | Flexi Classic 8011509/1IWE/2023-05-17 | SICK
Subject to change without notice

The UE410-GU has 4safety capable inputs (I1-I4), 1semiconductor output (Q1), 1out‐
put for a lamp for “Global emergency stop status” and “Reset required” (Q2), 2test
outputs (X1, X2) and 2inputs and 2outputs for the global emergency stop function (IP,
IN, OP and ON). The safe control inputs I5 and I6 are used to connect external device
monitoring and a reset button. The 9available programs can be set using a rotary
switch and make it possible to connect a variety of safety components.
The following devices can be connected to the UE410-GU:
•Emergency stop pushbutton
•Interlock safety switch
•Non-contact safety switches (e.g. RE300, T4000 Compact)
•Safety single-beam sensors (e.g. L21, L41)
•Safety light curtains and safety multibeam sensors (e.g. MSL, miniTwin, C/M2000,
C/M4000)
•Safety laser scanners and safety camera sensors (e.g. S300, V300, S3000)
If additional inputs are required, the UE410-GU can be supplemented with one or more
UE410-8DI input expansion modules.
The UE410-GU can also be expanded with a UE410-XU. This module does not act on
the global emergency stop.
If relay outputs are required, these can be implemented with the UE410-2RO/
UE410-4RO output modules.
NOTE
The UE410-GU does not support all data sets from all gateways.
3.2.3 Input expansion module UE410-8DI
The UE410-8DI module is an input expansion with 8inputs that can be linked using the
OR, AND or Bypass logic function to the respectively upstream UE410-MU, UE410-GU
or UE410-XU module. The 9switch settings of the UE410-8DI rotary switch determine
which safety components can be connected to the UE410-MU/GU/XU and which type
of logic is used. The input expansion module UE410-8DI acts exclusively on the next
UE410-MU, UE410-GU or UE410-XU module positioned to the left in the module struc‐
ture, thus forming a function group. It is allowed to connect a maximum of 8 UE410-8DI
modules to a UE410-MU, UE410-GU or UE410-XU.
For more information, see "Grouping of subsystems", page 75.
3.2.4 Input/output extension module UE410-XU
The UE410-XU module is an input/output expansion module with 4safety capable
inputs, 4semiconductor outputs and 2test outputs. It has the same switch settings,
logic functions and facilities for connecting sensors as the UE410-MU. In contrast to
the UE410-MU and UE410-GU, the UE410-XU cannot store the system configuration.
NOTE
•A UE410-XU can only be operated in combination with a UE410-MU or UE410-GU
main module.
•A main module and a UE410-XU can be linked logically with each other, thus form‐
ing a subsystem (for further information see section "Grouping of subsystems",
page 75.
PRODUCT DESCRIPTION 3
8011509/1IWE/2023-05-17 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi Classic 15
Subject to change without notice

3.2.5 UE410-2RO/UE410-4RO output modules
The UE410-2RO/UE410-4RO output extensions make one or two dual-channel, con‐
tact-based outputs available. They do not have any influence on the specified logic
instructions of a system construction and are controlled by the UE410-MU, UE410-GU
or UE410-XU outputs.
3.2.6 Gateways
Gateways (fieldbus modules) can be added to the Flexi Classic modular system for
diagnostic purposes. They output the system configuration and the input/output states
as well as the error and status information of all the modules.
Several gateways are available, e.g.:
•UE410-PRO for PROFIBUSDP
•UE410-DEV for DeviceNet
•UE410-EN1 for EtherNet/IP
NOTE
The UE410-GU does not support all data sets from all gateways.
You will find a complete list of all gateways and the data sets supported in the operating
instructions “Flexi Classic Gateways” or in the Internet on our homepage www.sens-con‐
trol.com.
All gateways have 4non-safe application diagnostic outputs. The outputs are short-cir‐
cuit protected (see also the Flexi Classic Gateways operating instructions).
3.2.7 Module overview, adjustments and facilities for connecting sensors
Table 6: Module overview
Module Description
UE410-MU •Main unit of the Flexi Classic modular safety control‐
ler
•4safe inputs and 4safe outputs
•Storage of the system configuration
UE410-GU •Main unit of the Flexi Classic modular safety control‐
ler
•Global emergency stop can be realized
•4safe inputs
•1safe output
•Storage of the system configuration
UE410-XU •Input/output extension/subsystem
•4safe inputs and 4safe outputs
•Identical functionality as UE410-MU
UE410-8DI •Input extension
•8safe inputs
•Information coupling to the upstream UE410-MU,
UE410-GU or UE410-XU module
UE410-2RO 2contacts (N/O), 1signal contact (N/C)
UE410-4RO 4contacts (N/O), 2signal contacts (N/C)
Flexi Classic gateways
e.g. UE410-PRO, UE410-DEV,
UE410-CAN
Status and diagnostics (information that is not safety
relevant) of a Flexi Classic system on a fieldbus (see
Flexi Classic Gateways operating instructions)
3 PRODUCT DESCRIPTION
16 O P E R A T I N G I N S T R U C T I O N S | Flexi Classic 8011509/1IWE/2023-05-17 | SICK
Subject to change without notice

Table 7: Overview of setting possibilities
Possibility of setting Can be set at the module Comments
ENTER pushbutton UE410-MU/UE410-GU Saving of all Flexi Classic system programs,
settings and wiring
Program 1-9 UE410-MU/UE410-GU/
UE410-XU
Selection of the safety sensors and of the
logic elements to be connected
Off delay 0-5s, 0-50s
or 0-300s
UE410-MU/UE410-XU Delays 1 or 2outputs on the module
3different variants available
(Not on UE410-xxxT0)
Switch setting 0-9 UE410-8DI Selection of the logic elements and of the
safety sensors to be connected
Table 8: Connection of sensors to the UE410-MU, UE410-XU and UE410-8DI
Sensor
Program
UE410-MU/UE410-
XU
UE410-8DI
A(I1/I2) B(I3/I4) A (I1-I4) B (I5-I8)
7, 8 1, 2, 7, 8,
9
1, 6, 7 1, 6, 7
7, 8 1, 2, 7, 8,
9
6, 7 6, 7
1, 5, 6, 9 5, 6 2, 3, 8 2, 3, 8
– – 4 4
2 – 5 5
1 – 2 2
3, 7, 8 1, 2, 7, 8,
9
6, 7 6, 7
3, 7, 8 1, 2, 7, 8,
9
6, 7 6, 7
3, 7, 8 1, 2, 7, 8,
9
6, 7 6, 7
4 4 – –
– 5.2 – –
PRODUCT DESCRIPTION 3
8011509/1IWE/2023-05-17 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi Classic 17
Subject to change without notice

Sensor
Program
UE410-MU/UE410-
XU
UE410-8DI
A(I1/I2) B(I3/I4) A (I1-I4) B (I5-I8)
– 5.1 – –
2 – 5 5
3 – – –
1, 5, 6, 7,
8
1, 2, 6, 7,
8, 9
2, 3, 6, 7,
8
2, 3, 6, 7,
8
3 – 1 1
3 3 – –
1, 5, 6, 9 5, 6 2, 3, 8 2, 3, 8
3.3 Main module UE410-MU
The UE410-MU main module is the main module of the Flexi Classic modular safety
controller. Only one UE410-MU can be integrated for each Flexi Classic system. A
UE410-MU can control up to two applications acting independently or two applications
that are dependent on each other.
In order to increase the number of inputs, one or more UE410-8DI extension modules
can be used additionally.
An additional UE410-XU module can be used in order to increase the number of
outputs (for further information refer to "Grouping of subsystems", page 75).
The system configuration is stored in the UE410-MU main module (ENTER pushbutton
to accept the program settings and system configuration) (for further information refer
to "Accepting the system configuration", page 87).
9programs that can be set with a screwdriver at the program switch are available.
3 PRODUCT DESCRIPTION
18 O P E R A T I N G I N S T R U C T I O N S | Flexi Classic 8011509/1IWE/2023-05-17 | SICK
Subject to change without notice

Q1 Q2 Q3 Q4
AB
Figure 3: Scheme programs 1-3
Q1 Q2 Q3 Q4
AB
Figure 4: Scheme program 4
Q1 Q2 Q3 Q4
AB
&
Figure 5: Scheme programs5-7, 9
PRODUCT DESCRIPTION 3
8011509/1IWE/2023-05-17 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi Classic 19
Subject to change without notice

Figure 6: Scheme program 8
The following functions can be set by selecting the program and wiring the terminals
S1, S2, and S3 at the module:
•Type of the logic and of the safety sensors to be connected
•Restart interlock
•External device monitoring (EDM)
Q1 and Q2 always switch off within the response time.
Using the lower rotary switch, you can select the switch-off delay Q31) and Q4 (depend‐
ing on the device variant 0-5s; 0-50s; 0-300s; not on UE410-xxxT0).
NOTE
The outputs are tested periodically in order to detect errors in the safety outputs Q1-Q4.
When using XU modules see section "Grouping of subsystems", page 75
For more information, see "UE410-MU/UE410-XU programs", page 36.
NOTE
Subsequent changes to the program or to the wiring (S1-S3) without saving will result in
a safety-related shutdown.
1) ) Q3 has various functions, see "UE410-MU/UE410-XU programs", page 36.
3 PRODUCT DESCRIPTION
20 O P E R A T I N G I N S T R U C T I O N S | Flexi Classic 8011509/1IWE/2023-05-17 | SICK
Subject to change without notice
