Siemens CP 5711 User manual

CP 5711
SIMATIC NET
PG/PC - PROFIBUS
CP 5711
Operating Instructions
12/2021
C79000
-G8976-C283-08
Preface
Description of the device
1
Software installation
2
Hardware installation
3
Configuration
4
Technical specifications
5
Approvals
A
Dimension drawing
B

Siemens AG
Digital Industries
Postfach 48 48
90026 NÜRNBERG
GERMANY
Document order number: C79000-G8976-C283
Ⓟ
07/2022 Subject to change
Copyright © Siemens AG 2021.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by personnel qualified for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.

CP 5711
Operating Instructions, 12/2021, C79000-G8976-C283-08 3
Preface
What the consignment contains
The following components are supplied with the CP 5711:
•CP 5711 communications processor
•USB cable
•2-pin, plug-in terminal strip for external 24 V power supply
Please check that the consignment you have received is complete. If it is not complete, please
contact your supplier or your local Siemens office.
Validity of this documentation
These operating instructions are valid for the following product:
•CP 5711
Article number: 6GK1 571-1AA00
Content of this documentation
These operating instructions contain information about the installation and configuration of
the CP 5711 communications processor.
Updated operating instructions on the Internet
You will find the current version of these operating instructions on the Product Support pages
under the following entry ID:
34803449 (https://support.industry.siemens.com/cs/ww/en/view/34803449)

Preface
CP 5711
4Operating Instructions, 12/2021, C79000-G8976-C283-08
Further documentation
The documents listed below contain more detailed information on commissioning and using
the communications processor. You will find this documentation on the Product Support
pages on the Internet under the following entry link:
Support (https://support.industry.siemens.com/cs/ww/en/ps)
Enter the entry ID shown below of the relevant manual as the search item.
•Configuration manual Commissioning PC Stations
This provides you with detailed information on commissioning and configuring SIMATIC
NET PC communications modules.
Entry ID:
109488960 (https://support.industry.siemens.com/cs/ww/en/view/109488960)
•System manual SIMATIC NET Industrial Communication with PG/PC
–Volume 1– Basics
Entry ID:
77376110 (https://support.industry.siemens.com/cs/ww/en/view/77376110)
–Volume 2– Interfaces
Entry ID:
77378184 (https://support.industry.siemens.com/cs/ww/en/view/77378184)
The system manuals introduce the topic of industrial communication and explain the
communications protocols used. There is also a description of the OPC interface as user
programming interface.
•Installation manual "SIMATIC NET PC Software"
This document contains detailed information on installing the "SIMATIC NET
PC Software".
Entry ID:
77377602 (https://support.industry.siemens.com/cs/ww/en/view/77377602)
•System manual PROFIBUS Network Manual
In this document you will find detailed information about setting up a PROFIBUS network.
Entry ID:
35222591 (https://support.industry.siemens.com/cs/ww/en/view/35222591)

Preface
CP 5711
Operating Instructions, 12/2021, C79000-G8976-C283-08 5
SIMATIC NET documentation
You will find the entire SIMATIC NET documentation on the pages of Product Support:
15247 (https://support.industry.siemens.com/cs/ww/en/ps/15247)
Go to the required product group and make the following settings:
→Entry list →Entry type "Manuals / Operating Instructions"
Trademarks
The following and possibly other names not identified by the registered trademark sign ® are
registered trademarks of Siemens AG:
HARDNET, SOFTNET, CP 5612, CP 5613, CP 5614, CP 5622
Industry Online Support
In addition to the product documentation, you are supported by the comprehensive online
information platform of Siemens Industry Online Support at the following Internet address:
(https://support.industry.siemens.com/cs/de/en/)
Apart from news, there you will also find:
•Project information: Manuals, FAQs, downloads, application examples etc.
•Contacts, Technical Forum
•The option submitting a support query:
(https://support.industry.siemens.com/My/ww/en/requests)
•Our service offer:
Right across our products and systems, we provide numerous services that support you in
every phase of the life of your machine or system - from planning and implementation to
commissioning, through to maintenance and modernization.
You will find contact data on the Internet at the following address:
(https://www.automation.siemens.com/aspa_app/?ci=yes&lang=en)

Preface
CP 5711
6Operating Instructions, 12/2021, C79000-G8976-C283-08
SITRAIN - Training for Industry
The training offer includes more than 300 courses on basic topics, extended knowledge and
special knowledge as well as advanced training for individual sectors - available at more than
130 locations. Courses can also be organized individually and held locally at your location.
You will find detailed information on the training curriculum and how to contact our
customer consultants at the following Internet address:
(www.siemens.com/sitrain)
Industrial Networks Education
Training and certification for Industrial Networks
In our Industrial Networks Education courses you’ll learn to design and implement wired and
wireless data networks and connect them to a corporate network. You will also receive
instruction on how to secure, diagnose and optimize communication networks. Certification
can also be offered to supplement almost all training courses.
Link: (https://www.siemens.com/industrial-networks-education)
Security information
Siemens provides products and solutions with industrial security functions that support the
secure operation of plants, systems, machines, and networks.
In order to protect plants, systems, machines and networks against cyber threats, it is
necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial
security concept. Siemens’ products and solutions form one element of such a concept.
Customers are responsible for preventing unauthorized access to their plants, systems,
machines and networks. These systems, machines and components should only be
connected to the enterprise network or the Internet if and only to the extent necessary and
with appropriate security measures (firewalls and/or network segmentation) in place.
You can find more information on protective measures in the area of industrial security by
visiting: (https://www.siemens.com/industrialsecurity).
Siemens’ products and solutions undergo continuous development to make them more
secure. Siemens strongly recommends performing product updates as soon as they are
available and using only the latest product versions. Use of product versions that are no
longer supported, and failure to apply latest updates may increase customer’s exposure to
cyber threats.
To stay informed about product updates, subscribe to the Siemens Industrial Security RSS
Feed under (https://www.siemens.com/industrialsecurity).

Preface
CP 5711
Operating Instructions, 12/2021, C79000-G8976-C283-08 7
SIMATIC NET glossary
The SIMATIC NET glossary describes terms that may be used in this document.
You will find the SIMATIC NET glossary in the Siemens Industry Online Support at the
following address: (http://support.automation.siemens.com/WW/view/en/50305045)
Decommissioning
Shut down the device properly to prevent unauthorized persons from accessing confidential
data in the device memory.
To do this, restore the factory settings on the device.
Recycling and disposal
The products are low in harmful substances, can be recycled and meet the requirements of
the Directive 2012/19/EU for disposal of waste electrical and electronic equipment (WEEE).
Do not dispose of the products at public disposal sites.
For environmentally compliant recycling and disposal of your electronic waste, please contact
a company certified for the disposal of electronic waste or your Siemens representative.
Note the different national regulations.

Preface
CP 5711
8Operating Instructions, 12/2021, C79000-G8976-C283-08

CP 5711
Operating Instructions, 12/2021, C79000-G8976-C283-08 9
Table of contents
Preface ................................................................................................................................................... 3
1 Description of the device..................................................................................................................... 11
1.1 Product characteristics ....................................................................................................... 11
1.2 PROFIBUS interface ............................................................................................................ 13
1.3 Meaning of the LED display................................................................................................ 14
2 Software installation ........................................................................................................................... 15
2.1 Installing the "SIMATIC NET PC Software"............................................................................ 15
2.2 Uninstalling the "SIMATIC NET PC Software" ....................................................................... 16
3 Hardware installation .......................................................................................................................... 17
3.1 Connecting to the PG/PC .................................................................................................... 17
3.2 Hardware compatibility...................................................................................................... 21
3.3 External power supply ....................................................................................................... 22
3.4 Installing on a DIN rail........................................................................................................ 24
4 Configuration....................................................................................................................................... 27
5 Technical specifications....................................................................................................................... 29
A Approvals............................................................................................................................................. 31
B Dimension drawing ............................................................................................................................. 37

Table of contents
CP 5711
10 Operating Instructions, 12/2021, C79000-G8976-C283-08

CP 5711
Operating Instructions, 12/2021, C79000-G8976-C283-08 11
Description of the device
1
1.1 Product characteristics
Properties

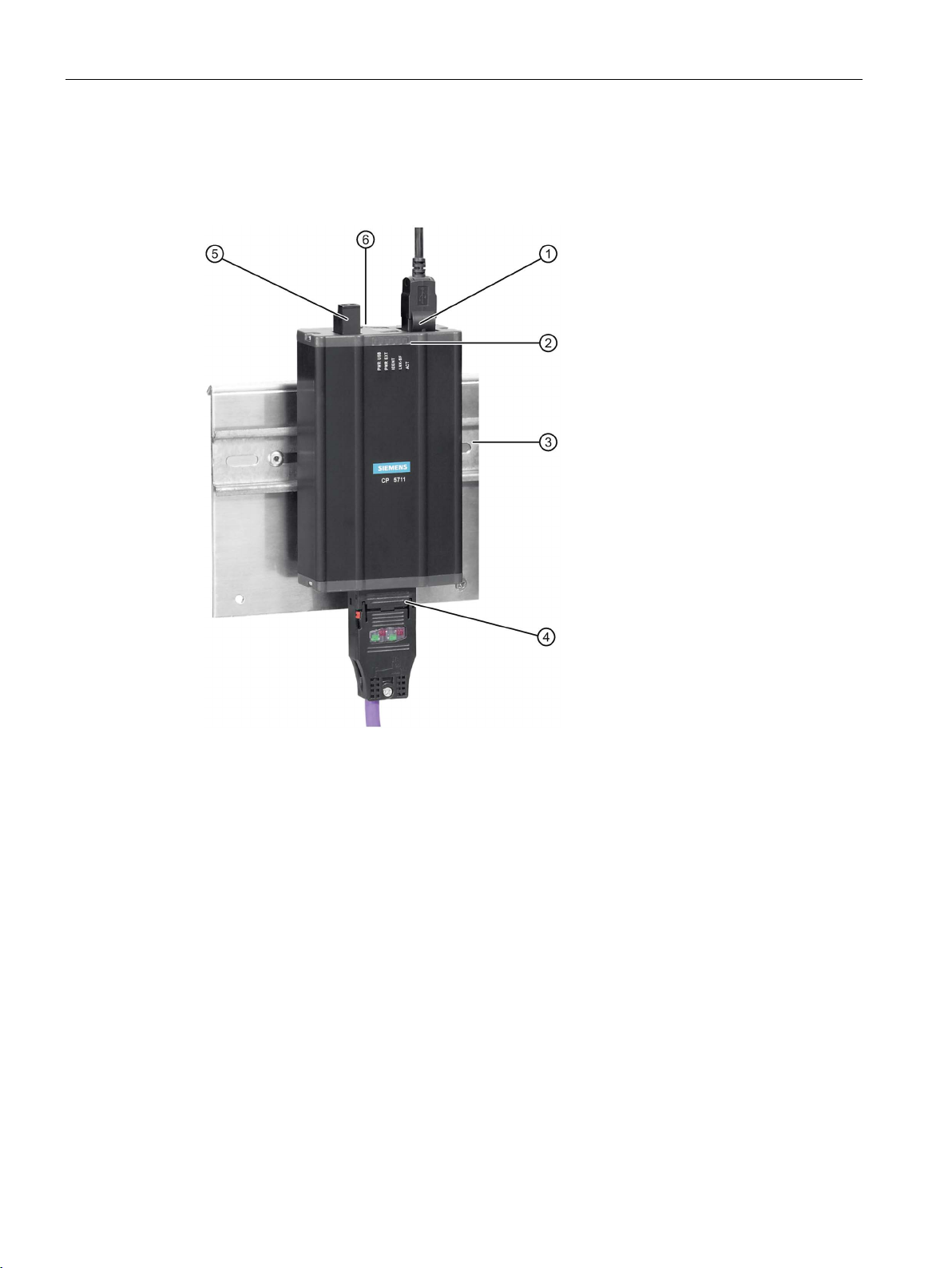

The CP 5711 is a communications processor for connecting PCs (personal computers) or PGs
(programming devices) to PROFIBUS and MPI networks. The essential properties are as
follows:
•Transmission speeds up to 12 Mbps.
•Floating RS-485 connector.
•Linking of up to 32 devices (PC, PG, SIMATIC S7 or ET 200) to form a network segment.
–By linking several segments with repeaters, up to 64 nodes can be connected.
•The additional interface signals for a direct link to a PLC (Programmable Logic Controller)
are supported up to 187.5 Kbps.
•Connection to PGs and PCs with a USB Interface:
–At the CP end: Type B with locking mechanism
–At the PG/PC end: Type A
–Plug and play
•With an additional DIN rail holder, the CP is suitable for mounting on a 35 mm DIN rail.

Description of the device
1.1 Product characteristics
CP 5711
12 Operating Instructions, 12/2021, C79000-G8976-C283-08
Appearance
The following figure shows the CP 5711 communications processor mounted on a 35 mm
DIN rail:
1
USB interface type B with USB cable
2
LEDs
3
DIN rail
4
PROFIBUS interface with D-sub male connector
5
Terminals for external 24 V power supply
6
Ground connection (cannot be seen in the figure)

Description of the device
1.2 PROFIBUS interface
CP 5711
Operating Instructions, 12/2021, C79000-G8976-C283-08 13
1.2 PROFIBUS interface
PROFIBUS network
The physical link between the PROFIBUS interface and the PROFIBUS network is via a floating
RS-485 interface that is part of the module. Depending on the network configuration, data
rates of 9.6 Kbps up to a maximum of 12 Mbps are possible in the PROFIBUS network.
Note
You will find information about the structure of a PROFIBUS network in the system manual
"PROFIBUS Network Manual". The document is part of the Manual Collection. You will also
find this on the Product Support pages under the following entry ID:
35222591 (
https://support.industry.siemens.com/cs/ww/en/view/35222591)

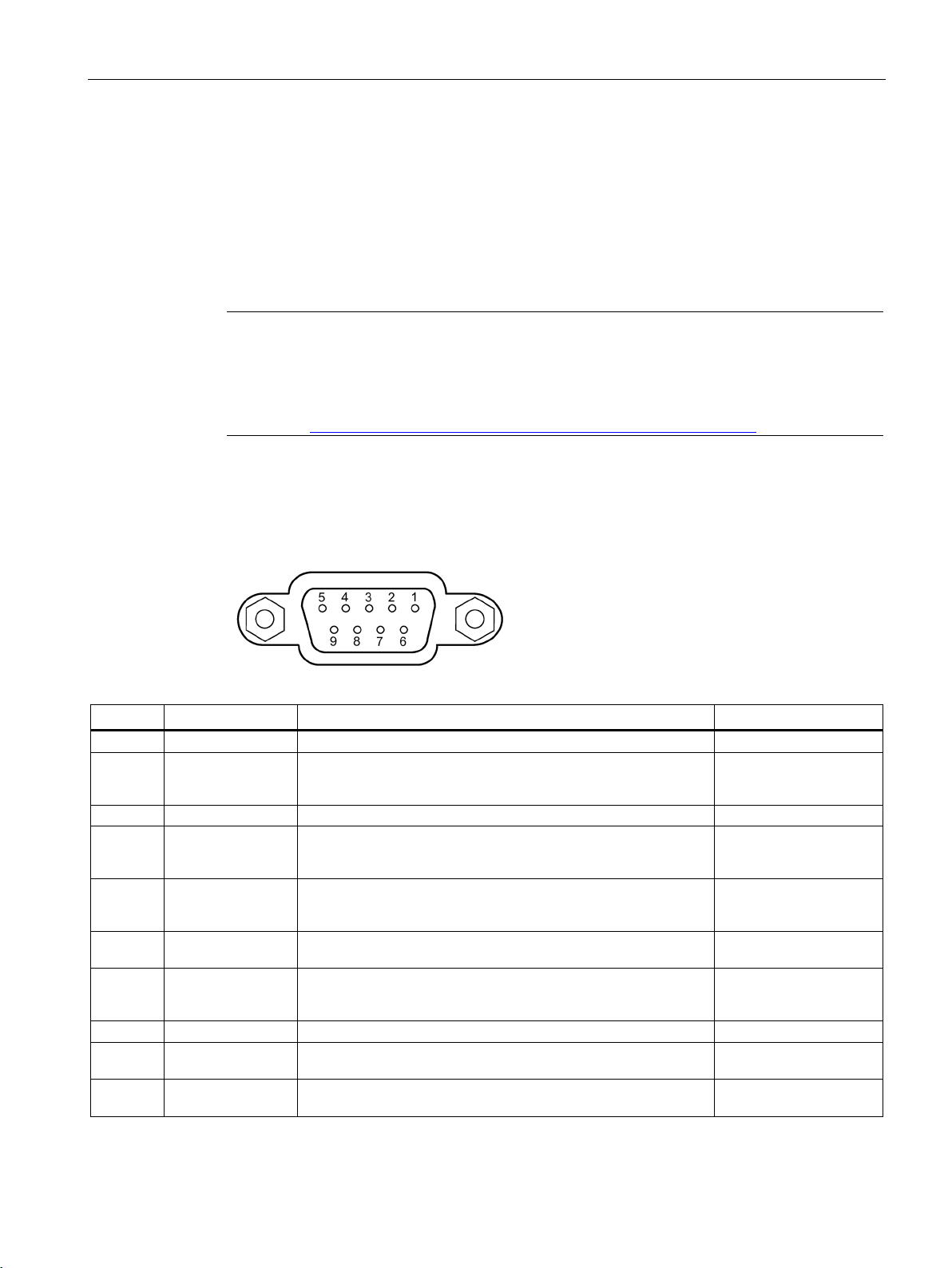

PIN assignment
The D-sub female connector has the following pin assignment:
PIN
Short name
Meaning
Input/output
1
NC
Socket pin 1 is not connected.
-
2
NC (M24)
Socket pin 2 is not connected. With other MPI/DP components,
the return line of the floating 24 V power supply may be via this
pin.
-
3
LTG_B
Signal line B of the PROFIBUS connector.
Input/output
4 RTSAS RTSAS, input signal for direct MPI link. The control signal is "1"
active when the automation system connected over a special
MPI cable is sending.
Input
5 M5EXT M5EXT return line (GND) of the 5 V power supply and reference
potential for the signals RTSAS and RTS of the PROFIBUS
interface.
Output
6 P5EXT P5EXT power supply (+5 V) for the 5 V power supply.
(only for bus termination)
Output
7
NC (P24V)
Socket pin 7 is not connected. With other MPI/DP components,
the P24V supply of the floating 24 V power supply may be via
this pin.
-
8
LTG_A
Signal line A of the PROFIBUS connector.
Input/output
9
RTS
RTS output signal of the CP module. The control signal is "1"
active when the device (PG or PC) is sending.
Output
Shield
The shield is connected to components of the connector
housing.

Description of the device
1.3 Meaning of the LED display
CP 5711
14 Operating Instructions, 12/2021, C79000-G8976-C283-08
1.3 Meaning of the LED display
LED display
The meaning of the LED display is as follows:
Labeling
Status
Meaning
PWR USB (green)
On
The CP is connected to an active USB connector
Off
There is no connection to an active USB connector
PWR EXT (green)
On
There is an additional power source connected to the CP via the external
power supply.
Off
There is no external power supply connected to the CP. Power is
supplied only via the active USB interface.
IDENT (green)
Flashes regularly
Identification of the CP 5711 to distinguish it from other CPs in the
same PG/PC
Using a relevant diagnostics function in the "Communications Settings"
configuration tool or the "Station Configuration Editor", you can activate
these LEDs for test purposes.
LNK/SF (green or red)
Green on
A node was detected on PROFIBUS
Red on
The CP 5711 is defective
Read flashing fast
Exception status; unexpected runtime error
Read flashing slowly
USB problem
Red flashes cyclically (3
times fast, then break)
Bus disruption. You will find the possible causes in the message box that
appears on the screen
Off
No node was detected on PROFIBUS
ACT (green)
Flashing
The CP is actively involved in data traffic

CP 5711
Operating Instructions, 12/2021, C79000-G8976-C283-08 15
Software installation
2
2.1 Installing the "SIMATIC NET PC Software"
"SIMATIC NET PC Software"
The "SIMATIC NET PC software" is one of several software packages with which you can
operate the communications processor in your PG/PC.
To configure the communications processor, you require additional configuration software.
You will find information on the configuration software in the section "Configuration
(Page 27)".
Condition
The plug and play function is activated in the BIOS of your PG/PC.
Prior to hardware installation
Install the software as described in the installation manual "SIMATIC NET PC Software". You
will find this installation manual on the Product Support pages under the following entry ID:
77377602 (https://support.industry.siemens.com/cs/ww/en/view/77377602)
You should also note the current information on the "SIMATIC NET PC software" on the
Product Support pages:
Support (https://support.industry.siemens.com/cs/ww/en/ps/15362/pm)
After the hardware installation
After installing the communications processor, your PG/PC automatically searches for a
suitable driver.
1. Follow the instructions of the Hardware Wizard of Windows.
2. Do not activate the search for drivers on the Internet.

Software installation
2.2 Uninstalling the "SIMATIC NET PC Software"
CP 5711
16 Operating Instructions, 12/2021, C79000-G8976-C283-08
2.2 Uninstalling the "SIMATIC NET PC Software"
Condition
The "SIMATIC NET PC Software" is installed on the PG/PC.
Procedure
Note
The recommended procedure removes the entire "SIMATIC NET PC Software" on the PG/PC,
not only the driver for the communications processor.
Uninstall the entire software package as described and recommended in the installation
manual "SIMATIC NET PC Software".
You will find the installation manual on the "SIMATIC NET PC Software" DVD or on the Product
Support pages under the following entry ID:
77377602 (https://support.industry.siemens.com/cs/ww/en/view/77377602)

CP 5711
Operating Instructions, 12/2021, C79000-G8976-C283-08 17
Hardware installation
3
3.1 Connecting to the PG/PC
Safety notices
WARNING
EXPLOSION HAZARD
When used in hazardous environments corresponding to Class I, Division 2 or Class I, Zone
2, the device must be installed in a cabinet or a suitable enclosure.
To comply with EU Directive 2014/34 EU (ATEX 114), UK-Regulation SI 2016/1107 or the
conditions of IECEx or CCC-Ex, the housing or cabinet must meet the requirements of at
least IP54 (according to EN/IEC 60529, GB/T 4208) in compliance with EN IEC/IEC 60079-7,
GB 3836.8.
WARNING
EXPLOSION HAZARD
Take measures to prevent transient overvoltages of more than 40% of the rated voltage (or
more than 119 V). This is the case if you only operate devices with SELV (safety extra-low
voltage).
WARNING
EXPLOSION HAZARD
Do not use any parts that show evidence of damage.
WARNING
EXPLOSION HAZARD
DO NOT CONNECT OR DISCONNECT EQUIPMENT WHEN A FLAMMABLE OR COMBUSTIBLE
ATMOSPHERE IS PRESENT.
WARNING
EXPLOSION HAZARD
SUBSTITUTION OF COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I, DIVISION 2 OR
ZONE 2.

Hardware installation
3.1 Connecting to the PG/PC
CP 5711
18 Operating Instructions, 12/2021, C79000-G8976-C283-08
WARNING
EXPLOSION HAZARD
DO NOT OPEN WHEN ENERGIZED.
WARNING
Ambient temperature in the hazardous area
At an ambient temperature of ≥60 °C, use heat-resistant cables designed for an ambient
temperature at least 20 °C higher.
The cable entries used on the enclosure must comply with the IP degree of protection
required by EN IEC / IEC 600079-0, GB 3836.1.
WARNING
Unsuitable cables or connectors
Risk of explosion in hazardous areas
•Only use connectors that meet the requirements of the relevant type of protection.
•If necessary, tighten the connector screw connections, device fastening screws,
grounding screws, etc. according to the specified torques.
•Close unused cable openings for electrical connections.
•Check the cables for a tight fit after installation.
WARNING
Unprotected cable ends
Risk of explosion in hazardous areas through unprotected cable ends.
•Protect unused cable ends according to IEC/EN 60079-14.
WARNING
Lack of equipotential bonding
If there is no equipotential bonding in hazardous areas, there is a risk of explosion due to
equalizing current or ignition sparks.
•Ensure that equipotential bonding is available for the device.
WARNING
Improper installation of shielded cables
There is a risk of explosion due to equalizing currents between the hazardous area and the
non-hazardous area.
•Shielded cables that cross hazardous areas should be grounded at one end only.
•You must lay a potential equalization conductor with grounding at both ends.

Hardware installation
3.1 Connecting to the PG/PC
CP 5711
Operating Instructions, 12/2021, C79000-G8976-C283-08 19
WARNING
Insufficient isolation of intrinsically safe and non-intrinsically safe circuits
Risk of explosion in hazardous areas
•When connecting intrinsically safe and non-intrinsically safe circuits, ensure that the
galvanic isolation is performed properly in compliance with local regulations (e.g. IEC
60079-14).
•Observe the device approvals applicable for your country.
WARNING
Unauthorized repair of devices in explosion-proof design
Risk of explosion in hazardous areas
•Repair work may only be performed by personnel authorized by Siemens.
WARNING
Impermissible accessories and spare parts
Risk of explosion in hazardous areas
•Only use original accessories and original spare parts.
•Observe all relevant installation and safety instructions described in the manuals for the
device or supplied with the accessories or spare parts.
CAUTION
Hot surfaces
Risk of burns during maintenance work on parts with a surface temperature above 70 °C
(158 °F).
•Take appropriate protective measures, for example, wear protective gloves.
•Once maintenance work is complete, restore the touch protection measures.
NOTICE
Permissible degree of pollution
The device may only be operated in an environment of contamination class 1 or 2 (see
EN/IEC 60664-1, GB/T 16935.1).
NOTICE
Cleaning the housing
•In the hazardous area
Only clean the outer parts of the housing with a damp, but not wet, cloth.
•In non-hazardous area
Only clean the outer parts of the housing with a dry cloth.
Do not use liquids or solvents.

Hardware installation
3.1 Connecting to the PG/PC
CP 5711
20 Operating Instructions, 12/2021, C79000-G8976-C283-08
Notes on parallel operation with other USB devices
Note
The use of other USB devices (for example a WebCam, bulk memory) on the PG/PC can impair
the performance of the communications processor.
Note
Removing and inserting USB devices can cause functional disruptions on the USB interface. In
extreme cases, c
ommunication via the communications processor may even be aborted
making it necessary to restart the application.
Note
•
First install the software
First install the software before you connect the communications processor to the PG/PC,
see the section Software installation (Page 15).
•
Activated plug and play function
The plug and play function must be activated in the BIOS of your PG/PC.
Permitted number of communications processors in the PG/PC
The driver software supports a maximum of 1 CP 5711 per PG/PC.
Connecting to the PG/PC
Before you connect the communications processor to your PG/PC, note the following
information:
USB cable
To connect the communications processor, use only the supplied USB cable or another USB
cable suitable for industrial use.
USB connection to PG/PC
To achieve the guaranteed configuration limits with all protocols and at all bus transmission
speeds, you should use at least a USB 2.0 high-speed connector.
You should preferably use the USB connectors located at the back of the housing of your
PG/PC. The front USB connectors usually have a lower signal quality.
We recommend that you do not use any additional USB hubs.
