Siemens SIMATIC ET 200S User manual

SIMATIC ET 200S distributed I/O Power module PM-E DC24..48V (6ES7138-4CA50-0AB0)
_
_____________
_
_____________
_
_____________
_
_____________
Preface
Properties
1
Parameters
2
Diagnostics
3
Configuring
4
SIMATIC
ET 200S distributed I/O
Power module PM-E DC24..48V
(6ES7138-4CA50-0AB0)
Manual
04/2007
A5E01119980-01

Safety Guidelines
Safety Guidelines
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
with a safety alert symbol, indicates that minor personal injury can result if proper precautions are not taken.
CAUTION
without a safety alert symbol, indicates that property damage can result if proper precautions are not taken.
NOTICE
indicates that an unintended result or situation can occur if the corresponding information is not taken into
account.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The device/system may only be set up and used in conjunction with this documentation. Commissioning and
operation of a device/system may only be performed by qualified personnel. Within the context of the safety notes
in this documentation qualified persons are defined as persons who are authorized to commission, ground and
label devices, systems and circuits in accordance with established safety practices and standards.
Prescribed Usage
Note the following:
WARNING
This device may only be used for the applications described in the catalog or the technical description and only
in connection with devices or components from other manufacturers which have been approved or
recommended by Siemens. Correct, reliable operation of the product requires proper transport, storage,
positioning and assembly as well as careful operation and maintenance.
Trademarks
All names identified by ® are registered trademarks of the Siemens AG. The remaining trademarks in this
publication may be trademarks whose use by third parties for their own purposes could violate the rights of the
owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.
Siemens AG
Automation and Drives
Postfach 48 48
90327 NÜRNBERG
GERMANY
Ordernumber: A5E01119980-01
Ⓟ 12/2007
Copyright © Siemens AG 2007.
Technical data subject to change

Power module PM-E DC24..48V (6ES7138-4CA50-0AB0)
Manual, 04/2007, A5E01119980-01 3
Preface
Preface
Purpose of the manual
This manual supplements the ET 200S Distributed I/O System Operating Instructions.
General functions for the ET 200S are described in the
ET 200S Distributed I/O System
Operating Instructions.
The information in this document along with the operating instructions enables you to
commission the ET 200S.
Basic knowledge requirements
To understand these operating instructions you should have general knowledge of
automation engineering.
Scope of the manual
This manual applies to this ET 200S module. It describes the components that are valid at
the time of publication.
Recycling and disposal
Thanks to the fact that it is low in contaminants, this ET 200S module is recyclable. For
environmentally compliant recycling and disposal of your electronic waste, please contact a
company certified for the disposal of electronic waste.
Additional support
If you have any questions relating to the products described in these operating instructions,
and do not find the answers in this document, please contact your local Siemens
representative.
http://www.siemens.com/automation/partner
The portal to our technical documentation for the various SIMATIC products and systems is
available at:
http://www.siemens.com/automation/simatic/portal
The online catalog and ordering system are available at:
http://www.siemens.com/automation/mall

Preface
Power module PM-E DC24..48V (6ES7138-4CA50-0AB0)
4 Manual, 04/2007, A5E01119980-01
Training center
We offer courses to help you get started with the ET 200S and the SIMATIC S7 automation
system. Please contact your regional training center or the central training center in
D -90327, Nuremberg, Germany.
Phone: [phone].
http://www.siemens.com/sitrain
Technical Support
You can reach technical support for all A&D projects
● using the support request web form:
http://www.siemens.com/automation/support-request
● Phone: + 49 180 5050 222
● Fax: + 49 180 5050 223
For more information about our technical support, refer to our Web site at
http://www.siemens.de/automation/service
Service & Support on the Internet
In addition to our documentation services, you can also make use of our comprehensive
online knowledge base on the Internet.
http://www.siemens.com/automation/service&support
There you will find:
● Our Newsletter, which constantly provides you with the latest information about your
products.
● The right documentation for you using our Service & Support search engine.
● The bulletin board, a worldwide knowledge exchange for users and experts.
● Your local contact for Automation & Drives in our contact database.
● Information about on-site services, repairs, spare parts. Lots more can be found on our
"Services" pages.

Power module PM-E DC24..48V (6ES7138-4CA50-0AB0)
Manual, 04/2007, A5E01119980-01 5
Table of contents
Preface ...................................................................................................................................................... 3
1 Properties .................................................................................................................................................. 7
1.1 Power module PM-E DC24..48V (6ES7138-4CA50-0AB0)...........................................................7
2 Parameters.............................................................................................................................................. 11
3 Diagnostics.............................................................................................................................................. 13
3.1 Diagnostics using LED display.....................................................................................................13
3.2 Error types....................................................................................................................................14
4 Configuring .............................................................................................................................................. 15
4.1 Configuring the address space ....................................................................................................15
Index........................................................................................................................................................ 17

Table of contents
Power module PM-E DC24..48V (6ES7138-4CA50-0AB0)
6 Manual, 04/2007, A5E01119980-01

Power module PM-E DC24..48V (6ES7138-4CA50-0AB0)
Manual, 04/2007, A5E01119980-01 7
Properties 1
1.1 Power module PM-E DC24..48V (6ES7138-4CA50-0AB0)
Properties
● The power module PM-E DC24..48V monitors the supply voltage for all the electronic
modules in the voltage group. The supply voltage is fed in by means of the TM-P terminal
module.
● You can use all the electronic modules except the 2DI AC120V ST, 2DI AC230V ST, and
2DO AC24..230V/1A in the voltage group of the PM-E DC24..48V power module.
● Control interface (PIQ) and feedback interface (PII) in the process image for option
handling.
● The current status of the power module is stored in the status byte in the process input
image (PII). This is updated irrespective of whether the "No Load Voltage" diagnosis has
been enabled.
● The PM-E DC24..48V power module is suitable for fail-safe modules.
CAUTION
Only connect the specified rated load voltage of 24 VDC to 48 VDC to the TM-P terminal
module of the power module.
The connected rated load voltage must correspond to the supply voltage of the
electronic modules in the voltage group.
Maximum configuration per voltage group
The number of modules that can be connected depends on the total current of all modules in
a voltage group. This total must not exceed the maximum current carrying capacity.

Properties
1.1 Power module PM-E DC24..48V (6ES7138-4CA50-0AB0)
Power module PM-E DC24..48V (6ES7138-4CA50-0AB0)
8 Manual, 04/2007, A5E01119980-01
Address space of inputs/outputs
Address space of inputs/outputs by selecting the following as an option:
Options Address space of the inputs Address space of the outputs
Status byte (S) 1 byte --
Option handling (O) 8 bytes 8 bytes
Status byte and option handling
(SO)
9-byte inputs 9 bytes (9th byte not relevant)
General terminal assignment
Note
Terminals A4 and A8 are only available at specified terminal modules.
Terminal assignment for PM-E DC24..48V (6ES7138-4CA50-0AB0)
Terminal Assignment Terminal Assignment Notes
2 L+ 6 L+
3 M 7 M
A4 AUX1 A8 AUX1
•L+: Rated load voltage 24VDC to 48 VDC
•M: Ground
•AUX1: Protective-conductor terminal or potential bus (freely usable
up to 230 VAC)
Usable terminal modules
Usable terminal modules for PM-E DC24..48V (6ES7138-4CA50-0AB0)
TM-P15C23-A1
(6ES7193-4CC30-0AA0)
TM-P15C23-A0
(6ES7193-4CD30-0AA0)
TM-P15C22-01
(6ES7193-4CE10-0AA0)
Spring terminal
TM-P15S23-A1
(6ES7193-4CC20-0AA0)
TM-P15S23-A0
(6ES7193-4CD20-0AA0)
TM-P15S22-01
(6ES7193-4CE00-0AA0)
Screw-type terminal
TM-P15N23-A1
(6ES7193-4CC70-0AA0)
TM-P15N23-A0
(6ES7193-4CD70-0AA0)
TM-P15N22-01
(6ES7193-4CE60-0AA0)
Fast Connect
$8;
 
$$






$$
$8;
$8;
$8;
 
$$






$$




$8;
b9'&WRb9'&
b9'&WRb9'&
0
3($8;
:LULQJH[DPSOHV

Properties
1.1 Power module PM-E DC24..48V (6ES7138-4CA50-0AB0)
Power module PM-E DC24..48V (6ES7138-4CA50-0AB0)
Manual, 04/2007, A5E01119980-01 9
Block diagram




3:5
3
3 0
9'&
%DFNSODQHEXV
(76
EDFNSODQH
EXV
LQWHUIDFH
FRQQHFWLRQ
/RDG
YROWDJH
PRQLWRULQJ

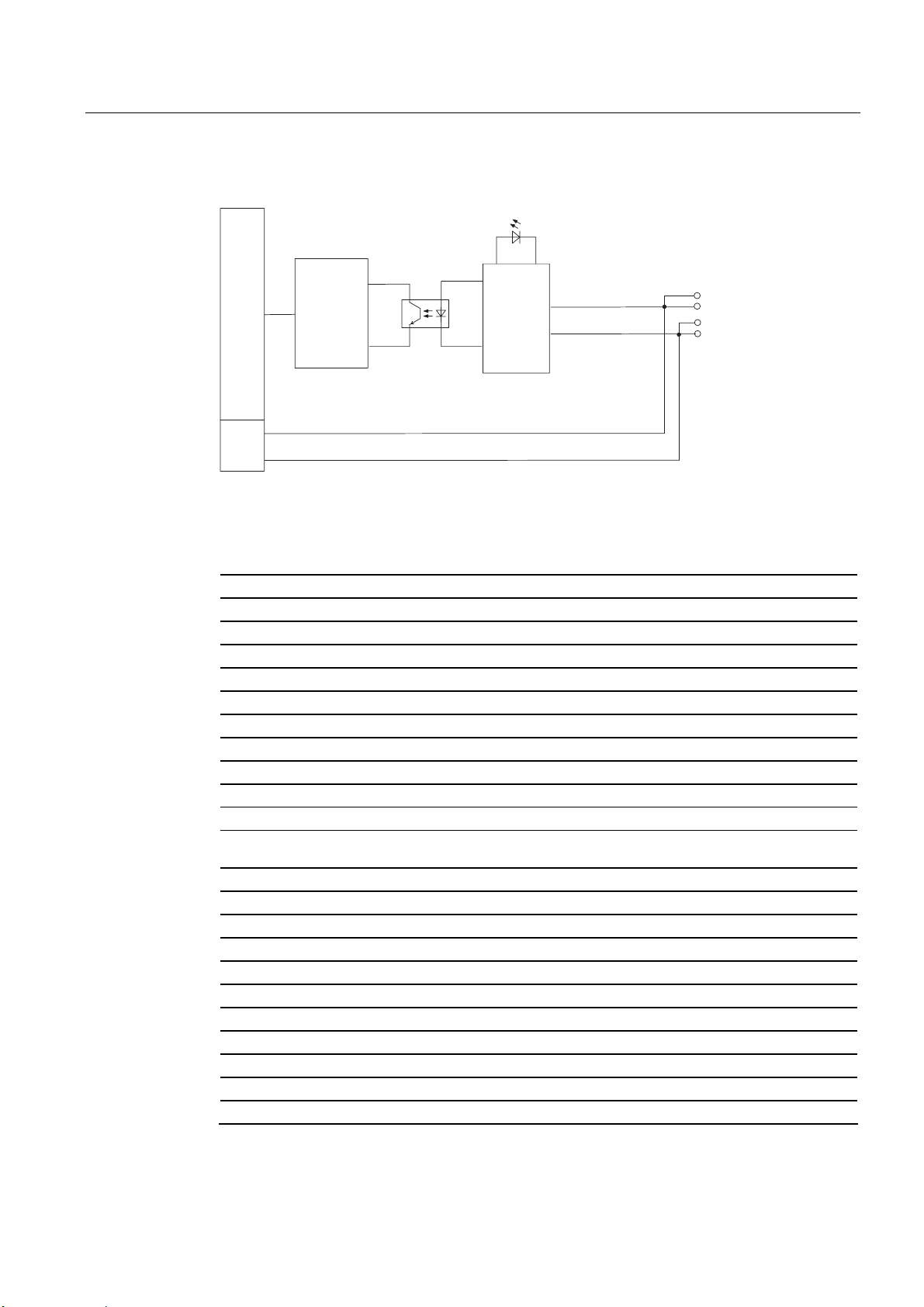

Figure 1-1 Block diagram of the PM-E DC24..48V power module
Technical data PM-E DC24..48V (6ES7138-4CA50-0AB0)
Dimensions and weight
Dimension B (mm) 15
Weight Approx. 35 g
Voltages, currents, potentials
Rated load voltage 24 VDC to 48 VDC
•Reverse polarity protection Yes
•Overvoltage protection No
Protection with automatic circuit breakers Yes, tripping characteristic B, C
Max. current-carrying capacity (up to 60°C) 10 A
•Short-circuit protection No
Electrical isolation
•Between rated load voltage and backplane
bus Yes
•Between the power modules Yes
Insulation test voltage 500 VDC
Current consumption
•From the load voltage L+ (no load) Max. 12 mA
Power dissipation of the module Typically 500 W
Parameter length 3 bytes
Status, interrupts, diagnostics
Diagnostic function Yes
•Group error Red "SF" LED
•Load voltage monitoring Green "PWR" LED
•Diagnostic information readable Yes

Properties
1.1 Power module PM-E DC24..48V (6ES7138-4CA50-0AB0)
Power module PM-E DC24..48V (6ES7138-4CA50-0AB0)
10 Manual, 04/2007, A5E01119980-01

Power module PM-E DC24..48V (6ES7138-4CA50-0AB0)
Manual, 04/2007, A5E01119980-01 11
Parameters 2
Parameters
The following table lists the power module parameters.
Table 2-1 Parameters for power modules
PM-E 24 to 48 VDC Range of values Default setting Applicability
Diagnostics: No load voltage disable/enable Disable Power module
The parameters are explained below.
Diagnostics: No load voltage
Use this parameter to enable a diagnostic message because there is no load voltage.
If there is no load voltage only the diagnostic message of the affected power module is sent
to the DP master. The SF error LEDs of all modules in the relevant potential group light.

Parameters
Power module PM-E DC24..48V (6ES7138-4CA50-0AB0)
12 Manual, 04/2007, A5E01119980-01

Power module PM-E DC24..48V (6ES7138-4CA50-0AB0)
Manual, 04/2007, A5E01119980-01 13
Diagnostics 3
3.1 Diagnostics using LED display
Power module
LED displays on the power module:
1
2
6)
3:5
① Batch error (red)
② Load voltage (green)
Status and error displays by means of LEDs on power modules
The table below shows the status and error displays on the power module.
Event (LEDs)
SF PWR
Cause Remedy
on No parameter assignment or incorrect
module plugged in. A diagnostic message
is pending.
Check the parameter assignment.
Evaluate the diagnostics.
off There is no load voltage at the power
module.
Check the load voltage.

Diagnostics
3.2 Error types
Power module PM-E DC24..48V (6ES7138-4CA50-0AB0)
14 Manual, 04/2007, A5E01119980-01
3.2 Error types
Power module error types
The diagnostic message is reported on channel 0 and applies to the entire module.
The table below shows the types of errors affecting power modules
Table 3-1 Power module error types
Error type Meaning Remedy
17D 10001: Encoder or
load voltage missing
Supply voltage not present or
too low.
Correct the process wiring. Check
the supply voltage.

Power module PM-E DC24..48V (6ES7138-4CA50-0AB0)
Manual, 04/2007, A5E01119980-01 15
Configuring 4
4.1 Configuring the address space
Address area for option handling and status byte
You can control and monitor option handling, and evaluate the status byte of the power
module using the control (PIO) and feedback interface (PII).
The address range of the control (PIO) and feedback interface (PII) depends on how the
corresponding entry in the configuration software is configured, or which entry has been
selected.
This table shows the PII feedback interface and the PIO control interface for different entries.
Table 4-1 PII feedback interface and PIO control interface
With STEP 7, HW Config
or COM PROFIBUS
or other configuration
software
PII feedback interface PIO control interface
Usual entry for the power
module
--- ---
Ends in ...S IBx Status byte ---
Ends in ...O IBx
:::
IBx+7
Option handling
QBx
:::
QBx+7
Option handling
IBx
:::
IBx+7
Option handling
QBx
:::
QBx+7
Option handling
Ends in ...SO
IBx+8 Status byte QBx+8 Not applicable

Configuring
4.1 Configuring the address space
Power module PM-E DC24..48V (6ES7138-4CA50-0AB0)
16 Manual, 04/2007, A5E01119980-01
Status byte for power modules
(%[


/RDGYROWDJHPLVVLQJ
/RDGYROWDJHSUHVHQW
'LDJQRVWLFELWVRIWKHSRZHUPRGXOHV
(QFRGHURUORDGYROWDJHPLVVLQJ
SUHVHQWIRUDOO30(SRZHUPRGXOHV
%LWQR
Figure 4-1 Assignment of status byte for power modules

Power module PM-E DC24..48V (6ES7138-4CA50-0AB0)
Manual, 04/2007, A5E01119980-01 17
Index
B
Basic knowledge requirements, 3
Block diagram, 9
D
Disposal, 3
I
Internet
Service & Support, 4
M
Maximum configuration, 7
P
Parameters
for power modules, 11
Power modules, 13
Error types, 14
Parameters, 11
Properties, 7
R
Recycling, 3
S
Scope
Manual, 3
Service & Support, 4
T
Technical data, 9
Technical Support, 4
Terminal assignment, 8
Training center, 4

Index
Power module PM-E DC24..48V (6ES7138-4CA50-0AB0)
18 Manual, 04/2007, A5E01119980-01
