Siemens 2000592-001 User manual

GAS CHROMATOGRAPHY
p
process
ADVANCE NETWORK COMMUNICATIONS
BOARD/DATANET (ANCB/DN)
User’s Manual Edition 1/2007

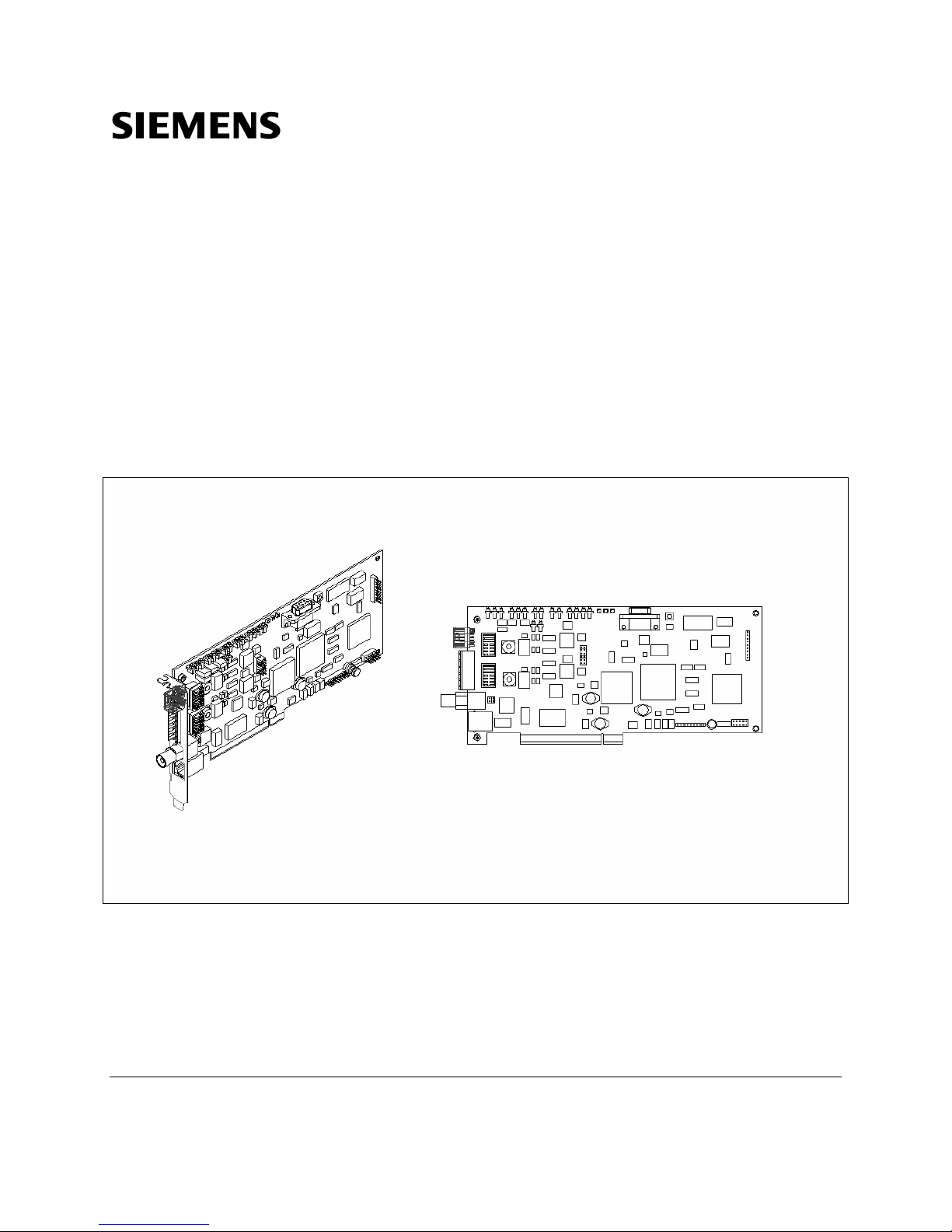

Advance Network Communications
Board/DataNET (ANCB/DN)
Revised Printing – January 2007 User’s Manual
2000592-001

Copyright Notice
©2002-2007 by Siemens
All rights reserved.
This publication is for information only. The contents are subject to change without notice and should not
be construed as a commitment, representation, warranty, or guarantee of any method, product, or device
by Siemens.
Reproduction or translation of any part of this publication beyond that permitted by Sections 107 and 109
of the United States Copyright Act without the written consent of the copyright owner is unlawful.
Inquiries regarding this manual should be addressed to:
Siemens Energy & Automation, Inc.
7101 Hollister Road
Houston, TX 77040
U.S.A.

Table of Contents
Preface iii
Technical Support iv
Safety Practices and Precautions v
Chapter 1: Installation 1
Overview 1
ANCB/DN Specifications 3
ANCB Installation 5
Site Wiring Requirements 7
CE Installations 11
DataNET Connections 13
DataNET Copper Connections 14
DataNET Fiber Optic Connections 16
Data Communications Setup 21
Chapter 2: Configuring Your PC 22
Establishing a Connection 27
Setting Network Address 30
Assigning an IP Address 32
Firmware Updates 33
Command Summary 35
Chapter 3: Command Descriptions 35
Troubleshooting 45
ANCB Description 46
ANCB LEDs Description & Operation 49
Chapter 4: DataNET Troubleshooting Guide 52
Parts Catalog 55
Chapter 5: Introduction 55
Available Parts 56
Glossary Definitions of Important Terms 57
2000592-001 Table of Contents •i

Preface
Audience & Purpose This manual is intended for maintenance personnel and describes how
to install the Advance Network Communication Board/DataNET
(ANCB/DN) into an Advance Maxum™Gas Chromatograph or Advance
Network Access Unit.
Chapter Contents The manual provides the following information:
Topic Page
Chapter 1. Installation 1
Chapter 2. Data Communications Setup 21
Chapter 3.Command Summary 35
Chapter 4. Troubleshooting 45
Chapter 5. Parts Catalog 55
Glossary 57
2000592-001 Preface •iii

Technical Support
Getting Help At Siemens Energy & Automation, Inc. we take pride in the on going
support we provide our customers. When you purchase a product, you
receive a detailed manual, which should answer your questions;
however, our technical support service provides a special “hot” line as an
added source of information.
If you require assistance call:
In the United States: [phone]
Internationally: 001-918-662-7030
Before You Call Before you call one of our technical support lines, please have the
following information available to help our representative answer your
questions:
1. Unit Serial Number and Date of Installation
2. Installed software version number (if applicable)
3. Description of problem
4. LEDs status on ANCB.
iv •Preface 2000592-001

Safety Practices and Precautions
Safety First This product has been designed and tested in accordance with IEC
Publication 1010-1, Safety Requirements for Electronic Measuring
Apparatus, and has been supplied in a safe condition. This manual
contains information and warnings, which have to be followed by the
user to ensure safe operation and to retain the product in a safe
condition.
Terms in This Manual WARNING statements identify conditions or practices that could result in
personal injury or loss of life.
CAUTION statements identify conditions or practices that could result in
damage to the equipment or other property.
Terms as Marked on
Equipment DANGER indicates a personal injury hazard immediately accessible as
one reads the markings.
CAUTION indicates a personal injury hazard not immediately accessible
as one reads the markings, or a hazard to property, including the
equipment itself.
Symbols in This
Manual
This symbol indicates where applicable cautionary or other
information is to be found.
Symbols Marked on
Equipment DANGER - High voltage
Protective ground (earth) terminal
ATTENTION - Refer to Manual
Grounding the
Product A grounding conductor should be connected to the grounding terminal
before any other connections are made.
2000592-001 Safety Practices and Precautions •v

Safety Practices and Precautions, Continued
Correct Operating
Voltage Before switching on the power, check that the operating voltage listed on
the equipment nameplate agrees with the available line voltage.
DANGER Arising
from Loss of Ground Any interruption of the grounding conductor inside or outside the
equipment or loose connection of the grounding conductor can result in a
dangerous unit. Intentional interruption of the grounding conductor is not
permitted.
Safe Equipment If it is determined that the equipment cannot be operated safely, it should
be taken out of operation and secured against unintentional usage.
Use the Proper Fuse To avoid fire hazard, use only a fuse of the correct type, voltage rating
and current rating as specified in the parts list for your product. Use of
repaired fuses or short-circuiting of the fuse switch is not permitted.
Safety Guidelines DO NOT open the equipment to perform any adjustments,
measurements, maintenance, parts replacement or repairs until all power
supplies have been disconnected.
Only a properly trained technician should work on any equipment with
power still applied.
When opening covers or removing parts, exercise extreme care since
"live parts or connections can be exposed".
Capacitors in the equipment can retain their charge even after the unit
has been disconnected from all power supplies.
vi •Safety Practices and Precautions 2000592-001

Chapter 1
Installation
Overview

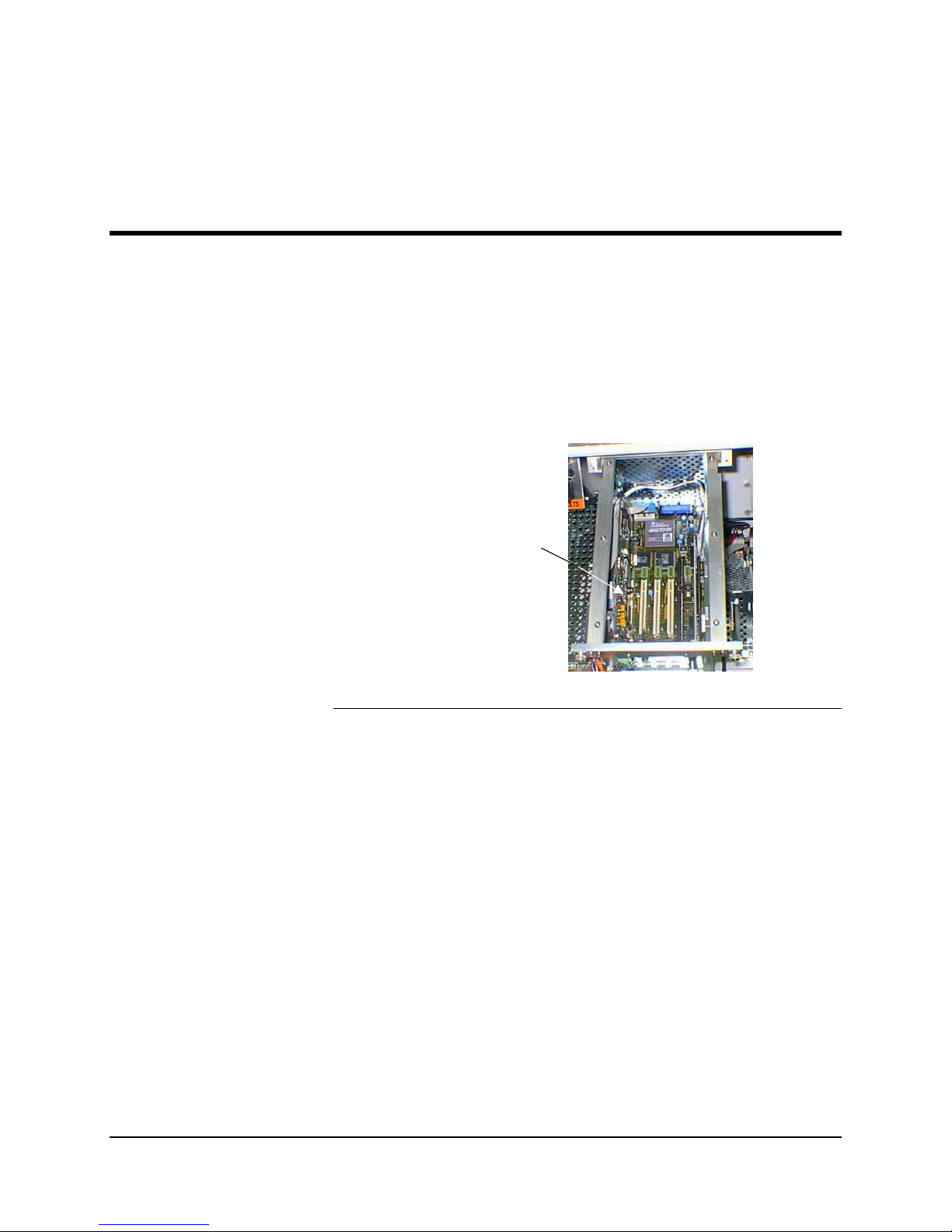

Description The Advance Network Communications Board DataNET (ANCB/DN)
board plugs into the backplane of an Advance Maxum or Advance
Network Access Unit (NAU) System Controller (SYSCON). All I/O wiring
is made directly to the board. The ANCB/DN functions as a translator for
converting signals and communication protocols. This conversion allows
Advance Maxum GC’s, Advance Network Access Unit (NAU) and
Advance Optichrom GC’s to communicate with each other via an
Advance Maxum DataNET link.
A
NCB
Back
p
lane Slot 1
What is DataNET DataNET is a communications protocol that can be used in place of
Ethernet for connecting all installed Maxum and Advance GC’s. As
compared to Ethernet, DataNET provides true network redundancy at
both the hardware and software levels and uses the existing network
wiring.
The DataNET link can use either copper and/or fiber optic cables. In an
existing Data Hiway installation the Data Hiway cable can be used.
2000592-001 Installation •1

Overview, Continued
Figure 1 shows Advance Maxum and Advance Optichrom GC’s
communicating on an ACS via a DataNET link.
A
dvance Maxum
App
liedAutomatio
n
A
A
App
lied A ut oma tio
n
A
A
App
lied A ut oma tio
n
A
A
A
dvance Maxum
App
liedAutomatio
n
A
A
AAAA
PCI
IOU(s)
A
PC
Advance Personal
Com
p
ute
r
WorkstationNAU
Advance Network
Access Unit
ANG
Advance Network
Gateway
DNH
Advance DataNET
Hub
Figure 1-1: Advance
Communication System
(ACS)
Advance
Communications
System
The Advance Communication System (ACS) is a high-speed
communications system that uses TCP / IP protocols and addressing to
interconnect chromatographs and other process analyzers in a common
network. Figure 1-1 shows the Advance DataNET Hub (DNH), Advance
Network Access Unit (NAU) and Advance Network Gateway (ANG)
connected to the ACS. The NAU connects to the ACS and provides a
method to access information coming from Advance process analyzers
including Advance Maxum and Advance Optichrom GC’s. The ANG is
used to connect Siemens’ equipment residing on an Advance Data
Hiway to the ACS.
Advance Optichrom
GC’s Advance Optichrom Service Panels and older APC workstations can
display Advance Maxum GC information over the Gateway link. They
are, however, limited to only accessing and changing basic operational
status. This data includes alarms, run/hold/calibrate, view, analysis
results etc.
2 •Installation 2000592-001

ANCB/DN Specifications
Protocol and Addressing Open Systems standard TCP/IP protocol and addressing
(Transmission Control Protocol/Internet Protocol); Full Class A, B and
C addresses and subnet masking supported
Wiring Connections •Two part connectors with screw-terminals provided for cable
connection
•Fiber Optic Coupler for Fiber Optic Connections
DataNET Option, Standard
Cable •Cable connection by Belden 9182 (single pair) or Belden
SSD1743 (two pairs) or equivalent; two pairs of wires are
required to support redundancy
•Two pairs of cable is required to support redundancy
•Shielded cable or unshielded cable in conduit is required for
conformance to CE certified installation
•Two part connectors with screw-terminals provided for field
connection
DataNET Option, Fiber Optic
Cable •Fiber optics connection by 62.5 multi-mode cable corresponding
to 10BaseFL Ethernet specification
•Two pairs of fibers are required to support redundancy
•Type ST mating connectors provided for field connection
•Approximately 3 mbps base transmission rate; uses dedicated
transmission technique that does not require collision detection to
achieve high data throughput efficiency
•Maximum Length 5000 feet ( 1.7km)
Fiber Optic Coupler •Two (Tx, Rx) ST-Style Connectors (Amp type 2.5mm Bayonet)
Serial Port •Standard RS-232 port for attachment of a laptop computer, for
configuring IP Addresses and troubleshooting.
Communication
Comparisons The Table below compares key communication features between using
Advance Data Hiway, Ethernet, or DataNET.
Feature Advance Data Hiway Ethernet DataNET
Speed 14.2 KB/Sec 10 M baud 2. 048 M baud
Redundant Yes No Yes
Number of Units in
Maxum System 248 1200 1200
2000592-001 Installation •3

ANCB/DN Specifications, Continued
Cable Types The following Table should be used when evaluating or selecting cable
for an existing or new installation.
Cable Type Vendors & P/N Installation Notes
Fiber Optic
MM 62.5/125; 2 Fiber Conductors
SEA P/N 1270002-002
Industry Available from
Multiple Vendors
New Installation as an
alternative to copper cable
Max distance from Analyzer
to Hub or between Hubs
1520 meters (5000 ft)
2- Conductor Copper Wire SEA P/N 1686002-001
Belden P/N 9182
For
Belden Armored Cable
Order
SEA P/N 1680000-002
Recommended for Single
Channel
Max distance from Analyzer
to Hub or between Hubs
1520 meters (5000 ft)
4-Conductor Copper Wire SEA P/N 1681000-003
Belden P/N SSD1743
Recommended for Dual
Channel
Max distance from Analyzer
to Hub or between Hubs
1520 meters (5000 ft)
Ethernet Cat 5 Unshielded Twisted
pair (UTP) SEA P/N 1681003-006
Industry Available from
Multiple Vendors
Recommended for short
distances or within shelters.
Max distance from analyzer
to hub or between hubs 600
meters (2000 ft)
4 •Installation 2000592-001

ANCB Installation
Description The ANCB is installed into slot 1 of the Advance Maxum’s or NAU’s
System Controller (SYSCON). To install the ANCB it is not necessary to
disconnect interface cables or to remove the SYSCON from the unit.
Slot 1
Voltage dangerous to life exists. Before performing the removal and
installation procedures, it is important that primary AC power to the
unit be turned off from the main circuit breaker. Observe all plant
safety requirements before performing any repair or maintenance
on any unit
WARNING
NAU Installations For rack mount NAU units the SYSCON connections are visible at the
rear of the NAU. If you have a wall mounted unit you must first remove
the front or side safety box access covers to see the SYSCON
connections.
Instructions Step Procedure

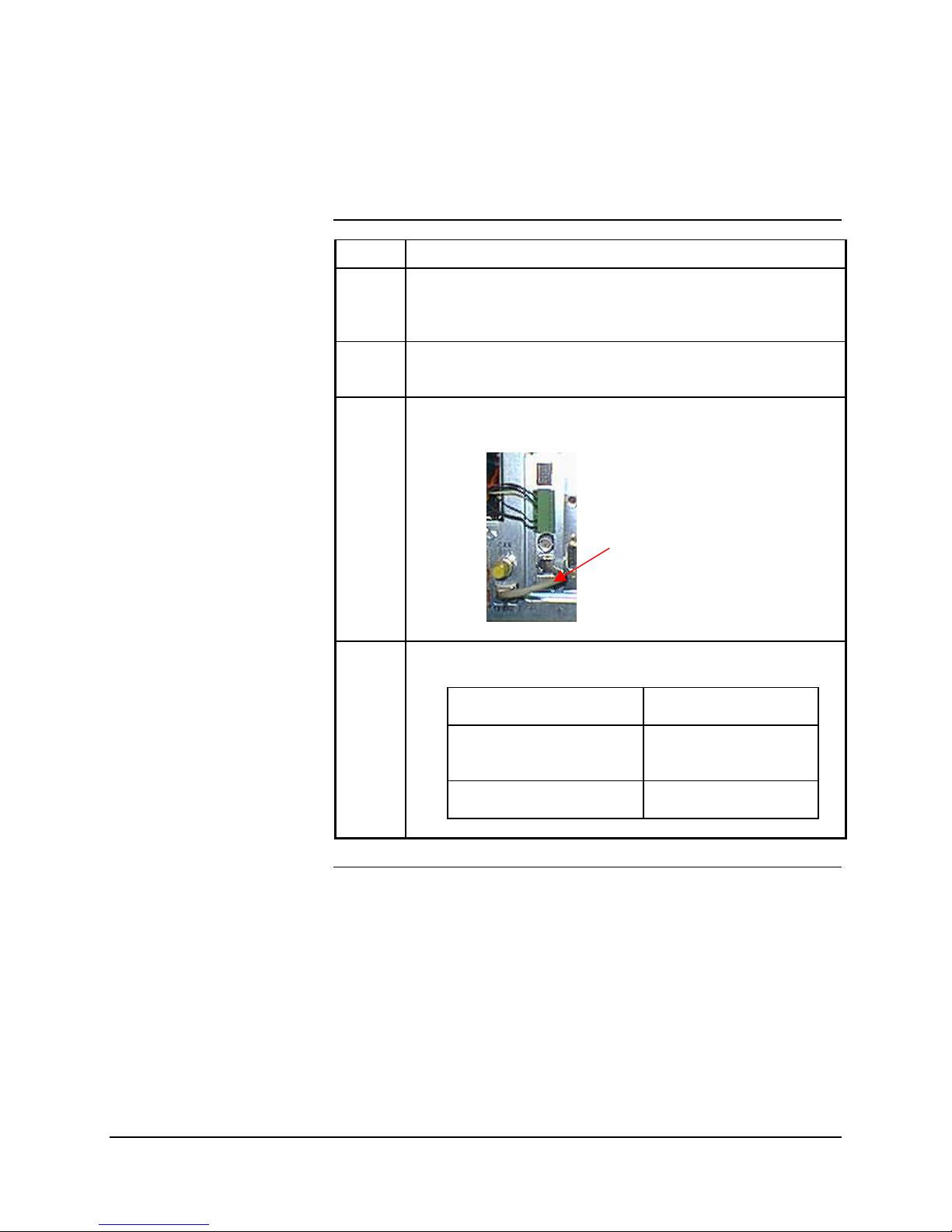

1. Locate backplane Slot 1, and remove the screw that holds
the metal strip in place. Keep the screw.
SLOT 1 Screw
Metal
Plate
2000592-001 Installation •5

ANCB Installation, Continued
Instructions,
continued Step Procedure
4. Press the ANCB straight into slot 1. Make sure that you push
evenly on both edges of the board until the ANCB is firmly
seated
5. Secure the board to the cage with the screw you removed in
step 1.
6. Connect Ethernet crossover cable from 10BaseT connector
on SYSCON to 10BaseT connector on ANCB.
ETHERNET
CROSSOVER
CABLE
7. Make a selection from the following Table.
To make……. THEN goto……..
DataNET Copper
Connections Page 14
Fiber Optic Connections Page 16
6 •Installation 2000592-001

Site Wiring Requirements
Description The type of wiring is dependent upon the site requirements:
•CE (Conformite Europeene) Certified Areas
•NEC Division 2 or Non-Hazardous Areas
•Cenelec Zone 1 or Zone 2 Areas
•Rack Mounting Non-Hazardous Area
AC Mains Wiring The installation should have a power disconnect external to the
enclosure.
No voltage dependent selections need to be made on the power supply,
as it has a universal input.
See Page 11, CE Installations.
CE Installations
Use Metal Conduit wiring method.
NEC Div 1, Div 2 or Non
Rated Areas Conductor type: Power cable sized for circuit protection chosen.
Use Cable Gland wiring method:
Cenelec Zone 1 or Zone 2
Rated Areas Conductor type: Power cable sized for circuit protection chosen, and
must be shielded.
Use Metal Conduit wiring method.
Non Rated Areas or Rack
Mounting Conductor type: Power cable sized for circuit protection chosen.
2000592-001 Installation •7

Site Wiring Requirements, Continued
DataNET Channels The DataNET channel connections can be either copper wire or fiber
optic cable. The wiring method and cable type for DataNET is dependent
upon the site requirements. For cable requirements see Table 1-1.
The following Table should be used when evaluating or selecting cable
for an existing or new DataNET installation.
Table 1-1:
Recommended DataNET
Cable Cable Type Vendors & P/N Installation Notes
Fiber Optic
MM 62.5/125; 2 Fiber
Conductors
SEA P/N 1270002-002
Industry Available from
Multiple Vendors
New Installation as
an alternative to
copper cable
Max distance from
Analyzer to ANG or
between Hubs
1520 meters (5000
ft)
2- Conductor Copper
Wire SEA P/N 1686002-001
Belden P/N 9182
For
Belden Armored Cable
order
SEA P/N 1680000-002
Recommended for
Single Channel
Max distance from
Analyzer to ANG or
between Hubs
1520 meters (5000
ft)
4-Conductor Copper
Wire SEA P/N 1681000-003
Belden P/N SSD1743
Recommended for
Dual Channel
Max distance from
Analyzer to ANG or
between Hubs
1520 meters (5000
ft)
8 •Installation 2000592-001

Site Wiring Requirements, Continued
Table 1-1: Recommended
DataNET Cable,
Continued
Cable Type Vendors & P/N Installation Notes
Twisted Pair Copper
Wire used in SEA
2100 Installations
SEA P/N C00128
Belden P/N 9462
Not Recommended for
New Installations
Nominal capacitance
155 pF/m (50 pF/ft.)
Max distance from
analyzer to ANG or
between hubs 225
meters (750 ft)
Copper Wire Site
Requirements The following information pertains when using copper wire.
See Page 11, CE Installations.
CE Installations
Use approved Conduit wiring method. Conduit may contain multiple
cables. Adhere to all Federal and local electrical code requirements.
NEC Div 2 or Non-
Hazardous Rated Areas
Cable Type: Refer to Table 1-1.
Use Cable Gland wiring method. Each cable gland allows entry of one
cable.
Cenelec Zone 1 or Zone 2
Rated Areas
Cable Type: Recommend Belden 9182 or armored Belden 9182 or
equivalent. The proper cable gland must be used to connect the armor or
shield to the enclosure. Other cables with individually shielded pairs can
be used, but decreased distance is allowed (typically ~800-1000 feet for
typical instrumentation cable).
2000592-001 Installation •9

Site Wiring Requirements, Continued
Use approved flexible non-metallic conduit wiring method. Conduit may
contain multiple cables. For CE installations use only cable gland wiring
method.
Non-Hazardous Areas or
Rack Mounting
Cable Type: Recommend Belden 9182 or equivalent. Other cables with
individually shielded pairs can be used, but decreased distance is
allowed (typically ~800-1000 feet for typical instrumentation cable).
DataNET Fiber Optic
Cable Connections The DataNET channel connections can be either copper wire or fiber
optic cable. The wiring method and cable type for DataNET is dependent
upon the site requirements. The following pertains when using copper
wire.
See Page 11, CE Installations.
CE Installations
Use approved Conduit wiring method. Conduit may contain multiple
cables. Adhere to all Federal and local electrical code requirements.
NEC Div 2 or Non-
Hazardous Areas
Cable Type: Duplex fiber, 62.5/125 micron; see Table 2-1.
Connection: Type ST fiber connectors. Connect these to the appropriate
transmitter and receiver ports for the respective channel.
Use Cable Gland wiring method. Each cable gland allows entry of one
duplex fiber cable.
Cenelec Zone 1 or Zone 2
Rated Areas
Cable Type: Duplex fiber, 62.5/125 micron.
Connections: Type ST fiber connectors. Connect these to the
appropriate transmitter and receiver ports for the respective channel.
Use approved flexible non-metallic conduit. Conduit may contain multiple
cables. Conduit may contain multiple. This method is suitable for CE
installations.
Non-Hazardous Areas or
Rack Mounting
Cable Type: Duplex fiber, 62.5/125 micron.
Connection: Type ST fiber connectors. Connect these to the appropriate
transmitter and receiver ports for the respective channel.
10 •Installation 2000592-001
