SITOP power supply
SITOP PSU8200 3ph
Manual
SITOP PSU8200 24 V/20 A
6EP3436
-8SB00-0AY0
SITOP PSU8200 24 V/40 A
6EP1437
-3BA10
11.2014
C98130
-A7638-A1-2-7629
Overview
Notes on safety
1
Description, device design,
dimension drawing
2
Mounting/removing
3
Mounting position, mounting
clearances
4
Installation
5
Technical data
6
Safety, approvals, EMC
7
Ambient conditions
8
Applications
9
Environment
10
Service & Support
11

Siemens AG
Division Process Industries and Drives
Postfach 48 48
90026 NÜRNBERG
GERMANY
C98130-A7638-A1-2-7629
Ⓟ
12/2014 Subject to change
Copyright © Siemens AG 2014.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by
personnel qualified
for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.

SITOP PSU8200 3ph
Manual, 11.2014, C98130-A7638-A1-2-7629 3
Overview
The 3-phase SITOP PSU8200 power supply from the SITOP modular product line is a high-
performance, stabilized technology power supply for automated machines and systems.
The key benefits of the product include:
●Wide-range input, which allows it to be connected to almost any 3-phase line supply
around the world
●Output voltage can be adjusted in the range 24..28.8 V
●Power boost during operation with 300% rated current for 25 ms
●Extra-Power with 1.5x rated current for 5 seconds for switching on loads with a high
inrush current
●Especially low width without requiring any lateral mounting clearances
●Ambient temperature -25...+70 °C
●Selectable short-circuit response (constant current or latching shutdown)
●A soft characteristic can be selected for a parallel connection (for uniform load distribution
of power supply units of the same type)
●Display of the operating state using 3 LEDs
●Signaling contact "24 V O.K."
●To increase the system availability, these reliable power supplies can be expanded using
SITOP supplementary modules (redundancy module, selectivity module, buffer module),
as well as SITOP DC-UPS modules.

Overview
SITOP PSU8200 3ph
4Manual, 11.2014, C98130-A7638-A1-2-7629
Ordering data
The following device versions are available:
Regulated power supply unit SITOP PSU8200 3ph
Type
Order number
3-phase 400-500 V AC input,
24 V/20 A output
6EP3436-8SB00-0AY0
3-phase 400-500 V AC input,
Output 24 V DC / 40 A
6EP1437-3BA10
Accessories
Type
Order number
Device identification labels 20 mm × 7 mm, Ti grey
3RT2900-1SB20

SITOP PSU8200 3ph
Manual, 11.2014, C98130-A7638-A1-2-7629 5
Table of contents
Overview................................................................................................................................................. 3
1 Notes on safety....................................................................................................................................... 7
2 Description, device design, dimension drawing........................................................................................ 9
2.1 Device description.....................................................................................................................9
2.2 Connections and terminal designation....................................................................................10
2.3 Potentiometer..........................................................................................................................11
2.4 Status displays and signaling .................................................................................................12
2.5 Change-over switch ................................................................................................................14
2.6 Block diagram .........................................................................................................................15
2.7 Dimensions and weight...........................................................................................................16
3 Mounting/removing ............................................................................................................................... 17
4 Mounting position, mounting clearances................................................................................................ 19
4.1 Standard mounting position ....................................................................................................19
4.2 Other mounting positions........................................................................................................21
4.2.1 6EP3436-8SB00-0AY0 ...........................................................................................................21
4.2.2 6EP1437-3BA10 .....................................................................................................................23
5 Installation ............................................................................................................................................ 25
5.1 Line-side connection ...............................................................................................................25
5.2 Output-side connection...........................................................................................................27
6 Technical data ...................................................................................................................................... 29
6.1 Input ........................................................................................................................................29
6.2 Output .....................................................................................................................................30
6.3 Efficiency.................................................................................................................................34
6.4 Closed-loop control .................................................................................................................35
6.5 Protection and monitoring.......................................................................................................35
6.6 MTBF ......................................................................................................................................35
6.7 Mechanical system .................................................................................................................36
6.8 Accessories.............................................................................................................................36
6.9 Dimension drawing .................................................................................................................37

Table of contents
SITOP PSU8200 3ph
6Manual, 11.2014, C98130-A7638-A1-2-7629
7 Safety, approvals, EMC ........................................................................................................................ 39
7.1 Safety ..................................................................................................................................... 39
7.2 Test voltage............................................................................................................................ 40
7.3 Approvals ............................................................................................................................... 42
7.4 EMC ....................................................................................................................................... 42
8 Ambient conditions................................................................................................................................ 43
9 Applications .......................................................................................................................................... 45
9.1 Parallel connection to increase power rating ......................................................................... 45
9.2 Parallel connection for redundancy ....................................................................................... 47
9.3 Series connection for increased voltage................................................................................ 49
9.4 Overload protection in the 24 V output circuit........................................................................ 50
9.5 Protection against short-time voltage dips............................................................................. 51
9.6 Protecting against longer power failures................................................................................ 52
10 Environment ......................................................................................................................................... 55
11 Service & Support ................................................................................................................................. 57

SITOP PSU8200 3ph
Manual, 11.2014, C98130-A7638-A1-2-7629 7
Notes on safety
1
WARNING
Correct handling of the devices
When operating electrical devices, it is inevitable that certain components will carry
dangerous voltages.
Therefore, failure to handle the units properly can result in death or serious physical injury
as well as extensive property damage.
Only appropriately qualified personnel may work on or in the vicinity of this equipment.
Perfect, safe, and reliable operation of this equipment is dependent on proper
transportation, storage, installation and mounting.
Before installation or maintenance work can begin, the system's main switch must be
switched off and measures taken to prevent it being switched on again.
If this instruction is not observed, touching live parts can result in death or serious injury.

Notes on safety
SITOP PSU8200 3ph
8Manual, 11.2014, C98130-A7638-A1-2-7629

SITOP PSU8200 3ph
Manual, 11.2014, C98130-A7638-A1-2-7629 9
Description, device design, dimension drawing
2
2.1
Device description
SITOP PSU8200 3ph is a primary-clocked power supply for connection to a 3-phase AC line
supply. An electronically regulated DC voltage that can be set via a potentiometer is
available at the output of the device. The output of the device is isolated, no-load proof and
short-circuit proof. The LED displays indicate the operating state. The operating state of the
device can be processed via the signaling contact.
①
Line input
②
DC output
③
Potentiometer 24 ... 28.8 V
④
Pilot lamps (24 V O.K, OVERLOAD, SHUTDOWN)
⑤
Signaling contact
⑥
A/B selector switch
⑦
Natural convection
⑧
DIN rail slider
⑨
Clearance above/below

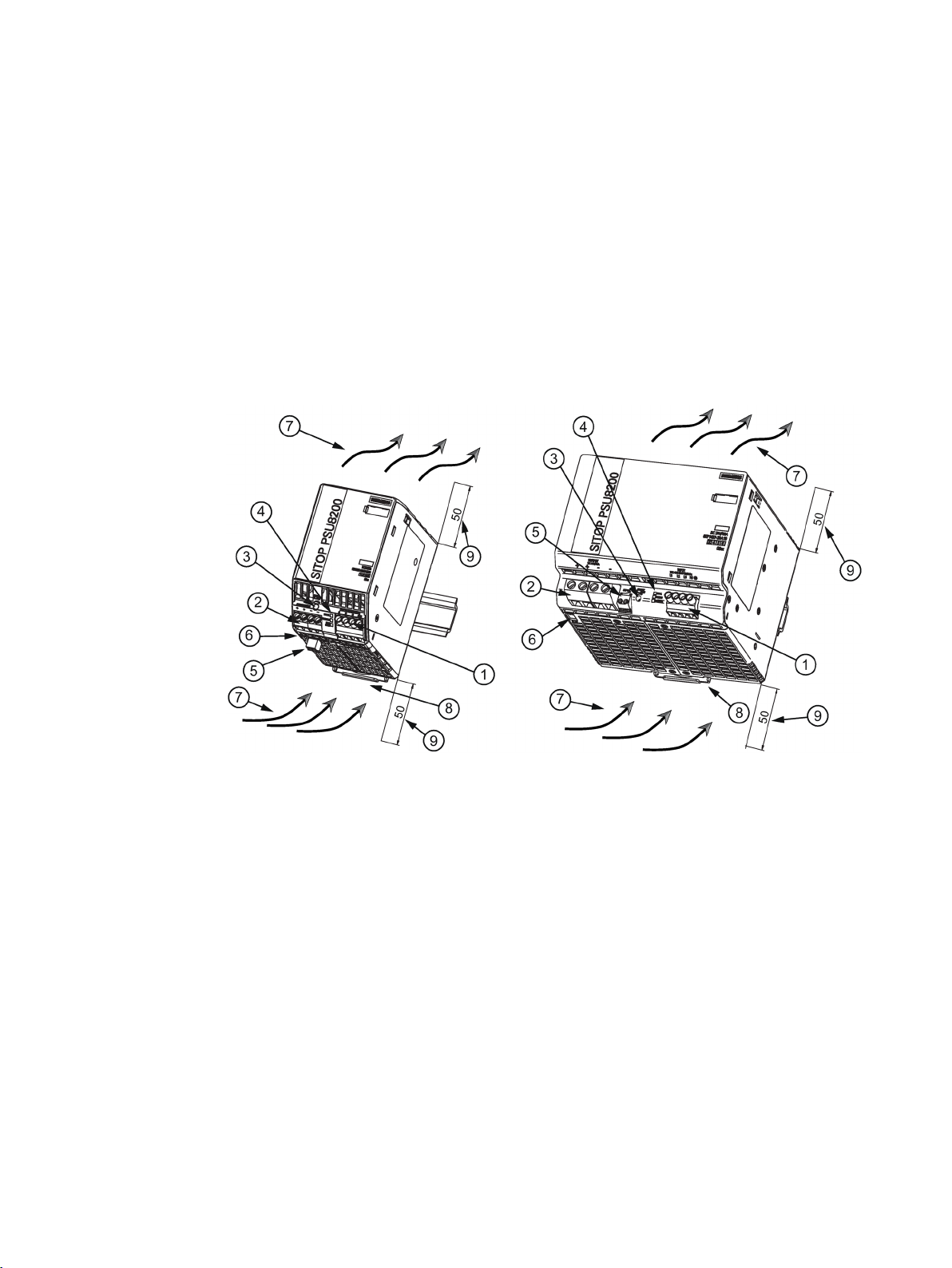

Figure 2-1 Design

Description, device design, dimension drawing
2.2 Connections and terminal designation
SITOP PSU8200 3ph
10 Manual, 11.2014, C98130-A7638-A1-2-7629
2.2
Connections and terminal designation
The line input terminals ①can be used to establish the connection to the supply voltage.
The output terminals ②are used to connect to the loads to be supplied (see also Section
Installation (Page 25)).
Connections and terminal designations
①
Line input L1, L2, L3, PE One screw terminal each
②
output "+" 2 screw terminals
②
output "–" 2 screw terminals
⑤
signaling contacts 13, 14 One screw terminal each
*1)
Do not subject the end stop to higher loads
Figure 2-2 Terminal data 6EP3436-8SB00-0AY0
*1)
Do not subject the end stop to higher loads
Figure 2-3 6EP1437-3BA10 terminal data

Description, device design, dimension drawing
2.3 Potentiometer
SITOP PSU8200 3ph
Manual, 11.2014, C98130-A7638-A1-2-7629 11
2.3
Potentiometer
The potentiometer ③on the front of the device is used to adjust the output voltage. The
output voltage is set to 24 V in the factory, and can be adjusted in the range 24 ... 28.8 V; for
example, to compensate voltage drops across long supply lines to the connected load.
Figure 2-4 Potentiometer
NOTICE
Thermal overload possible
When adjusting the output voltage to >24 V, the output current must be derated by 4 %/V,
or the permissible ambient temperature must be taken into account with 3° C/V.
Note
It is only permissible to use an insulated screwdriver when actuating
the potentiometer.
For notes on actuating the potentiometer (screwdriver, torque), see Figure 2-2 Terminal data
6EP3436-8SB00-0AY0 (Page 10) and Figure 2-3 6EP1437-3BA10 terminal data (Page 10)

Description, device design, dimension drawing
2.4 Status displays and signaling
SITOP PSU8200 3ph
12 Manual, 11.2014, C98130-A7638-A1-2-7629
2.4
Status displays and signaling
6EP3436-8SB00-0AY0 (24 V/20 A)
6EP1437-3BA10 (24 V / 40 A)
Operating display
④
LED green for "24 V O.K."
Yellow LED for overload in "constant current" mode
Red LED for latching shutdown in "shut down" mode
Signaling contacts (13, 14)
⑤
Relay contact (NO contact, contact
rating 30 V AC / 0.5 A, 0 V DC / 0.3 A,
30 V DC / 1 A) for "24 V O.K."
Relay contact (NO contact, rating
60 V DC / 0.3 A) for "24 V O.K."
Figure 2-5 Operating display and signaling
Signaling
6EP3436-8SB00-0AY0 (24 V/20 A)
6EP1437-3BA10 (24 V / 40 A)
Green LED lit
Signaling contact,
contacts 13-14 closed
Normal operation, output voltage
>20 V ±0.5 V
Normal operation, output voltage
>20 V ±0.5 V
LED off
Signaling contact,
contacts 13-14 open
(quiescent position)
No supply voltage No supply voltage
Yellow LED lit
Signaling contact,
contacts 13-14 open
(quiescent position)
Overload, output voltage <20 V ±0.5 V
(only in "constant current" mode)
Overload, output voltage <20 V ±0.5 V
(only in "constant current" mode)
Yellow and green LED lights
Signaling contact,
contacts 13-14 closed
Phase failure, output voltage O.K. -

Description, device design, dimension drawing
2.4 Status displays and signaling
SITOP PSU8200 3ph
Manual, 11.2014, C98130-A7638-A1-2-7629 13
Signaling
6EP3436-8SB00-0AY0 (24 V/20 A)
6EP1437-3BA10 (24 V / 40 A)
Red LED lit
Signaling contact,
contacts 13-14 open
(quiescent position)
Latching shutdown Latching shutdown
LED flashing red
Signaling contact,
contacts 13-14 open
(quiescent position)
Overtemperature → power OFF/ON
after 3 min
Overtemperature → power OFF/ON
after 3 min

Description, device design, dimension drawing
2.5 Change-over switch
SITOP PSU8200 3ph
14 Manual, 11.2014, C98130-A7638-A1-2-7629
2.5
Change-over switch
Figure 2-6 Selector switch
The two switches A and B are used to influence the output characteristic curve:
Switch
ON
OFF
A
influences the output
characteristic in the
load range
Parallel operation:
"Soft" characteristic curve (see Figure 6-5 Output
characteristic curve 6EP3436-8SB00-0AY0 parallel
operation (Page 32) and Figure 6-6 6EP1437-3BA10
parallel operation output characteristic curve
(Page 33)) for the parallel operation of two or more
devices: The output voltage falls with increasing out-
put current (namely, also for the overcurrent pulse!).
This means that for full output current the highest
output voltage can normally no longer be attained.
Single operation:
Delivery state
"Hard" characteristic curve (see Figure 6-
3 Output characteristic curve 6EP3436-
8SB00-0AY0 single operation (Page 32)
and Figure 6-4 6EP1437-3BA10 single
operation output characteristic curve
(Page 32)) for normal operation (single
operation): The output voltage is inde-
pendent of the output current.
B
influences the output
characteristic in the
overload range
Latching shutdown:
If the output current rises above the rated value and
above the current limit, the device reduces the output
voltage (see Figure 6-7 Output characteristic curve
6EP3436-8SB00-0AY0 latching shutdown (Page 33)
and Figure 6-8 6EP1437-3BA10 latching shutdown
output characteristic curve (Page 33)). If the output
voltage falls below 20 V, the device shuts down latch-
ing, the red LED lights up. This limit voltage of 20 V is
independent of the set output voltage. The 'Short-time
overload current' feature is not available in this oper-
ating mode. In order to also be able to charge large
capacitances in this operating mode at the output,
non-latching shutdown is performed during the first
ten seconds after power on. During these first 10 s,
the device responds for overload as if the switch is
OFF.
Constant current:
Delivery state
If the output current rises above the rated
value and above the current limit, the
device reduces the output voltage. The
yellow LED lights up if the output voltage
falls below 20 V.
Delivery state: A-OFF; B-OFF
Note
Selector switches may only be activated when the device is switched off.

Description, device design, dimension drawing
2.6 Block diagram
SITOP PSU8200 3ph
Manual, 11.2014, C98130-A7638-A1-2-7629 15
2.6

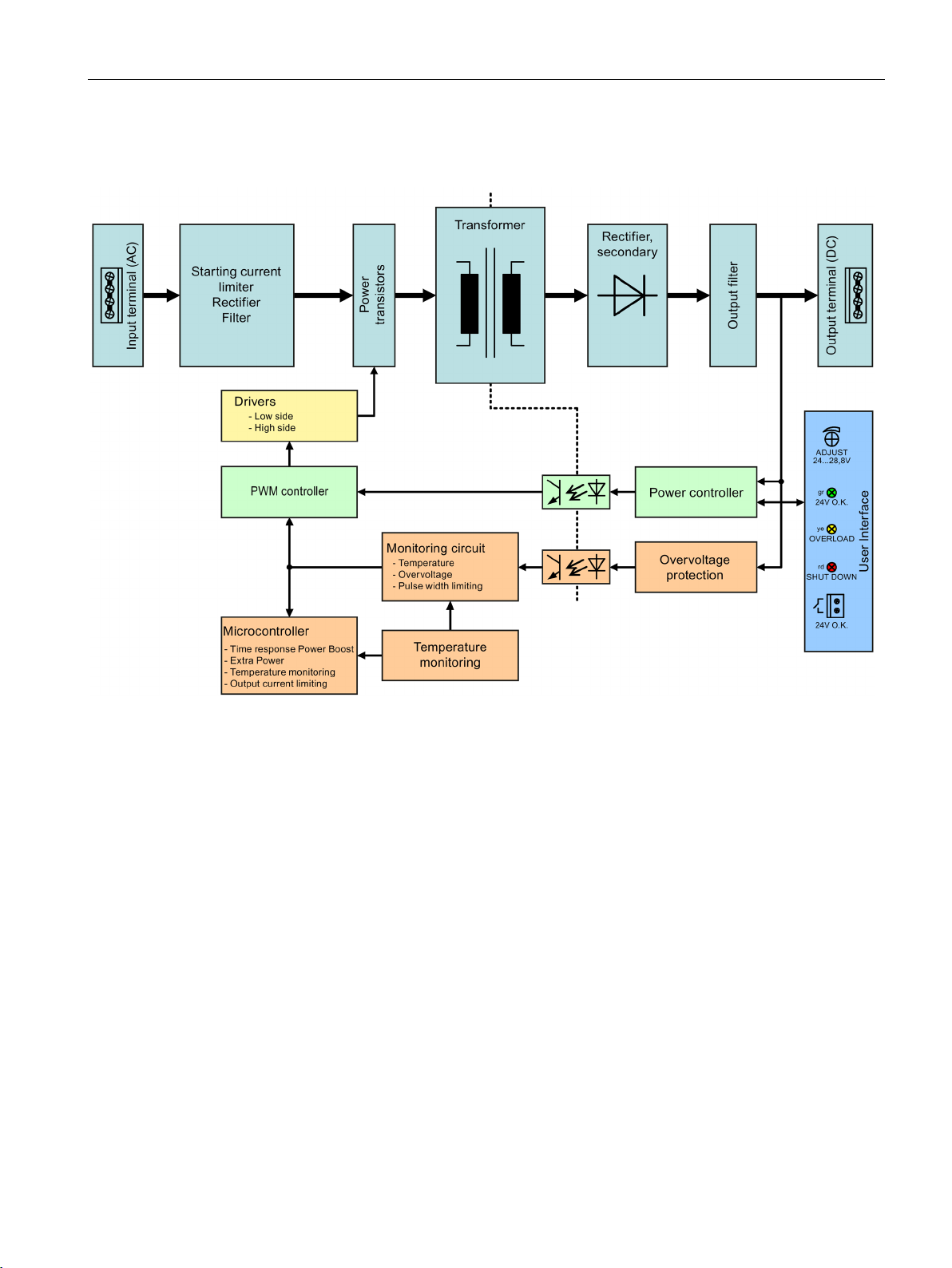

Block diagram
Figure 2-7 Block diagram

Description, device design, dimension drawing
2.7 Dimensions and weight
SITOP PSU8200 3ph
16 Manual, 11.2014, C98130-A7638-A1-2-7629
2.7
Dimensions and weight
Figure 2-8 Dimension drawing 6EP3436-8SB00-0AY0
Figure 2-9 Dimension drawing 6EP1437-3BA10
6EP3436-8SB00-0AY0 (24 V/20 A)
6EP1437-3BA10 (24 V / 40 A)
Dimensions (W × H × D) in mm
70 × 125 × 125
150 × 125 × 150
Weight
approx. 1.2 kg
approx. 3.4 kg

SITOP PSU8200 3ph
Manual, 11.2014, C98130-A7638-A1-2-7629 17
Mounting/removing
3
WARNING
Installing the device in a housing or a control cabinet
The SITOP PSU8200 3ph power supply is a built-in device. It must be installed in a housing
or control cabinet, to which only qualified personnel have access.
The device can be mounted in a control cabinet on standard mounting rails according to
EN 60715.
Mounting
To mount the device, position it with the mounting rail guide at the upper edge of the
standard mounting rail and press down to lock it into place. If this is too difficult, press slider
⑧at the same time, as described under "Removal".
Removal
To remove, pull up the slider ⑧using a screwdriver and disengage the device at the bottom
edge of the standard mounting rail. Then you can remove the device from the upper edge of
the standard mounting rail.
Figure 3-1 Mounting/removal (example 6EP3436-8SB00-0AY0)

Mounting/removing
SITOP PSU8200 3ph
18 Manual, 11.2014, C98130-A7638-A1-2-7629
WARNING
Use in hazardous zones
If the devices are to be used in hazardous zones (Ex II 3G Ex nA nC IIC T4 Gc ) they must
be installed in a distribution box with degree of protection IP54 or higher.

SITOP PSU8200 3ph
Manual, 11.2014, C98130-A7638-A1-2-7629 19
Mounting position, mounting clearances
4
4.1
Standard mounting position
The device is mounted on standard mounting rails according to EN 60715. The device must
be mounted vertically in such a way that the input terminals and the output terminals are at
the bottom to ensure correct cooling.
A clearance of at least 50 mm should be maintained above and below the device (maximum
depth of the cable duct, 50 mm).
No space is required at the side.
Output current as a function of the ambient temperature and mounting height

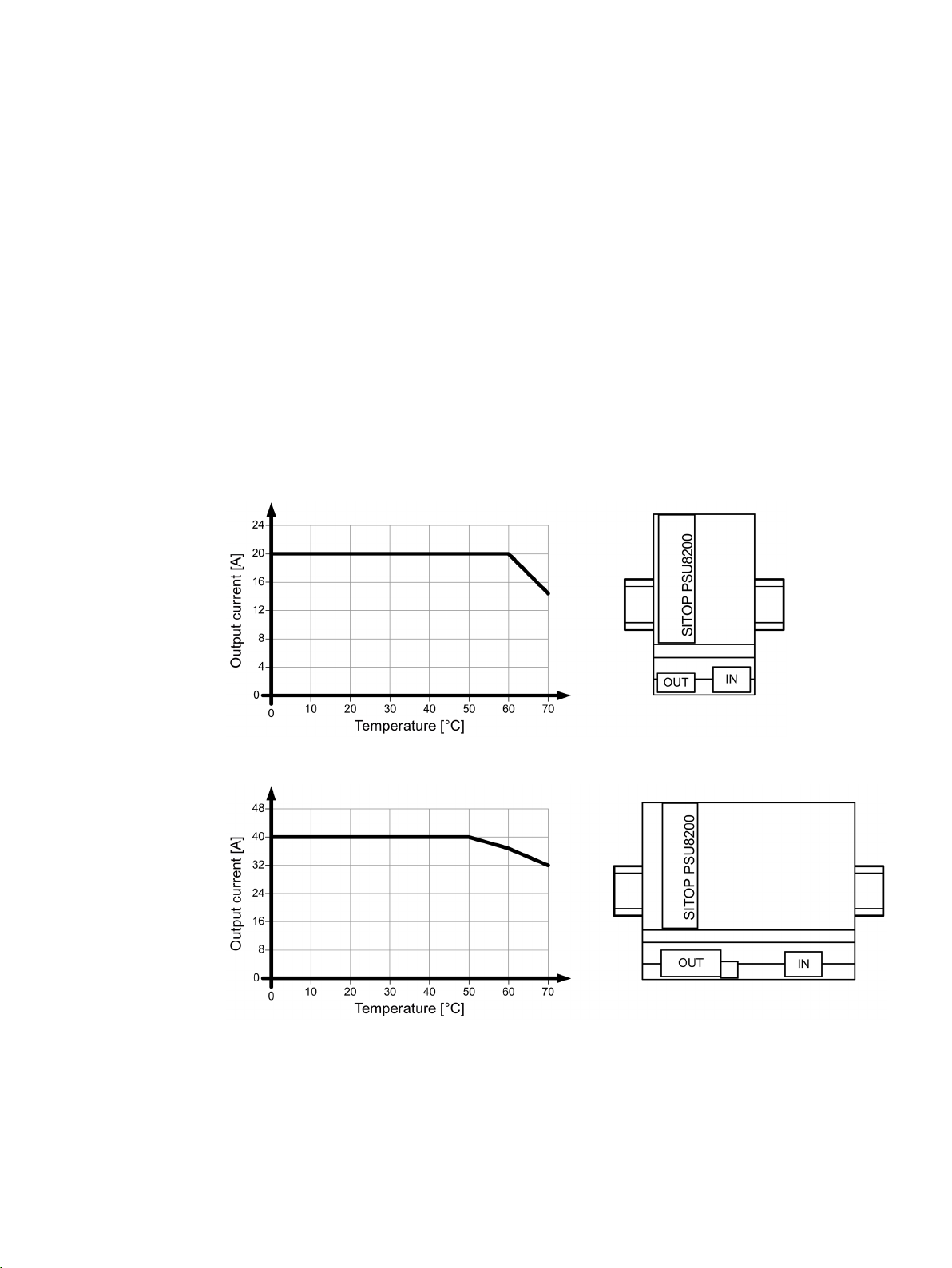

Figure 4-1 6EP3436-8SB00-0AY0: Output current in the standard mounting position
Figure 4-2 6EP1437-3BA10: Output current in the standard mounting position

Mounting position, mounting clearances
4.1 Standard mounting position
SITOP PSU8200 3ph
20 Manual, 11.2014, C98130-A7638-A1-2-7629
Figure 4-3 Mounting height derating
For details, see Ambient conditions (Page 43)
