Siemens WD15H540DN Manual

Register
your
product
online
e
ns-home.com/welcome
siemens-home.com/welcome
HQ ,QVWUXFWLRQ0DQXDODQG,QVWDOODWLRQ,QVWUXFWLRQV
Washer dryer
WD15H540DN

2
Your new washer dryer
You have chosen a Siemens washer
dryer.
Please take a few minutes to read and
become familiar with the advantages of
your washer dryer.
To meet the high quality demands
required by Siemens, every washer dryer
that leaves our factory is carefully
checked to ensure that it functions
correctly and is in perfect condition.
For more information on our products,
accessories, replacement parts and
services, see our website www.siemens-
home.comor contact our after-sales
service centres.
If the operating and installation
instructions describe different models,
any differences will be pointed out at the
relevant points in the text.
Read these operating and installation
instructions before switching on the
washer dryer.
Display rules
:Warning!
This combination of symbol and signal
word indicates a possibly dangerous
situation. Not heeding the warning can
cause death or injuries.
Caution!
This signal word indicates a possibly
dangerous situation. Not heeding the
caution can cause property and/or
environmental damage.
Note/tip
Information about the optimum use of
the appliance/any other useful
information.
1. 2. 3. / a) b) c)
The steps are represented by numbers
or letters.
■/ -
Lists are represented by a small box or
a dash.

en
3
Contents enInstruction Manual and Installation Instructions
8Intended use. . . . . . . . . . . . . . . . .4
(Safety instructions . . . . . . . . . . .5
Electrical safety. . . . . . . . . . . . . . . . . . 5
Risk of injury . . . . . . . . . . . . . . . . . . . . 5
Safety for children. . . . . . . . . . . . . . . . 5
7Protection of the environment . .6
Packaging/old appliance . . . . . . . . . . 6
Hints and tips . . . . . . . . . . . . . . . . . . . 6
/The main points in brief . . . . . . .7
*Getting to know your appliance .8
Washer dryer . . . . . . . . . . . . . . . . . . . 8
Control panel . . . . . . . . . . . . . . . . . . . 9
Display panel . . . . . . . . . . . . . . . . . . 10
ZLaundry. . . . . . . . . . . . . . . . . . . .12
Preparing laundry for washing . . . . . 12
Preparing laundry for drying . . . . . . . 13
1Operating the appliance . . . . . .14
Preparing the washer dryer. . . . . . . . 14
Selecting the programme/Switching
on the appliance. . . . . . . . . . . . . . . . 14
Adjusting the washing programme . . 15
Adjusting the drying programme . . . 15
Loading the laundry . . . . . . . . . . . . . 16
Dosing and adding detergent and
care product . . . . . . . . . . . . . . . . . . . 16
Starting the programme . . . . . . . . . . 17
Childproof lock . . . . . . . . . . . . . . . . . 17
Reloading the laundry. . . . . . . . . . . . 18
Changing the programme. . . . . . . . . 18
Interrupting or ending the
programme . . . . . . . . . . . . . . . . . . . . 18
End of the programme . . . . . . . . . . . 19
After washing/drying. . . . . . . . . . . . . 19
/Overview of programmes . . . . . 20
Programme on the programme
selector . . . . . . . . . . . . . . . . . . . . . . .20
Drying table . . . . . . . . . . . . . . . . . . . .23
Starching . . . . . . . . . . . . . . . . . . . . . .24
Dyeing/Bleaching . . . . . . . . . . . . . . .24
Soaking . . . . . . . . . . . . . . . . . . . . . . .24
0Changing programme default
settings. . . . . . . . . . . . . . . . . . . . 24
°C (Temperature) . . . . . . . . . . . . . . .24
0(Spin speed) . . . . . . . . . . . . . . . . .24
0 (Finish in) . . . . . . . . . . . . . . . . . . .25
Ù(Drying) . . . . . . . . . . . . . . . . . . . . .25
\Selecting additional functions . 26
speedPerfect á. . . . . . . . . . . . . . . .26
ecoPerfect à. . . . . . . . . . . . . . . . . . .26
Less iron {. . . . . . . . . . . . . . . . . . . .26
Stains . . . . . . . . . . . . . . . . . . . . . . . .26
Rinse plus l. . . . . . . . . . . . . . . . . .26
MSetting the signal . . . . . . . . . . . 27
2Cleaning and maintenance. . . . 28
Machine housing/Control panel . . . .28
Drum . . . . . . . . . . . . . . . . . . . . . . . . .28
Descaling . . . . . . . . . . . . . . . . . . . . .28
Cleaning the detergent dispenser . . .28
Drain pump blocked . . . . . . . . . . . . .29
Drainage hose on the siphon
blocked . . . . . . . . . . . . . . . . . . . . . . .29
Filter in the water inlet hose blocked.30
Air filter blocked . . . . . . . . . . . . . . . .30
3Faults and what to do about
them . . . . . . . . . . . . . . . . . . . . . . 31
Emergency release, e.g. if a power
failure occurs. . . . . . . . . . . . . . . . . . .31
Information on the display panel . . . .31
Faults and what to do about them. . .32

en Intended use
4
4Customer service . . . . . . . . . . . 35
JTechnical specifications . . . . . 35
[Consumption values . . . . . . . . 36
5Installation and connection . . . 37
Standard accessories . . . . . . . . . . . 37
Installation . . . . . . . . . . . . . . . . . . . . 37
Secure installation . . . . . . . . . . . . . . 37
Installation area . . . . . . . . . . . . . . . . 38
Installing the appliance on a base
or on a wooden joist ceiling. . . . . . . 38
Installing the appliance under/
between kitchen units . . . . . . . . . . . 38
Removing the transportation
protection devices . . . . . . . . . . . . . . 39
Hose and cable lengths. . . . . . . . . . 39
Connecting the water. . . . . . . . . . . . 40
Water supply . . . . . . . . . . . . . . . . . . 40
Water drainage . . . . . . . . . . . . . . . . 41
Drainage into a wash basin . . . . . . . 41
Drainage into a siphon . . . . . . . . . . 41
Drainage into a plastic pipe with
rubber sleeve or into a gully . . . . . . 42
Alignment . . . . . . . . . . . . . . . . . . . . 42
Electrical connection . . . . . . . . . . . . 42
Before washing/drying for the first
time . . . . . . . . . . . . . . . . . . . . . . . . . 43
Transportation . . . . . . . . . . . . . . . . . 43
8Intended use
Intendeduse ■For private domestic use only.
■The washer dryer is suitable for
washing machine-washable textiles
or hand-washable wool in washing
water and for drying these textiles.
■The appliance is suitable for
operation with cold mains water and
commercially available detergents
and care products which are suitable
for use in a washer dryer.
■Always follow the manufacturer's
instructions when dosing
all detergents, cleaning aids,
cleaning products and cleaning
agents.
■The washer dryer may be operated
by children from 8 years of age, by
persons who have limited physical,
sensory or mental abilities and by
persons who have inadequate
experience or knowledge, provided
they are supervised or have been
instructed by a responsible person.
■Children must not perform any
cleaning or maintenance work
without supervision.
■Keep children under the age of 3
years away from the washer dryer.
■Keep pets away from the washer
dryer.
■Install and operate the washer dryer
in a room which has an outflow.
Read and follow the operating and
installation instructions and all other
information enclosed with the washer
dryer.
Retain documents for subsequent use.

Safety instructions en
5
(Safety instructions
Safetyinstructions Electrical safety
:Warning
Danger of death!
Danger of death if live parts are
touched.
■When disconnecting the mains
plug, always pull the plug itself
and not the cable, otherwise
the cable could be damaged.
■Never touch or hold the mains
plug with wet hands.
Risk of injury
:Warning
Risk of injury!
■If the washer dryer is lifted
using projecting parts (e.g. the
washer dryer door), these
components may break off
and cause injuries.
Do not lift the washer dryer by
its projecting parts.
■If you climb onto the washer
dryer, the worktop may break
and cause injuries.
Do not climb onto the washer
dryer.
■If you lean/support yourself on
the open door, the washer
dryer may overturn and cause
injuries.
Do not lean on the open
washer dryer door.
■If you reach into the rotating
drum, you may injure your
hands.
Do not grip the rotating drum.
Wait until the drum stops
rotating.
:Warning
Risk of scalding!
■When washing at high
temperatures, you may be
scalded if you touch the hot
washing water (e.g. if draining
hot washing water into a
washbasin).
Do not touch the hot washing
water.
■If a drying programme was
interrupted, the washer dryer
and laundry may be very hot.
Select Intensive Dry Ùor Low
Heat Dry ^and select 15 min
drying time to cool down the
washing and then remove.
Safety for children
:Warning
Danger of death!
If children play on the washer
dryer, they may place themselves
in life-threatening situations or
injure themselves.
■Do not leave children
unsupervised near the washer
dryer.
■Do not let children play with
the washer dryer.
:Warning
Danger of death!
Children may lock themselves
inside appliances and suffocate.
On redundant appliances:
■Pull out the mains plug.
■Sever the power cord and
discard together with the plug.
■Destroy the lock on the door of
the washer dryer.

en Protection of the environment
6
:Warning
Risk of choking!
When playing, children may
become entangled in the
packaging/film and packaging
parts or pull them over their
heads and suffocate.
Keep packaging, plastic film and
packaging parts out of the reach
of children.
:Warning
Risk of poisoning!
Detergents and care products
may cause intoxication if
consumed or eye/skin irritation if
touched.
Keep detergents and care
products out of the reach of
children.
:Warning
Eye / skin irritation!
Contact with detergents and care
products may cause eye or skin
irritation.
Keep detergents and care
products out of the reach of
children.
:Warning
Risk of injury!
When you wash at high
temperatures, the glass in the
washing machine door gets hot.
Prevent children from touching
the hot door.
7Protection of the
environment
Protectionoftheenvironment Packaging/old appliance
)
Dispose of packaging in an
environmentally friendly manner.
This appliance has been identified in
accordance with the European Directive
2012/19/EU on Waste Electrical and
Electronic Equipment (WEEE). The
Directive specifies the framework for an
EU-wide valid return and recycling of
waste appliances.
Hints and tips
■Utilise the maximum amount of
washing for the particular
programme.
Overview of programmes
~Page 20
■Wash normally soiled laundry
without prewash.
■The selectable temperatures apply
to the care labels on the textiles. The
temperatures in the machine may
deviate from this so that you get the
optimum mix of energy-saving and
washing results.
■Energy saving mode: The display
panel light goes out after several
minutes, the !(Start/Reload)
button flashes. To activate the light,
select any button.
Energy-saving mode is not activated
if a programme is running.
■If the laundry is then dried in
the appliance, select the maximal
possible spin speed. The less water
the laundry contains, the less time
and energy are required for drying.
Do not dry dripping wet laundry.
■Ventilate the installation room well
and clean the air inlet filter regularly.
Cleaning and maintenance
~Page 28
and Installation and connection
~Page 37

The main points in brief en
7
/The main points in
brief
Themainpointsinbrief
--------
--------
--------
--------
1@@@
Insert mains plug.
Turn the tap on.
Open the door. Select the washing/
drying programme,
e.g.Cottons Î.
Programme
information in
display panel.
2@ @
If required, change the programme default
settings and/or select additional functions.
Sort the laundry. Load the laundry.
3@@@
FODFN
Open the detergent
drawer.
Dose detergent
according to the
dosing
recommendation
~Page 16
Close the door. Select !(Start/
Reload).
4@@@
End of the
programme.
Set programme
selecter to $Off.
Open the door and
remove the laundry.
Turn off the water
tap (for models
without Aqua-Stop).

en Getting to know your appliance
8
*Getting to know your
appliance
Gettingtoknowyourappliance Washer dryer



#
FODFN
6 7
+
(Hot air outlet
0Control panel
8Door with handle
9S Open the door
9T Close the door
@Service flap and cool air
inlet
HDrum light

Getting to know your appliance en
9
Control panel
 #+3
Note: The buttons are sensitive, they only need to be touched gently.
(Select a programme. The programme selector
can be rotated in either direction.
Overview of programmes ~Page 20
Change the default settings for the selected
programme and select additional functions:
0Select buttons °C (Temperature), 0(Spin
speed) and 5(Finish in) for changing
default settings ~Page 24
8Select the drying function ~Page 25
@Select buttons × (Option) + è(Select) for
additional functions ~Page 26
HStart the wash programme. Select the
!(Start/Reload) button to start, interrupt
(e.g. reload laundry) and cancel the
programme.
PSwitch off the appliance. Set the programme
selector to $Off.

en Getting to know your appliance
10
Display panel
Displays for the selected programme
(sPrewash
xWashing
qRinse
0Drain/Spin
ŠDrying
§Cooling down, rotating during drying phase
Progress bar
0
Tap |lights up Water pressure too low. This extends the pro-
gramme duration.
|flashes The tap has not been turned on or there is no
water pressure.
Overdosage oOn if too much foam detected, one rinse cycle
switched on.
Childproof lock wlights up The childproof lock is activated.
wflashes The childproof lock is activated, and if the pro-
gramme selector has been adjusted or the
buttons have been pressed.
Door vlights up When the door can be opened.
vflashes When the programme has started: the door is
not closed properly.
Load 7,0kg* Max. load for selected programmes.


#
+


Getting to know your appliance en
11
8cold - 90°C Temperature in °C.
– – – - 1500 Spin speed in revolutions per minute;
– – – (Rinse stop = without final drain/spin
cycle, laundry remains in the water after the
last rinse cycle).
– 0 – Programme end.
PAUS Programme interrupted.
– – – – End of programme using Rinse stop.
OPEN The door can be opened if the programme is
interrupted.
A:02 The door cannot be opened.
2:00* Programme duration after programme selec-
tion in h:min (hours:minutes).
1 – 24 h Finish in time in h (h=hour).
@Additional functions
Stains ëBlood
VCosmetics
äCoffee
WTomato
ìGrass
¶Wine
Rinse plus l
Selecting additional functions ~Page 26
speedPerfect á
ecoPerfect à
Less iron {
HDrying function AutoDry Auto dry, 3 different drying modes can be
selected.
±Cupboard dry (Auto).
·Extra dry (Auto).
ÓLight dry (Auto).
...min Time dry, 5 drying durations can be selected.
120min* Drying time set manually.
Further information E : - -* Fault display.
0Setting the signal.
* Depend on the selected programmes/additional functions.
Displays for the selected programme

en Laundry
12
ZLaundry
Laundry Preparing laundry for washing
Sorting laundry according to:
Sort your laundry according to the care
instructions and specifications of the
manufacturer on the care labels:
■Type of fabric/fibre
■Colour
Note: Laundry can discolour or not
be cleaned correctly. Wash white
and coloured laundry separately.
Wash new bright fabrics separately
the first time you wash them.
■Soiling
–light
do not prewash; if necessary
select the speedPerfect á
additional function.
–normal
Select a programme with
prewash. If required, pretreat
stains.
–heavy
Load less washing. Select a
programme with prewash. If
required, pretreat stains.
–Stains: Remove/pretreat stains
while they are fresh. Firstly, dab
with a soap water; do not rub.
Then select the appropriate
programme and wash the items.
Stubborn or dried-in stains can
sometimes only be removed by
washing several times.
Care label specifications:
Protecting your laundry and washer
dryer:
Caution!
Damage to the appliance/textiles
Foreign objects (e.g. coins, paper clips,
needles, nails) may damage the
washing or components of the washer
dryer.
The following instructions must be
observed when preparing your laundry:
■Always follow the manufacturer's
instructions when dosing
all detergents, cleaning aids, care
products and cleaning agents.
■Do not exceed maximum load.
Overfilling will impair the washing
result.
■Keep detergents and agents for the
pretreatment of laundry (e.g. stain
remover, prewash sprays, etc.) away
from the surfaces of the washer
dryer. Using a damp cloth,
immediately remove any fine spray
residue and other residue or
droplets.
<;Cottons 95°C, 90°C
:98Coloureds 60°C, 40°C,
30°C
BA>Easy-Care 60°C, 40°C,
30°C
LKDelicates 40°C, 30°C
WLKHand and machine-
washable silk and
woollens cold, 40°C,
30°C
ŽDo not wash laundry in
the washer dryer

Laundry en
13

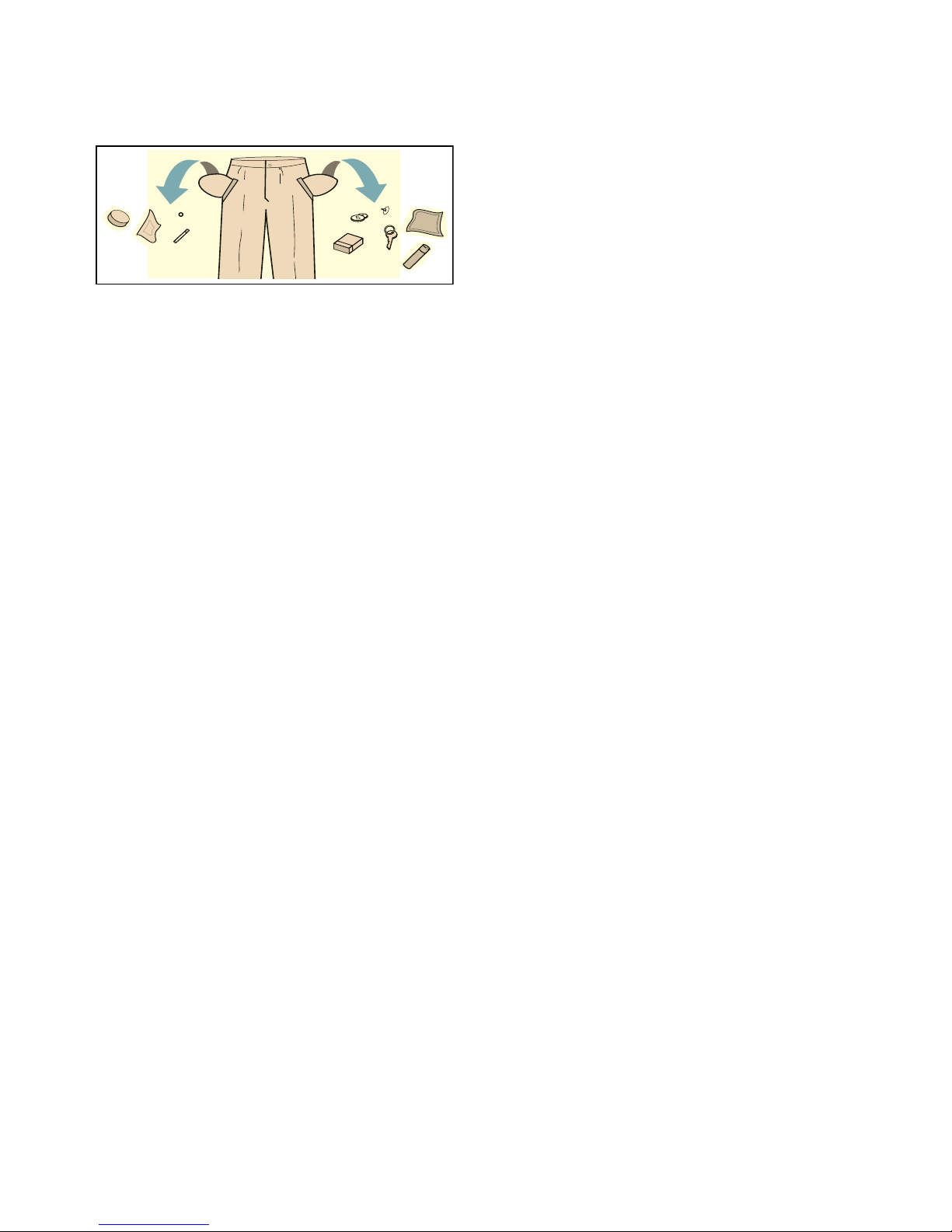

■Empty any pockets. Remove any
foreign objects.
■Remove metal parts (paper clips,
etc.).
■Trousers, knitwear and knitted
textiles, e.g. jersey garments, T-shirts
or sweatshirts, should be turned
inside out.
■Ensure that underwired bras are
machine-washable.
■Wash delicates in a net or bag
(tights, underwired bras, etc).
■Close zips, button up covers.
■Brush sand out of pockets and
collars.
■Remove curtain fittings or include in
the net/bag.
Preparing laundry for drying
Note: To ensure an even drying result,
sort the laundry according to the:
■Type of fabric
■Drying programme
■Care symbols which are indicated on
the care labels.
Only dry laundry which is labelled
“dryer-proof” or which has the following
care symbols:
■a= Dry at normal temperature
(Intensive Dry Ù)
■`= Dry at low temperature
(Low Heat Dry ^)
The following textiles must not be dried:
■b= care symbol “Do not dry”
■Wool or textiles containing wool.
■Delicates (silk, synthetic curtains).
■Textiles which contain foam rubber
or similar materials.
■Textiles which were treated with
flammable liquids, e.g. with stain
remover, petroleum ether, thinners.
Risk of explosion!
■Textiles which still contain hairspray
or similar substances.
Notes
■Before drying, hand-washed textiles
must be spun at the appropriate spin
speed.
■Before drying, spin at the optimum
speed. A spin speed of more than
1000 rpm is recommended for
cotton, more than 800 rpm for easy-
care textiles.
■Do not iron washing immediately
after drying. It is recommended to
roll the washing up first to distribute
residual moisture evenly.
■To ensure a good drying
performance, quilts, terry cloths and
other large textiles should be dried
separately. Do not dry more than
four terry cloths (or 3 kg).
■Do not exceed maximum load.

en Operating the appliance
14
1Operating the
appliance
Operatingtheappliance Preparing the washer dryer
The washer dryer was tested before
delivery. To remove residual water from
the test procedure, the first wash cycle
should be run without laundry using the
Fluff Clean 7programme.
Before washing/drying for the first time
~Page 43
Note:
■Never switch on a damaged washer
dryer!
■Inform your customer service!
~Page 35

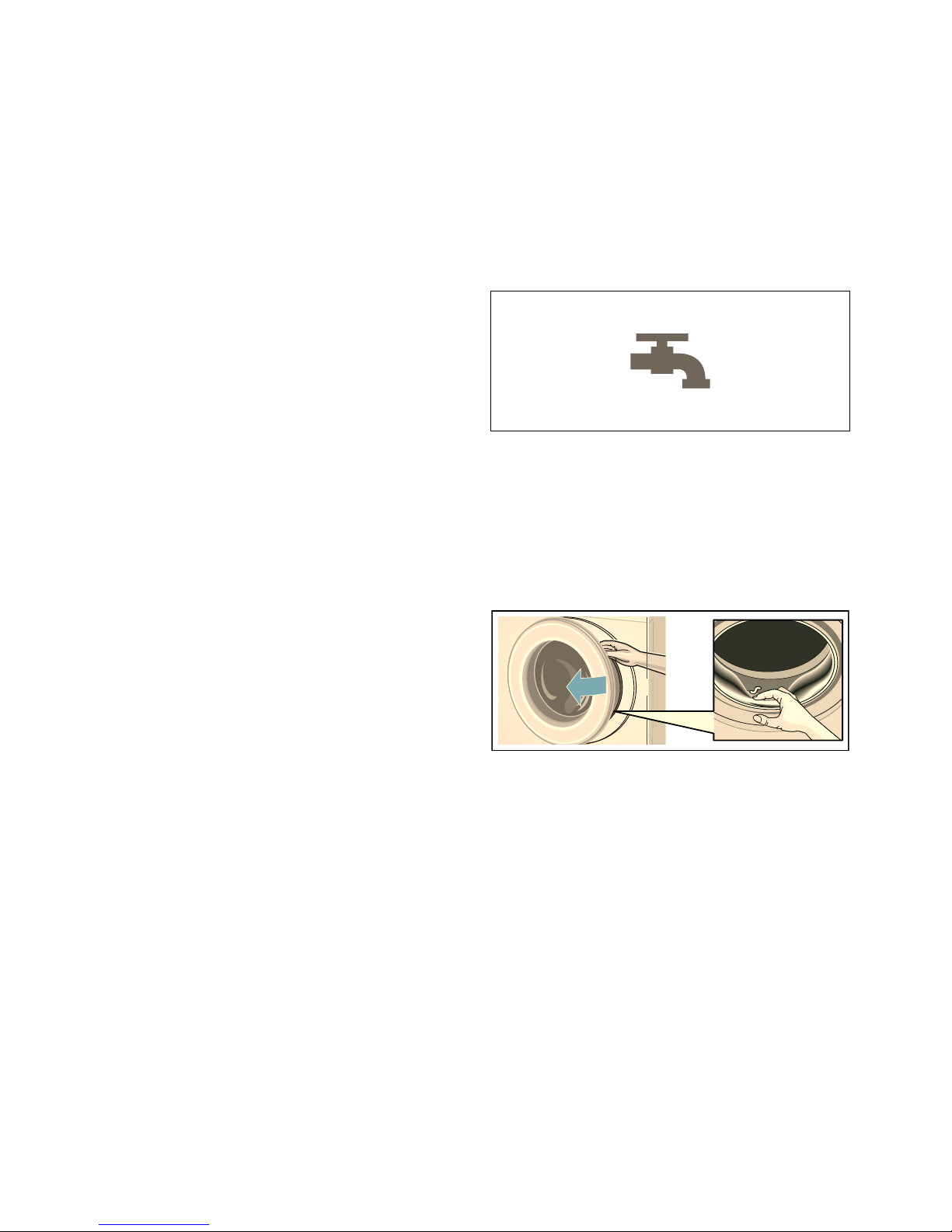

1. Insert mains plug.
2. Turn the tap on.
The end of the drying programme is
followed by an automatic fluff
cleaning cycle. The tap must be
turned on even when selecting a
drying programme.
Notes
– Always provide good ventilation
in the room where the washer
dryer is located so that air
produced during the drying
phase can be evacuated.
– Always keep the inlets and
outlets for the cooling air clear.
3. Open the door.
Selecting the programme/
Switching on the appliance
Note: If you have activated the
childproof lock, you must deactivate it
before you can set a programme.
Select the required programme with the
programme selector. Can be rotated in
either direction.
The washer dryer is switched on.
The following figures are indicated
continuously on the display panel for
the selected programme:
■the programme duration,
■the preset temperature,
■the preset spin speed and,
■the maximum load,
■...

Operating the appliance en
15

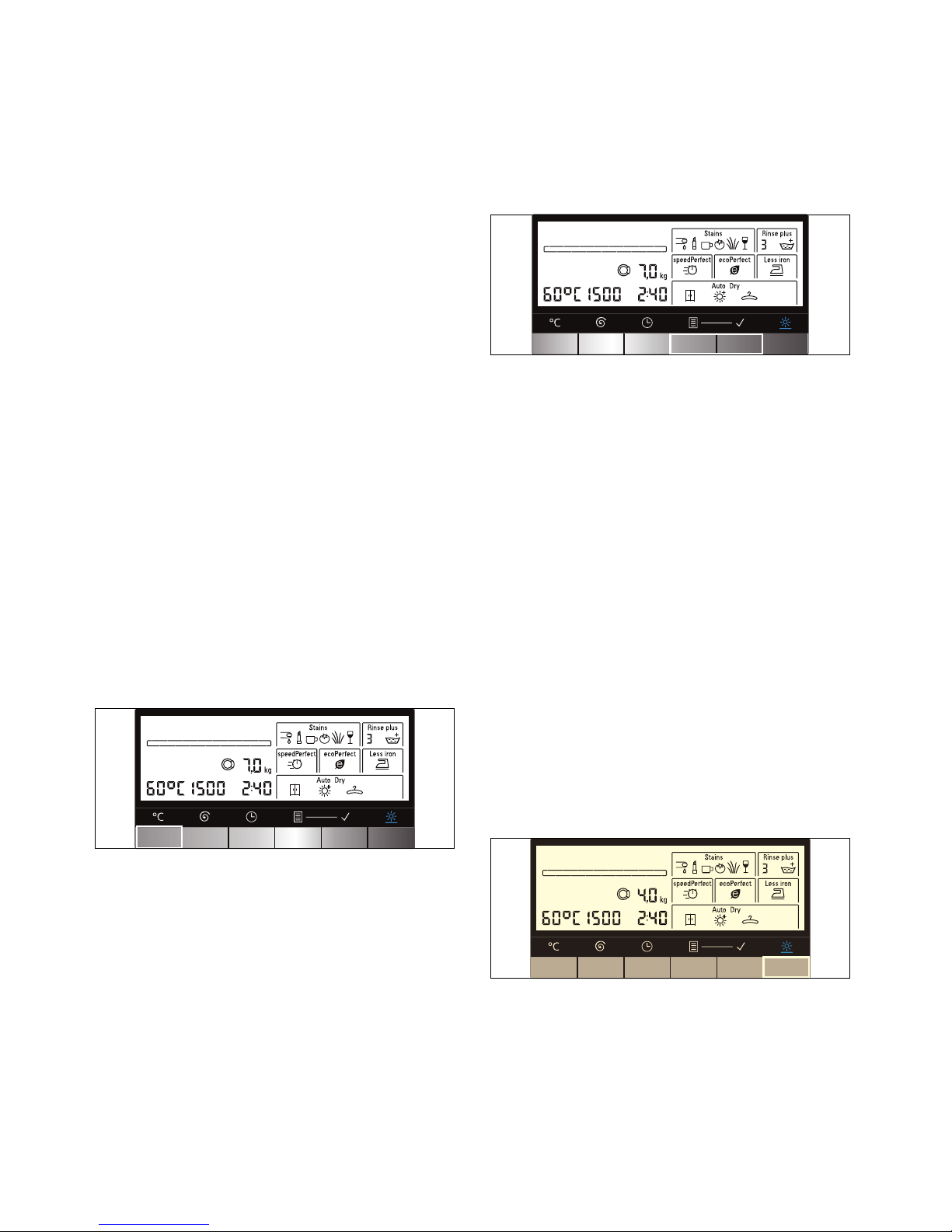

Adjusting the washing
programme
You can use the displayed default
settings or adjust the selected
programme optimally to the laundry
items by changing the default settings
or selecting additional functions. The
settings and additional functions, which
can be selected, depend on the
selected washing/drying programme.
Overview of programmes ~Page 20
Notes
■Options can be selected, deselected
or changed depending on the
progress of the programme.
■The buttons are sensitive, they only
need to be touched gently. If the
°C (Temperature), 0(Spin speed),
5(Finish in) button is held down,
the settings are automatically
scrolled through.
Changing programme default settings
for a washing programme, e. g.
washing temperature:
Touch the °C (Temperature) button to
set desired washing temperature.
Changing additional functions of a
washing programme:
Touch the ×(Option) and è(Select)
buttons to set desired additional
functions as required.
Note:
After changing the default settings and/
or additional functions, the programme
duration may change.
Adjusting the drying
programme
Note: If an individual drying
programme or washing and drying
without interruption is selected, you can
change the default settings for the
drying programme if required.
Overview of programmes ~Page 20
Changing default settings for a drying
programme:
Touch the Ù(Drying) button to set
desired drying mode or drying time
(only for an individual drying
programme).
Note:
After changing the default settings for
the drying programme, the programme
duration may change.

en Operating the appliance
16

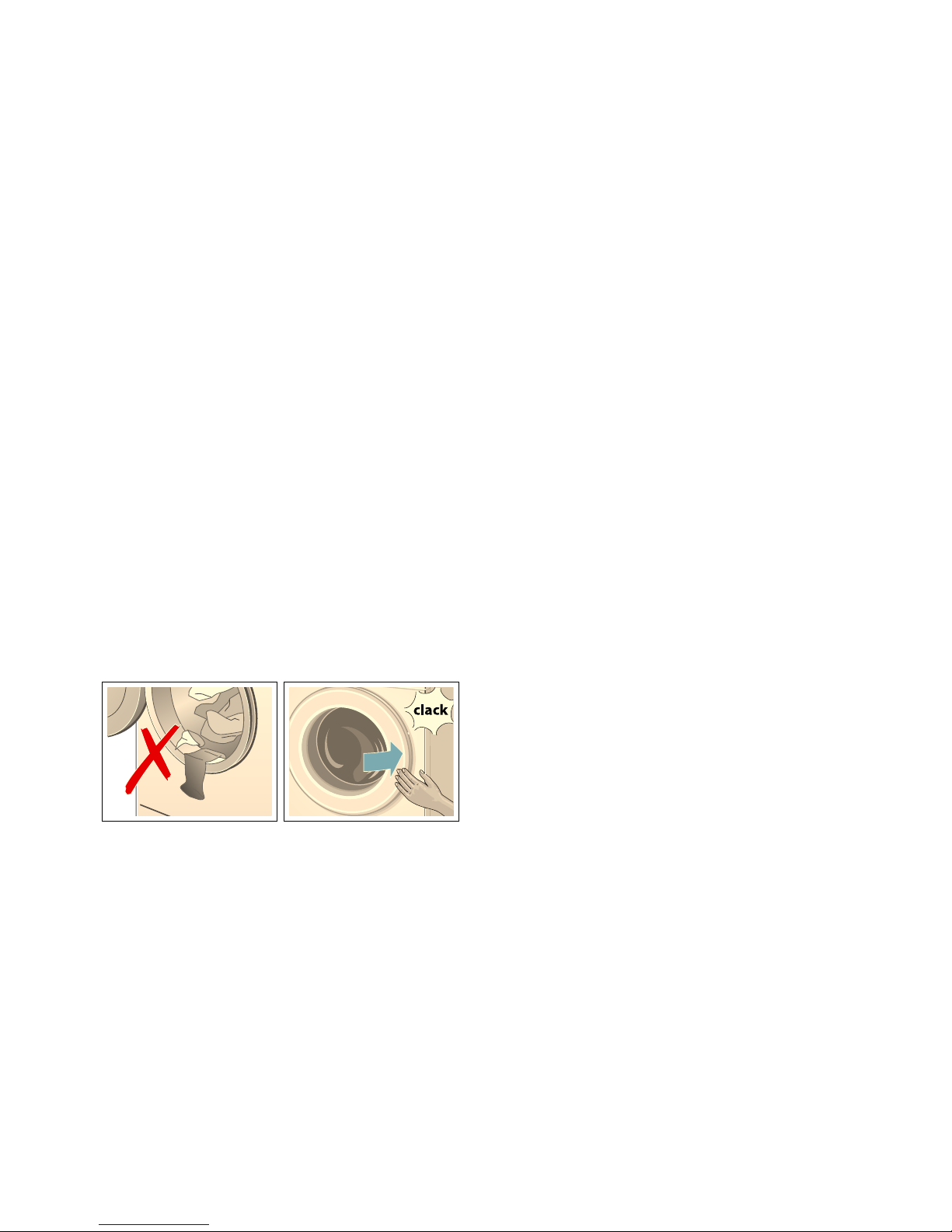

Loading the laundry
:Warning
Danger of death!
Laundry items pretreated with solvent-
based detergents, e.g. stain remover/
petroleum ether, may cause an
explosion if loaded into the washer
dryer.
Thoroughly rinse laundry items by hand
before washing.
Notes
■Mix large and small items. Laundry
items of different sizes distribute
themselves better during the spin
cycle. Individual laundry items may
cause an unbalanced load.
■Observe the indicated maximum
load. Overfilling adversely affects
the washing result and promotes
creasing.
1. Unfold presorted laundry items and
place in the drum.
2. Ensure that no laundry items are
trapped between the door and
rubber seal.
3. Close the door.
Note: The indicator light on the
!(Start/Reload) button flashes and the
default settings for the programme
appear continuously on the display
panel. Changes may be made to the
default settings.
Dosing and adding detergent
and care product
Caution!
Damage to the appliance
Detergents and agents for the
pretreatment of laundry (e.g. stain
remover, prewash sprays, etc.) may
damage the surfaces of the washer
dryer.
Keep these agents away from the
surfaces of the washer dryer. Using a
damp cloth, immediately remove any
fine spray residue and other residue/
droplets.
Dosing
Dose the detergents and care products
according to:
■water hardness (ask your water
supply company),
■the manufacturer’s specifications on
the packaging,
■the amount of laundry,
■soiling.
Filling the dispensers
1. Pull out the detergent drawer.
:Warning
Eye/skin irritation!
If the detergent drawer is opened
while the appliance is running,
detergent/care product may run out.
Carefully open the drawer.
If detergent/care product comes into
contact with eyes or skin, rinse
thoroughly.
If accidentally swallowed, seek
medical advice.

Operating the appliance en
17
2. Pour in detergent and/or cleaning
product.
Notes
■Always follow the manufacturer's
instructions when dosing
all detergents, cleaning aids, care
products and cleaning agents.
■Dilute viscous fabric softener
and fabric conditioner with water.
This will prevent blockages.
■Be careful when opening the
detergent drawer while the appliance
is running.
■If an individual drying programme is
selected, please do not add
detergent and/or care product in the
appliance.
Measuring aid* for liquid detergent
*depending on the model
Position the measuring aid for
measuring the correct amount of liquid
detergent:
1. Pull out the detergent drawer. Press
down the insert and fully remove the
drawer.
2. Slide the measuring aid forwards,
fold it down and click it into place.
3. Reinsert the drawer.
Note: Do not use the measuring aid for
gel detergents and washing powder, or
for programmes with prewash or when
"Finish in" time is selected.
For models without a measuring aid,
pour the liquid detergent into the
appropriate dispenser and place it in
the drum.
Starting the programme
Select !(Start/Reload). The indicator
lamp lights up and the programme
starts.
Note: If you want to secure the
programme to prevent it from being
adjusted inadvertently, select the
childproof lock.
The display panel shows the Finish in
time while the programme is running or
the programme duration and the
programme progress symbols when the
washing programme has started.
Childproof lock
You can secure the washer dryer to
prevent the set functions from being
changed inadvertently. To do this,
activate the childproof lock when the
programme has started.
Activating/deactivating: Touch and hold
the button 5(Finish in) for approx. 5 s.
The symbol wis indicated in the
display. If the button signal is activated,
an acoustic signal sounds.
Dispenser IDetergent for prewash.
Dispenser iSoftener, starch. Do not exceed
the maximum load.
Dispenser II Detergent for main wash, water
softener, bleach, stain remover.
Dispenser AFor dosing liquid detergent.

en Operating the appliance
18
■wlights up: The childproof lock is
activated.
■wflashes: The childproof lock is
active and the programme selector
has been adjusted. To prevent the
programme from terminating, reset
the programme selector to the initial
programme. The symbol lights up
again.
Note:
The childproof lock may remain
activated until the next programme
starts, even after the washer dryer has
been switched off. If this is the case,
deactivate the childproof lock before the
programme starts and, if required, re-
activate after the programme starts.
Reloading the laundry
When the programme has started, the
laundry can be reloaded or taken out as
required.
Select !(Start/Reload). The washer
dryer checks whether a reloading is
possible.
Notes
■If there is a high water level, high
temperature or if the drum is
rotating, the door remains locked
for safety reasons and reloading is
not possible.
If the following is indicated on the
display panel:
A:02 + PAUS ~Reloading is not
possible. To continue the
programme, select the !(Start/
Reload) button.
v+ OPEN are lit ~Reloading is
possible.
■Do not open the door until both the
symbols v+ OPEN are lit.
■Do not leave door open for
a prolonged period – water could
run out of the laundry.
■The reloading function cannot be
activated during the drying phase.
Changing the programme
If you have started the wrong
programme by mistake, you can
change the programme as follows:
1. Select !(Start/Reload).
2. Select another programme. If
required, adjust the default settings
and/or select other additional
funtions.
3. Select !(Start/Reload). The new
programme starts from
the beginning.
Interrupting or ending the
programme
For programmes at high temperature:
1. Select ! (Start/Reload).
2. To cool down laundry: Select
qRinse /Spin 0.
3. Select !(Start/Reload).
For programmes at low temperature:
1. Select ! (Start/Reload).
2. Select qRinse/Spin 0or
Empty p.
3. Select !(Start/Reload).
For drying programmes:
1. Select Intensive Dry Ù or
Low Heat Dry ^.
2. Press button Ù(Drying), and set
drying time to 15 min.
3. Select !(Start/Reload).

Operating the appliance en
19
End of the programme
– 0 – or – – – – is indicated in the
display and acoustic signal sounds.
Setting the signal ~Page 27
If – – – (Rinse stop = without final drain/
spin cycle) was selected, press the
!(Start/Reload) button to start final
drain/spin cycle.
Notes
■The programme continues by
pumping out the water and spinning
the laundry (the standard spin speed
can be changed beforehand).
■If only the water is to be pumped out,
approx. 1 minute after the
programme starts, touch the
! (Start/Reload) button before the
spin cycle starts, then turn the
programme selector to $Off. The
programme is interrupted and the
door lock is released. The laundry
can be removed.
■If the drying function is actuated,
PUSH, to, End alternates on the
display, the ! (Start/Reload)
indicator light flashes and an
acoustic signal sounds.
■Drum continues running for 30 min
in special pace to prevent laundry
from creasing.
■If you want to remove the laundry
immediately, touch any button to
cancel or reselect a programme.
■If hot flashes in the display before
the drying programme ends, the
temperature in the drum is high. The
programme for cooling the drum
runs until the temperature in the
drum has dropped.
After washing/drying
1. Open the door and remove the
laundry.
2. Turn the programme selector to
$Off. The appliance is switched off.
3. Turn off the tap.
Not required for Aqua-Stop models.
~Page 37
Notes
■Do not leave any items of laundry in
the drum. In the next wash they may
shrink or discolour another item.
■Remove any foreign objects from
the drum and the rubber seal – risk
of rust.
■Leave the detergent drawer and
door open so that residual water can
evaporate.
■Always remove the laundry.
■Always wait until the programme
ends, as the appliance could still be
locked. Then switch the appliance
on and wait for the unlocking device.
■When the display panel has gone
out at the end of the programme,
energy-saving mode is active. To
activate, select any button.

en Overview of programmes
20
/Overview of
programmes
Overviewofprogrammes Programme on the programme
selector
Programme/Type of laundry Options/Information
Name of the programme
Brief explanation of the programme and which textiles it is suitable
for.
maximum load according to
EN50229
maximum load for washing/
maximum load for drying
selectable temperature in °C
selectable spin speeds in rpm
possible additional functions for
washing
possible settings for drying
Cottons Î
Hard-wearing textiles, heat-resistant textiles made of cotton or linen.
Note: * Reduced load for speedPerfect áadditional function.
max. 7,0(4,0)* kg/4,0 kg
cold – 90°C
- - - - 1500 rpm
Stains, á, à, {, l
», ·, Ó
+ Prewash s
Energy-intensive program for heavily soiled hard-wearing textiles
made of cotton or linen.
Note: * Reduced load for speedPerfect áadditional function.
max. 7,0(4,0)* kg/4,0 kg
cold – 90°C
- - - - 1500 rpm
Stains, á, à, {, l
», ·, Ó
Easy-Care Ó
Textiles made of synthetic materials or blended fabrics.
max. 3,5 kg/2,5 kg
cold – 60°C
- - - - 1200 rpm
Stains, á, à, {, l
», ·, Ó
Mix Ñ
Mixed load consisting of textiles made of cotton and synthetics.
max. 3,5 kg/2,5 kg
cold – 60°C
- - - - 1500 rpm
Stains, á, à, {, l
», ·, Ó
