SifWeld Evolution MTS400 SYN User manual

Operation Manual
www.sifweld.com
Peters House
The Orbital Centre
Icknield Way
Letchworth Garden City
Hertfordshire
SG6 1ET
Tel. [phone]
MIG
Approved
TIG MMA
TSXE3D400MTS
SifWeld Evolution MTS400 SYN

2
DECLARATION OF CONFORMITY
The Low voltage Directive 2006/95/EC of 12 December 2006, entering into force 16 January 2007
The EMC Directive 2004/108/EC, entering into force 20 July 2007
The RoSH Directive 2011/65/EC, entering into force 2 January 2013
Type of Equipment
Welding power source for MIG/MAG, TIG/TAG, MMA welding
Brand name or trade mark
SifWeld® Evolution
Type designation etc.
MTS400 SYN
Manufacturer or his authorised representative established within the EEA
Name, address, telephone no, fax no
Weldability Sif
Peters House, The Orbital Centre
Icknield Way, Letchworth
Hertfordshire, SG6 1ET
United Kindom
Phone: [phone] Fax: [phone]
The following harmonised standard in force with the EEA has been used in the design:
EN60974-1- Arc welding equipment- Part 1: Welding power sources
EN60974-10 Arc welding equipment - Part 10: Electromagnetic Compatibility (EMC) requirements
Additional information: restrictive use, Class A equipment, intended for use in locations other than residential
By signing this document, the undersigned declares as manufacturer, or the manufacturer’s authorised
representative established within the EEA, that the equipment in question complies with the safety
requirements stated above.
WEEE Directive & Product Disposal
At the end of its serviceable life, this product should not be treated as household
or general waste. It should be handed over to the applicable collection point for
the recycling of electrical and electronic equipment, or returned to the supplier for
disposal.
Place and Date
Letchworth, UK
01-04-2015
Position
Quality Manager
Weldability Sif
Signiture
Keith Mullan

3
Safety Guidelines
These general safety norms cover both arc welding machines and plasma cutting machines unless
otherwise noted. The equipment must only be used for the purpose it was designed for. Using it in any
other way could result in damage or injury and in breach of the safety rules. Only suitably trained and
competent persons should use the equipment. Operators should respect the safety of other persons.
Prevention against electric shock
The equipment should be installed by a qualified person and in accordance with current standards in
operation. It is the user’s responsibility to ensure that the equipment is connected to a suitable power
supply. Consult with your utility supplier if required. If earth grounding of the work piece is required,
ground it directly with a separate cable. Do not use the equipment with the covers removed. Do not
touch live electrical parts or parts which are electrically charged. Turn off all equipment when not in use.
Cables (both primary supply and welding) should be regularly checked for damage and overheating. Do
not use worn, damaged, under sized or poorly jointed cables. Ensure that you wear the correct protec-
tive clothing, gloves, head and eye protection. Insulate yourself from work and ground using dry insulat-
ing mats or covers big enough to prevent any physical contact with the work ground. Never touch the
electrode if you are in contact with the work ground, or another electrode from a different machine.
Do not wrap cables over your body. Ensure that you take additional safety precautions when you are
welding in electrically hazardous conditions such as damp environments, wearing wet clothing, and
metal structures. Try to avoid welding in cramped or restricted positions. Ensure that the equipment is
well maintained. Repair or replace damaged or defective parts immediately. Carry out any regular main-
tenance in accordance with the manufacturer’s instructions.
Safety against fumes and welding gases
Locate the equipment in a well-ventilated position. Keep your head out of the fumes. Do not breathe
the fumes. Ensure the welding zone is in a well-ventilated area. If this is not possible provision should be
made for suitable fume extraction. If ventilation is poor, wear an approved respirator. Read and under-
stand the Material Safety Data Sheets (MSDS’s) and the manufacturer’s instructions for metals, consum-
able, coatings, cleaners, and de-greasers. Do not weld in locations near any de-greasing, cleaning, or
spraying operations. Be aware that heat and rays of the arc can react with vapours to form highly toxic
and irritating gases. Do not weld on coated metals, unless the coating is removed from the weld area,
the area is well ventilated, and while wearing an air-supplied respirator. The coatings on many metals
can give off toxic fumes if welded.
Prevention against burns and radiation
Arc rays from the welding process produce intense, visible and invisible (ultraviolet and infrared) rays
that can burn eyes and skin. Wear an approved welding helmet fitted with a proper shade of filter lens
to protect your face and eyes when welding or watching. Wear approved safety glasses with side shields
under your helmet. Never use broken or faulty welding helmets. Always ensure there are adequate
protective screens or barriers to protect others from flash, glare and sparks from the welding area. Ensure
that there are adequate warnings that welding or cutting is taking place.

4
Wear suitable protective flame resistant clothing. The sparks and spatter from welding, hot work pieces,
and hot equipment can cause fires and burns. Welding on closed containers, such as tanks, drums, or
pipes, can cause them to explode. Accidental contact of electrode to metal objects can cause arcs,
explosion, overheating, or fire. Check and be sure the area is safe and clear of inflammable material
before carrying out any welding.
Protection against noise
Some welding and cutting operations may produce noise. Wear safety ear protection to protect your
hearing.
Protection from moving parts
When the machine is in operation, keep away from moving parts such as motors and fans. Moving
parts, such as the fan, may cut fingers and hands and snag garments. Protections and coverings may
be removed for maintenance and controls only by qualified personnel, after first disconnecting the
power supply cable. Replace the coverings and protections and close all doors when the intervention
is finished, and before starting the equipment. Take care to avoid getting fingers trapped when loading
and feeding wire during set up and operation. When feeding wire be careful to avoid pointing it at other
people or toward your body. Always ensure machine covers and protective devices are in operation.
Precautions against fire and explosion
Avoid causing fires due to sparks and hot waste or molten metal. Ensure that appropriate fire safety
devices are available near the cutting / welding area. Remove all flammable and combustible materials
from the cutting / welding zone and surrounding areas. Do not cut/weld fuel and lubricant containers,
even if empty. These must be carefully cleaned before they can be cut/welded. Always allow the cut/
welded material to cool before touching it or placing it in contact with combustible or flammable
material. Do not work in atmospheres with high concentrations of combustible fumes, flammable gases
and dust. Always check the work area half an hour after cutting to make sure that no fires have begun.
Risks due to magnetic fields
The magnetic fields created by high currents may affect the operation of pacemakers or electronically
controlled medical equipment. Wearers of vital electronic equipment should consult their physician
before beginning any arc welding, cutting, gouging or spot welding operations. Do not go near welding
equipment with any sensitive electronic equipment as the magnetic fields may cause damage.
RF Declaration
Equipment that complies with directive 2004/108/EC concerning electromagnetic compatibility (EMC)
and the technical requirements of EN60974-10 is designed for use in industrial buildings and not those
for domestic use where electricity is provided via the low voltage public distribution system. Difficulties
may arise in assuring class A electromagnetic compatibility for systems installed in domestic locations
due to conducted and radiated emissions. In the case of electromagnetic problems, it is the
responsibility of the user to resolve the situation. It may be necessary to shield the equipment and fit
suitable filters on the mains supply.

5
LF Declaration
Consult the data plate on the equipment for the power supply requirements. Due to the elevated
absorbency of the primary current from the power supply network, high power systems affect the
quality of power provided by the network. Consequently, connection restrictions or maximum
impedance requirements permitted by the network at the public network connection point must be
applied to these systems. In this case the installer or the user is responsible for ensuring the equipment
can be connected, consulting the electricity provider if necessary.
Materials and their disposal
The equipment is manufactured with materials, which do not contain any toxic or poisonous
materials dangerous to the operator. When the equipment is scrapped, it should be dismantled
separating components according to the type of materials. Do not dispose of the equipment with
normal waste. The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment states
the electrical equipment that has reached its end of life must be collected separately and returned to an
environmentally compatible recycling facility.
Handling of Compressed gas cylinders and regulators
All cylinders and pressure regulators used in welding operations should be handled with care.
Never allow the electrode, electrode holder or any other electrically “hot” parts to touch a cylinder.
Keep your head and face away from the cylinder valve outlet when opening the cylinder valve.
Always secure the cylinder safely. Never deface or alter any cylinder.
The following signs and explanations are to remind the user of the potential
risks involved and the dangers of misuse or mistreatment of the welding
machine.
!
RUNNING PARTS MAY BE DANGEROUS!
Keep away from running components,
including the fan.
BE AWARE OF SPARKS AND SPATTER
Wear protective clothing, such as leather
gloves, Flame retardant overalls, boots and
eyewear.
DO NOT TOUCH THERMAL COMPONENTS!
Thermal components may cause severe burns
when in contact with unprotected skin.
ELECTRIC SHOCKS CAN KILL!
Never touch electrical parts. Keep the
equipment in good condition, replace
damaged parts, undertake regular
maintenance according to the instructions.

6
1. Preface 7
1.1 General 7
1.2 Introduction 8
1.3 Technical Specications 9
1.4 Overview of Machine 10
2. Control Panels 12
2.1 MMA Display 12
2.2 Lift TIG Display 13
2.3 MIG Manual Display 16
2.4 MIG SYN Display 17
2.5 Spool Gun Display 19
3. Installation 20
3.1 Torch switch Control 23
3.2 Remote Torch Control 24
3.3 Pedal Switch Control 25
3.4 Wire Feed Roller 29
3.5 Wire Installation 30
3.6 MIG Torch Liner 32
4. Operation 33
4.1 Spool Gun 33
5. Troubleshooting 36
6. Maintenance 37
7. Warranty 38
Contents

7
1. Preface
Congratulations on choosing your SifWeld Evolution MTS400SYN welding machine.
Used correctly, SifWeld products can signicantly increase the productivity of your welding, and provide
years of economical service. This operating manual contains important information on the use,
maintenance and safety of your SifWeld product. Please read the manual carefully before using the
equipment for the rst time. For your own safety and that of your working environment, pay particular
attention to the safety instructions in the manual.
For more information on SifWeld products, consult an authorised SifWeld dealer, or visit the SifWeld web
site at www.sifweld.com. The specications presented in this manual are subject to change without prior
notice.
Important notes
Items in the manual that require particular attention in order to minimise damage and personal harm
are indicated with the ’NOTE!’ notation. Read these sections carefully and follow their instructions.
Disclaimer
While every effort has been made to ensure that the information contained in this guide is accurate and
complete, no liability can be accepted for any errors or omissions. We reserve the right to change the
specication of the product described at any time without prior notice. Do not copy, record, reproduce
or transmit the contents of this guide without prior permission.
1.1 General

8
The SifWELD MTS400SYN is a professional, microprocessor-controlled inverter welding package for
MIG, MMA & Lift-TIG applications .
With 100% Duty Cycle at 400A and 60% at 500A this machine is the ideal work horse for high production
manufacturing in air cooled or water cooled versions. Using the built in synergic facility the machine will
automatically give the optimum welding parameters for the specic material, wire size and shielding gas.
Featuring IGBT technology and providing a lightweight, multi-process machine. A separate wire feed
system with full feature control.
Features
• 500A, Three phase MIG welding machine with separate wire feed unit
• Synergic or manual settings
• Very high duty cycle, 100% at 400A, 60% at 500A
• Perfect machine for high production environment.
• Supervisor lock out included
• Full digital control with large colour LCD Screen for showing and changing all
welding parameters on both the power source and the WFU.
• 15Kg Reel or Bulk Drum
• Water cooled or air cooled ready to weld packages.
• 5M or 10M interconnect cable
• 25m interconnect cable for special applications
1.2 Introduction

9
100% 400A
Duty cycle (40oC)
Welding Voltage (V)
Welding Current (A)
Input Power (KW)
Input Current (A)
16~39 20.4~4010.4~30
Frequency (HZ)
1.3 Technical Specications
SifWeldEvolution MTS400 SYN
Input Voltage (V)
Diameter (mm)
50/60
41
58.1
Fe: 0.6/0.9/1.0/1.2/1.6
SS: 0.8/0.9/1.0/1.2/1.6
Flux-Cored: 0.6/0.8/0.9/1.0/1.2/1.6
3~400±10%
41.8
70.1
Al: 1.0/1.2/1.6
0.75
MIG TIG
33.1
28.4 28.9 22.9
40~500 10~500
67.1
60% 500A
Protection class
Circuit breaker
Dimensions (mm)
Weight (Kg)
Power Factor
IP21S
D32A
620 x 260 x 430
33.8
10~500
MMA
No-load Voltage (V)

10
1.4 Overview of Machine
Front View

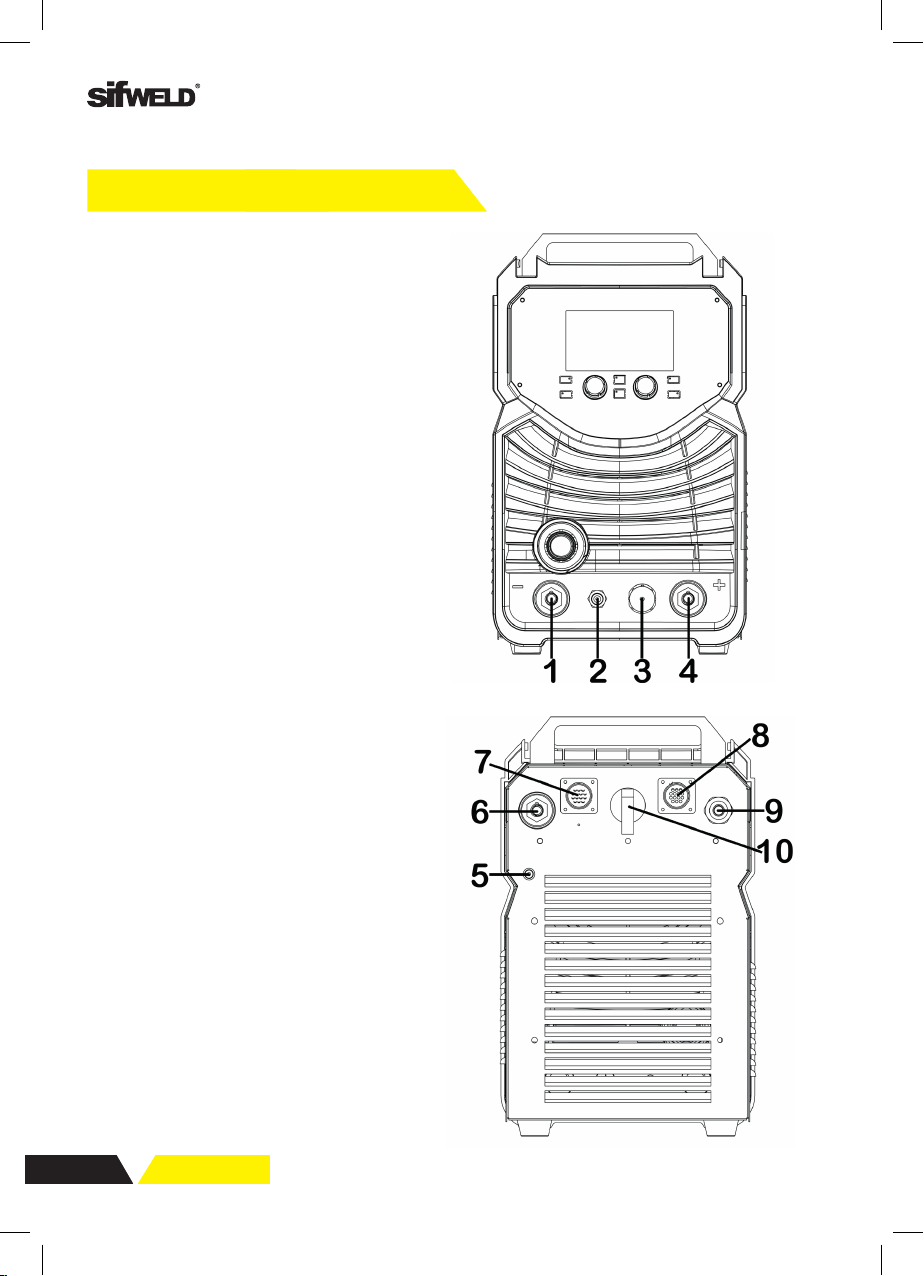

Power Source Front Panel Layout
1. Negative Output
2. Gas outlet
3. TIG gun control connector.
4. Positive Output
Rear View
5. Gas Inlet
6. Positive Output
7. Wire feeder connector
8. Water Cooler connector
9. Power source input
10. Power switch
PANEL FUNCTIONS & DESCRIPTIONS
5
Panel Functions & Descriptions
§ Machine Layout Description
§Front and rear panel layout of welding machine
1. Negative Output When MIG mode, this polarity must connect the work piece.
2. Gas outlet: Connect the inlet of TIG gun.
3. TIG gun control connector.
4. Positive Output: When TIG mode, this polarity must connect the work piece.
5. Gas Inlet: Connect the gas conduit.
6. Positive Output : Used to connect to the welding cable of wire feeder.
7. Wire feeder connector: Used to connect to the control cable of wire feeder.
8. Water Cooler connector: To connect water box.
9. Power source input: To connect power source.
10. Power switch: Turn on power supply clockwise and turn off power supply
counterclockwise.
PANEL FUNCTIONS & DESCRIPTIONS
5
Panel Functions & Descriptions
§ Machine Layout Description
§Front and rear panel layout of welding machine
1. Negative Output When MIG mode, this polarity must connect the work piece.
2. Gas outlet: Connect the inlet of TIG gun.
3. TIG gun control connector.
4. Positive Output: When TIG mode, this polarity must connect the work piece.
5. Gas Inlet: Connect the gas conduit.
6. Positive Output : Used to connect to the welding cable of wire feeder.
7. Wire feeder connector: Used to connect to the control cable of wire feeder.
8. Water Cooler connector: To connect water box.
9. Power source input: To connect power source.
10. Power switch: Turn on power supply clockwise and turn off power supply
counterclockwise.

11
PANEL FUNCTIONS & DESCRIPTIONS
6

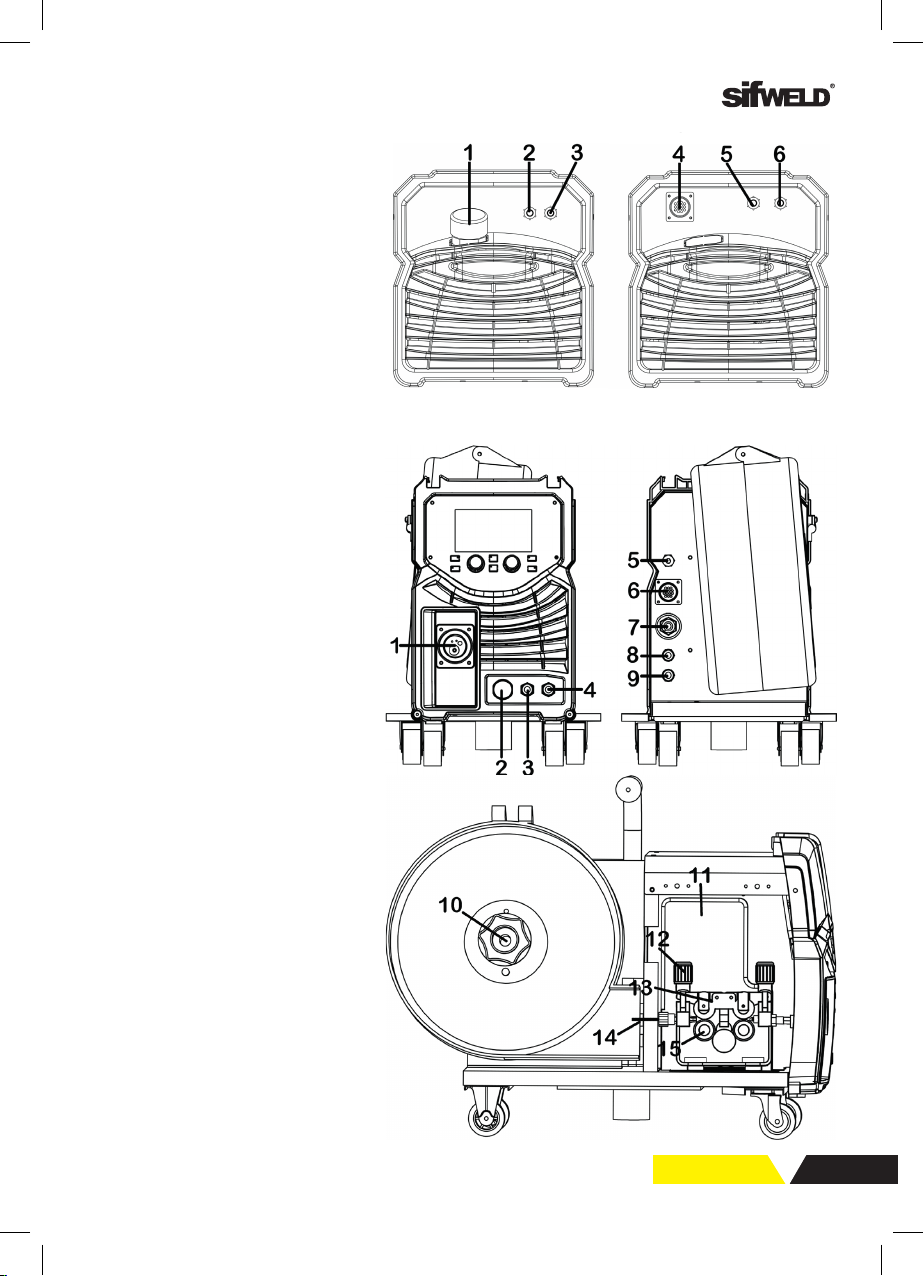

Front and rear panel layout of water cooling
1. Intake: From here, water or coolant, antifreeze, etc. can be injected into tank.
2. Water outlet for TIG (blue).
3. Water inlet for TIG (red).
4. The water cooler control connector.
5. Water outlet for MIG (blue).
6. Water inlet for MIG (red).
Wire feeder
1. MIG gun connector.
2. 9 core Gas Socket for Spool gun.
3. Water outlet.
4. Water inlet.
5. Gas connector.
6. Control anode.
7. Positive output anode.
8. Water inlet.
Water outlet.
9. Wire reel Shaft.
10. Wire Feed Motor.
11. Wire feed tension adjustment (2x).
12. Wire feed tension arm (2x).
13. Wire feeder inlet guide.
14. Wire drive roller (2x).
Front View
Water Cooler Front Panel Layout
1. Intake: From here, water or coolant,
antifreeze, etc. can be injected into tank.
2. Water outlet for TIG (blue).
3. Water inlet for TIG (red).
Rear View
4. The water cooler control connector.
5. Water outlet for MIG (blue).
6. Water inlet for MIG (red).
PANEL FUNCTIONS & DESCRIPTIONS
6
Front and rear panel layout of water cooling
1. Intake: From here, water or coolant, antifreeze, etc. can be injected into tank.
2. Water outlet for TIG (blue).
3. Water inlet for TIG (red).
4. The water cooler control connector.
5. Water outlet for MIG (blue).
6. Water inlet for MIG (red).
Wire feeder
1. MIG gun connector.
2. 9 core Gas Socket for Spool gun.
3. Water outlet.
4. Water inlet.
5. Gas connector.
6. Control anode.
7. Positive output anode.
8. Water inlet.
Water outlet.
9. Wire reel Shaft.
10. Wire Feed Motor.
11. Wire feed tension adjustment (2x).
12. Wire feed tension arm (2x).
13. Wire feeder inlet guide.
14. Wire drive roller (2x).
PANEL FUNCTIONS & DESCRIPTIONS
6
Front and rear panel layout of water cooling
1. Intake: From here, water or coolant, antifreeze, etc. can be injected into tank.
2. Water outlet for TIG (blue).
3. Water inlet for TIG (red).
4. The water cooler control connector.
5. Water outlet for MIG (blue).
6. Water inlet for MIG (red).
Wire feeder
1. MIG gun connector.
2. 9 core Gas Socket for Spool gun.
3. Water outlet.
4. Water inlet.
5. Gas connector.
6. Control anode.
7. Positive output anode.
8. Water inlet.
Water outlet.
9. Wire reel Shaft.
10. Wire Feed Motor.
11. Wire feed tension adjustment (2x).
12. Wire feed tension arm (2x).
13. Wire feeder inlet guide.
14. Wire drive roller (2x).
Wire Feeder
1. MIG gun connector.
2. 9 core Gas Socket for Spool gun.
3. Water outlet.
4. Water inlet.
5. Gas connector.
6. Control anode.
7. Positive output anode.
8. Water inlet.
Water outlet.
9. Wire reel Shaft.
10. Wire Feed Motor.
11. Wire feed tension adjustment (2x).
12. Wire feed tension arm (2x).
13. Wire feeder inlet guide.
14. Wire drive roller (2x).

12
2. Control Panels
PANEL FUNCTIONS & DESCRIPTIONS
16
§3.2 Front Panel Functions and Descriptions
§3.2.1 MMA control panel
1. Welding mode button: Press it to select MMA welding mode.
2. L parameter knob: Rotate it to adjust welding current.
3. R parameter knob: Press it to select Hot start or Arc force and rotate it to adjust
value. Setting range: 0~10.
Hot start
Hot start provides extra power when the weld starts to counteract the high resistance of
the electrode and workpiece as the arc is started. Setting range: 0~10.
Arc force
An MMA welding power source is designed to produce constant output current. This
means with different types of electrode and arc length; the welding voltage varies to keep
the current constant. This can cause instability in some welding conditions as MMA
welding electrodes will have a minimum voltage they can operate with and still have a
stable arc.
Arc Force control boosts the welding power if its senses the welding voltage is getting
too low. The higher the arc force adjustment, the higher the minimum voltage that the
power source will allow. This effect will also cause the welding current to increase. 0 is
Arc Force off, 10 is maximum Arc Force. This is practically useful for electrode types that
have a higher operating voltage requirement or joint types that require a short arc length
such as out of position welds.
1. Welding mode button
Press it to select MMA welding mode.
2. L parameter knob
Rotate it to adjust welding current.
3. R parameter knob
Press it to select Hot start or Arc force and rotate it to adjust value. Setting range: 0~10.
Hot start
Hot start provides extra power when the weld starts to counteract the high resistance of the electrode
and workpiece as the arc is started. Setting range: 0~10.
Arc force
An MMA welding power source is designed to produce constant output current. This means with
different types of electrode and arc length; the welding voltage varies to keep the current constant.
This can cause instability in some welding conditions as MMA welding electrodes will have a minimum
voltage they can operate with and still have a stable arc.
Arc Force control boosts the welding power if its senses the welding voltage is getting too low. The
higher the arc force adjustment, the higher the minimum voltage that the power source will allow. This
effect will also cause the welding current to increase. 0 is Arc Force off, 10 is maximum Arc Force. This
is practically useful for electrode types that have a higher operating voltage requirement or joint types
that require a short arc length such as out of position welds.
2.1 MMA Display

13
2.2 LIFT TIG Display
PANEL FUNCTIONS & DESCRIPTIONS
17
§3.2.2 Lift TIG control panel
1. Welding mode button: Press it to select TIG Lift welding mode.
2. L parameter knob: Rotate it to adjust welding current. In functional parameter
interface, rotate it to select parameters.
3. R parameter knob: Rotate it to adjust Down Slope time and other parameters.
4. Functional parameter button.
5. Cooling mode button: Press it to select water cooling mode.
TIG functional parameter interface:
1. Trigger mode: 2T or 4T.
2. Down slope time: 0~10s.
3. Post flow time: 0~10s.
1. Welding mode button
Press it to select TIG Lift welding mode.
2. L parameter knob
Rotate it to adjust welding current. In functional parameter interface, rotate it to select parameters.
3. R parameter knob
Rotate it to adjust Down Slope time and other parameters.
4. Functional parameter button.
5. Cooling mode button
Press it to select water cooling mode.

14
Function Interface
PANEL FUNCTIONS & DESCRIPTIONS
8
§Lift TIG control panel
1. Welding mode button: Press it to select TIG Lift welding mode.
2. L parameter knob: Rotate it to adjust welding current. In functional parameter
interface, rotate it to select parameters.
3. R parameter knob: Rotate it to adjust Down Slope time and other parameters.
4. Functional parameter button.
5. Cooling mode button: Press it to select water cooling mode.
TIG functional parameter interface:
1. Trigger mode: 2T or 4T.
2. Down slope time: 0~10s.
3. Post flow time: 0~10s.
1. Trigger mode: 2T or 4T.
2. Down slope time: 0~10s.
3. Post ow time: 0~10s.

15
PANEL FUNCTIONS & DESCRIPTIONS
9
Trigger mode select:
Welding conditions
Gun Switch
Gas Supply
Wire Feed
Output Voltage
Output Current
End Current conditions
Self-Locking Function
4T mode (Latching)
Pre Gas Time
Slow Feed Time
Post Gas Time
Welding conditions
Gun Switch
Gas Supply
Wire Feed
Output Voltage
Output Current
Burn back Time
2T mode (ON/OFF)
Trigger Mode Select

16
2.3 MIG Manual Display
PANEL FUNCTIONS & DESCRIPTIONS
19

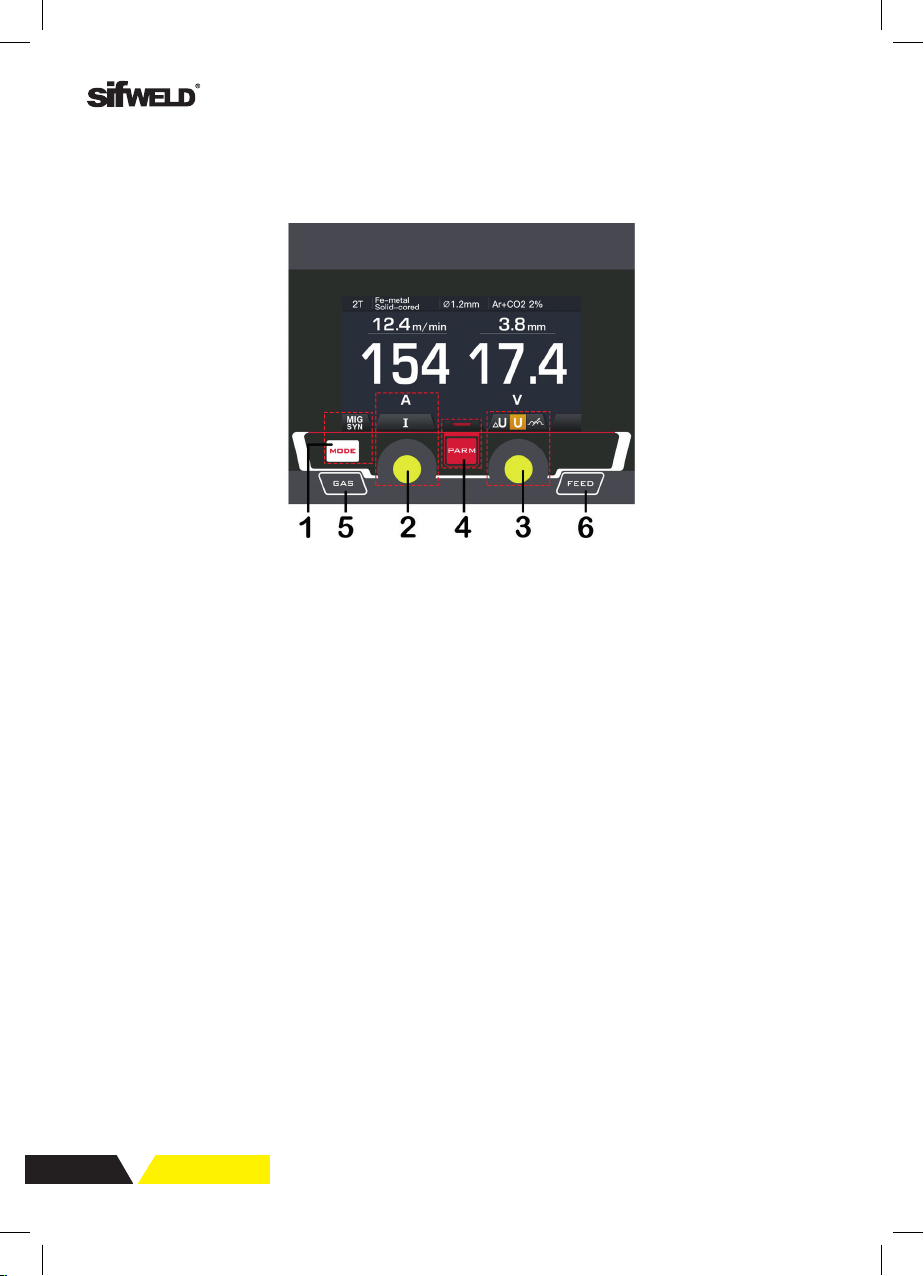

§3.2.3 MIG Manual control panel
1. Welding mode button: Press it to select MIG Manual welding mode.
2. L parameter knob: Rotate it to adjust wire feeding speed. In functional parameter
interface, rotate it to select parameters.
3. R parameter knob: Rotate it to adjust parameters.
4. Functional parameter button.
5. Cooling mode button: Press it to select water cooling mode.
6. Manual shield gas check button.
7. Manual wire feed button.
MIG Manual functional parameter interface:
1. Trigger mode: 2T/ 4T/ Spot weld.
1. Welding mode button Press it to select MIG Manual welding mode.
2. L parameter knob
Rotate it to adjust wire feeding speed. In functional parameter interface, rotate it to select parameters.
3. R parameter knob Rotate it to adjust parameters.
4. Functional parameter button.
5. Cooling mode button Press it to select water cooling mode.
6. Manual shield gas check button.
7. Manual wire feed button.
PANEL FUNCTIONS & DESCRIPTIONS
1
panel (0.0～10S);
(12) t7: Electromagnetic valve is closed and stop argon flowing. Welding is finished.

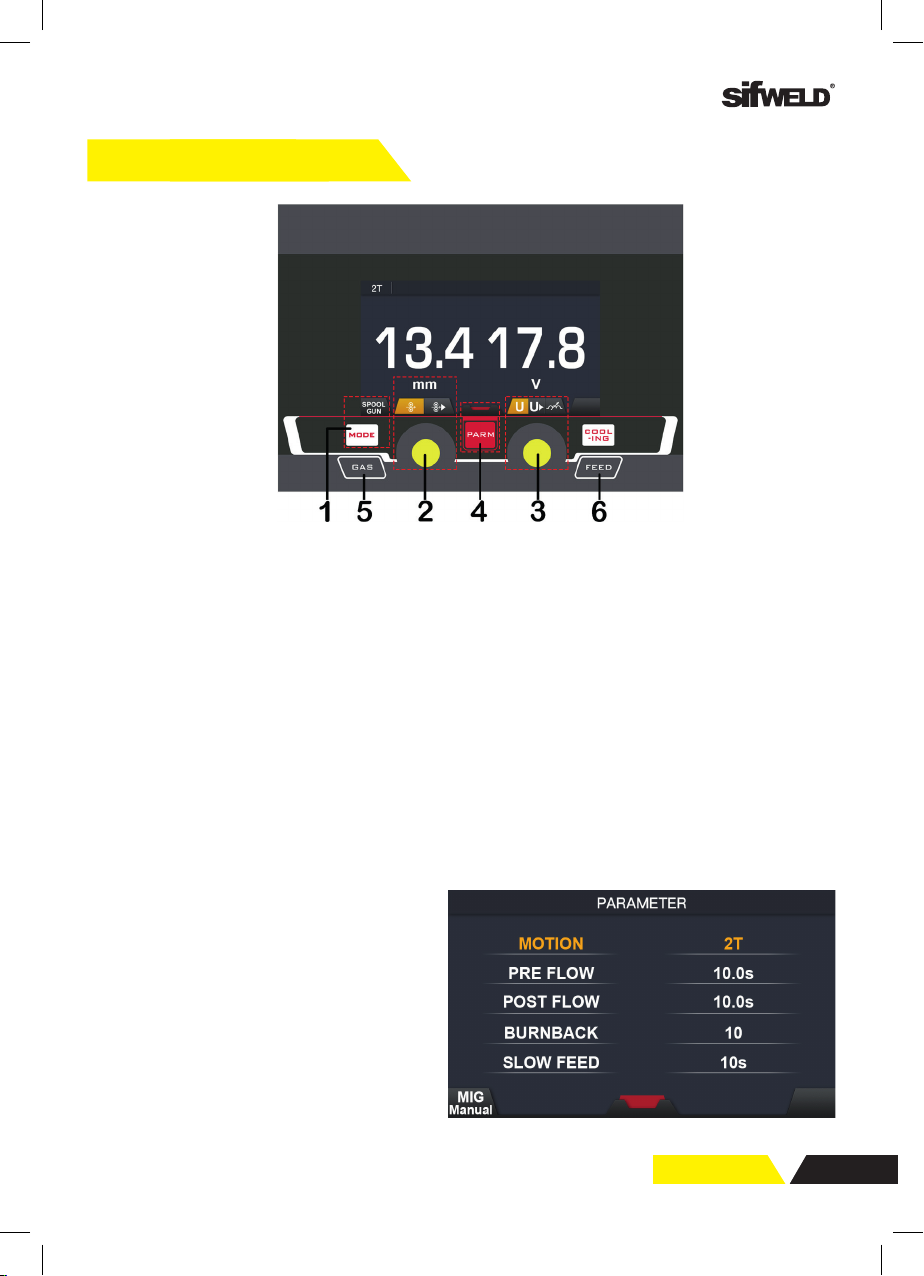

§3.2.4 MIG Manual display introduction
1. Welding mode button: Press it to enter MIG Manual welding mode.
2. L parameter knob: Rotate it to adjust wire feeding speed. In function interface,
rotate it to select parameters.
3. R parameter knob: rotate it to adjust Inductance or other parameters.
4. Function button: Press it to enter the function interface.
5. Air check button.
6. Manual wire button.
Function interface:
FUNCTION INTERFACE
1.Trigger mode: 2T/ 4T/ Spot weld.
2. Pre Flow: 0-10s.
3. Post Flow: 0-10s.
4. Burnback: 0-10.
5. Slow Feed: 0-10s.

17
Burnback
Short-circuit between welding wire and molten pool leads to the increase of current, which leads to the
melting speed of welding wire too fast, and the wire feeding speed cannot keep up with, which makes
the welding wire and workpiece disconnected. This phenomenon is called “burn back”. This function is
to ensure the welding seam is not constant after welding. Range: 0-10.
Slow feed
This function is used to regulate the start speed of wire feeding increasing. Range: 0-10s.
Spot Weld trigger mode
2.4 MIG SYN Display
PANEL FUNCTIONS & DESCRIPTIONS
21
§3.2.4 MIG SYN control panel
The operator simply sets the welding current like MIG welding and the machine
calculates the optimal voltage and wire speed for the material type, wire type and size
and shielding gas being used. Obviously other variables such as welding joint type and
thickness, air temperature affect the optimal voltage and wire feed setting, so the
program provides a voltage fine tuning function for the synergic program selected. Once
the voltage is adjusted in a synergic program, it will stay fixed at this variation when the
current setting is changed. To reset the voltage for a synergic program back to factory
default, change to another program and back again.
1. Welding mode button: Press it to select MIG SYN welding mode.
2. L parameter knob: Rotate it to adjust wire feeding speed. In functional parameter
interface, rotate it to select parameters.
3. R parameter knob: Rotate it to adjust parameters.
4. Functional parameter button.
5. Cooling mode button: Press it to select water cooling mode.
6. Manual shield gas check button.
7. Manual wire feed button.
1. Welding mode button
Press it to select MIG SYN welding mode.
2. Left parameter knob
Rotate it to adjust wire feeding speed. In functional parameter interface, rotate it to select parameters.
3. Right parameter knob
Rotate it to adjust parameters.
4. Functional button.
5. Manual shield gas check button.
6. Manual wire feed button.

18
PANEL FUNCTIONS & DESCRIPTIONS
1
§3.2.5 MIG SYN display introduction
The operator simply sets the welding current like MIG welding and the machine
calculates the optimal voltage and wire speed for the material type, wire type and size
and shielding gas being used. Obviously other variables such as welding joint type and
thickness, air temperature affect the optimal voltage and wire feed setting, so the
program provides a voltage fine tuning function for the synergic program selected. Once
the voltage is adjusted in a synergic program, it will stay fixed at this variation when the
current setting is changed. To reset the voltage for a synergic program back to factory
default, change to another program and back again.
1. Welding mode button: Press it to select MIG SYN welding mode.
2. L parameter knob: Rotate it to adjust wire feeding speed. In functional parameter
interface, rotate it to select parameters.
3. R parameter knob: Rotate it to adjust parameters.
4. Functional button.
5. Manual shield gas check button.
6. Manual wire feed button.
1. Trigger mode: 2T/ 4T/ S4T/ Spot weld. (No Spot weld in MIG Dual Pulse.)
2. Wire material: SS solid-cored/ Fe solid-cored/ Fe ux-cored/ Al-Mg solid-cored/ CuSi.
3. Wire diameter: 0.6~1.6mm.
4. Shield gas: CO2 and Ar+CO2 20%.
5. Pre ow time: 0~10s.
The operator simply sets the welding current like MMA or TIG welding and the machine calculates the
optimal voltage and wire speed for the material type, wire type and size and shielding gas being used.
Obviously other variables such as welding joint type and thickness, air temperature affect the optimal
voltage and wire feed setting, so the program provides a voltage ne tuning function for the synergic
program selected. Once the voltage is adjusted in a synergic program, it will stay xed at this variation
when the current setting is changed. To reset the voltage for a synergic program back to factory default,
change to another program and back again.
MIG SYN Functional Parameter interface
Press Button 2 for three to ve seconds then press Button 3 for three to ve seconds, to unlock press
Button 3 for three to ve seconds then press Button 2 for three to ve seconds.
Supervisor Lock

19
PANEL FUNCTIONS & DESCRIPTIONS
23
§3.2.5 Spool Gun control panel
1. Welding mode button: Press it to select Spool Gun welding mode.
2. L parameter knob: Rotate it to adjust wire feeding speed. In functional parameter
interface, rotate it to select parameters.
3. R parameter knob: Rotate it to adjust parameters.
4. Functional parameter button.
5. Manual shield gas check button.
6. Manual wire feed button.
Spool Gun functional parameter interface:
1. Trigger mode: 2T/ 4T/ Spot weld.
2. Pre flow time: 0~10s.
2.5 Spool Gun Display
1. Welding mode button Press it to select Spool Gun welding mode.
2. L parameter knob
Rotate it to adjust wire feeding speed. In functional parameter interface, rotate it to select parameters.
3. R parameter knob Rotate it to adjust parameters.
4. Functional parameter button.
5. Manual shield gas check button.
6. Manual wire feed button.
Spool Gun Functional Parameter interface
PANEL FUNCTIONS & DESCRIPTIONS
13
§ Spool Gun control panel
1. Welding mode button: Press it to select Spool Gun welding mode.
2. L parameter knob: Rotate it to adjust wire feeding speed. In functional parameter
interface, rotate it to select parameters.
3. R parameter knob: Rotate it to adjust parameters.
4. Functional parameter button.
5. Manual shield gas check button.
6. Manual wire feed button.
Spool Gun functional parameter interface:
1. Trigger mode: 2T/ 4T/ Spot weld.
2. Pre flow time: 0~10s.
1. Trigger mode: 2T/ 4T/ Spot weld.
2. Pre ow time: 0~10s.
3. Post ow time: 0~10s.
4. Burnback: 0~10.
5. Slow feed time: 0~10s.

20
3. Installation
Unpacking
Check the packaging for any signs of damage. Carefully remove the machine and retain the packaging
until the installation is complete.
Location
The machine should be located in a suitable position and environment. Care should be taken to avoid
moisture, dust, steam, oil or corrosive gases. Place on a secure level surface and ensure that there is
adequate clearance around the machine to ensure natural airflow.
Input connection
Before connecting the machine you should ensure that the correct supply is available. Details of the
machine requirements can be found on the rating plate of the machine or in the technical parameters
shown in the manual. The equipment should be connected by a suitably qualified competent person.
Always ensure the equipment has a proper grounding. Never connect the machine to the mains supply
with the panels removed.
Output connections
In general when using manual arc welding electrodes the electrode holder is connected to the positive
terminal and the work return to the negative terminal. Always consult the electrode manufacturer’s
data sheet if you have any doubts. When using the machine for TIG welding the TIG torch should be
connected to the negative terminal and the work return to the positive terminal.
