SignaMax 100BaseTX/FX to 100BaseFX Converter Series User manual

Signamax™ Connectivity Systems
100BaseTX/FX to 100BaseFX
Converter Series
U SER ’ S G UIDE

Signamax™ Connectivity Systems
100BaseTX/FX to 100BaseFX
Converter Series
User’s Guide

Signamax ™ 10/100TX to 100FX Media Converter
User’s Manual 1
FCC Warning
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with this user’s guide, may cause harmful
interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct
the interference at his own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this
product may cause radio interference in which case the user
may be required to take adequate measures.
Signamax™Connectivity Systems from Advanced Electronic
Supports Products Inc. All rights reserved. All brand names
are registered trademarks of their relative holders.
Trademarks
Product names mentioned in this manual may be trademarks
or registered trademarks of those products and are hereby
acknowledged.
 Ethernet is a trademark of Xerox Corporation.
 Microsoft Windows is a trademark of Microsoft Corporation.
 Signamax™is a trademark of Advanced Electronic Support Products, Inc.

Signamax ™ 10/100TX to 100FX Media Converter
2User’s Manual
Preface
This manual describes how to install and use the Signamax™
Ethernet Media Converter with the link-fault-pass-through
function and USB bus power. The Signamax™Ethernet
Media Converter introduced here provides one channel
media conversion between 10/100BaseTX and 100BaseFX.
The Signamax™Ethernet Media Converter fully complies
with IEEE802.3 10BaseT and IEEE802.3u 100BaseTX/FX
standards.
In this manual, you will find:
 Product overview
 Features on the media converter
 Illustrative LED functions
 Installation instructions
 Specifications

Signamax ™ 10/100TX to 100FX Media Converter
User’s Manual 3
Table of Contents
FCC WARNING.............................................................1
CE MARK WARNING .................................................... 1
TRADEMARKS ...............................................................1
PREFACE.......................................................................2
TABLE OF CONTENTS ....................................................3
INTRODUCTION .............................................................4
PRODUCT OVERVIEW ..........................................4
PRODUCT FEATURES ..........................................5
PACKING LIST ....................................................5
ONE-CHANNEL MEDIA CONVERTER ..............................6
PORTS...............................................................6
PORT SETTINGS .................................................6
FRONT PANEL & LEDS.......................................7
LINK-FAULT-PASS-THROUGH ..............................8
INSTALLATION .............................................................. 9
SELECTING A SITE FOR THE EQUIPMENT ...............9
CONNECTING TO POWER .....................................9
INSTALLING IN A CHASSIS..................................10
SPECIFICATIONS .......................................................... 10
CONTACT INFORMATION ............................................. 11

Signamax ™ 10/100TX to 100FX Media Converter
4User’s Manual
Introduction
The media converter provides one channel for media
conversion between 10/100BaseTX and 100BaseFX. It can
be used as a stand-alone device or with a standard 19”
chassis as shown below.
Product Overview
<NOTE> The chassis is to be ordered separately.

Signamax ™ 10/100TX to 100FX Media Converter
User’s Manual 5
Product Features
 One-channel media conversion between 10/100BaseTX and 100BaseFX
 Fiber media allows:
 Multi-mode fiber using SC, ST, VF-45, MT-RJ or LC connector
 Single-mode fiber using SC connector
 WDM single-fiber (bi-direction) transceiver: Single-mode WDM fiber uses
SC connector
 A type: WDM single-fiber (bi-direction) transceiver transmits with 1310nm
wavelength and receives with 1550nm wavelength
 B type: WDM single-fiber (bi-direction) transceiver transmits with 1550nm
wavelength and receives with 13100nm wavelength
 Auto negotiation of speed and duplex mode on TX port
 Auto MDIX on TX port
 One DIP switch for configuring link-fault-pass-through, fixed speed, and
half/full duplex
 Store-and-forward mechanism
 Non-blocking full wire-speed forwarding rate
 Support broadcast storm filtering
 Back-pressure & IEEE802.3x compliant flow control
 Front panel status LEDs
 USB bus power and/or external AC to DC power adapter
 External AC to DC power adapter
 Used as a stand-alone device or with a chassis
 Hot-swappable when used with a chassis
Packing List
When you unpack this product package, you will find the items listed below. Please
inspect the contents, and report any apparent damage or missing items immediately
to our authorized reseller.
 The Media Converter
 User’s Manual
 AC to DC Power Adaptor

Signamax ™ 10/100TX to 100FX Media Converter
6User’s Manual
One-Channel Media Converter
Ports
The Converter provides one TX port and one FX port. For the
FX port, it provides options of multi-mode fiber using SC, ST,
VF-45, MT-RJ or LC connector, single-mode fiber using SC
connector, and WDM single-fiber (bi-direction) transceiver
using SC connector. For the TX port, it uses RJ-45 connector
and auto senses the speed of 10/100Mbps.
Port Settings
Port settings are made very simple by means of a DIP (Dual
Inline Package) switch at the rear panel of the module.
1 2 3 4 5 6
DIP switch
There are six pins on the DIP switch for port settings. Refer
to the table below for more details.
DIP
switch
No.
Down (Default Setting) Up
1 Enable LFPT Disable LFPT LFPT:
link-fault-
pass-
through
2 Enable auto negotiation for
TX port
Enable f orced mode f or
TX port
3 TX por t for ced to
100Mbps
TX port forced to 10Mbps
4 TX port forced to full
duplex mode
TX por t for ced to half
duplex mode
5 FX port forced to full
duplex mode
FX port forced to half
duplex mode
6

Signamax ™ 10/100TX to 100FX Media Converter
User’s Manual 7
 First, disconnect the converter from the power. Then toggle Pin 2 of the
DIP switch to the up position to enable the forced mode for TX port.
<NOTE> Pin 2 must be toggled up prior to speed and duplex mode settings
manually.
 Toggle down Pin 3 to force the TX port at the speed of 100Mbps. Or toggle
up Pin 3 for 10Mbps speed.
 Toggle down Pin 4 to force the TX port at full duplex mode. Or toggle up
Pin 4 for half duplex mode.
 Toggle down Pin 5 to force the FX port at full duplex mode. Or toggle up
Pin 5 for half duplex mode.
 Toggle down Pin 1 to disable the link-fault-pass-through.
 Connect the converter to the power again. The new setting will come into
effect then.

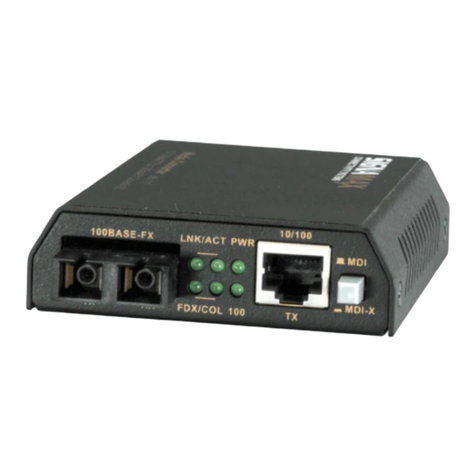

Front Panel & LEDs
LED Indicators
The LED indicators give you instant feedback on status of the
converter:
LEDs State Indication
Steady Power on
PWR stands for POWER
PWR
Off Power off
Steady Connection at the speed of 100Mbps 100 (Mbps)
Off Connection at the speed of 10Mbps
Steady A valid network connection established
LNK stands for LINK
Flashing Transmitting or receiving data
ACT stands for ACTIVITY
LNK/ACT
Off Neither valid network connection established
nor transmitting/receiving data.
Steady Connection in full duplex mode
FDX stands for FULL-DUPLEX
Flashing Collision occurred
COL stands for COLLISION
FDX/COL
Off Connection in half-duplex mode

Signamax ™ 10/100TX to 100FX Media Converter
8User’s Manual
Link-Fault-Pass-Through
Connect the FX ports of two Media Converter A and B
through the fiber cable.
Link Fault of the FX port:
A Link Fault condition will be sensed on the TX port
whenever the media converter detects a Link Fault condition
on the FX port. Thus, the 100, LNK/ACT, and FDX/COL
LEDs of the media converter would be off.
Link Fault of the TX port of the Media Converter A:
The Media Converter A: A Link Fault condition will be sensed
on the FX port whenever the media converter detects a Link
Fault condition on the TX port. Thus, the 100, LNK/ACT, and
FDX/COL LEDs of the TX port of the Media Converter A
would be off.
The Media Converter B: A Link Fault condition will be
informed to the FX port of the Media Converter B. Then a
Link Fault condition will be sensed on the TX port of the
Media Converter B whenever the Media Converter B detects
a Link Fault condition on the FX port. Thus, the 100,
LNK/ACT, and FDX/COL LEDs of the Media Converter B
would be off.
Link Fault of the FX port
TX Port FX Port
LEDs PWR 100 LNK/ACT FDX/COL LNK/ACT FDX/COL
Media Converter A ON OFF OFF OFF OFF OFF
Media Converter B ON OFF OFF OFF OFF OFF
Link Fault of the TX port of the Media Converter A
TX Port FX Port
LEDs PWR 100 LNK/ACT FDX/COL LNK/ACT FDX/COL
Media Converter A ON OFF OFF OFF ON ON
Media Converter B ON OFF OFF OFF OFF OFF

Signamax ™ 10/100TX to 100FX Media Converter
User’s Manual 9
Installation
This chapter gives step-by-step installation instructions for
the Converter.
Selecting a Site for the Equipment
As with any electric device, you should place the equipment
where it will not be subjected to extreme temperatures,
humidity, or electromagnetic interference. Specifically, the
site you select should meet the following requirements:
 The ambient temperature should be between 32 and 104 degrees
Fahrenheit (0 to 40 degrees Celsius).
 The relative humidity should be less than 90 percent, non-condensing.
 Surrounding electrical devices should not exceed the electromagnetic field
(RFC) standards for IEC 801-3, Level 2 (3V/M) field strength.
 Make sure that the equipment receives adequate ventilation. Do not block
the ventilation holes on each side of the equipment.
 The power outlet should be within 1.8 meters of the product.
Connecting to Power
This Converter is a plug-and-play device.
Connect the USB powering cable to the USB bus power connector
on the rear panel of the converter.
<NOTE> Don’t connect two media converters to the USB ports of the PC or
notebook computers through the USB power cables at the same time.
And/ or Connect the supplied AC to DC power adaptor to the
receptacle on the rear panel of the converter, and then attach the
plug into a standard AC outlet with a voltage range from 100 to
240VAC.

Signamax ™ 10/100TX to 100FX Media Converter
10 User’s Manual
Installing in a Chassis
The Converter can be fit into any of the expansion slots on a
special designed chassis.
 First, install the converter onto a carrier supplied with the chassis:
 Step 1- Unscrew the carrier from the desired expansion slot on the chassis.
 Step 2- Fit the converter onto the carrier.
 When the converter is completely seated onto the carrier, insert the carrier
to the guide rails of the expansion slot.
 Carefully slide in the carrier until it is fully and firmly fit the chassis. Fasten
the screws onto the carrier.
<NOTE> Never insert any converter into the chassis directly without using the
supplied carriers. The carriers allow secure and consistent placement
of the converters into the chassis’ backplane without causing any
damage.
Specifications
Applicable Standards IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX & 100BaseFX
Fixed Ports 1 TX port, 1 FX port
10/20Mbps for half/full-duplex Speed 10BaseT
100BaseTX/FX 100/200Mbps for half/full-duplex
Switching Method Store-and-Forward
Forwarding rate 14,880/148,800pps for 10/100Mbps
Per Unit- (2 LEDs): Power; 100(Mbps) LED Indicators
Per Port- (2 LEDs): LNK/ACT; FDX/COL
Dimensions L110 × W81 (max.) × H23 mm
Weight 190 g
Power USB bus power 5VDC, 0.5A
External power adaptor 12VDC, 0.6A
Power Consumption 7W Max.
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -25°C ~ 70°C (-13°F ~ 158°F)
Humidity 10 ~ 90%, non-condensing
Emissions FCC part 15 Class A, CE Mark

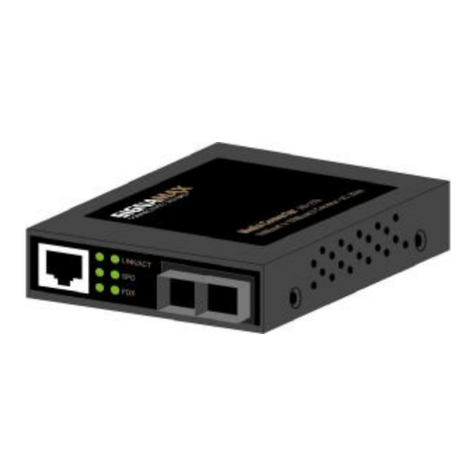

Signamax ™ 10/100TX to 100FX Media Converter
User’s Manual 11
Contact Information
SIGNAMAX™ CONNECTIVITY SYSTEMS
An AESP Company
1810 N.E. 144th Street.
North Miami, Florida 33181, U.S.A.
Phone: [phone] Fax: [phone]
Sales: 800-446-2377 Tech. Support: 800-446-2377, ext. 201
Http://www.signamax.com
E-mail: [email protected]
EUROPE
AESP Ukraine. (UKRAINE)
2 Timiryazevskaya St. 47
252014 Kiev, Ukraine
Phone: [phone]
Fax: [phone]
Http://www.aesp.com.ua
E-mail: [email protected]
AESP Sweden. (SWEDEN)
Grevegatan 19-21 SE-815
40 TIERP. SWEDEN
Phone: [phone]
Fax: [phone]
Phone: [phone]
Http://www.aesp.se
E-mail: [email protected]
LANSE 3-play AS. (NORWAY)
Telefon [phone]
Ordrefax 22 80 19 01
Ole Deviks vei 6 0666 Oslo
Pb. 406 Økern 0513 Oslo, Norway
Phone: [phone]
Fax: [phone]
Http://www.lanse.no
E-mail: [email protected]
AESP Russia. (RUSSIA)
Kronshtadtsky Blv.
125499 Moscow, Russia
Phone: [phone]
Phone: [phone]
Fax: [phone]
Http://www.aesp.ru
E-mail: [email protected]
AESP Germany GmbH
(GERMANY)
Weisserfelderstr.2 D-85551
Kircheim b. München, Germany
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
INTELEK spol.s.r.o
(CZECH REPUBLIC)
Vlarska 22, Brno, CZ 62700
CZE Czech Republic
Phone: [phone]
Fax: [phone]
Http://www.intelek.cz
E-mail: [email protected]
