signia Pure Charge&Go 7AX User manual

Charger BTE P/SP & RIC
User Guide
Charger BTE P SP and RIC [EN].indd 1 26-03-2021 09:35:41

2
Content
Before you 󰄋art 4
Components 6
Connecting the USB power cable 7
Charging 8
Correct position of the hearing in󰘵ruments 11
Charging 󰘵atus 12
Charging tips 13
Further information 20
Maintenance and care 20
Troubleshooting 21
Charger BTE P SP and RIC [EN].indd 2 26-03-2021 09:35:41

3
Important safety information 24
General warnings 24
Personal safety 26
Product safety 31
Important information 33
Explanation of symbols 33
Operating, transport, and 󰘵orage conditions 35
Technical data of the power supply adapter 37
Disposal information 37
Conformance information 38
Country-speci󰘰c information 40
Charger BTE P SP and RIC [EN].indd 3 26-03-2021 09:35:42

4
Before you 󰄋art
This device is intended to charge our speci󰘰c hearing
in󰘵ruments with built-in power cells (lithium-ion
rechargeable batteries). Your Hearing Care Professional will
advise you on the compatible models.
The charger is only intended for indoor use. Observe
and follow the operating conditions in section
"Operating, transport, and 󰘵orage conditions".
The charger is not intended as a means of 󰘵orage for
transportation of hearing in󰘵ruments.
Charger BTE P SP and RIC [EN].indd 4 26-03-2021 09:35:42

5
CAUTION
Read this user guide thoroughly and completely and
follow the safety information in this document to avoid
damage or injury.
The device may not look exactly like the guiding
illu󰘵rations in these in󰘵ructions. We reserve the right
to make any changes we consider necessary.
Charger BTE P SP and RIC [EN].indd 5 26-03-2021 09:35:42

6
Components
➊Status LEDs
➋Charging slots
➌Non‑detachable USB power cable
➍Power adapter
Charger BTE P SP and RIC [EN].indd 6 26-03-2021 09:35:42

7
Connecting the USB power cable
XConnect your USB power cable to the provided power
adapter.
Charger BTE P SP and RIC [EN].indd 7 26-03-2021 09:35:42

8
Charging
NOTICE
Please make sure that the power plug is easily
accessible to remove it from power supply if
necessary.
XConnect the charger to the power supply.
LEDs for each charging slots blink 3 times to indicate that
the charger has power and is ready for use.
Charger BTE P SP and RIC [EN].indd 8 26-03-2021 09:35:42

9

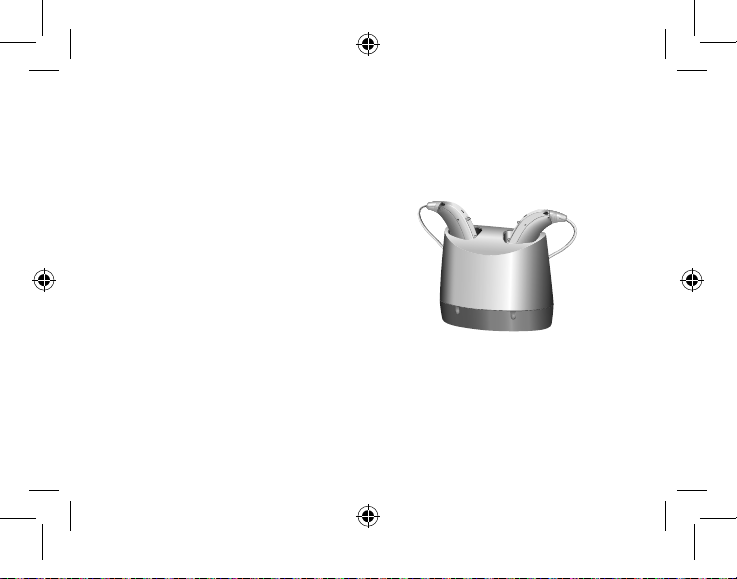

XPut the hearing
in󰘵ruments in the
charging slots as shown
in the picture. You can
charge both hearing
in󰘵ruments at the same
time.
The hearing in󰘵ruments
are automatically turned
o󰘯 and 󰘵art charging.
The charging 󰘵atus
is indicated, see table
"Charging 󰘵atus" on the
next pages.
Charger BTE P SP and RIC [EN].indd 9 26-03-2021 09:35:46

10
X
When you want to use your hearing in󰘵ruments, take
them out of the charger. They will automatically turn on.
XYou can leave the charger plugged in or remove it from
the power supply.
Charger BTE P SP and RIC [EN].indd 10 26-03-2021 09:35:47

11
Correct position of the hearing in󰄋ruments
XIf not indicated di󰘯erently,
the left and right hearing
in󰘵ruments can be
inserted into either
charging slot. The slots
are not side speci󰘰c.
XMake sure the bottom
parts of the hearing
in󰘵ruments are placed
well into the charging
slots.
Correct placement will be
indicated by the LED.
Charger BTE P SP and RIC [EN].indd 11 26-03-2021 09:35:49

12
Charging 󰄋atus
LED Status description
No LED light:
Charger is not connected to power supply.
No hearing in󰘵rument is inserted in the
respective charging slot or the hearing
in󰘵rument is not inserted correctly.
Green LED light blinks 3 times:
Charger is connected to a power supply and
ready to charge.
Flashing green LED light:
Charging in progress.
Charger BTE P SP and RIC [EN].indd 12 26-03-2021 09:35:49

13
LED Status description
Solid green LED light:
Hearing in󰘵rument is fully charged.
Red LED light blinks 3 times in 2 seconds:
Error
Read more in section "Troubleshooting".
Charging tips
You may have some que󰘵ions on how to be󰘵 charge your
hearing in󰘵ruments. Read the que󰘵ions and answers
below. If you have more que󰘵ions, your Hearing Care
Professional will help you.
Charger BTE P SP and RIC [EN].indd 13 26-03-2021 09:35:49

14
"How often do I need to charge the hearing
in󰄋ruments?
We recommend charging the hearing in󰘵ruments daily,
even if the power cell is not empty. Charge them overnight
so you can be sure to 󰘵art your day with fully-charged
hearing in󰘵ruments.
"
How long does charging take?
A full charging cycle takes approximately 3 to 4 hours.
After 30 minutes, it is possible to use your hearing
in󰘵ruments for up to 7 hours.
Charging times may vary due to the use of the hearing
in󰘵ruments and the age of the power cell.
Charger BTE P SP and RIC [EN].indd 14 26-03-2021 09:35:49

15
"Can I leave the hearing in󰄋ruments in the charger?
Even when fully charged, you can leave the hearing
in󰘵ruments in the charger. They automatically 󰘵op charging
when they are fully charged.
"
What happens if I forgot to charge?
Your hearing in󰘵ruments will automatically switch-o󰘯 when
the power cell is empty. Charge the hearing in󰘵ruments as
soon as possible.
Hearing in󰘵ruments which have not been charged for over
6 months may be damaged due to an unrecoverable deep-
discharge of the power cell. Deep‑discharged power cells
cannot be charged anymore and have to be replaced.
Charger BTE P SP and RIC [EN].indd 15 26-03-2021 09:35:49

16
"What if I intend not to use the hearing in󰄋ruments
for several days or longer?
● Short-term 󰘵orage (up to several days): Turn o󰘯 your
hearing in󰘵ruments via the push button or place them in
the powered charger.
The charger mu󰘵 be connected to the power supply.
If the charger is not connected to power supply and
you place your hearing in󰘵ruments in the charger, the
hearing in󰘵ruments are not turned o󰘯.
Note that when you turn o󰘯 the hearing in󰘵ruments
via a remote control or smartphone app, the hearing
in󰘵ruments are not turned o󰘯 completely. They are in
󰘵andby-mode and 󰘵ill draw some power.
Charger BTE P SP and RIC [EN].indd 16 26-03-2021 09:35:49

17
● Long-term 󰘵orage (weeks, months, ...): Fir󰘵, fully
charge your hearing in󰘵ruments. Turn them o󰘯 via the
push button before 󰘵oring them. We recommend to use
drying products while 󰘵oring the hearing in󰘵ruments.
At 6 month intervals you will have to charge the hearing
in󰘵ruments to avoid an unrecoverable deep-discharge
of the power cell. Deep‑discharged power cells cannot
be charged anymore and they have to be replaced. We
recommend recharging more frequently than 6 months
intervals.
Observe the 󰘵orage conditions in hearing in󰘵ruments'
user guide.
Ask your Hearing Care Professional for recommended
drying products.
Charger BTE P SP and RIC [EN].indd 17 26-03-2021 09:35:49

18
"What should I pay attention to when charging?
The hearing in󰘵ruments and charger mu󰘵 be clean
and dry. Observe the operation conditions in section
"Operating, transport, and 󰘵orage conditions". Avoid
charging at high ambient temperatures, as this can shorten
the life span and capacity of the power cell.
If you use the charger in a very warm environment, note that
it will 󰘵op charging in order to cool down if the charger's
temperature exceeds 45 °C. The LED light will blink 3
times in 2 seconds when this happens. Charging resumes
automatically after the device has cooled down. Do not
touch the hearing in󰘵ruments, they may be hot.
Charger BTE P SP and RIC [EN].indd 18 26-03-2021 09:35:49

19
"What should I pay attention to when using a power
󰄋rip with energy-saving features?
● Turn on the power 󰘵rip before you insert the hearing
in󰘵ruments in the charger. Otherwise, the hearing
in󰘵ruments may not be detected by the charger.
● Do not turn o󰘯 the power 󰘵rip while the hearing
in󰘵ruments are in charger. Otherwise the hearing
in󰘵ruments will automatically turn on and discharge in
the charger.
Before you turn o󰘯 the power 󰘵rip, remove the hearing
in󰘵ruments from the charger and turn them o󰘯 via the
push button.
Charger BTE P SP and RIC [EN].indd 19 26-03-2021 09:35:49

20
Further information
Maintenance and care
NOTICE
Risk of injuries caused by electric shock!
XIf cleaning is required, disconnect the charger from
the power supply.
XClean the charger with a soft, dry tissue.
XNever use running water or immerse the charger in
water.
XDo not 󰘵erilize or disinfect the charger.
Charger BTE P SP and RIC [EN].indd 20 26-03-2021 09:35:49
