Honeywell Intermec AC18 User manual

4-Bay Battery Charger
AC18
Instructions
Akkuladegerät mit vier Ladesteckplätzen Anleitungen
Cargador de batería de 4 compartimientos Instrucciones
Chargeur de batteries à quatre baies mode d’emploi
4베이 배터리 충전기 안내서
Carregador quádruplo de baterias Instruções
4-äèñêîâûé èíñòðóêöèè çàðÿäíîå óñòðîéñòâî
型 4 座电池充电器 说明
4 插座充電器說明
Downloaded from Arrow.com.

ii
Contents
AC18 4-Bay Battery Charger Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Anleitung für das Akkuladegerät AC18 mit vier Ladesteckplätzen . . . . 5
Instrucciones para el cargador de batería de 4
compartimientos AC18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Mode d’emploi du chargeur de batteries à quatre baies AC18 . . . . . . . . 11
AC18 4 베이 배터리 충전기 안내서 . . . . . . . . . . . . . . . . . . . 14
Instruções de uso do carregador quádruplo de baterias AC18. . . . . . . . 16
Инструкции по эксплуатации
4-гнездовой стойки AC18 для зарядки батареек . . . . . . . . . . 19
AC18 型 4 座电池充电器说明 . . . . . . . . . . . . . . . 22
AC18 4 插座充電器說明. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Downloaded from Arrow.com.Downloaded from Arrow.com.

3
AC18 4-Bay Battery Charger Instructions
Use these instructions to install and use the AC18 4-Bay Battery
Charger (P/N 852-915-001). The AC18 can charge up to four
batteries at one time. It takes less than 4 hours to fully charge the
batteries. The shipping box for the charger contains:
•AC18 4-Bay Battery Charger
•AC18 4-Bay Battery Charger Instructions
•AC18 Compliance Insert
Items not provided:
•AC power adapter (P/N 851-082-103, 851-095-121, or
851-082-203)
•AC power cord. You need to purchase the appropriate power
cord for your location. For help, contact your local Intermec
sales representative.

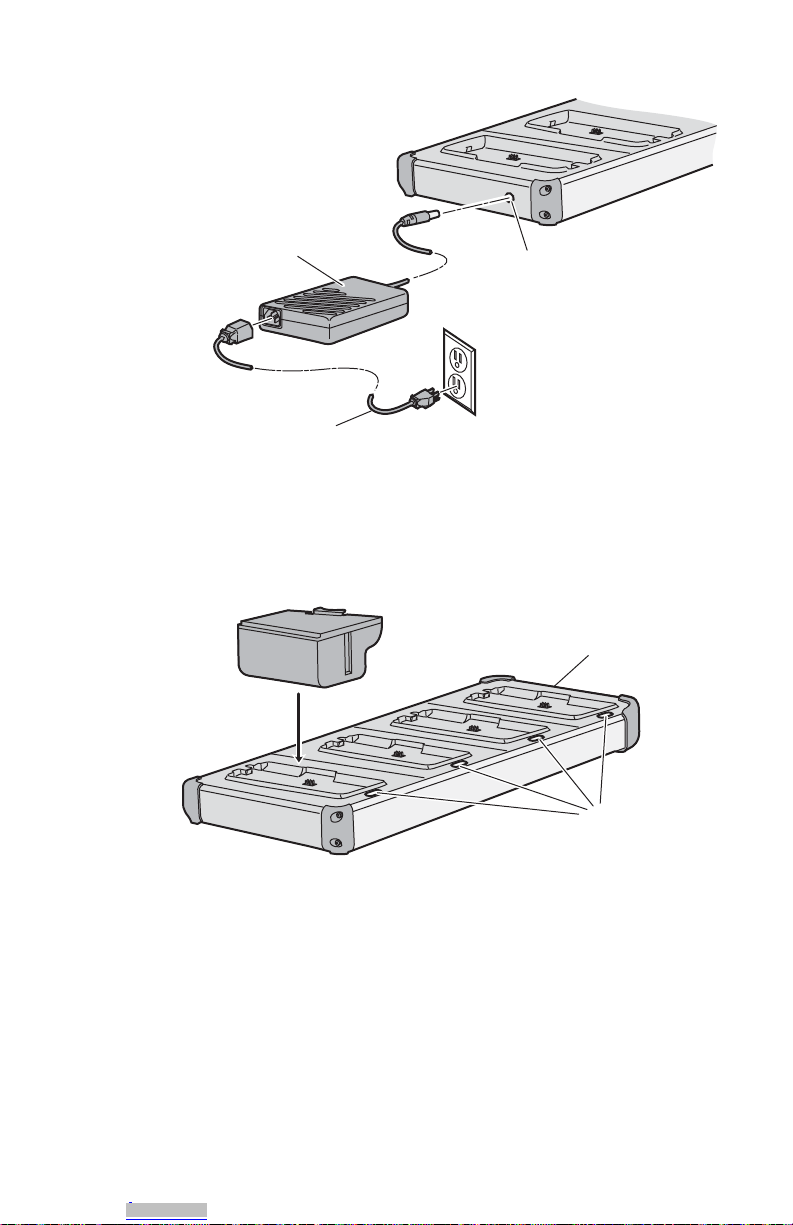

To install and use the battery charger
1Connect the AC adapter to the power connector on the
battery charger.
Caution: The AC18 4-bay battery charger is suitable for use
only with Intermec battery pack Model AB13 or AB27. Use
of any other battery pack may present risk of fire or
explosion hazard.
AC power cord
AC power adapter
Power connector
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

4
2Connect one end of the power cord to the AC adapter and the
other end to an AC power outlet.
3Insert the battery pack into any bay on the charger. The
charging status light next to the battery turns on after two to
three seconds.
4Charge the battery pack for at least 4 hours.
Input voltage: 12 VDC
Understanding the Charging Status LEDs
LED Color Description
Off No battery installed in charger.
Solid red The battery is charging.
Blinking red The battery charger is experiencing a charging
error. Remove the battery for 10 minutes and
then reinsert it into the charger. If the charger
still shows an error, the battery may be
damaged. Replace the battery.
Solid green The battery is completely charged.
4-bay battery charger
Charging status
light
Caution: See Compliance Insert for use restrictions
associated with this product.
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

5
Anleitung für das Akkuladegerät AC18 mit
vier Ladesteckplätzen
Diese Anleitung erläutert den Einbau und Gebrauch des
Akkuladegeräts AC18 mit vier Ladesteckplätzen (Bestellnr.
852-915-001). Das Modell AC18 kann bis zu 4 Akkus gleichzeitig
laden. Die Akkus werden in maximal 4 Stunden vollständig
aufgeladen. Der Verpackungskarton für das Ladegerät enthält
Folgendes:
•Akkuladegerät AC18 mit 4 Ladesteckplätzen
•AC18 4-Bay Battery Charger Instructions
•AC18 Compliance Insert
Nicht mitgelieferte Teile:
•Wechselstromadapter (Bestellnr. 851-082-103, 851-095-121,
oder 851-082-203)
•Wechselstromnetzkabel. Es muss ein für Ihren Standort
geeignetes Netzkabel gekauft werden. Hilfestellungen
erhalten Sie von Ihrem örtlichen Intermec-Vertreter.
Vorsicht: Das Akkuladegerät AC18 mit 4 Ladesteckplätzen
darf nur mit dem Intermec-Akkusatz, Modell AB13 oder
AB27 benutzt werden. Bei Verwendung eines anderen
Akkusatzes besteht eventuell Brand- oder
Explosionsgefahr.
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

6
Einbau und Gebrauch des Akkuladegeräts
1Schließen Sie den Wechselstromadapter an den
Stromanschluss des Akkuladegeräts an.
2Schließen Sie ein Ende des Netzkabels an den
Wechselstromadapter und dann das andere Ende an eine
Wechselstromsteckdose an.
3Setzen Sie den Akkusatz in einen Steckplatz des Ladegeräts
ein. Nach zwei bis drei Sekunden schaltet sich die
Ladestatusleuchte neben dem Akku ein.
Wechselstromnetzkabel
Wechselstrom-Adapter
Stromanschluss
Akkuladegerät mit 4 Steckplätzen
Lade-LED
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

7
4Der Akku muss mindestens 4 Stunden lang geladen werden.
Eingangsspannung: 12 VDC
Erläuterung der Ladestatus-LEDs
LED-Farbe Beschreibung
Aus Kein Akku ist in das Ladegerät eingesetzt.
Konstant rot Der Akku wird geladen.
Blinkt rot Im Akkuladegerät ist ein Ladefehler
aufgetreten. Nehmen Sie den Akku heraus,
warten Sie 10 Minuten und setzen Sie den Akku
anschließend wieder in das Ladegerät ein. Falls
das Ladegerät noch immer einen Fehler anzeigt,
könnte der Akku beschädigt sein. Ersetzen Sie
den Akku.
Konstant grün Der Akku ist vollständig geladen.
Vorsicht: Das Konformitätsblatt führt etwaige
Verwendungseinschränkungen für dieses Produkt an.
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

8
Instrucciones para el cargador de batería
de 4 compartimientos AC18
Use estas instrucciones para instalar y usar el cargador de batería
de 4 compartimientos AC18 (P/N 852-915-001). El AC18 puede
cargar hasta cuatro baterías al mismo tiempo. Tarda menos de 4
horas en cargar totalmente las baterías. La caja de envío del
cargador contiene:
•Cargador de batería de 4 compartimientos AC18
•AC18 4-Bay Battery Charger Instructions
•AC18 Compliance Insert
Artículos no provistos:
•Adaptador de CA (P/N 851-082-103, 851-095-121, o
851-082-203)
•Cable de alimentación de CA Debe comprar el cable de
alimentación adecuado para su localidad. Para obtener
ayuda, diríjase al representante local de ventas de Intermec.
Precaución: El cargador de batería de 4 compartimientos
AC18 es apto para usarse solamente con el paquete de
batería Intermec Modelo AB13 o AB27. El uso de cualquier
otro paquete de batería puede presentar peligro de incendio
o de explosión.
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

9
Para instalar y usar el cargador de batería
1Conecte el adaptador de CA al conector de alimentación del
cargador de batería.
2Conecte un extremo del cable de alimentación al adaptador
de CA y el otro extremo a un tomacorriente de CA.
3Inserte el paquete de batería en cualquier compartimiento del
cargador. La luz de estado de carga junto a la batería se
enciende después de dos o tres segundos.
Cable de alimentación de CA
Conector de
alimentación
Adaptador de CA
Cargador de batería de 4 compartimientos
Luz de estado
de carga
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

10
4Cargue el paquete de batería por lo menos 4 horas.
Voltaje de entrada: 12 VCC
Explicación de los indicadores luminosos de estado de la carga
Color del indicador luminoso Descripción
Apagado No hay batería instalada en el cargador.
Rojo constante La batería está cargando.
Rojo parapdeante El cargador de la batería tiene un error de
carga. Retire la batería durante 10 minutos y
luego vuelva a insertarla en el cargador. Si el
cargador todavía indica un error, la batería
puede estar dañada. Reemplace la batería.
Verde constante La batería está completamente cargada.
Precaución: Consulte el Inserto de cumplimiento para ver
las restricciones de uso asociadas con este producto.
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

11
Mode d’emploi du chargeur de batteries à
quatre baies AC18
Utilisez ce mode d’emploi pour installer et utiliser le chargeur de
batteries à quatre baies AC18 (No de pièce 852-915-001).
Le chargeur AC18 peut charger jusqu’à quatre batteries
simultanément. Le chargement complet des batteries dure moins
de quatre heures. La boîte d’expédition du chargeur contient :
•Chargeur de batteries à quatre baies AC18
•AC18 4-Bay Battery Charger Instructions
•AC18 Compliance Insert
Articles non fournis :
•Adaptateur de courant c.a. (No de pièce 851-082-103,
851-095-121, ou 851-082-203)
•Cordon d’alimentation c.a. Vous devez acheter le cordon
d’alimentation approprié pour votre emplacement. Pour de
l’assistance, communiquez avec votre représentant aux ventes
Intermec.
Mise en garde : Le chargeur de batteries à quatre baies AC18
doit être utilisé uniquement avec le bloc-piles Intermec,
modèle AB13 ou AB27. Si tout autre bloc-piles est utilisé, il
peut y avoir un risque de feu ou d’explosion.
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

12
Pour installer et utiliser le chargeur de batteries
1Branchez l’adaptateur c.a. au connecteur d’alimentation sur
le chargeur de batteries.
2Branchez une extrémité du cordon d’alimentation à
l’adaptateur c.a. et l’autre extrémité à une prise de courant
c.a.
3Insérez le bloc-piles dans n’importe quelle baie du chargeur.
Le témoin de l’état de charge à côté de la batterie s’allume
après deux ou trois secondes.
4Chargez le bloc-piles pendant au moins quatre heures.
Cordon d’alimentation c.a.
Adaptateur
d’alimentation c.a.
Connecteur
d’alimentation
Chargeur de batteries à quatre baies
Témoin d’état
de charge
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

13
.
Tension d’entrée : 12 volts en c.c.
Comprendre les témoins DEL d’état de charge
Couleur du témoin DEL Description
Éteint Aucune batterie n’est insérée dans le
chargeur.
Rouge sans
interruption La batterie est en charge.
Rouge qui clignote Le chargeur de la batterie éprouve un
problème de charge. Retirez la batterie
pendant 10 minutes et insérez-la à
nouveau dans le chargeur. Si le
chargeur affiche toujours une erreur, la
batterie peut être endommagée.
Remplacez la batterie.
Vert sans interruption La batterie est complètement
rechargée.
Mise en garde : Consultez la Déclaration de conformité
pour les restrictions d’usage associées à ce produit.
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

14
AC18 4 베이 배터리 충전기 안내서
이 안내서를 참조하여 AC18 4 베이 배터리 충전기 (P/N
852-915-001) 를 사용 및 설치하십시오 . AC18 은 동시에
최대 4 개의 배터리를 충전할 수 있습니다 . 배터리를 완전히
충전하는 데 소요되는 시간은 4 시간 미만입니다 . 충전기 배
송 상자에 들어 있는 품목은 다음과 같습니다 .
•AC18 4 베이 배터리 충전기
•
AC18 4-Bay Battery Charger Instructions
• AC18 Compliance Insert
제공되지 않는 품목 :
•AC 전원 어댑터 (P/N 851-082-103, 851-095-121,
또는 851-082-203)
•AC 전원 코드. 거주 지역에 적합한 전원 코드를 구입해야
합니다 . 도움이 필요한 경우 , 해당 지역의 Intermec 판매
대리점에 문의하십시오 .
배터리 충전기 설치 및 사용 방법
1AC 어댑터를 배터리 충전기의 전원 커넥터에
연결합니다 .
주의 : AC18 4 베이 배터리 충전기에는 전용 Intermec 배터리
팩 모델 AB13 또는 AB27 을 사용해야 합니다 . 다른 배터리 팩
을 사용할 경우 화재 또는 폭발의 위험이 있습니다 .
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

15
2전원 코드의 한쪽 끝을 AC 어댑터에 연결하고 다른 쪽 끝
을 AC 전원 코드에 연결합니다 .

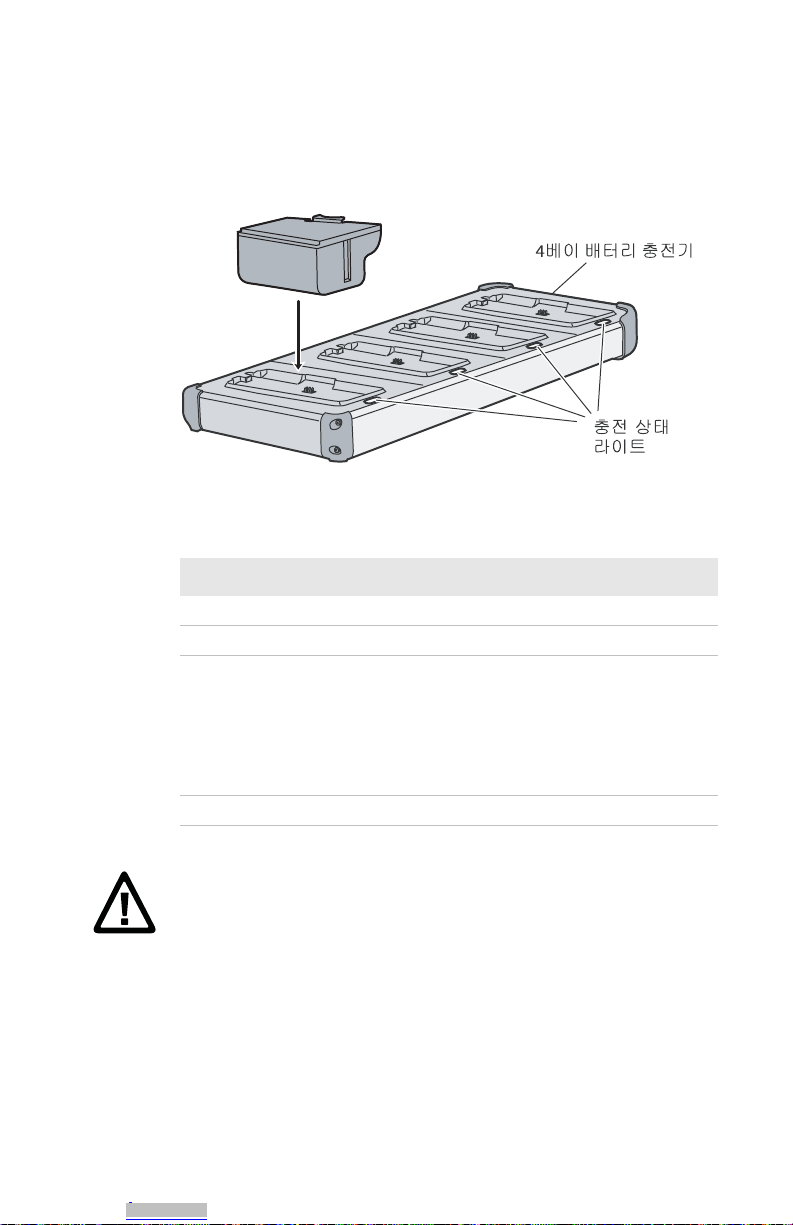

3배터리 팩을 충전기 베이 중 하나에 끼웁니다 . 2-3 초 후
배터리 옆의 충전 상태 라이트가 켜집니다 .
4최소 4 시간 동안 배터리 팩을 충전합니다 .
입력 전압 : 12 VDC
충전 상태 LED 이해
LED 색상 설명
꺼짐 충전기에 끼운 배터리가 없습니다 .
적색으로 켜짐 배터리를 충전하는 중입니다 .
적색으로 깜박임 배터리 충전기에 충전 오류가 발생했
습니다 . 배터리를 약 10 분간 빼 둔
다음 충전기에 다시 끼우십시오 . 그
래도 오류를 표시하면 배터리가 손상
된 것일 수 있습니다 . 배터리를 교체
하십시오 .
녹색으로 켜짐 배터리가 완전히 충전되었습니다 .
주의 : 본제품과 관련된 사용 제한에 대한 자세한 내용은적
합성 명세서를 참조하십시오 .
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

16
Instruções de uso do carregador quádruplo
de baterias AC18
Siga estas instruções para instalar e usar o carregador quádruplo
de baterias AC18 (N/P 852-915-001). O AC18 consegue carregar
até quatro baterias de cada vez. Demora menos de 4 horas para
carregar totalmente as baterias. A embalagem do carregador
contém:
•Carregador quádruplo de baterias AC18
•AC18 4-Bay Battery Charger Instructions
•AC18 Compliance Insert
Componentes não fornecidos:
•Adaptador de alimentação de CA (N/P 851-082-103,
851-095-121, ou 851-082-203)
•Cabo de alimentação de CA. O usuário deve adquirir o cabo
de alimentação apropriado ao local onde se encontra. Para
obter ajuda, entre em contato com o representante de vendas
da Intermec local.
Para instalar e usar o carregador de baterias
1Conecte o adaptador de CA ao conector de alimentação
elétrica no carregador de baterias.
Cuidado: O carregador quádruplo de baterias AC18 só deve
ser usado com a bateria Intermec modelo AB13 ou AB27. O
uso de qualquer outro tipo de bateria pode gerar risco de
incêndio ou explosão.
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

17
2Conecte uma extremidade do cabo de alimentação ao
adaptador de CA e a outra em uma tomada de CA.
3Insira a bateria em qualquer um dos compartimentos do
carregador. A luz indicadora do status da carga ao lado da
bateria acenderá depois de dois a três segundos.
4Carregue a bateria por pelo menos 4 horas.
Cabo de alimentação de CA
Adaptador de
alimentação de CA
Conector
de força
Carregador quádruplo de baterias
Luz indicadora de
estado da carga
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

18
Tensão de entrada: 12 VCC
Condições indicadas pelos LEDs indicadores do status
da carga
Cor do LED Descrição
Apagado Nenhuma bateria presente no carregador.
Vermelha A bateria está sendo carregada.
Vermelha
intermitente O carregador de baterias está apresentando um erro de carga. Retire a bateria por 10 minutos e
depois recoloque-a no carregador. Se o
carregador continuar a exibir o erro, pode ser
que a bateria esteja danificada. Troque-a.
Verde Recarga da bateria concluída.
Cuidado: Consulte as informações sobre as restrições de uso
associadas a este produto no encarte sobre conformidade.
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

19
Инструкции по эксплуатации
4-гнездовой стойки AC18 для
зарядки батареек
Руководствуйтесь этими инструкциями при установке и
использовании 4-гнездовой стойки AC18 для зарядки
батареек (изд. №852-915-001). AC18 позволяет заряжать
одновременно до четырех батареек. Полная зарядка
батареек производится меньше чем за 4 часа. В
упаковочной коробке зарядного устройства находятся:
•4-гнездовая стойка AC18 для зарядки батареек
•AC18 4-Bay Battery Charger Instructions
•AC18 Compliance Insert
Вкомплект не входят:
•Адаптер питания переменного тока (изд. №
851-082-103, 851-095-121, или 851-082-203)
•Шнур питания переменного тока. Вам нужно
приобрести подходящий шнур питания. За
дополнительной информацией обратитесь кместному
торговому представителю Intermec.
Предупреждение: 4-гнездовая стойка AC18 для зарядки
батареек предназначена для использования только с
батарейным блоком питания Intermec AB13 или AB27.
Зарядка любого другого батарейного блока питания
может быть сопряжена сриском пожара или взрыва.
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

20
Чтобы установить ииспользовать устройство для
зарядки батареек
1Подсоедините адаптер переменного тока кразъему
питания на устройстве зарядки батареек.
2Подсоедините один конец шнура питания кадаптеру,
второй конец – крозетке переменного тока.
3Вставьте батарейный блок питания влюбую секцию
зарядного устройства. Через две – три секунды рядом
сбатарейкой включится светодиод состояния зарядки.
4Заряжайте батарейку не меньше 4 часов.
Шнур питания переменного тока.
Адаптер питания
переменного тока
Разъем
питания
Шнур питания переменного тока.
Индикатор
состояния
зарядки
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.
