AIMS Power CON120AC12VDC User manual

AC CONVERTER / BATTERY CHARGER
User’s Manual
MODEL #: CON120AC12/24VDC
Listed to UL 458 and CSA 22.2 NO. 107.1
Standards

Contents
INTRODUCTION..................................................................................................................................................... 3
Important Safety Instructions................................................................................................................................. 3
1. General Description.................................................................................................................................... 5
1.1 Features..................................................................................................................................................... 5
2. Installation and Operation................................................................................................................................. 6
2.1 Front Panel Description........................................................................................................................... 6
2.2 Rear Panel Description............................................................................................................................ 7

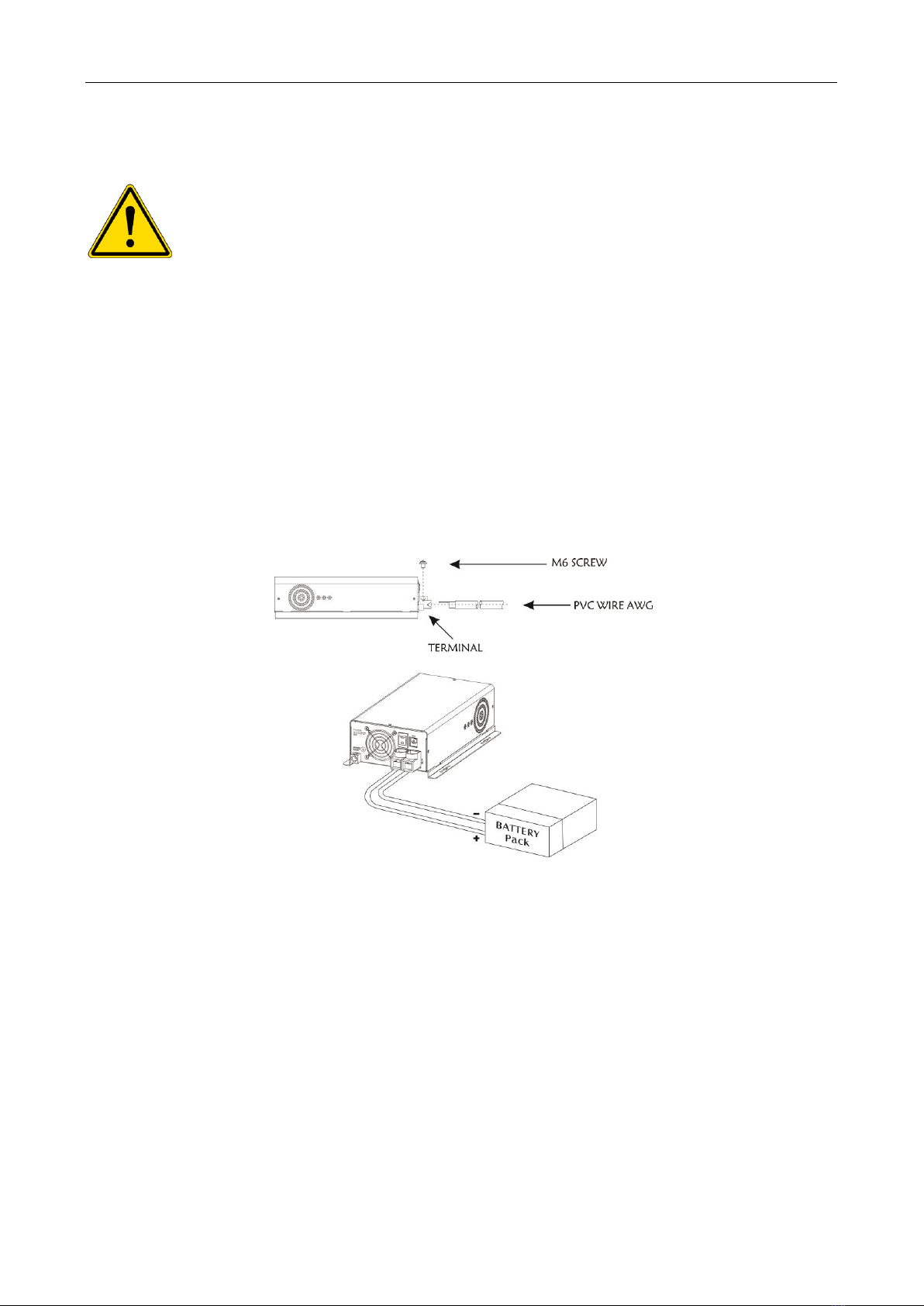

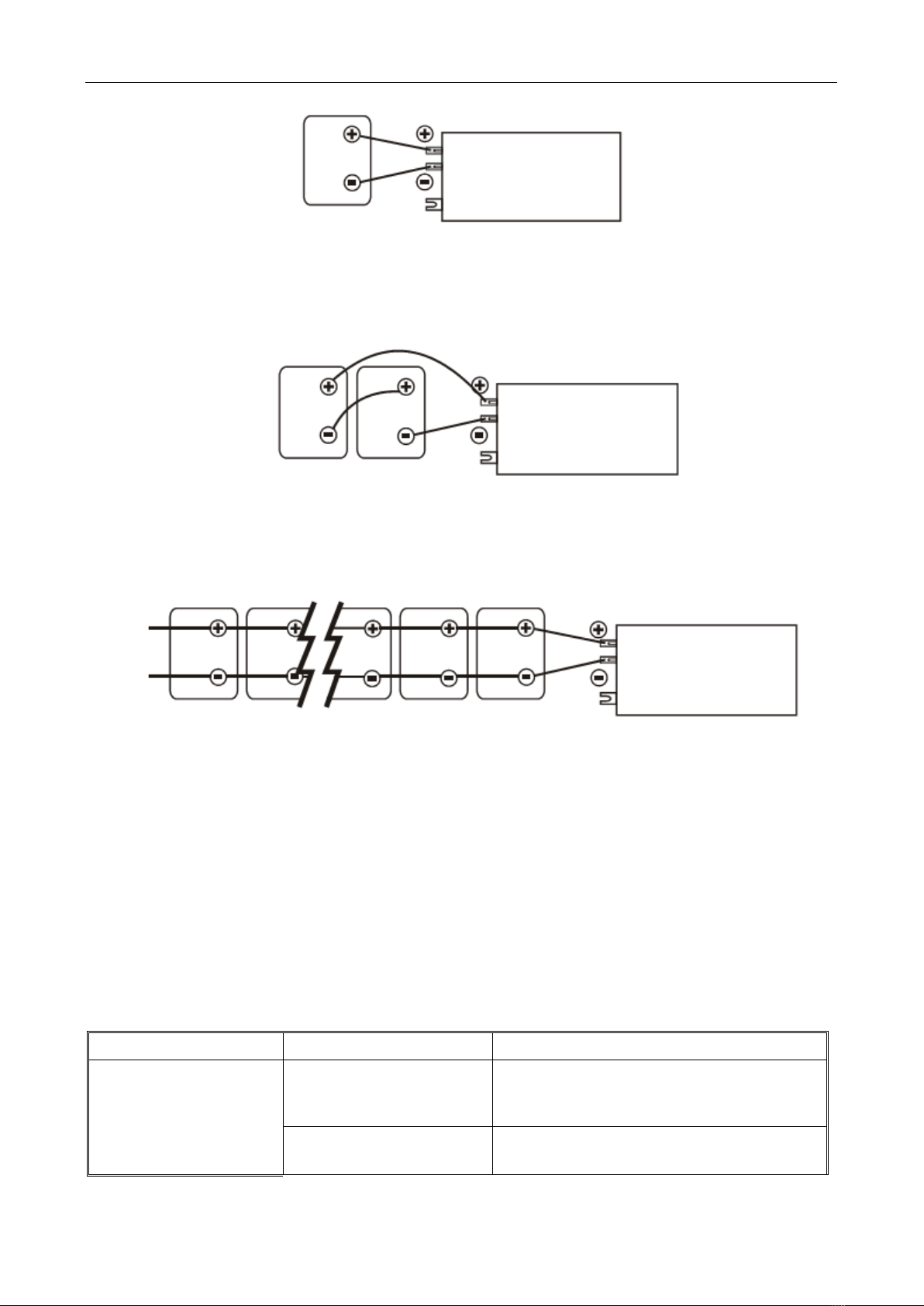

2.3 DC Output Battery Connection............................................................................................................... 8
2.4 AC Input Connection................................................................................................................................ 9
2.5 Parallel Connection.................................................................................................................................. 9
3. Troubleshooting.................................................................................................................................................. 9
4. Specifications.................................................................................................................................................... 10

MATRIX Inverter System User Manual
- 3 -
I
IN NT TR RO OD DU UC CT TI IO ON N
You have purchased the AIMS Power 12V/24V AC Converter and Battery Charger. This product will
bring you reliable power when used and maintained properly. This manual provides safety guidelines,
detailed planning and setup information, installation procedures, as well as information about operating
and troubleshooting the unit. This manual does not provide details about specific brands of batteries.
AIMS Power recommends you consult the battery manufacturer for charging information.
READ THE MANUAL AND UNDERSTAND ALL SAFETY PRECAUTIONS BEFORE INSTALLING AND
OPERATING THE UNIT. SAVE THE MANUAL FOR FUTURE REFERENCE.

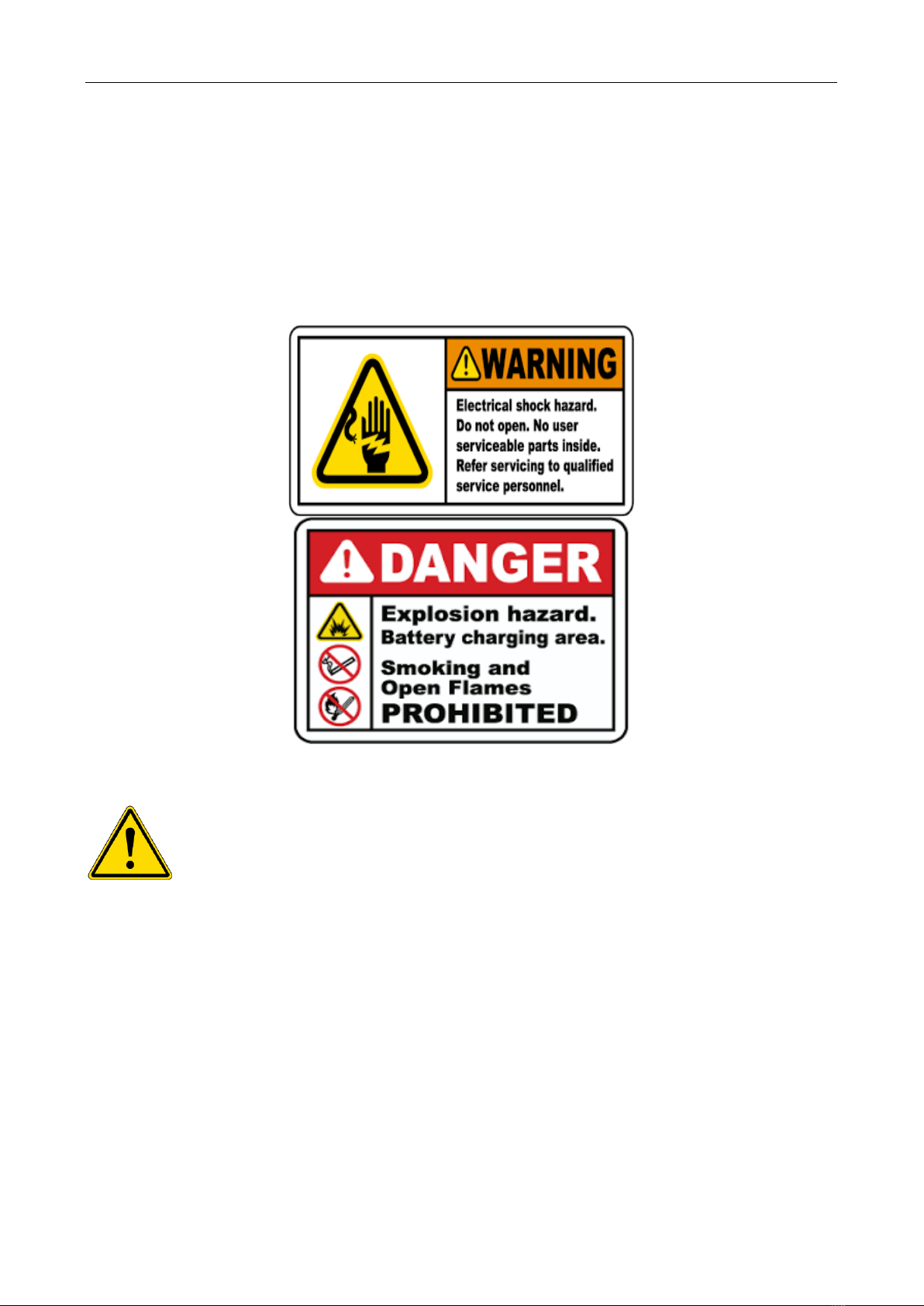

I
Im mp po or rt ta an nt t S Sa af fe et ty y I In ns st tr ru uc ct ti io on ns s
CAUTION
1. Installation and service should be performed by a qualified service technician. High voltage is present
inside unit. Incorrect installation or use may result in risk of electric shock or fire. No user serviceable
parts inside the unit.
2. Remove all sources of power, utility and battery power before servicing or installing.
3. Risk of explosive gases
Working near batteries is dangerous. Batteries produce explosive gases during normal
battery operation.
To reduce risk of battery explosion, follow the instructions in this manual and the
instructions from the battery manufacturer.
4.Plan ahead
Someone should be within range of your voice or close enough to come to your aid when
working near a lead-acid battery.
Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing or

MATRIX Inverter System User Manual
- 4 -
eyes.
Wear complete eye protection and clothing protection.Avoid touching eyes while working
near battery.
If battery acid contacts skin or clothing, wash immediately with soap and water. If acid
enters eye, immediately flood eye with running cold water for at least 10 minutes and get
medical attention immediately.
NEVER smoke or allow a spark or flame in vicinity of battery.
Be extra cautious to reduce risk of dropping metal tool onto battery. It might spark or short
circuit battery or other electrical part that may cause explosion.
Remove personal metal items such as rings, bracelets, necklaces, and watches when
working with a lead-acid battery. A lead-acid battery can produce a short circuit current
high enough to weld a ring or like metal, causing a severe burn.
5. Preparing to charge
Never charge a frozen battery.
Be sure battery is mounted in a well-ventilated compartment.
Add distilled water in each cell until battery acid reaches level specified by battery
manufacturer. This helps purge excessive gas from the cells. Do not overfill. For a battery
without cell caps, carefully follow manufacturers charging instructions. (only for flooded
batteries)
6. Charger location & installation
In an event of failure, the unit could produce arcs or sparks. NEVER install in battery or
engine compartment or in the presence of explosive gases. Keep all gases away from unit.
Protect all wiring from physical damage, vibration and excessive heat.
Insure that the unit is properly setup for the type of battery being charged.
Do not expose unit to rain or snow.
Insure all terminating connections are clean and tight to prevent arcing and overheating.
Unit must be properly installed as described in these instructions prior to operation.
Do not adjust any functions including the current, voltage and battery type when unit is
working. All adjustments must be made when converter is disconnected.

MATRIX Inverter System User Manual
- 5 -
1
1. . G Ge en ne er ra al l D De es sc cr ri ip pt ti io on n
The AIMS PowerAC Converter / Battery Charger 12V/24V is ideal for applications that require diverse
ways of recharging batteries. There are many ways to recharge batteries and the wideAC input range of
this unit accommodates most applications and battery technologies. Useful with generators and shore
power, this converter charges various types of batteries such as, open lead acid,AGM, Gel and LiFePO4.
The reliable high frequency structure, accepts wide range input voltages of 70Vac to 145Vac to
accommodate unstable inputs. The unit also includes a selectable 12Vdc or 24Vdc output. The AIMS
PowerAC Converter / Battery Charger provides the flexibility for almost any application and the large
charging capacity of 75 amps gets the job done quickly.
1
1. .1 1 F Fe ea at tu ur re es s
Three stage variable charging voltage algorithm for maximizing the battery lifetime. Bulk,
absorb and float
Large charging capacity design (75Amp for 12Vdc; 37.5 Amp for 24Vdc) less charging
time needed
Adjustable charge current control setting is based on connected battery’s capacity to safely
charge batteries and avoid over charging.
Wide input voltage range, 70Vac to 145Vac for unstable input
High AC to DC converting efficiency design (higher than 80%)
Smart fan control for maximizing the performance and fan life
Includes battery temperature sensor port to help maintain the life of the battery(s)
