SIIG UltraATA 133 PCI User manual

1
UltraATA 133 PCI
Quick Installation Guide
04-0233F
Introducing the UltraATA 133 PCI
TheUltraATA133PCIisanultrahigh-speeddualchannel
UltraATA/133controllerboardforuseinPentium-class
computer.
FeaturesandBenefits
• CompliantwithUltraDMA6ATA/133specifications
• Compliant with PCI v2.2 Plug-n-Play
• Provides two independent Ultra ATA channels
(built-in 256-byte FIFOs per channel)
• Full ACPI power management support
• Supports Ultra DMA 0-6 and Multi-word DMA 0-2
• Breaks the 137GB barrier! Supports hard drives
larger than 137GB
• Coexists with on-board controller
• CRC (Cyclical Redundancy Check) error-checking
provides data verification and achieves flawless
datatranfer
• Flash BIOS for easy upgrade
• Achieves burst data transfer rates up to 133MB/sec
• Workswithvariousbrand,capacityharddiskdrives
and ATAPI devices
SystemRequirements
• Pentium-class computer with an available PCI slot
• Windows®98SE/ME/NT4.0/2000/XP(32-/64-bit)
/Server 2003 (32-/64-bit)/Vista (32-/64-bit)

2
PackageContents
• UltraATA 133 PCI adapter
• DriverCD
• 40-pin/80-wire Ultra ATA cable
• Quick Installation Guide
Layout
IDE1
IDE2
Jumper On
(do not remove)
Pin1 Pin1
HDD
Activity
LED

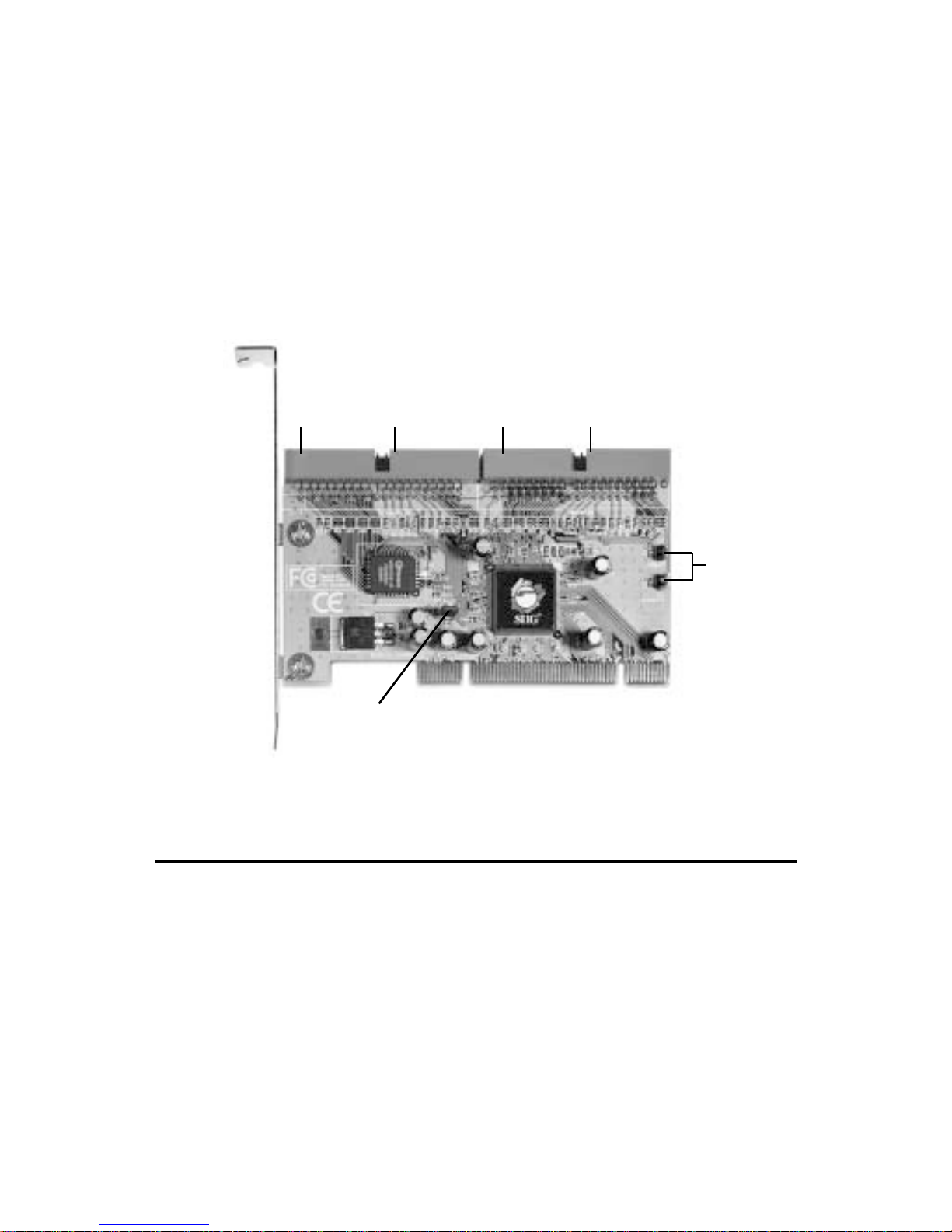

Figure 1. UltraATA 133 PCI layout
Hardware Installation
General instructions for installing the card are provided
below. Since the design of computer cases and
motherboards vary, refer to your computer’s reference
manual for further information, if needed.
Static Electricity Discharge may permanently damage
your system. Discharge any static electricity build up in
your body by touching your computer’s case for a few
seconds. Avoid any contact with internal parts and
handle cards only by their external edges.

3
1. Turn OFF the power to your computer and any
other connected peripheral devices.
2. Unplug the power cord from the back of the
computer.
3. Remove your computer’s cover.
4. Remove the slot bracket from an available PCI slot.
5. To install the card, carefully align the card's bus
connector with the selected PCI slot on the
motherboard. Push the board down firmly, but
gently, until it is well seated.
6. Replace the slot bracket's holding screw to secure
the card.
DeviceConnection
The UltraATA 133 PCI is a dual channel Ultra ATA/133
controller that supports up to four IDE hard disk drives
or ATAPI devices. If you plan to use the second IDE
channel (IDE2), you will need to purchase another
40-pin/80-wire UltraATA ribbon cable.
In order to achieve high-speed data transfer, a 40-pin/
80-wire Ultra ATA ribbon cable is recommended. Also,
do not mix Ultra ATA/133 hard disk with slower IDE or
ATAPI devices on the same channel.
1. Install hard disk drive(s) in chassis.
2. Attach one connector on the long end of the Ultra
ATA ribbon cable to the board's IDE connector and
the other connector(s) to your IDE drive(s). Make
sure pin 1 on the cable (indicated by the colored
stripe) matches pin 1 on the board's IDE connector
and your IDE drive(s).

4
3. When two drives are installed on the same IDE
channel,makesureonedriveissetupasMasterand
the other as Slave. This rule applies to both IDE
channels.
4. The Ultra ATA ribbon cable has two connectors. If
you install only one drive, connect it to the end
connector of the cable. On the other hand, if you
install two drives, connect the master drive to the
end connector of the cable and the slave drive in the
middle connector.
Figure 2. Connecting the cable
5. Reconnect the system power and other peripherals
to your computer.
Driver Installation
This section provides information on how to install the
UltraATA 133 PCI drivers for the following operating
systems.
Windows98SE
For New Windows 98SE Installation
1. Install the board and follow Microsoft procedures
to install Windows 98SE accordingly.

5
2. Once Windows has been installed, right click My
Computer and click Properties. Select Device
Manager tab.
3. Double click PCI Mass Storage Controller listed
under Other Devices.
4. Select Driver tab, then click Update Driver button.
5. Insert the driver CD and click Next.
6. Select Search for a better driver ... and click Next.
7. InsertthedriverCD,checkspecifylocation,uncheck
the other boxes, type D:\32bit (change D: to match
CD-ROM), then click Next.
8. Click Next,then Finish.
9. Remove the driver CD and restart Windows to
complete the driver installation.
For Existing Windows 98SE Installation
1. Install the board and boot up Windows 98SE.
2. At the Add New Hardware Wizard, click Next.
3. SelectSearchforthebestdriverforyourdeviceand
click Next.
4. InsertthedriverCD,checkspecifylocation,uncheck
the other boxes, type D:\32bit (change D: to match
CD-ROM), then click Next.
5. Click Next,then Finish.
6. Remove the driver CD and restart Windows to
complete the driver installation.
WindowsME
For New Windows ME Installation
1. Install the board and follow Microsoft procedures
to install Windows ME accordingly.

6
2. Once Windows has been installed, right click My
Computer, then click Properties. Select Device
Manager tab.
3. Double click PCI Mass Storage Controller listed
under Other Devices.
4. Select Driver tab, then click Update Driver button.
5. Insert the driver CD, select Automatic search for a
better driver (Recommended), then click Next.
6. Click Finish, remove the driver CD and click Yesto
restart Windows to complete driver installation.
For Existing Windows ME Installation
1. Install the board and boot up Windows ME.
2. AttheAddNewHardwareWizard,insertthedriver
CD.
3. Select Automatic search for a better driver
(Recommended), then click Next.
4. Click Finish.
5. Remove the driver CD and restart Windows to
complete the driver installation.
ToVerifyWindows98SE/MEInstallation
1. Right-click My Computer, then click Properties.
Select Device Manager tab.
2. Double click SCSI Controllers, an entry, Silicon
ImageSiI0680ATA/133Controllershouldbelisted.
3. Highlight Silicon Image SiI 0680 ATA/133
Controller and click Properties. A message This
device is working properly is displayed in the dialog
box, the driver has been correctly installed. If any
error message is displayed, remove Silicon Image
SiI0680ATA/133Controllerandrestartyoursystem.

7
WindowsNT4.0
For New Windows NT 4.0 Installation
A new installation of Windows NT 4.0 requires a floppy
disk for the driver installation. To make this floppy disk,
copy the contents of the 32bit folder, found on the driver
CD, onto a blank floppy disk then follow the directions
below.
1. Install the board and follow Microsoft procedures
to install Windows NT 4.0 accordingly.
2. At the Windows NT Setup screen, press F6 to
specify and add the driver.
3. Press S, select Other, then press Enter.
4. Insert the driver diskette and press Enter.
5. Select Silicon Image SiI 0680 ATA/133 Controller
and press Enter.
6. Press Enter to continue and follow on-screen
instructions to complete Windows NT 4.0
installation.
For Existing Windows NT 4.0 Installation
1. Install the board and boot up Windows NT 4.0.
2. Double click My Computer/Control Panel/SCSI
Adapters, then click the Drivers tab.
3. Click Add… then Have Disk....
4. Insert the driver CD, type D:\32bit (change D: to
match CD-ROM), then click Next.
5. Highlight Silicon Image SiI 0680 ATA/133
Controller and click OK, OK.
6. Click Browse , then click drop down arrow in Look
in. Select CD-ROM drive (Drivers), double click
32bit, click Open, then OK.

8
7. Remove the driver CD. Restart Windows to
complete the driver installation.
ToVerifyWindowsNT4.0Installation
1. Double click My Computer/Control Panel/SCSI
Adapters.
2. Highlight Silicon Image SiI 0680 ATA/133
Controller from SCSI Adapters listing and click
Properties.AmessageThisdeviceisworkingproperly
is displayed in the dialog box, the driver has been
correctly installed.
Windows2000
For New Windows 2000 Installation
A new installation of Windows 2000 requires a floppy
disk for the driver installation. To make this floppy disk,
copy the contents of the 32bit folder, found on the driver
CD, onto a blank floppy disk then follow the directions
below.
1. Install the board and follow Microsoft procedures
to install Windows 2000 accordingly.
2. Restart your system when prompted during
Windows' installation.
3. At the Windows 2000 Setup screen, press F6 to
install the driver.
4. Insert the driver diskette. Press S, then press Enter.
5. Select Silicon Image SiI 0680 ATA/133 Controller
and press Enter.
6. Press Enter to continue and follow on-screen
instructions to complete installation.

9
For Existing Windows 2000 Installation
1. Install the board and boot up Windows 2000.
2. At the Found New Hardware Wizard, click Next
3. Select Search for a suitable driver for my device
(recommended) and click Next.
4. InsertthedriverCD,checkCD-ROMdrives,uncheck
the other boxes, and click Next. ClickNextagain to
continue.
5. Click Finish, remove the driver CD and restart
Windows to complete the driver installation.
32-bitWindowsXP/Server2003
For New 32-bit Windows XP/Server 2003 Installation
A new installation of Windows XP/Server 2003 requires
a floppy disk for the driver installation. To make this
floppy disk, copy the contents of the 32bit folder, found
onthedriverCD,ontoablankfloppydiskthenfollowthe
directions below.
1. Install the board and follow Microsoft procedures
to install Windows accordingly.
2. Restart your system when prompted during
Windows' installation.
3. AttheWindowsSetupscreen,pressF6toinstallthe
driver.
4. Insert the driver diskette. Press Sthen press Enter.
5. Select Silicon Image SiI 0680 ATA/133 Controller
and press Enter.
6. Press Enter to continue and follow on-screen
instructions to complete the installation.

10
ForExisting32-bitWindowsXP/Server2003Installation
1. Install the board and boot up Windows.
2. At the Found New Hardware Wizard.
XP(w/SP1orearlier)/Server2003: continueto step#3
XP(w/SP2orlater)/Server2003(w/SP1orlater): select
No, not at this time, then click Next.
3. Insert the driver CD, select Install the software
automatically (Recommended), then click Next
Note: Most systems will install the driver
automatically after inserting driver CD
4. Click Finish, remove the driver CD and restart
Windows to complete the installation.
64-bitWindowsXP/Server2003
For New Windows 64-bit XP/Server 2003 Installation
A new installation of Windows XP/Server 2003 requires
a floppy disk for the driver installation. To make this
floppy disk, copy the contents of the 64bit folder, found
onthedriverCD,ontoablankfloppydiskthenfollowthe
directions below.
1. Install the board and follow Microsoft procedures
to install Windows accordingly.
2. Restart your system when prompted during
Windows' installation.
3. AttheWindowsSetupscreen,pressF6toinstallthe
driver.
4. Insert the driver diskette. Press Sthen press Enter.
5. Select Silicon Image SiI 0680 ATA/133 Controller
(64-bit Extended) and press Enter.
6. Press Enter to continue and follow on-screen
instructions to complete the installation.

11
ForExisting64-bitWindowsXP/Server2003Installation
1. Install the board and boot up Windows.
2. At the Found New Hardware Wizard:
XP(w/SP1orearlier)/Server2003: continueto step#3
XP(w/SP2orlater)/Server2003(w/SP1orlater): select
No, not at this time, then click Next
3. Insert the driver CD, select Install the software
automatically (Recommended), then click Next.
Note: Most systems will install the driver
automatically after inserting driver CD
4. Click Finish, remove the driver CD and restart
Windows to complete the installation.
ToVerifyWindows2000/XP/2003Installation
1. Right click My Computer and click Manage.
2. Select Device Manager.
3. Double click SCSI and RAID Controllers, then
double click Silicon Image SiI 0680 ATA/133
Controller to display driver properties.
4. AmessageThisdeviceisworkingproperlyisdisplayed
in the dialog box, the driver has been correctly
installed.
32-bitWindowsVista™
For New Windows 32-bit Vista Installation
1. Install the board and follow Microsoft procedures
to install Windows accordingly.
2. Restart your system when prompted during
Windows' installation.
3. At Where do you want to install Windows?,click
Load Driver.

12
4. Insert driver CD, then click Browse
5. Double click CD Drive (D:), (change D: to match
CD-ROM)
6. Highlight 32bit folder, then click OK
7. Select Silicon Image SiI 0680 ATA/133 Controller
(D:\32bit\SI680.inf), then click Next
8. Followon-screeninstructionstocompleteWindows
Vista installation.
For Existing 32-bit and 64-bit Vista Installation
1. Install the board and boot up Windows.
2. AttheFoundNewHardwareWizard, selectLocate
and install driver software (Recommended), then
click Continue.
4 Insert the driver CD. The driver will install
automatically.
3. Click Close, remove the driver CD and restart
Windows to complete the installation.
64-bitWindowsVista
For New Windows 64-bit Vista Installation
1. Install the board and follow Microsoft procedures
to install Windows accordingly.
2. Restart your system when prompted during
Windows' installation.
3. At Where do you want to install Windows?,click
Load Driver.
4. Insert driver CD, then click Browse.
5. Double click CD Drive (D:), (change D: to match
CD-ROM)
6. Double click 64bit folder, highlight AMD64, then
click OK.

13
7. Select Silicon Image SiI 0680 ATA/133 Controller
(D:\64bit\AMD64\SI680.inf), then click Next
8. Followon-screeninstructionstocompleteWindows
Vista installation.
ToVerifyWindowsVistaInstallation
1. Right click My Computer and click Manage,then
Continue.
2. Select Device Manager.
3. Double click Storage controllers, then double click
Silicon Image SiI 0680 ATA/133 Controller to
display driver properties.
4. AmessageThisdeviceisworkingproperlyisdisplayed
in the dialog box, the driver has been correctly
installed.
Bios Configuration
The UltraATA 133 PCI BIOS will appear everytime your
systemstartsup. Ifthebiosdoesn'tshow,pleasetryyour
controllerinanotherPCIslot. Duringthis(Post)process,
the bios will show up and indicate the devices attached
to it.

14
Blank Page

15
Technical Support and Warranty
QUESTIONS? SIIG’sOnlineSupporthasanswers! Simplyvisitour
web site at www.siig.com and click Support. Our online support
databaseisupdateddailywithnewdriversandsolutions. Answers
toyourquestionscouldbejustafewclicksaway. Youcanalsosubmit
questions online and a technical support analysts will promptly
respond.
SIIGoffersalifetimemanufacturerwarrantywiththisproduct. Please
see our web site for more warranty details. If you encounter any
problemswiththisproduct,pleasefollowtheprocedures below.
A) If it is within the store's return policy period, please return the
producttothestorewhereyoupurchasedfrom.
B) Ifyourpurchasehaspassedthestore'sreturnpolicyperiod,please
followthese steps to have the product repaired or replaced.
Step1: SubmityourRMArequest.
Go to www.siig.com, click Support, then RMA to submit a
request to SIIG RMA. If the product is determined to be
defective,anRMAnumberwillbeissued. SIIGRMAdepartment
can also be reached at [phone].
Step2: After obtaining an RMA number, ship the product.
•Properlypacktheproductforshipping. Allsoftware,cable(s)
andanyotheraccessories thatcamewith theoriginalpackage
mustbeincluded.
•Clearly write your RMA number on the top of the returned
package. SIIGwillrefusetoacceptanyshippingpackage,and
will not be responsible for a product returned without an
RMA number posted on the outside of the shipping carton.
•Youare responsible forthecost of shipping. Ship theproduct
to the following address:
SIIG,Inc.
6078 Stewart Avenue
Fremont, CA 94538-3152, USA
RMA#:
•SIIG will ship the repaired or replaced product via Ground
in the U.S. and International Economy outside of the U.S. at
nocosttothecustomer.

UltraATA133PCIisatrademarkofSIIG,Inc. SIIGandtheSIIGlogoareregisteredtrademarksofSIIG,
Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. Pentium is a
registeredtrademarkofIntelCorporation. Othernamesusedinthispublicationareforidentification
onlyandmaybetrademarksoftheirrespectivecompanies.
October, 2007 Copyright © 2007 by SIIG, Inc. All rights reserved.
About SIIG, Inc.
Foundedin1985,SIIG,Inc.isaleadingcomputerupgrademanufacturer
ofI/Oconnectivityproducts,includingPCI&ISAserialandparallel
ports,USB,SerialATA&UltraATAcontrollers,FireWire(1394a/b),
networking,sound cards,and otheraccessories. SIIGis thepremier
one-stopsourceofupgrades.
SIIGproductsoffercomprehensiveusermanuals,manyuser-friendly
features, and are backed by an extensive manufacturer warranty.
High-quality control standards are evident by the overall ease of
installation and compatibility of our products, as well as one of the
lowest defective return rates in the industry. SIIG products can be
found in computer retail stores, mail order catalogs, through major
distributors, system integrators, and VARs in the Americas and the
UK,andthroughe-commercesites.
PRODUCT NAME
UltraATA 133 PCI
FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS
B OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE
FCCCOMPLIANCESTATEMENT:
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE
SIIG, Inc.
6078 Stewart Avenue
Fremont, CA 94538-3152, USA
