Silva Expedition 4 User manual

Military Product inforMation

CONTENTS
Compasses
Expedition 4 .............................................. 3
Expedition 15 ............................................ 4
Ranger 3 ................................................... 5
Ranger 16 ................................................. 6
Ranger 27 ................................................. 7
Expedition 54 ........................................... 8
40 Sere ..................................................... 9

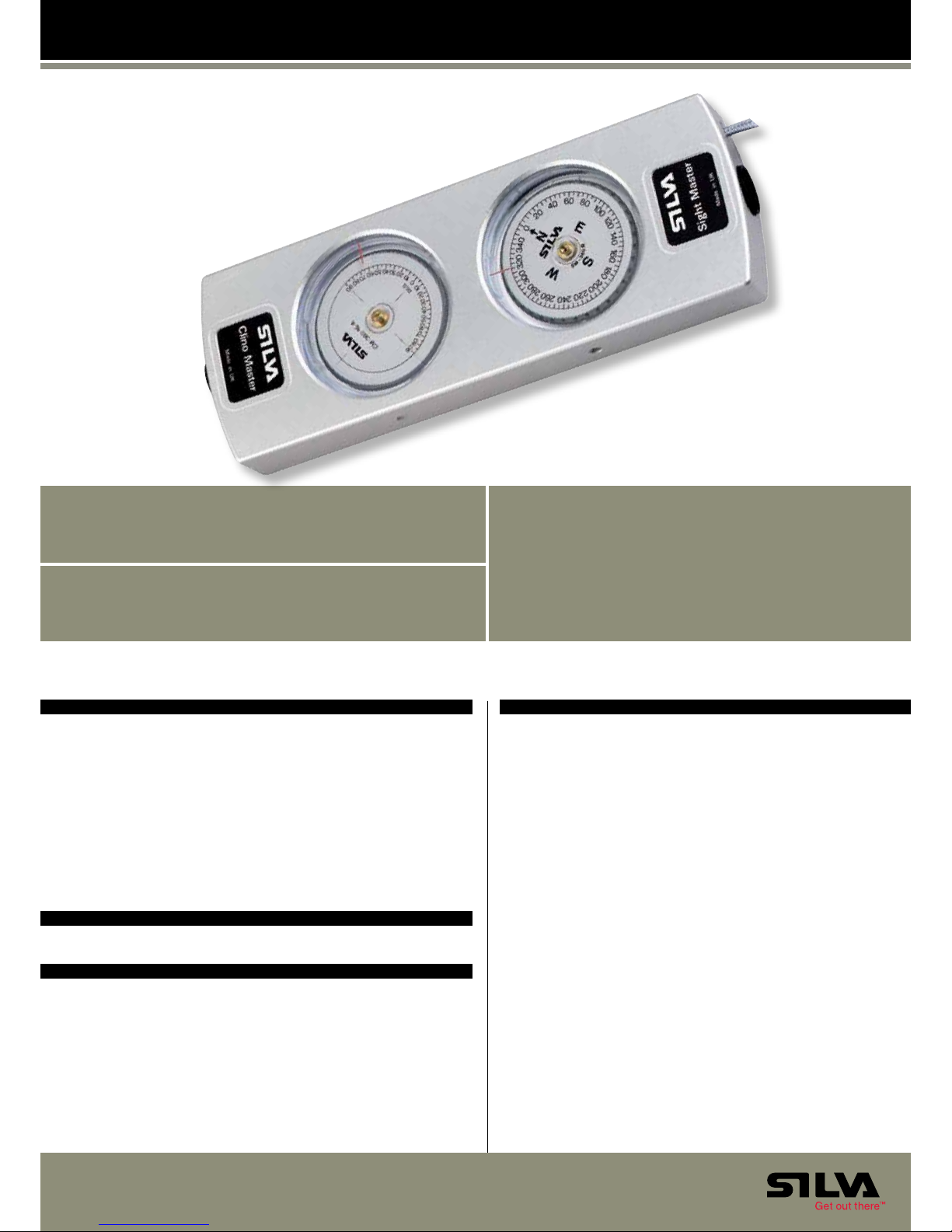

SurveyMaster ..........................................10
Mobile lighting
Otus .........................................................11
Ninox .......................................................12
Ranger .....................................................13
Ranger Pro ...............................................14
Alpha 6 .....................................................15
Alpha 4 ....................................................16
Alpha 2 .....................................................17
Wind and Atmospheric
ADC Summit ........................................... 18
ADC Pro ...................................................19

3
NATO STOCK NUMBER
6605-99-582-5812 (4B NATO)
ACCESSORIES
Lanyard
PRODUCT FEATURES
Type of compass Silva 1-2-3 System baseplate compass
Compass capsule / needle
Sighting System No
Magnifying lens Yes
Declination adjustment Decl scale in capsule
Clinometer No
Illumination / active time
after activation in light Yes / 6 hours Model 4 NATO: 7.5 years
Luminous compound Everglow™ / Model 4 NATO: Tritium compound
80 mCi
Silicon friction feet Yes
Other Patented red/black N/S lines in capsule
The “full-sized” base plate compass for experienced
navigators – used by NATO Forces around the world.
Mainly used by the infantry as a soldier’s or officer’s
compass. Additional features include measuring scales
for positioning (GPS), graduated in mils and degrees
(6400/360), magnifying glass and rubber feet for
precision map work
Military Equipment
SPECIFICATIONS
Available graduations 6400/360 (360 inside the capsule), 6300, 360
Resolution degrees / mils 2 / 50
Measuring scales on
base plate mm, inch
UTM position plotting
scales (Romer scales) 1:25k, 1:50k, 1:40k
Settling time from 90
degree angle within +/- 3 deg 2.7 sec
Settling time from 90
degree angle to complete rest 5 sec
Accuracy +/- 1 degree (17.8 mils)
Waterproof IP68 - (more than 100 m)
Altitude use 5000m@-15 C
Impact resistance 30g in XYZ directions and free fall from 1,5 m
height into gravel
Temperature operating range -40 to +60 C
Material Acrylic
Size (mm) 126x60x10
Weight g 36
Art.No’s
35692-1511 COMPASS 4 MILITARY-6400/360
35687-3531 COMPASS 4B NATO-6400/360,
BetaLight illumination
Compasses

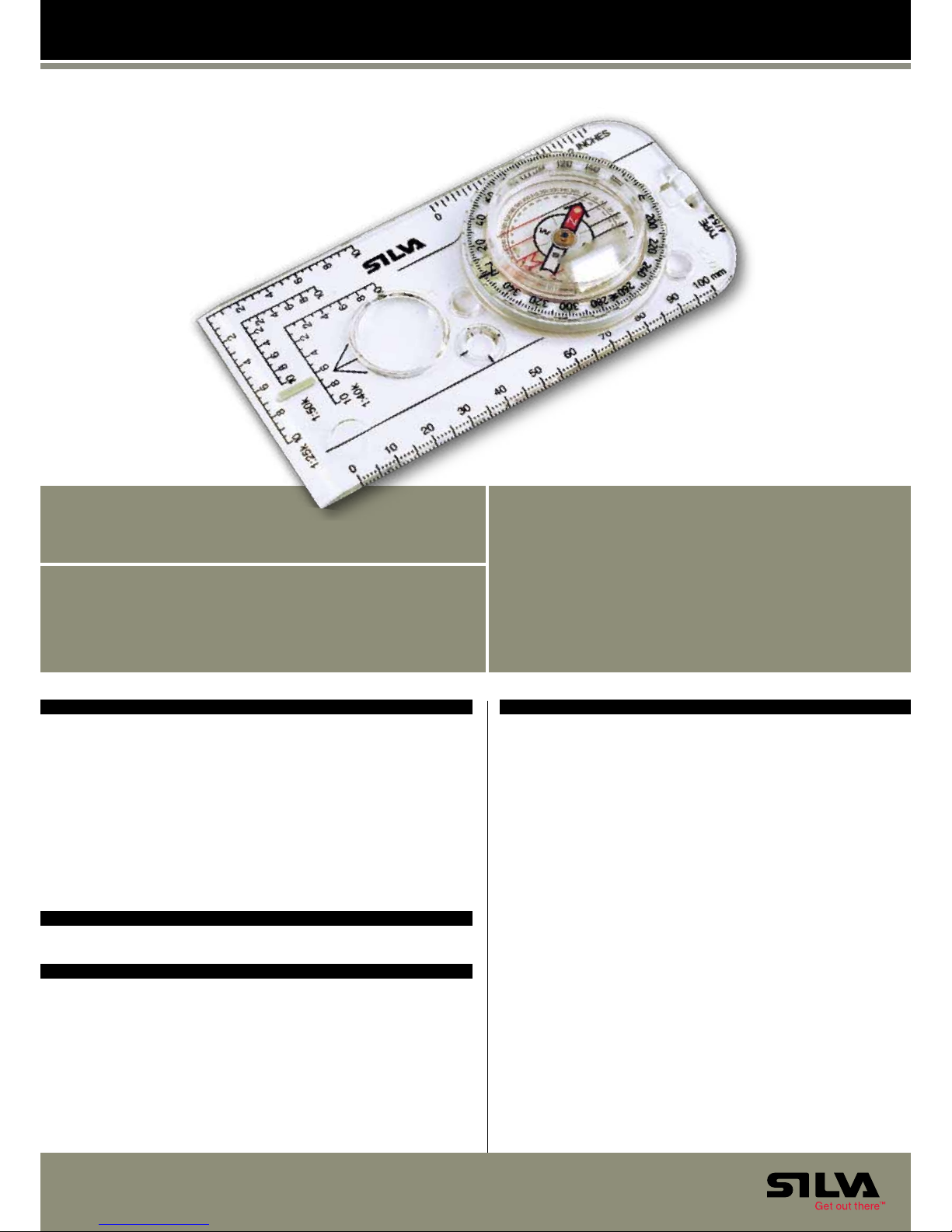

Expedition 4
4B NATO

4
NATO STOCK NUMBER
6605-21-854-7751 / 6605-99-520-4379
ACCESSORIES
Lanyard
PRODUCT FEATURES
Type of compass Silva 1-2-3 System Mirror sighting compass
Compass capsule / needle
Sighting System Mirror
Magnifying lens Yes
Declination adjustment Declination adjustment
Clinometer Yes - model 15 TDCL
Illumination / active time
after activation in light Yes
Luminous compound
Silicon friction feet Yes
Other Patented red/black N/S lines in capsule
This original mirror sighting compass is used by
defence forces all over the world. It has Romer scales
with plotting holes for finding and marking GPS
coordinates on the map and rubber feet so it won’t slide
on the map. Expedition 15 TDCL has a built in adjuster
for magnetic declination and it can also be used on
maps without meridians.
Military Equipment
SPECIFICATIONS
Available graduations 6400/360
Resolution degrees / mils 2 / 50
Measuring scales on
base plate mm, inch
UTM position plotting
scales (Romer scales) 1:25k, 1:50k
Settling time from 90
degree angle within +/- 3 deg 2.7 sec
Settling time from 90
degree angle to complete rest 5 sec
Accuracy +/- 1 degree (17.8 mils)
Waterproof IP68 - (more than 100 m)
Altitude use 5000m@-15 C
Impact resistance 30g in XYZ directions and free fall from 1,5 m
height into gravel
Temperature operating range -40 to +60 C
Material Acrylic/Acetal
Size (mm) 108x63x20
Weight g 88
Art.No’s.
36814-4511 COMPASS 15T-360/6400 Green
36818-4511 COMPASS 15TDCL-360/6400 Green
36818-4411 COMPASS 15TDCL-6400 Green
Compasses
Expedition 15

NATO STOCK NUMBER
-
ACCESSORIES
Lanyard
PRODUCT FEATURES
Type of compass Silva 1-2-3 System baseplate compass
Compass capsule / needle Liquid filled, sapphire jewel bearing compass
needle, hardened steel pivot
Sighting System No
Magnifying lens Yes
Declination adjustment Decl scale in capsule
Clinometer No
Illumination / active time
after activation in light Yes / 6 hours
Luminous compound Everglow™
Silicon friction feet No
Other Dryflex™, tactile grip ring
Patented red/black N/S lines in capsule
A classic military base plate compass. Ranger 3 is an
easy to use troop compass for infantry, commando
units and paratroopers, compatible with the Silva 1-2-3
system. This model is often part of standard equipment
for military personnel around the world, thanks to its
quality and durability.
Military Equipment
SPECIFICATIONS
Available graduations 6400/360
Resolution degrees / mils 2 / 50
Measuring scales
on base plate 1:25k, 1:50k, mm
UTM position plotting
scales (Romer scales) No
Settling time from 90 degree
angle within +/- 3 deg 2.7 sec
Settling time from 90
degree angle to complete rest 5 sec
Accuracy +/- 1 degree (17.5 mils)
Waterproof IP68 - (more than 100 m)
Altitude use 5000m@-15 C
Impact resistance 30g in XYZ directions and free
fall from 1,5 m height into gravel
Temperature operating range -40 to +60 C
Material Acrylic
Size (mm) 106x54x10
Weight g 32
Art.No. 36896-1511 Compass Ranger 3 Green
Compasses
Ranger 3
5

6
NATO STOCK NUMBER
-
ACCESSORIES
Lanyard
PRODUCT FEATURES
Type of compass Silva 1-2-3 System Mirror sighting compass
Compass capsule / needle -
Sighting System Mirror
Magnifying lens No
Declination adjustment Decl scale in capsule
Clinometer No
Illumination / active time
after activation in light Yes / 6 hours
Luminous compound Everglow™
Silicon friction feet No
Other Dryflex™, tactile grip ring
Patented red/black N/S lines in capsule
Ranger 16 is a perfect all-round mirror sighting compass
for navigation on land or at sea. Used by both infantry
and artillery as a soldier’s or officer’s compass. Mirror
sighting increases accuracy in taking out bearings and
the transparent base plate makes map work easier.
Military Equipment
SPECIFICATIONS
Available graduations 6400/360 (360 inside the capsule)
Resolution degrees / mils 2 / 50
Measuring scales on
base plate mm, inch
UTM position plotting scales
(Romer scales) No
Settling time from 90
degree angle within +/- 3 deg 2.7 sec
Settling time from 90
degree angle to complete rest 5 sec
Accuracy +/- 1 degree (17.8 mils)
Waterproof IP68 - (more than 100 m)
Altitude use 5000m@-15 C
Impact resistance 30g in XYZ directions and free fall from 1,5 m
height into gravel
Temperature operating range -40 to +60 C
Material Acrylic/Acetal
Size (mm) 90x59x16
Weight g 53
Art.No. 36820-4711 Compass Ranger 16 Green
Compasses
Ranger 16

7
NATO STOCK NUMBER
6605-99-541-0529
ACCESSORIES
Lanyard
PRODUCT FEATURES
Type of compass Silva 1-2-3 System Mirror sighting compass
Compass capsule / needle
Sighting System Mirror
Magnifying lens No
Declination adjustment No
Clinometer No
Illumination / active time
after activation in light Yes / 6 hours
Luminous compound Everglow™
Silicon friction feet No
Other Pin on hands-free
Sun watch
Patented red/black N/S lines in capsule
The exceptionally small sized Ranger 27 has the same
functionality as a full sized mirror sighting compass. It’s
developed for Special Forces and others who prioritize
low weight, compact format and full functionality. The
pin-on function allows ready-for-battle-navigation, both
hands free to manage weapons and other equipment
while moving.
Military Equipment
SPECIFICATIONS
Available graduations 6400
Resolution degrees / mils 5 / 100
Measuring scales on
base plate mm
UTM position plotting
scales (Romer scales) No
Settling time from 90
degree angle within +/- 3 deg 3.2 sec
Settling time from 90
degree angle to complete rest 5 sec
Accuracy +/- 1 degree (17.8 mils)
Waterproof IP68 - (more than 100 m)
Altitude use 5000m@-15 C
Impact resistance 30g in XYZ directions and free fall from 1,5 m
height into gravel
Temperature operating range -40 to +60 C
Material Acrylic
Size (mm) 59x41x14
Weight g 22
Art.No. 34952-1411 Compass Ranger 27
Compasses
Ranger 27

8
NATO STOCK NUMBER
6605-99-453-6214
ACCESSORIES
Lanyard
PRODUCT FEATURES
Type of compass Silva 1-2-3 System combined with a Lensatic
precision sighting compass
Compass capsule / needle
Sighting System Prismatic precision
Magnifying lens Yes
Declination adjustment No
Clinometer No
Illumination / active time
after activation in light Yes
Luminous compound
Silicon friction feet Yes
Other Patented red/black N/S lines in capsule
Probably the most resourceful compass in the world
for artillery; target acquisition and command posts.
The Expedition 54 is a unique compass featuring both
an optical precision sighting system and a SILVA 1-2-3
SYSTEM compass in the same unit, giving unbeatable
precision and versatility in the field. Bearings can be
taken with accuracy to within half a degree.
Military Equipment
SPECIFICATIONS
Available graduations 6400/360
Resolution degrees / mils Outer ring: 2 / 50 Precision sighting scale: 1 / 20
Measuring scales on
base plate 1:25k, 1:50k, 1:40k, mm, inch
UTM position plotting
scales (Romer scales) 1:25k, 1:50k, 1:40k
Settling time from 90
degree angle within +/- 3 deg 4 sec
Settling time from 90
degree angle to complete rest 6 sec
Accuracy +/- 0,5 degree (8,9 mils)
Waterproof IP68 - (10 m)
Altitude use 5000m@-15 C
Impact resistance 30g in XYZ directions and free fall from 1,5 m
height into gravel
Temperature operating range -40 to +60 C
Material Acrylic
Size (mm) 126x60x16
Weight g 39
Art.No.
35852-9011 COMPASS 54 6400+6400/360
35861-9011 COMPASS 54B-6400+6400/360,
BetaLight illumination
Compasses
Expedition 54

9
NATO STOCK NUMBER
-
ACCESSORIES
-
PRODUCT FEATURES
Type of compass General direction finder
Compass capsule / needle
Sighting System No
Magnifying lens No
Declination adjustment No
Clinometer No
Illumination / active time
after activation in light Model 40: Yes / 6 hours
Luminous compound Everglow™
Silicon friction feet No
Other Hole for nylon line attachment
The ultimate survival compass - Survival Evasion
Resistance Escape. This emergency compass is worn
around the soldiers’ neck and due to its small size,
can be swallowed if necessary. It’s basically a 3 gram
survival kit. Available in two versions, with or without
luminous dial.
Military Equipment
SPECIFICATIONS
Available graduations Cardinal points N, E, S, W
Resolution degrees / mils 45
Measuring scales on base plate -
UTM position plotting
scales (Romer scales) -
Settling time from 90
degree angle within +/- 3 deg -
Settling time from 90
degree angle to complete rest 6 sec
Accuracy 5 degrees (89 mils)
Waterproof IP68 - (more than 100 m)
Altitude use 2000m@ -10 C
Impact resistance 30g in XYZ directions and free fall from 1,5 m
height into gravel
Temperature operating range -10 to + 50 C
Material Acrylic
Size (mm) 18mm diameter
Weight g 8
Art.No. 35766-2610
Compasses
40 SERE

10
NATO STOCK NUMBER
6605-99-199-4186
ACCESSORIES
-
PRODUCT FEATURES
Type of compass Combination of precision sighting compass
and clinometer. Universal, hand held
Compass capsule / needle
Sighting System Lensatic / Prismatic
Magnifying lens No
Declination adjustment No
Clinometer Yes
Illumination / active time
after activation in light Available / 7.5 years
Luminous compound Tritium compound 80 mCi
Silicon friction feet No
Other
This is a patented combination of two instruments,
the SightMaster™ and the ClinoMaster™. Used by
any military troop where both compass bearings and
vertical angles are of importance.
Military Equipment
SPECIFICATIONS
Available graduations Compass: 360, 6400, 400. Clinometer: 360/%
Resolution degrees / mils Compass: 1 / 17,8 Clinometer: 1 degree
Measuring scales on
base plate -
UTM position plotting
scales (Romer scales) -
Settling time from 90
degree angle within +/- 3 deg
Settling time from 90
degree angle to complete rest Compass 8 sec
Accuracy +/- 0,5 degree (9 mils)
Waterproof IP68 - (more than 100 m)
Altitude use 5000m@-15 C
Impact resistance 30g in XYZ directions and free fall
from 1,5 m height into gravel
Temperature operating range -40 to +60 C
Material Aluminium / acrylic
Size (mm) 160x53x16
Weight g 230
Art.No. 70700-0001
Compasses
SurveyMaster
