Silvercrest SBTF 10 C2 User manual

IAN 102629
Bluetooth®HANDS-FREE KIT SBTF 10 C2
Bluetooth®-
FREISPRECH-
EINRICHTUNG
Bedienungsanleitung
HANDFREE SADA S
FUNKCIOU Bluetooth®
Návod na obsluhu
Bluetooth®NAPRAVA
ZA PROSTOROČNO
TELEFONIRANJE
Navodila za uporabo
Bluetooth®
KIHANGOSÍTÓ
Használati utasítás
Bluetooth®HANDSFREE
Használati utasítás
Bluetooth®
HANDS-FREE KIT
Operating instructions
ZESTAW GŁOSNOMÓ-
WIACY Bluetooth®
Instrukcja obsługi

GB Operating instructions Page 1
PL Instrukcja obsługi Strona 19
HU Használati utasítás Oldal 37
SI Navodila za uporabo Stran 53
CZ Návod k obsluze Strana 71
SK Návod na obsluhu Strana 87
DE/AT/CH Bedienungsanleitung Seite 105
Before reading, unfold the page containing the illustrations and
familiarise yourself with all functions of the device.
Przed przeczytaniem proszę rozłożyć stronę z ilustracjami, a na-
stępnie proszę zapoznać się z wszystkimi funkcjami urządzenia.
Olvasás előtt kattintson az ábrát tartalmazó oldalra és végezetül
ismerje meg a készülék mindegyik funkcióját.
Pred branjem odprite stran s slikami in se nato seznanite z vsemi
funkcijami naprave.
Před čtením si otevřete stranu s obrázky a potom se seznamte se
všemi funkcemi přístroje.
Pred čítaním si odklopte stranu s obrázkami a potom sa oboznám-
te so všetkými funkciami prístroja.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus
und machen Sie sich anschließend mit allen Funktionen des
Gerätes vertraut.

1
SBTF 10 C2
GB
Content
Correct Usage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Introduction, trademark rights . . . . . . . . . . . . . . . . . . . . . 5
Package contents (see fold-out page). . . . . . . . . . . . . . . 5
Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Controls (see fold-out page) . . . . . . . . . . . . . . . . . . . . . . 6
Installing the hands-free appliance in a vehicle . . . . . . . 7
Switching the hands-free appliance on and off . . . . . . . 8
Coupling the hands-free appliance with a mobile
telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Coupling the hands-free appliance with several
mobile telephones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Separating the connection . . . . . . . . . . . . . . . . . . . . . . 10
Re-establishing the connection . . . . . . . . . . . . . . . . . . . 10
Using the hands-free appliance . . . . . . . . . . . . . . . . . . 11
Charging 5 V Devices. . . . . . . . . . . . . . . . . . . . . . . . . . 13
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Warranty & Service . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Importer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Declaration of EU Conformity. . . . . . . . . . . . . . . . . . . . 17
IB_102629_SBTF10C2_LB4.indb 1 22.05.14 13:20

GB
2SBTF 10 C2
Congratulations on the purchase of your new appliance.
You have clearly decided in favour of a quality product.
These operating instructions are a part of this product.
They contain important information in regard to safety, use
and disposal. Before using the product, familiarise your-
self with all of these operating and safety instructions. Use
the product only as described and only for the specified
areas of application. In addition, pass these documents
on, together with the product, to any future owner.
Correct Usage
The Bluetooth®Hands-Free Kit SBTF 10 C2 is designed
for use in vehicles with a voltage of 12-24 V. The device is
designed to create an open voice connection with a mobile
phone via a Bluetooth®connection, in order to allow
the user to make telephone calls while travelling by car,
without having to hold the mobile phone to his or her ear.
The handsfree phone system uses both Bluetooth®radio
technology aswell as a digital signal processor (DSP) to
carry out telephone functions. In addition, mobile devices
with an operating voltage of 5V (MP3 players, cell
phones, etc.) can be charged via the USB port*.
This device may be used ONLY for private domestic pur-
poses, not for industrial or commercial applications. This
product is not intended for use in activities concerned with
medicinal, lifesaving or life sustaining applications. All of
the additional connecting cables and external devices used
MUST match the safety-related, electromagnetic compata-
bility and shielding quality standards of the device at hand.
This appliance is not intended for any other use or for uses
beyond those mentioned. Claims of any kind for damage
resulting from unintended use will not be excepted. The
operator alone bears liability.
*USB®is a registered trademark of USB Implementers
Forum, Inc.
IB_102629_SBTF10C2_LB4.indb 2 22.05.14 13:20

3
SBTF 10 C2
GB
Safety instructions
Symbol definitions:
This symbol points out the particular risks associated
with handling, operation or manipulation.
This symbol stands for special tips and operating
instructions.
T r a ffi c safety has priority!
ƔComply with all local laws. When driving, your hands
must ALWAYS be free to operate the vehicle safely.
Traffic safety must ALWAYS take priority whilst driving.
ƔOnly manipulate the hands-free appliance on those
occasions in which the traffic situation permits it and in
which you will not endanger, injure, obstruct or cause
annoyance to other road users. Therefore you should
only operate the hands-free set in a stationary vehicle.
ƔDo not permit your concentration on the road traffic to
be compromised by the manipulation and displays of
the handsfree appliance!
ƔBecome familiar with the operation of it before driving
off and practice the safe operation of the facility!
ƔInstall the hands-free appliance in the vehicle such that
your view is not obstructed and that the appliance is
not located in an impact zone in the passenger com-
partment or in the inflation area of airbags. Read the
instruction manual of the vehicle manufacturer.
General safety instructions
ƔDo not attempt to open or repair the appliance. Should
you do so, appliance safety can no longer be assured
and the warranty becomes void.
ƔHave the defective device repaired by customer ser-
vice or an authorised specialist only. No liability will
be accepted for damage caused by misuse, improper
handling, use of force or unauthorized modification.
IB_102629_SBTF10C2_LB4.indb 3 22.05.14 13:20

GB
4SBTF 10 C2
ƔNever subject the device to moisture, extreme tempera-
tures (greater than +70°C) or extreme vibrations.
ƔThis device is not intended for use by persons (including
children) with restricted physical, sensory or mental abili-
ties or lack of experience and/or knowledge unless, of
course, they are supervised by a person responsible for
their safety or obtain from that person instructions on
how the device should be used.
Risk of suffocation
ƔThe packaging material is not a toy. Keep plastic sheeting,
bags and all other packaging material away from
children. There is a risk of suffocation.
ƔChildren should be supervised to ensure that they do
not play with the device.
Attention
ƔDisconnect the device from the cigarette lighter socket
immediately if you notice any unusual sounds or smoke.
Pairing with other mobile phones
ƔIf you wish to pair the device with another mobile
phone, read its operating instructions to obtain de-
tailed safety instructions relating to the mobile phone.
Only pair compatible products.
High frequency signals in vehicles
HF signals can, under circumstances, negatively influence the
function of not properly installed or not sufficiently shielded
electronic systems in vehicles, e.g. electronic ABS, electronic
tempo controllers and airbag systems. For further informa
tion about your vehicle or its possible ancillaries make
contact with the respective manufacturer or their repre-
sentative.
IB_102629_SBTF10C2_LB4.indb 4 22.05.14 13:20

5
SBTF 10 C2
GB
Introduction, trademark rights
Bluetooth®is a wireless communication system with
a short range. It makes possible wireless connections
between Bluetooth®appliances, such as for example
mobile telephones, PDA and PCs. Bluetooth®relates
itself to a worldwide standard for operation in the inter-
nationally recognised ISM Frequency Range (Industrial,
Scientific and Medical). Within the ISM Frequency Range
(2.402 - 2.480 GHz), a data transfer range of ca. 10 meters
(class II) is achieved. The disturbance susceptibility through
other users of the ISM Frequency Range, such as for
example microwaves, WLAN (802.116) or garage door
openers, is minimised by so-called “Frequency-Hopping“.
With Frequency-Hopping, a change of frequency levels
takes place at up to 1600 times per second, thereby
Bluetooth®is also reckoned to be relatively tap-proof.
The Bluetooth®logotype and logos are registered trade-
marks of Bluetooth SIG, Inc. All other names and brands
are the property of their owner.
The HSP (Headset-Profil) makes possible standard func-
tions such as voice transference, as well as the accept-
ance and rejection of calls.
The HFP (Handsfree-Profil) makes possible the hands-free
call functions of a mobile telephone, for example with the
help of voice commands.
Package contents (see fold-out page)
Bluetooth®Hands-Free Kit
Operating instructions
IB_102629_SBTF10C2_LB4.indb 5 22.05.14 13:20

GB
6SBTF 10 C2
Technical data
Operating voltage/
current consumption: 12-24 V / 1000 mA
Bluetooth®Specification: Version 3.0 + EDR,
up to a range of 10 meters
Supported Bluetooth®
profiles: HSP and HFP
Output voltage/
max. power via USB port: 5 V / 1 A
Fuse: F2AL / 250 V
Dimensions: approx. 16,2 x 5,5 x 2,3 cm
Weight: approx. 70 g
Operational temperature: +5° to +40°C
Storage temperature: 0° to +70°C
Humidity: 5 to 75%
(no condensation)
Controls (see fold-out page)
1Vehicle connector plug
2Microphone
3+/- Buttons
4USB port
5Loudspeakers
6Multi-function button
7LED status indicator
IB_102629_SBTF10C2_LB4.indb 6 22.05.14 13:20

7
SBTF 10 C2
GB
Installing the hands-free appliance
in a vehicle
So that the hands-free appliance can function correctly, it
is connected to the vehicle cigar lighter socket or on-board
power socket and provided with electricity from there.
ƔEnsure that the hands-free appliance engages completely
and that the operation of the vehicle is not negatively
influenced. The hands-free set must be easily accessible
and the speaking distance kept to a minimum. The LED
status indicator 7blinks twice every 3 seconds and a
short high signal tone sounds once. The appliance is in
standby mode.
Note:
It is possible that the cigar lighter only functions when the
vehicle ignition is switched on. In cases of doubt, consult
the operating instructions for the particular vehicle.
Caution:
For vehicles in which the cigar lighter, resp. the vehicle cir-
cuit plug, also functions when the ignition is switched off:
ƔUse the hands-free appliance only when the motor is
running. Otherwise, the vehicle batteries could become
discharged over an extended period of time.
Note:
When you are not using the hands-free equipment remove
it from the vehicles cigarette lighter socket. Store it in a dry,
dust free location protected from direct sunlight.
IB_102629_SBTF10C2_LB4.indb 7 22.05.14 13:20

GB
8SBTF 10 C2
Switching the hands-free
appliance on and off
Switching on: The appliance is switched off.
ƔPress and hold the multi-function button 6 for 3 seconds,
until a short and high signal tone is heard. The LED
status indicator 7blinks twice every 3 seconds.
Note:
The hands-free set switches on automatically as soon as it
is connected to a power supply.
Switching off: The appliance is in standby mode.
ƔPress and hold the multi-function button 6for 5 seconds,
until a long and deep signal tone is heard. The LED
status indicator 7extinguishes.
Coupling the hands-free appliance
with a mobile telephone
The hands-free appliance has been especially developed
for mobile telephones that support the Bluetooth®Profile
“Handsfree (HFP) and Headset (HSP)“. Further informa-
tion about Bluetooth®radio technology is to be found
in the operating instructions for your mobile telephone.
Before you can use the hands-free appliance, you must
connect it with a compatible mobile telephone (pairing).
ƔCheck to make sure the mobile telephone is switched on.
ƔProgramme the mobile telephone so that it searches
for Bluetooth®appliances. A detailed description of
how to do this is to be found in the operating instruc-
tions for your mobile telephone.
ƔEnsure that the hands-free appliance is correctly set up
and switched off.
ƔTo switch the device off, press and hold the multi-function
button 6for about 3 seconds. A long, low signal
tone will be heard and the LED status indicator 7
extinguishes.
IB_102629_SBTF10C2_LB4.indb 8 22.05.14 13:20

9
SBTF 10 C2
GB
ƔPosition the hands-free appliance and the mobile tele-
phone so that they are not more than 1 metre away
from each other.
ƔPress and hold down the multi-function button 6for 6
seconds until, after 3 seconds a short, high signal tone
and after a further 3 seconds a succession of low and
high signal tones are heard. The LED status indicator
7lights up constantly and the hands-free equipment is
now in the coupling mode.
ƔSelect the hands-free provision “Car Kit“ from the list of
available appliances for the mobile telephone.
ƔEnter in the pre-programmed passcode “9999“ and
then confirm it, which couples the appliances with each
other. You will hear a long high signal tone and the
LED status indicator 7blinks every 3 seconds.
ƔYou can now use the hands-free appliance.
Note:
When using the latest mobile phones, (Smartphones) those
that are equipped with Bluetooth®2.0 or a more mod-
ern version, it is possible that the pass code “9999“ need
not be entered. If the coupling is not completed within 2
minutes, the hands-free appliance switches itself off. The
LED status indicator 7extinguishes and you will hear a
long and deep signal tone. With some mobile telephones
it is possible that coupling does not automatically take
place. In this case coupling must be carried out addition-
ally on the mobile telephone. The LED status indicator 7
blinks twice every 3 seconds until this has been carried
out. Further information can be found in your mobile
telephone’s operating instructions.
IB_102629_SBTF10C2_LB4.indb 9 22.05.14 13:20

GB
10 SBTF 10 C2
Coupling the hands-free appliance
with several mobile telephones
You can couple the hands-free appliance with up to
eight mobile telephones. If a further mobile telephone is
coupled with the hands-free appliance, the coupling in-
formation of the first coupled mobile telephone is erased.
However, it can only be connected with one mobile
telephone. When the hands-free appliance is switched
on, within a few seconds it attempts to make a connection
to the last used mobile phone. You will hear a double
beep once the devices have been successfully paired.
Should a connection not be possible, the hands-free appli-
ance nonetheless remains recognisable for other mobile
telephones. To use the hands-free appliance with a linked
mobile phone that is not the last used mobile phone, the
connection must be made manual via the Bluetooth®
menu of the mobile phone.
Separating the connection
If you wish separate the mobile telephone from the hands-
free appliance, for example, to connect it to another
Bluetooth®appliance:
ƔSwitch the hands-free appliance off
or
Ɣseparate the connection over the Bluetooth®menu
in the mobile telephone.
You need not erase the coupling with the hands-free appli-
ance in the Bluetooth®menu to separate the connection.
Re-establishing the connection
If you want to reconnect the hands-free appliance with the
last used mobile phone:
ƔCheck to see that Bluetooth®is activated in the mobile
telephone, then switch the hands-free appliance on.
IB_102629_SBTF10C2_LB4.indb 10 22.05.14 13:20

11
SBTF 10 C2
GB
When connecting to a previously coupled mobile telephone
it is not necessary to enter a pass-code. You can set your
mobile telephone so that when the hands-free equipment
is switched on a connection with the mobile telephone is
automatically established. As soon as the hands-free set
has connected to the mobile phone that it is paired with,
you will hear two high beeps to confirm the connection.
Further information regarding automatic coupling can be
found in your mobile telephone’s operating instructions.
Using the hands-free appliance
After successful coupling, the following functions are
available to you. Some of the described functions are
only possible with a mobile telephone that supports the
Handsfree Profile (HFP).
Note:
The sound quality of the hands-free set is heavily depend-
ent on where it is installed. Where possible, set up your
hands-free set so that the microphone 2is pointing in
your direction.
Call function
ƔUse your mobile telephone in the usual way to make a call.
ƔFor redialing of the last number called, shortly press
the multi-function button 6twice.
ƔFor activation of voice dialling, shortly press the multi-
function button 6once.
Note:
Voice dialing is only available with mobile telephones that
support this function. Further information regarding voice
dialing is to be found in the operating instructions for your
mobile telephone.
IB_102629_SBTF10C2_LB4.indb 11 22.05.14 13:20

GB
12 SBTF 10 C2
Accepting and ending a call
When you receive a call the LED status indicator 7blinks
and you hear a call tone from the hands-free appliance.
If the call signal in your mobile phone is switched off, the
ringing tone is nonetheless sounded via the hands-free
appliance.
ƔPress the multi-function button 6shortly once,
to accept the call.
ƔPress the multi-function button 6shortly once,
to terminate the accepted call.
You can also accept and terminate the call over the
mobile telephone.
Automatic call acceptance
If automatic call acceptance is activated in the mobile tel-
ephone, it accepts the incoming call after a determined time
period and then passes it on to the hands-free appliance. Fur-
ther information regarding automatic call acceptance is to be
found in the operating instructions for your mobile telephone.
Rejecting a call
ƔPress the multi-function button 6for 3 seconds to
reject an incoming telephone call.
Adjusting the volume of the hands-free appliance
You can adjust the sound volume level of the hands free
device with the +/- buttons 3.
ƔDuring a call, repeatedly press the + resp. - buttons 3
until the desired sound volume level is obtained.
A high-pitched beep signals that you have reached
maximum volume; a low-pitched beep signals that you
have reached minimum volume.
IB_102629_SBTF10C2_LB4.indb 12 22.05.14 13:20

13
SBTF 10 C2
GB
Charging 5 V Devices
ƔCheck the max. input voltage (5V) and the max. power
input (1000 mA) of the device which you want to charge.
For this, consult the operating manual of the device.
ƔConnect the device to be charged with the USB port 4
on the hands free device. The device now receives its
power supply from the hands free device. If the device
is equipped with a charging indicator light, this will in-
dicate that the device is being charged.
Note:
If the power supply does not activate automatically, you
should disconnect the USB cable from the USB port 4
and re-connect it.
Troubleshooting
If you cannot connect the hands-free appliance with a
compatible mobile telephone, proceed as follows:
ƔEnsure that the Bluetooth®function in the mobile
telephone is activated.
ƔIs the display flashing? Ensure that the hands-free ap-
pliance is correctly installed, switched on and supplied
with electricity.
ƔIf you use several Bluetooth®appliances, ensure that
a previously created Bluetooth®connection of the
mobile telephone is separated. This may indicate that
a previously paired device is in range.
ƔEnsure that the hands-free appliance is distanced a ma-
ximum of 10 metres from the mobile telephone and that
there are no barriers or electronic devices between them.
IB_102629_SBTF10C2_LB4.indb 13 22.05.14 13:20

GB
14 SBTF 10 C2

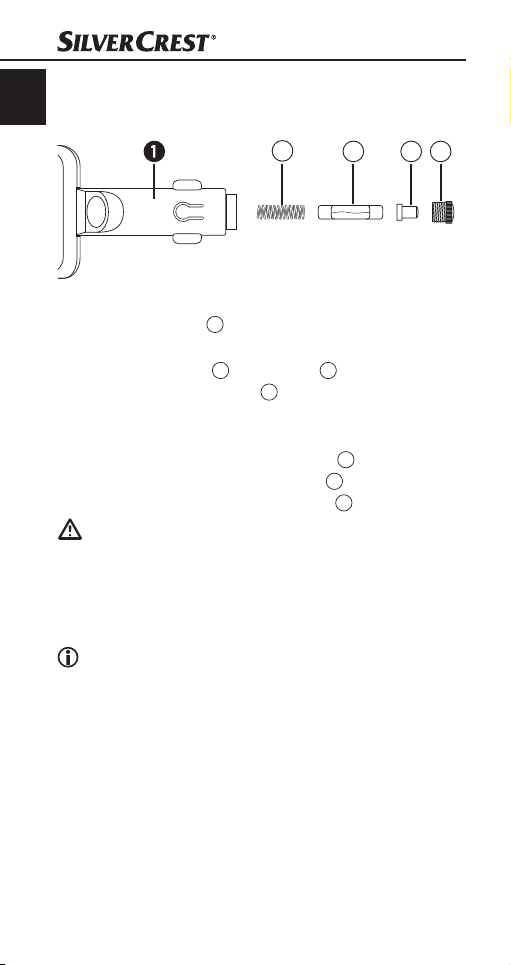

Replacing the fuse
The hands-free set is equipped with a fuse. If the device
no longer works, check the fuse and replace if necessary.
ƔOpen the vehicle connector plug 1by turning the
fluted screw insert A gently anticlockwise – with pliers
if necessary – and remove it.
ƔRemove the plug tip B from the fuse C and pull the fuse
out. Ensure that the spring D in the vehicle connector
plug 1does not accidentally jump out and become lost.
ƔPlace a new fuse of type F2AL/250V into the vehicle
connector plug 1, place the plug tip B onto the end
of the fuse that is slightly protruding C and screw the
screw insert that you removed earlier A back in.
Risk of fire!
ƔReplace the fuse only with another of the same rating
as that given on the ratings plate. Fuses with a different
rating may cause fire. Smoke resulting from such a fire
is poisonous.
Note:
If these measures do not correct the problem, please con-
tact the appropriate service partner for your country.
D C B A
IB_102629_SBTF10C2_LB4.indb 14 22.05.14 13:20

15
SBTF 10 C2
GB
Cleaning and Care
Danger of electrocution!
ƔBefore cleaning, always separate the electricity supply
from the appliance!
ƔNEVER submerse the appliance in water or other liquids!
ƔDo not permit liquids to permeate into the housing!
ƔNever open the housing of the appliance! There are
no user-serviceable elements inside.
ƔDo not use strong detergents, solvents or abrasive
cleaning agents to clean the appliance. These could
damage the housing surfaces.
ƔClean the housing surfaces with a slightly moist soft cloth.
Storage
Caution!
The temperatures inside the vehicle can reach extreme values
in summer and winter. Consequently, to avoid damage to
the device, you should not store it in the vehicle.
ƔStore the device somewhere clean, dry, free of dust
and out of direct sunlight.
Disposal
Do not dispose of the appliance in your
normal domestic waste. This product is
subject to the European guideline
2012/19/EU.
Dispose of the appliance through an approved disposal
centre or at your community waste facility. Observe the
currently applicable regulations. In case of doubt, please
contact your waste disposal centre.
Dispose of all packaging materials in an
environmentally responsible manner.
IB_102629_SBTF10C2_LB4.indb 15 22.05.14 13:20

GB
16 SBTF 10 C2
Warranty & Service
The warranty for this appliance is for 3 years from the
date of purchase. The appliance has been manufactured
with care and meticulously examined before delivery.
Please retain your receipt as proof of purchase. In the
event of a warranty claim, please make contact by
telephone with our Service Department. Only in this way
can a post-free despatch for your goods be assured.
The warranty covers only claims for material and
manufacturing defects, but not for transport damage, for
wearing parts or for damage to fragile components, e.g.
buttons or batteries. This product is for private use only
and is not intended for commercial use.
The warranty is void in the case of abusive and improper
handling, use of force and internal tampering not carried
out by our authorized service branch. Your statutory rights
are not restricted in any way by this warranty.
The warranty period will not be extended by repairs
made under warranty. This applies also to replaced and
repaired parts. Any damage and defects extant on pur-
chase must be reported immediately after unpacking the
appliance, at the latest, two days after the purchase date.
Repairs made after the expiration of the warranty period
are subject to payment.
Service Great Britain
Tel.: [phone] (£ 0.10/Min.)
E-Mail: [email protected]
IAN 102629
Hotline availability:
Monday to Friday 08:00 - 20:00 (CET)
Importer
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
IB_102629_SBTF10C2_LB4.indb 16 22.05.14 13:20

17
SBTF 10 C2
GB
Declaration of EU Conformity
We, Kompernaß Handels GmbH, Burgstraße 21, 44867
Bochum, Germany, hereby declare that the product
SBTF 10 C2 Bluetooth®hands-free Kit complies with the
essential requirements and other relevant provisions of the
Motor Vehicle Directive 2004/104/EC, the R&TTE Directive
1999/5/EC, the Low Voltage Directive 2006/95/EC and
the RoHS Directive 2011/65/EU.
ID number: IAN 102629
Related harmonised standards:
EN 60950-1:2006 + A11:2009 + A1: 2010 + A12: 2011
ETSI EN 300 328 V1.7.1
ETSI EN 301 489-1 V1.9.2
ETSI EN 301 489-17 V2.2.1
EN 62479: 2010
EN 50581: 2012
ISO 7637-2:2004 + A1: 2008
Bochum, 17.04.2014
Semi Uguzlu
Quality Manager
IB_102629_SBTF10C2_LB4.indb 17 22.05.14 13:20
