Silvercrest KH 2217 User manual

KH 2217
KOMPERNASS GMBH · BURGSTRASSE 21 ·
D-44867 BOCHUM
www.kompernass.com
ID-Nr.: KH2217-08/08-V1
PLL CLOCK RADIO
6
PLL CLOCK RADIO
Operating instructions
CV_KH2217_AR23896_LB6 25.09.2008 15:32 Uhr Seite 1

KH 2217

















2!
2@
2$
2%
2^ 2& 2*
3!
2#

3) 2(
3% 3$
3@ 3#
3^
3&
3(
3*
4)
4!
4@
KH 2217
CV_KH2217_AR23896_LB6 25.09.2008 15:32 Uhr Seite 5

- 3 -
CONTENT PAGE
Safety instructions 4
Intended use 8
Items supplied 8
Appliance overview 9
Technical data 11
Preparing for use 12
Providing electrical power 12
Using the clock 13
Using the radio 19
Cleaning the appliance 23
Disposal 24
Warranty and Service 25
Importer 26
Read the operating instructions carefully before using the appliance for
the first time and preserve this booklet for later reference. Pass this
manual on to whoever might acquire the appliance at a later date.
IB_KH2217_AR23896_LB6 24.09.2008 15:33 Uhr Seite 3

- 4 -
PLL CLOCK RADIO KH 2217
Safety instructions 
• This device has not been designed for use by people (including
children) with restricted physical, sensory or intellectual abilities or
lack of experience and/or knowledge, unless they are supervised
by a responsible person (for their own safety) or have received
instructions on how to use the device.
• Children should be supervised to ensure that they do not play with
the device.
• In order to avoid the device being switched on unintentionally,
remove the adapter from the mains socket after each use and before
cleaning.
• Check the device and all parts for visible damage. The device’s
safety concept can only work if the device is in perfect condition.
• The mains adapter must always be freely accessible so that the device
can be separated from the power supply quickly in an emergency.
Risk of electric shock!
• Only connect the device to a properly installed and earthed
mains socket. The mains voltage must agree with that stated on the
device’s specification plate.
• Damaged adapters or mains cables should be exchanged
immediately by an authorised technician or the Customer Service
in order to avoid risks.
IB_KH2217_AR23896_LB6 24.09.2008 15:33 Uhr Seite 4

- 5 -
• Connection cables or devices that do not work perfectly or have
been damaged should be repaired or exchanged immediately by
Customer Services.
Never immerse the device in water!
Simply wipe it with a slightly damp cloth.
• Do not expose the device to rain or use it in a damp or wet
environment.
• Ensure that the connection cable is never wet or damp when in use.
• You must not open or repair the device’s housing. This can be
dangerous and renders the warranty null and void.
• Protect the device from moisture and sprayed water. Therefore do not
place any objects filled with water (e. g. vases) on or near the device.
 Electro-magnetic fields
This appliance complies with the legal limits for electric smog, even
within the casing!
However, if you still have doubts about installing it in the bedroom:
• Place the appliance about half a meter from the bed.
At this distance the electro-magnetic fields are no longer effective even
for electro-sensitive people itself.
Risk of fire!
• Do not use the device near hot surfaces.
• Do not set the device up where it is exposed to direct sunlight. This
could cause it to overheat and damage it beyond repair.
• Never leave the device unattended during operation.
• Never cover the device’s ventilation slots when it is switched on.
• Do not place open flames, such as candles, on or near the device.
IB_KH2217_AR23896_LB6 24.09.2008 15:33 Uhr Seite 5

- 6 -
 Note:
This appliance is equipped with non-slip rubber feet. Furniture upper
surfaces comprise of various materials and are cleaned with various types
of polishes and/or cleaning agents. Thus it cannot be completely
excluded that some of these substances contain components that could
attack the rubber pads and soften them. If necessary, place an anti-slip
mat under the rubber pads of the appliance.
 Note:
In certain countries there could be exceptional regulations for the
allocated radio frequency ranges.
Take note that you may not exploit possibly received radio services, pass
them on to third parties or im-properly misuse them.
Risk of injury!
• Keep children away from the connection cable and device. Children
frequently underestimate the danger of electrical devices.
• If the device has fallen down or is damaged it must no longer be
used. Have the device checked by a qualified specialist and, if
necessary, repaired.
• Batteries must not be handled by children. Children can put batteries
in their mouths and swallow them.
If a battery has been swallowed, obtain medical assistance
immediately.
IB_KH2217_AR23896_LB6 24.09.2008 15:33 Uhr Seite 6

- 7 -
Thunder storms!
Devices connected to mains power can be damaged during a thunder
storm. If there is a thunder storm, always remove the mains plug from the
socket.
Information on voltage surges (EFT/electrical fast
transient) and electrostatic discharges:
If the product does not work properly due to electrical fast transient
processes (voltage surges) or electrostatic discharge, it must be reset to
restore normal operation. If necessary, remove the plug from the power
socket and insert it again. The batteries (if used) must be removed and
reinserted.
Notes on handling batteries
The device uses batteries. Please note the following on handling
batteries:
Risk of explosion!
Do not throw batteries into a fire. Do not recharge batteries.
• Never open, solder or weld batteries. There is a risk of explosion
and injury!
• Check batteries regularly. Leaking batteries can damage the device.
• If the appliance is not going to be used for long periods, remove the
batteries.
• If batteries leak, put on protective gloves.
• Clean the battery compartment and contacts with a dry cloth.
IB_KH2217_AR23896_LB6 24.09.2008 15:33 Uhr Seite 7

- 8 -
Caution!
No liability/warranty applies to damage to the device caused by
moisture due to water penetrating the device or overheating!
Intended use
The equipment is intended for use as an alarm clock using a signal tone
or a radio signal, and for receiv-ing radio transmissions. All other usages
of or modifications to the appliance are deemed to be improper use and
may result in serious injury.
The manufacturer accepts no liability for damages that result from an im-
proper use of the appliance or that are caused by an incorrect operation
of it. The appliance is not intended for commercial use.
Items supplied
After unpacking, immedi-ately check to determine that all listed items are
present and that there are no visible damages.
1 Projection Clock
1 Power adapter
1 Operating instructions
Batteries are not supplied.
IB_KH2217_AR23896_LB6 24.09.2008 15:33 Uhr Seite 8

- 9 -

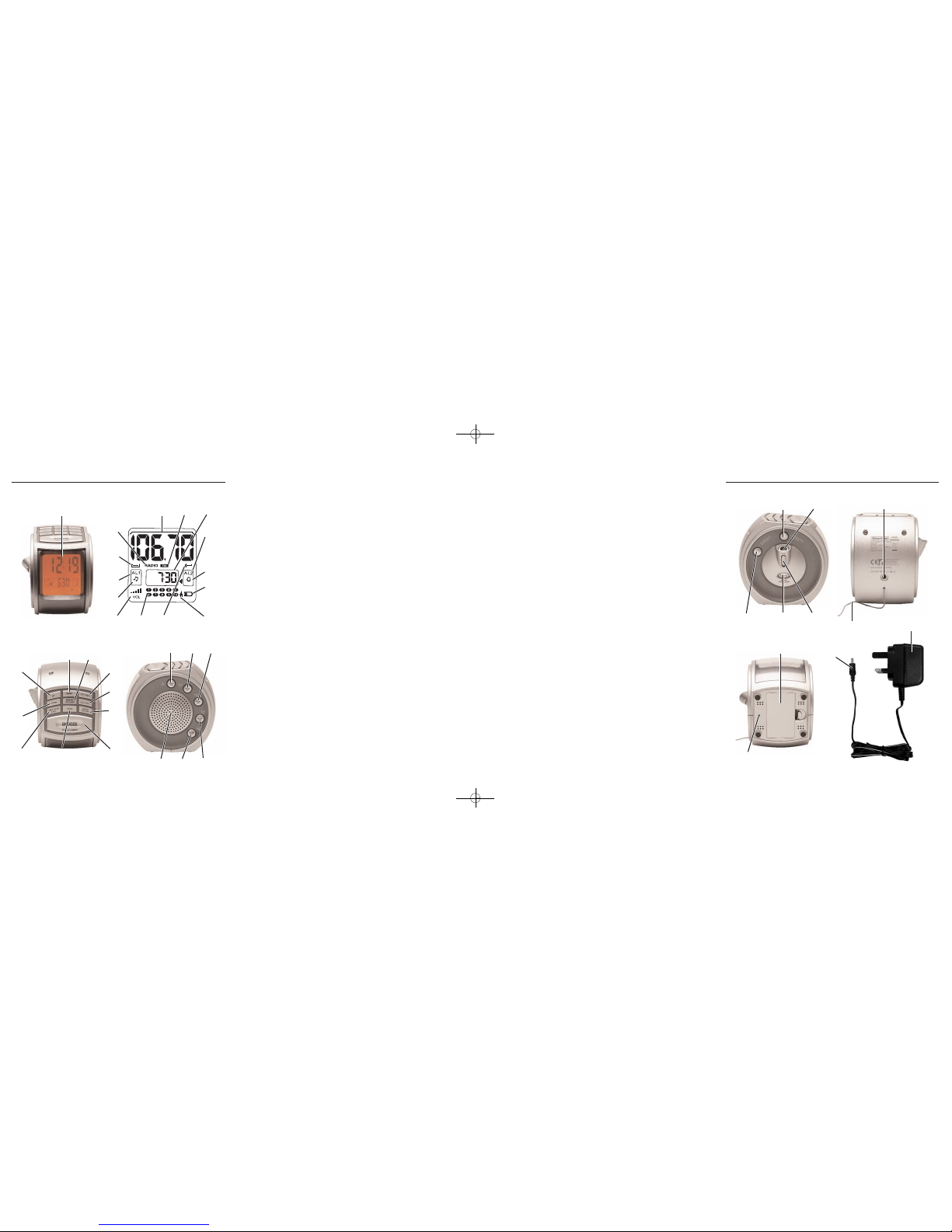

Appliance overview
Display
Frequency display/Time
Frequency band display FM/AM
Alarm time display
Alarm time 2 (AL2)
Signal tone alarm call
Info display for change of batteries
Operation with power adapter
Buttons locked
Number of the selected save position
Volume display VOL
Radio alarm call
Alarm time 1 (AL1)
Sleep Timer switched on
Display in radio operation
Button for sleep function (SLEEP)
Button for saving radio station / Button lock (MEMORY KEY LOCK)
Button for alarm time 1 / Increase volume (AL1/VOL+)
Button for alarm time 2 / Decrease volume (AL2/VOL–)
Button for RADIO ON/OFF
2! Snooze button/Display illumination (SNOOZE/ DISPLAY DIMMER)
2@ Button for changing frequency band (BAND AM/FM)
2# Button to seek saved radio station/Automatically save radio station
(MEM SCAN/A.M.S.)
IB_KH2217_AR23896_LB6 24.09.2008 15:33 Uhr Seite 9

- 10 -
2$ Button for radio station search downwards (DOWN)
2% Button for radio station search upwards (UP)
2^ Button for save position 1/6, set alarm time 1 (MEM. 1/6, AL.1 SET)
2& Button for save position 2/7, set alarm time 2 (MEM. 2/7, AL.2 SET)
2* Button for save position 3/8, adjust minutes (MEM. 3/8, MIN.+ SET)
2( Button for save position 4/9, adjust time (MEM. 4/9, TIME SET)
3) Button for save position 5/10, adjust hours
(MEM. 5/10, HOUR+ SET)
3! Loudspeakers
3@ Button for projection of the time On/Off (PROJECTION ON/OFF)
3# Rotatable projection lens
3$ Focusing slider (FOCUS)
3% Adjustment wheel to turn the time projection (ROTATE PROJECTION)
3^ Button to turn the time projection through 180°
(PROJECTION REVERSE)
3& Power adapter connection DC 7,5 V
3* Wire aerial
3( Battery compartment cover
4) Reset button
4! Power adapter with plug and cable
4@ Connector plug
IB_KH2217_AR23896_LB6 24.09.2008 15:33 Uhr Seite 10

- 11 -
Technical data
This device has been tested and approved for adherence to the basic
requirements and the other relevant regulations of the EMC Directive
2004/108/EC and the Directive on Low Voltage Devices
2006/95/EC.
Power consumption: 4,5 W
Battery operation:
4 x 1,5 V Type Mignon/AA/LR6 (not supplied) for radio operation,
display illumination and projection
Mains operation:
DC 7,5 V 400 mA
Frequency range:
FM (USW) : 87,5–108,5 MHz
AM (MW) : 522–1656 kHz
Power adapter:
Input: 230 V ~50 Hz
30 mA
Output: DC 7,5 V
400 mA, 3 VA
IB_KH2217_AR23896_LB6 24.09.2008 15:33 Uhr Seite 11

- 12 -
Preparing for use
• Remove the projection clock from the packaging.
• Place the projection clock on a level surface.
• Position the projection clock such that the projection lens is directed
onto an empty surface.
The room must be darkened for the time display to be clearly visible on a
wall or ceiling.
Providing electrical power
 Important:
Ensure that you have the correct polarities with the batteries and the
power adapter. False polarity will damage the appliance.
The appliance can be operated as follows:
• only with batteries,
• only with the power adapter.
Inserting the batteries
You require four 1,5 V batteries of the type Mignon/AA/LR6.
1. Open the cover of the battery compartment on the underside.
2. Insert the four batteries, ensuring their position-ings comply with the
polarity markings given in the battery compartment.
Make sure that the black textile strip is positioned under the batteries,
this will make a battery exchange easier.
IB_KH2217_AR23896_LB6 24.09.2008 15:33 Uhr Seite 12

- 13 -
3. Close the lid, until it engages.
• Exchange all four batteries when the information indicator for a
battery renewal is displayed.
• Check the state and charge condition of the inserted batteries at least
once a year.
 Note:
The saved radio stations will be erased if the appliance is without an
electricity supply for longer than ca. 4 minutes. Provide electricity
either by means of the power adapter or make sure you complete the
exchange of batteries within 4 minutes. Should the appliance not function
as expected after a power failure, the reset procedure must be carried
out (see "Troubleshooting").
Connecting the power adapter
Use only the power adapter supplied with the appliance.
1. Insert the connector plug of the power adapter into the power
adapter connection on the back of the appliance.
2. Insert the plug of the power adapter into a power socket with
230 V ~50 Hz.
On the display the symbol for mains power operation is indicated.
Using the clock
 Note:
To be able to adjust the time, the clock radio must be switched off.
IB_KH2217_AR23896_LB6 24.09.2008 15:33 Uhr Seite 13

- 14 -
Setting the time
1. Press the button TIME SET.
The time on the display blinks.
 Note:
Complete the adjustments within 10 seconds. After ca. 10 seconds the
appliance returns to its start setting. The adjustments completed to this
point will be taken over.
The button HOUR+ SET can be pressed numerous times in succession or held
down firmly.
2. Press the button HOUR+ SET to set the hours.
3. As soon as the desired hour indication is shown in the display release
the button. The button MIN+ SET can be pressed numerous times in
succession or held down firmly.
4. Press the button MIN+ SET to set the minutes.
5. As soon as the desired minute indication is shown in the display,
release the button.
6. Press the button TIME SET or wait a few seconds. The programmed time
will be taken over.
Selecting the 12 hour or the 24 hour modus
Press and hold the button BAND for about 2 seconds.
In the display “24Hr” blinks to indicate the 24-hour mode.
Within 10 seconds repeatedly press the button MIN+ SET to switch
between the 12-hour mode (“12Hr” blinks) and the 24-hour mode.
Press the button BAND or wait a few seconds.
The selected mode is taken over. In the 12-hour mode the indicator PM
appears under the time display for the hours of the afternoon/evening.
IB_KH2217_AR23896_LB6 24.09.2008 15:33 Uhr Seite 14

- 15 -
Setting the alarm time
You can programme in two different alarm times, AL1 and AL2.
Alarm times can only be programmed with the radio switched off.
1. Press the button AL1 SET.
The alarm time AL1 blinks.
The button HOUR+ SET can be pressed numerous times in succession or
held down firmly.
2. Press the button HOUR+ SET to set the hours.
3. As soon as the desired hour indication is shown in the display for
alarm time AL1, release the button. The button MIN+ SET can be pressed
numerous times in succession or held down firmly.
4. Press the button MIN+ SET, to set the minutes.
5. As soon as the desired minute indication is shown in the display for
alarm time AL1, release the button.
6. Press the button AL1 SET or wait a few seconds.
The programmed alarm time will be taken over.
7. To programme in the second alarm time, repeat the steps 1 to 6.
8. However, instead of pressing button AL1 SET, press the button AL2 SET.
Switching the alarm function on
 Note:
If you wish to be woken by the radio, programme in both the desired
sound volume and the radio station for the alarm call in advance
(see chapter "Adjusting the volume").
IB_KH2217_AR23896_LB6 24.09.2008 15:33 Uhr Seite 15

- 16 -
With each push on the buttons AL1/VOL+ or AL2/VOL– you switch through
the available alarm options.
1. To switch on the alarm call with signal tone, repeatedly press the
button AL1/VOL+ until the bell symbol appears in the field AL1 on the
display. The alarm time is shown on the display.
The signal tone becomes louder the longer it sounds.
2. To switch on the alarm call with radio,repeatedly press the button
AL1/ VOL+, until the radio symbol appears in the field AL1.
The alarm time is shown on the display.
3. To switch off the alarm function, repeatedly press the button AL1/VOL+
until a symbol no longer appears in the field AL1.
The alarm time is nonetheless shown in the display, but the signal tone
or radio does not sound at the programmed time.
 Note:
The alarm function is only active when the bell symbol or the radio symbol
in the fields AL1 or AL2 are visible. The action steps described are also
valid for the button AL2/VOL–.
To switch off the alarm function to the following day
To switch off the alarm sound press one of the following buttons:
• Button AL1/VOL+,
• Button AL2/VOL–,
• Button RADIO ON/OFF,
• Button SLEEP.
The switching off of the alarm sounds is confirmed by a signal tone,
except with the button RADIO ON/OFF.
IB_KH2217_AR23896_LB6 24.09.2008 15:33 Uhr Seite 16

- 17 -
Snooze function
With the button SNOOZE/ DISPLAY DIMMER you can interrupt the alarm
function for a period of between 1 and 30 minutes, this period being
programmed by yourself (see next section). The factory setting is
9 minutes.
On the expiration of this period the alarm tone or radio sounds again
(Automatic after-call). The function can be repeated up to six times. After
that, the alarm first sounds on the following day.
The automatic after-call allows itself to be individually adjusted to
between 1 and 30 minutes. The radio is switched off and the automatic
after-call is not active.
1. Press and hold the button SNOOZE/DISPLAY DIMMER until SNO and the
minute indication appears on the display.
2. Press the button MIN+ SET to programme the minutes.
3. As soon as the desired after-call period is displayed, release the
button.
4. Press the button SNOOZE/DISPLAY DIMMER.
The programmed after-call period is taken over.
 Note:
Should a second alarm time be pending during an activated snooze
function, the second alarm time will eventually switch itself on and, if need
be, the snooze function must once again be reactivated.
Adjusting the display brightness
Mains power operation:
1. Press the button SNOOZE/DISPLAY DIMMER at intervals of 2 seconds.
The display brightness changes itself as follows:
Bright>Medium>Dark>Bright
IB_KH2217_AR23896_LB6 24.09.2008 15:33 Uhr Seite 17

- 18 -
Battery operation:
To save energy, the display illumination is deactivated in battery
operation.
1. Press the button SNOOZE/DISPLAY DIMMER.
The display is illuminated for ca. five seconds.
Projection of the time
For the time display to be well visible on a wall or ceiling, the room must
be darkened.
 Important:
The time display projection is created with an LED.
NEVER look directly at the lightbeam. NEVER direct the lightbeam at
other people or animals.
Mains power operation:
1. Press the button PROJECTION ON/OFF.
The projection lens glows permanently.
2. Swivel the projection lens in the desired direction.
The time is projected onto the selected position. The projection
distance ranges from ca. 0,4 m to 4,0 m
3. Adjust the sharpness of the projection with the slider FOCUS.
You can turn the projection of the time through ca. 90° with infinite
variability.
4. Turn the adjustment wheel ROTATE PROJECTION.
You can turn or mirror the projection of the time through 180°.
5. Press the button PROJECTION REVERSE.
6. To switch the projection off, press the button PROJECTION ON/OFF once
again. The projection lens extinguishes.
IB_KH2217_AR23896_LB6 24.09.2008 15:33 Uhr Seite 18

- 19 -
Battery operation:
1. Press the button PROJECTION ON/OFF.
The projection lens glows for ca. five seconds.
Using the radio
Switching On and Off
1. Press the button RADIO ON/OFF to switch the radio on.
2. Press the button RADIO ON/OFF again to switch the radio off.
Adjusting the volume
If you wish to adjust the volume in one sweep, hold the appropriate
button down continuously. If you wish to adjust the volume in stages,
repeatedly press the appropriate button in succession.
1. To raise the volume, press the button AL1/ VOL+.
2. To reduce the volume, press the button AL2/ VOL–.
Selecting a waveband
1. To select a waveband (FM/AM), press the button BAND.
You can improve the reception of radio stations in the VHF (FM)
frequency range.
2. Move the wire aerial slowly in various directions. When optimal
reception is finally made, secure the wire aerial in this position.
For the reception of medium wave (AM) radio stations an aerial is
integrated into the appliance.
3. To improve AM reception, change the position of the appliance when
the radio is on.
IB_KH2217_AR23896_LB6 24.09.2008 15:33 Uhr Seite 19

- 20 -
Station search
1. Press briefly either the button UP or DOWN.
The search starts and stops automatically when a radio station with
sufficient reception strength is found.
2. To continue the search, press the button UP or DOWN and keep it held
down for a short period.
3. To discontinue the search, press the button UP or DOWN and keep it
held down for a short period.
To make fine adjustments in the event of difficult reception conditions,
proceed as follows:
1. Press the button UP for a short period.
The reception frequency is raised.
2. Press the button DOWN for a short period.
The reception frequency is lowered.
Saving radio stations
When you have found a radio station that you would like to save:
1. Press the button MEMORY KEY LOCK.
A signal tone sounds and the display of the saving positions blinks.
 Note:
Complete the following steps within 15 seconds. Otherwise, the
appliance automatically saves the radio station to the displayed save
position. When the radio station is saved, two signal tones sound.
2. Press one of the five buttons MEM., to determine which saving position
from 1...10 is to be used.
IB_KH2217_AR23896_LB6 24.09.2008 15:33 Uhr Seite 20
