Silvercrest SBLL 4.2 A1 Product information sheet

V 1.3
English......................................................... 2
Dansk........................................................ 22
Deutsch...................................................... 42

SilverCrest SBLL 4.2 A1
2 - English
Contents
Trademark .................................................. 3
Intended use................................................ 4
Package contents ........................................ 5
Technical data.............................................. 6
Safety instructions ....................................... 7
Copyright .................................................. 11
Overview .................................................. 11
Initial use................................................... 12
Charging the battery .................................................12
Bluetooth®mode........................................................13
Radio mode................................................................15
LINE IN mode ............................................................17
Troubleshooting ........................................ 18
Storing the device when not in use ............ 19
Environmental and waste disposal
information ............................................... 19
Marks of conformity.................................. 20
Notes on guarantee and service................ 20

SilverCrest SBLL 4.2 A1
English - 3
Congratulations!
By purchasing the SilverCrest SBLL 4.2 A1 Bluetooth®
speaker, hereinafter referred to as speaker, you have
opted for a high quality product.
Familiarise yourself with the speaker before using it for
the first time and read these operating instructions
carefully. Observe the safety instructions and only use
the speaker in the manner described in these operating
instructions and for the indicated fields of application.
Keep these operating instructions in a safe place. Hand
over all documents in the event that you pass on the
speaker to a third party.
Trademark
The Bluetooth®word mark and logos are registered
trademarks of Bluetooth SIG, Inc. (Special Interest
Group). Any use of these marks by TARGA GmbH is
under license. The SilverCrest trademark and SilverCrest
store brands are the property of their respective
owners.
USB is a registered trademark.
Other names and products may be trademarks or
registered trademarks of their respective owners.

SilverCrest SBLL 4.2 A1
4 - English
Intended use
This device is a consumer electronics device, intended
for playing music. The audio material can be delivered
via Bluetooth®or a 3.5 mm jack cable (LINE IN). Using
the device as a radio is supported as well. It may only
be used for private purposes and is not for industrial or
commercial use. The device should also not be used in
tropical climates. The manufacturer will not be liable for
any damage or faults arising as a result of unauthorised
modification of the device. Please observe the national
regulations and/or laws in the respective country of
use.

SilverCrest SBLL 4.2 A1
English - 5

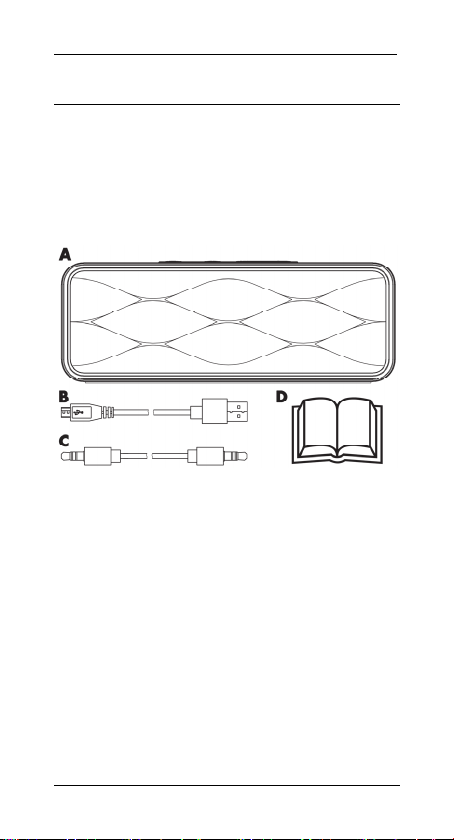

Package contents
Unpack the loudspeaker and all of the accessories.
Remove all packaging materials and check all parts for
completeness and signs of damage. If any parts are
missing or damaged, please contact the manufacturer.
A SilverCrest SBLL 4.2 A1 Bluetooth® speaker
B USB charging cable
C Audio cable (3.5 mm jack)
D Operating instructions
E Quick Start Guide (without figures)

SilverCrest SBLL 4.2 A1
6 - English
Technical data
Dimensions
(W x H x D)
approx. 180 x 65 x 57 mm
Weight approx. 570 g
Operating voltage
(USB connection)
5 V
Current
consumption
max. 1 A
Ports Micro USB
LINE IN
Transmitting
capacity
max. 10 dBm
Bluetooth
®
V4.2, approx. 2.402 to
2.480 GHz
Frequency band FM 87.5 – 108 MHz
Supported profiles A2DP, AVRCP
Battery 3.7 V/1,200 mAh
Battery capacity 1,200 mAh
Charging time approx. 3.5 hours
Playing time approx. 10 hours (at
medium volume)
Rated output 2 x 2 W RMS
Storage
temperature
-10°C to +45°C
Operating
temperature
0°C to +35°C
Atmospheric
humidity
(relative humidity)
Max. 85%
The specifications and design are subject to change
without notice.

SilverCrest SBLL 4.2 A1
English - 7
Safety instructions
Before using the speaker for the first time, please read
the following instructions carefully and observe all
warnings, even if you are familiar with using electronic
devices. Keep this manual in a safe place for future
reference. If you give the speaker away or sell it, please
ensure that you also pass on this manual. It is part of
the product.
Explanation of the hazard symbols used in
this manual
DANGER! This icon, in conjunction with
the word ‘Danger’, indicates an impending
dangerous situation which, if not
prevented, may lead to serious injuries or
even death.
WARNING! This icon, in conjunction with
the word ‘Warning’, indicates important
information for the safe operation of the
device and user safety.
You can find this icon on the housing of the
speaker. The icon refers to important
contents of the operating instructions that
need to be observed.
This icon indicates that further information
on the topic is available.

SilverCrest SBLL 4.2 A1
8 - English
DANGER! Wireless interface
Switch the speaker off if you are on a plane, in a
hospital, operating room or in the vicinity of a medical
electronic system. The radio waves transmitted can
damage the functioning of sensitive devices. Keep the
loudspeaker at least 20 cm away from a pacemaker or
an implanted defibrillator, as otherwise the correct
functioning of the pacemaker could be adversely
affected by radio waves. The radio waves transmitted
can cause static noise in hearing aids. When wireless
components are switched on, do not place the speaker
in the vicinity of flammable gases or in a potentially
explosive environment (for example, paint shop), as the
radio waves transmitted can trigger an explosion or a
fire. The range of the radio waves depends on the
setting and ambient conditions. When transmitting data
via a wireless connection, it is also possible for
unauthorised third parties to receive this data. TARGA
GmbH is not responsible for wireless or radio
interference caused by unauthorised changes to this
device. Furthermore, TARGA accepts no liability for
replacing or exchanging connecting cables and devices
that were not specified by TARGA GmbH. The user
alone is responsible for remedying malfunctions caused
by such unauthorised changes and replacing or
exchanging devices.
DANGER! Risk of explosion
The speaker must not be thrown into a fire, as the
integrated battery may explode.

SilverCrest SBLL 4.2 A1
English - 9
WARNING! Please make sure that:
the speaker is not exposed to direct sources of heat
(for example, heaters).
the speaker is not exposed to direct sunlight or strong
artificial light.
contact with splashing and dripping water and
aggressive liquids is avoided, and that the speaker is
not operated in the vicinity of water. In particular, the
speaker should never be immersed, nor should any
containers filled with liquids, for example vases or
drinks, be placed on or near the speaker.
no naked flames (for example, burning candles) are
placed on or near the speaker.
no foreign bodies penetrate into the device.
the speaker is not placed close to magnetic fields (for
example, loudspeakers).
the speaker is not exposed to excessive temperature
fluctuations, as otherwise condensation can occur
and lead to electrical short circuits; if, however, the
speaker has been exposed to large temperature
fluctuations, wait approximately two hours until the
speaker has reached ambient temperature before
starting it up.
the speaker is not exposed to excessive shocks and
vibrations.
always lay connected cables in such a way that
nobody can stand or trip on them. There is a risk of
injury.

SilverCrest SBLL 4.2 A1
10 - English
always take hold of all cables by the plug and do not
pull on the cable itself. Do not place any items of
furniture or other heavy objects on cables. Make sure
that the cables are not bent, particularly at the plug
and at the connecting sockets. Never make a knot in
a cable and do not connect it with other cables.
DANGER! Children and
people with disabilities
This speaker can be used by children aged eight and
over, as well as by people with reduced physical,
sensory or mental abilities or who lack experience and
knowledge, provided they are supervised or have been
instructed in the safe use of the speaker and understand
the resulting dangers. Children must not play with the
speaker. Cleaning and user maintenance must not be
carried out by children unless they are supervised.
Also keep the packaging film away from
children.
DANGER! There is a risk of
suffocation.
WARNING! Cleaning/care
Repair work is required if the speaker has been
damaged, for example, the speaker housing is
damaged, liquids or objects have got inside the
speaker, or if the speaker has been exposed to rain or
moisture. Repair work is also required if the device does

SilverCrest SBLL 4.2 A1
English - 11
not work properly or has been dropped. If you notice
any smoke, unusual noises or smells, immediately switch
off the speaker and unplug any cables that may be
connected to the device. If this happens, you must stop
using the speaker until it has been checked by a
specialist. All repair work should only be carried out by
qualified specialists. Clean the device using a clean, dry
cloth and never use abrasive liquids. Do not try to open
the housing of the speaker, as this will void your
guarantee.
Copyright
All contents of these operating instructions are subject to
copyright law and are provided to the user solely as a
source of information. Any form of copying or
reproduction of data and information without the
express written permission of the author is prohibited.
This also concerns commercial use of the content and
data. The text and illustrations correspond to the
technical standards at the time of printing. Subject to
alterations.
Overview
These operating instructions also have a cover that can
be unfolded. Unfold this cover page so that you can
always see the controls.

SilverCrest SBLL 4.2 A1
12 - English
1 Display
2 button
3 M button
4 button
5 button
6 ON/OFF switch
7 LED
8 LINE IN jack
9 Micro-USB charging port
Initial use
Charging the battery
WARNING! Due to the high current
consumption, do not charge the speaker on
a notebook/PC but only with a suitable
mains adapter (5 V , min.
1 A; not included in the package contents).
Before initial start-up or if the integrated battery is flat,
charge the device up as follows:
Connect the supplied USB charging cable (B) to the
micro-USB charging port (9) and a free USB port on
a USB mains adapter (not included in the package
contents).
The LED (7) lights up orange while the battery is
charging and goes out once the battery is fully
charged. You can continue to use the speaker while it
is charging. Please note that this will slightly increase
the amount of time required to charge the device.

SilverCrest SBLL 4.2 A1
English - 13
Disconnect the USB charging cable (B) from the
speaker after charging.
If a battery has almost run out, this will be
indicated by a series of sounds.
WARNING! The device is not covered
while charging, as the device can heat up
in the process
Bluetooth®mode
The Bluetooth® connection allows you to pair a
Bluetooth®-equipped music player such as your
smartphone or MP3 player with the speaker. Once the
two devices are paired, you can play music over the
speaker and operate the main controls of the player
remotely using the buttons on the speaker.
Proceed as follows to pair the speaker with your mobile
phone or player:
Turn the speaker on by setting the ON/OFF switch
(6) to the ‘ON’ position. You will hear a series of
sounds that gradually increase in volume. The display
(1) shows ‘bLUE’ and the LED (7) quickly flashes
blue.
Now connect your mobile phone or player to the
speaker via Bluetooth®. To do so, refer to your
mobile phone manual. From the list of devices
detected, select device ‘SBLL 4.2 A1’ and establish
the connection. Enter ‘000’ if you are asked for a
PIN.
The speaker confirms the establishment of the
connection with a series of sounds that gradually
increase in volume, and the LED (7) lights up blue.
During transmission the LED (7) slowly flashes blue.

SilverCrest SBLL 4.2 A1
14 - English
Adjust the volume on your audio source or using the
button (4) and button (5). Hold down the
buttons to do this. When you do so, the volume
setting is briefly shown on the display (1).
You can turn the speaker off by setting the ON/OFF
switch (6) to the ‘OFF’ position.
While operating in Bluetooth®mode, the buttons on the
speaker perform the following functions:
Function Action
Play Briefly press the
button (2)
Pause Briefly press the
button (2)
Next track Briefly press the
button (5)
Previous track Press the button
(4) twice with a short
pause
Go to start of track Briefly press the
button (4)
Volume up* Hold down the
button (5)
Volume down Hold down the
button (4)
Disconnect Bluetooth®1Press the M button (3)
for about three seconds
Establishing the
Bluetooth® connection
Press the M button (3)
for about three seconds
Changing the operating
mode
Briefly press the M
button (3)

SilverCrest SBLL 4.2 A1
English - 15
* An acoustic signal is played when the maximum
volume is reached.
1 You will hear a confirmation tone in the speaker.
Subsequently the Bluetooth®connection has to be re-
established.
Radio mode
The speaker has a radio function. Proceed as follows to
use the speaker in radio mode.
Connect the supplied USB charging cable (B) to the
micro-USB charging port (9) on the speaker. The USB
charging cable (B) is used as the antenna in radio
mode.
Turn the speaker on by setting the ON/OFF switch
(6) to the ‘ON’ position. You will hear a series of
sounds that gradually increase in volume. ‘bLUE’ is
shown on the display (1).
Briefly press the M button (3) to switch to radio
mode. The most recently used radio frequency is
shown on the display (1).
To start automatic station scanning, briefly press the
button (2). Automatic station scanning always
begins with the lowest frequency.
The speaker now scans the entire frequency range for
stations with a strong signal. As soon as a station with
a strong signal is found, the frequency indicator
briefly freezes on the display (1) and the memory
position where this station will be stored is displayed
for a short time.

SilverCrest SBLL 4.2 A1
16 - English
The first 99 stations found will be stored directly in
memory positions 1 to 99. The station stored under
memory position 1 is played.
You can turn the speaker off by setting the ON/OFF
switch (6) to the ‘OFF’ position.
Please note that memory positions already
occupied will be overwritten.
It is not possible to set a station manually.
The buttons on the speaker perform the following
functions in radio mode:
Function Action
Start station scanning Briefly press the
button (2)
Next memory position Briefly press the
button (5)
Previous memory
position
Briefly press the
button (4)
Volume up* Hold down the
button (5)
Volume down Hold down the
button (4)
Changing the operating
mode
Briefly press the M
button (3)
* An acoustic signal is played when the maximum
volume is reached.

SilverCrest SBLL 4.2 A1
English - 17
LINE IN mode
In LINE IN mode you have to connect the speaker to
your audio source with a cable. Proceed as follows:
Turn your audio source down to a low volume.
Connect the supplied audio cable (C) to the LINE IN
jack (8) and your audio source. Please note: An
acoustic signal is played if the audio cable (C) is
connected or disconnected while the speaker is on.
Turn the speaker on by setting the ON/OFF switch
(6) to the ‘ON’ position. You will hear a series of
sounds that gradually increase in volume. ‘bLUE’ is
shown on the display (1).
Briefly press the M button (3) twice to change to
LINE IN mode. The display (1) shows ‘LINE’ and
‘AUX.’
Adjust the volume on your audio source or using the
button (4) and button (5). When you do
so, the volume setting is briefly shown on the display
(1).
You can turn the speaker off by setting the ON/OFF
switch (6) to the ‘OFF’ position.
The buttons on the speaker perform the following
functions in LINE IN mode:
Function Action
Mute or unmute Briefly press the
button (2)
Volume up* Hold down the
button (5)

SilverCrest SBLL 4.2 A1
18 - English
Volume down Hold down the
button (4)
* An acoustic signal is played when the maximum
volume is reached.
Troubleshooting
The speaker will not switch on.
Charge the battery.
No Bluetooth® connection established.
Switch the speaker on.
Check whether the Bluetooth®function is enabled
on your mobile phone or audio device.
The distance between the devices is too great.
Reduce the distance.
Re-connect Bluetooth® if necessary.
Not all of the functions described work
All the functions described depend on the range of
functions available on the device you are using.
The full range of speaker functions may not be
available in all cases and may vary based on the
device manufacturer, model and software version
of the mobile phone or player you are using.
