Silvercrest SMA 500 A1 User manual

MINI SPEAKER SMA 500 A1
IAN 273543
MINI-LAUTSPRECHER
Bedienungsanleitung
MINI SPEAKER
Operating instructions
MINI ZVOČNIK
Navodila za uporabo
MINI HANGSZÓRÓ
Használati utasítás
MINIREPRODUKTOR
Návod na obsluhu
MINI REPRODUKTOR
Návod k obsluze

GB Operating instructions Page 1
HU Használati utasítás Oldal 19
SI Navodila za uporabo Stran 37
CZ Návod k obsluze Strana 55
SK Návod na obsluhu Strana 73
DE/AT/CH Bedienungsanleitung Seite 91
Before reading, unfold the page containing the illustrations and
familiarise yourself with all functions of the device.
Olvasás előtt kattintson az ábrát tartalmazó oldalra és végezetül
ismerje meg a készülék mindegyik funkcióját.
Pred branjem odprite stran s slikami in se nato seznanite z vsemi
funkcijami naprave.
Před čtením si otevřete stranu s obrázky a potom se seznamte se
všemi funkcemi přístroje.
Pred čítaním si odklopte stranu s obrázkami a potom sa oboznámte
so všetkými funkciami prístroja.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und ma-
chen Sie sich anschließend mit allen Funktionen des Gerätes vertraut.

1
SMA 500 A1
GB
Table of contents
Introduction ......2
Information concerning
these operating
instructions ..........2
Copyright ...........2
Limitation of liability . . . 2
Warnings ...........3
Intended use.........4
Safety...........4
Basic safety instructions 4
Initial operation. . . 7
Check the items supplied7
Disposal of packaging . 8
Requirements for the setup
location.............8
Controls .........9
Handling and use . 9
Charging the battery . . 9
Speaker operation . . . 10
Aux-In operation.....11
Fault rectification. 12
Malfunction causes and
remedies...........12
Cleaning ........13
Storage/Disposal 13
Storage when not in use13
Disposal of the device 14
Appendix .......15
Technical details.....15
Notes on the EU-Declara-
tion of Conformity....15
Warranty..........16
Service ............17
Importer...........17

GB
2SMA 500 A1
Introduction
Information concerning these operating
instructions
Congratulations on the purchase of your new device.
You have decided to purchase a high-quality product. The
operating instructions are a constituent of this product. They
contain important information with regard to safety, use and
disposal. Before using the product, familiarise yourself with
all operating and safety instructions. Use this device only as
described and only for the specified areas of application.
Retain these instructions for future reference. Please also
pass these operating instructions on to any future owner(s).
Copyright
This documentation is subject to copyright protection.
Any copying or reproduction of it, including as extracts,
as well as the reproduction of images, also in an altered
state, is only permitted with the written authorisation of the
manufacturer.
Limitation of liability
All technical information, data and information for installa-
tion, connection and operation contained in these operating
instructions correspond to the latest version at time of print-
ing and, to the best of our knowledge, take into account our
previous experience and know-how. No claims can be de-
rived from the details, illustrations and descriptions in these

3
SMA 500 A1
GB
instructions. The manufacturer assumes no responsibility for
damage caused by failure to observe these instructions,
improper use, incompetent repairs, making unauthorised
modifications or for using unapproved replacement parts.
Warnings
The following warnings are used in these operating instructions:
DANGER
A warning at this risk level indicates an
imminently hazardous situation.
If the hazardous situation is not avoided, it could lead
to death or serious physical injury.
► Follow the instructions in this warning to avoid a
fatality or serious personal injury.
CAUTION
A warning of this risk level indicates potential
damage to property.
Failure to avoid this situation could result in damage to
property.
► Follow the instructions in this warning to prevent dam-
age to property.

GB
4SMA 500 A1
NOTE
► A note indicates additional information that will assist
you in handling the device.
Intended use
This mini-speaker is a consumer electronics device intended
exclusively for audio playback from mobile devices, such as
MP3 players, mobile telephones, etc., via a 3.5 mm jack
connection. This device is exclusively intended for non-com-
mercial use. The device is not intended for any other use or
for uses extending beyond those stated. Claims of any kind
for damage arising as a result of non-intended use will not
be accepted. The user is the sole bearer of the risk.
Safety
This section provides you with important safety information
regarding the handling of the device. The device complies
with the statutory safety regulations. Incorrect usage can
lead to personal injury and property damage.
Basic safety instructions
For safe handling of the device, follow the safety information
below:
■ Before use, check the device for visible external damage.
Do not use a device that has been damaged or dropped.

5
SMA 500 A1
GB
■ Damaged cables or connections should be replaced by
the Customer Service department.
■ This device is not intended for use by persons (including
children) with limited physical, physiological or intel-
lectual abilities or lack of experience and/or knowledge
unless they are supervised by a person who is responsi-
ble for their safety, or receive instructions from this person
on how to use the device. Children should be supervised
to ensure that they do not play with the device.
■ DANGER! Do not allow children to play with the
packaging material! Keep all packaging materials away
from children. Risk of suffocation!
■ Always have repairs carried out by authorised special-
ist companies or the Customer Service department.
Improper repairs can pose significant risks to the user.
Warranty claims also become void.
■ Repairs to the device during the warranty period may only
be carried out by a customer service department author-
ised by the manufacturer. Otherwise no additional war-
ranty claims can be considered for subsequent damage.
■ Do not make any unauthorised modifications or altera-
tions to the device.
■ Never open the housing. There are no user-serviceable
or swappable components inside the device.
■ Do not operate the device close to naked flames (e.g.
candles).

GB
6SMA 500 A1
■ Do not place the device in locations that are subject to
direct sunlight as this could lead to overheating and
cause irreparable damage.
■ Protect the device from moisture and liquid penetration.
Never submerge the device in water and do not place
objects filled with liquids (such as vases) on the device.
■ If you see smoke or smell burning, unplug all connectors
immediately and switch off the device. Have the device
checked by a qualified specialist, before using it again.
DANGER
Erroneous handling of the battery can lead
to fire, explosions, leakage of hazardous
substances or other dangerous situations!
► Do not throw the device into fire, since the integrated
battery may explode.

7
SMA 500 A1
GB
Initial operation
Check the items supplied
This device is supplied with the following components as
standard:
Mini speaker
Charging cable (USB* to Mini USB)
This operating manual (Symbol image)
*USB is a registered trademark of USB Implementers
Forum, Inc.
NOTE
► Check the contents for completeness and for signs
of visible damage.
► If the contents are incomplete or damaged due to
defective packaging or through transportation, con-
tact the Service Hotline (see chapter Service).

GB
8SMA 500 A1
Disposal of packaging
The packaging protects the device from transport damage.
The packaging materials have been selected in accordance
with their environmental friendliness and disposal attributes,
and are therefore recyclable.
The recirculation of packaging into the material
circuit saves on raw material and reduces the
amount of waste generated. Dispose of
packaging material that is no longer needed in
accordance with applicable local regulations.
Requirements for the setup location
For safe and trouble-free operation of the device, the setup
location must fulfil the following requirements:
■ The device must be placed on a firm, flat and level surface.
■ Do not place the device in a hot, wet or extremely moist
environment or close to flammable materials.
■ Set up the device so that it is not exposed to direct sun-
light or strong artificial light.

9
SMA 500 A1
GB

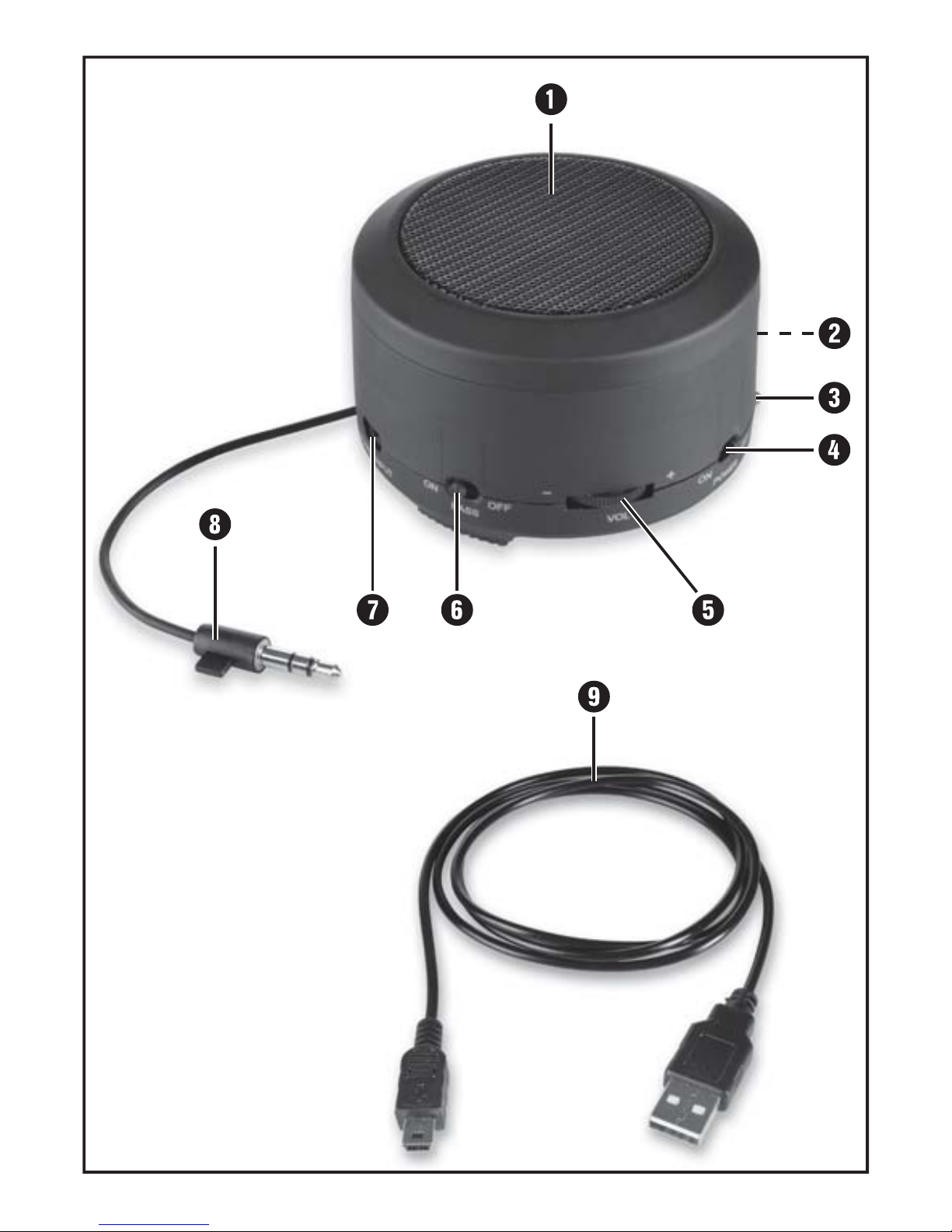

Controls
Speaker
2Connection socket AUX-IN (3.5 mm jack socket)
3Operating and charging LED
4On/Off switch (POWER ON / OFF)
5Volume control (VOL +/–)
6BASS switch (ON / OFF)
7Mini USB connection socket (POWER INPUT)
8Speaker cable with 3.5 mm jackplug
9Charging cable (USB to Mini USB)
Handling and use
This section provides you with important information on
handling and using the device.
Charging the battery
The integrated battery must be fully charged before using
the device.
♦ Ensure that the On/Off switch 4is in the OFF position.
♦ Connect the USB connector of the charging cable 9
to a PC or a USB power supply.
♦ Connect the Mini USB connector of the charging
cable 9to the POWER INPUT connection socket 7
of the device. The operating LED 3illuminates in red
and the battery is charged.

GB
10 SMA 500 A1
NOTE
► The operating LED 3illuminates in red during the
charging procedure and in blue after the battery has
been fully charged.
► The maximum charging time is about 4 hours, and
allows music to be played for up to 8 hours at a
volume level of 50%.
► As soon as the operating LED 3illuminates in red,
the battery is empty and requires charging.
Speaker operation
♦ Completely unwind the speaker cable 8from the
cable storage (underside of device).
♦ Connect the 3.5 mm jackplug of the speaker cable 8
to your playback device.
♦ Switch the speaker on by moving the On/Off
switch 4to the ON position. The operating
LED 3illuminates in blue.
♦ Switch on your player and select the required volume
using the volume control 5.
♦ To obtain a rich bass tone, move the BASS switch 6
to the ON position.
♦ To switch the speaker off again, move the On/Off
switch 4to the OFF position. The operating LED 3
goes out.

11
SMA 500 A1
GB
Aux-In operation
Many electronic entertainment devices are equipped with
a 3.5 mm jack socket. If your player has a connector that
differs from the audio output socket, use a suitable adapter if
necessary, or connect it to the AUX-IN 2connection socket
using an adapter cable. The relevant adapter/adapter
cable is available from specialist dealers.
NOTE
► If you have connected playback devices to the AUX-
IN connection socket 2and the speaker cable 8
at the same time, only the sound from the AUX-IN
connection socket 2will be played.

GB
12 SMA 500 A1
Fault rectification
This section contains important information on fault localisa-
tion and rectification. Observe the instructions in order to
avoid risks and damage.
Malfunction causes and remedies
The following table will help with localising and remedying
minor malfunctions:
Defect Possible cause Rectification
No sound.
The volume control
of the player or the
speaker is set to mini-
mum volume.
Turn the volume up on
the playback device
or the speaker.
Playback device or
speaker not switched on.
Ensure that all devices
are switched on.
The 3.5 mm jackplug
is not fully inserted
into the socket of the
playback device
Push the 3.5 mm
jackplug completely
into the
socket.
The battery of the
speaker is discharged
(operating LED 3
illuminated in red or off).
Charge the battery
with the charging
cable 9(see also
chapter Charging
the battery).

13
SMA 500 A1
GB
NOTE
► If the aforementioned solutions do not resolve the
problem, please contact the Customer Service
(see chapter Service).
Cleaning
CAUTION
Possible damage to the device
► To avoid irreparable damage, ensure that no mois-
ture enters the device during cleaning.
■ Clean the housing of the device only with a lightly mois-
tened cloth and a mild detergent.
Storage/Disposal
Storage when not in use
■ Switch off the speaker by moving the On/Off switch 4
to the OFF position.
■ Wind the speaker cable 8clockwise onto the cable
storage and clip the 3.5 mm jackplug into the recess.
■ Store the device in a dry environment.
■ Charge the integrated battery from time to time to main-
tain performance.

GB
14 SMA 500 A1
Disposal of the device
The adjacent symbol of a crossed-out wheelie
bin means that this device is subject to Directive
2012/19/EU. This directive states that this
device may not be disposed of in normal
household waste at the end of its usable life, but must be
handed over to specially set-up collection locations,
recycling depots or disposal companies.
This disposal is free of charge for the user.
Protect the environment and dispose of this
device properly.
You can obtain further information from your local disposal
company or the city or local authority.

15
SMA 500 A1
GB
Appendix
Technical details
Output power 1.5 W RMS with 10%
harmonic distortion
Frequency range 450 Hz - 15 kHz
Integrated battery 3.7 V / 500 mAh
(Lithium polymer)
Operating temperature +5 - +35°C
Storage temperature 0 - +35°C
Humidity (no condensation) 10 - 80 %
Dimensions (Ø x H) approx. 7.5 x 4.6 cm
Weight (with accessories) approx. 115 g
Notes on the EU-Declaration of Conformity
With regard to conformity with the basic
requirements and other relevant provisions,
this device complies with the Electromagnetic
Compatibility Directive 2004/108/EC and
the RoHS Directive 2011/65/EU.
The full EU-Declaration of Conformity is
available from the importer.

GB
16 SMA 500 A1
Warranty
The warranty for this appliance is for 3 years from the date
of purchase. The appliance has been manufactured with
care and meticulously examined before delivery.
Please retain your receipt as proof of purchase. In the case
of a warranty claim, please make contact by telephone with
our Customer Service Department. Only in this way can a
post-free despatch for your goods be assured.
NOTE
► The warranty covers only claims for material and
manufacturing defects, but not for transport damage,
wearing parts or for damage to fragile components,
e.g. buttons or batteries.
This product is for domestic use only and is not intended for
commercial use. The warranty is void in the case of abusive
and improper handling, use of force and internal tampering
not carried out by our authorised service branch.
Your statutory rights are not restricted in any way by this
warranty. The warranty period is not extended by repairs
made under the warranty. This applies also to replaced and
repaired parts.
Damages and defects extant at the time of purchase must
be reported immediately after unpacking, resp. no later than
two days after the date of purchase.
Repairs made after the lapse of the warranty period are
subject to charge.

17
SMA 500 A1
GB
Service
Service Great Britain
Tel.: [phone] (£ 0.10/Min.)
E-Mail: k[email protected]
IAN 273543
Hotline availability: Monday to Friday 08:00 - 20:00 (CET)
Importer
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
