Introduction
Intended use .................................................................Page 7
Scope of delivery .........................................................Page 8
Description of parts ......................................................Page 8
Technical data...............................................................Page 9
Safety
General safety instructions...........................................Page 11
Safety instructions.........................................................Page 13
Safety Instructions for the Battery................................Page 14
Before getting started
Removing the battery fuse............................................Page 15
Operation
Setting the date/time...................................................Page 15
Temperature measurements .........................................Page 16
Measuring time (stopwatch mode)..............................Page 23
Functions/error analysis
Selecting the temperature unit .....................................Page 24
The memory function (memory mode)...........................Page 24
Changing the battery ....................................................Page 25
Problem-solving.............................................................Page 26
Cleaning and care.............................................Page 28
Guarantee and Service................................Page 29
Disposal......................................................................Page 31
Conformity ..............................................................Page 32
Table of Contents
IB_61572_KH8105_LB3.indd 5IB_61572_KH8105_LB3.indd 5 10.12.2010 14:23:00 Uhr10.12.2010 14:23:00 Uhr

6 GB/IE
The following pictograms are used in these
directions for use or on the device itself:
Read the directions for use!
Please observe the warning and
safety instructions!
Risk of explosion!
VDirect current (type of current and voltage)
mA Milliampere
Danger to life and danger of accidents
for infants and children!
Medical device type B
Year and month of manufacture
Dispose of the packaging and appliance
in an environmentally friendly way!
IB_61572_KH8105_LB3.indd 6IB_61572_KH8105_LB3.indd 6 10.12.2010 14:23:00 Uhr10.12.2010 14:23:00 Uhr

7GB/IE
Introduction
Forehead & Ear Thermometer

Introduction
Before starting the device up for the first time,
familiarise yourself with its functions. Read the
following directions for use. Please keep these
instructions in a safe place. When handing the device on
to a third party, hand all instructions on, too.

Intended use
The device is intended for use indoors for the measurement
of body temperature on the ear or temple/forehead, the
measurement of room temperature and the measurement
of surface temperatures in the household, as well as a
clock with stopwatch function. In no way does it replace
an examination by a qualified doctor. This appliance is
solely intended for private use. Any use other than that
previously described or any change to the product is not
permitted and may lead to injuries and/or damage to the
product. The manufacturer does not assume any liability
for damage arising from improper use.
IB_61572_KH8105_LB3.indd 7IB_61572_KH8105_LB3.indd 7 10.12.2010 14:23:00 Uhr10.12.2010 14:23:00 Uhr

8 GB/IE
Introduction

Scope of delivery
1x Forehead and ear thermometer
(incl. battery and protective head guard 9)
1x Directions for use


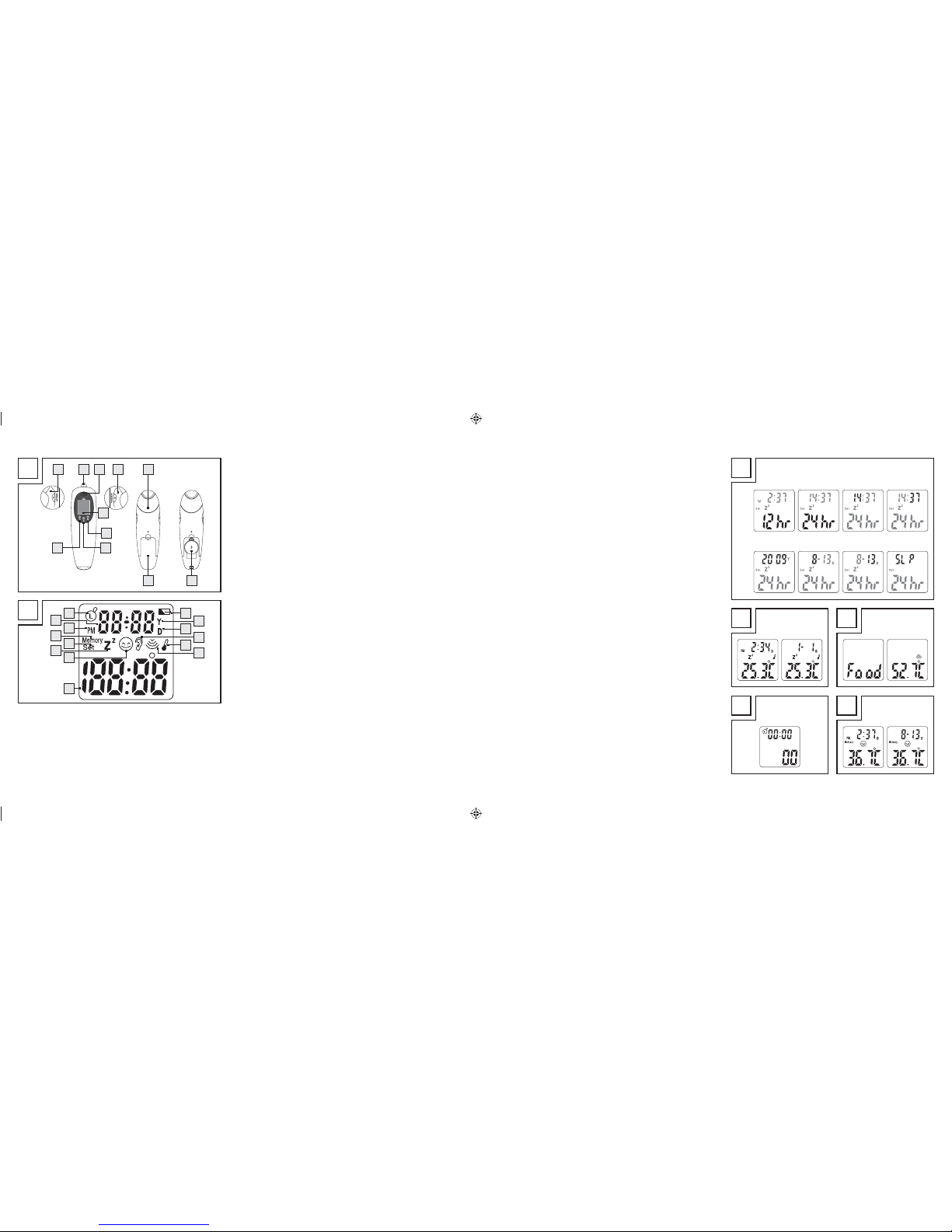

Description of parts
1“MEM/SET” button
(information retrieval from the memory etc.)
2Measuring head
3“EAR” button
(temperature measurement in the ear scan mode)
4“FOREHEAD” button
(temperature measurement on the forehead/temple)
5LC display
6LED red fever 38.0°C-42.9°C (100.4°F-109.2°F)
7LED orange slight increase in temperature
37.5°C-37.9°C (99.5°F-100.2°F)
8LED green no fever 34.0°C-37.4°C
(93.2°F-99.3°F)
9Protective head guard
(can also be attached to the foot for better grip)
10 Battery compartment lid
11 Battery
IB_61572_KH8105_LB3.indd 8IB_61572_KH8105_LB3.indd 8 10.12.2010 14:23:00 Uhr10.12.2010 14:23:00 Uhr

9GB/IE
Introduction
LC display
12 Battery change symbol
13 Year display symbol
14 Date display symbol
15 Ear mode symbol
16 Standard mode symbol
17 Scan mode symbol
18 Temperature display
19 Forehead mode symbol
20 Sleep mode symbol
21 Setup mode symbol
22 Memory mode symbol
23 PM/AM display
24 Month and hour in standard mode
25 Stopwatch mode symbol

Technical data
Measurement
method: Infrared (non-contact)
Electrical
power supply: Lithium battery 3V CR2032
Power consumption: < 30 mA
Memory: 9 temperature measurements with
details of date, time and measurement
method (ear or forehead measurement)
IB_61572_KH8105_LB3.indd 9IB_61572_KH8105_LB3.indd 9 10.12.2010 14:23:00 Uhr10.12.2010 14:23:00 Uhr

10 GB/IE
Introduction
Temperature scale: °C (°Celsius)
°F (°Fahrenheit)
Time display: 12/24-hour format
Automatic switch-off: Automatic switch-off after 1 minute
Measurement range
forehead & ear mode: 32°C-42.9°C (89.6°F-109.2°F)
Measurement
accuracies: ±0.2°C (±0.4°F) in the range
from 35.5°C-42.0°C
(95.9°F-107.6°F)
±0.3°C (±0.5°F) in the range from
32.0°C-35.4°C (89.6°F-95.7°F)
and in the range from 42.1°C-
42.9°C (107.8°F-109.2°F)
Measurement range
room temperature: 5.0°C-59°C (41.0°F-138.2°F)
Measurement
accuracy: ±2.0°C (±4.0°F)
Measurement
range scan mode: –22.0°C-80.0°C
(–7.6°F-176°F)
Measurement
accuracy: ±2.0°C (±4.0°F)
Ambient temperature
Ear and scan mode: +10.0°C-+40.0°C
(50.0°F-104.0°F)
Forehead mode: +15.0°C-+40.0°C
(59.0°F-104.0°F)
IB_61572_KH8105_LB3.indd 10IB_61572_KH8105_LB3.indd 10 10.12.2010 14:23:00 Uhr10.12.2010 14:23:00 Uhr

11GB/IE
Introduction/Safety
Storage temperature: –10.0°C-+55.0°C
(14.0°F-131.0°F) at
20%RH*-85%RH*
Atmospheric pressure: 700~1060hPa
Dimensions: 135x37x58mm (LxBxH)
Weight: 50g
*RH = relative humidity

Safety
PLEASE KEEP ALL SAFETY INFORMATION
AND INSTRUCTIONS FOR FUTURE USE!
General safety instructions
 WARNING! DANGER TO LIFE
AND DANGER OF ACCIDENTS FOR
INFANTS AND CHILDREN! Never leave
children alone and unsupervised with the packaging
material. Danger of suffocation. Children often
underestimate risks. Always keep children away
from the product.
DANGER TO LIFE! Batteries can be swallowed,
which may represent a danger to life. If a battery has
been swallowed, medical help is required immediately.
IB_61572_KH8105_LB3.indd 11IB_61572_KH8105_LB3.indd 11 10.12.2010 14:23:00 Uhr10.12.2010 14:23:00 Uhr

12 GB/IE
Safety
 This device is not designed to be used by people
(including children) with limited physical, sensory or
mental abilities or who lack the experience and/or
knowledge to use it, unless they are supervised by a
person responsible for safety or receive instructions
from such a person as to how the device should be
used. Children have to be supervised to ensure that
they do not play with the device.
 Do not expose the device to
- extreme temperatures,
- strong vibrations,
- heavy mechanical loads,
- direct sunlight.
Otherwise there is a danger that the device will be
damaged.
 Please note that the guarantee does not cover damage
caused by incorrect handling, non-compliance with the
operating instructions or interference with the device
by unauthorised individuals.
 Under no circumstances should you take the device
apart. Improper repairs may place the user in consider-
able danger. Repairs should only be carried out by
specialist personnel.
 Do not use the device if it is damaged. Otherwise
the consequence may be injuries and/or inaccurate
readings.
IB_61572_KH8105_LB3.indd 12IB_61572_KH8105_LB3.indd 12 10.12.2010 14:23:01 Uhr10.12.2010 14:23:01 Uhr

13GB/IE
Safety
 Please consult a doctor if the thermometer indicates
that the body temperature measured is high. With this
measuring method, a fever is indicated if the tempera-
ture is above 38.0°C (100.4°F). The red LED 6is a
warning. Please take several measurements at intervals
of 0.5 to 1 hour in order to follow the progression of
the temperature. The values you measure will help
your doctor make a diagnosis.
 Do not use the temperature under extreme temperature
conditions and/or outdoors. This will result in inaccurate
measuring results. Please observe the details regarding
ambient and storage temperatures (see “Technical data”).
 The infrared sensor should not be touched directly or
blown on. This will result in inaccurate measuring results.
 Mobile telephones should not be used in the immediate
vicinity when the thermometer is being used. Otherwise
the consequence may be inaccurate measurement
results.
Safety instructions
 This appliance is solely intended for private use. That
is why it is not subject to mandatory verification.
 Do not continue to use the device if it is damaged or if
the measured values appear unrealistic to you. Consult
the section entitled “Functions/error analysis - problem-
solving” or contact our service centre.
IB_61572_KH8105_LB3.indd 13IB_61572_KH8105_LB3.indd 13 10.12.2010 14:23:01 Uhr10.12.2010 14:23:01 Uhr

14 GB/IE
Safety
Safety Instructions
for the Battery
 Remove the battery from the device if it is not going
to be used for a prolonged period.
 CAUTION! DANGER OF EXPLOSION!
The battery must never be recharged!
 Ensure correct polarity when inserting the battery!
This is indicated in the battery compartment.
 If necessary, clean the battery and device contacts
before inserting the battery.
 Batteries must not be disposed of in the normal
domestic waste!
 Every consumer is legally obliged to dispose
of batteries in the proper manner!
 CAUTION! RISK OF EXPLOSION!
Keep batteries away from children; do not
throw batteries into a fire; do not short-circuit
the batteries and do not take them apart.
 Avoid contact with the skin, eyes and mucous mem-
branes. Any parts of the body coming into contact with
battery acid should be rinsed off with copious amounts
of water and/or a doctor contacted if necessary!
 Avoid contact with skin, eyes and mucous membranes.
Upon contact with battery acid, rinse the affected
area with lots of water and/or consult a doctor!
IB_61572_KH8105_LB3.indd 14IB_61572_KH8105_LB3.indd 14 10.12.2010 14:23:01 Uhr10.12.2010 14:23:01 Uhr

15GB/IE
Before getting started/Operation

Before getting started

Removing the battery fuse
 Push the battery compartment lid 10 downwards.
 Pull the tab of the protective film out of the battery
compartment.
 Push the battery compartment lid 10 onto the battery
compartment until it clicks into place (Fig. A).
– When it is switched on, an internal alignment and a
self-test of the LC display are carried out.
– In order to check if all bars of the numbers are activated
correctly, please check the image of the display of
your appliance with the sample (Fig. B) when you
switch the appliance on.

Operation

Setting the date/time (Fig. C)
You only have to set the date and time when you operate
the appliance for the first time and after you change the
battery.
1. Press and hold the “MEM/SET” button 1down for
two seconds in standard mode. An acoustic signal
will sound. The device is now in set-up mode.
2. Press the “MEM/SET” button 1to choose between
the 12-hour or 24-hour format.
IB_61572_KH8105_LB3.indd 15IB_61572_KH8105_LB3.indd 15 10.12.2010 14:23:01 Uhr10.12.2010 14:23:01 Uhr

16 GB/IE
Operation
3. Press the “FOREHEAD” button 4. The hours will flash
and can be corrected with the “MEM/SET” button 1.
4. Press the “FOREHEAD” button 4again. The minutes
will flash and can be corrected with the “MEM/SET”
button 1.
 Repeat steps 3 and 4 to set the values for the year,
month and day or to switch the sleep mode on or off.

Temperature measurements
Measuring room temperature (standard mode)
When you have finished setting the time and date and do
not carry out any further procedures, the device switches
to sleep mode after 1 minute in order to save the battery.
In the condition as supplied to the customer the sleep
mode is activated, as shown by the symbol, and the LC
display 5is completely switched off. When the sleep
mode is deactivated, the device remains switched on,
while the time and room temperature are still shown and
updated once a minute. The LC display 5shows
the time and date alternately (Illustration D).
Measuring body temperature (ear mode)
IMPORTANT! It is advisable to carry out 3 meas-
urements in a row on the same ear and to take the highest
temperature as the measured value. A new measurement
can be taken when the display “ ” goes out.
IB_61572_KH8105_LB3.indd 16IB_61572_KH8105_LB3.indd 16 10.12.2010 14:23:01 Uhr10.12.2010 14:23:01 Uhr

17GB/IE
Operation
 Do not use the thermometer if pain occurs when the
measurement is being taken. This could damage the
ear canal.
 Do not use the thermometer with external ear disorders
(e.g. inflammation of the ear canal, injuries to the outer
ear). The condition of the affected areas could worsen.
 Do not use the thermometer straight after bathing or
swimming when the ear canal is wet. This could dam-
age the ear canal.
 Due to the risk of contamination of the measuring
head, clean the appliance after every use.
 In this mode, only measure the temperature in the ear
and at no other place on the body.
1. If the sleep mode has been activated, activate the
thermometer again by pressing any button before
taking the measurement.
2. Carefully press on the protective cap 9and remove
it with a gentle rotary motion and without using any
force.
3. Check that the measuring head 2and the measuring
sensors are clean.
4. Carefully clean the ear canal with a cotton bud.
5. Please pull the outer ear slightly in the direction of the
back of the head and diagonally upwards or backwards
so that the ear canal is freely accessible and there are
no obstacles between the infrared reception and the
ear drum.
IB_61572_KH8105_LB3.indd 17IB_61572_KH8105_LB3.indd 17 10.12.2010 14:23:01 Uhr10.12.2010 14:23:01 Uhr

18 GB/IE
Operation
6. Please keep the outer ear slightly extended and now
carefully insert the measuring head 2into the ear canal.
7. Briefly press the “EAR” button 3. The symbol will
appear in the LC display 5and the measurement
will start after an acoustic signal.
8. The end of the measurement is indicated by means of
2 acoustic signals.
9. Now you can read off the measurement result on the
LC display 5. At the same time, one of the 3 LEDs
will come on.
Note: LED green 8no fever 34.0°C-37.4°C
(93.2°F-99.3°F)
LED orange 7slight increase in temperature
37.5°C-37.9°C (99.5°F-100.2°F)
LED red fever 638.0°C-42.9°C
(100.4°F-109.2°F)
10. Values can be displayed in °C as well as in °F
(see “Functions/error analysis - selecting the
temperature unit”).
11. Wait until the display “ ” goes out before you
start taking a new measurement.
Note: The appliance automatically switches off if it is not
operated for longer than 1 minute. When the sleep mode
has been activated, the LC display 5switches itself off.
When the sleep mode has been deactivated, the appliance
switches to standard mode. If the thermometer has been
operated under normal conditions, the result of the last
measurement taken before the appliance was switched off
IB_61572_KH8105_LB3.indd 18IB_61572_KH8105_LB3.indd 18 10.12.2010 14:23:01 Uhr10.12.2010 14:23:01 Uhr

19GB/IE
Operation
is stored. The measured value is available again along
with information on the date, time and measurement mode
when the “MEM/SET” button 1is pressed again. The
device has 9 storage spaces (see section on “Functions/
error analysis - the memory function”).
Measuring the body temperature
(forehead mode)
IMPORTANT! It is advisable to carry out 3 meas-
urements in a row at the same place and to take the
highest temperature as the measured value.
 With different room temperatures, let the appliance
lie in the room where the temperature is to be taken
for at least 30 minutes to “acclimatise” it.
 Before measuring your body temperature, you should
relax for about 5 minutes.
 If you have done any physical activity or taken a
bath, wait for at least 30 minutes before taking a
measurement in order to get a measurement that is
as accurate as possible.
 Ensure that the forehead or temple is clean, free of
injuries and not covered with sweat, cosmetics or
ointment.
Take a note of what measurement method you used to
measure the temperature and inform your doctor of it.
1. If the sleep mode has been activated, activate the
thermometer again by pressing any button before
taking the measurement.
IB_61572_KH8105_LB3.indd 19IB_61572_KH8105_LB3.indd 19 10.12.2010 14:23:01 Uhr10.12.2010 14:23:01 Uhr

20 GB/IE
Operation
2. Carefully press on the protective cap 9and remove
it with a gentle rotary motion and without using any
force.
3. Check that the measuring head 2and the measuring
sensors are clean.
4. Hold the measuring sensor 1cm away from the
forehead or temple.
5. To start the measurement, press on the “FOREHEAD”
button 4. The symbol will appear in the LC display
5and the measurement will start after an acoustic
signal.
6. The end of the measurement is indicated by 2 acoustic
signals.
7. Now you can read off the measurement result on the
LC display 5. At the same time, one of the 3 LEDs
will come on.
Note: LED green 8no fever 34.0°C-37.4°C
(93.2°F-99.3°F)
LED orange 7slight increase in temperature
37.5°C-37.9°C (99.5°F-100.2°F)
LED red fever 638.0°C-42.9°C
(100.4°F-109.2°F)
8. Values can be displayed in °C as well as in °F
(see “Functions/error analysis - selecting the
temperature unit”).
9. Repeat steps 3 to 6 to carry out further measurements.
IB_61572_KH8105_LB3.indd 20IB_61572_KH8105_LB3.indd 20 10.12.2010 14:23:01 Uhr10.12.2010 14:23:01 Uhr

21GB/IE
Operation
Note: The appliance automatically switches off if it is not
operated for longer than 1 minute. When the sleep mode
has been activated, the LC display 5switches itself off.
When the sleep mode has been deactivated, the appliance
switches to standard mode. If the thermometer has been
operated under normal conditions, the result of the last
measurement taken before the appliance was switched off
is stored. The measured value is available again along
with information on the date, time and measurement mode
when the “MEM/SET” button 1is pressed again. The
appliance has 9 storage spaces (see “Functions/error
analysis - the memory function”).
Use as a household thermometer (scan mode)
The thermometer can also be used in the house for
non-contact temperature measurements in the range of
–22.0°C-80.0°C (–7.6°F-176.0°F).
Attention! Do not use this mode for measuring
body temperature.
– With this measurement, the current surface temperature
of the object is displayed. It can be different from its
internal temperature, especially if the surface is exposed
to direct sunlight or a draught!
 Due to its design, the thermometer measures the precise
value when its casing has adjusted to room temperature.
That is why you should not hold it in the hand for a
long time when you want to take a measurement and
why you should keep it away from direct sunlight!
IB_61572_KH8105_LB3.indd 21IB_61572_KH8105_LB3.indd 21 10.12.2010 14:23:01 Uhr10.12.2010 14:23:01 Uhr

22 GB/IE
Operation
 Do not use the appliance immediately after cleaning
the measuring head 2. The evaporative cooling effect
of the detergent may falsify the measuring result.
Sample applications:
- The temperature of milk in baby bottles
- The temperature of bathwater
1. If the sleep mode has been activated, activate the
thermometer again by pressing any button before
taking a measurement.
2. Carefully press on the protective cap 9and remove
it with a gentle rotary motion and without using any
force.
3. Make sure that the measuring head 2and the
measuring sensor are clean.
4. Press the “FOREHEAD” button 4and the “EAR”
button 3repeatedly at the same time until “Food”
is shown in the LC display 5(Illustration E).
5. Hold the measuring head at a distance of 1cm from
the liquid and/or surface whose temperature you
want to measure.
6. Press the “EAR” button 3to start the measurement.
7. Now you can read off the measurement result on the
LC display 5(Illustration E).
8. Values can be displayed in °C as well as in °F
(see “Functions/error analysis - selecting the
temperature unit”).
IB_61572_KH8105_LB3.indd 22IB_61572_KH8105_LB3.indd 22 10.12.2010 14:23:01 Uhr10.12.2010 14:23:01 Uhr
