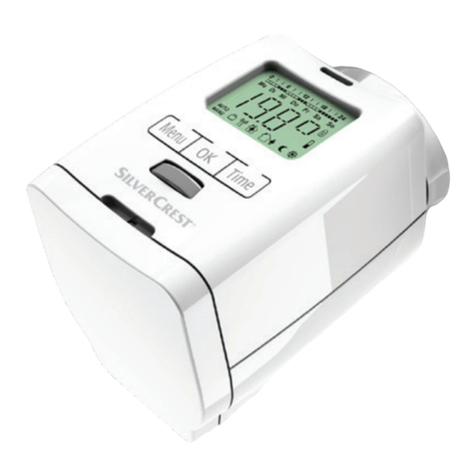

Silvercrest RT2000 Quick guide

Gi
Programmable radiator the rmostat
rt2000
Operating and Safety Instructions
Olympia Business Systems Vertriebs GmbH
Zum Kraftwerk 1
D-45527 Hattingen
www.olympia-vertrieb.de
Information Status
04/2014 - Ident.-No.: 042014-3
Gi
Before starting to read the information, fold out the page containing
the illustrations and then familiarise yourself with all the functions pro-
vided by the device.
Gi Operating and Safety Instructions
Gi
IAN 101034

5
6
7
1
2
3
48
9
10
11
12
13
14
13
14
15
13
14
4
1 2
3
Gi
Scope of Delivery
1 Programmable radiator thermostat, RT2000
1 Coupling ring
3 Adapters (Danfoss RA, Danfoss RAV, Danfoss RAVL)
1 Operating instructions
2 Batteries (AA mignon), 1.5V
1 Heating times
2 USB port
3 AUTO or MANU mode active
4a
MENU button – opens the main menu (starting from the standard
display); when a menu is open, the display moves one menu
level back each time the button is pressed
4b
OK button – conrm a setting
4c TIME button – timer function
5 Adjusting wheel
6 Child safety lock
7 Battery is at
8a Holiday function
8b Comfort temperature
8c Energy-save temperature
8d Frost monitoring function
9 Battery compartment
10 Union nut
11 Maximum value, radiator
12 Thermostat head
13 Groove
14 Spigot
15 Plunger extension

5
Gi
Contents
Introduction�������������������������������������������7
General Function 7
Intended Use 8
Operating and Display Elements 9
Settings 10
Technical Data 12
Scope of Delivery 13
Safety Instructions�������������������������������13
Safety Information on Batteries 14
Inserting/Changing the Batteries ���������15
Setting the Date and Time �������������������16
Installation ������������������������������������������ 18
Disassembling the Old Thermostat Head 19
Adapters for Danfoss 20
Disassembly ���������������������������������������22
Adaptation ������������������������������������������23
Operating Modes ��������������������������������24
MANU Mode 24
AUTO Mode 24
Setting the Heating and Energy-save Times 25
Setting an Individual Programme 26
Setting Comfort and Energy-save Temperatures 27
Timer Function 28
Oset 29

6
Gi
Window Function 29
Holiday Function 31
Key Lock 32
Heating Pause 32
Standby (LC Display) 33
Summertime/Wintertime 34
Version Number 34
Resetting the Factory Settings 35
Frost Monitoring Function 35
CalcicationProtectionFunction 36
Optional Accessories ���������������������������36
USB Programming Flash Drive 36
Troubleshooting and Maintenance�������37
Cleaning ����������������������������������������������38
Disposal ����������������������������������������������39
Guarantee������������������������������������������� 41
Manufacturer ��������������������������������������43

7
Gi
Introduction
Congratulations on the purchase of
your new device. You have chosen
a high quality product. Familiarise
yourself with the device before putting it into
operationforthersttime.Readthe
following operating instructions and safety
information carefully. Only use the device as
described and for the purpose for which it
was intended. Keep this operating instruction
manual in a safe place. Hand over all the
documents with the device if it is transferred
to third-parties.
General Function
The programmable radiator thermostat
RT2000, with its pre-programmed and indi-
vidually adjustable heating and energy-sav-
ing times, enables you to regulate the room
temperatureaccordingtodenedtimes.The
device moves a valve which controls the

8
Gi
heatowtotheradiator.Theprogramma-
bleRT2000radiatorthermostattsonall
common radiator valves and is easy to in-
stall – there is no necessity to drain heating
water or interfere with the heating system.
Intended Use
The programmable radiator thermostat
RT2000, subsequently referred to as "de-
vice", serves to regulate a common radiator
valve. The device may only be operated
indoors. Any use other than that described
in this operating manual is considered un-
intended use and results in loss of rights
related to the terms of guarantee and ex-
emption of liability. This also applies to any
reconstructionandmodication.Thedevice
is exclusively intended for private use.

9
Gi
Operating and Display
Elements
5
6
7
1
2
3
48
9
1 Heating times
2 USB port
3 AUTO or MANU mode active
4a
MENU button – opens the main menu
(starting from the standard display);
when a menu is open, the display
moves one menu level back each time
the button is pressed
4b
OK button–conrmasetting
4c TIME button – timer function
5 Adjusting wheel
6 Child safety lock
7 Batteryisat
8a Holiday function
8b Comfort temperature
8c Energy-save temperature
8d Frost monitoring function
9 Battery compartment

10
Gi
Settings
On pressing the MENU button, a menu opens
inwhichtodenesettings.Thevariousitems
can be selected by means of the adjusting
wheel. Press the OK button to select an
option and use the adjusting wheel to mod-
ify the corresponding parameters. Press the
OK buttontoconrmtheentry,pressthe
MENU button to move one level back in the se-
quence of menus.
MODE Operating mode:
AUTO = automatic mode
MANU = manual mode
PROG Timer programme
TEMP Comfort and energy-save
temperature
ZEIT Date and time
FENS Window function
RES Reset the default factory settings

11
Gi
ADAP Adaptation to valve adjustment
URLA Holiday function
INST  Installationfunction(onlytthe
device on the coupling ring in
this position)
OFFS Adapt the temperature to local
characteristics (or subjective per-
ception of temperature)
STBY Standby mode
DST Summertime/Wintertime
VERS Version number

12
Gi
Technical Data
Model RT2000
Supply voltage 3 VDC
Max. power consump-
tion 100 mA
Batteries 2 x AA mignon,
1.5 V
Battery service life Approx. 1 year
Display LC display
Dimensions (mm) 58 x 71.5 x 90
Connection M30 x 1.5
Ambient temperature +5 to +55 °C
Surface temperature Max. +90 °C
(on the radiator)
Linear stroke 4.3 mm
We reserve the right to
make technical changes to
improve the product�

13
Gi
Scope of Delivery
1 Programmable radiator thermostat
RT2000
1 Coupling ring
3 Adapters (Danfoss RA, Danfoss RAV,
Danfoss RAVL)
1 Operating instructions
2 Batteries (AA mignon), 1.5V
Safety Instructions
RISK OF FATAL AND PER-
SONAL INJURY TO INFANTS
AND CHILDREN! Never leave
children unattended when the packaging
material is nearby. The packaging material
representsariskofsuocation.Children
often underestimate the risks involved.
Always keep children away from the
packaging material. The device is not a toy.

14
Gi
Do not open the device; it does not
contain any parts which can be
serviced by the user. In the event of
any faults, send the device to the Service
Department.
This device can be used by children
from the age of 8 and persons with
reduced physical, sensory or mental
capabilities or lack of experience and knowl-
edge when they are under supervision or
have received instruction regarding safe use
of the device and any risks involved in
respect of its use. Children must not play with
the device. The device must not be cleaned
or serviced by children without appropriate
supervision.
Safety Information on
Batteries
Never attempt to recharge
non-rechargeable batteries and do

15
Gi
not short circuit or open them. This could
resultintheriskofoverheating,reor
bursting.Neverthrowbatteriesinareor
water. The batteries could explode.
Leaking batteries could damage the
device. Be particularly careful when
handling damaged or leaking
batteries and wear protective gloves. Switch
thedeviceowhenitisnotinusetosave
the batteries. Remove the batteries if the
device will be out of use for a longer period.
Inserting/Changing the
Batteries
□Remove the battery compartment cover.
□Insert the batteries (2 x AA mignon) in the
battery compartment, ensuring correct po-
larity (pay attention to the marking in the
battery compartment).

16
Gi
Property damage!
Risk of damage to the device through reverse
poling when inserting the batteries.
Pay attention the batteries are correctly aligned
when inserted.
□Replace the battery compartment cover.
□The service life of new batteries is approx.
1 year. The battery icon appears when
the batteries need to be changed.
NOTE: Do not use rechargeable
batteries to operate the device.
Setting the Date and
Time
Afterinsertingthebatteries,theyearashes.
Set the date and time.
□Use the adjusting wheel to set the year.
Conrmbypressing OK .
□Use the adjusting wheel to set the month.

17
Gi
Conrmbypressing OK .
□Use the adjusting wheel to set the day's
date.
Conrmbypressing OK .
□Use the adjusting wheel to set the hour.
Conrmbypressing OK .
□Use the adjusting wheel to set the minute.
Conrmbypressing OK .
appears in the display. Wait a moment
while the device prepares itself for installa-
tion.
As soon as the device is ready for installa-
tion, appears in the display.
The device automatically switches between
summertime and wintertime.
The menu option can be
selected at any time�
You can set the date and
time later using the
menu option�

18
Gi
Installation
CAUTION!
Risk of burns through hot radiator valve!
Contact could lead to hands being burned.
Allow the radiator to cool down before complet-
ing any assembly, disassembly or repair work
on the device!
Wear work gloves!
Assembly of the programmable radiator
thermostat is easy and can be completed
without the need to drain any heating wa-
ter or work on the heating system. It is not
necessary to use any special tools or switch
otheheatingsystem.Thecouplingring
contained with the material supplied can be
useduniversallyandwithoutanyttingsfor
all valves with thread size M30 x 1.5 mm
from the most common manufacturers, such
as
- Heimeier
- MNG
- Junkers

19
Gi
- Landis&Gyr (Duodyr)
- Honeywell-Braukmann
- Oventrop Type A, Oventrop AV6
- Schlösser
- Comap D805
- Valf
- Sanayii
- Mertik Maxitrol
- Watts
-Wingenroth(Wiroex)R.B.M
- Tiemme
- Jaga
- Siemens
- Idmar
Using the applicable adapter contained with
the material supplied, the programmable
radiator thermostat can be installed on Dan-
foss RA, Danfoss RAV and Danfoss RAVL
valves.
Disassembling the Old
Thermostat Head
□Turn the thermostat head to its highest set-
t i n g (11).
The thermostat head now no longer presses
on the valve spindle and is easier to disas-

20
Gi
semble (see Fig. 1).
Releasethexationofthethermostathead
(12) and remove the thermostat head (12).
Adapters for Danfoss
During assembly, be careful not to
jamyourngersbetweenthehalves
of the adapter!
One of the adapters contained in the mate-
rial supplied is required in order to assemble
the thermostat on Danfoss valves. Please re-
fertothegures(2-4)fortheassignmentof
the adapter ring to the corresponding valve.
The bodies of the valves from Danfoss are
provided with longitudinal grooves (13)
around the circumference which ensure a
moresecuretoftheadapterafterbeing
latched on.
NOTE: During assembly, please
pay attention that the spigots inside

21
Gi
the adapter (14) are aligned to the
grooves (13) in the valve.
□Then slide the corresponding adapter on
the valve until it latches into place.
The RA and RAV adapters are produced to
have a pretension in order to provide a bet-
tert.Ifnecessary,useascrewdriverduring
assembly in order to open the corresponding
adapter a little in the area of the screw.
□Afterttingtherelevantadapteronthe
valvebody,xtheadapterinplaceusing
the relevant screw and nut supplied (see
Fig. 2, 3).
□Fixthevalveadapterrmly.
In the case of RAV valves, the plunger exten-
sion(15)mustbetonthevalvepin(seeFig.
2) prior to assembly.
Fit the device on the valve or adapter.
The device latches audibly�

22 
Disassembly
CAUTION!:
Risk of burns through hot radiator valve!
Contact could lead to hands being burned.
Allow the radiator to cool down before complet-
ing any assembly, disassembly or repair work
on the device!
Wear work gloves!
□Turn the adjusting wheel to the right until
appears.
□Wait a few seconds until the valve is fully
open.
□Press on the lock to unlock the quick re-
lease latch.
