Silvercrest SAS 7.4 LI B1 User manual

IAN 273028
LI-ION RECHARGEABLE HANDHELD
VACUUM CLEANER SAS 7.4 LI B1
LI-ION RECHARGEABLE HANDHELD
VACUUM CLEANER
Operating instructions
РЪЧНА ПРАХОСМУКАЧКА С
ЛИТИЕВО-ЙОННА БАТЕРИЯ
Ръководство за експлоатация
ASPIRATOR DE MÂNĂ CU
ACUMULATOR LI-ION
Instrucţiuni de utilizare
HΛΕΚΡΙΚΟ ΣΚΟΥΠΑΚΙ ΧΕΙΡΟΣ-
ΜΠΑΤΑΡΙΑΣ ΙΟVΤΩV ΛΙΘΙΟΥ
Οδηүίες χρήσης
LI-ION-AKKU-HANDSTAUBSAUGER
Bedienungsanleitung

GB/CY Operating instructions Page 1
RO Instrucţiuni de utilizare Pagina 13
BG Ръководство за експлоатация Cтраница 25
GR/CY Οδηүίες χρήσης Σελίδα 37
DE/AT/CH Bedienungsanleitung Seite 49
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of
the device.
Înainte de a citi instrucţiunile, priviţi imaginile şi familiarizaţi-vă cu toate funcţiile aparatului.
Преди да прочетете отворете страницата с фигурите и след това се запознайте с всички функции
на уреда.
Πριν ξεκινήσετε την ανάγνωση, ανοίξτε τη σελίδα με τις εικόνες και εξοικειωθείτε με όλες τις λειτουργίες
της συσκευής.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich anschließend mit allen
Funktionen des Gerätes vertraut.

4
1
2
q
0
8
7
6
3
5
9

GB│CY │ 1 ■
SAS 7.4 LI B1
Contents
Introduction...................................................2
Intended use ..................................................2
Package contents ..............................................2
Description of the appliance .....................................3
Technical data .................................................3
Important safety instructions.....................................4
Prior to first use................................................6
Information about the batteries ..................................6
Installation of the wall bracket ...................................7
Charging .....................................................8
Operation ....................................................8
Cleaning......................................................9
Disposal .....................................................10
Warranty and service..........................................11
Importer.....................................................11

■ 2 │ GB│CY SAS 7.4 LI B1
Introduction
Congratulations on the purchase of your new appliance.
You have selected a high-quality product. The operating instructions are part of this
product. They contain important information on safety, usage and disposal. Before
using the product, familiarise yourself with all operating and safety instructions. Use
the product only as described and for the specified areas of application. Please also
pass on these operating instructions to any future owner.
Intended use
This handheld vacuum cleaner may only be used to vacuum dry or wet surfaces,
or dry or wet materials and liquids. Do not vacuum people or animals with this
appliance. Any other usage of or modification to the appliance is deemed to be
improper and carries a significant risk of accidents. The manufacturer accepts no
liability for damages that result from improper use of the appliance or are caused
by the incorrect operation of it. The appliance is not intended for commercial use.
Package contents
▯ Li-Ion Rechargeable Handheld Vacuum Cleaner
▯ Crevice tool
▯ Wet suction nozzle
▯ Wall bracket
▯ Mounting kit
▯ Mains adapter
▯ Operating instructions
Check the package contents for completeness directly after unpacking.

GB│CY │ 3 ■
SAS 7.4 LI B1

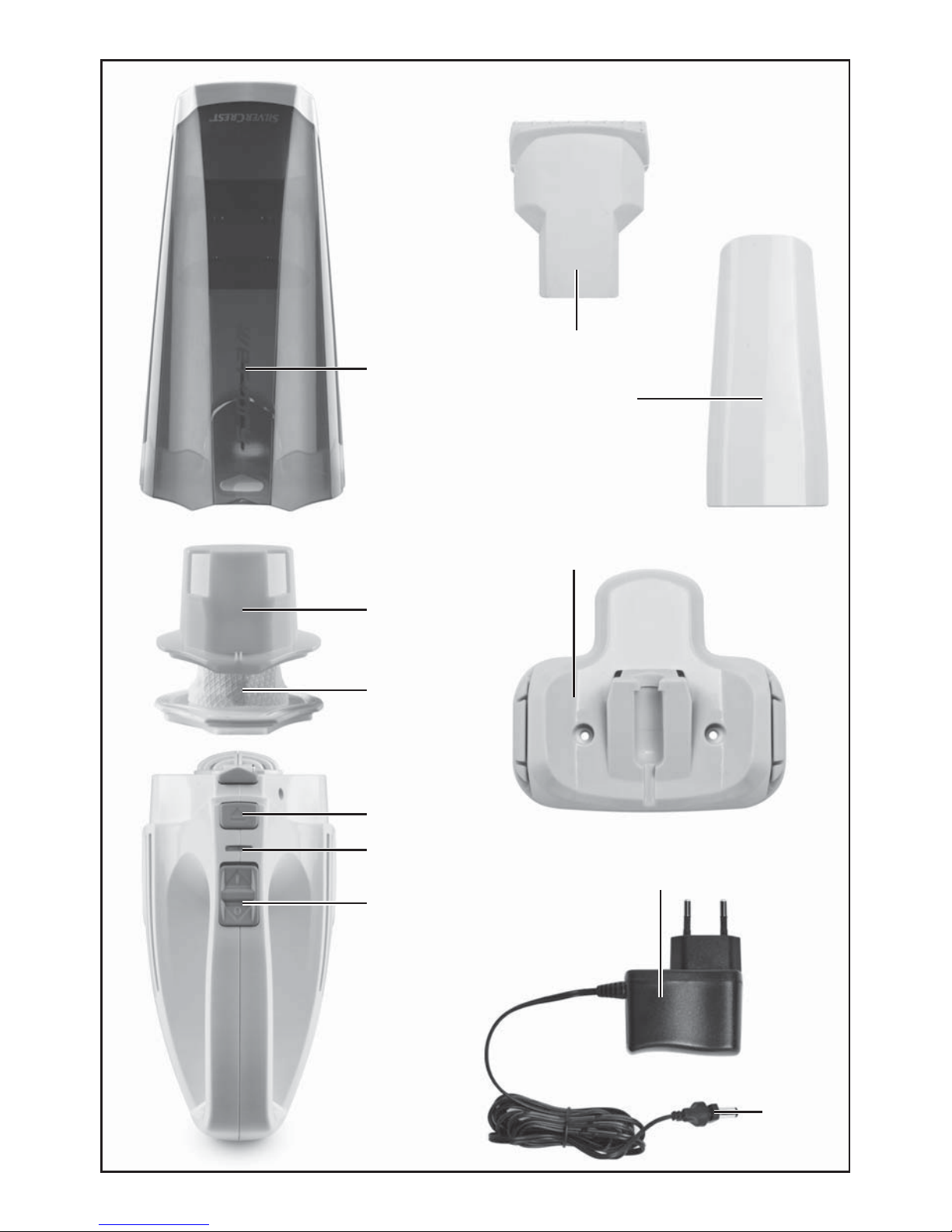

Description of the appliance
Wet suction nozzle
Crevice nozzle
Wall bracket
Mains adapter
Barrel plug
On/off switch
Charge indicator lamp (red/green)
Release button
Dust filter bag
Dust filter
-Dirt container
NOTE
► This appliance is supplied with non-charged batteries. The batteries must be
charged for 24 hours before the first use.
Technical data
Mains adapter 
Input voltage/current 100 - 240 V ~, 50/60 Hz
max. 300 mA
Output voltage/current: 9.6 V / 300 mA
Protection class II /
Type designation SAS 7.4 LI B1-1
Appliance
Input voltage 9.6 V
Rechargeable batteries
Capacity 1300 mAh
Rechargeable battery 7.4 V (2 x 3.7 V Lithium-ion
rechargeable batteries)

■ 4 │ GB│CY SAS 7.4 LI B1
Important safety instructions
DANGER – ELECTRIC SHOCK!
► Do not charge or use the appliance outdoors.
► Never use the handheld vacuum cleaner if the cable, plug
or casing are damaged.
► To avoid risks, arrange to have damaged power cables
and/or plugs replaced as soon as possible by a qualified
specialist.
► Have all repairs carried out by a specialist workshop. Under
no circumstances should you open the appliance yourself.
Repairs that are not carried out by a specialist workshop
could lead to physical injuries.
► Before switching on the appliance, make sure that the mains
voltage corresponds to the voltage indicated in the technical
data for the appliance.
► Never touch the mains adapter or the appliance with wet or
damp hands.
► Do not use the mains adapter with an extension cable; con-
nect the mains adapter directly to a power socket.
WARNING! RISK OF INJURY!
► Do not change any accessories while the appliance is
switched on.
► Do not use the handheld vacuum cleaner for vacuuming up
sharp objects or glass shards.
► Never vacuum up burning matches, glowing ashes or ciga-
rette butts.
► Do not use the handheld vacuum cleaner for vacuuming up
chemical products, stone dust, gypsum, cement or similar
particles.

GB│CY │ 5 ■
SAS 7.4 LI B1
WARNING! RISK OF INJURY!
► This appliance is not suitable for use with inflammable and
explosive substances or chemical and aggressive liquids.
► Always store the appliance indoors. To prevent accidents,
keep the appliance in a dry location when not in use.
► Under extreme conditions, leaks in the battery cells may oc-
cur. In the event that battery fluid comes into contact with skin
or eyes, the affected area must be rinsed off with water imme-
diately. Contact a physician.
► This appliance may be used by children aged 8 years and
above and by persons with limited physical, sensory or mental
capabilities or lack of experience and knowledge, provided
that they are under supervision or have been told how to use
the appliance safely and are aware of the potential risks.
► Children must not use the appliance as a plaything.
► Cleaning and user maintenance tasks may not be carried
out by children unless they are supervised.
► Take special care when using the handheld vacuum cleaner
on stairs.
CAUTION! PROPERTY DAMAGE!
► Use only accessories recommended by the manufacturer.
► The mains adapter may not be used for other purposes.
Never carry the wall bracket or the mains adapter by the
cable. Do not pull on the cable when you want to move the
appliance.
► Always grip the power plug to disconnect the appliance
from the power supply.

■ 6 │ GB│CY SAS 7.4 LI B1
CAUTION! PROPERTY DAMAGE!
► Always be sure to keep the handheld vacuum cleaner away
from heating elements, ovens or other heated appliances
and surfaces.
► Make sure that the ventilation slits are never obstructed.
A blocked ventilation circuit can result in overheating and
damage to the appliance.
► This product contains rechargeable batteries. Do not throw
the batteries into a fire and do not subject them to high tem-
peratures. There is a risk of explosion!
► Do not use the handheld vacuum cleaner without the dust
filter inserted.
► Do not use the mains adapter for a different product and do
not attempt to charge this appliance with a different mains
adapter. Use only the mains adapter supplied with this appli-
ance.
► Never attempt to recharge non-rechargeable batteries.
► The batteries in this appliance cannot be replaced.
Prior to first use
■ Remove all packaging materials from the appliance.
■ Place the dirt container -on the motor unit:
–Push the plastic tab on the underside of the handheld vacuum cleaner
into the recess on the dirt container -.
–Press the release button and push the dirt container -onto the motor
unit at the same time.
–Let go of the release button so that the restraint engages in the recess.
The dirt container -is now firmly seated on the motor unit.
Information about the batteries
1) This handheld vacuum cleaner is powered by rechargeable lithium-ion batteries.
Before using the handheld vacuum cleaner for the first time, the batteries must
be charged for at least 24 hours.

GB│CY │ 7 ■
SAS 7.4 LI B1
2) The batteries reach their full capacity after a charging time of 24 hours. For
care of the batteries, we recommend the following: Once the batteries have
been charged, disconnect the mains adapter from the mains socket. Do
not reconnect the mains adapter with the mains socket until the handheld
vacuum cleaner’s suction power has noticeably decreased.
Installation of the wall bracket
DANGER – ELECTRIC SHOCK!
► Ensure that there are no power cables or other conduits or pipes in the wall
at the location where you intend to bore the holes for the wall bracket .
Drilling into a current-carrying electric cable can be potentially fatal!
1) Place the barrel plug of the mains adapter into the wall bracket as
shown in the diagram. Secure the barrel plug by turning it.
2) Select a suitable installation location for the wall bracket :
It must be possible to remove the handheld vacuum cleaner easily and there
must be an accessible mains power socket for the mains adapter .
3) Drill two holes about 62 mm apart. Use the wall bracket to mark the holes,
to ensure the correct spacing. The drill holes must be suitable for 5 mm wall
plugs.
4) Push the wall plugs into the holes and then screw the wall bracket firmly
into place using the screws.
5) You can place the nozzles on the accessories holder on the side.
6) Connect the mains adapter to a mains power socket.

■ 8 │ GB│CY SAS 7.4 LI B1
Charging
NOTE
► Check to ensure that the on/off switch has been pushed back (to the
position "0") before starting the charging process.
■ Place the handheld vacuum cleaner from above into the wall bracket so
that the barrel plug slips into the socket on the handheld vacuum cleaner.
The charge indicator lamp lights up red and the charging process begins.
■Important: The charge indicator lamp lights up green once the handheld
vacuum cleaner is charged enough to vacuum again. This does not mean that
all the batteries are completely charged. When the charge indicator lamp 
lights up green, the batteries are charged to around 80%.
■ When charging is complete, which can take around 5 hours with fully dis-
charged batteries, the appliance automatically switches to a trickle charge
(maintenance function). Nevertheless, in order to avoid possible damage
to the batteries, do not leave the appliance permanently connected to the
mains adapter .
■ Do not recharge the batteries again until the handheld vacuum cleaner’s
suction power becomes appreciably weaker and the charge indicator lamp 
flashes green.
NOTE
► The handheld vacuum cleaner can also be charged directly via the mains
adapter . To do this, remove the barrel plug with a slight twist from the
wall bracket and insert it into the socket on the handheld vacuum cleaner.
Operation
CAUTION!
► The suction opening must always be open and may not be blocked. Block-
ages lead to overheating and damage to the motor.
NOTICES
► Make certain that the dust filter is always inserted before using the
appliance.
► When vacuuming liquid, do not exceed the MAX marking in dirt container -.

GB│CY │ 9 ■
SAS 7.4 LI B1
1) Remove the handheld vacuum cleaner from the wall bracket or, if you are
not using the wall bracket remove the barrel plug from the socket.
2) If required, place the appropriate nozzle in the suction opening:
–the crevice nozzle , to clean narrow and difficult to reach locations.
–the wet suction nozzle to vacuum up liquids.
NOTE
► After you have vacuumed up liquids, immediately clean the dirt container -.
Otherwise, bacteria or mould will build up inside! Ensure that the dust filter
bag is completely dry before using the appliance again.
3) To switch the appliance on, slide the on/off switch forwards. The charge
indicator lamp lights up green.
4) When you have finished using the appliance, slide the on/off switch to
the rear.
NOTE
► Place the handheld vacuum cleaner in the wall bracket and start the
charging process once the vacuum power has become noticeably weaker
and the charge indicator lamp flashes green.
Cleaning
To achieve the best results, empty the dirt container -and clean the dust filter 
after every use.
CAUTION! MATERIAL DAMAGE!
► Do not use aggressive, chemical or abrasive cleaning agents. These could
damage the outer surfaces of the appliance.
1) To open the dirt container -, press the release button and remove the
dirt container -.
2) Remove the dust filter from the dirt container -.
3) Empty the dirt container -.
4) Pull the dust filter bag with its holder out of the dust filter .
5) Rinse the dust filter bag out in cold water and wait until it is completely
dry before reinserting it into the dust filter . Do not dry it with hot air.
6) Reinsert the dust filter into the dirt container -. When doing so, ensure
that the dust filter is seated squarely and that the rubber lip seals the dirt
container -.

■ 10 │ GB│CY SAS 7.4 LI B1
7) Replace the dirt container -on the motor unit again:
–Push the plastic tab on the underside of the handheld vacuum cleaner
into the recess on the dirt container -.
–Press the release button and push the dirt container -onto the motor
unit at the same time.
–Let go of the release button so that the restraint engages in the recess.
The dirt container -is now firmly seated on the motor unit.
8) Clean the housing and both nozzles with a lightly moistened cloth. For stubborn
soiling use a mild detergent on the cloth.
9) Dry all parts thoroughly before using the appliance again or storing it.
Disposal
Do not dispose of the appliance in your normal domestic waste.
This product is subject to the provisions of European Directive
2012/19/EU.
The appliance and the batteries must be disposed of separately.
1) To do this, unscrew all the cross-head screws on the motor block and take it
apart.
2) Cut the connection cable from the battery and remove the battery from the
appliance.
Dispose of the appliance via an approved waste disposal company or your
municipal waste disposal facility.
Please comply with all applicable regulations. Please contact your waste disposal
facility if you are in any doubt.
Disposal of (rechargeable) batteries
Used batteries may not be disposed of in domestic waste. Consumers are required
by law to dispose of batteries at a collection point provided by their local commu-
nity or at a retail store. The purpose of this obligation is to ensure that batteries are
disposed of in an environmentally friendly manner. Only dispose of batteries when
they are fully discharged.
The packaging is made from environmentally friendly material and can be
disposed of at your local recycling plant.

GB│CY │ 11 ■
SAS 7.4 LI B1
Warranty and service
This appliance is provided with a 3-year warranty valid from the date of purchase.
This appliance has been manufactured with care and inspected meticulously prior
to delivery.
Please retain your receipt as proof of purchase. In the event of a warranty claim,
please contact your Customer Service unit by telephone. This is the only way to
guarantee free return of your goods.
NOTE
► The warranty only covers claims for material and manufacturing defects, not
for transport damage, worn parts or damage to fragile components such as
buttons or rechargeable batteries.
This product is intended solely for private use and not for commercial purposes.
The warranty shall be deemed void in cases of misuse or improper handling, use
of force and modifications/repairs which have not been carried out by one of
our authorised Service centres.
Your statutory rights are not restricted by this warranty.
The warranty period is not prolonged by repairs effected under the warranty.
This also applies to replaced and repaired components.
Any damage and defects present at the time of purchase must be reported im-
mediately after unpacking, but no later than two days after the date of purchase.
Repairs carried out after expiry of the warranty period shall be subject to charge.
Service Great Britain
Tel.: [phone] (£ 0.10/Min.)
E-Mail: k[email protected]
IAN 273028
CY Service Cyprus
Tel.: [phone]
E-Mail: k[email protected]
IAN 273028
Hotline availability: Monday to Friday 08:00 - 20:00 (CET)
Importer
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com

■ 12 SAS 7.4 LI B1

RO │ 13 ■
SAS 7.4 LI B1
Cuprins
Introducere ..................................................14
Utilizarea conform destinaţiei ...................................14
Furnitura ....................................................14
Descrierea aparatului..........................................15
Date tehnice..................................................15
Indicaţii de siguranţă importante ................................16
Înainte de prima utilizare.......................................18
Informaţii privind acumulatorii ..................................18
Montarea suportului de perete ..................................19
Încărcarea ...................................................20
Utilizarea....................................................20
Curăţarea ...................................................21
Eliminarea ...................................................22
Garanţia şi service-ul ..........................................23
Importator...................................................23

■ 14 │ RO SAS 7.4 LI B1
Introducere
Felicitări pentru cumpărarea noului dvs. aparat.
Prin aceasta v-aţi decis pentru un produs de calitate superioară. Instrucţiunile
de utilizare fac parte integrantă din acest produs. Acestea cuprind informaţii
importante pentru siguranţă, utilizare şi eliminare. Înainte de utilizarea produsului
familiarizaţi-vă cu toate indicaţiile privind utilizarea şi siguranţa. Utilizaţi acest
produs numai în modul descris şi numai în scopurile menţionate. În cazul transmi-
terii aparatului unei alte persoane, predaţi-i, de asemenea, documentele aferente
acestuia.
Utilizarea conform destinaţiei
Aspiratorul de mână poate fi utilizat numai pentru aspirarea suprafeţelor uscate
sau ude, resp. pentru aspirarea resturilor uscate sau ude. A nu se utiliza asupra
oamenilor sau animalelor. Orice altă utilizare sau modificare a aparatului este
considerată a fi neconformă şi atrage pericole considerabile de accidentare. Pro-
ducătorul nu răspunde pentru pagubele cauzate prin utilizarea neconformă sau
manipularea greşită. Este interzisă utilizarea aparatului în scopuri profesionale.
Furnitura
▯ Aspirator de mână cu acumulator Li-Ion
▯ Duză pentru rosturi
▯ Duză pentru aspirare umedă
▯ Suport de perete
▯ Material de montaj
▯ Adaptor de reţea
▯ Instrucţiuni de utilizare
Imediat după livrare, verificaţi dacă furnitura este completă.

RO │ 15 ■
SAS 7.4 LI B1
Descrierea aparatului
Duză pentru aspirare umedă
Duză pentru rosturi
Suport de perete
Adaptor de reţea
Conector-tată
Comutator pornit/oprit
Bec de control al încărcării (roşu/verde)
Tastă de deblocare
Sac filtru de praf
Filtru de praf
-Recipient de colectare a resturilor
INDICAŢIE
► Aparatul este livrat cu acumulatorii descărcaţi. Înainte de prima utilizare
a aparatului, acumulatorii trebuie mai întâi încărcaţi timp de 24 ore.
Date tehnice
Adaptor de reţea 
Tensiune / curent de intrare 100 - 240 V ~, 50/60 Hz
max. 300 mA
Tensiune / curent de ieşire: 9,6 V / 300 mA
Clasa de protecţie II /
Denumire tip SAS 7.4 LI B1-1
Aparat
Tensiune de intrare 9,6 V
Acumulatori
Capacitate 1300 mAh
Acumulator 7,4 V (2 x 3,7 V acumulatori litiu-ion )

■ 16 │ RO SAS 7.4 LI B1
Indicaţii de siguranţă importante
PERICOL DE ELECTROCUTARE!
► Nu încărcaţi, respectiv nu utilizaţi aparatul în aer liber.
► Nu utilizaţi niciodată aspiratorul de mână dacă ştecărul,
cablul sau carcasa sunt deteriorate.
► Dacă ştecărul sau cablul de alimentare se defectează,
solicitaţi imediat înlocuirea respectivei componente de către
personal de specialitate autorizat, pentru a evita situaţiile
periculoase.
► Reparaţiile trebuie executate numai într-un atelier de speci-
alitate. Nu desfaceţi aparatul în nicio circumstanţă. În urma
intervenţiilor care nu au fost realizate de către o firmă de
specialitate, pot rezulta răniri.
► Înainte de pornirea aparatului, asiguraţi-vă că tensiunea
indicată în datele tehnice ale aparatului corespunde cu tensi-
unea reţelei dvs. de curent.
► Nu puneţi mâinile ude sau umede pe adaptorul de reţea sau
pe aparat.
► Nu utilizaţi adaptorul de reţea împreună cu un cablu prelun-
gitor, ci conectaţi adaptorul direct la priză.
AVERTIZARE! PERICOL DE RĂNIRE!
► Nu schimbaţi accesoriile în timp ce aparatul se află în funcţiune.
► Nu utilizaţi aspiratorul de mână pentru aspirarea obiectelor as-
cuţite sau a cioburilor de sticlă.
► Nu aspiraţi niciodată chibrituri aprinse, cenuşă cu jar sau
mucuri de ţigară.
► Nu utilizaţi aspiratorul de mână pentru aspirarea produselor
chimice, a prafului de piatră, gipsului, cimentului sau a altor
particule asemănătoare.

RO │ 17 ■
SAS 7.4 LI B1
AVERTIZARE! PERICOL DE RĂNIRE!
► Aparatul nu este adecvat pentru substanţe inflamabile sau
explozive şi nici pentru lichide chimice sau agresive.
► Păstraţi aparatul întotdeauna în încăperi închise. Pentru a
preveni accidentele, după utilizare, păstraţi aparatul într-un
loc uscat.
► În condiţii extreme pot apărea scurgeri la nivelul celulelor
acumulatorilor. La contactul lichidului scurs cu pielea sau cu
ochii, zona afectată trebuie spălată bine, resp. clătită imedi-
at cu apă curată. Consultaţi un medic.
► Acest aparat poate fi utilizat de copii începând cu vârsta de
8 ani, precum şi de persoane cu abilităţi fizice, senzoriale
sau mentale reduse sau fără experienţă şi fără cunoştinţe
necesare numai dacă sunt supravegheate sau dacă au fost
instruite cu privire la utilizarea în siguranţă a acestui aparat
şi au înţeles pericolele cu privire la acesta.
► Copiilor le este interzis să se joace cu aparatul.
► Curăţarea şi acţiunile de întreţinere destinate utilizatorului nu
se vor efectua de către copii fără supraveghere.
► Fiţi deosebit de atent când utilizaţi aspiratorul de mână pe
scări.
ATENŢIE! PABUGE MATERIALE!
► Utilizaţi numai accesorii recomandate de către producător.
► Adaptorul de reţea nu trebuie utilizat în alte scopuri. Nu
transportaţi niciodată de cablu suportul de perete sau adaptorul
de reţea. Nu trageţi de cablu când doriţi să mişcaţi aparatul
din loc.
