Sim-Lab XB-1 User manual

INSTRUCTION MANUAL
XB-1 Mounting Bracket
VERSION 1.0
Last updated: 30-05-2023

2|2 9
BEFORE YOU START:
Thank you for purchasing this Sim-Lab product! On the following pages, you will find detailed instructions
on assembly. This requires only a set of simple tools and some of your time. Please check the bill of
materials before starting (page 8) and make sure all the parts are delivered.
This product only consist of a bracket to be able mount your XB-1 Loadcell Handbrake next to an existing
shifter (mount). Using this bracket, you can use your sequential or h-shifter simultaneously with the XB-1
Loadcell Handbrake for the ultimate rally or rallycross experience with all controls you need, where you
need them.

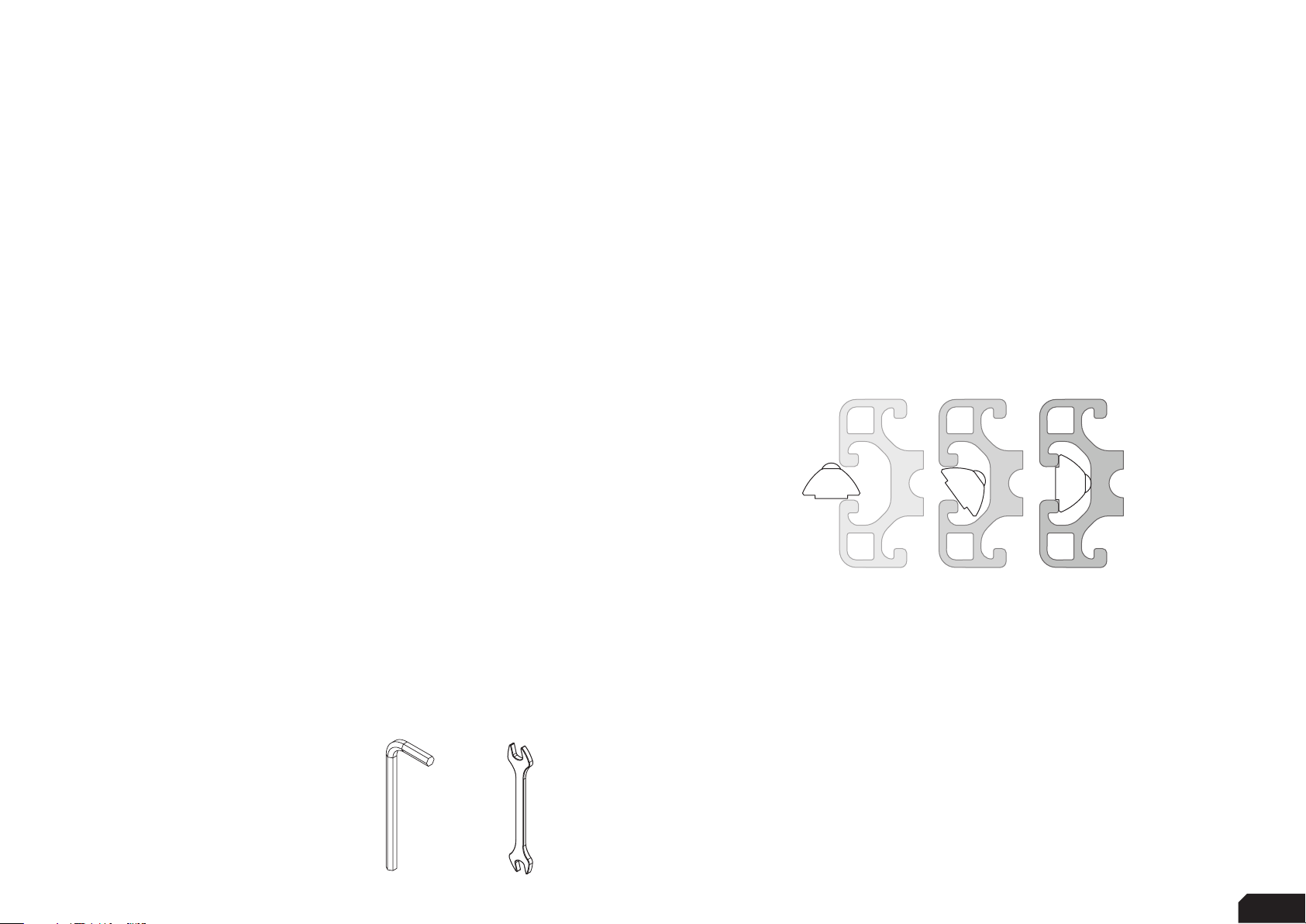

Inserting Slot-Nuts:
You got excited, finished the build, put the caps on, but forgot to install
one element. Do not worry. It happens to everyone. In this diagram, you
can see how to insert a Slot-Nut directly into the slot from the side.
You can also use one of your smaller Hex wrenches to help wiggle
the Slot-Nut in place.
Tools needed:
5/6MM 10MM

3|3 9
Bracket
Front (A2)
Bracket
Rear (A3)
Bracket
Top (A1)
1X 1X1X
M6 X 16
4X
Washer M6
4X
Lock-Nut M6
4X
A6
A8
A7
A1
A2
A3

4|4 9
4X
Slot-Nut M6 The profile represents a side mount.
A9

5|5 9
M6 X 16
4X
Washer M6
4X
A7
A5

6|6 9
M6 X 20
2X
Washer M6
4X
Lock-Nut M6
2X
A7
A4
A8

7|7 9
The maximum angle the handbrake can be
positioned at is about 20 degrees.
With the two shorter slots, you can make
sure to clear a big h-shifter.

8|8 9
XB-1 Mounting Bracket
HARDWARE KIT
#Part QTY Note
A1 Bracket Top 1
A2 Bracket Front 1
A3 Bracket Rear 1
A4 Bolt M6 X 20 DIN 912 2
A5 Bolt M6 X 16 DIN 912 4
A6 Bolt M6 X 16 DIN 7991 4 Countersunk
A7 Washer M6 DIN 125-A 12
A8 Lock-Nut M6 6
A9 Slot-Nut M6 4
Disclaimer: for some entries on this list, we supply more than required as spare
materials. Don’t worry if you have some leftovers, this is intentional.

9|9 9
If you still have some questions regarding assembly of this product or about the manual itself,
please refer to our support department. They can be reached at
suppor[email protected]
Alternatively, we now have a Discord server where there are quite some experienced Sim-Lab
customers hanging out. They might just help you along if you ask them nicely ;)
www.sim-lab.eu/discord
If you feel like printing this manual, please consider the environment before doing so. For the best
results, make sure you print at 100% scale without borders.
