Sime 70 Mk.II User manual

INSTALLER INSTRUCTIONS
CONTENTS
1 DESCRIPTION OF THE BOILER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pag. 48
2 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pag. 49
3 CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pag. 53
4 USE AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pag. 55
IMPORTANT
When carrying out commissioning of the boiler, you are highly recommended to perform the following checks:
– Make sure that there are no liquids or inflammable materials in the immediate vicinity of the boiler.
– Make sure that the electrical connections have been made correctly and that the earth wire is connected to a
good earthing system.
– Open the gas tap and check the soundness of the connections, including that of the burner.
– Make sure that the boiler is set for operation for the type of gas supplied.
– Check that the flue pipe for the outlet of the products of the combustion is unobstructed.
– Make sure that any shutoff valves are open.
– Make sure that the system is charged with water and is thoroughly vented.
–
Purge the system, bleeding off the air present in the gas pipe by operating the pressure relief valve on the
gas valve inlet.
CHARACTERISTICS OF THE SYSTEM SAFETY VALVE: calibration pressure: 4 bar; maximum generator power: 205.8 Kw, 1/2”
x 3/4” fixtures (see Caleffi catalogue, code 527440).
FONDERIE SIME S.p.A of Via Garbo 7 -Legnago (VR)-Italy declares that its hot water boilers, which bear the EC mark
under Gas Directive 90/396/EEC and are fitted with a safety thermostat calibrated to a maximum of 110 °C, are
excluded from application of Directive PED 97/23/EEC in that they satisfy the requirements of article 1 paragraph
3.6 of this Directive.
RMG Mk.II - ENGLISH

48
IT
ES
PT
GB
1.1 INTRODUCTION
The “RMG Mk.II” are hot water generators
designed for medium-sized heating plants.
Are designed and built in accordance with
the european directives 90/396/CEE,
89/336/CEE, 73/23/CEE, 92/42/CEE
and with the european specification EN
656.
These appliances can be fired by natural
gas (methane) and butane gas (G30) or
propane gas (G31). The instructions given in
this manual are provided to ensure proper
installation and perfect operation of the
appliance.
1 DESCRIPTION OF THE BOILER

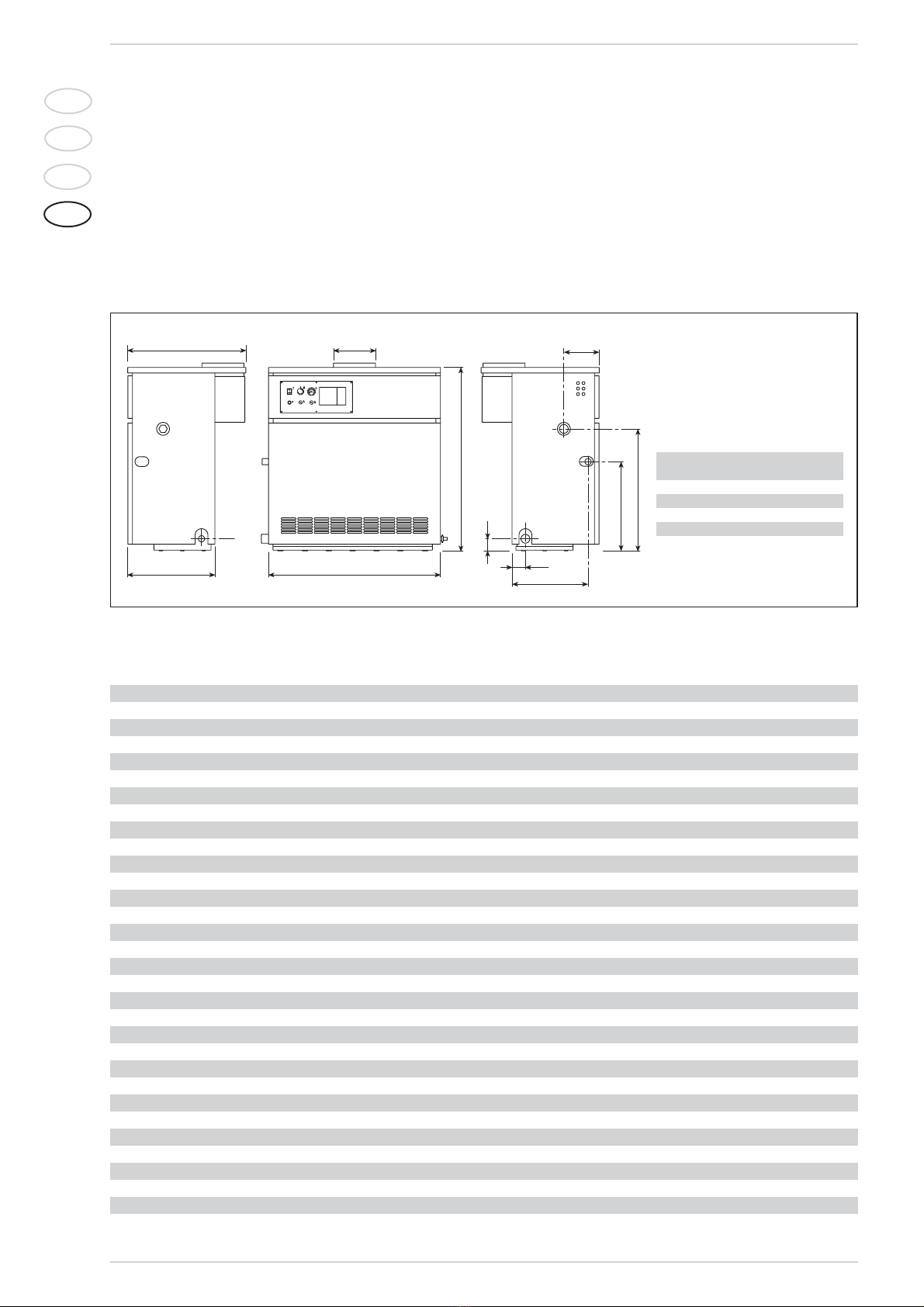

1.2 DIMENSIONS
PD
475
S
LA
75
R
G
M
195
1000
65
485
665
Fig. 1
R C.H. return 11/2”
M C.H. flow 11/2”
G Gas connection 1”
S Boiler/filling drain 3/4”
LDPA
mm ø mm mm mm
70 Mk.II 840 180 645 415
80 Mk.II 940 180 645 415
90 Mk.II 1040 200 645 415
100 Mk.II 1140 225 645 415
110 Mk.II 1240 250 670 400
1.3 TECHNICAL FEATURES
70 Mk.II 80 Mk.II 90 Mk.II 100 Mk.II 110 Mk.II
Heat output kW 49.1-70.1 56.0-78.7 63.0-90.0 69.9-98.6 74.7-107.9
Heat input kW 54.5-77.9 62.2-87.4 70.0-100.0 77.7-109.5 85.5-120.5
Sections n° 8 9 10 11 12
Power consumption W16 16 16 16 69
Maximum water head bar 4 4 4 4 4
Test pressure bar 6 6 6 6 6
Water content l25 28 31 34 37
Category II2H3+ II2H3+ II2H3+ II2H3+ II2H3+
Type B11BS B11BS B11BS B11BS B11
Smokes temperature °C 158 160 160 144 140
Smokes flow kg/h 170 180 230 287 330
Maximum temperature °C 95 95 95 95 95
C.H. setting range °C 40÷85 40÷85 40÷85 40÷85 40÷85
Main burner nozzles
Quantity n° 7 8 9 10 11
Natural gas ø mm 2.95 2.95 2.95 2.95 2.95
G30 - G31 ø mm 1.70 1.70 1.70 1.70 1.70
Gas consumption *
Natural gas m3st/h 8.2 9.2 10.6 11.6 12.7
Butane (G30) kg/h 6.0 6.8 7.7 8.5 9.3
Propane (G31) kg/h 5.9 6.7 7.6 8.3 9.1
Burner gas pressure
Natural gas mbar 4.5 - 9.3 4.6 - 9.1 4.7 - 9.3 4.7 - 9.3 4.6 - 9.3
Butane (G30) mbar 12.2 - 25.2 12.3 - 25.4 12.0 - 25.1 12.5 - 25.1 12.6 - 25.6
Propane (G31) mbar 16.4 - 32.6 16.1 - 30.2 15.6 - 30.0 16.6 - 32.7 16.6 - 34.3
Gas supply pressure
Natural gas mbar 20 20 20 20 20
Butane (G30) mbar 30 30 30 30 30
Propane (G31) mbar 37 37 37 37 37
Weight kg 238 266 294 322 350
* The gas consumptions refer to the calorific value at standard conditions at 15°C - 1013 mbar.

The boiler must be installed in a fixed loca-
tion and only by specialized and qualified
firms in compliance with all instructions
contained in this manual.
Furthermore, the installation must be in
accordance with current standards and
regulations.
2.1 BOILER ROOM
The “RMG Mk.II” boilers with a rating of
more than 35 kW must be equipped with a
technical room whose dimensions and
requirements correspond to the current
safety standards.
The minimum height of the boiler room
must comply with what is indicated in fig. 3
in relation to the overall thermal capacity.
The minimum distance between the walls of
the room and the external points of the boi-
ler (right, left side, rear) must not be less
than 0.60 m.
It is possible to place a number of appara-
tus next to each other, on condition that all
the safety and control devices can be
easily reached. In addition, to circulate air
in the room, air vents must be made on
the outside walls for which the surface
area must never be less than 3,000 cm2
and 5,000 cm2for gas with a density
greater than 0.8.
2.1.1 Handling
Once the boiler is in its place of installation
and the packaging has been removed, pro-

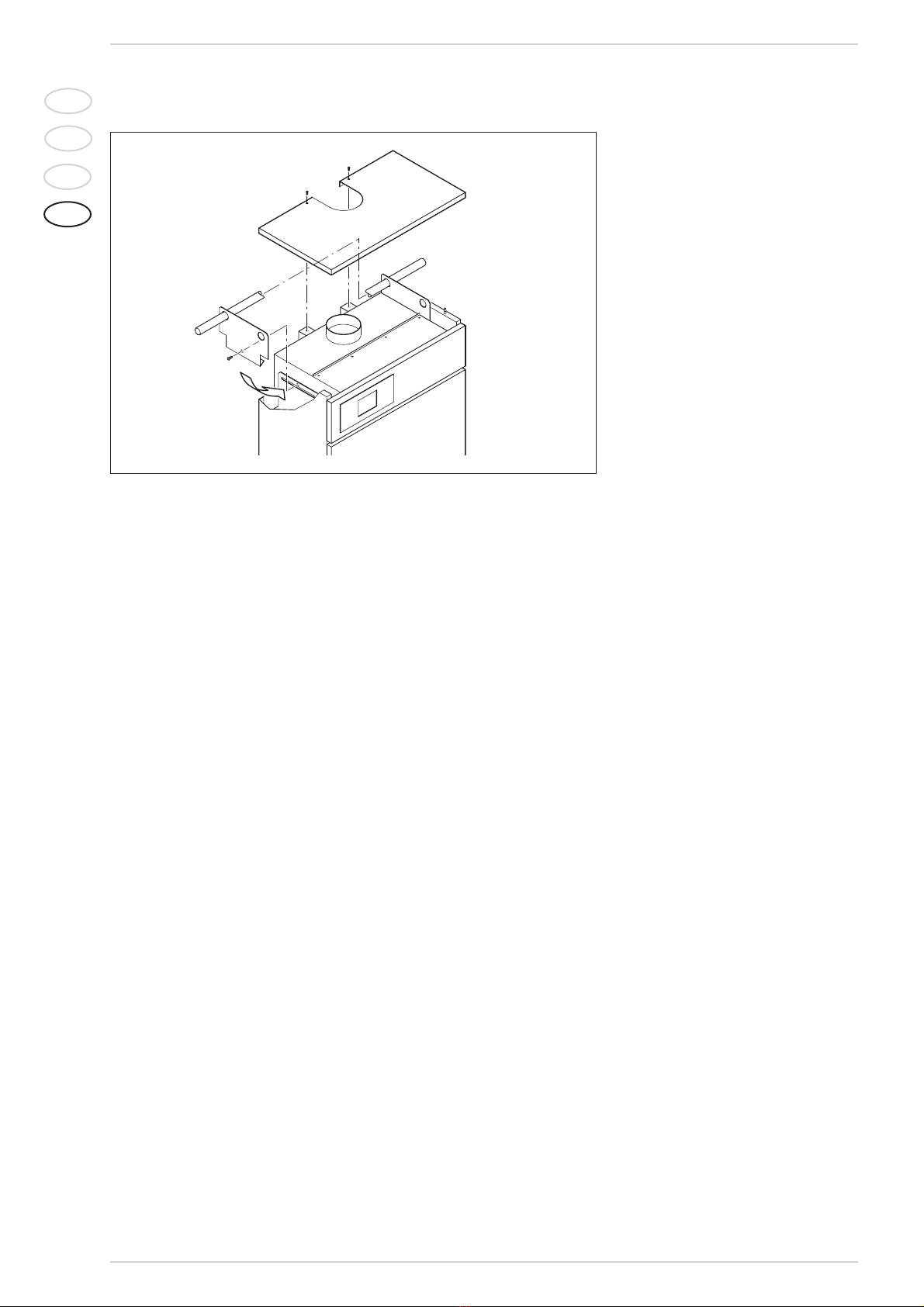

ceed as follows if it must be moved (fig. 3/a):
– remove the casing cover;
– attach the lifting brackets (located on the
rear of the boiler) and fasten it in place
1.4 MAIN COMPONENTS

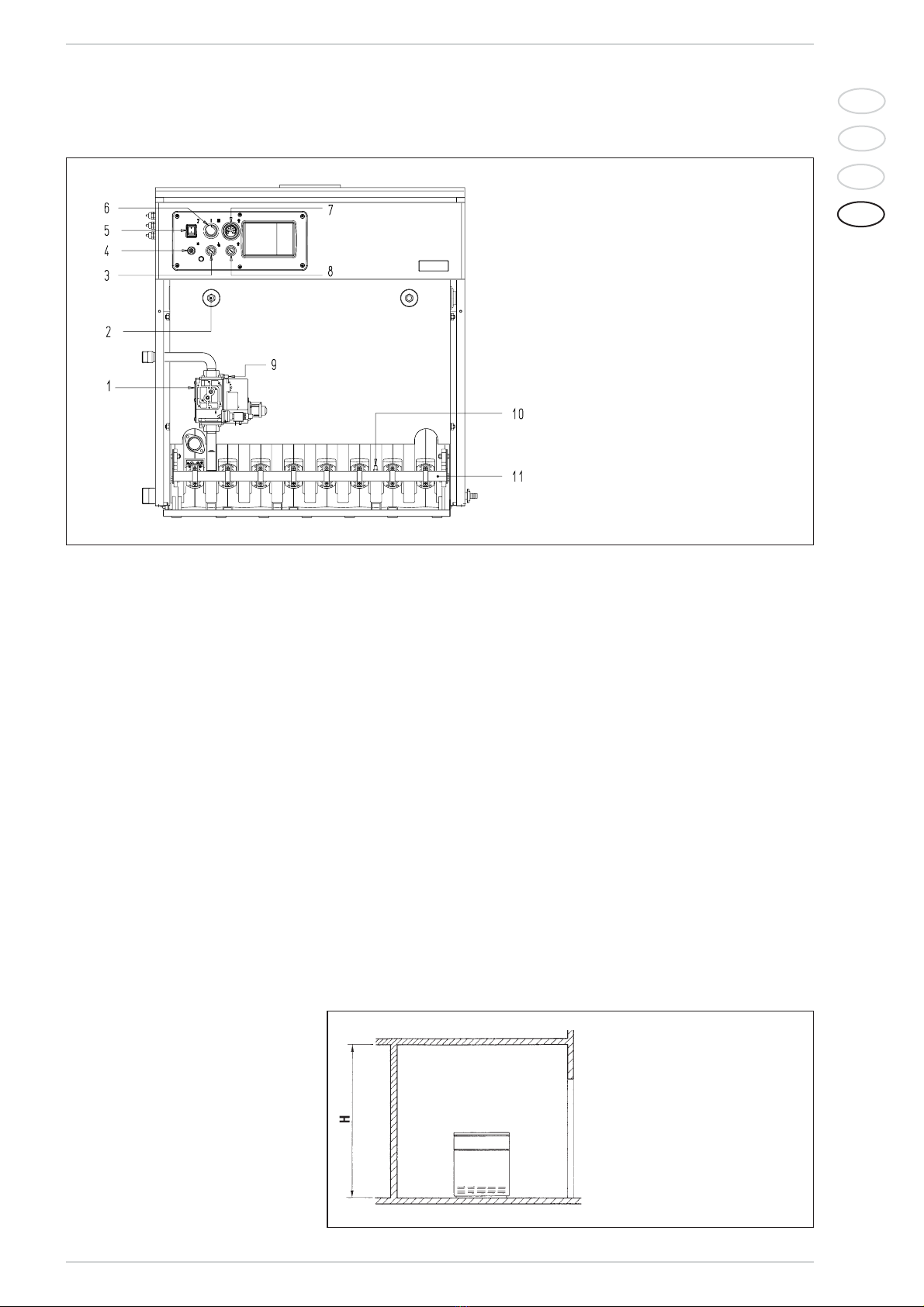

Fig. 2
KEY
1 Gas valve with coil assembly
2 1/2” bulb holder
3 Safety stat
4 Lock out reset button
5 Main switch
6 Regulation sta with double contact
7 Thermometer
8 Smoke stat
(“70 - 80 - 90 100” models)
9 1/8” pressure test point
(“110” models)
10 1/8” pressure test point
11 Burner manifold
2 INSTALLATION
Fig. 3
H in relation to the overall
thermal capacity:
– not greater than 116 kW: 2.00 m
– greater than 116 kW and less
than 350 kW: 2.30 m
– greater than 350 kW and less
580 kW: 2.60 m
– greater than 580 kW: 2.90 m
49
IT
ES
PT
GB

with the screws provided;
– insert two 3/4” pipes in the holes in the
brackets, lift the boiler carefully and place
into position.
2.2 CONNECTING
UP SYSTEM
Before proceeding to connect up the boi-
ler, you are recommended to make the
water circulating in the piping in order to
eliminate any foreign bodies that might be
detrimental to the operating efficiency of
the appliance.
The unit must be connected up with rigid
pipe fittings which will not subject it to
stress of any kind.
The connections should be easy to discon-
nect using pipe unions with orientable con-
nections. You are recommended to install
suitable shutoff valves on the system flow
and return pipes.
In order to achieve a good water distribu-
tion inside the cast-iron body, the system
flow and return pipes should be connec-
ted to the same side of the boiler.
The boiler comes supplied standard with
the attachments on the right-hand side,
with the possibility of them being tran-
sferred to the left-hand side.
In that case, move the water distributor,
located on the return header, and the
thermostat bulbs located in the sheathe,
to the same side.
The thermal jump between the system flow
and return pipes should not exceed 20°C.
For this purpose, it is advisable to install a
mixer valve with corresponding anti-conden-
sation pump.
CAUTION: The system circulation pump or
pumps must go into action at the time of
boiler ignition.
For this purpose, you are recommended
to use an automatic system of prece-
dence.
The gas connection must be made using
seamless steel pipe (Mannesmann type),
galvanized and with threaded joints provi-
ded with gaskets, excluding three-piece con-
nections, except for initial and end connec-
tions. Where the piping has to pass through
walls, a suitable insulating sleeve must be
provided.
When sizing gas piping, from the meter to
the boiler, take into account both the volume
flow rates (consumption) in m3/h and the
relative density of the gas in question. The
sections of the piping making up the system
must be such as to guarantee a supply of
gas sufficient to cover the maximum
demand, limiting pressure loss between the
gas meter and any apparatus being used to
not greater than:
– 1.0 mbar for family II gases (natural gas);
– 2.0 mbar for family III gases (butane or
propane).
An adhesive data plate is sticked inside the
front panel; it contains all the technical data
identifying the boiler and the type of gas for
which the boiler is arranged.
2.3 CHARACTERISTICS
OF FEEDWATER
It is absolutely essential that the water used
for the central heating system should be
treated in the following cases:
– Very extensive systems (with high con-
tents of feedwater).
– Frequent addition of makeup water into
the system.
– Should it be necessary to empty the
system either partially or totally.
2.3.1 Filter on the gas pipe
The gas valve is supplied ex factory with an
inlet filter, which, however, is not adequate
to entrap all the impurities in the gas or in
gas main pipes.
To prevent malfunctioning of the valve, or in
certain cases even to cut out the safety
device with which the valve is equipped,
install an adequate filter on the gas pipe.
2.4 SYSTEM FILLING
Filling must be done slowly so as to allow
any air bubbles to be bled off through the air
vents provided on the heating system.
The pressure of cold charging of the
system, and the pressure of pre-pressuri-
zation of the expansion vessel, must corre-
spond, or in any case must not be less than,
the height of the static column of the
system (e.g., for a static column of 5 m, the
pre-pressurization pressure of the expan-
sion vessel and the charging pressure must
correspond to at least 0.5 bar).
2.5 CONNECTING
UP FLUE
The flue for the atmospherical expulsion of
the combustion products from natural
draught appliances must meet the following
requirements:
– Be gas-tight to the combustion products,
waterproof and thermally insulated.
– Be built of materials suitable for keep
resisting to normal mechanical stresses,
heat, and the action of combustion pro-
ducts and their possible condensates.
– Follow a vertical path and not present
any throttling throughout its entire
length.
– Be adequately insulated to prevent phe-
nomena of condensation or smokes coo-
ling, in particular if located outside the
building or in unheated ambiences.
– Be set at an adequate distance from
combustible or easily inflammable mate-
rial by means of an air gap or suitable
insulating material.
– Have beneath the mouth of the first
smoke duct a chamber for collecting
solid material and any condensate; the
height of the chamber must be at least
500 mm.
Access to the chamber must be guaran-
teed by means of an opening provided
with an air-tight metal door.
– Have a circular, square, or rectangular
internal cross section; in the case of
square or rectangular sections, the cor-
ners must be rounded off with a radius
of not less than 20 mm. However,
hydraulically equivalent cross sections
are allowed.
– Be equipped with a chimney-pot at the
top, which must be outside the so-called
back-flow zone, so as to prevent the for-
mation of back-flow, which prevents free
discharge of the products of combustion
into the atmosphere.

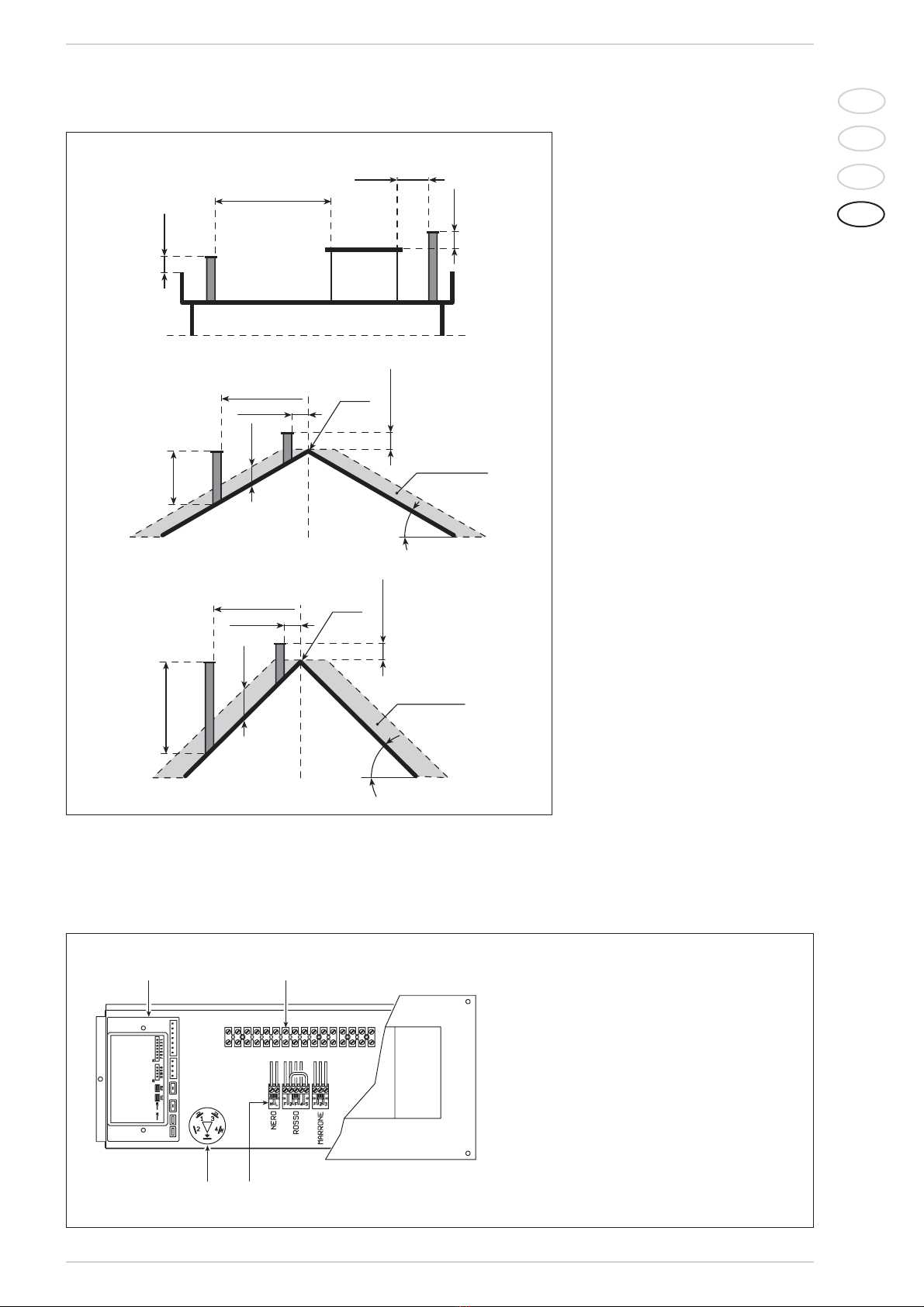

Therefore, conform to the minimum hei-
ghts indicated in fig. 4.
– Be devoid of mechanical means of suc-
50
IT
ES
PT
GB
Fig. 3/a

51
tion located at the top of the pipe.
– No overpressure should be present in a
chimney that passes within or close up
to inhabited rooms.
2.5.1 Sizing of flue
The correct sizing of the flue is an essential
condition for efficient boiler operation.
The main factors to be taken into conside-
ration for calculating the section are the
heat input of the boiler, the type of fuel, the
percentage of CO2, the mass flow of smoke
at nominal load, the temperature of the
smoke, the roughness of the internal wall,
and the effect of gravity on the draught
pressure, which must take into account the
external temperature and the altitude.
2.6 ELECTRICAL
CONNECTION
The boiler is supplied with an electric cable.
Should this require replacement, it must be
purchased exclusively from SIME. The elec-
tric power supply to the boiler must be
230V-50Hz single-phase through a fused
main switch, with at least 3 mm spacing
between contacts.
The room stat must be class II as specified
by standard EN 60730.1 (clean contact).
NOTE: Device must be connected to an
efficient earthing system.
SIME declines all responsibility for injury
or damage to persons, animals or things,
resulting from the failure to provide for
proper earthing of the appliance.
Always turn off the power supply before
doing any work on the electrical panel.
2.6.1 Control system
connection (optional)
In the electrical circuit a series of connec-
tors are provided for the installation of an
optional control system, marked by differ-
ent colours black, red and brown (fig. 5).
The connectors are polarised in such a way
that the order cannot be inverted. To install
the control system these connectors must
be connected and jumpers 4-5 and 11-12
must be removed from the terminal board
(marked in bold in fig. 6).
The control sustem allows for the use of
sensors and environment units whose con-
nectors, polarised and coloured, are found
in a bag inside the control board.
Tetto piano
0,50 m
0,50 m
Volume
tecnico
> 5 m
≤5 m
Colmo
> 1,50 m
≤1,50 m
Zona di reflusso
1,50 m
2 m min.
0,50 m oltre il colmo
45°
Tetto a 45°
Colmo
> 1,30 m
≤1,30 m
Zona di reflusso
0,80 m
1,20 m min.
0,50 m oltre il colmo
30°
Tetto a 30 °
Fig. 4
1 2
3 4
Fig. 5
KEY
1 EMC filter
2 Control system connectors (black- red- brown)
3 Control box
4 Terminal board
IT
ES
PT
GB
Flat roof
30° roof
45° roof

52
IT
ES
PT
GB
2.6.2 Wiring diagram
“RMG 70-80-90-100 Mk.II” models
“RMG 110 Mk.II” models
CONNECTOR SPARE PART CODES:
J1 code 6278669
J2 code 6278670
CONNECTOR SPARE PART CODES:
J1 code 6293511
J3 code 6293512
J4 code 6293510
KEY
IG Main switch
TC Regulation stat with
double contact
EA Ignition electrode
EV2 Gas valve coil
EV1 Gas valve coil
TA Room stat
R Lock out reset button
B Coil assembly
ER Sensing electrode
TS Safety stat
A Control box
TF Smoke stat
FA EMC filter
PI C.H. pump
PB D.H.W. pump
TEL Environment unit QAA70 type (optional)
SE External temperarure sensor (option)
SC Boiler immersion sensor QAZ21 type (optional)
SS D.H.W. tank immersion
sensor QAZ21 type (optional)
C RVA.222 control system connectors
(black - red - brown)
F Fuse (T 200mA)
TI Isolated transformer
(only for FR/BE)
PBY By-pass pump
TM Minimum temperature stat
NOTE: When not using the unit to connect up the
TA, remove the jumper from terminals 6-7.
When connecting the control system remove jum-
pers 4-5 and 11-12.
Connect up the pumps (PB-PI) as shown in the dia-
gram only if using the RVA 43.222 unit.
Fig. 6

3.1 CONTROL BOX
The “RMG Mk.II” boilers are provided with
automatic ignition (without pilot burner).
They are therefore equipped with FM 11
and DTM 12 electronic control and protec-
tion, with a built-in transformer, located insi-
de the instrument panel protection box.
Ignition and flame detection is controlled by
two electrodes located on the burner.
These guarantee maximum safety with
intervention times, for accidental switching
off or gas failure, within 8 and 4 seconds
(fig. 8).
3 CHARACTERISTICS
Fig. 8

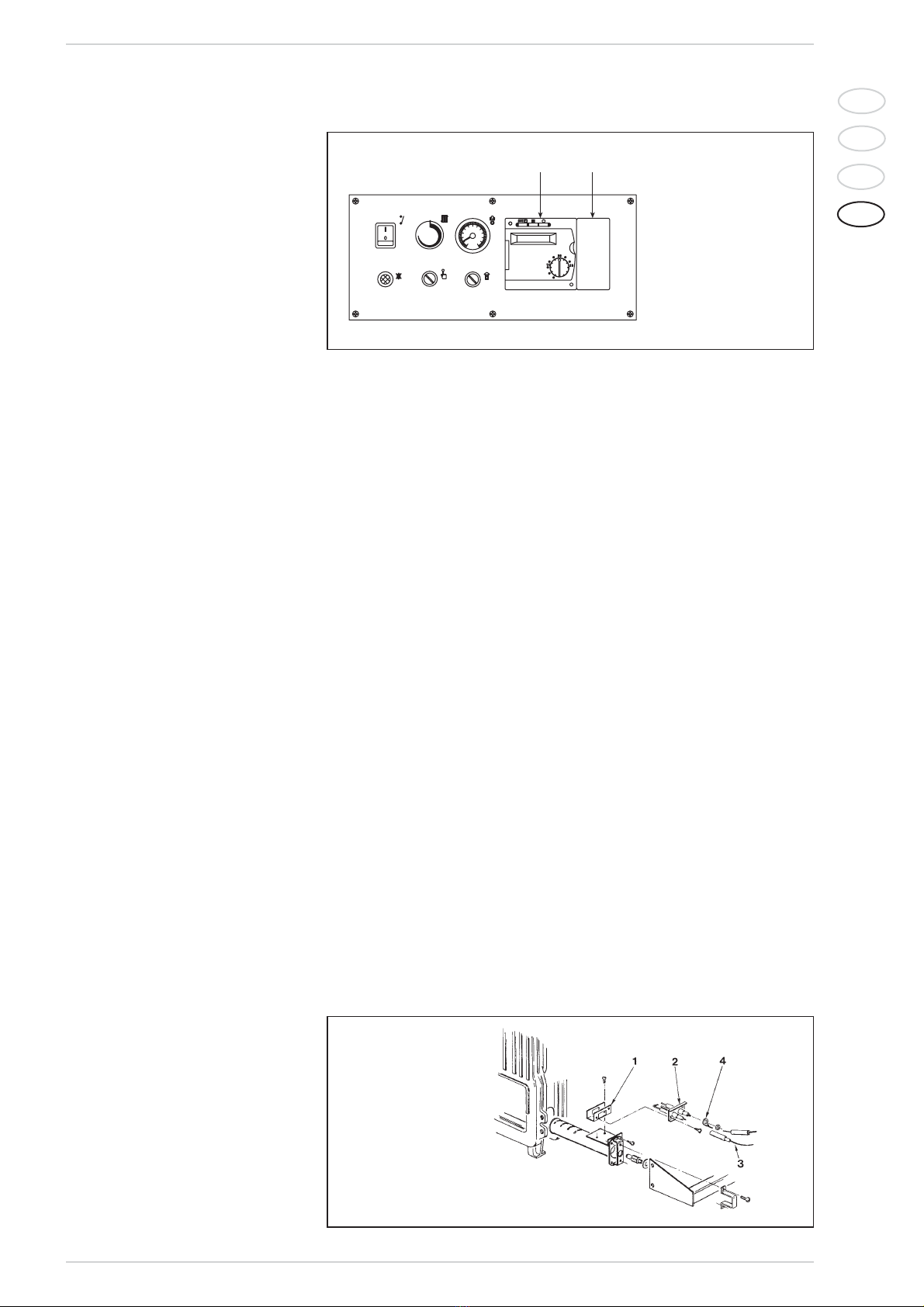

KEY
1 Electrode support
2 Electrode unit
3 Electrode ignition cable
4 Electrode detection cable
2.7 CONTROL SYSTEM
RVA43.222 (optional)
All the boiler functions can be operated by
the optional control system code
8096303, supplied with external tempera-
ture sensor (SE), boiler immersion sensor
(SC) (fig. 7). Another series of low tension
connectors may be connected to the con-
trol system, these are used for the con-
nection of the sensors and the environment
unit (the connectors are to be found in a
bag inside the control board). The bulb of
the sensor of the external D.H.W. tank (SS),
optional code 6277110, must be inserted
in the hot water sheath and the boiler probe
(SC) in the boiler sheath. To assemble the
external temperature sensor (SE) follow the
instructions given on the packaging of the
sensor.
For the electrical connection refer to the
diagram in fig. 6.
WARNING: to grant the correct opera-
tion of the plant set the boiler thermostat
at the maximum value.
2.7.1 Characteristics and functions
“RVA 43” is realized as regulator of one boi-
ler mono or bi-stadium or regulator of
cascade connections to manage 16 boilers
maximum.
Operating Efficiency
– Qualification or not of the heat produc-
tion in the presence of integration with
storage.
– Climatic control of the temperature of
the boiler, with the possibility of room
compensation.
– Operation of a direct heating circuit (with
pump) for each regulator.
– Auto-adjusting function of the climatic
curve on the basis of the thermal inertia
of the building and the presence of “free
heat” (with compensation).
– Optimising function of the ignition and
turning off (speeded up heating and tur-
ning off before time).
– Saving function calculated on a daily
basis according to the dynamic charac-
teristics of the structures.
– Automatic summer/winter switching
Safety Functions
– Minimum and maximum adjustable tem-
perature of return
– Differentiated antifreeze protection, hot
water storage and plant.
–
Protection from overheating of the boiler.
– Antiscuff protection of the pumps.
– Protection of the burner with minimum
operating time.
Operating functions
– Simplified starting procedure.
– All the settings may be carried out on
the regulator.
– Standard for weekly programming.
– All the settings and operating regimes
available on display and lit up leds.
– Relay and sensor test.
Hot water production
– Programming of day hours.
– Possibility of setting the minimum tempe-
rature for the hot water during the
reduction period.
– Possibility of controlling the storage loa-
ding pump.
– Hot water circuit priority can be selec-
ted.
Other technical characteristics
– Easy connection with a digital environ-
ment unit (QAA70).
12
0120
20 100
40 80
6
°C
Fig. 7
KEY
1 Plastic hole cover
2 Control system
53
IT
ES
PT
GB

54
IT
ES
PT
GB
3.1.1 Operating cycle
Before igniting the boiler, use a voltmeter to
make sure that the electrical connection to
the terminal block has been made properly,
respecting the position of live and neutral,
as shown in the diagram. Then press the
switch on the control panel detecting volta-
ge and lighting the led lamp.
The boiler is now ready to start working; a
discharge current is sent to the ignition
electrode through the programmer, and the
gas valve opens at the same time.
Burner ignition normally takes place within
2 or 3 seconds. However, it is possible for
ignition failures to occur, with consequent
activation of signal indicating that the equip-
ment has “locked out”.
Failures may be due to one of the following
causes:
–Gas failure
The control box runs through the cycle
normally sending electric power to the
ignition electrode. The electrode conti-
nues spark discharge for a maximum of
8 and 4 sec. If the burner does not igni-
te, the control box “locks out”.
This may occur upon first ignition or
after long periods of boiler lay-off when
there is air in the pipes. It may be caused
by the failure of the gas valve to open
owing to a break in the electric coil.
.
–Ignition electrode fails to spark
In the boiler, only opening of gas to the
burner is seen to occur. After 8 and 4
sec. the control cox “locks out”.
This may be due to there being a break
in the wire of the electrode or the wire
not being properly fastened to the termi-
nal of the control box; or else, the tran-
sformer has burnt out.
–No detection of flame
The continuous spark discharge of the
electrode is noted starting from ignition
even though the burner is lit.
After 8 and 4 seconds have elapsed, the
sparks cease, the burner goes out, and
the warning lamp indicating equipment
“lock-out” lights up.
This occurs when the position of live and
neutral has not been respected on the
terminal block. There is a break in the
wire of the sensing electrode or the elec-
trode itself is earthed: the electrode is
worn out and needs replacing.
The control box is falty
When there is a sudden voltage failure, the
burner shuts out immediately; when power
supply returns, the boiler will start up again
automatically.
3.1.2 Ionization circuit
The ionization circuit is to be checked using
a dial-type micro-ammeter, or preferably a
digital micro-ammeter with a 0 to 50 µA
scale. The micro-ammeter terminals must
be series-connected to the wire of the sen-
sing electrode. Under normal operating con-
ditions, the value oscillates between 6 - 10
µA. The minimum value of the ionization cur-
rent for which the equipment can “lock out”
is about 1 µA.
In this case, make sure that there is a good
electrical contact and check the degree of
wear of the end part of the electrode and
the corresponding ceramic protection.
3.2 REGULATION THERMOSTAT
“RMG Mk.II” boilers are equipped with a
regulating thermostat with a double con-
tact having differentiated setting (6 fig. 2).
This makes it possible to obtain a reduction
of heat output before the burner goes out
completely, by means of the coil assembly
installed on the gas valve regulator.
This step-modulation system affords the fol-
lowing advantages:
– higher overall boiler efficiency;
– containment within acceptable values of
the increase in temperature that takes
place in the cast-iron body (heat inertia)
when the burner goes out.
3.3 SMOKE SAFETY DEVICE
“70 - 80 - 90 - 100 Mk.II”
MODELS
This is a safety device against possible
smoke emission into the ambience (8 fig. 2).
The safety device goes into action by
blocking operation of the gas valve when the
return of the smoke into the ambience is
continuous and in quantities that might con-
stitute a danger.
To restart the boiler, the cover of the ther-
mostat must be unscrewed and reset the
underlying button.
Make sure the control panel is disconnec-
ted before carrying out this operation.
Should the boiler continue to “lock out”, it will
be necessary to make a careful check on
the flue pipe, making all the necessary modi-
fications and amendments so that it can
work properly.
3.5 SYSTEM AVAILABLE HEAD

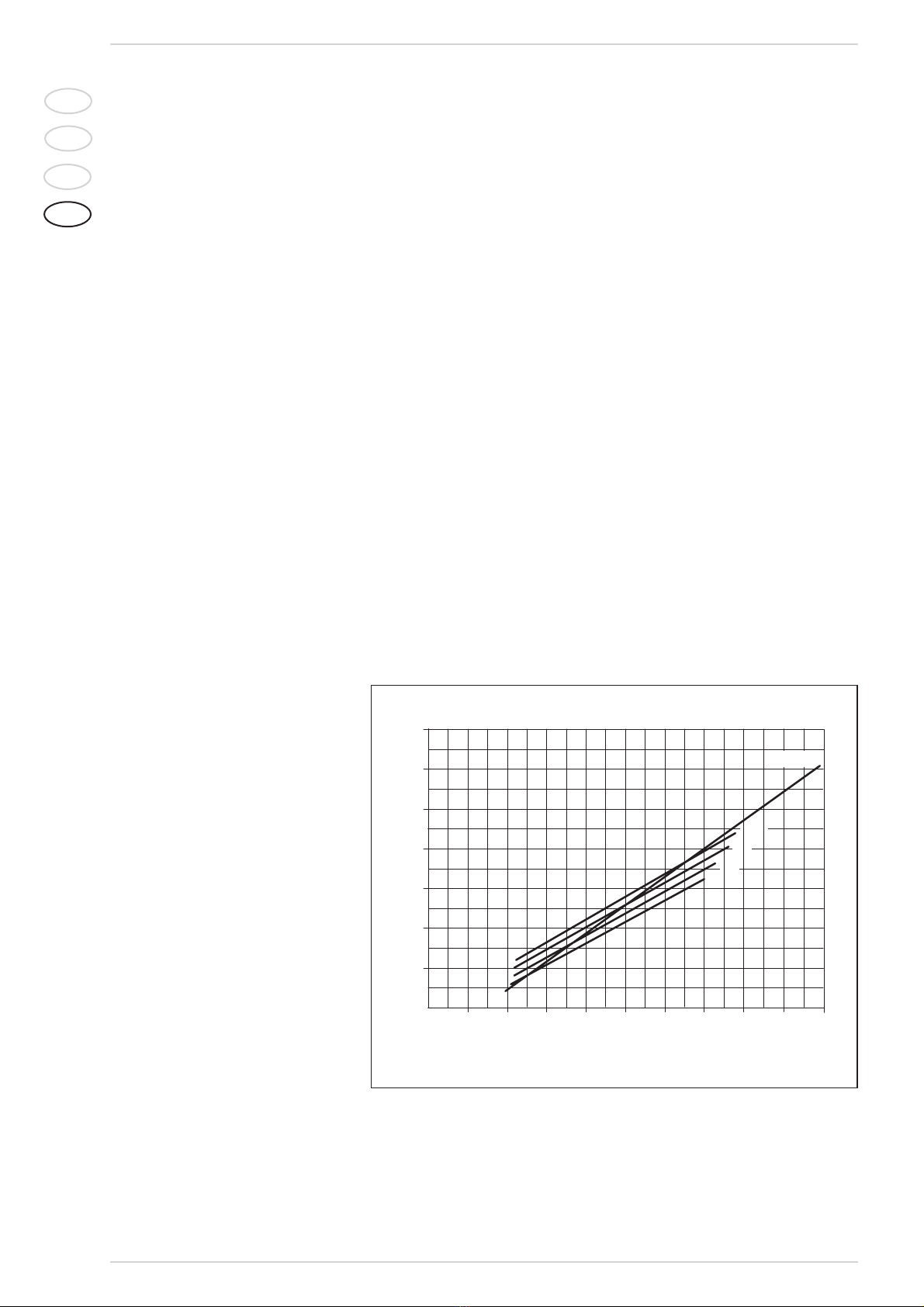

The head available is shown in graph in fig. 9.
0
120
2.000 9.000
8.0007.0006.000
5.000
4.0003.000
PORTATA (l/h)
PERDITA DI CARICO (mbar)
100
80
20
40
60
90
70
80
100
140
10.000 11.000
110
Fig. 9
FLOW RATE (l/h)
HEAD AVAILABLE
(mbar)

4.1 GAS VALVE (fig. 10)
“RMG Mk.II” boilers come equipped stan-
dard with a HONEYWELL VR 4605 C gas
valve (for “70 - 80” models), VR 4605 CB
gas valve (for “90 - 100” models) and VR
420 PB gas valve (for “110” models).
When the boiler is ignited the first time, it is
always recommended to bleed the piping by
using the pressure outlet upstream from
the valve (7 fig. 10 - 9 fig. 2).
4.2 GAS VALVE ADJUSTMENT
“VR 4605 C - VR 4605 CB”
Calibration of the operating pressures is
done by SIME in the factory. Consequently
they should not be altered. Only when you
switch to another type of gas (butane or
propane) is it permitted to alter the opera-
ting pressures.
It is essential that this operation be car-
ried out exclusively by authorized techni-
cal staff.
When the working pressures have been
adjusted, reseal the regulators.
When the gas pressures are to be reset,
this must be done following a set order: first
the maximum pressure and then the mini-
mum.
4.2.1 Nominal pressure
adjustment (fig. 11)
To set the maximum pressure, proceed as
follows:
– connect the pressure column or a pres-
sure gauge to the pressure intake loca-
ted on the burner manifold;
– unscrew the screw (4) completely;
– set the knob of the thermostat to the
maximum value;
– supply electric power to the boiler;
– loosen the locknut (1) and turn the con-
nection (3):
to reduce the pressure, turn the connec-
tion counterclockwise; to increase the
pressure, turn the connection clockwise;
– tighten the locknut (1);
– operate the main switch a number of
times, making sure that the maximum
pressure corresponds to the values
given in Table 1.
4.2.2 Reduced pressure
adjustment (fig. 11)
To set the reduced pressure, proceed as
follows:
– deactivate the coil (2) electric supply;
–
switch on the boiler and after a short
period of operation at nominal output,
turn the thermostat knob slowly
towards the minimum position until you
hear the click of the first contact of the
thermostat;
– leave the knob in that position and, tur-
ning the screw (4), seek the minimum
pressure value according to Table 1 for
the gas in question: to reduce the pres-
sure, turn the screw counterclockwise;
to increase the pressure, turn the screw
clockwise;
– restore electric power to the coil;
– operate the main switch a number of
times, making sure that the minimum
pressure corresponds to the value given
in Table 1.
4.3 GAS VALVE ADJUSTMENT
“VR 420 PB”
Calibration of the operating pressures is
4 USE AND MAINTENANCE
KEY
1 EV1 coil
2 Pressure regulator
3 Coil assembly
4 EV2 coil
5 LPG adaptor
6 Plastic cap
7 Pressure inlet upstream
8 Pressure inlet
downstream
9 EV1- EV2 coil
Fig. 10
70 Mk.II 80 Mk.II 90 Mk.II 100 Mk.II 110 Mk.II
Methane - G20
Burner max. pressure mbar 9.3 9.1 9.3 9.3 9.3
Burner min. pressure mbar 4.5 4.6 4.7 4.7 4.6
Butane - G30
Burner max. pressure mbar 25.2 25.4 25.1 25.1 25.6
Burner min. pressure mbar 12.2 12.3 12.0 12.5 12.6
Propane - G31
Burner max. pressure mbar 32.6 30.2 30.0 32.7 34.3
Burner min. pressure mbar 16.4 16.1 15.6 16.6 16.6
TABLE 1
LEYENDA
1 Locknut M13
2 Coil
3 Max. press. adjust. connection
4 Min. pressure adjust. screw
Fig. 11
1
2
HONEYWELL VR 4605 C - VR 4605 CB
HONEYWELL VR 420 PB
9
3
55
IT
ES
PT
GB

done by SIME in the factory. Consequently
they should not be altered. Only when you
switch to another type of gas (butane or
propane) is it permitted to alter the opera-
ting pressures.
It is essential that this operation be car-
ried out exclusively by authorized techni-
cal staff. When the working pressures
have been adjusted, reseal the regulators.
When the gas pressures are to be reset,
this must be done following a set order: first
the maximum pressure and then the mini-
mum.
4.3.1 Nominal pressure
adjustment (fig. 11/a)
Connect the manometer to the pressure
test point located on the burner manifold,
turn boiler ON, and wait until a steady read-
ing on the manometer is obtained. Compare
this reading with that shown in Table 1. If any
correction is required, use an 8mm spanner
on the high pressure adjuster (1) turning
clockwise to increase, counter-clockwise to
decrease the pressure.
4.3.2 Reduced pressure
adjustment (fig. 11/a)
Turn the boiler OFF, and remove the plug
from the High - Low Coil. Turn the boiler ON
and wait until a steady reading on the
manometer is obtained. Compare this read-
ing with that shown in Table 1.
If any correction is required, use a 3.5 mm
flat blade screwdriver to rotate the low
adjust screw (2), turning clockwise to
increase and counter-clockwise to decrease
the pressure. When all adjustments are
completed, replace the plug on the coil, and
the cap over the adjustment screws.
4.4 GAS CONVERSION
To convert to butane gas (G30) or propane
gas (G31), the main nozzles must be repla-
ced with another supplied in the boiler gas
conversion kit, pressure regulator for “110
Mk.II” models and apply the LPG adaptor
code 6248301 onto the gas valve (5 fig. 10)
for “70 ÷ 100 Mk.II” models.
To adjust the operating pressures, refer to
section 4.2.
When the working pressures have been
adjusted, reseal the regulators.
After have ultimated the conversion of the
boiler, please stick onto the casing panel
the plate showing the relevant feeding gas
which is included into the conversion kit.
NOTE: After assembling all the gas con-
nections, a test for gas tightness must be
carried out using soapy water or special
products. Do not use naked flames. The
conversion to different gas must be car-
ried out exclusively by authorized techni-
cal personnel.
4.5 SHELL
DISASSEMBLY
Follow the steps described below to disas-
semble the shell (fig. 12):
– Remove the shell door (1) which is atta-
ched with pressure fit pins.
– To remove the cover (3) loosen the two
screws that attach it to the flue gas
chamber and lift.
– Remove the top front panel (2) placing it
against the flue gas chamber.
– Disassemble the left side (4) unscrewing
the nuts that attach it to the tie rods.
– Do the same operation to disassemble
the right side (5).
– Remove the inner wall (6) by pulling it
forward.
– Unscrew the nuts that secure the rear
wall (7) to remove it from the tie rods.
4.6 CLEANING AND
MAINTENANCE
At the end of each heating season, it is
essential to have the boiler thoroughly
checked and cleaned out.
Proceed as follows:
– Turn the main switch off to stop electric
power reaching the boiler and close the
gas feed cock.
– Remove the shell door and cover.
– Remove the top panel of the flue gas
chamber attached to it with self-threa-
ding screws.
– Remove the gas unit.
– Insert a special brush from the top into
the rows of pins in the cast iron exchan-
ger and move the brush up and down to
remove the scales.
– Remove the burner from the nozzle hea-
der and aim a jet of air toward the inside
56
IT
ES
PT
GB
KEY
1 Maximum pressure adjusting nut
2 Minimum pressure adjusting screws
3 Plastic cap
Fig. 11/a
Fig. 12

57
of the burners to remove any dust. Make
sure that there are no scales on the top
drilled part of the burners (fig. 13).
– Remove any scales from the bottom of
the boiler and replace the items that
were removed, checking the position of
the gaskets.
– Check the chimney to make sure that
the flue is clean.
– Check operation of the equipment and
the main burner.
– After assembly of all the gas connec-
tions, these must be tested for sound-
ness, using soapy water or appropriate
products. DO NOT USE NAKED FLAMES.
Preventive maintenance and checking of
efficient operation of equipment and
safety devices must be carried out exclu-
sively by authorized technical personnel.
4.7 FAULT FINDING
The main burner does not ignite.
– This means that the flue smoke stat has
tripped off (point 3.3).
– Make sure power arrives to the gas
valve.
– Replace the electric operator of the
valve.
– Replace the valve.
The boiler reaches the set temperature,
but the radiators do not heat up.
– Make sure there are no air bubbles in the
system, if so purge from appropriate air
vents.
– The room stat is too low or must be
replaced if faulty.
– The connections of the room stat are not
correct (make sure the cables are placed
on terminals 6 and 7 of the boiler termi-
nal board).
Boiler operates only at nominal pressure
and does not reduce pressure.
– Check whether there is voltage at both
ends of coil.
–
The coil has a break in the winding; replace.
– The rectifier card that supplies the coil is
interrupted; replace.
– There is no differential on setting of the
two contacts of the regulating thermo-
stat; replace.
– Check calibration of reduced pressure
adjusting screw of coil assembly.
The boiler gets dirty easily causing scaling
of cast iron exchanger and cutting off of
smoke stat.
– Check that the flame of the main burner
is well regulated and that gas consump-
tion is proportional to boiler output.
– Poor ventilation of premises where boiler
is installed.
– Flue with insufficient draught or not mee-
ting requirements.
– The boiler works at too low temperatu-
res. Adjust the boiler thermostat to
higher temperatures.
Thermostat switches boiler back on with
too high temperature difference.
– Replace regulating thermostat since it is
out of calibration.
KEY
1 Boiler body
2 Burner
3 Main nozzle
4 Aluminium washer
5 Burner manifold
Fig. 13
IT
ES
PT
GB

58
IT
ES
PT
GB

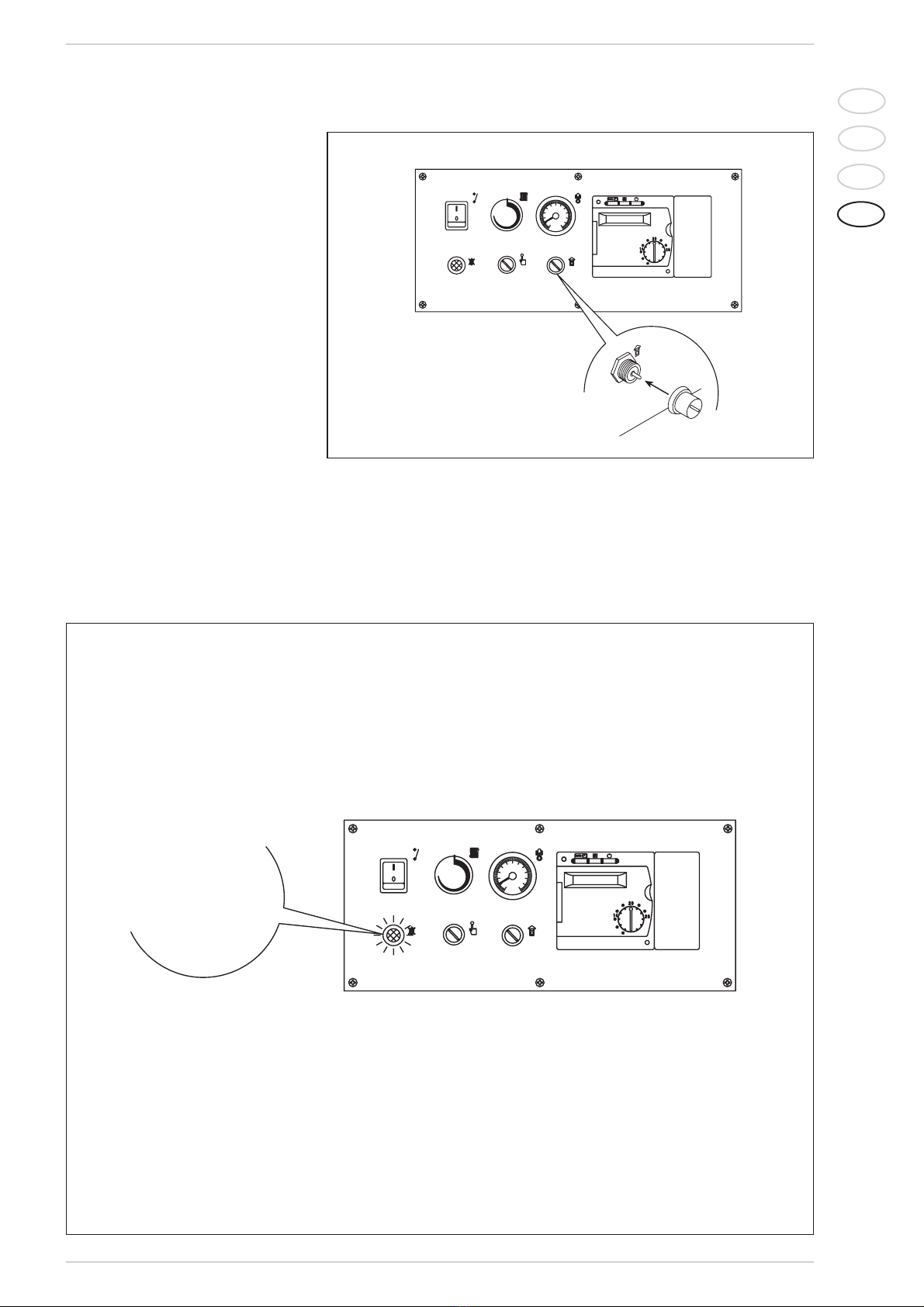

BOILER IGNITION
Open the gas valve and press the main swit-
ch to ignite the “RMG Mk.II” boiler (fig. 14).
TEMPERATURE
ADJUSTMENT
The heating temperature can be adjusted
by turning the knob of the thermostat,
which has a range of between 40°C and
85°C. The temperature setting can be
checked on the thermometer. To ensure
optimal boiler efficiency at all times, we
recommend not to drop below a minimum
working temperature of 60°C. In this way,
any formation of condensate that might
cause deterioration of the cast-iron body
over time will be avoided (fig. 15).
SAFETY THERMOSTAT
The safety thermostat is of the manually
resetting type and opens, causing the main
burner to turn off immediately, whenever
the temperature of 95°C is exceeded in the
boiler. To restore boiler operation, unscrew
the black cap and reset the button (fig. 16).
Should the appliance again “lock out”,
please approach the authorized technical
staff.
SMOKE SAFETY DEVICE
“70 - 80 - 90 - 100 Mk.II” MODELS
This is a safety device against possible
smoke emission into the ambience.
The safety device switches off the gas valve
when the return of the smokes into the
ambience is continuous and then dange-
rous.
To restart the boiler, the cover of the ther-
mostat must be unscrewed and then press
the underlying button (fig. 17).
Should the boiler “lock out” again, you
must call the authorized technical staff.
WARNINGS
– In case of fault and/or incorrect equipment operation, deactivate it, without making any repairs or taking any direct
action. Contact the nearest Authorised Technical Service Centre.
– The installation of the boiler and any servicing or maintenance job must be carried out by qualified personnel. Under
no circumstances, the devices sealed by the manufacturer can be tampered with.
– It is absolutely prohibited to block the intake grilles and the aeration opening of the room where the equipment is
installed.
LIGHTING AND OPERATION
0120
20 100
40 80
6
°C
Fig. 14
0120
20 100
40 80
6
°C
Fig. 15
0120
20 100
40 80
6
°C
Fig. 16
USER INSTRUCTIONS

LOCK OUT RESET OF
THE CONTROL BOX
If the burner does not ignite, the red led on
the reset button will turn on. Press the but-
ton to restart the boiler automatically (fig.
18). Should the boiler “lock out” again, you
must call the authorized technical staff.
TURNING OFF BOILER
To turn off the “RMG” boiler completely, cut
off electricity supply to the equipment by
operating the main switch (fig. 14).
If the boiler is not going to be used for a
lengthy period it is advised to turn off the
electricity supply, close the gas cock, and if
low temperatures are foreseen, empty the
boiler and the hydraulic system to avoid
breakage in the tubes due to the freezing of
the water.
GAS CONVERSION
Should it be necessary to convert the
appliance to a different gas from the one
for which the boiler has been equipped,
approach the technical staff.
CLEANING AND MAINTENANCE
At the end of each heating season, it is
essential to have the boiler thoroughly
checked and cleaned out.
Preventive maintenance and checking of
the efficient operation of the equipment
and safety devices must be carried out
exclusively by the authorized technical
staff. The boiler is supplied with an elec-
tric cable. Should this require replace-
ment, contact exclusively with the autho-
rized technical staff.
0120
20 100
40 80
6
°C
0120
20 100
40 80
6
°C
Fig. 17
Fig. 18
RESET
BUTTON
RED LED LIT
59
IT
ES
PT
GB

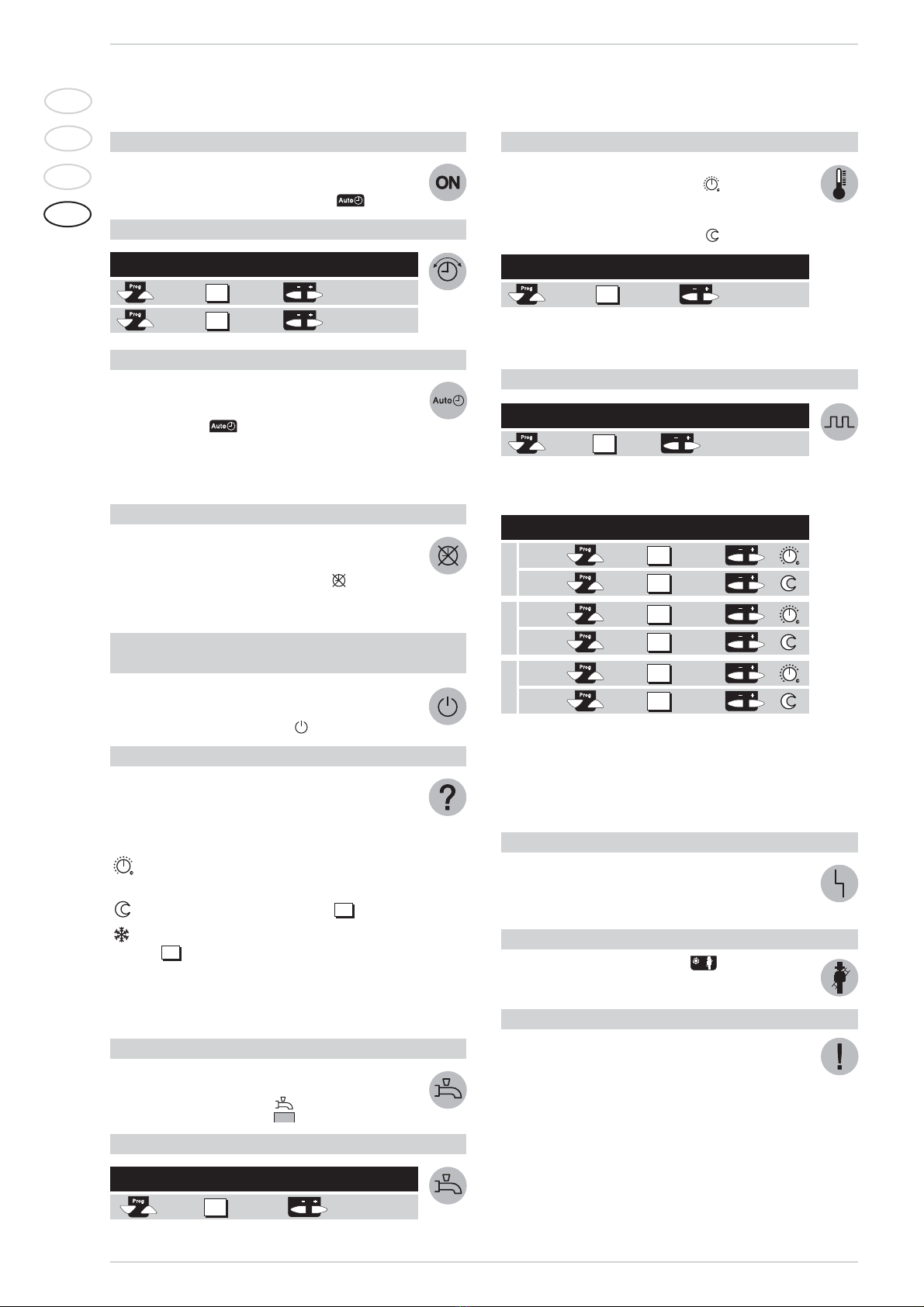

TO TURN ON THE HEATING
– Turn on the main switch.
– Set the correct hour of the day and the day of the week.
– Place in automatic mode with the button .
TO SET THE HOUR
HOW TO USE THE AUTOMATIC MODE
In the automatic mode the temperature of the room is regu-
lated on the basis of the periods of heating chosen.
– Push the button .
NOTE: Select the heating periods according to one’s daily
requirements; in this way it is possible to significantly
save on energy.
TO ACTIVATE CONTINUOUS HEATING
The continuous heating mode keeps the temperature of the
room at the set level via the regulating knob.
– Push the “Continuous Operation” button .
– Regulate the room temperature with the
regulating knob.
TO SET THE STANDBY MODE
(when the user is away for a long period of time)
The standby mode keeps the temperature of the room at
the level of antifreeze protection.
– Push the “Standby mode” button .
MEANING OF THE SYMBOLS
On the display a few of the symbols indicate the current ope-
rating state. The appearance of a line under one of these
symbols signals that the corresponding operating state is
“active”.
Heating at the nominal temperature
(regulating knob)
Heating at reduced temperature (line ).
Heating at antifrost protection temperature
(line ).
NOTE: For further information on the symbols and the
operating state refer to the detailed description of the
heating plant.
TO VARY THE HOT WATER PRODUCTION
The production of hot water can be activated or deactivated
by the push of a button.
– Push the button “Hot water” .
IF THE HOT WATER IS TOO HOT OR TOO COLD
IF THE ROOMS ARE TOO HOT OR TOO COLD
– Check that current operating state on the display.
– In the case of nominal temperature .
Increase or reduce the temperature of the room with the
regulating knob.
– In the case of reduced temperature .
NOTE: After each regulation wait at least two hours for
the new temperature to expand through the room.
TO CHANGE THE HEATING PERIODS
With reference to the day chosen set the changes
as following:
NOTE: The heating periods automatically repeat on a
weekly basis.
To this end select the automatic mode.
It is possible to reset the standard programme on line 23
by pushing the buttons + and – at the same time.
IF THE HEATING DOES NOT WORK PROPERLY
– Refer to the detailed documentation
on the heating system, following the fault finding
instructions.
TO MEASURE GAS COMBUSTION
– Push the “chimneysweep” button .
The heating will work according to the level requested.
HOW TO SAVE ENERGY WITHOUT FOREGOING ON COMFORT
– A temperature of around 21°C is advised in the rooms
that are used. Every degree above this will increase hea-
ting costs by 6–7%.
– Aerate the rooms only for a brief period, opening the win-
dows completely.
– In the rooms that are not used place the regulating valve
in the antifreeze position.
– Leave the space in front of the radiators free from
obstructions (remove furniture, curtains...).
– Close windows and blinds to reduce
dispersion of heat.
Select the Display Set the regulation
line with the buttons
hour of the day
day of the week
1
2
14
15
Select the Display Pre-select the weekly block
line or the single day
1-7 = week
1 = Lu/7 = Do
5
Period Push Display Set For
requested button hour °C
Start
End
Start
End
Start
End
6
7
8
9
10
11
Select the Display Change the temperature
line with the buttons
°C
14
Period 1Period 2
Period 3
13
Select the Display Set the desired
line temperature
°C
60
IT
ES
PT
GB
CONTROL SYSTEM
In order to get the highest potential out of the “RVA 43.222” regulator follow the instructions given below:

DICHIARAZIONE DI CONFORMITA’ CALDAIE BASAMENTO A GAS
La FONDERIE SIME S.p.A., con riferimento all’art. 5 DPR n°447 del 6/12/1991 “Regolamento
di attuazione della legge 5 marzo 1990 n°46” ed in conformità alla legge 6 dicembre 1971 n° 1083
“Norme per la sicurezza dell’impiego del gas combustibile”, dichiara che le proprie caldaie basamento a
gas serie:
RX CE - RX 26 BF
RMG Mk.II - RS Mk.II
LOGO *
MISTRAL *
AVANT
KOMBIMAT CE
BITHERM - BITHERM BF
DUOGAS CE
DEWY
DEWY EQUIPE - DEWY EQUIPE BOX*
EKO OF
sono complete di tutti gli organi di sicurezza e di controllo previsti dalle norme vigenti in materia e rispondo-
no, per caratteristiche tecniche e funzionali, alle prescrizioni delle norme:
UNI-CIG 7271 (aprile 1988)
UNI-CIG 9893 (dicembre 1991)
UNI EN 297 per APPARECCHI A GAS DI TIPO B AVENTI PORTATA TERMICA ≤70 kW
EN 656 per APPARECCHI A GAS DI TIPO B AVENTI PORTATA TERMICA 70 ÷ 300 kW
EN 483 per APPARECCHI A GAS DI TIPO C AVENTI PORTATA TERMICA ≤70 kW
EN 677 per APPARECCHI A GAS A CONDENSAZIONE AVENTI PORTATA TERMICA ≤70 kW.
La portata al sanitario delle caldaie combinate è rispondente alla norma:
UNI EN 625 per APPARECCHI AVENTI PORTATA TERMICA ≤70 kW
Le Caldaie a gas sono inoltre conformi alla:
DIRETTIVA GAS 90/396/CEE per la conformità CE di tipo
DIRETTIVA BASSA TENSIONE 2006/95/CE
DIRETTIVA COMPATIBILITÀ ELETTROMAGNETICA 2004/108/CE
DIRETTIVA RENDIMENTI 92/42/CEE
La ghisa grigia utilizzata è del tipo EN-GJL 150 secondo la norma europea UNI EN 1561.
Il sistema qualità aziendale è certificato secondo la norma UNI EN ISO 9001: 2000.
*Caldaie a basse emissioni inquinanti (“classe 5” rispetto alle norme europee UNI EN 297 e EN 483).
Legnago, 05 marzo 2009
Il Direttore Generale
ing. Aldo Gava
Fonderie Sime S.p.A. - Via Garbo, 27 - 37045 Legnago (Vr) - Tel. [phone] - F a x S e r vizio Tecnico 0442 631292 - www.sime.it
TAGLIARE LUNGO LA LINEA TRATTEGGIATA


Rendimenti caldaie basamento a gas
MODELLO Potenza termica Portata termica Tipo di Marcatura Rendimento utili misurati Rend. minimo di comb.
kW kW caldaia n° stelle 100% - 30% %
RX 19 CE 22,0 25,0 ST 1 88,0 - 84,5 92,68
RX 26 CE 30,5 34,8 ST 1 86,7 - 84,8 92,97
RX 37 CE 39,1 44,8 ST 1 87,3 - 85,2 93,18
RX 48 CE 48,8 55,0 ST 1 88,7 - 85,4 93,38
RX 55 CE 60,7 69,2 ST 1 87,7 - 85,8 93,57
RX 26 BF 31,0 34,0 BT 2 91,1 - 91,1 92,98
RMG 70 Mk.II 70,1 77,9 ST 1 90,1 - 87,1 93,69
RMG 80 Mk.II 78,7 87,4 ST 1 90,0 -87,2 93,79
RMG 90 Mk.II 90,0 100,0 ST 1 90,0 - 87,4 93,91
RMG 100 Mk.II 98,6 109,5 ST 1 89,9 - 87,5 93,99
RMG 110 Mk.II 107,9 120,5 ST 1 89,5 - 86,4 94,07
RS 129 Mk.II 129,0 145,9 ST 1 88,4 - 86,7 94,22
RS 151 Mk.II 150,6 170,0 ST 1 88,6 -86,9 94,36
RS 172 Mk.II 172,2 194,2 ST 1 88,7 - 87,1 94,47
RS 194 Mk.II 193,7 218,2 ST 1 88,8 - 87,3 94,57
RS 215 Mk.II 215,2 242,1 ST 1 88,9 - 87,5 94,67
RS 237 Mk.II 236,5 266,0 ST 1 88,9 - 87,6 94,75
RS 258 Mk.II 257,8 290,0 ST 1 88,9 - 87,7 94,82
RS 279 Mk.II 279,1 313,6 ST 1 89,0 - 87,8 94,89
BITHERM 20/65 22,0 25,0 ST 1 88,0 - 84,5 92,68
BITHERM 26/80 30,5 34,8 ST 1 87,6 - 84,8 92,97
BITHERM 35/80 37,2 42,4 ST 1 87,7 - 85,3 93,14
BITHERM 26/80 BF 31,0 34,0 BT 2 91,1 - 91,1 92,98
DUOGAS 20/40 22,0 25,0 ST 1 88,0 - 84,5 92,68
DUOGAS 26/40 30,5 34,8 ST 1 86,7 - 84,8 92,97
LOGO 22 OF TS 24,3 26,0 BT 3 93,5 - 95,3 92,77
LOGO 32 - 32/50 - 32/80 OF TS 32,4 34,8 BT 3 93,4 - 94,6 93,02
MISTRAL 32 - 32/50 - 32/80 - 32/120 AD 31,9 34,3 BT 3 93,0 - 95,1 93,01
KOMBIMAT 26/38 CE 29,0 32,2 ST - 90,0 - 86,5 92,92
AVANT 30/50 - 30/130 TS 29,4 31,6 BT 3 93,1 - 91,7 92,94
DEWY 30/80 - 30/130 29,3 30,0 CN 4 97,7 - 106,6 92,93
DEWY EQUIPE 3 - 3 BOX 84,6 87,0 CN 4 97,3 - 105,5 93,85
DEWY EQUIPE 4 - 4 BOX 112,8 116,0 CN 4 97,3 - 105,5 94,10
DEWY EQUIPE 60 BOX 57,0 58,0 CN 4 98,2 - 106,4 93,51
DEWY EQUIPE 120 - 120 BOX 113,9 116,0 CN 4 98,2 - 106,4 94,11
DEWY EQUIPE 180 - 180 BOX 170,9 174,0 CN 4 98,2 - 106,4 94,47
DEWY EQUIPE 240 - 240 BOX 227,8 232,0 CN 4 98,2 - 106,4 94,72
DEWY EQUIPE 300 - 300 BOX 284,8 290,0 CN 4 98,2 - 106,4 94,91
DEWY EQUIPE 360 - 360 BOX 341,7 348,0 CN 4 98,2 - 106,4 95,07
DEWY EQUIPE P100 BOX 94,8 96,6 CN 4 98,2 - 108,0 93,95
DEWY EQUIPE P200 - 200 BOX 189,8 193,2 CN 4 98,2 - 108,0 94,56
DEWY EQUIPE P300 - 300 BOX 284,7 289,8 CN 4 98,2 - 108,0 94,91
DEWY EQUIPE P400 - 400 BOX 379,6 386,4 CN 4 98,2 - 108,0 95,16
DEWY EQUIPE P500 - 500 BOX 474,5 483,0 CN 4 98,2 - 108,0 95,35
DEWY EQUIPE P600 - 600 BOX 569,5 579,6 CN 4 98,2 - 108,0 95,51
DEWY EQUIPE P160 BOX 151,4 154,6 CN 4 97,7 - 107,0 94,36
DEWY EQUIPE P260 BOX 246,3 251,2 CN 4 97,7 - 107,0 94,78
EKO 3 OF - 3 OF PVA 21,2 23,3 BT 2 90,9 - 92,8 92,65
EKO 4 OF - 4 OF PVA 31,6 34,8 BT 2 90,9 - 92,8 93,00
EKO 5 OF 42,3 46,5 BT 2 90,9 - 92,8 93,25
EKO 6 OF 53,1 58,3 BT 2 91,4 - 92,9 93,45
EKO 7 OF 63,8 70,1 BT 2 91,1 - 92,9 93,61
EKO 8 OF 74,2 81,5 BT 2 91,1 - 92,9 93,74
EKO 9 OF 84,7 93,0 BT 2 91,1 - 93,5 93,86
EKO 10 OF 95,2 104,6 BT 2 91,1 - 93,5 93,96
EKO 11 OF 105,8 116,2 BT 2 91,1 - 93,5 94,05
EKO 12 OF 117,0 128,0 BT 2 91,7 - 93,3 94,14
NOTA: I rendimenti utili misurati sono riferiti ai tipi di caldaia (ST= standard, BT= bassa temperatura, CN= condensazione) richiesti dal DPR 660.
Il rendimento minimo di combustione in opera è quello richiesto dal DPR 311.

CERTIFICAZIONE DISPOSITIVI DI SICUREZZA,
DI CONTROLLO E DI REGOLAZIONE
DIRETTIVA 90/396/CEE
Si certifica che i dispositivi di sicurezza, di controllo e di regolazione impiegati sulle caldaie con bruciatore a
gas ad aria aspirata marca SIME modello:
RMG 70 Mk.II (portata termica 77,9 kW)
RMG 80 Mk.II (portata termica 87,4 kW)
RMG 90 Mk.II (portata termica 100,0 kW)
RMG 100 Mk.II (portata termica 109,5 kW)
RMG 110 Mk.II (portata termica 120,5 kW)
sono conformi alla direttiva 90/396/CEE sugli apparecchi a gas:
– Pannello di controllo fiamma mod. FM11 serie MINIFLAT Ditta Brahma spa - Via del Pontiere, 31 -
Legnago (VR) Certificazione GASTEC n° E 0625 del 01/11/1995 secondo direttiva gas (90/396/EEC)
norma EN 298.
– Pannello di controllo fiamma mod. DTM12 Ditta Brahma spa - Via del Pontiere, 31 - Legnago (VR)
Certificazione GASTEC n° 0063BM1924 secondo direttiva gas (90/396/EEC) norma EN 298.
–
Elettrovalvola gas mod. VR4605 CB e VR4605 C Ditta Honeywell B.V. - Emmen - NL Certificazione GASTEC
n° E 3090/3 del 22/11/1994 secondo direttiva gas (90/396/EEC) norma EN 126.
– Elettrovalvola gas mod. VR420PB Ditta Honeywell B.V. - Emmen - NL Certificazione GASTEC n° 0063AT1198
secondo direttiva gas (90/396/EEC) norma EN 126.
– Termostato regolazione IMIT serie TRZ Ditta Imit spa - Castelletto Ticino (NO) Certificazione BEAB n°
0551 del 23/06/93.
– Termostato sicurezza IMIT serie LS1 Ditta Imit spa - Castelletto Ticino (NO) Certificazione DIN n°
STB83199 del 08/09/99.
IN ALTERNATIVA: Termostato sicurezza IMIT serie SM.96 Ditta Imit spa - Castelletto Ticino (NO) Certificazione
DIN n° STB111399 del 02/08/99.
FONDERIE SIME SpA
il Direttore Generale ing. ALDO GAVA
TAGLIARE LUNGO LA LINEA TRATTEGGIATA


Fonderie Sime S.p.A - Via Garbo, 27 - 37045 Legnago (Vr)
Tel. + 39 0442 631111 - F a x [phone] - www.sime.it
Cod. 6100005E - 04/09 - Documentation Dpt.
