Simoniz S1750 User manual

Electric Pressure Washer
S1750 Owner’s Manual
Sk u 39-8634-4
If you have any questions or comments, visit our website at www.simoniz.ca or call
our toll free hotline 1-866-4SIMONIZ (1-866-474-6664)
PLEASE KEEPTHE ORIGINAL BOX, PACKAGING AND RECEIPT. BEFORE OPERATING
THIS UNIT, PLEASE READTHIS MANUALTHOROUGHLY AND RETAIN IT FOR FUTURE
REFERENCE. IFYOU MUST STOREYOUR PRESSURE WASHER IN A PLACE WHERE
TEMPERATURE IS BELOW 5ºC,YOU MUST APPLY WINTERIZING PROCEDURETO
PROTECT IT. FAILURETO WINTERIZETHE UNIT MAY PERMANENTLY DAMAGE PUMP
AND VOIDTHE WARRANTY.

TABLE OF CONTENTS
Technical specifications ........................................................................................................ 1
Warranty ............................................................................................................................... 2
Important precautions – Read first!...................................................................................... 3
Safety features and electrical power information ................................................................. 5
Parts diagram and list ........................................................................................................... 6
Assembly instructions .......................................................................................................... 7
Operating instructions .......................................................................................................... 8
Using the accessories..................................................................................................10
Working with detergents .............................................................................................11
Shutting down and cleaning up....................................................................................12
Taking a break ..............................................................................................................13

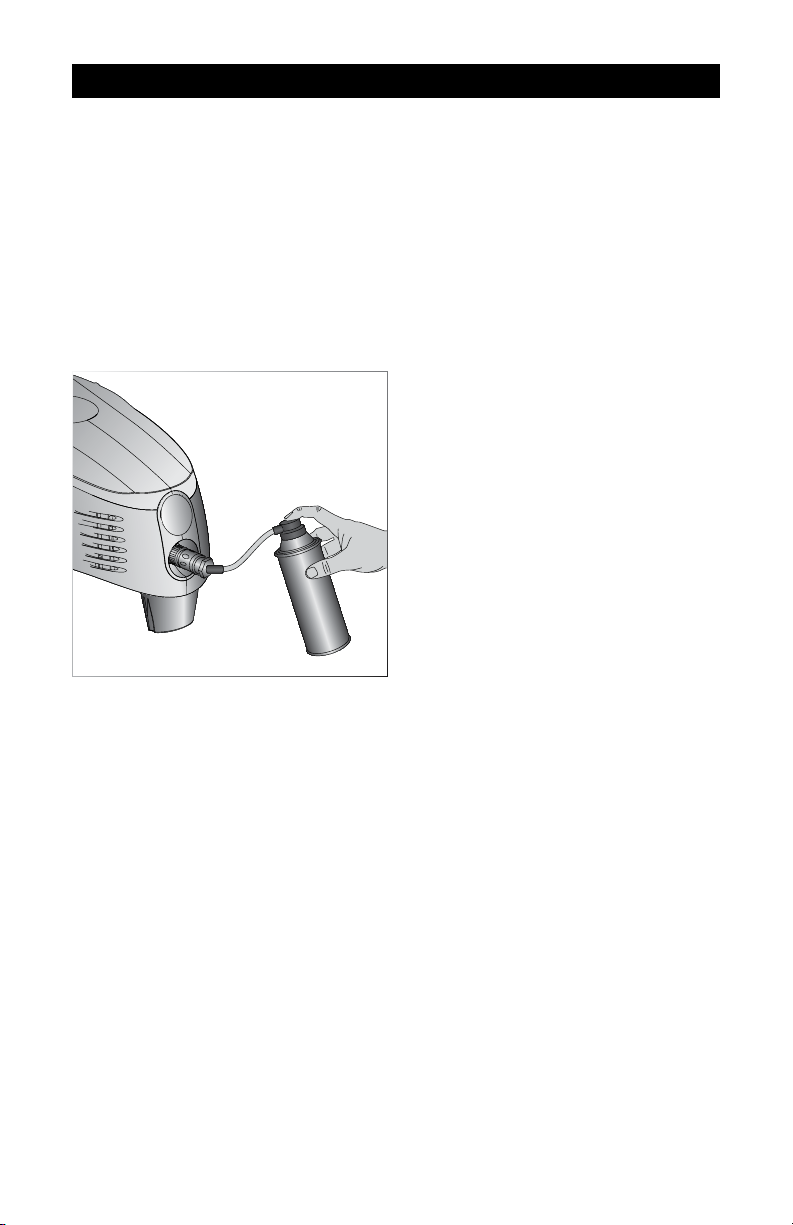

Winterizing and long-term storage ......................................................................................14
Cleaning and user maintenance .........................................................................................15
Troubleshooting .................................................................................................................. 18
TECHNICAL SPECIFICATIONS
Pressure Washer Specifications
Max Pressure: 1750 PSI
Power Source Requirement: 120 V / 60 Hz
Electrical cord: 35’ (10.7 m) 16 AWG
High-pressure hose: 23’ (7 m)
Water Flow Rate (at 100PSI): 1.4 GPM (5.3 l/min)
Current Drawn: 12.5A
Detergent Injection Rate (adjustable): 0–15%
Inlet water: Cold tap water
Nozzle spray angle (high-pressure): 0–60°
Nozzle spray angle (low-pressure): 0–90°
Turbo Nozzle: 30°

2
WARRANTY
Product Warranty
Always keep your receipt as proof of purchase.
We’re here to help! If you have any questions or comments, call our toll-free hotline 1-866-
4SIMONIZ (1-866-474-6664). Have your serial number ready. The serial number can be
found on the back plate, located on the rear of the unit. This product has a Parts Replace-
ment, Product Exchange and/or Repair Warranty only. NO REFUNDS will be provided.
Please see stores for Product Exchange details.
2-year Warranty - Motor
This product is warranted to be free from defects in material and workmanship for two
years from the date of its original purchase. If such a defect appears during the warranty
period, upon presentation of proof of purchase, Trileaf Distribution will repair or replace the
product (at its option). Shipping charges may apply.
3-month Warranty - Accessories
Trigger gun, hose, spray wands and other accessories are warranted for 3 months from the
date of purchase. You may purchase accessories directly through place of purchase, or by
calling our toll-free hotline 1-866-4SIMONIZ (1-866-474-6664).
This warranty does not cover accidental damage, unreasonable use, normal wear and tear,
use of improper detergents, freezing, neglect, or non-compliance with Operating Instruc-
tions. Warranty does not cover loss of use, or other consequential damages arising from
any of the above, nor does it cover repairs made or attempted by unauthorized persons.
Warranty is void if the equipment is used for commercial, rental or industrial purposes.
If you have more questions, visit our website (www.simoniz.ca), or call 1-866-4SIMONIZ
(1-866-474-6664).

3
IMPORTANT PRECAUTIONS – READ FIRST
Safety Warnings
• When using this product, basic precautions should always be followed: Read all the
instructions before using the product.
• High-pressure jets can be dangerous if subject to misuse. The jet must not be directed at
persons or animals.
• Water spray must never be directed towards any electric wiring, devices or directly
towards the pressure washer machine itself or fatal electric shock may occur.
• To reduce the risk of injury, do not operate the machine near children.
• Learn how to stop the machine and release pressure quickly. Be thoroughly familiar with
the controls.
• Stay alert—watch what you are doing.
• Wear safety goggles.
• For use with cold water supply only. Do not draw other liquids.
• Do not use acids, solvents, or any other ammable material in this product. These prod-
ucts can cause physical injuries to the operator and irreversible damage to the machine.
• To reduce the risk of electrocution, keep all connections dry and off the ground. Do not
touch plug with wet hands.
• The pressure washer should not be used in areas where gas vapours may be present. An
electric spark could cause an explosion or fire.
• To minimize the amount of water getting into the pressure washer, the unit should be
placed as far as possible from the cleaning site during operation.
• Avoid accidental starts. Shut power “OFF” before connecting or disconnecting cord to
electrical outlets.
• Do not operate the product when fatigued or under the inuence of alcohol or drugs.
• Do not stand on unstable surfaces. Stand with both feet balanced at all times.
• Prior to starting the pressure washer in cold weather, be sure ice has not formed in any
part of the equipment.
• Never carry your pressure washer by the cord.
• Do not pull on the cord to disconnect from the outlet.
• To allow free air circulation, the pressure washer should not be covered during operation.
• The Trigger Gun Safety Lock prevents the trigger from accidentally being engaged. This
safety feature does not lock trigger in the “ON” position.

4
IMPORTANT PRECAUTIONS – READ FIRST
Warnings
• Do not use with ammable liquids and toxic chemicals.
• Injection Hazard: Equipment can cause serious injury if the spray penetrates the skin.
• Do not point the gun at anyone or any part of the body. In case of penetration seek
medical aid immediately.
• This system is capable of producing 1750 PSI.
• To avoid rupture and injury, do not operate this pump with components rated less
than 1750 PSI working pressure (including but not limited to spray guns, hose and
hose connections).
• Before servicing, cleaning or removal of any parts, shut “OFF” power and relieve pressure.
• Do not spray electrical apparatus and wiring.
• If connection is made to a portable water system, the system shall be protected
against backow.
Save These Instructions
In a double-insulation product, two systems of insulation are provided instead of
grounding. No grounding means is provided on a double-insulated product, nor should
a means for grounding be added to the product. Servicing a double-insulated
product requires extreme care and knowledge of the system, and should be
done only by qualified service personnel.
Replacement parts of a double-insulated product must be identical to the parts they
replace. A double-insulated product is marked with the words “DOUBLE INSULATION”
or “DOUBLE INSULATED”. The symbol “ ” may also be marked on the product.

5
SAFETY FEATURES & ELECTRICAL POWER INFORMATION
The pressure washer is equipped with a stop device that will sense when the trigger on
the gun is released. It will open the power circuit to the motor, and cause the pressure
washer motor to stop. The motor will start again when the trigger is pulled.
WARNING
The pressure washer is also equipped with a main power “ON/OFF” switch located
on the unit. It should always be moved to the “OFF” position when the pressure
washer is not being used to prevent possible injury or damage.
DANGER
Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualied electrician or service personnel if you are in
doubt as to whether the outlet is properly grounded. Do not modify the plug pro-
vided with the product—If it will not t the outlet, have a proper outlet installed by a
qualied electrician. Do not use any type of adaptor with this product.
Extension Cords
If possible, do not use extension cords with this product. However, if you must use one,
observe all of the warnings and instructions listed below:
WARNING
Extension cords are not recommended unless they are plugged into a ground fault
circuit-interrupter found in circuit boxes or protected receptacles.
Use a sufcient gauge:
Maximum cable length: 50’ (15.2 m) = 14 AWG
• Use only extension cords that are intended for outdoor use. These extension cords are
identied by a marking that reads “Acceptable for use with outdoor appliances; store
indoors while not in use.”
• Use only extension cords having an electrical rating not less than the rating of the product.
• Do not use damaged extension cords. Examine extension cord before using and replace
if damaged. Do not abuse extension cord and do not yank on any cord to disconnect.
• Keep cord away from heat and sharp edges.
• Always disconnect the extension cord from the receptacle before disconnecting the
product from the extension cord.
• To reduce the risk of electric shock, keep all connections dry and off the ground. Do not
touch plug with wet hands.
CAUTION
This machine has been designed for use with cleaning detergent supplied or recom-
mended by the Retailer. The use of other cleaning detergents may affect the opera-
tion of the machine and void the warranty.

6
PARTS AND DIAGRAM LIST
Item No. Quantity Part Name Parts No.
A 1 Up-handle assembly JH05-002-0000
B 1 Hose reel JH05-002-0001
C 1 Gun holster (Top) JH01-000-0004
D 3 Screw + Nut JH02-000-0006
E 1 Detergent bottle assembly JH02-050-0003
F 2 Wheel JH05-000-0005
G 1 Gun holster (Bottom) JH01-000-0019
H 1 Gun assembly JH02-061-0000
I 1 Pressure hose JH05-000-0003
J 1 Adjustable wand JH02-000-0007
K 1 Turbo wand JH02-000-0008
L 1 Water filter JH02-020-0009
M1 1 Inlet adaptor JH05-020-0026
M2 1 Quick-connect coupling JH05-020-0026
N 1 Front foot JH01-000-0017
P 1 Universal Pressure Washer Accessories Adaptor JH05-062-0002
O 1 Hand crank JH05-002-0035
A
H
O
C
J
E
M2
G
N
B
I
D
K
F
M1
L
P

7
CAUTION
• Never use the pressure washer to draw in water contaminated with solvents (e.g.
paint thinners, gasoline, oil, etc.).
• Dirt in the water inlet will damage the unit. To avoid this risk, we recommend checking
• Always prevent debris from being drawn into the unit by using a clean water source
Water Supply (Cold Water Only)
Only draw water through the unit. For use with cold water supply only. Water hose must
be at least a 1/2” (13 mm) in diameter. Flow rate of water supply must not fall below 2
GPM (gallons per minute) [9.1 lpm (litres per minute)]. Flow rate can be determined by
running the water for one minute into an empty 5-gallon (19 L) container. The water supply
temperature must not exceed 104° F(40° C).

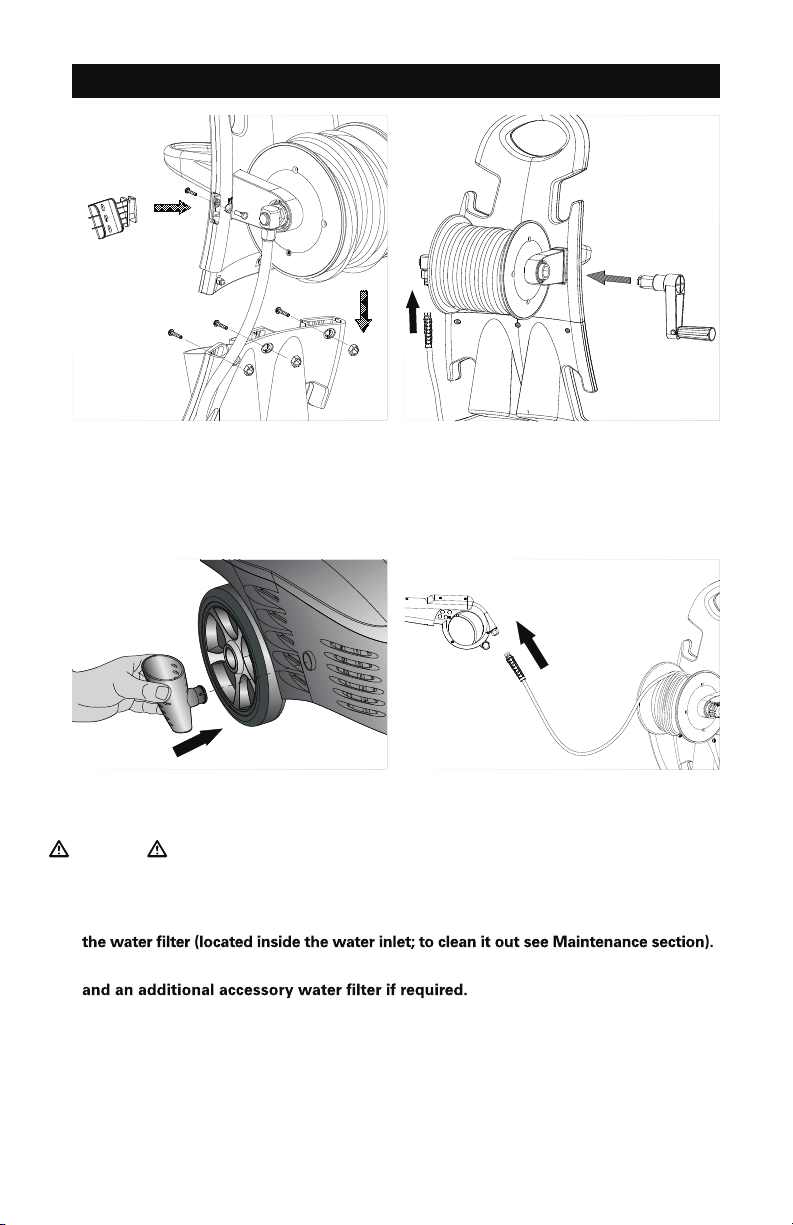

ASSEMBLY INSTRUCTIONS
1
3 4
2
Insert handle frame into pressure washer
and align the holes. Insert three nuts into
the front, and insert the screws from behind
as shown. Tighten the screws.
Assemble the gun holster. Assemble the high-pressure hose to the
gun assembly.
Attach the hand crank onto the hose reel.
Assemble the extension hose to the reel.

8

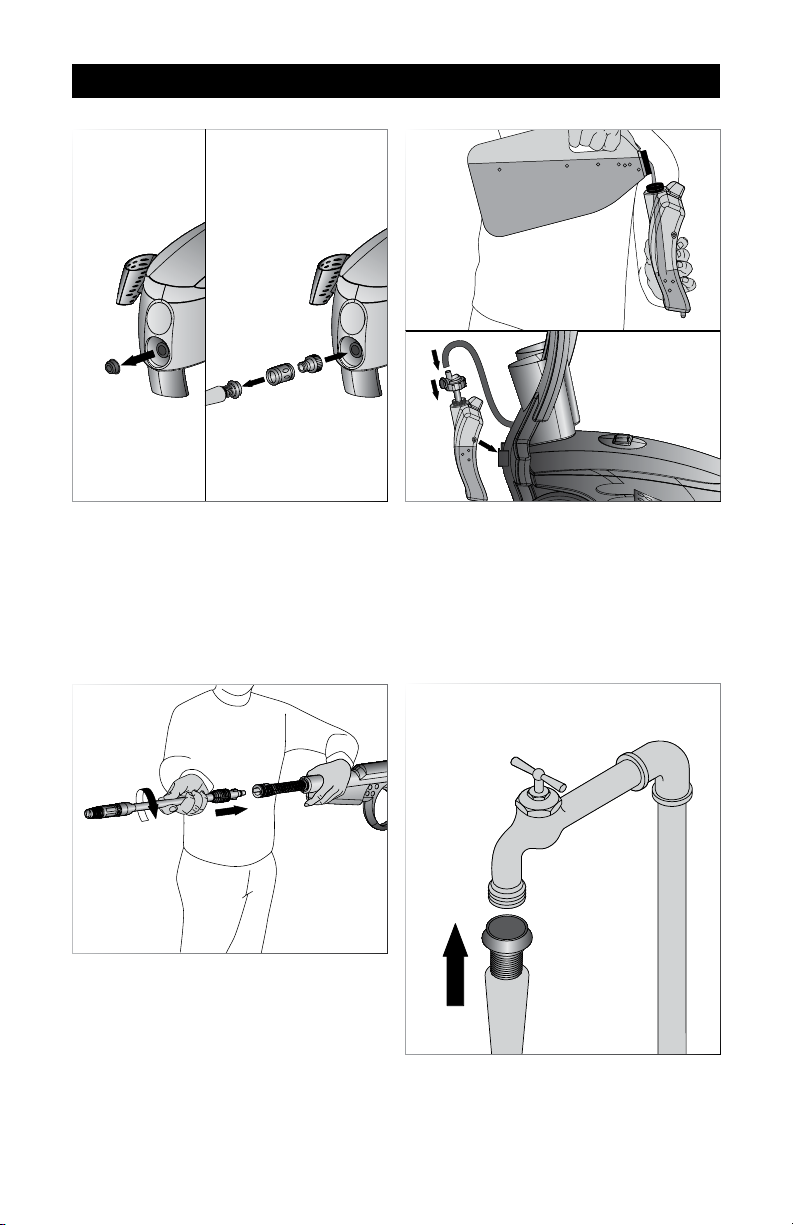

OPERATING INSTRUCTIONS
12
3
Remove and discard the cover. Separate
quick-connect coupler assembly. Attach
quick-connector coupler (M2) onto the gar-
den hose and attach the inlet adaptor (M1)
into the inlet.
Fill the detergent container with detergent and
push lid firmly onto container. Attach detergent
suction tube onto detergent lid and attach
container to the pressure washer container
storage area as shown.
Insert the desired wand with nozzle into
spray gun, and twist 1/4 turn until rectangu-
lar tab appears.
(when using detergent)
4
Attach garden hose to water supply and turn
water on.
M1
M2

9
OPERATING INSTRUCTIONS
Fig.9
ON (l)
OFF (O)
6
8
5
7
Release safety trigger, if locked.
Make sure the main switch is in “OFF” position.
Plug the unit into a properly grounded outlet.
Purge air by squeezing trigger on the gun
until there is a steady stream of water.
Press ON ( | ) Button.
