Simpli Home brooklyn+max WyndenHall AXCERN58-RNAB User manual

Erina / Cecilia / Larny

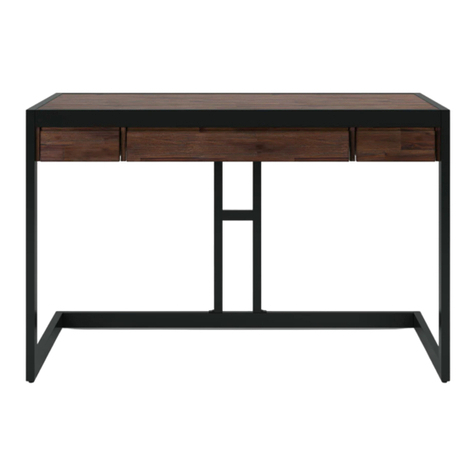

Small Desk
Model # AXCERN58-RNAB
TM
TM
1

2
It's time to register your product warranty.
It's quick and easy. And you'll be happy you did.
simpli-home.com/product-registration
Great quality is a right.
Thank you for shopping with Simpli Home,
America's top brand for high-value furniture.
Activate your 1-year warranty
Automatic entry to win a $500 gift certificate
Earn instant rewards and save
ü
ü
ü

3
Review your product and collect rewards!
Thank you for your purchase! We hope you enjoy it. We’d love
your feedback. Please share a review and get instant rewards!
simpli-home.com/product-review
Share photos and get your cash back!
Send us images or share them on social and qualify for instant
rewards. You may even receive store credit on your entire purchase!
simpli-home.com/share-images

4
For Fastest Customer Service:
1. Open your phone’s camera.
2. Point your phone’s camera at the QR code to scan.
3. Click on the pop up.
4. You’ll be taken to our customer service page.
5. Fill the form with your order information and issue.
6. Submit form.
7. A customer service associate will contact you.
Other ways to contact us…
Visit Us
Visit our site directly at
www.simpli-home.com
Email Us
[email protected]
Call Us
1-866-518-0120
Monday to Friday
9am to 5pm EST
*If you’ve purchased from a retailer and you wish to return the product, please
contact the retailer directly.

Identify all the parts and hardware. Do not discard of the packaging until you
have checked that you have all of the parts and hardware required.
Hardware package may have spare parts.
WARNING: This item contains small parts which can be swallowed by
children and pets. Keep children and pets away during assembly. To avoid
danger of suffocation, always keep plastic bags away from children and pets.
We recommend that you assemble this unit on a carpeted floor to avoid
scratches. If using power tools, set the tool to low torque to avoid damage.
May require 2 people for ease of assembly.
Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly
of this product. Keep this manual for future reference.
5

This furniture is designed for indoor use.
Damage to furniture can come from temperature changes in relative humidity (RH)
in our homes. Humid air oxidizes metal which results in rusting, corrosion, tarnishing
and roughness. Wood absorbs water as relative humidity rises and falls, and in doing
so it swells and shrinks.
To protect against the humidity effect, the metal is powder coated. The powder coat
layer protects the metal from oxidizing, corrosion, tarnishing and scratching and
keeps it looking good for years to come. The wood is sealed and lacquered to
protect against humidity.
To help protect your furniture, follow these steps:
·Use a humidifier, preferably one with an automatic control system that can
sense the humidity level and adjust itself accordingly
·Dust with soft dry cloth
·Wipe up spills promptly
·Clean with a dry cloth
·Do not use abrasive cleaners, chemical solvents, strong detergents, cleaners
with bleach, and furniture polish
·Use soft felt base coasters, placemats to help prevent scratches
·Keep furniture out of direct sunlight, which can cause cracking or roughness
on the protective layer
·If it can be avoided, do not put furniture near heating vents
·Keep the furniture 3 to 4 inches away from the wall, giving heat and air space to
circulate.
Care & Maintenance
6

.C
.
L
B
.
R
B
.A
TOP
QTY 1 LEFT SIDE QTY 1
RIGHT SIDE
QTY 1 UPPER BAR
QTY 1
LOWER BAR
QTY 1
.D
BACK FRAME SUPPORT
QTY 1
.E
UpSide/Vertical
Up Side / Vertical
UpSide/Vertical
Up Side / Vertical
Part Description
7
Model # AXCERN58-RNABPre-Assembly Information

.1.3 .2
.4.5
ALLEN KEY BOLT
M6 X 20mm
QTY 14
LOCK WASHER
Ø10 / Ø6 x 1.5 mm
QTY 26
WASHER
Ø16 / Ø6 x 1 mm
QTY 26 ALLEN KEY
QTY 1
.6
ALLEN KEY BOLT
M6 X 35mm
QTY 6
ALLEN KEY BOLT
M6 X 60mm
QTY 6
Hardware Description
8
Model # AXCERN58-RNABPre-Assembly Information

A
BL
BR
D
C E
UpSide/Vertical
Up Side / Vertical
UpSide/Vertical Up Side / Vertical
9
Model # AXCERN58-RNABComponents - Key Diagram

Step 1
1. Remove the drawers from Top A by pressing the locks on the glides.
A
10
Model # AXCERN58-RNABAssembly

Step 2
1. Align Left Side BL to Top A .
2. Use three Allen Key Bolts 3 , three Lock Washers 4 and three Washers 5 to
secure part A and BL .
3. Use one Allen Key Bolt 2 , one Lock Washer 4 and one Washer 5 to secure part A and BL .
4. Use one Allen Key Bolt 1 , one Lock Washer 4 and one Washer 5 to secure part A and BL .
5. Use Allen Key 6 to tighten Bolts. Do not over-tighten.
A
BL
A
BL
A
BL
A
BL
6 3 4 5
542 6
1 4 5 6
11
Model # AXCERN58-RNABAssembly

Step 3
1. Align Upper Bar C and Lower Bar D to Left Side BL .
2. Use two Allen Key Bolts 1 , two Lock Washers 4 and two Washers 5 to
secure part C and BL .
3. Use two Allen key Bolts 1 , two Lock Washers 4 and two Washers 5 to
secure part D and BL .
4. Use Allen Key 6 to tighten Bolts. Do not over-tighten.
UpSide/Vertical
UpSide/Vertical
Up Side / Vertical
BL
D
C
A
C
D
BL
A
5 4 1 6
5
4
1
6
12
Model # AXCERN58-RNABAssembly

Step 4
1. Align Right Side BR to Top A , Lower Bar D and Upper Bar C .
2. Repeat Step 2 and Step 3 for Right Side BR .
BL BL
BL
BL
BR BR
AA
A
A
BR
BR
C
D
C
D
C
D
D
5416
6
34
5
5
4
1
6
14
56
5
4
26
13
Model # AXCERN58-RNABAssembly

Step 5
1. Use four Allen Key Bolts 2 , four Lock Washers 4 and four Washers 5 to
secure part C and A .
2. Use Allen Key 6 to tighten Bolts. Do not over-tighten.
3. Attach Back Frame Support E to
Upper Bar C and Lower Bar D .
4. Use four Allen Key Bolts 1 , four Lock Washers 4
and four Washers 5 to secure part E , C with D .
5. Use Allen Key 6 to tighten Bolts. Do not over-tighten.
D
BR
BL
A
A
D
CE
6
1
4
5
1
4
5
C
E
6
2
4
5
14
Model # AXCERN58-RNABAssembly

Step 6
P
X
Note: Levelers on bottom of legs can be adjusted if floor is uneven.
1. Insert assembled drawers into glides on assembled desk.
2. Drawers will lock into place with plastic locks on the drawer glides.
15
Model # AXCERN58-RNABAssembly

Step 7
1. YOU MUST press the lock on the right of the flip down keyboard tray before opening.
16
Model # AXCERN58-RNABAssembly
