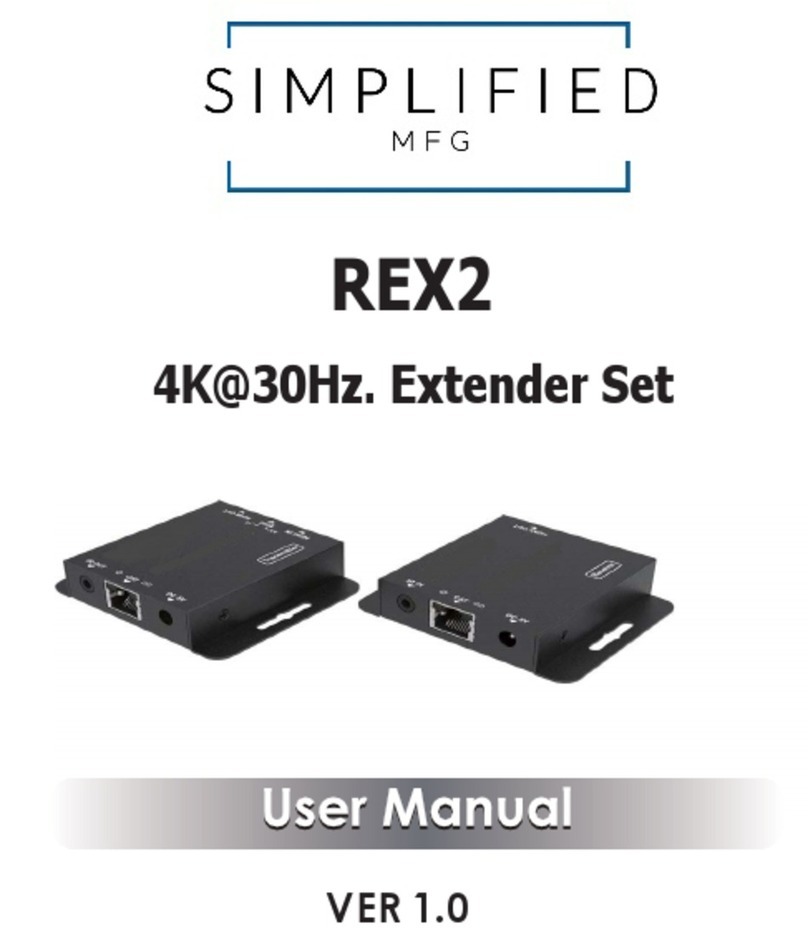

Simplified MFG REX2 User manual

REX2
4K@30Hz. Extender Set
VER 1.0

Thank you for purchasing the REX2 Extender
The REX2 is a HDMI 1.4b 4K Extender set designed to provide
years of reliable service. Please keep this manual as a reference.
Surge protection device recommended
The external supply is very robust, but a surge device is always
good insurance in electrically active areas where the power grid
is unreliable. If connected to satellite or cable boxes, the
HDSURGE is recommended to prevent surges through the HDMI
cable.
Table of Contents
1. Introduction................................................................................ 1
2. Features. .....................................................................................
1
3. Package Contents................................................................. 2
4. Specifications. ...................................................................... 2
5. Operation Controls and Functions........................................ 4
5.1 Transmitter Panel……………………………………………………4
5.2 Receiver Panel……………………………………………………5
5.3 IR Pin Definition……………………………………………………..6
6. Application Example............................................................. 7
7.
Warranty……………………………………………………………….8
8. Contact……………………………………………………………..9

1/9
1. Introduction
The REX2 Extender can extend a 1080p AV signal up to 70m (232ft)
and a 4K 30hz. signal up to 40m (131ft). The REX2 is compact and
robust making it an excellent 1080p extender with the ability to also
support 4K@30Hz. Applications would be 1080p video consoles,
STB’s, cameras, and DVRs. Other applications could be 4K 30Hz
streamers and Blu-Ray Players.
2. Features
•Compact Design
•IR Pass-through from display back to TX
•Supports HDR10/HDR10+/DolbyVision
•Supports up to 4K 230Hz.
CAT6: 230ft/70m for 1080p, 131ft/40m for 4K30
CAT5E: 197ft/60m for 1080p, 115ft/35m for 4K30
• Loop out allows cascading or intercepting of signal
• EDID can be attained from RX or Loop out

2/9
3. Package Contents
1 × HDMI Transmitter
1 × HDMI Receiver
1 × IR Blaster Cable
1 × IR Receiver Cable
2 × 5V/1A DC Power Adapter
1 × User Manual
4. Specifications
Technical
HDMI Compliance
HDMI 1.4
HDCP Compliance
HDCP 1.4
Video Bandwidth
10.2Gbps
Video Resolution
Up to 4K@30Hz
Audio Support
Up to 7.1CH HD audio
Input TMDS Signal
3.3 volts
Input DDC Signal
5.0 volts/P-P
ESD Protection
Human Body model:
+/- 8 kV (air-gap discharge)
+/- 4 kV (contact discharge)

3/9
Connection
Transmitter
Input: 1 x HDMI Type A [19-pin female]
Outputs:1 x HDMI Type A [19-pin female]
1 x IR OUT [3.5mm Stereo Mini jack
]
1 x CAT OUT [RJ45, 8-pin female]
Receiver
Inputs: 1x IR IN [3.5mm Stereo Mini jack]
1x CAT IN [RJ45, 8-pin female]
Output: 1x HDMI Type A [19-pin female]
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
79.5mm (3.125”) [W] x 69mm (2.75”) [D] x
16.5mm (0.65”) [H]
Weight
Transmitter: 132g (4.65 oz.), Receiver: 130g
(4.6 oz.)
Power Supply
5V/1A DC
Power Consumption
Transmitter: 1.86W, Receiver: 0.87W
Operation
Temperature
32 - 104°F / 0 - 40°C
Storage temperature
-4 - 140°F / -20 - 60°C
Relative Humidity
20 - 90% RH (no condensation)

4/9
5. Operation Controls and Functions
5.1 Transmitter Panel
No.
Name
Function Description
1HDMI IN
HDMI signal input port. Connect to HDMI
source device.
2EDID
Switch
The switch is used for selecting EDID: Switch
to the right position, the extender will copy
HDMI loop out display EDID information to
signal source. Switch to the left position, the
extender will copy Receiver displayEDID
to signal source.
3HDMI OUT
HDMI signal loop out port. Connect to HDMI
display device such as HDTV.
4IR OUT
Connect to IR blaster cable, the IR signal is
from the IR IN port of the receiver.
5Power LED
When the transmitter is powered on, the LED
will be Illuminated.
6CAT
CAT output port. Connect to the CAT input
port of the receiver with CAT5E/6 cable.
IR OUT DC 5V
HDMI OUTEDID
HDMI IN CAT

5/9
7Link LED
When the transmitter is connected to HDMI
source, the LED will be illuminated.
8
DC 5V
DC 5V power supply port.
5.2 Receiver Panel
No.
Name
Function Description
1HDMI OUT HDMI signal output port. Connect to HDMI
display device such as HDTV.
2IR IN
Connect to IR receiver cable, the IR signal
will emit to the IR OUT port of the
transmitter.
3Power LED
When the receiver is powered on, the LED
will be on.
4CAT CAT input port. Connect to the CAT output
port of the transmitter with CAT5E/6 cable.
5Link LED
When the receiver is connected to HDMI
source, the LED will be on.
6
DC 5V
DC 5V power supply port.
IR IN DC 5VCAT
HDMI OUT

6/9
5.3 IR Pin Definition
IR Receiver and Blaster pin’s definition is as below:
IR RECEIVER IR BLASTER
IR Blaster
IR Receiver
IR Blaster Signal
Power
NC
IR Signal
Power
Grounding

7/9
6. Application Example
The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI
Logo are trademarks or registered trademarks of HDMI Licensing LLC in the
United States and other countries.
IR OUT DC 5V
HDMI OUTEDID
HDMI IN CAT
IR IN DC 5VCAT
HDMI OUT
DVD or Blu-ray Player
UHDTV
UHDTV
IR Receiver
LAN
LAN
IR Blaster
Transmitter
Receiver
Power Supply
CAT5E/6 cable
Power Supply

8/9
7. Warranty
Should you feel that this product does not function adequately
due to defects in materials or workmanship, we (referred to as
“the warrantor”) will, for the length of the period indicated below
(starting from the original date of the purchase) either a) repair
the product with new or refurbished parts. Or b) Replace the
product with new or refurbished product. All Simplified MFG
products are covered by a 3-year PARTS and LABOR warranty.
During this period there will be no charge for unit repair,
replacement of unit components or replacement of the product if
deemed necessary. The decision to repair or replace is made by
the warrantor. The purchaser must mail in the product during
the warranty period. This limited warranty only covers the
product purchased as new and is extended to the original
purchaser only. It is non-transferrable to subsequent owners,
even during the warranty period. A purchase receipt or other
proof of purchase date is required for the limited warranty
service.

9/9
8. Contact
Sales and tech support;
P. 833-HDMI-411 (833-436-4411)
E. [email protected]
Simplified MFG • 550 W Baseline Rd Ste 102-121 • Mesa, AZ 85210

Simplified MFG • 550 W Baseline Road Ste 102-121 • Mesa, AZ 85210 • www.simplifiedmfg.com • 833-HDMI-411 (436-4411)
HDMI
HDMI
Source
REX2 Quick Start Guide
CAT6/6A/7/8
IR
IR
HDMI
• The REX2 is a 70m 1080p Extender that
supports 4K @ 50m (HDCP 1.4 only)
• The REX2 has to be powered on both
ends. Make sure power connection to
the unit is made before plugging in the
power adapter to AC.
• IR Commands are returned from the
display to the Transmitting unit for
source control

At the TX end:
Is everything connected (Cat, HDMI, Power etc)?
Is the HDMI cable in the HDMI input of the TX? We often
use a loop out, make sure the input is not in this port.
What are the lights where the Cat cable plugs into doing?
Is the Green Lit Solid?
Yes, good! Flashing or off
the category cable is poor.
This can be the termination
(check the manual for wiring
termination), poor wire, or
interference from being run
poorly
Is the Amber Lit Solid?
Yes good! Flashing slowly
means no HDCP, off means
no signal at HDMI port(s)
How to use and trouble shoot
Simplified MFG Extenders
Typical Extender use
At the RX end:
Is the Green Lit Solid?
Yes, good! Flashing or off
the category cable is poor.
This can be the termination
(check the manual for wiring
termination), poor wire, or
interference from being run
poorly
Is the Amber Lit Solid?
Yes good! Flashing slowly
means no HDCP, off means
no signal at HDMI port(s)
Other Techniques:
Make the circuit simpler. Move the source near the
display or the display near the source and see if it
works with a short HDMI cable. You can use this to
verify the HDMI cables work as well. Add components
until the system fails.
Use a known working run of category cable across the
floor and see if behavior changes.
It is often the case that the display’s setting can cause
odd/poor behavior. Consult the display’s tech
resources. Also, it is possible we have seen the issue
and may have a tech paper on this.
Not a bad idea to keep the following on your service
vehicle:
• Test source like an AppleTV or signal generator
• Known working HDMI cables
• Known working terminated Category cable
• SP12S splitter for clocking issues, etc.
Simplified MFG • 550 W Baseline Road Ste 102-121 • Mesa, AZ 85210 • www.simplifiedmfg.com • 833-HDMI-411 (436-4411)

REX2
4K HDMI 2.0a/b over
Category Cable Extender Kit
833-HDMI–411 (436-4411) • www.simplifiedmfg.com • 550 W Base-
Specifications:
The REX2 is a HDMI 2.0a 4K Extender
set that supports HDR @24/25/30Hz.
This is a more capable version of the
REX1. Applications are; 4K cameras/
NVR/DVR where HDCP2.2 is not used
and as a far more robust version of
the REX1 for 1080p applications
(longer distance more throughput)
Small size makes it easy to place be-
hind displays. 1 Way IR kit is includ-
ed and sends IR from the display end
to the transmission end.
Features:
• HDMI 2.0a
• Supports HDR
• Supports all HD Audio Formats
• Small size for easy placement
• HDMI loop through
• LED Indicators for Input, Power, &
Link
• 50m [4K @ 24/25/30Hz.]
• 3-Year Warranty
Technical
HDMI
Compliance HDMI 2.0a [10.2Gbps, supports HDR]
HDCP
Compliance HDCP 1.4
Video Bandwidth 10.2 Gbps
Video
Resolutions
up to 4K2K@50/60Hz
(YUV4:4:4),4K2K@30Hz,1080P@120Hz, and 1080P
3D@60Hz
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth 10-bit, 12-bit
HDMI Audio
Formats
(Pass-through)
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby
Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby
Atmos, DTS:X
ESD Protection Human body model — ±8kV (air-gap discharge) & ±4kV
(contact discharge)
Connections
Inputs
TX: 1x HDMI Type A [19-pin female]
1x Locking Power
RX: 1x RJ45 Input
1 Power connection [12V]
1x 3.5mm mini jack for IR
Outputs
TX: 1x RJ45 Output
1x 3.5mm mini jack for IR
1x HDMI Type A [19-pin female]
RX: 1x HDMI Type A [19-pin female]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions [RX] 60mm [W] x 60mm [D] x 17mm [H], 2.375” x
2.375”x .67”
Weight [RX] 90g 3.17 0z.
Power Supply
Input: AC100 - 240V 50/60Hz
Output: DC 5V/1A (US/EU standards, CE/FCC/UL
certified)
Power
Consumption 2.5W (Max)
Operation
Temperature 32 - 104°F / 0 - 40°C
Storage
Temperature -4 - 140°F / -20 - 60°C
Relative
Humidity 20 - 90% RH (no condensation)
