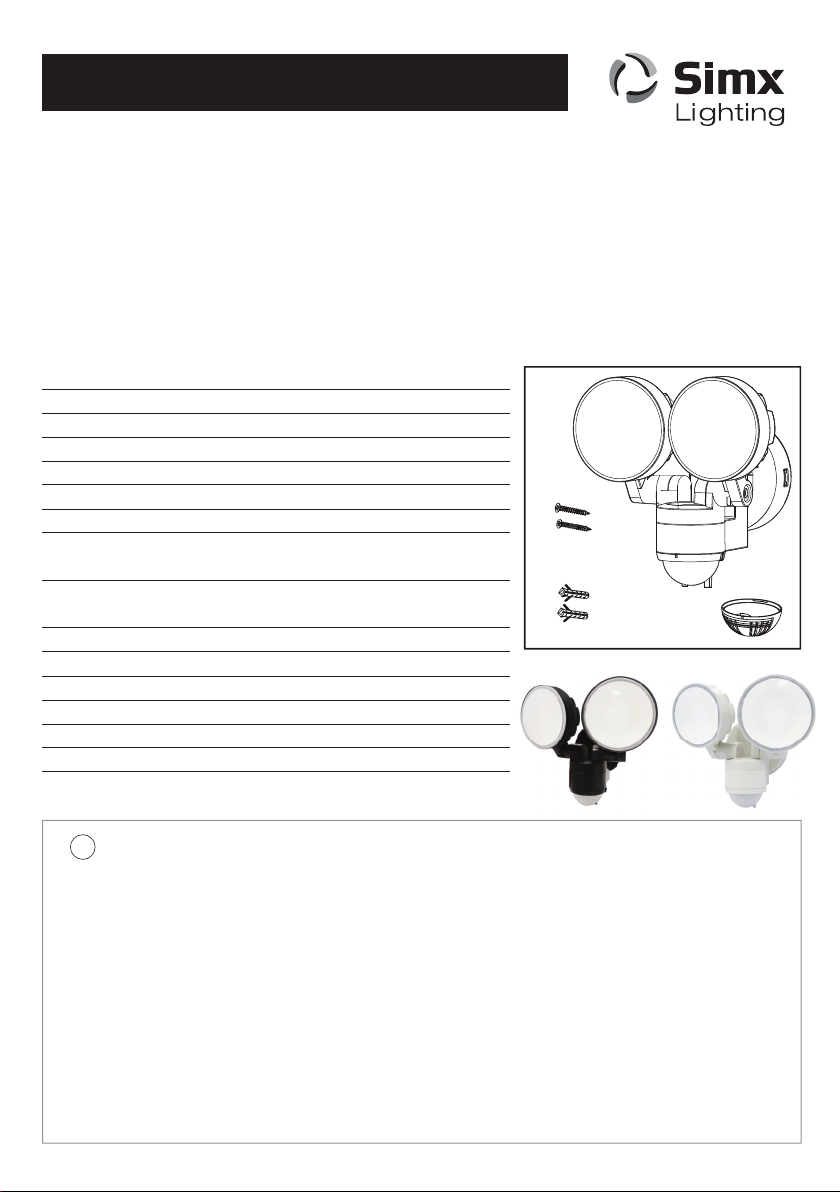

SImx LHT0269 User manual

2x
4x 32 mm
6x 30 mm
2x
1x
SENSOR LED MAX
LHT0269 BLACK / LHT0270 WHITE
Twin 2x 8W LED Sensor Light
INSTALLATION INSTRUCTIONS
This product is suitable for use only with a supply voltage of 220-240V AC 50Hz.
All electrical work must be carried out in accordance with local and national electrical codes as applicable.
We strongly recommend that this light fitting is installed by a registered electrician.
Always switch power off prior to installation. A means of mains power isolation must be installed in the circuit
for the purpose of safe access for any internal cleaning, recalibration, or maintenance.
This light fitting is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Young children should be
supervised to ensure that they do not play with the appliance.
Any changes or modifications made or attempted to this product, or product installed contrary to these
installation instructions without the prior written approval of the manufacturer, will void any and all stated
warranties.
IMPORTANT
!
Thankyou for purchasing this Simx Lighting Sensor LED light fitting.
This product is suitable for both ceiling or wall installation and sheltered exterior locations.
It requires a 230V AC power supply to operate and should be installed by a registered electrician.
TECHNICAL SPECIFICATIONS
Power Source 220-240V AC
Rated Load 17W max
Lumens (per lamp) 550 lm
Colour Temperature 3000K Warm White
Light Beam Angle 95° to half-peak intensity
Detection Range 8m ± 2 m
Detection Angle 140° at 3 metres
90° at 8 metres
Time Setting Min 30 sec ± 10 sec
Max 6 min ± 2 min
Dusk Control Day to night (adjustable)
PIR Aiming Adjustment Pan only, 90° left and right
Working Temperature -20°C - 40°C
Protection Rating IP55
Safety Class II
Construction UV-Stabilised Polycarbonate

Wall mount Eave mount
or
Fig A Fig B Fig C
142.5mm
139.5mm
115mm
45˚
“Click”
“Click”
30˚ 30˚
(60˚left & right
-2 spot pan together)
• Switch off the power supply before commencing electrical work.
• Using a flat head screwdriver, carefully lever the side tabs to separate the mounting base from the main
housing (Fig A).
• Pierce the power cable entry grommet on the mounting base and slowly draw the power cable through
the entry hole. 0.75mm² - 1.5mm² round core cable is recommended.
• Firmly secure the base to the wall or ceiling using the mounting screws provided. Mounting holes located
in the base are at 60mm centres.
• Wire the cable to the terminal block, ensuring correct polarity. Failure to do so will result in
irreparable lamp and sensor failure. A terminal for an earth parking is provided if required.
Relocate the main housing over the base and push together until it ‘clicks’ into finished position (Fig B).
• Adjust the base pivot to orientate the fitting with the sensor adjustors pointing downwards.
• Tighten thumb screw to secure. Aim spotlight head to suit the locations.
MOUNTING AND WIRINGMOUNTING AND WIRING

Fig D Fig E
Minimum On Time Setting
Maximum LUX Setting
This light fitting only operates when the PIR sensor is activated by heat movement within its detection zone.
Once power is connected, the unit requires approx. 60 seconds to warm up.
Do not commence any walk tests until this has occurred.
OPERATING ADJUSTMENT
Special Note
Time
The TIME adjustment has a minimum of approx. 30 seconds (counter clockwise rotation to the end) which it
should be set to for walk testing the unit (Fig D). Adjust this setting clockwise to the preferred duration for the
light to activate when it detects movement. The maximum clockwise setting will be approx. 6 minutes. The
timer will restart each time the sensor detects any new movement.
LUX
The LUX adjustment sets the acceptable amount of light present before the unit will start detecting. Rotating
the dial clockwise to the end will set it to full daylight operation. Use this setting for walk testing the unit (Fig D).
Fully rotating counter clockwise will set the unit to activate after dark only.
PIR Sensor
The PIR sensor has a 140° detection angle. This detection angle can also be aimed 90° left or right by pivoting
the PIR cover where it joins the main housing.
PIR Lens Mask
The PIR lens mask supplied can be used when needed for restricting detection angles of the PIR (Fig E).
Removing the largest centre segment provides a 40° detection area, while removing all segments provides
maximum 140° angle. The mask clips into place. Remove one segment at a time, aim, and check in walk test
mode. Continue removing segments until correct coverage is achieved. The purpose of the lens mask is to
block out areas not desired for detection. Apply to PIR lens as required for your location.
Care and consideration should be taken when the unit is located close to property boundaries, to avoid
unnecessary spill light or glare to neighbours, and to avoid unwanted activation by passing pedestrians or
vehicles.

This product is guaranteed by SIMX Ltd for 36 MONTHS from the date of purchase against faulty
materials or workmanship which affects its designed ability to detect or switch. During this period if the
product has a defect of this nature it will be repaired or replaced free of charge by SIMX with the same
item, or a similar one of higher specification. ON CONDITION THAT:
The buyer returns it to the seller from whom it was bought, freight paid.
The product has been bought by the user i.e. a receipt/sales invoice is produced as proof of purchase.
The product has not been misused or handled carelessly, installed in anyway contrary to the installation
instructions, or installed in any unusually exposed or harsh environmental conditions.
This guarantee excludes liability for discolouration of paint or plastic, or any user replaceable parts. It does
not confer any rights other than those expressly set out above and does not cover any claims for
consequential loss or damage.
Our Goods come with guarantees that cannot be excluded under the Australian and New Zealand
Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the Goods repaired or replaced if
the Goods fail to be of acceptable quality and the failure does not amount to a major failure.
MANUFACTURERS EXTENDED WARRANTY
PRODUCT COMPLIANCES
Product complies with:
AS/NZS60598.1:2003 AS/NZS60598.2.5
EN55015:2006 EN61000.3.2:2000 EN61000.3.3:1995 EN61547:1995
EN62031 EN 62471:2008 EN62471 EN60529 and relevant amendments.
PUB1324 2002Specifications are subject to change without notice
Distributed by: Simx Limited
Ph: +64 9 259 1660 | Technical Support Ph: +64 9 259 1662
