Sioux Tools S228668-20 User manual

MANUAL NO. 229172 11/1/2022
OWNER’S MANUAL
20/25 HP LO SPEED HEAVY DUTY
20-50 HP HIGH SPEED
TRANSITION FOR AERATION FLOOR

Introduction
•The purpose of this manual is to explain the operation and maintenance of this fan transition. It
also contains a parts list for reference if replacement parts are needed.
•It is recommended that you read this manual in its entirety for the information available to
provide the proper care and maintenance. The equipment is built to provide many years of
dependable service when used properly. Reading this manual will also provide information on
how to use the equipment correctly to prevent any accidents while using the system.
•If you have any further questions, comments, improvements, or suggestions regarding the
contents of any of the manuals provided, please see the contact information below.
•This machine is covered by one or more United States patents. Refer to www.siouxsteel.com for
current patent information. Or scan this QR Code to go directly to the patent area on the
website.
ALL safety decals are no charge from the factory.
Please replace all safety decals if damaged or missing.
Your safety is important
WARNING! Anyone who will be operating or working around the equipment should first read this
manual to familiarize themselves with the machinery.
Sioux Steel Company
196 1/2 East 6th Street
Sioux Falls, SD 57101-1265
Phone: [phone]

Contents
1Part Numbers........................................................................................................................................1
2Safety Information ...............................................................................................................................2
2.1 Safety Alert Symbols ....................................................................................................................3
3Transition Assembly Instructions ........................................................................................................7
4Fan Transition Parts Diagrams.............................................................................................................8
5Fan Transition Configurations............................................................................................................10
New Product Warranty ..............................................................................................................................11

1
1Part Numbers
S228668-20
20HP Lo Speed Heavy
S228668-20HS
20HP Hi Speed
S228668-25
25HP Lo Speed Heavy
S228668-30HS
30HP Hi Speed
S228668-40HS
40HP Hi Speed
S228668-50HS
50 HP Hi Speed
S228668S
Transition with Blank Panel

2
2Safety Information
Thank you for choosing a Sioux Steel Company product. It is designed to perform and serve you for
many years.
It is the goal of Sioux Steel Company to improve our products whenever it is possible and practical to do
so. Sioux Steel Company reserves the right to change, improve, and modify products at any time
without obligation to make changes, improvements, and modifications on previously sold equipment.
Safety is Sioux Steel Company’s main concern for you and those who are associated with the grain
handling equipment. This manual is written to help you understand safe operating procedures, and
some of the problems that may be encountered by operator or other personnel.
It is your responsibility as owner/operator to know what requirements, hazards, and precautions exist,
and to inform all personnel associated with the equipment. Any alterations to equipment are strictly
forbidden. Such alterations may result in serious injury or death and will void any warranty on product.
This equipment shall be installed in accordance with the current installation codes and applicable
regulations which should be carefully followed in all cases. Authorities having jurisdiction should be
consulted before installation is made.
Carefully review this manual and its safety instructions before installing or operating this unit. Failure to
read this manual and its safety instructions may lead to serious injury or death. If you do not understand
any part of this manual or need assistance, contact your dealer.
Save the manual for future reference by personnel operating or maintaining the unit.

3
2.1 Safety Alert Symbols
RECOGNIZE THE SAFETY ALERT SYMBOL
The above symbol means “ATTENTION! BE ALERT! YOUR PERSONAL SAFETY IS INVOLVED!” Note this
symbol in instructions for important issues concerning your personal safety. Read each message
carefully to avoid personal injury or death.
RECOGNIZE THE SAFETY ALERT SYMBOL
Observe safe operating practices. Carefully read this manual and all safety signs on your equipment.
Safety signs must be kept in good condition. Replace missing or damaged safety decals or shields. Safety
decals and shields are available free of charge from Sioux Steel Company; 196 ½ E. 6th St., Sioux Falls, SD
57101-1265.
Learn how to use controls and operate equipment. Do not let anyone operate the unit (especially youth)
without thorough training of operating and safety procedures.
Make no unauthorized modifications to equipment. Modifications may endanger function and/or safety
of the unit. Periodically check all mechanical and electrical components. Keep unit in good working
condition.
PRACTICE SAFE MAINTENANCE
Read and understand correct service procedures before operating. Keep area clean and dry to prevent
accidents. Machine should never be lubricated, serviced, or adjusted while it is in operation. Hands, feet,
and clothing must be kept away from all moving parts. Keep all parts in good condition and properly
installed. Fix any damage immediately. Qualified service personnel should replace worn or broken parts.
Any built-up grease, oil, and debris around machine should be removed.
EMERGENCIES-KNOW WHAT TO DO
A first aid kit should be made readily available.
In the event of fire, a fire extinguisher should be at hand.
Have emergency numbers near your telephone for doctors, emergency medical squad, ambulance
service, hospital, and fire department and have written directions to your location.

4
WEAR PROTECTIVE CLOTHING
CLOTHING- Avoid baggy clothes to avoid catching on moving parts.
HEARING PROTECTION- When high noise levels are encountered, ear plugs or muffs should be used.
EYE PROTECTION- Safety glasses should be always worn to protect eyes from debris.
GLOVES- Always wear gloves to protect hands from sharp edges.
STEEL TOE SHOES- Appropriate shoes should be worn to protect toes from falling debris.
RESPIRATOR- To prevent breathing toxic fumes or dust, a respirator may be needed.
HARD HAT- Appropriate headwear should be worn to protect head from falling debris.
FALL PROTECTION- Appropriate fall protection should be worn when working at elevations greater than
six (6) feet.
Signal Word Color Potential Injury or Damage Likelihood of Occurrence
DANGER Red
Severe
Indicates an imminently hazardous situation which, if not
avoided will result in death or serious injury.
WILL Occur
if Warning is ignored
WARNING Orange
Severe
Indicates a hazardous situation which, if not avoided, will
result in death or serious injury.
COULD Occur
if Warning is ignored
CAUTION Yellow
Minor
Indicates a hazardous situation which, if not avoided, will
result in minor or moderate injury.
WILL or COULD Occur
if Warning is ignored
NOTICE
Blue
or
Yellow
None
Indicates an important message or instruction not related
to personal injury.
N/A
SAFETY ALERT SIGNAL WORDS

5
WARNING: To reduce the risk of fire, electric shock, or injury to persons, observe the following:
1. Use this unit only in the manner intended by the manufacturer. If you have any questions,
contact the manufacturer.
2. Before servicing or cleaning unit, switch power off at service panel and lock the service
disconnecting means to prevent power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a prominent warning device, such as a
tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with
all applicable codes and standards, including fire-rated construction.
WARNING: To prevent explosion or fire:
1. Carefully review the operator’s manual.
2. Clean under floor, as fines may cause a bin fire.
3. Do not use to exhaust hazardous or explosive material and vapors.
4. Disconnect and lock out all power sources before servicing equipment.
WARNING: Keep clear of all moving parts
1. Keep people (ESPECIALLY YOUTH) away from equipment, particularly during operation.
2. Keep away from all moving parts. Entanglement can cause serious injury or death.
3. Keep inlet guard in place and in good working condition.
4. If fan is wired for suction, outlet must be shielded to protect an individual from moving parts.
Failure to follow the above precautions may cause serious injury or death.

6
CAUTION: To avoid electrocution, all equipment must be properly wired and grounded according to
electrical codes. Have unit wired by a qualified electrician.
Have your electrician install a main power disconnect switch capable of being locked only in the OFF
position. Mark disconnects clearly as to the equipment it operates. Always LOCK OFF main power
disconnect switch whenever equipment is not in use or when servicing the unit.
DANGER: Never enter bin unless all power is locked off and another person is present. Rotating augers
can kill or dismember!
DANGER: Flowing grain may trap and suffocate. If you enter a bin of flowing grain, you can be
completely submerged in grain in seconds. Failure to heed may cause serious injury or death.
WARNING: Heater must be electrically interlocked with fan. Never operate heater without airflow.
Failure to do so may cause serious injury or death.
CAUTION: To avoid personal injury, frequently inspect all mechanical and electrical components. LOCK
OFF all power whenever servicing equipment. Replace and/or repair worn parts. Be sure all electrical
wires are in good condition.
DANGER: Disconnect electricity before inspecting or servicing. Lock out all power and have another
person present. Always lock off all power and check with voltage meter before servicing.
Failure to do so may cause serious injury or death.

7
3Transition Assembly Instructions
Note: Reference Section 4: Fan Transition Parts Diagrams when parts (I.E) (4)) are referenced. Assemble
sides (3), bottom (1), and top (2), caulking (9) all overlapping seams, with 5/16” x ¾” (36.1) sheet metal
screws. Next assemble splice top (10) and splice bottom (11) to the inside of previous assembly, caulking
(9) all overlapping seams, with 5/16” x ¾” bin bolts (36.2) and 5/16” nuts (36.4). Tighten to 22 ft/lbs.
Finally assemble duct bottoms (14), duct sides (13), and duct supports (15), caulking (9) all overlapping
seams, with 5/16” x ¾” (36.1) sheet metal screws. Depending on application, assemble appropriate fan
panel (27) to front of transition, caulking (9) all overlapping seams, with 5/16” x ¾” (36.1) sheet metal
screws. If not provided, field cut an entrance opening in the sidewall sheet (as shown in detail 1). The
opening size is 12 ½” high x 46 ¾” wide. Slide entrance collar of transition into opening far enough to
secure wall brackets (18 & 19) to transition and outside of bin. Secure wall brackets to transition with
5/16” x ¾” bin bolts (36.2) and 5/16” flange nuts (36.4). Cut 2 pieces of foam (16) to 16” length and
attach to outside of bin. Slide wall brackets against the bin side wall sheet over foam (see detail 2).
(Note: duct supports (15) must be aligned so that the bin sheet lies in the center of the
supports/transition (see detail 3).) Remainder of foam (16) needs to be installed under entrance collar
before final attachment. Drill six 11/32” holes into hills of wall sheet and bolt wall brackets for final
attachment 5/16” x ¾” bin bolts (36.2) and 5/16” flange nuts (36.4). Install flashing (17) on outside of bin
on top entrance collar of transition using plenum bolt hole in wall sheet. Caulk around the entire
entrance collar to seal all gaps and prevent leaks.

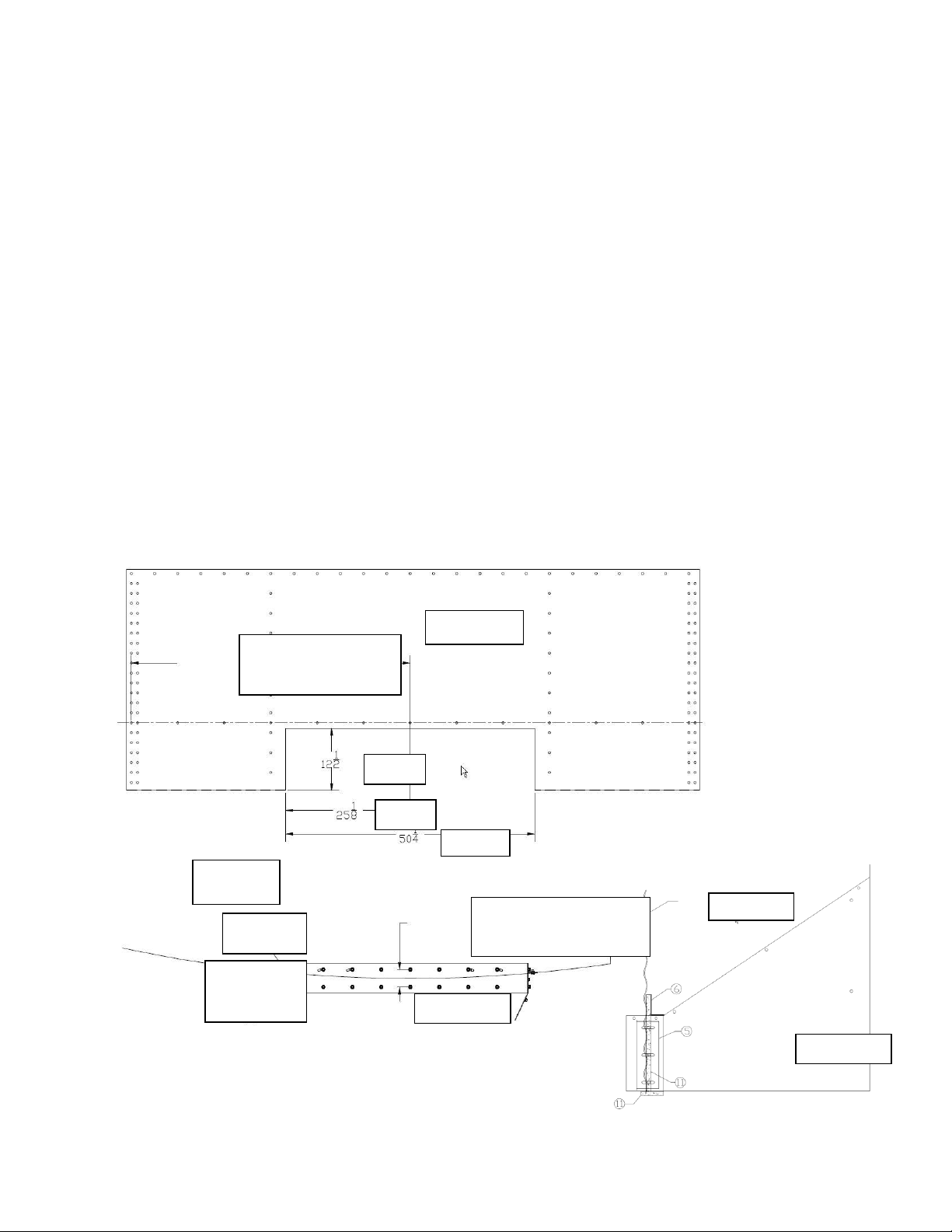

CENTER OF CUTOUT
MUST BE INLINE WITH
7TH PLENUM HOLE
DETAIL 1
DETAIL 3
ADJUST WALL BRACKETS
SO THAT THE BIN SHEET
IS CENTERED BETWEEN HOLES
WALL
BRACKET
BIN WALL
SHEET
TRANSITION
ENTRANCE
COLLAR
BIN WALL
DETAIL 2
12 1/2
46 3/4
23 3/8

8
16

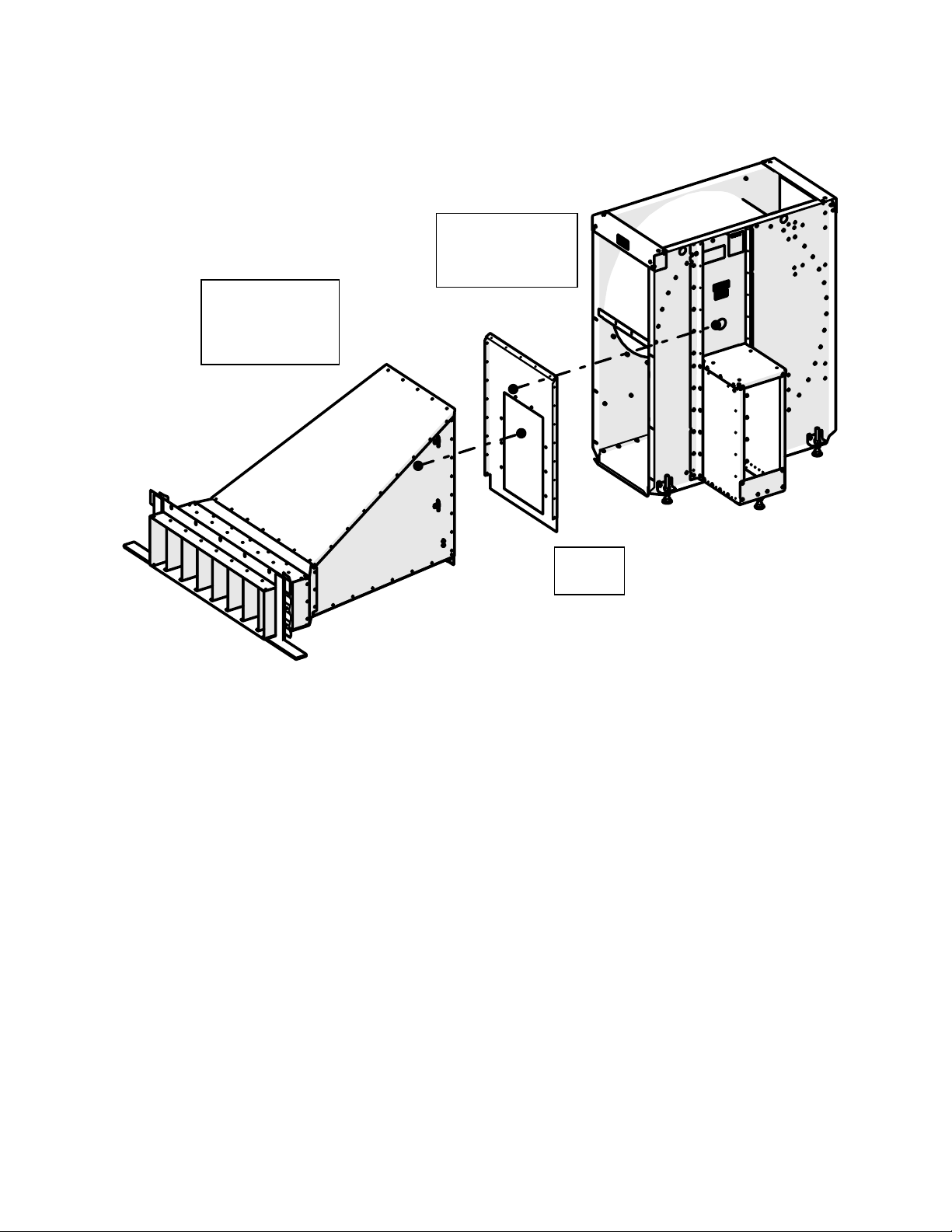

4Fan Transition Parts Diagrams
















16

9
ITEM
PART #
DESCRIPTION
QTY
1
228672
PANEL - TRANSITION BOT - 20 - 50HP FULL TRAN
1
2
228671
PANEL - TRANSITION TOP - 20 - 50HP FULL TRAN
1
3
198155
TRANS SIDE-20/25 HP (SHUTTER)
2
9
165406
SILICONE CAULK
1
10
228670
SPLICE - TOP- 20-50HP FULL Tran
1
11
228673
SPLICE- TRANSITION BOTTOM 20-50HP
1
12
228674
SPLICE- TRANSITION LH SIDE- 20-50HP FULL
1
13
184101
DUCT SIDE-12"
2
14
228669
DUCT - TRANSITION BOTTOM 20-50HP
2
15
184103
DUCT SUPPORT
7
16
11484
SEAL- FOAM
2
17
198032
TOP TRANS FLASHING
1
18
195629
TRANS BRKT - LH COMM
1
19
195630
BRACKET- TRANSITION/COMM-RH
1
20
228675
SPLICE- TRANSITION ALT SIDE 20-50HP
1
27
228678
PANEL- TRANSITION FAN- 20HP-1750RPM CENTRFGL
1
228679
PANEL- TRANSITION FAN- 25HP-1750RPM CENTRFGL
228680
PANEL - TRANSITION FAN - 20HP - 3500RPM CENTRIFGL
228681
PANEL- TRANSITION FAN- 30HP-3500RPM CENTRFGL
228682
PANEL- TRANSITION FAN- 40HP-3500RPM CENTRFGL
228683
PANEL- TRANSITION FAN- 50HP-3500RPM CENTRFGL
228677
BLANK PANEL FOR MOUNTING OTHER FANS
30
228686
HDW- TRANS-20/25HP 1750RPM 20HP-50HP 3500RPM-
1
30.1
180561
SCREW- 5/16 X 3/4 SLTD HEX-SHT MTL
115
30.2
177732
BOLT-.313 BIN-18 X .750 GR8.2- ASTM F1136
57
30.3
154063
WASHER-.313 STD USS FLAT BZ
8
30.4
154048
NUT-.313 HEX -18 GR5 ZP
40
30.5
158372
NUT-.313-18 HEX FLANGE/CASE HARDENED BZ
16
37
228725
OPTIONAL SHUTTER KIT- 20HP/25HP HD 1750RPM FAN- 20HP-50HP 3500RPM
FAN- NARROW
1
PARTS LIST

10
5Fan Transition Configurations
Seal all seams and joints to prevent moisture from entering or air from leaking.
It is very important that your fan is adequately supported!
If a concrete pad is not used, an angle iron frame may be constructed for the fan to rest
on, providing it is strong enough to support the fan’s weight. Two support cables should
also be used in conjunction with the angle iron frame, running from the top portion of
the fan to the adjacent bin wall stiffeners. See fan manual for further details.
REF.
CENTRIFUGAL
FAN
REF.
CENTRIFUGAL
TRANSITION
PANEL

11
New Product Warranty
GRAIN BINS
LIMITED WARRANTY FOR NEW SIOUX STEEL COMPANY PRODUCTS
A. GENERAL PROVISIONS. “Sioux Steel” means Sioux Steel Company, 196 1/2 East Sixth Street, Sioux Falls, South Dakota 57104.
The warranties described below are provided by Sioux Steel to the original purchasers of new products purchased from Sioux Steel or
from an authorized Sioux Steel Dealer (the “Products”). Under these warranties, Sioux Steel will, at its option, repair or replace at its
factory any Product covered under these warranties which is found to be defective in material and workmanship during the applicable
warranty term or refund the purchase price paid for the defective Product. Customer will be responsible for labor charges for removing
the defective Product and reinstalling the repaired or replacement Product, any premium charge for overtime labor requested of Sioux
Steel and shipping charges to and from Sioux Steel’s factory. These warranties are not transferrable.
B. WARRANTY PERIOD. Subject to exclusions and limitations set forth herein, each new Product is warranted for the number of years
specified below. Each warranty term begins from the date of purchase regardless of delay in receipt of the Product by Customer due to
the time required to process, handle, ship, assemble, construct and install the Product. Customer must retain proof of the date of
purchase. Replacement parts for and repairs to the Product will be warranted only for the remainder of the original warranty term. The
replacement parts for or repairs to the Product will not extend the warranty term beyond the original warranty term. Products described
below include all parts, components and accessories.
GRAIN BINS
Farm Use Grain Bins
10 Years
Commercial Use Grain Bins
5 Years
E-Series Farm Use Grain Bins
5 Years
Centrifugal Fans, Axial Fans and Axial Heaters
2 Years
Bin Accessories, including Bucket Elevators, Conveyors, Cage and Ladder Systems, Catwalks and Towers,
Grain Dryers and Peak Walk-Arounds.
1 Year
New Daay Paddle Bin Sweep
1 Year
Daay Power Sweep
1 Year
DSH System
1 Year
Exclusions specific to Grain Bins: Damage or loss of any kind from (1) excessive vacuum or internal pressure from the operation of fans
in an empty grain bin and from the blockage of air passages for any reason including, but not limited to, the blockage of roof vents and
discharge louvers by ice and snow; (2) a failure to properly compact and engineer soils; (3) a failure to properly construct footings and
foundations; and (4) exposure to conditions in excess of, or not meeting, as the case may be, the wind and snow load requirements of
each grain bin model.
C. ITEMS COVERED SEPARATELY. The Sioux Steel warranties do not cover any parts, components or materials that are part of the
Product, or used in conjunction with the Product, that are not manufactured by Sioux Steel. Such parts, components and materials will be
subject to the warranties provided by the manufacturer, if any. Manufacturers of electric motors provide warranty service only through
authorized service centers. Sioux Steel will not be responsible for motor repair or replacement.
D. WHAT IS NOT WARRANTED. Sioux Steel does not warrant and is not responsible for the following: (1) used products; (2)
modification or alteration of the Products; (3) Products that have not been properly installed or not installed in accordance with the
instruction manual, improper assembly, or improper construction by any persons other than Sioux Steel employees; (4) depreciation,
damage or loss caused by the use of parts, components or accessories not provided by Sioux Steel, unauthorized repairs, normal wear,
lack of necessary and proper maintenance, a failure to follow operating instructions/recommendations, misuse, lack of proper protection
during storage, vandalism or theft, exposure to the elements or corrosive materials, accidents or acts of nature including lightning,
flooding, hail, straight winds and tornadoes; and (5) cosmetic damage or damage that does not hinder the functionality of the Products.

12
E. LIMITATIONS OF WARRANTIES AND CUSTOMER’S REMEDIES. To the extent permitted by law, neither Sioux Steel, the Dealer
nor any person or company affiliated with either of them makes any warranties, representations, conditions or promises express or
implied as to the quality, performance or freedom from defects of the Products covered by these warranties other than those set forth
herein. THERE ARE NO IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. NEITHER
SIOUX STEEL, THE DEALER, NOR ANY PERSON OR COMPANY AFFILIATED WITH EITHER OF THEM WILL BE LIABLE FOR ANY
DAMAGES, INCLUDING, BUT NOT LIMITED TO, INCIDENTAL, SPECIAL, EXEMPLARY, CONSEQUENTIAL, LOST PROFITS AND
REVENUES, LOST USE OF THE PRODUCTS OR ANY OTHER PROPERTY, BODILY INJURY OR PROPERTY DAMAGE CLAIMS OF
ANY PERSON, LOST COMMODITIES, REMOVAL OR STORAGE COSTS FOR THE PRODUCTS, OTHER EQUIPMENT AND
COMMODITIES, DAMAGE TO THE ENVIRONMENT ARISING FROM OR IN ANY MANNER RELATED TO ANY RELEASE OF
HAZARDOUS MATERIALS, AND REMEDIATION EXPENSES THEREFORE, WHETHER BASED ON CONTRACT, TORT, STRICT
LIABILITY OR ANY OTHER LEGAL BASIS, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO INSTANCE WILL
SIOUX STEEL, THE DEALER OR ANY PERSON OR COMPANY AFFILIATED WITH EITHER OF THEM BE LIABLE TO CUSTOMER
OR ANY PERSON IN AN AMOUNT IN EXCESS OF THE PURCHASE PRICE PAID BY CUSTOMER FOR THE PRODUCT.
F. NO DEALER WARRANTY. THE DEALER HAS NO AUTHORITY TO MAKE ANY WARRANTY, REPRESENTATION, CONDITION
OR PROMISE ON BEHALF OF SIOUX STEEL, OR TO MODIFY THE TERMS OR LIMITATIONS OF THIS WARRANTY IN ANY WAY.
G. GOVERNING LAW/VENUE. These warranties, and all terms set forth herein, are governed by the laws of the State of South Dakota
and, where applicable, the laws of the United States of America. Any and all disputes arising from these warranties, the purchase and
use of the Products, bodily injury and property damage claims or otherwise must be venued in the South Dakota Circuit Court sitting in
Minnehaha County, South Dakota. Customer agrees to such venue and waives any challenge to such court’s jurisdiction based upon
lack of personal jurisdiction or inconvenience.
H. SECURING WARRANTY SERVICE. In order to receive warranty services, customer must give Sioux Steel written notice of a
warranty claim within 30 days of the date of discovery of the defective materials or workmanship, and Customer must complete the
following steps:
(1)
Obtain from Sioux Steel a Return Goods Authorization Number (“RGA Number”) by calling the Customer Service
Department at 1-800-557-4689, and providing the following information:
➢An explanation as to why the Product is being returned.
➢The name of the territory representative, Dealer or Sioux Steel salesperson from whom the Product was
purchased.
➢The Dealer’s identification number.
➢The invoice number and date of purchase.
➢Customer’s name, phone number, fax number, mailing address and email address.
➢The date that the Product will be returned.
(2)
Pay the shipping charges to ship the Product to Sioux Steel’s factory, and the return shipping charges.
(3)
(4)
Ship the Product to Sioux Steel Boyd Distribution at 221 East 11th Ave, Lennox, South Dakota 57039.
Make sure RMA Number is labeled visibly on the returned products.
