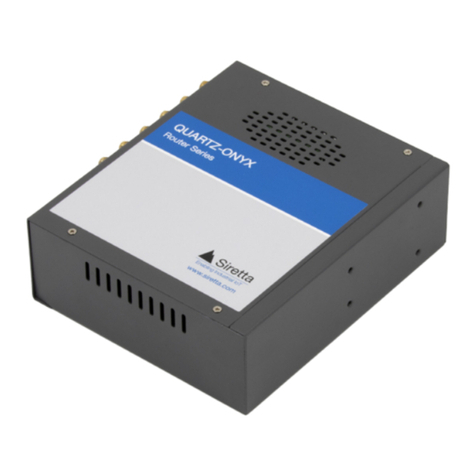

SIRETTA QUARTZ-ONYX Quick user guide

QUARTZ-ONYX
5G NR Gigabit Ethernet Industrial Router
Range
Applicable models:
QUARTZ-ONYX-W42-5G (GL)
QUARTZ-ONYX-GW42-5G (GL)
Hardware Reference Manual
Rev 1.0

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
2
QUARTZ-ONYX
Hardware Manual
Download Latest Edition
Table of Contents
Page
Introduction 3
About Siretta 4
General Description 5
Typical Installation 6
Features 7
Specifications 10
Ordering Information 16
Radio Characteristics 17
WiFi Characteristics 17
Cellular Characteristics 19
GPS Characteristics 22
Dimensions 23
Wall Mount Bracket 24
QUARTZ-ONYX Images 25
Status LEDs 27
Interfaces 29
LAN / WAN Port 30
RS232 Interface 31
GPIO 33
Earth Point 35
Reset 36
SIM Socket 37
Antenna Connectors 38
Cellular Antenna Connector 38
GPS Antenna Connector 40
WiFi Antenna Connector 42
Power 43
Copyright Information 44
Copyright Declarations 44
Trademarks 44
Approvals 45
Disclaimer 46
Definitions 47

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
3
QUARTZ-ONYX
Hardware Manual
Download Latest Edition
This document covers all the electrical and mechanical aspects of the QUARTZ-
ONYX 5G NR router. For programming and use of this product in a computer
network, please refer to the QUARTZ-ONYX Software Manual.
This manual is intended to guide on how to connect the QUARTZ-ONYX 5G NR
router into a computer network so that it may be used as the gateway router either to
a WAN or the 5G NR cellular network, with the option of automatic fallback between
the two. For complete network conguration, it is necessary to set up the network
using the built-in web server for which reference to the companion software manual is
required.
Introduction

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
4
QUARTZ-ONYX
Hardware Manual
Download Latest Edition
Siretta is a wireless communications company located in Reading, United Kingdom
and has been manufacturing & supplying industrial IoT products since the early
2000s.
The product portfolio is made up of:
»Antennas, plus their associated Cable Assemblies & Adapters,
»Cellular Network Analysers
»Industrial Modems
»Industrial Routers
»Associated Cloud Management
We supply our products directly and via a worldwide network of distributors, into
numerous markets and applications across the globe.
Siretta’s distribution partners range from industrial IoT specialists through to global
catalogue organisations.
Whether you require an “off the shelf” or custom solution, Siretta has a wide portfolio
of products to t your application.
Our extensive knowledge and experience in the wireless market allows us to support
a wide range of customer applications, focusing on frequencies between 150 MHz to
6 GHz. These encompass modems, routers and antennas for:
»Cellular technologies: GSM/GPRS/3G/UMTS/4G/LTE & 5G NR, plus LTE CAT 1,
LTE CAT M & LTE CAT NBIoT
»Global positioning: GPS/GNSS
»WLAN/Wi-Fi
Whilst providing the above products for the industrial cellular market, Siretta also has
a number of antennas to cover applications for:
»Bluetooth, Zigbee, ISM band, LoRa and Sigfox
With a heavy emphasis on design, we have a team of dedicated Engineers and
Product Managers, who specialise in wireless applications.
We continually make signicant investment in R&D in our endeavour to provide
customers with market leading, future-proofed wireless solutions and work closely
with many technology partners to stay at the forefront of industrial IoT.
About Siretta

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
5
QUARTZ-ONYX
Hardware Manual
Download Latest Edition
The QUARTZ-ONYX uses a Mediatek 880 MHz MIPS dual-core processor with
256 Mb ash and 2 Gb of DDR3 RAM. This processor runs a proprietary Operating
System based on Linux which controls the web interface and routing functionality
of the router. VPN throughput is enhanced with a hardware IPSec crypto engine
onboard the MIPS processor. The processing system is augmented with an STM32
ARM Cortex coprocessor which controls the operation of the GPIO and serial
interfaces.
The cellular capabilities of the QUARTZ-ONYX are powered by the Quectel RM500
QAE Module which uses the Qualcomm Snapdragon X55 5G Modem and is
manufactured on a leading edge 7 nm semiconductor fabrication process. Dual SIM
operation provides cellular network resilience when there may be connectivity issues.
As well as offering four Gigabit Ethernet interfaces, the QUARTZ-ONYX also offers
RS232 and RS485 interfaces that may be used to connect serial ports on products
such as door access controllers and alarm panels to the Internet.
Further peripheral connectivity is provided by an intelligent GPIO interface that can
send SMS messages on change of input state, and control outputs based on input
state or SMS messages received.
WiFi 5 comes as standard, and the QUARTZ-ONYX also optionally supports GPS
using a 56-channel u-blox 7 engine for asset tracking applications.
Three modes of networking operation are possible:
1. 5G NR cellular router where the WAN connection of the router is the 5G NR
cellular interface. In this mode all Ethernet interfaces are for LAN use. Internet
connectivity comes from the internal cellular interface.
2. WAN router where one of the Ethernet ports of the router is used as the WAN
connection. The WAN port in this case would normally be connected to a cable
or ADSL modem to obtain Internet connectivity.
3. Backup router which combines the two above modes. The router can switch
between the cellular and WAN connections automatically to maintain Internet
connectivity should one path fail. The preferred route can be set to cellular or
WAN.
General Description

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
6
QUARTZ-ONYX
Hardware Manual
Download Latest Edition
This section explains the interfaces on the QUARTZ-ONYX and how to
connect to them. It is recommended that the SIM card necessary for Cellular
operation into the QUARTZ-ONYX be inserted rst and power applied last.
A typical installation will look like this:
Typical Installation
Figure 1. Typical system diagram

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
7
QUARTZ-ONYX
Hardware Manual
Download Latest Edition
»4x Gigabit RJ-45 Ethernet Interfaces
»2x SIM Slots
»1x DC Power Interface (7.5 to 32 V dc)
»5x SMA Cellular antenna Interface (4x cellular, 1x GPS on
models supporting GPS)
»2x RP-SMA Wi-Fi Interface
»Serial interface that may be congured as 2x RS232 or 1x
RS485/Modbus
»2x Digital Inputs, with programmable noise lter
»2x Digital Outputs that can be set high, low or to pulse when
activated
Physical Interfaces
Features
WiFi Features
»IEEE 802.11n/ac radio supporting IEEE 802.11a/b/g/n/ac
wireless standards
»Concurrently operates in 2.4 and 5 GHz bands
»Standard Reverse Polarity SMA antenna interface
»Access point, Client, and Ethernet bridge modes of operation
»20/40/80 MHz channel width
LAN/WAN Features
»3x Gigabit LAN & 1x Gigabit LAN/WAN (user congurable)
»Hardware NAT capable of 2 Gbps wire speed
»Auto-MDI/MDIX
Cellular Features
»Support for 5G NR (NSA & SA), LTE (4G) and WCDMA (3G)
networks
»Dual SIM operation with failover and backup modes
»Network locking
»Network disconnection checking

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
8
QUARTZ-ONYX
Hardware Manual
Download Latest Edition
5G NR Features
»Supports 3GPP Release 15 features
»Supports NSA (Non-Standalone Architecture) and SA (Standalone Architecture) modes of operation
»Supports FDD and TDD modes
»Supports Frequency Range 1 bands (Sub 6 GHz bands)
»MIMO support
»Maximum downlink speed 2.1 Gbps (SA mode); 2.5 Gbps (NSA mode)
»Maximum uplink speed 900 Mbps (SA mode, band n41); 650 Mbps (NSA mode)
LTE (4G) Features
»Supports Cat 16 download and Cat 18 upload speeds
»Supports FDD and TDD modes
»Supports MIMO in download direction
»Maximum downlink speed 1.0 Gbps
»Maximum uplink speed 200 Mbps
WCDMA (3G) Features
»Supports GPS constellation
»Client and server modes of operation
»10 Hz update rate
»NMEA 0183 & proprietary M2M format supported
»Cold start time to rst x typically 29 seconds
»TCXO oscillator for high performance
»Active antenna support

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
9
QUARTZ-ONYX
Hardware Manual
Download Latest Edition
»Supports GPS constellation
»Client and server modes of operation
»10 Hz update rate
»NMEA 0183 & proprietary M2M format supported
»Cold start time to rst x typically 29 seconds
»TCXO oscillator for high performance
»Active antenna support
GPS Features
»Hardware Crypto Engine delivering 400~500 Mbps IPSec throughput
VPN Features
»Power – Power applied
»Cellular Signal – signal quality & connection status
»LAN – connection status and activity
»WAN – connection status and activity
»WLAN – connection status and activity
»Error – Cellular online/ofine status
LED Indication
»Galvanised steel box with grounding point
»Wide operating temperature range
»Supplied with DIN rail adapter (with accessories version only)
»Supplied with mounting plate to attach to a at surface such as a wall or
cabinet (with accessories version only)
Physical

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
10
QUARTZ-ONYX
Hardware Manual
Download Latest Edition
Parameter Value
Operating Temperature -30 to +75°C
Storage Temperature -40 to +85°C
Humidity Range 0 to 95% RH non-condensing
Table 1. Environmental Characteristics
Physical
Specifications
Environmental
Mechanical
Table 2. Mechanical Characteristics
Parameter Value
Dimensions 132 mm x 112 mm x 44 mm (excluding protruding connectors)
Weight 472g (excluding antennas, SIM card, connectors and packaging)
IP Rating 30
Power Supply Requirements
Table 3. Power Supply Requirements
Parameter Value
Input supply voltage 7.5 – 32 V
Minimum power supply rating 24 W
Recommended Power Supply 12 V @ 2.0 A
Power

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
11
QUARTZ-ONYX
Hardware Manual
Download Latest Edition
Features Enabled Average current when powered from 12V
Cellular WiFi WAN LAN GPS
680 mA
630 mA
630 mA
580 mA
550 mA
680 mA
Table 4. Power Consumption Characteristics
Power consumption
*When streaming BBC iPlayer at highest video quality
IMPORTANT: Power consumption currents are measurements of average current.
When the cellular connection is active there will be short current pulses signicantly
greater than the average values provided. It is important that the 12V supply used to
power the router can deliver at least 2.0 A to prevent network disconnections caused
by these current pulses.
All current measurements with the cellular modem enabled are started after the
router has obtained an IP address from the cellular network and is in a steady state.
An 800 MHz LTE cell with a measured signal strength of 15 was used when taking
measurements. Measurements for all communication interfaces are with them
enabled and connected but no trafc owing. WiFi is used with both 2.4G and 5G
enabled. LAN power measurements are made with a single LAN port used. GPS is
measured after a position x has been obtained.
IMPORTANT: BBC iPlayer may be accessed at https://www.bbc.co.uk/iplayer. Much
content could be blocked outside of the UK, but BBC news is always likely to be
available internationally.
The power consumption when used with UMTS, LTE and 5G NR networks is broadly
similar. Cellular power consumption will be affected will be affected more strongly
by proximity to the serving cell (closer to the cell = less transmitting power required),
weather (heavy rain/snow = more signal attenuation and greater transmit power) and
operating band (lower frequencies are generally lower power).
*

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
12
QUARTZ-ONYX
Hardware Manual
Download Latest Edition
Table 5. SIM Card Reader Characteristics
Parameter Value
SIM card reader type Push-Pull
SIM card voltage support 1.8 V and 3 V with automatic detection
RS232 characteristics
Table 6. RS232 Conguration Settings
Setting Allowed Values
Baud Rate 300, 600, 1200, 2400, 9600, 19200, 38400, 57600, 115200
Data bits 5, 6, 7, 8
Parity None, odd, even
Stop bits 1, 2
IMPORTANT: Baud rates settings are valid with a load of 3kΩ, 1000pF
Table 7. RS232 Transmitter Characteristics
Transmitter Parameter Conditions Min Typ Max Units
Output Voltage Swing 3kΩ load to ground ±5.0 ±5.4 Volts
Output short circuit current ±35 ±60 mA
Dual Sim Card reader
Dual SIM card reader for mini-SIM (2FF) meeting ISO/IEC 7810:2019, ID-000 (25 mm x 15 mm)
The RS232 port is 2-wire (no ow control). The RS232 port may be used in either
client or server mode (server mode requires either a xed IP address SIM or a VPN to
be congured). Caching of serial data is supported for areas where Internet access
is intermittent. The QUARTZ-ONYX may be set to either RS232 (two ports) or RS485
(one port). Selection between RS232 and RS485 is made in software on the router
conguration pages.

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
13
QUARTZ-ONYX
Hardware Manual
Download Latest Edition
IMPORTANT: Minimum and maximum values are over the operating
temperature range of -30 to +75°C, typical values are at +25°C.
Table 8. RS232 Receiver Characteristics
Receiver Parameter Min Typ Max Units
Voltage Range -15 15 Volts
Threshold Low 0.6 1.3 Volts
Threshold High 1.7 2.4 Volts
Hysteresis 0.3 Volts
Resistance 3 5 7 kΩ
RS485 characteristics
Table 9. RS485 Conguration Settings
Setting Allowed Values
Baud Rate 300, 600, 1200, 2400, 9600, 19200, 38400, 57600, 115200
Data bits 5, 6, 7, 8
Parity None, odd, even
Stop bits 1, 2
Table 10. RS485 Driver Characteristics
Transmitter Parameter Conditions Min Typ Max Units
Differential Output Voltage Unloaded, load = ∞ 3.47 Volts
Differential Output Voltage Loaded, Load = 27 Ω 1.5 Volts
Change in magnitude of driver
differential output voltage for
complimentary states
Load = 27 Ω 0.2 Volts
Common Mode Output Voltage Load = 27 Ω 3.0 Volts
Output short circuit current ±250 mA
The RS485 port may be used in either client or server mode (server mode requires
either a xed IP address SIM or a VPN to be congured). The QUARTZ-ONYX may be
set to either RS232 (two ports) or RS485 (one port). Selection between RS232 and
RS485 is made in software on the router conguration pages.

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
14
QUARTZ-ONYX
Hardware Manual
Download Latest Edition
Table 11. RS485 Receiver Characteristics
Reciever Parameter Conditions Min Typ Max Units
Differential Input Threshold -7V ≤ VCM ≤ 12V -0.2 0.2 Volts
Input Hysteresis VCM = 0V 0.02 Volts
Input Resistance -7V ≤ VCM ≤ 12V 12 kΩ
IMPORTANT: Minimum and maximum values are over the operating temperature range of
-30 to +75°C.
LAN characteristics
4x 10/100/1000 Mbps Ethernet RJ45 Ports. Three ports are for LAN only. The fourth
port may be software congured as a LAN or a WAN port.
Although the maximum speed if any individual port is 1 Gbps, the switching matrix
supporting the 4 ports is capable of 2 Gbps wire speed.
DI1 and DI2 are voltage level triggered inputs. DI1 is internally pulled down to 0 V using
a 94K Ω resistor. DI2 is internally pulled up to 5 V using a 4700 Ω resistor, but not
designed to source any current if not used as an input. It is acceptable to leave these
inputs disconnected if not used.
GPIO Characteristics
Table 12. Input Pin Characteristics
Parameter Conditions Min Typ Max Units
Absolute maximum input voltage 25°C Ambient -10.0 5.0 Volts
Input threshold low 25°C Ambient 0.5 Volts
Input threshold high 25°C Ambient 3.0 Volts
Input resistance DI1 25°C Ambient 16.45 23.5 30.55 k Ω
Input resistance DI2 25°C Ambient 3.65 3.92 4.07 k Ω
IMPORTANT: Operation outside of the maximum operating voltage range will cause
damage to the router.

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
15
QUARTZ-ONYX
Hardware Manual
Download Latest Edition
Table 13. Output Pin Characteristics
Parameter Conditions Min Typ Max Units
Output voltage low Load = +32 mA 0.55 Volts
Output voltage high Load = -32 mA 3.8 Volts
Recommended load current 0 ±32 mA
Absolute maximum output current ±50 mA
IMPORTANT: All output characteristics are over the operating temperature range of -30 to +75°C.
The power up default state of each output can be set using the routers home page.

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
16
QUARTZ-ONYX
Hardware Manual
Download Latest Edition
Ordering Information
Dual WiFi & GPS Industrial 5G Quad Gigabit Ethernet Router
QUARTZ-ONYX-GW42-5G (GL) - Stock Code 61831
QUARTZ-ONYX-GW42-5G (GL) + ACCESSORIES - Stock Code 61870
Dual WiFi Industrial 5G Quad Gigabit Ethernet Router
QUARTZ-ONYX-W42-5G (GL) – Stock code 61818
QUARTZ-ONYX-W42-5G (GL) + ACCESSORIES - Stock Code 61816
The accessories kit contains all the other components required to be able to use the
router:
»2 swivel joint WLAN antennas
»4 swivel joint Cellular antennas supplied with detachable magnetic mount bases
with 3m of cable
»GPS antenna (GPS models only)
»RJ45 Ethernet cable
»DIN rail mounting kit
»Wall mounting kit
»Multi-region 2A, 12V power supply
Both versions of the router may be ordered with optional internal storage of 16, 32, 64,
128 or 256 GB. This can be useful if the Captive Portal feature is being used. Please
contact sales for details (Minimum order quantity 50 pieces).

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
17
QUARTZ-ONYX
Hardware Manual
Download Latest Edition
Radio Characteristics
The Quartz-ONYX supports WiFi using a MediaTek radio that is IEEE802.11n/ac
compliant. This means that it will work with other WiFi adapters supporting IEEE
802.11a/b/g/n/ac. The 2.4 GHz and 5 GHz wireless bands may be independently
congured.
2.4 GHz bands may be set to 20 or 40 MHz channel width.
5 GHz bands may be set to 20, 40 or 80 MHz channel width.
A channel congured for 2.4 GHz operation may be used as 802.11b only, 802.11g
only, 802.11b/g mixed and 802.11n only, as well as the default 802.11b/g/n mixed
mode (congured by software).
A channel congured for 5 GHz operation can be used as 802.11a only and 802.11n
only, as well as the default 802.11ac mixed mode (congured by software).
WiFi Characteristics
Table 14. 2.4 GHz WiFi band support
IMPORTANT: While the QUARTZ-ONYX can support all 2.4 GHz WiFi channels, the regional settings in the WiFi conguration
page will limit the available channels to meet the regulatory requirements of the country in which it is being used. Siretta always
recommends that the region setting be correctly congured for the country in which the router is being used.
WiFi Channels Supported
Channel Number Centre frequency Frequency Range
1 2412 MHz 2401 – 2423 MHz
2 2417 MHz 2406 – 2428 MHz
3 2422 MHz 2411 – 2433 MHz
4 2427 MHz 2416 – 2438 MHz
5 2432 MHz 2421 – 2443 MHz
6 2437 MHz 2426 – 2448 MHz
7 2442 MHz 2431 - 2453 MHz
8 2447 MHz 2436 – 2458 MHz
9 2452 MHz 2441 – 2463 MHz
10 2457 MHz 2446 – 2468 MHz
11 2462 MHz 2451 – 2473 MHz
12 2467 MHz 2456 – 2478 MHz
13 2472 MHz 2461 – 2483 MHz
14 2484 MHz 2473 – 2495 MHz

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
18
QUARTZ-ONYX
Hardware Manual
Download Latest Edition
Table 15. 5 GHz WiFi support
Channel Number Centre frequency Frequency Range
36 5.18 GHz 5.17 – 5.19 GHz
40 5.20 GHz 5.19 – 5.21 GHz
44 5.22 GHz 5.21 – 5.23 GHz
48 5.24 GHz 5.23 – 5.25 GHz
52 5.26 GHz 5.25 – 5.27 GHz
56 5.28 GHz 5.27 – 5.29 GHz
60 5.30 GHz 5.29 – 5.31 GHz
64 5.32 GHz 5.31 – 5.33 GHz
100 5.50 GHz 5.49 – 5.51 GHz
104 5.52 GHz 5.51 – 5.53 GHz
108 5.54 GHz 5.53 – 5.55 GHz
112 5.56 GHz 5.55 – 5.57 GHz
116 5.58 GHz 5.57 – 5.59 GHz
120 5.60 GHz 5.59 – 5.61 GHz
124 5.62 GHz 5.61 – 5.63 GHz
128 5.64 GHz 5.63 – 5.65 GHz
132 5.66 GHz 5.65 – 5.67 GHz
136 5.68 GHz 5.67 – 5.69 GHz
140 5.70 GHz 5.69 – 5.71 GHz
IMPORTANT: While the QUARTZ-ONYX can support most 5 GHz WiFi channels,
the regional settings in the WiFi conguration page will limit the available channels to
meet the regulatory requirements of the country in which it is being used. The regional
setting also correctly applies transmit power and DFS requirements for the country of
use. Siretta always recommends that the region setting be correctly congured for the
country in which the router is being used.

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
19
QUARTZ-ONYX
Hardware Manual
Download Latest Edition
Mode Speed
2.4G only 150 Mbps
5G only 433 Mbps
2.4G + 5G 150 Mbps + 433 Mbps
WiFi Speed
The QUARTZ-ONYX supports the 3GPP specications for cellular communications by
using the Qualcomm Snapdragon X55 5G Modem.
Cellular Characteristics
Cellular Frequency bands supported
Band Frequency Duplex Mode Common Name 4X4 MIMO DL 2x2 MIMO UL
n1 2100 MHz FDD IMT
n2 1900 MHz FDD PCS
n3 1800 MHz FDD DCS
n5 850 MHz FDD Cellular
n7 2600 MHz FDD IMT-E
n8 900 MHz FDD Extended GSM
n12 700 MHz FDD Lower SMH
n20 800 MHz FDD Digital Dividend
n25 1900 MHz FDD Extended PCS
n28 700 MHz FDD APT
n38 2600 MHz TDD IMT-E
n40 2300 MHz TDD S-Band
n41 2500 MHz TDD BRS
n48 3500 MHz TDD CBRS
n66 1700 MHz FDD Extended AWS
n71 600 MHz FDD Digital Dividend
n77 3700 MHz TDD C-Band
n78 3500 MHz TDD C-Band
n79 4700 MHz TDD C-Band
Suppoted Unsupported
*SA mode only
Table 16. 5G NR SA and NSA Bands Supported
*

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
20
QUARTZ-ONYX
Hardware Manual
Download Latest Edition
Band Frequency Duplex Mode Common Name 4X4 MIMO DL
1 2100 MHz FDD IMT
2 1900 MHz FDD PCS
3 1800 MHz FDD DCS
4 1700 MHz FDD AWS-1
5 850 MHz FDD Cellular
7 2600 MHz FDD IMT-E
8 900 MHz FDD Extended GSM
12 700 MHz FDD Lower SMH
13 700 MHz FDD Upper SMH
14 700 MHz FDD Upper SMH
17 700 MHz FDD Lower SMH
18 850 MHz FDD Lower 800
19 850 MHz FDD Upper 800
20 800 MHz FDD Digital Dividend
25 1900 MHz FDD Extended PCS
26 850 MHz) FDD Extended Cellular
28 700 MHz FDD APT
29 700 MHz FDD Lower SMH
30 2300 MHz FDD WCS
32 1500 MHz FDD L-Band
34 2000 MHz TDD IMT
38 2600 MHz TDD IMT-E
39 1900 MHz TDD DCS-IMT Gap
40 2300 MHz TDD S-Band
41 2500 MHz TDD BRS
42 3500 MHz TDD CBRS
43 3700 MHz TDD C-Band
46 (LAA*)5200 MHz TDD U-NII-1-4
48 3500 MHz TDD CBRS
Table 17. LTE Bands Supported
