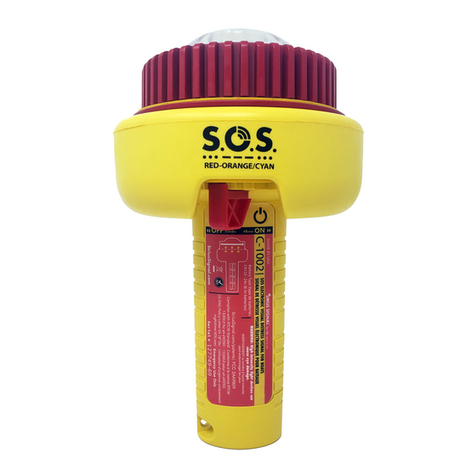

Sirius Signal C-1002 User manual

Our Products Are Made in the USA
C-1002 Operation Manual
SKU: SSDC1002-ROC
Keep Americans working, buy made in the USA!
(Complies with “Buy American Act” — may contain imported components)
Patent Pending
Batteries installed and ready for immediate use
Please READ INSTRUCTIONS before use or servicing

Sirius Signal | 1042 N. El Camino Real, B-200 Encinitas, CA 92024 | [phone] |SiriusSignal.com
2
Contents
1FEATURES.................................................................................................................4
2SAFETY WARNINGS..................................................................................................4
3MODES ....................................................................................................................4
3.1 Manual Mode ......................................................................................................4
3.2 Bluetooth Mode ...............................................................................................4
4CHANGING BATTERIES.............................................................................................5
4.1 RTCM/USCG requirement 6.2.3: Replacement of power supply...............................5
4.2 Reinstalling the LED Module ...................................................................................6
5SPECIFICATIONS ......................................................................................................7
5.1 Environment ........................................................................................................7
5.2 Buoyancy .............................................................................................................7
5.3 LED Wavelength...................................................................................................7
5.4 Run Time .............................................................................................................7
5.5 Average Effective Intensity for Visual Light ............................................................7
5.6 Average Effective Intensity for Infrared Light .........................................................7
5.7 Sure Swift Paddle Switch Design ...........................................................................7
5.8 Battery Requirement DO NOT USE RECHAREABLES ..............................................7
5.9 Bluetooth .........................................................................................................8
5.10 Dimensions.......................................................................................................8
5.11 Weight ..............................................................................................................8
5.12 Additional Compliance......................................................................................8
6DISPLAYING THE LIGHT............................................................................................8
7MAINTENANCE AND SERVICE PARTS........................................................................9
8THE SIRIUS SIGNAL SYSTEM .....................................................................................9
9THE SIRIUS SIGNAL MOBILE APP ..............................................................................9
9.1 Installation of Mobile App ....................................................................................9
Android....................................................................................................................9
iPhone......................................................................................................................9
9.2 Operation of Mobile App ...................................................................................10

Sirius Signal | 1042 N. El Camino Real, B-200 Encinitas, CA 92024 | [phone] |SiriusSignal.com
3
9.2.1 Home Page ...................................................................................................10
9.2.2 Test Device ....................................................................................................10
9.2.3 Start Trip/Float Plan.......................................................................................10
9.2.4 Contacts........................................................................................................11
9.2.5 Check-Me Function .................................................................................11
9.2.6 911 Function .................................................................................................11
9.2.7 First Aid.........................................................................................................12
10 TROUBLESHOOTING..............................................................................................12
10.1 Light Won’t Light .............................................................................................12
10.2 Only Half the LEDs Light .................................................................................12
10.3 Mobile App Issue ............................................................................................13
Error message pops up when sending Check-Me /SOS message or registering the
product code in the mobile app—and the internet works fine in other apps.................13
Figures
Figure 1: Polarity of CR2032 Coin Cell ............................................................................6
Figure 2: Polarity of CR123A Batteries .............................................................................6
Figure 3: Installation of CR123A Batteries in Battery Tray .................................................6
Figure 4: Illustration of Collar Position When Properly Tightened......................................6
Figure 5: Collar Retention Tab .........................................................................................5
Figure 6: Reinstalling the LED Module..............................................................................6

Sirius Signal | 1042 N. El Camino Real, B-200 Encinitas, CA 92024 | [phone] |SiriusSignal.com
4
!
1 FEATURES
1.1 For Immediate USE manually turn on the light by setting the Sure
Swift Paddle Switch two clicks fully to the right. DO NOT PULL
DOWN OR PUSH UP ON SWITCH; IT OPERATES SIDE TO SIDE.
1.2 Enable Bluetooth mode by setting the switch to the center position.
1.3 Do not leave the unit switch in Bluetooth mode unless checking
device status or operating the light for distress situations.
2 SAFETY WARNINGS
2.1 This is not a toy and should be treated as such. The 911 function should only
be used in an emergency.
2.2 Use only premium CR123A lithium batteries.
2.3 Do not mix batteries from different manufacturers.
2.4 Do not mix fresh and used batteries.
2.5 Observe the proper polarity installation of the batteries.
2.6 Dispose of the used batteries properly.
2.7 Warning: Do not look directly at the light; it is extremely bright. In addition, it
contains an infrared LED emitting infrared light that can’t be seen.
2.8 The red collar can become warm during extended operation. If used as a
handheld device, do not touch the collar during operation.
3 MODES
3.1 Manual Mode
With label facing toward you, turn the Sure Swift Paddle Switch two clicks fully to the
right (past the SECOND detente). DO NOT PULL DOWN OR PUSH UP ON SWITCH;
IT OPERATES SIDE TO SIDE.
The light will begin the SOS pattern — 3 short orange/red flashes followed by 3 longer
cyan flashes followed by 3 orange/red flashes. The pattern repeats. To turn unit off, fully
return switch with left two clicks to the off position marked on the label.
3.2 Bluetooth Mode
Move the Sure Swift Paddle Switch to the middle Bluetooth position (past the FIRST
detente). Open the Sirius Signal Mobile App (available by registering your device at
SiriusSignal.com) and pair to the C-1002. The device battery status will be shown . It
might take several seconds to connect. Upon connecting you have the option to test
device. From the drop-down menu . Select test device and follow prompts the light will
begin the SOS pattern: 3 short orange/red flashes followed by 3 longer cyan flashes
!
!

Sirius Signal | 1042 N. El Camino Real, B-200 Encinitas, CA 92024 | [phone] |SiriusSignal.com
5
followed by 3 orange/red flashes. The pattern repeats. End device test function and switch
to the full off position . While in Bluetooth mode if a 911 activation is sent the SOS
light will turn on and run until emergency sequence is ended, or device is switched
completely off .
Bluetooth mode requires a cell phone with the Sirius Signal app to work.
Do not leave the unit switch in Bluetooth mode unless checking device status or
operating the light for distress situations.
4 CHANGING BATTERIES
The light requires eight premium CR123A lithium batteries and one CR2032 lithium coin
cell. The light will operate without the coin cell, but it is desired as a backup for the
Bluetooth.
To replace the batteries, unscrew the red collar counterclockwise this will release the
watertight seals. Gently lift the LED module out of the housing along with the red collar.
Remove the spent batteries and replace them with the new batteries, observing the proper
polarity. See Figures 2 and 3 on the next page. The polarity is shown on the battery holder
for the CR123A batteries. Use good quality batteries. Replace the coin cell (CR2032) with
the positive side facing the outside of the module. See Figure 1.
Collar retention tab RTCM/USCG tethering requirement.
4.1 RTCM/USCG requirement 6.2.3: Replacement of
power supply
“If the power supply (batteries) is user-replaceable, the replacement procedure shall
not require the use of any tools. If the power supply compartment cover(s) is removable, it
must be tethered to the device to ensure against loss,”
The Sirius Signal yellow molded retention collar tab was
designed to meet the tethering requirement. It does not need
to be fully seated in the collar groove to prevent it from
separating from the body. See Figure 5.
Figure 5.
!

Sirius Signal | 1042 N. El Camino Real, B-200 Encinitas, CA 92024 | [phone] |SiriusSignal.com
6
4.2 Reinstalling the LED Module
Hold unit with label facing you. Check O-ring on top of the body
for fitment in top groove, then carefully align the module to go
back inside the housing. Take note of hole in the PC board. See
Figure 6. Reinstall, making certain the hole goes over the red
rotor shaft. Advance the collar slightly to engage threads. Do not
cross the threads. Slowly turn the collar while gently rotating and
pushing optic downward until it locks into place. Continue
tightening the collar until it stops against float. Fully tightened,
the raised bump should be past 12 o’clock. See Figure 4. IF YOU
EXPERIENCE ANY, DIFFICULTY STOP. Unscrew the collar, remove
the module, and then try again.
Figure 6.
Figure 1: Polarity of CR2032 Coin Cell Figure 2: Polarity of CR123A Batteries
Figure 3: Installation of CR123A Batteries in Battery
Tray
Figure 4: Illustration of Collar Position When Properly
Tightened

Sirius Signal | 1042 N. El Camino Real, B-200 Encinitas, CA 92024 | [phone] |SiriusSignal.com
7
5 SPECIFICATIONS
5.1 Environment
The operating temperature range is -1°C to +30°C (30.2°F to 86°F), and the storage
temperature range is -20°C to +55°C (-4°F to 131°F).
5.2 Buoyancy
The device is capable of floating with the light output fully visible above the waterline in
calm freshwater or saltwater.
5.3 LED Wavelength
The LED wavelength is 6 red/orange 610-620 nm 6 cyan 490-520nm 1 IR 740-890
(flashes USCG spec SOS signal in colors and infrared).
5.4 Run Time
Performance specification run time is two hours. The C-1002 has an innovative feature
that allows the light to continue after the specified two hours at half power, illuminating
half of the LEDs. This extends the total operational run time approximately four hours for a
total operational runtime of six hours.
5.5 Average Effective Intensity for Visual Light
For the orange/red and cyan LEDs, the Average Effective Intensity exceeds 50cd in a
hemispherical distribution.
5.6 Average Effective Intensity for Infrared Light
The infrared LED is 21mW/Sr output in a hemispherical distribution flashing SOS
independently of the two visible colors.
5.7 Sure Swift Paddle Switch Design
The switch is designed to be activated with one hand SIDE TO SIDE. With the label
facing upward, the OFF position is marked fully left, Bluetooth is in the middle,
and manual ON is far right. The added travel space in the Bluetooth mode switch
area provides additional momentum for a single-hand activation even with a glove on.
5.8 Battery Requirement DO NOT USE
RECHAREABLES
Requires eight CR123A batteries (included) and one CR2032 coin cell (included).

Sirius Signal | 1042 N. El Camino Real, B-200 Encinitas, CA 92024 | [phone] |SiriusSignal.com
8
Device performance can vary widely by selection of batteries. Look for premium, high
milliamp hour range batteries of at least 1600 mAh for optimal performance.
5.9 Bluetooth
Bluetooth-enabled with enhanced connectivity.
Do not leave the unit switch in Bluetooth mode unless checking
device status or operating the light for distress situations.
5.10 Dimensions
5.10.1 Height: 8.5” (21.59cm)
5.10.2 Diameter: 5” (12.70cm)
5.11 Weight
5.11.1 Without batteries: 1.080 lbs.
5.11.2 With batteries: 1.366 lbs.
5.11.3 Shipping weight (with packaging): 1.708 lbs., P/N SOS C-1002
5.12 Additional Compliance
5.12.1 CE (European Compliant)
5.12.2 RoHS Compliant
6 DISPLAYING THE LIGHT
The light can be used as a handheld location device that can be manually operated. In
addition, it can be attached to the craft and displayed at a higher point so it can be seen
at a greater distance. Put the light in Bluetooth mode . After positioning it, use the Sirius
Signal app to turn it on.
The distance to the horizon—the practical limit on the distance any light can be seen—can
be estimated by the following formula:
!

Sirius Signal | 1042 N. El Camino Real, B-200 Encinitas, CA 92024 | [phone] |SiriusSignal.com
9
7 MAINTENANCE AND SERVICE PARTS
The light can be cleaned with a soft cloth and warm water.During routine battery
replacement or inspection, if any seals look dry, apply a quality silicone grease on
the seal surface. All service parts are available directly from Sirius Signal.
8 THE SIRIUS SIGNAL SYSTEM
As a precision safety device, the light provides an intense visual SOS for greater than two
hours. It is the “Locate” part of Sirius Signal's “Alert and Locate” system.
This system is composed of a Mobile App that comprises the “Alert” part of the system. This
app allows you to send location data via text and phone calls to recipients you select to
alert them you have a problem. The light provides the “Locate” function to allow
respondents to find you.
9 THE SIRIUS SIGNAL MOBILE APP
You can register your device at https://siriussignal.com/owners/.Registration allows you to
download the Sirius Signal Mobile App to your phone; it’s compatible with Android 5.0
and up and IOS 13.0 and up. You will be allowed multiple downloads of the Sirius app
with the issued product code key. If you are not the original purchaser of the Sirius Signal
C-1002 SOS eVDSD, but it is part of your boat’s safety equipment, you will need to re-
register as the new owner of unit. Go to siriussignal.com select “Register Your Device” tab.
9.1 Installation of Mobile App
See the presentation on our website, SiriusSignal.com/application, or follow the directions
below.
Android
Search for Sirius Signal in the Google Play store or use the following link:
https://play.google.com/store/apps/details?id=siriussignals.siriussignals.Click
“Install” on the Google Play profile screen. This will install the app on your device.
iPhone
Open the Apple Store App and search for the Sirius Signal app or use this link to go
directly to the App Store download screen:
https://apps.apple.com/app/id1501459745. Once on the app profile screen, tap
“Get” and tap “Install.” This will install the app on your device.

Sirius Signal | 1042 N. El Camino Real, B-200 Encinitas, CA 92024 | [phone] |SiriusSignal.com
10
9.2 Operation of Mobile App
Tap on the Sirius Signal icon to open the app.
9.2.1 Home Page
Main Menu Drop down Clicking the “Test Light” button toggles the light on or off if the
switch on the light is in the center position Bluetooth mode (It might take a few seconds
to pair to the phone the first time the button is pressed.)
Clicking the white “Start Trip” button sends you to the “Float Plan” form provided to inform
others of the details of your trip.
Clicking on the Green Check-Me button causes the program to send the previously set
up message to the previously set up list of Check-Me recipients.
Clicking on the red 911 button causes the program to send a boating Emergency Alert and
a text to voice phone call to the previously set up list of emergency recipients with Google
Map Location and an Emergency Alert Text to 911 operator also with Google Map Location
Clicking on the blue box or clicking on the triple bar on the upper left and choosing
“Contacts” allows you to enter up to five contacts for the “Check-Me” or “911”
functions.
9.2.2 Test Device
Periodically, the operation of the device should be checked by turning the light on
manually — 2 clicks fully to right or via Bluetooth — 1 click to right . The Sirius Signal
App when paired will also report the battery condition on the App’s first page. Green
signifies charged batteries; red signifies low charge.
Set the switch on the light to the center Bluetooth-mode position . Open the Sirius
Signal app on your mobile device. From the main menu select the “Test Light” button, it
can take several seconds to connect. The light will then turn on and begin flashing the
SOS pattern — 3 short orange/red flashes followed by 3 longer cyan flashes followed by 3
orange/red flashes. The pattern repeats. End device test function and move Sure Swift
Paddle Switch to the full OFF Position.
9.2.3 Start Trip/Float Plan
Fill out the Float Plan to describe your trip. The float plan pulls recipients from the Check-
Me contacts you selected earlier. Add the area of operation and destination. Enter your
arrival time and press submit so respondents will know where you started and when you’re
expected back.
In the event you don’t end your trip at the designated time the following sequence begins:
The App will remind you to end you trip at:
