Introduction

6
Features
Thank you for purchasing the XM OnyX with Vehicle Kit!
XM OnyX has these exciting features to enhance your overall experience:
• Hear SiriusXM through your existing vehicle radio with easy, do-it-yourself
installation.
• Choose the display color that matches your dash lights, and personalize with
the trim rings.
• Browse other channels while listening to the current one.
• View artist name, song title, and channel information on the large color
display.
• Store your favorite channels for one touch access.
• Easily lock and unlock channels with mature content.
• One-Touch Jump™ to traffic and weather for the city of your choice from a
list of 22 of the most congested cities, or to the previous channel to which
you were listening.
• Listen in multiple vehicles, at home, in the office or outdoors - all with just
one subscription.
• Vehicle Kit included — add accessories for your home, office, or other
vehicles.
Please read the entire User Guide before using your OnyX!
Introduction

7
Safety and Care Information
IMPORTANT! Self installation instructions and tips are provided for your
convenience. It is your responsibility to determine if you have the knowledge,
skills, and physical ability required to properly perform an installation. SiriusXM
shall have no liability for damage or injury resulting from the installation or use
of any SiriusXM or third party products. It is your responsibility to ensure that all
products are installed in adherence with local laws and regulations and in such a
manner as to allow a vehicle to be operated safely and without distraction.
SiriusXM product warranties do not cover the installation, removal or
reinstallation of any product.
• Do not expose to extreme temperatures (above 140ûF or below -4ûF, or
above 60ûC or below -20ûC).
• Do not expose to moisture. Do not use device near or in water. Do not touch
the device with wet hands.
• Do not let any foreign matter spill into device.
• Do not store in dusty areas.
• Do not expose to chemicals such as benzene and thinners. Do not use liquid
or aerosol cleaners. Clean with a soft damp cloth only.
• Do not expose to direct sunlight for a prolonged period of time, and do not
expose to fire, flame, or other heat sources.
• Do not try to disassemble and/or repair device yourself.
• Do not drop your device or subject it to severe impact.
• Do not place heavy objects on device.
• Do not subject device to excessive pressure.
• If the LCD screen is damaged, do not touch the liquid crystal fluid.

8
Warning!
• Opening the case may result in electric shock.
• If the liquid crystal fluid comes in contact with your skin, wipe the skin area
with a cloth and then wash the skin thoroughly with soap and running water.
If the liquid crystal fluid comes into contact with your eyes, flush the eyes
with clean water for at least 15 minutes and seek medical care. If the liquid
crystal fluid is ingested, flush your mouth thoroughly with water. Drink large
quantities of water, and induce vomiting. Seek medical care.
• Make sure that you insert the PowerConnect™ Power Adapter all the way
into the vehicle’s cigarette lighter or power adapter socket.
• If you are using PowerConnect as your audio connection option, it is
advisable not to insert a multi-outlet adapter into the same vehicle cigarette
lighter or power adapter socket to simultaneously power other devices.
Some multi-outlet adapters can prevent the PowerConnect feature from
working properly.
• When using this product, it is always important to keep your eyes on the road
and hands on the wheel. Not doing so could result in personal injury, death, and/
or damage to your device, accessories, and/or to your vehicle or other property.
• Vehicle installation, service activation, and Radio configuration functions should
not be performed while driving. Park your vehicle in a safe location before
beginning installation.
• This product contains chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm.
Your device should be placed in your vehicle where it will not interfere with the
function of safety features, e.g., deployment of airbags. Failure to correctly place
device may result in injury to you or others, if the unit becomes detached during an
accident and/or obstructs the deployment of an airbag.
Introduction

9
What’s in the Box?
23 4 5 6 7 8 9 0 direct
jump
FM
menu
1
OnyX Radio PowerConnect Vehicle Dock
Magnetic Mount
Antenna
Antenna & Dash Mount
Alcohol Preparation Pads
PowerConnect Power
Adapter
Aux In Cable
Dash Mount
Trim Rings
Vent Mount
and Extended
Vent Clamps
Trim Ring Removal Tool
Cable
Routing Adapter

10

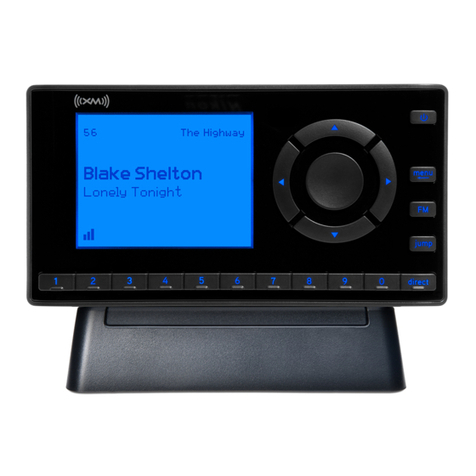

OnyX Functions
23 4 5 6 7 8 9 0 direct
jump
FM
menu
1
Power Button
Press to turn Radio on
and off.
Left and Right Buttons
Press to search for
channels by category.
Up and Down Buttons
Press to preview and tune
to channels through the
channel lineup; also press
to scroll through lists and
highlight menu items.
Menu Button
Press to access advanced
features and configuration
options; in configuration
options, press and hold
to return to main display
screen.
Select Button
Press to confirm
selection of highlighted
items in a menu or list.
FM Button
Press to access and cycle
through FM presets.
Jump Button
Press to directly access
traffic and weather for
the city of your choice;
or press it to go back
to the previous channel
to which you were
listening.
Direct Button
Press first before
entering the channel
number, to directly
tune to a channel.
Number Buttons
Press to tune to
a stored favorite
channel, press and
hold to store a
favorite channel;
also enter a channel
number.
Trim Ring
Changeable
decorative
Trim Ring.
Introduction

11
PowerConnect Vehicle Dock

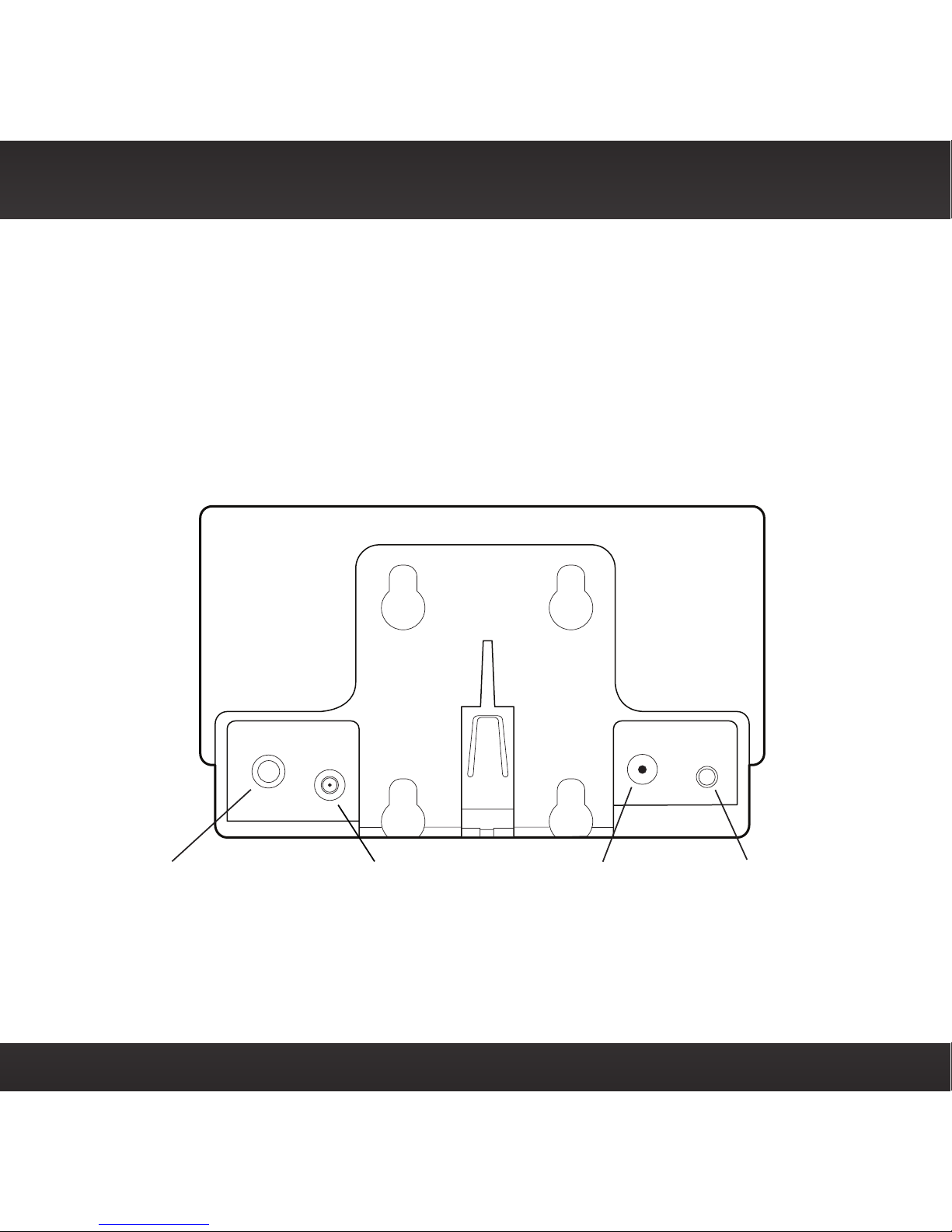

Color-Coded Connections
The color-coded PowerConnect Vehicle Dock makes it simple to connect. Just
match the colors on the cable ends to the colors on the dock to see what goes
where.
ANT (Silver)
Connection for
the Magnetic
Mount Antenna.
AUDIO (Green)
Connection for Aux In
Cable or optional
Cassette Adapter
(sold separately).
Rear View
PWR (Red)
Connection for
PowerConnect
Power Adapter.
FM (Blue)
Connection for
optional FM Direct
Adapter (sold
separately).
AUDIO ANT PWR FM

12

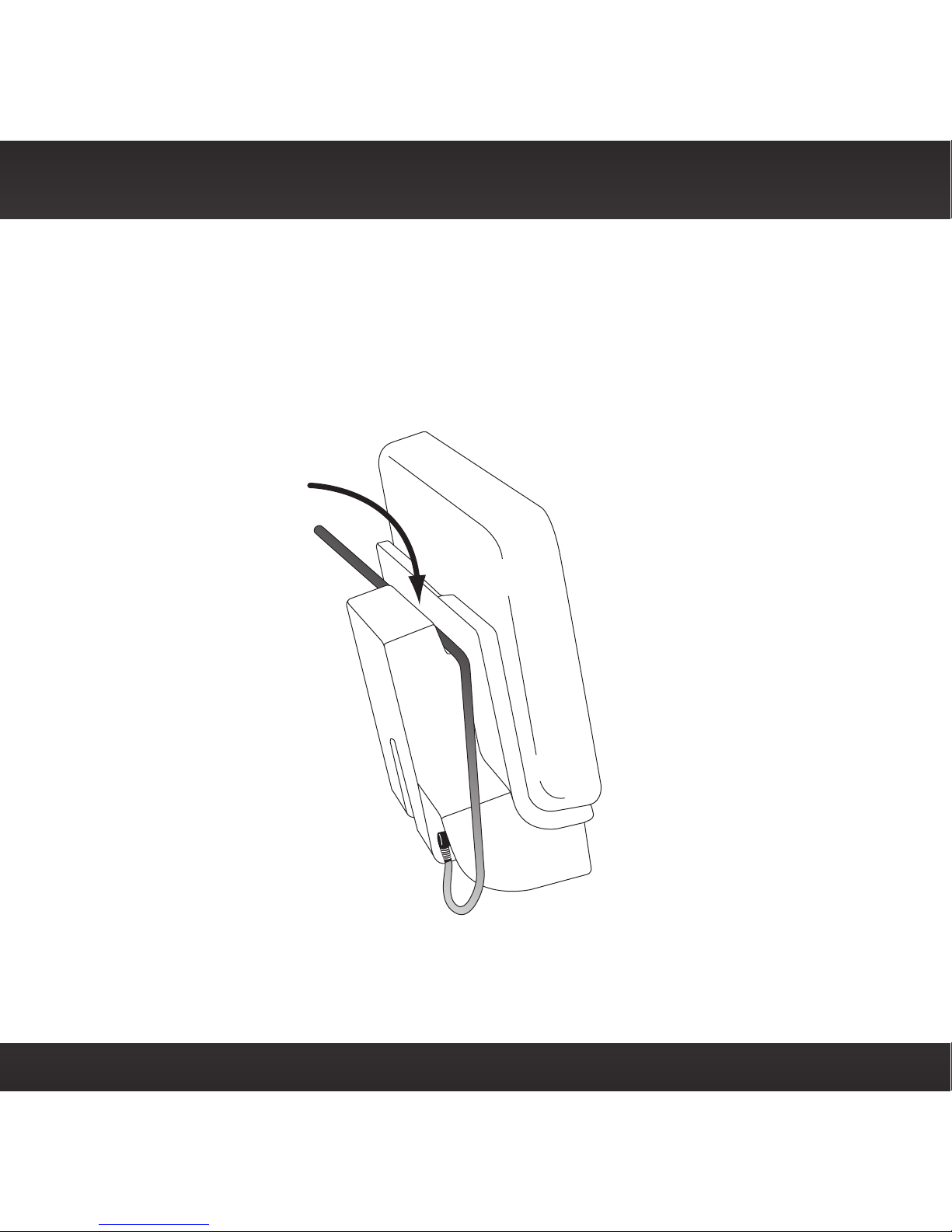

Wire Guide
The PowerConnect Vehicle Dock has a wire guide at the top rear that can help
you to organize the cables and wires connected to the dock. If you need to bring
a cable or wire from one side of the dock to the other, utilize the wire guide by
looping the cable though the wire guide as shown.
Wire Guide
Introduction

13
Vehicle Installation

14
WARNING! DO NOT attempt to install OnyX while driving. Park your vehicle in a
safe location before beginning installation.
Step 1: Choose a Location for Your Radio
When installing OnyX in your vehicle, choose a location where it will not block
your vision, interfere with the controls, or obstruct the air bag. The location
should be easily accessible and provide good visibility of the display, and should
not be located where it will be in direct sunlight, which will affect the visibility of
the display screen.

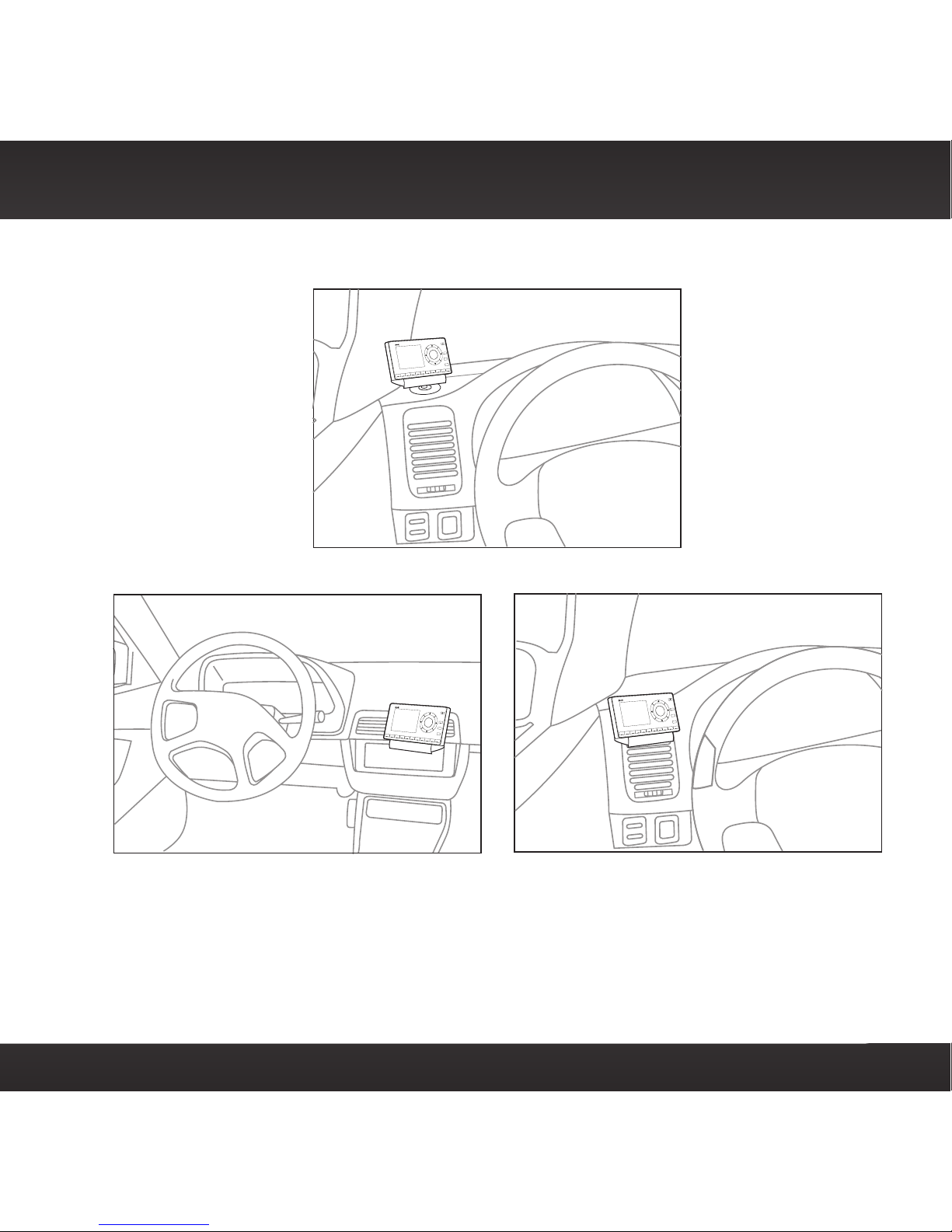

Several examples of OnyX mounted in a vehicle are shown: Ais the on dash
method using the Dash Mount, and Bis the vent clip method using the Vent
Mount.
A.
A.
Option 1 Option 2
234567890
direct
jump
FM
menu
1
234567890
direct
jump
FM
menu
1
Vehicle Installation

15
B.
A.
B.
Option 3
Option 4 Option 5
234567890
direct
jump
FM
menu
1
jump
FM
menu
234567890
direct
1
jump
FM
menu
234567890
direct
1

16
Step 2: Install the Dash or Vent Mount
Depending on your situation, you can either choose to use the Dash Mount or
the Vent Mount.
IMPORTANT! When you install the chosen mount, do not attach the dock to the
mount. All cables should be attached to the dock prior to connecting the dock to
the mount.
Installing the Dash Mount:
CAUTION! The adhesive used on the Dash Mount may be
difficult to remove. Do not install this mount on leather surfaces
(contact your vehicle dealer if you are unsure about your dash
surface), and make sure the air temperature is at least 60ûF
(15ûC) during installation. If it’s not at least 60ûF, turn on the
heater in your vehicle to bring the temperature up to 60ûF.
1 Locate a flat surface for the Dash Mount. Make sure there is ample room
for the PowerConnect Vehicle Dock and OnyX Radio when installed.
2 Set the orientation of the Dash Mount before adhering it. Loosen the
knob and adjust the adhesive foot for the location you selected in “Step 1:
Choose a Location for Your Radio” on page 14:
•Option 1 & Option 3
should be oriented
as I.
•Option 2 should be
oriented as II.
I II
Vehicle Installation

17
3 The dock mounting plate can be tilted in different directions. Adjust as
necessary for your particular vehicle. When the orientation is correct,
tighten the knob.
4 Clean the surface with the alcohol
preparation pad and let it dry
thoroughly.
5 Peel off the adhesive liner. Position,
press, and hold the Dash Mount in
place for 30 seconds.
IMPORTANT! Allow the Dash Mount adhesive to cure (dry) for a minimum of 2-4
hours before using the mount. The best adhesion occurs after 24 hours.
TIP! To remove, carefully lift the adhesive pad with your fingers or a spoon.
Warming the pad with a hair dryer for several minutes will help soften the
adhesive.
Knob Adhesive Foot Dock Mounting Plate

18
Installing the Vent Mount:
1 Locate a vent with horizontal
louvers sturdy enough to hold your
PowerConnect Vehicle Dock and Radio.
2 If the vent louvers in your vehicle are
recessed, you may need to use the
longer vent clamps with the Vent Mount.
If so, remove the shorter vent clamps
and install the longer ones into the Vent
Mount. Be sure to observe the orientation of the vent clamps as shown.
3 Push the Vent Mount onto the vehicle vent as shown (1) until it hooks on
the rear of the vent louver (2).

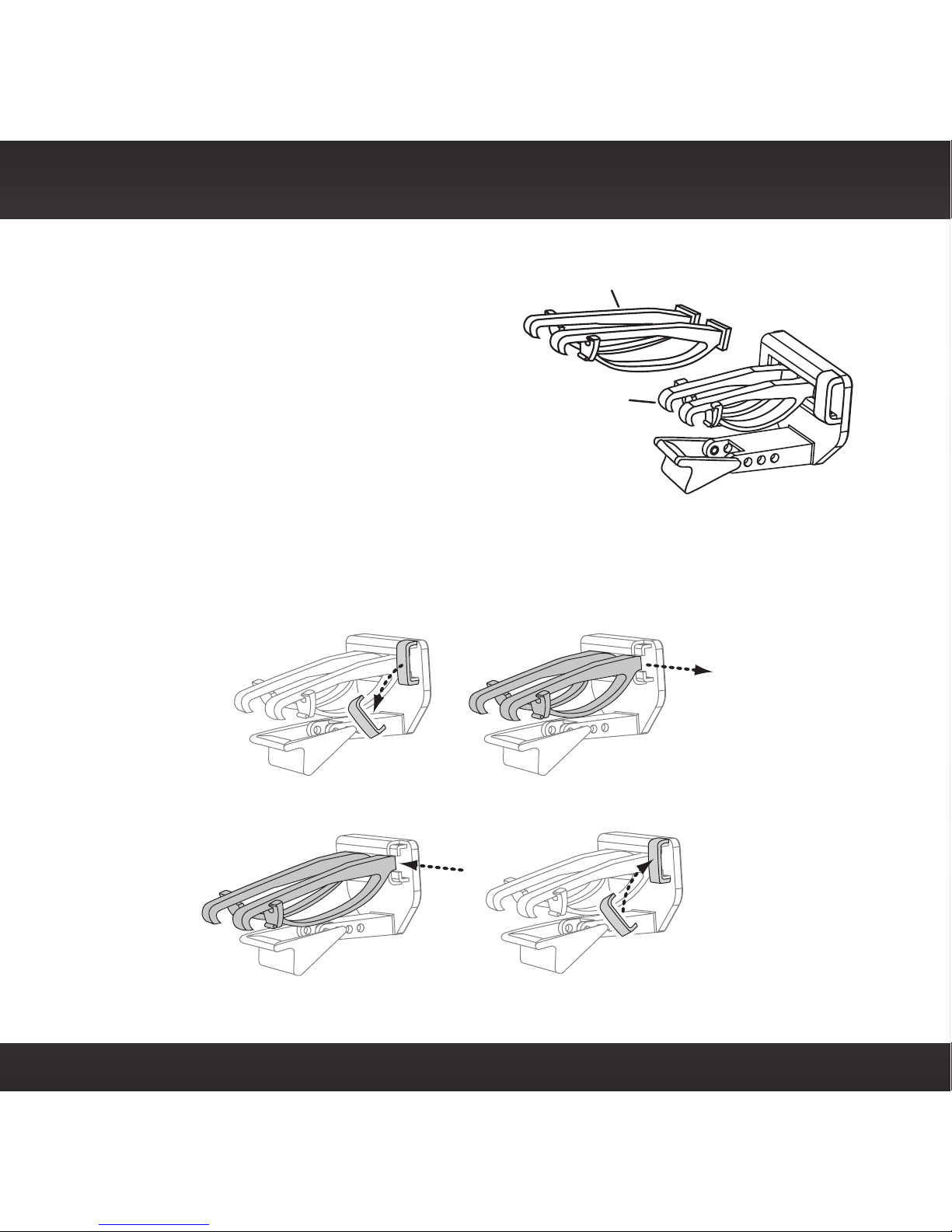

Slide Short Vent Clamps Out
Remove End Cap
Slide Extended Vent Clamps In Replace End Cap
Extended Vent Clamps
Short Vent
Clamps
Vehicle Installation

19
4 Rest the foot against the bottom of the vent (2), and adjust the tilt of the
Vent Mount by repositioning the foot to a different adjustment hole (3).
To remove the Vent Mount, push the mount into the vent. Then lift up until
disengaged from the rear of the vent louver, and remove the Vent Mount.
PUSH
Dash
Vent
Louver
Foot
Vent Vent
Dash Dash
HOOKED
TILT
ADJUSTMENT
HOLES
1 2 3

20
Step 3: Mount the Magnetic Mount Antenna
Mount the Magnetic Mount Antenna on the outside of your vehicle, on a
horizontal surface that will always face the sky. The antenna contains a strong
magnet which will stick to any metal part of your vehicle, but will not damage the
vehicle.
To install the Magnetic Mount Antenna:
1 Choose the best location for your antenna considering
your vehicle type. Pay particular attention to any
accessories that you may have like luggage racks and
how frequently you may use them.
Sedan/Coupe: We recommend mounting the antenna just above either
the front windshield or the back window as shown.
Magnet
Vehicle Installation
