Getting Started
You’ve just expanded the use of your MiRGE™ radio!
Now, in addition to listening to your favorite SIRIUS and XM programming in your vehicle, you
can enjoy dynamic sound from your MiRGE™ radio with an exceptionally small system that ts
spaces like a night table, kitchen counter, or desk.
Your new MiRGE™ Compact Sound System includes an XM Compact Sound System and an
optional 50ft Home Antenna Extension Cable. Simply follow these instructions to set up your
new system.

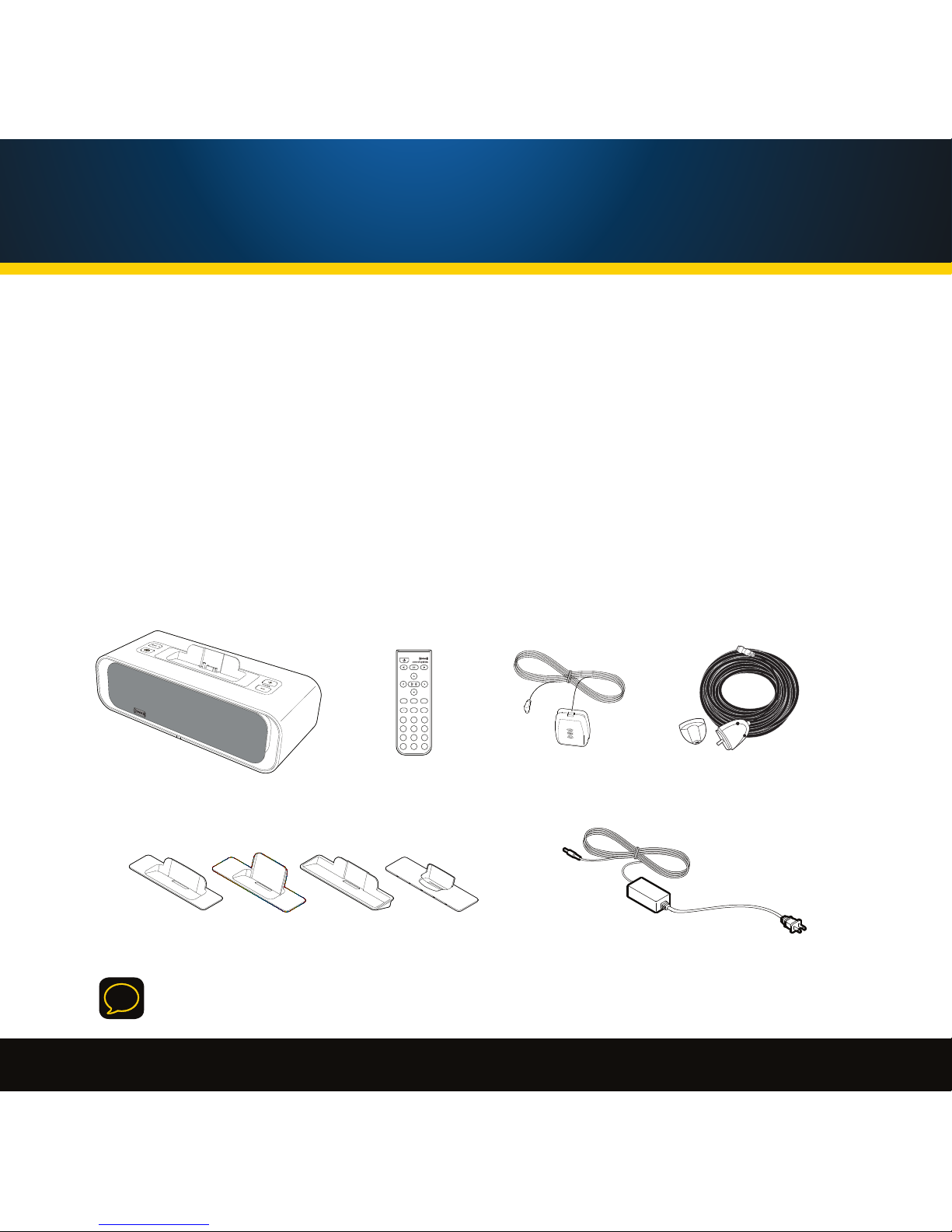

Step 1: Unpack the Compact Sound System
8
5
2
7
4
1
9
6
3
mute
info menu display
0
jump
+
fav
Compact Sound System
Radio-Specific Dock Adapters
Remote Home Antenna
Power Adapter
50 ft. Extension Cable
TIP! While the home antenna is an XM home antenna, it will work with your
MiRGE™ radio

Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
5

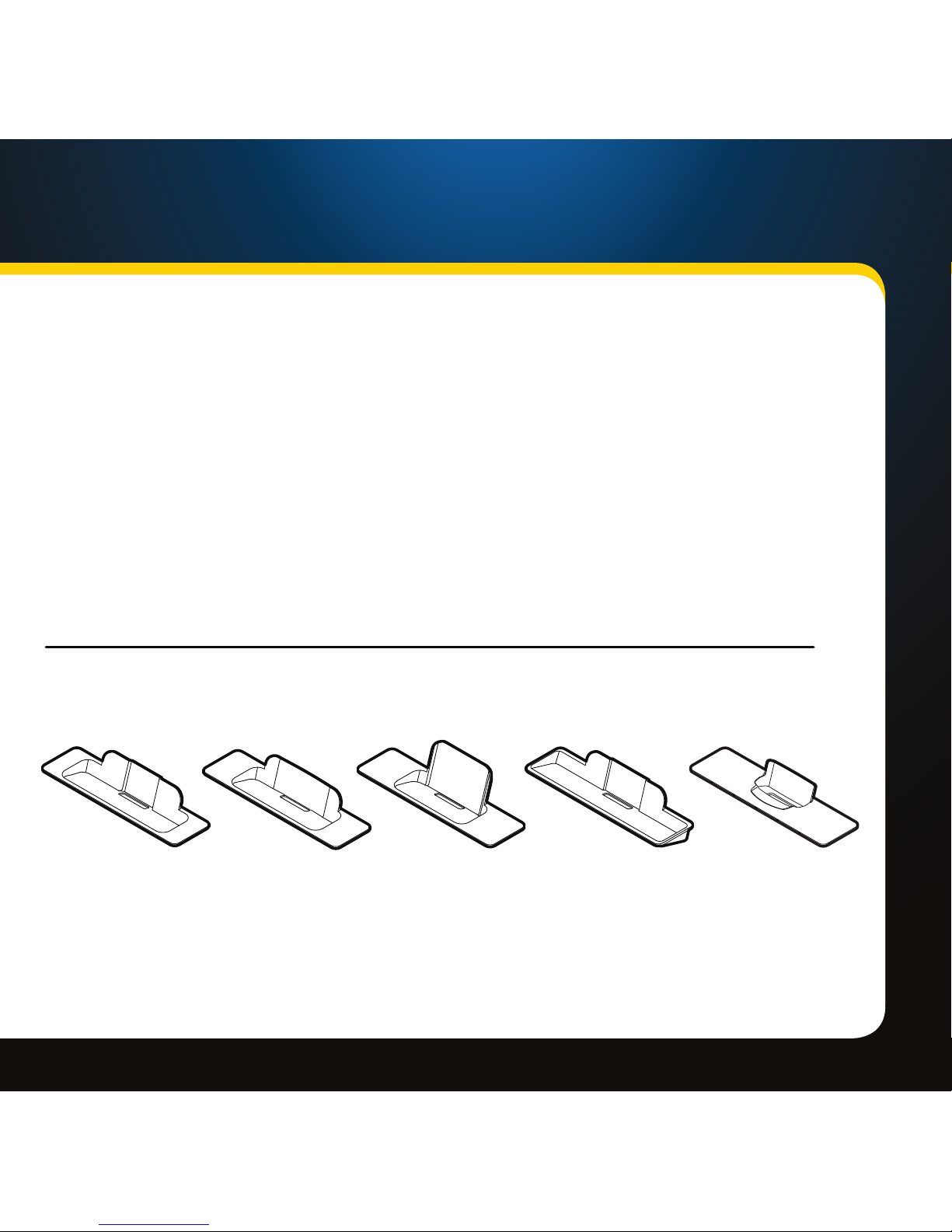

Step 2: Choose your radio-specic dock adapter
The Xpress dock adapter is already installed in the Compact Sound System for use with
the following radios: Xpress, XpressEZ, XpressR, XpressRC, and your MiRGE™ radio.
If later you wish to use another radio, you must replace the Xpress dock adapter with the
appropriate one for your satellite radio. The name of each dock adapter is molded into
the bottom surface of each one; turn the dock adapter over to see the name.
Xpress family
and MiRGE™
RoadyXT® SKYFi3® inno™& Helix™
Radio-specific dock adapters
XMp3™

Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
6
Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
1To remove the Xpress dock adapter, lift both sides of the adapter at the
same time.
2Insert the dock adapter for your radio.
Getting Started

Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
7

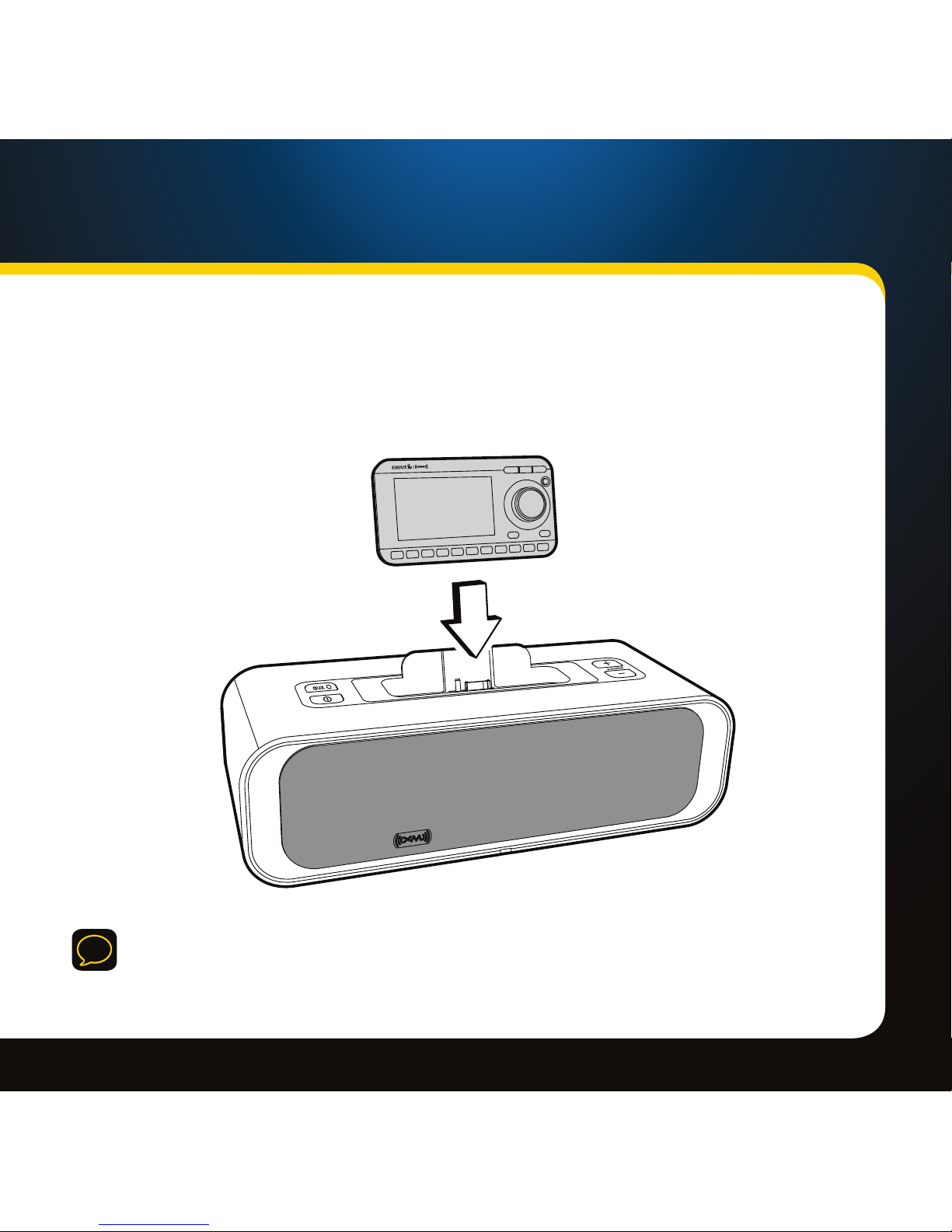

Step 3: Insert your radio
To insert your radio into the Compact Sound System, align the radio’s connector with
the Sound System’s connector, then carefully (but rmly) press to secure the radio in
place.
TIP! Although designed to t snugly, we recommend that you remove the radio before
moving the Sound System.

Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
8
Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
Step 4: Connect the antenna
1 Plug the home antenna into the jack labeled Antenna.
2Place the home antenna for best reception. See steps 3 and 4 for placement
suggestions.
Getting Started

Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
9
3 In major metropolitan areas, it may be possible to receive both the SIRIUS and XM
signals on your radio with the home antenna indoors. Just set the antenna
on a at surface near a south facing-window and open the antenna clamshell
so that it is half way between the horizontal and vertical positions (see Figure 1
below).
Figure 1

Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
10
Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
4In most parts of the country, however, to get both the SIRIUS and XM signals on your
MiRGE™ radio, you will need to place the home antenna outdoors, with a clear
unobstructed view of the sky in all directions. This means that there should not be any
buildings, shrubs, trees, roof overhangs, or anything else obstructing the antenna’s
view of the sky.
You can place the home antenna on a at surface with the antenna looking straight
up (A, in Figure 2), or you can attach it to a at surface using four screws (sold
separately) and the mounting points on the base with the antenna having a straight
up view of the sky (B, in Figure 2).
The durable, weather-resistant
antenna comes with a hinged base
and 20 feet of cable to allow you to
place and mount it in various outdoor
locations. If additional cable
length is needed, you can use the
included 50 ft. home antenna
extension cable to extend the reach of
the antenna.
A.
B.
Figure 2
Getting Started

Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
11
Step 5: Connect the power
1 Plug the AC power adapter into the jack labeled 12V DC on the Sound System.
2 Plug the other end into any 110 - 120V wall outlet or power outlet.
Step 6: Turn it on
1 Press the power button on
the Sound System.
2 Turn on your radio.
TIP! For some radio models, you can enable the Auto-ON
feature for ease of use. Refer to your radio’s menu settings
and User Guide for instructions. The Helix, inno and XMp3
need to be powered down manually.

Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
12
Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
Step 7: Listen
1 This Sound System was designed to work with a wide range of radios. You
may need to adjust the audio“Line Out Level”in the menu options of your
radio to achieve optimal performance from this sound system. Please see your
radio user guide for additional information on this adjustment.
2Use the volume buttons on the Sound System or remote control to adjust
the sound level.
3To control both your radio and Sound System use the remote that is
included with your sound system. (see page 13)
If desired, plug in headphones to the phones jack. Use the volume buttons on the Sound
System to control the headphone volume.
Your Sound System has an aux in jack for connecting CD or MP3 players using a Aux In cable
(sold separately). Once you have a device plugged in, press the aux button to switch from
satellite radio mode to aux in mode. The LED on the button will be on when in aux in mode.
Getting Started

Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
13
8
5
2
7
4
1
9
6
3
mute
info menu display
0
jump
+
fav
Remote Control functions
60-Minute Replay Buttons
Pause and replay up to 60
minutes of live programming
on select radios.
Power Button *
Display
Customize the way you view
content on the display.
Arrow Buttons
Select menu entries,
change channels.
Menu
Access advanced features
and configuration options.
Select Button
Confirms selection for channel
and menu items.
Fav
Choose among direct
channel entry, favorite
channels, and presets.
Jump
Switches between current
channel and previous channel.
info
Displays either your
personal stock or info extras
information.
Number Keys
Enter a channel directly,
select your favorite channels.
+ and - *
Control volume for audio
system.
Mute
Silences live and replayed
content.
*The remote supplied with your satellite radio will not operate these functions. Also, note
that not all functions on this remote are available on all satellite radios.

Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
14
Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
Placement
Do not place the Sound System or satellite radio near heat sources or in direct
sunlight. Do not place the Sound System on an inclined or unstable surface, in
areas of excessive dust, or areas prone to mechanical shock. Do not block the
speakers or ventilation ports.
Because the speakers contain powerful magnets, keep credit cards, mechanical
watches, and other devices that might be aected away from the Sound System.
Cleaning
DANGER! Unplug the AC power adapter during the cleaning to avoid any electrical
shock hazard.
Clean the hard surfaces of the Sound System with a soft cloth slightly moistened
with a mild detergent solution.
Clean the soft surfaces of the speakers with a dry lint brush.
Do not use any type of abrasive pad, scouring powder, or solvent, such as alcohol
or benzene.
Taking Care of Your Sound System
!

Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
15
My radio is not receiving a signal. Use the “antenna aiming” feature on the radio
and move the antenna to another location.
My radio will not turn on. Check whether the power cord is plugged into
the wall.
If applicable, make sure Auto-ON is enabled.
I'm only receiving a couple channels on
SIRIUS and XM
Make sure your radio is activated. Visit
www.sirius.com/mirge or call 1.888.539.SIRIUS (7474)
The radio and Sound System are on and
receiving a signal but I can’t hear anything.
Remove the radio from the Sound System and
The minimum volume level is too loud or the
maximum volume is too quiet.
Adjust the line out level on your radio.
re-insert it, then turn the power on.
Unplug any headphones.
Check the volume control.
Make sure mute is not set on the remote if
Make sure aux mode is o.
used.
I hear noise or interference. Move away from any cordless telephones or
electrical appliances or other devices that may
cause interference.
My remote doesn’t work. Make sure that the IR sensors are not obstructed
It may be time to replace the battery in the
remote.
If this happens Try this
Troubleshooting

Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
16
Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
Dimensions
Compact Sound System 300mm(W) X 93mm(H) X 120mm(D)
11.80 in(W) X 3.66 in(H) X 4.72 in (D)
Adapter 49mm(W) X 78mm(H) X 35mm(D
1.93 in(W) X 3.07 in(H) X 1.37 in (D)
Remote 40mm (W) X 119mm(H) X 14mm (D)
1.57 in (W) X 4.68 in(H) X 0.55 in (D)
Weight
Compact Sound System 2.27 Kg 5.00 lbs
Adapter 0.14 Kg 0.30 lbs
Remote 0.04 Kg 0.08 lbs
Inputs and Outputs
Antenna input SMB connector
Aux In 3.5mm diameter mini stereo jack
Headphone output 3.5 mm diameter mini stereo jack
Power
DC 12V ---2amps
Remote power 3V CR2032
Temperature
Operating -25°C ~ 70°C -13°F ~ 158°F
Storage -40°C ~ 70°C -40°F ~ 158°F
Audio
Power Minimum power of 15.2 watts RMS at 1%
THD at 12 volts 100Hz
Frequency response 100 Hz – 20KHz @ +/- 3db
Compatible Radios (sold separately)
Audiovox Xpress Audiovox XpressEZ
Audiovox XpressRAudiovox XpressRC
Delphi RoadyXT® Delphi SKYFi3®
Pioneer inno™ (with XM2go Boombox Adapter)Delphi XpressRC
Samsung Helix™ (with XM2go Boombox Adapter) Pioneer XMp3™
Technical Information
SIRIUS XM MiRGE™

Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
17
FCC Statement
The user is cautioned that changes or modications not expressly approved by SIRIUS XM Radio Inc. can
void the user’s authority to operate this device.
This device has been designed to operate with the antenna provided in the original packaging. Use of
antenna other than the antenna provided will result in improper operation, and is strictly prohibited per
regulations of Industry Canada.
This device complies with Part 15 of the FCC Rules and is certied to Industry Canada’s RSS-210
specication:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules and Industry Canada RSS-210. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the installation instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment
o and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
 • Reorient or relocate the receiving antenna of the aected receiver.
 • Increase the separation between the equipment and the aected receiver.
 • Connect the equipment into an outlet on a circuit dierent from that to which the aected
receiver is connected.
 • Consult the dealer or an experienced radio/TV technician for help.
WARNING! The FCC and FAA have not certied Satellite Radio Receiver use in any aircraft (neither
portable nor permanent installation). Therefore, SIRIUS XM Radio cannot support this type of application
or installation.

Gradient consists of 3 colors:
Light Blue: C100 M56 Y0 K0
Dark Blue: C100 M38 Y0 K64
Rich Black: C50 M40 Y40 K100
© 2009 SIRIUS XM Radio Inc.
