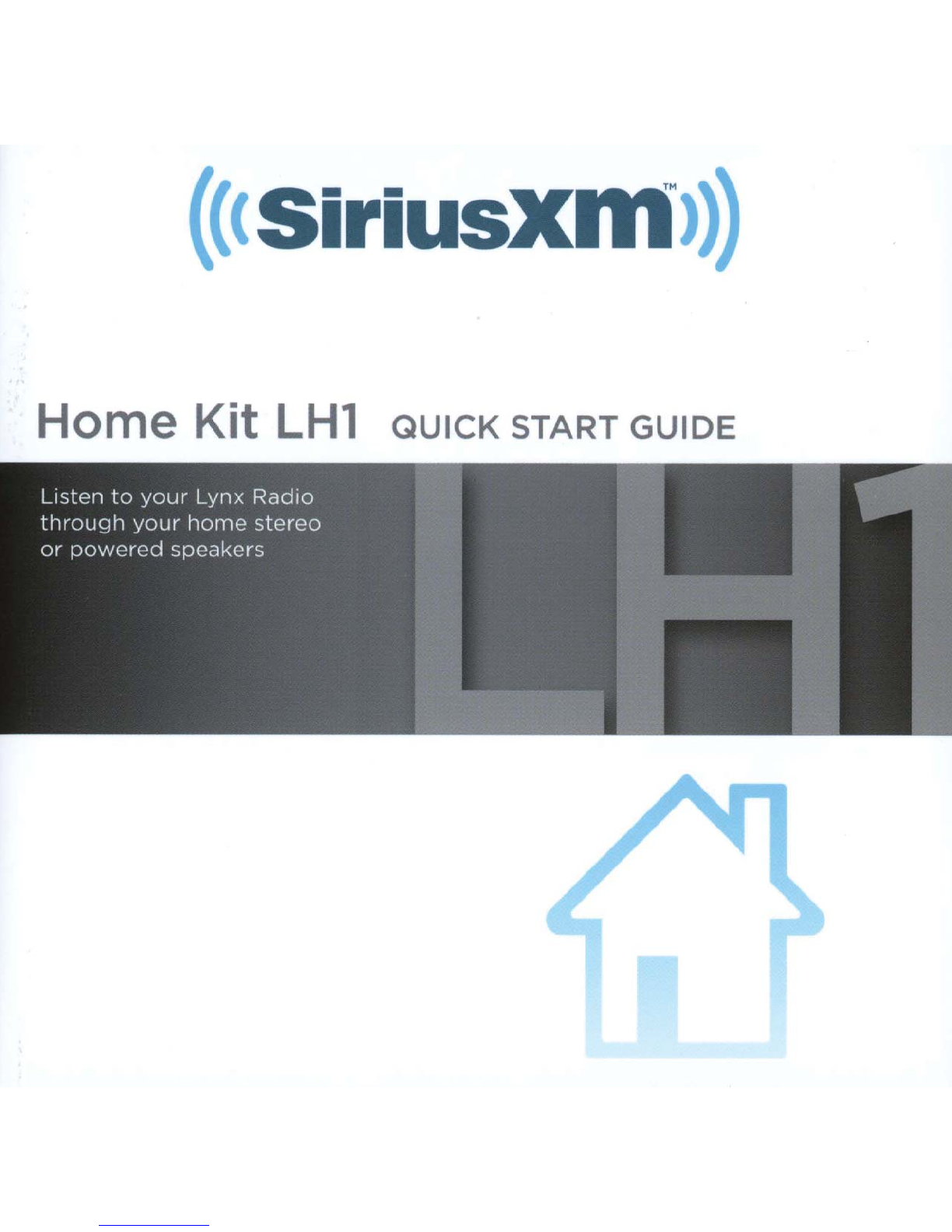

Home Kit LHl QUICK sTART GUIDE

[
~.i SiriUsXIII)))
l
~ I I ~
Lynx Home Dock
Indoor/Outdoor
Home Antenna
00000
00000
@ 0 e
-
Remote Control
Home Power
Adapter
Stereo Audio
Cable

Lynx Home Dock Rear View
ANT (Silver)
Connection for the
Indoor/Outdoor
Home Antenna .
POWER
(Red)
Connection
for Home
Power
Adapter .
AUDIO (Green)
Connection for
stereo system
or powered
speakers.
Bluetooth Indicator Light
Blinks slowly when in discoverable mode;
blinks fast when connect i ng ;
is
steady when connected .
Lynx Home Dock Top View
0 I 0
~ rJ
( * )
Bluetooth Button
Tap to enter 8/uetooth
connection mode. If connected ,
tap to disconnect. If previously
connected , tap to reconnect
without placing Lynx in the
dock .
Lynx Home Dock
Side View

Pause and Replay Buttons:
Pause/Play button
..,.II
Pauses or resumes playing of
the currently tuned channel.
Rewind button ..,.....,... *
Rewinds through content so
you can hear-that-again. Tap
to rewind to the beginning
Power Button
.._------ -,r Press for 3 seconds to turn
Radio On ; press and hold to
turn Radio Off .
Tune Up/Down Channels
Immediately tunes up or
down the channels.
of a song or show segment. _....,...o+-
(Press+hold to continuously
rewind through content. ** )
Jump **
If configured for traffic/weather,
jumps
to the traffic/weather for
the city you have selected.
Fast-Forward button ..,....,.. *
Advances through content
until live radio is reached. Tap
to advance to the next song
or show segment. (Press+hold
to continuously fast forward
through content. **)
Numbers 1-5
Selects the corresponding
favorite channel in the current
favorite page on the Now
Playing screen.
Mute
Silences the audio.
Direct
Directly tunes a channel by
entering the channel number
with the number buttons .
((<SirtusXm>l)
If configured for last channel,
jumps to the channel to
which you had previously
been
listening .
Numbers 6-0
Selects the favorite channel
O +-+- page, i.e. , 6=page 1, ?=page
2, etc .
FM (PowerConnect only)
Toggles through the FM
presets. If no FM presets
have
been set, opens the
FM Settings screen.
Battery Replacement. Turn the Remote Control over
and remove
the battery cover. Observe the orientation
of the battery , then slide it out and replace it with a
CR2025 battery.
Reinstall
the Battery
battery cover.
Battery Cover
* Internet radio music channels, and Radio Replays, are limited to 1 rewind and up to 5 skip forwards per
hour (other channels may have same restrictions).
** When l is tening to satellite radio.

Lynx allows you to connect to SiriusXM satell ite radio, SiriusXM Internet
radio, or both. Connecting to both services provides you with the complete
experience, giving you access to all of the features Lynx has to offer . Whether
you're in your home, in your ve hicle*, out walking or jogging, or wi thin range
of a Wi-Fi network, you'll always have a variety SiriusXM co n tent available .
II
SiriusXM Internet radio provides the abi l ity to l isten to SiriusXM using a
Wi-Fi connection in your home, office, or anywhere there is a hotspot.
When you activate your SiriusXM I nternet radio subscription you will
create the credentia ls (username and password) that allow Lynx to connect
and receive service. You can also use your credentials to enjoy SiriusXM
Internet radio on your computer or other compa t ib le device.
,;,. SiriusXM satellite radio adds addi ti ona l exc i ting features such as Radio
WI Replays, which saves and sto res music from your favorite channels so
yo u can l isten to th em anywhe r e, anytime . Anot her great feature is Tune
Start, which plays the current song or show from the beginning when you
tune to one of your favor i te channels. For the sports fan, set Game Alerts for
your favorite sports teams to be alerted when th ey begin pl aying a game.
Easily tune to the game with a tap. If you're listening in your vehicle *, you'll
have live satelli te rad io anywhere you drive in the SiriusXM coverage area, and
get u p-to-date traff ic and weathe r with a ta p of the Traffic/Weather icon .
Remembe r, you can subsc rib e to both services at t he same time by ca ll ing
1-866-635-2349 .
* To listen to satellite radio in your vehicle you wi ll need to purchase the LVl Vehicle Kit.

Select a location in close proximity to your stereo system or powered speakers
for the SiriusXM Lynx Home Dock. The location should be easily accessible and
provide good visib i lity of the display, but should not be located where it will be in
direct sunlight , which will reduce the visibility of the display screen.
a. Connect the Home Power Adapter to the
red POWER connector at the rear of the
dock, and plug it into an outlet.
b. To get the complete SiriusXM Lynx
experience , you will need to connect the
Indoor/Outdoor Home Antenna to the
silver ANT connector at the rear of the
dock .
C. Place Lynx into the dock and press the
Power button on the top of Lynx for 3
seconds to power on.
1 1 ~
d. Lynx will automatically connect via 8/uetooth ®
to the dock. The 8/uetooth Indicator Light will
blink during the connection process, and remain
on when connected . If for any reason Lynx fails to
connect to the dock , see the section "Biuetooth
Connections"
for instructions on manually
connecting to the dock.
Once connected , you can remove Lynx from the dock and
carry it with you.** To listen to satellite radio , or to use the
Remote Control, Lynx must be in the dock.
The SiriusXM Lynx Home Dock can be connected to your stereo system , or to a set
of powered speakers.
To Connect the SiriusXM Lvnx Home Dock to Your Stereo Svstem:
a. Using the provided Stereo Audio Cable , connect the single connector to the
green AUDIO connector at the rear of the dock .
b. Connect the white left and
red right Stereo Audio Cable
connectors to any available input
other than PHONO on your stereo
0 0
== =====
0 0 0
system. (If your stereo 's inputs are
marked red and black , connect
the white plug to the black input.)
C. Turn the stereo system On, and
set the input on your stereo
system for the input you have
connected to, such as the AUX In or LINE In connection.
To Connect the SiriusXM Lynx Home Dock to Your Powered Speakers:
(~
a. Connect the powered speakers to the green AUDIO connector at the rear of
the dock.
b. Plug the powered speakers into a
wall outlet.
C. Turn On the powered speakers.

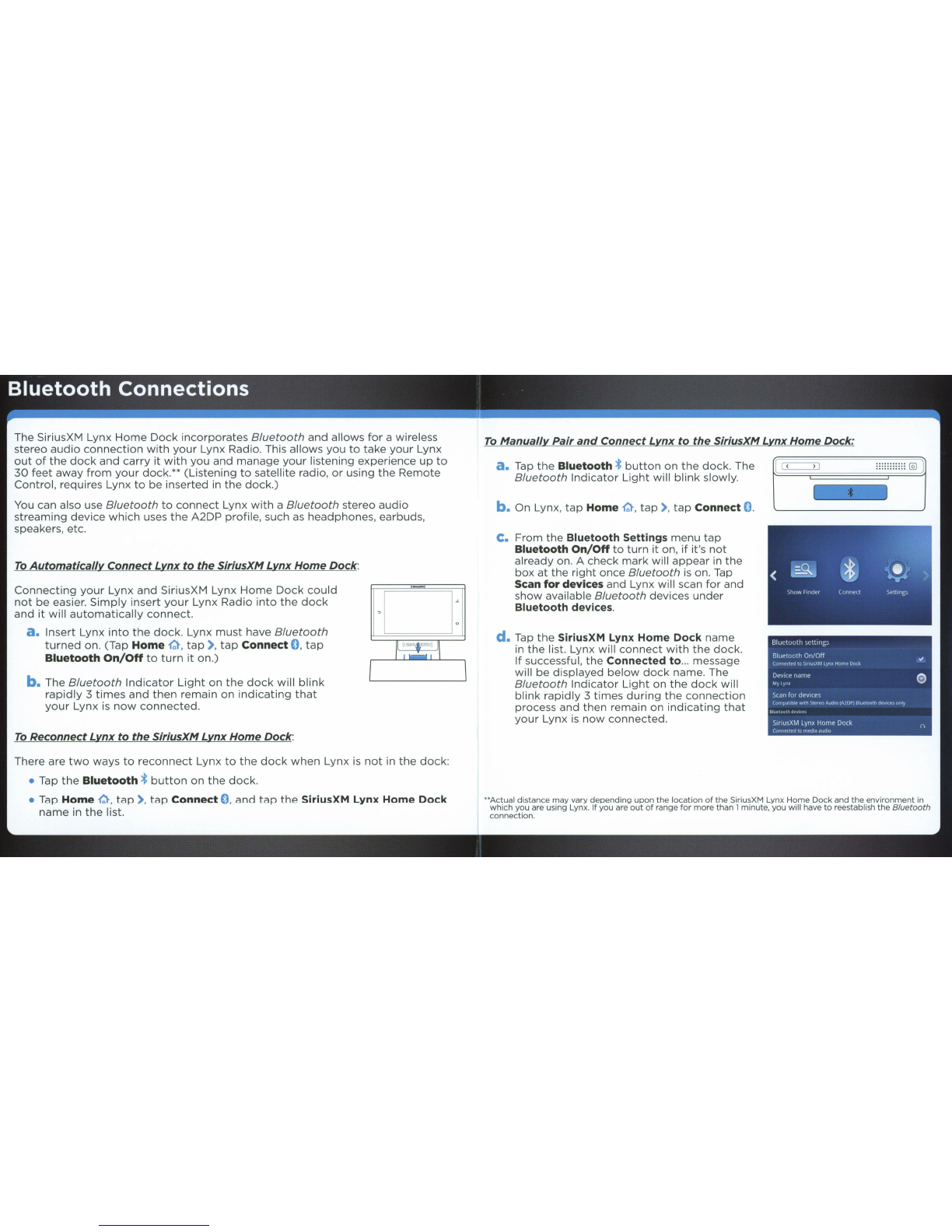

The SiriusXM Lynx Home Dock incorporates 8/uetooth and allows for a wireless
stereo audio connection with your Lynx Radio. This allows you to take your Lynx
out of the dock and carry it with you and manage your listening experience up to
30 feet away from your dock. ** (Listening to satellite radio , or using the Remote
Control, requires Lynx to be inserted in the dock.)
You can also use 8/uetooth to connect Lynx with a 8/uetooth stereo audio
streaming device which uses the A2DP profile, such as headphones, earbuds ,
speakers, etc.
To Automatically Connect Lynx to the SiriusXM Lynx Home Dock:
Connecting your Lynx and SiriusXM Lynx Home Dock could
not be easier. Simply insert your Lynx Radio into the dock
and it will automatically connect.
a. Insert Lynx into the dock. Lynx must have 8/uetooth
turned on . (Tap Home 0 , tap ) , tap Connect 0, tap
Bluetooth On/Off to turn it on.)
b. The 8/uetooth Indicator Light on the dock will blink
rapidly 3 times and then remain on indicating that
your Lynx is now connected.
To Reconnect Lynx to the SiriusXM Lynx Home Dock:
There are
two ways to reconnect Lynx to the dock when Lynx is not in the dock :
• Tap
the Bluetooth * button on the dock .
• Tap
Home 0 , tap ) , tap Connect 0, and tap the SiriusXM Lynx Home Dock
name in the list.
To Manually Pair and Connect Lynx to the SiriusXM Lynx Home Dock:
a. Tap the Bluetooth * button on the dock . The
8/uetooth Indicator Light will blink slowly .
b. On Lynx, tap Home 0 , tap ) , tap Connect 0.
C. From the Bluetooth Settings menu tap
Bluetooth On/Off to turn it on, if it's not
already on. A check mark will appear in the
box at the right once 8/uetooth is on. Tap
Scan for devices and Lynx will scan for and
show available 8/uetooth devices under
Bluetooth devices.
d. Tap the SiriusXM Lynx Home Dock name
in the list. Lynx will connect with the dock.
If successful, the Connected to ... message
will be displayed below dock name. The
8/uetooth Indicator Light on the dock will
blink rapidly 3 times during the connection
process and then remain on indicating that
your Lynx is now connected.
. .......... ~
u um ~ ]j
••Actual distance may vary depending upon the location of the SiriusXM Lynx Home Dock and the _environment in
which you are using Lynx. Ifyou are
out of range for more than 1 m1nute, you w1ll have to reestablish the Blue tooth
connection.

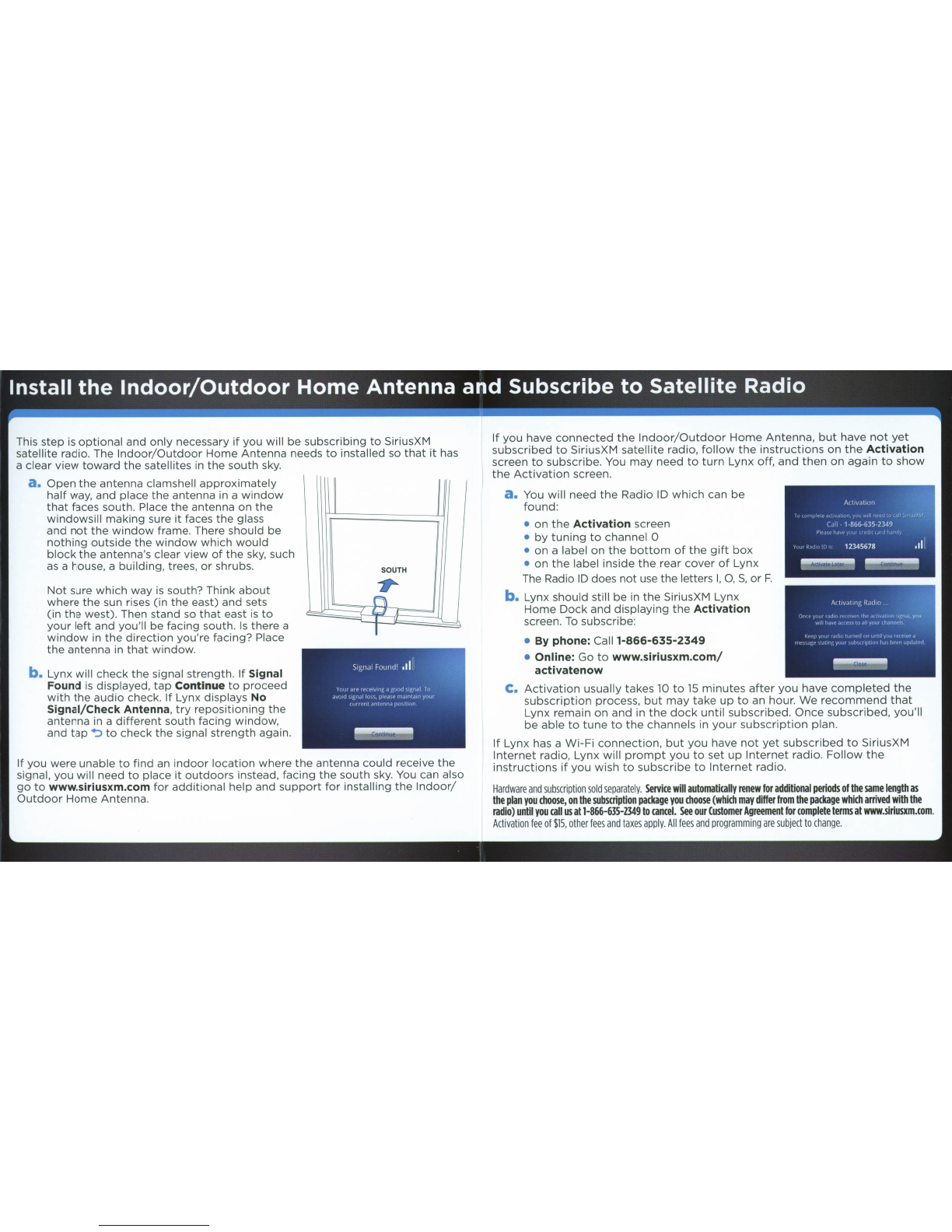

This step is optional and only necessary if you will be subscribing to SiriusXM
satellite radio. The
Indoor/Outdoor Home Antenna needs to installed so that it has
a clear view toward the satellites in the south sky.
a. Open the antenna clamshell approximately
half way, and place the antenna in a window
that faces south. Place the antenna on the
windowsill making sure it faces the glass
and
not the window frame. There should be
nothing outside the window which would
block the antenna's clear view of the sky, such
as a house, a building, trees, or shrubs.
Not sure which way is south? Think about
where the sun rises (in the east) and sets
(in
the west). Then stand so that east is to
your left and you'll be facing south. Is there a
window in the direction you're facing? Place
the antenna in that window .
b. Lynx will check the signal strength. If Signal
Found
is displayed, tap Continue to proceed
with the audio check . If Lynx displays No
Signal/Check Antenna, try repositioning the
antenna in a different south facing window,
and tap ~ to check the signal strength again.
SOUTH
~
Fl\
0'==
J'J ,[
"""""-
If you were unable to find an indoor location where the antenna could receive the
signal, you will need to place it outdoors instead, facing the south sky. You can also
go to www.siriusxm.com for additional help and support for installing the Indoor/
Outdoor Home Antenna.
I
If you have connected the Indoor/Outdoor Home Antenna, but have not yet
subscribed to SiriusXM satellite radio, follow the instructions on the Activation
screen to subscribe. You may need to turn Lynx off, and then on again to show
the Activation screen.
a. You will need the Radio ID which can be
found:
• on the Activation screen
•
by tuning to channel 0
•
on a label on the bottom of the gift box
• on the label inside the rear cover of Lynx
The Radio ID does not use the letters I, 0, S, or F.
b. Lynx should still be in the SiriusXM Lynx
Home Dock and displaying the Activation
screen. To subscribe:
• By phone: Call 1-866-635-2349
• Online: Go to www.siriusxm.com/
activatenow
C. Activation usually takes 10 to 15 minutes after you have completed the
subscription process, but may take up to an hour. We recommend that
Lynx remain on and in the dock until subscribed. Once subscribed, you'll
be able to tune to the channels in your subscription plan.
If Lynx has a Wi-Fi connection, but you have not yet subscribed to SiriusXM
Internet radio, Lynx will prompt you to set up Internet radio. Follow the
instructions if you wish to subscribe to Internet radio.
Hardware and subscription sold separately. Service will automatically renew for additional periods of the same length as
the plan you choose, on the subscription package you choose (which may differ from the package which arrived with the
radio) until you call us at 1-866-635-2349 to cancel. See our Customer Agreement for complete terms at www.siriusxm.com.
Activation fee of $15, other fees and taxes apply. All fees and programming are subject to change .

System
Power Requirements :
Operating Temperature:
Audio Output:
Bluetooth Home Dock
Dimensions:
Weight:
Audio Connector:
Antenna Connector:
Remote Control
Dimensions:
Weight:
Battery:
Bluetooth Profile:
5 V DC, 1.6 A (max)
-4 oF to +122°F ( -20°C to +50°C)
2.0 V rms (max)
4.5 in (width) x 2.1in (height) x 1.9 in (depth)
115 mm (width) x 54 mm (height) x 49 mm (depth)
5.1 oz (145 g)
1/8 in (3.5 mm) female
SMB male
2.2 in (width) x 4.2 in (height) x 0.4 in (depth)
55 mm (width) x 105 mm (height) x 10 mm (depth)
1.3 oz (37 g)
CR2025 (3 V)
Stereo Audio (A2DP)

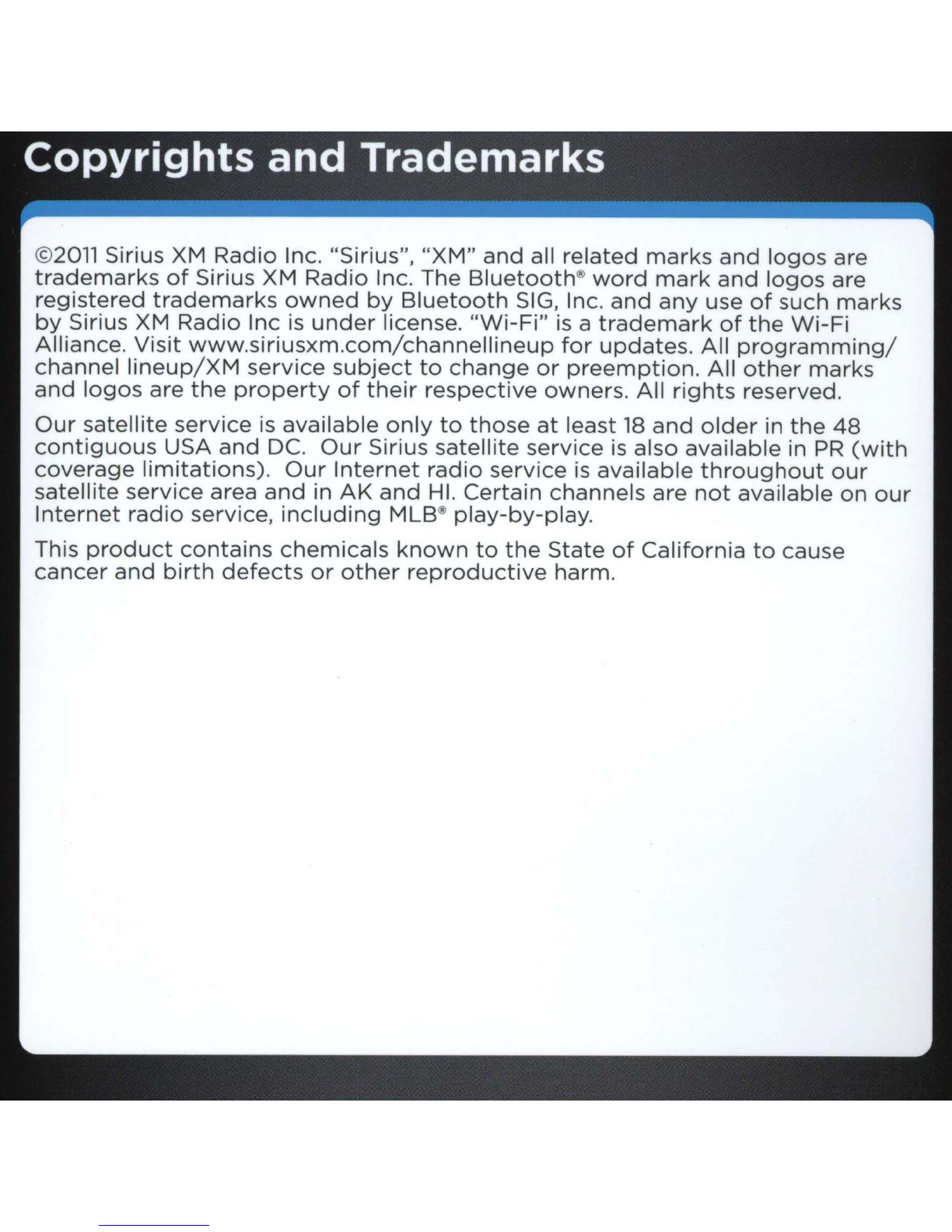

© 2011 Sirius XM Radio Inc. "Sirius,, "XM, and all related marks and logos are
trademarks of Sirius XM Radio Inc. The Bluetooth ® word mark and logos are
registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks
by Sirius XM Radio Inc is under license. "Wi-Fi" is a trademark of the Wi-Fi
Alliance. Visit www.siriusxm.com/channellineup for updates. All programming/
channel lineup/XM service subject to change or preemption. All other marks
and logos are the property of their respective owners. All rights reserved.
Our satellite service is available only to those at least 18 and older in the 48
contiguous USA and DC. Our Sirius satellite service is also available in PR (with
coverage limitations). Our Internet radio service is available throughout our
satellite service area and in AK and HI. Certain channels are not avai lable on our
Internet radio service , including MLB ® play-by-play.
This product contains chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm .
