SKC 210-1002MTX User manual

www.skcltd.com

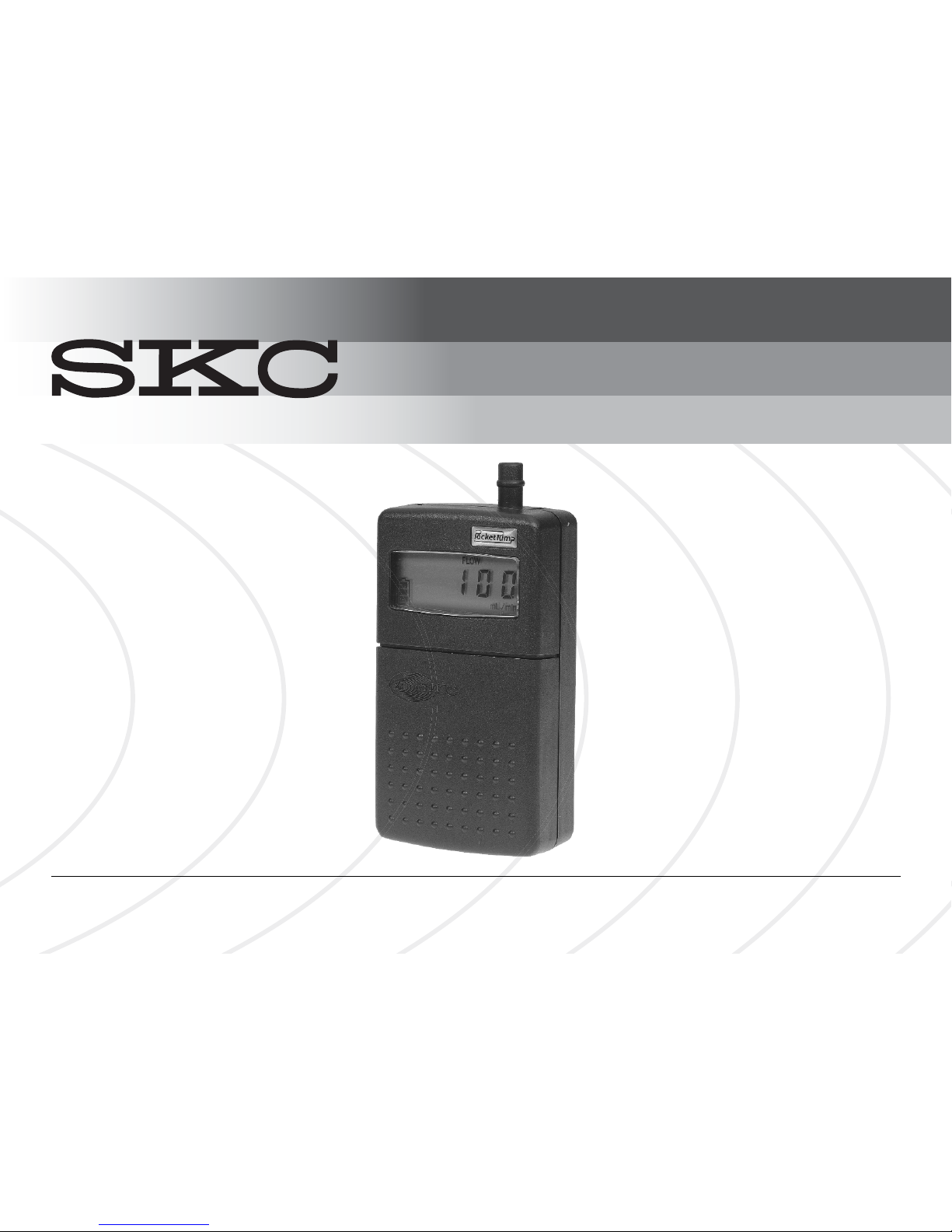

Pocket Pump Air Sampling Pump
Operating Instructions
This manual covers the following models:
210-1002MTX , 210-1003MTX

Page 2 210-PMTXM Issue L www.skcltd.com
Purchase Details and Service History
Thank you for choosing an SKC product. Your purchase is covered by our warranty, details of which can be
found inside the rear cover of this manual.
Product Model Number Product Serial Number Date of Purchase
SKC recommends a minimum service interval of one year for this product. The first service is due one year from
the date of purchase, and then at yearly intervals on this date. However, it is the responsibility of the user to
perform a risk assessment to determine the necessary frequency of servicing that is required.
Service Date Service Date Service Date
159
2610
3711
4812
Please note that SKC Ltd are the only authorised service centre in the UK, guaranteeing you access to the full
range of genuine SKC replacement parts. For all other areas a full list of SKC approved distributors and service
centres can be found at www.skcltd.com
SKC UK service centre - Tel: [phone] Fax: [phone] Email: [email protected]

www.skcltd.com 210-PMTXM Issue L Page 1
Contents
Intrinsic Safety Information.............................................................................................................................2
Specifications ................................................................................................................................................3
General Information .......................................................................................................................................8
Diagram of the Pocket Pump.......................................................................................................................10
Pocket Pump LCD Screen...........................................................................................................................11
Getting Started............................................................................................................................................12
Operating the Pocket Pump in Constant Flow Mode ...................................................................................17
Operating the Pocket Pump in Constant Pressure Mode .............................................................................20
Through Flow Sampling with the Twin Port Pocket Pump ............................................................................22
Troubleshooting...........................................................................................................................................26
Care of the Battery Pack..............................................................................................................................28
Pocket Pump MTX Components .................................................................................................................30
Pocket Pump MTX Replacement Parts........................................................................................................31
Pocket Pump Accessories...........................................................................................................................32
Pocket Pump DataTrac Software.................................................................................................................34
Intrinsic Safety Certification..........................................................................................................................36
Warranty Information ...................................................................................................................................52

Page 2 210-PMTXM Issue L www.skcltd.com
Intrinsic Safety Information
The Pocket Pump MTX air sampling pump range
• Complies with the EU ATEX Directive 2014/34/EU on equipment intended for use in potentially explosive
atmospheres, as intrinsically safe to Ex ia M1 and Ex ia II B T4, for use in Europe.
• EC type examination certificate: INERIS 03 ATEX 0177X.
• European (EN) standards applied: Refer to Intrinsic Safety Certification on pages 36 to 50.
• The equipment may be used in zones 0, 1 and 2 with flammable gases and vapours with apparatus groups
II A & II B and with temperature classes T1,T2,T3,T4.
• The equipment is only certified for use in ambient temperatures in the range -20 to +40°C and should not
be used outside this range.
• The battery pack should not be charged in a hazardous area.
• Use only SKC approved chargers designated for the model.
• Do not connect to the DataTrac PC interface port whilst in a hazardous location.
• The equipment has not been assessed as a safety related device (as referred to in Directive 2014/34/EU
Annex II, clause 1.5).
• The equipment should not be used if damaged in a way that could invalidate intrinsic safety. Such
defects might include cracking of the battery pack enclosure and internal encapsulant such that internal
components or cells are exposed. It is the responsibility of the user to ensure that the pump is in an
acceptable condition for use in hazardous locations.
Important note about intrinsic safety
If you are unsure as to whether the Universal pump you have purchased is suitable for your environment, check
with your site manager or responsible person BEFORE USE that the intrinsic safety rating on the product meets
your site requirements. SKC personnel are unable to recommend the appropriate safety rating for your site.

www.skcltd.com 210-PMTXM Issue L Page 3
Specifications
All models
• Weight: 170 g
• Casing IP rating: IP20
• Constant Flow Mode:
1) Flow range: 20 - 225 ml/min
2) Compensation range: 0 - 20 inches of water at 20 - 225 ml/min flow
3) Flow compensation accuracy: ±5% of flow set point
• Constant Pressure Mode:
1) Pressure range: 1 - 20 inches of water
2) Pressure control accuracy: ±0.5 inches of water (±0.25 mmHg)
• Timer display: 0 to 9999 minutes
• Timer accuracy: ±1%
• Battery pack: NiMH rechargeable, 1.0 Ah, 2.4 V
• Charging time: up to 6 hours (battery fitted to pump) / up to 16 hours (battery only)
• Charging temperature: 0 to +45°C
• Storage & operating temperature: -20°C to +40°C
• Operating humidity: 0 to 95% RH
55mm 35mm
112.5mm

Page 4 210-PMTXM Issue L www.skcltd.com
Specifications
• Typical run times:
Back Pressure
Run Time
Flow = 20 ml/min Flow = 100 ml/min Flow = 200 ml/min
10 inches of water 14 hours 13 hours 11 hours
20 inches of water 12 hours 12 hours 10 hours
Note: Run times quoted are based on a new, fully charged battery.
Note:
SKC Limited reserve the right to make changes to the specification and design of this product at any time
without prior notice to the end user.

www.skcltd.com 210-PMTXM Issue L Page 5
Specifications
Pump Features
Battery charging options
SKC offer two battery charger options for the Pocket Pump MTX series pumps, a single
charger (Part No. 223-229A) and a five station charger (Part No. 223-107A). When the
battery pack is fitted into the pump, a fast charge mode is enabled providing a charge
time of up to 6 hours. If the battery is charged external to the pump then the charge time
will be up to 16 hours.
Mains power option
The 223-229A single charger model can also be used as a mains adaptor to run the
pump for indefinite periods whilst connected to the electrical mains supply. Note that it is
recommended to ensure that the battery is fully charged prior to commencing sampling.
Warning - The pump must not be used in potentially explosive areas when the
charger is connected.
Keypad cover The pump controls are situated beneath a sliding cover to prevent accidental actuation of
the keypad during a sample run.
LCD screen LCD screen indicates run-time data, operating and fault modes and battery charge state.
Constant flow mode Provides compensated constant flow control for single tube sampling applications.
Constant pressure mode Provides constant pressure control for multiple tube sampling applications.
Sample hold function Enables pausing and restarting of the pump during a sample.
Low battery shutdown
Automatic pump shutdown in the event of a low battery condition. The low battery shutoff
voltage is selected to prevent over-discharge of the battery which can cause degradation
of the battery performance. The pump retains the run-time data in the event of a low
battery shutdown.

Page 6 210-PMTXM Issue L www.skcltd.com
Pump Features
Flow fault function
Indicates flow fault due to obstructed tubing or excessive filter loading. Shuts the pump
down and enters ‘HOLD’ mode if the condition persists for longer than 15 seconds.
Automatically attempts to restart every five minutes, until the flow fault condition clears in
which case normal running will resume.
Particulate trap Built in replaceable filter to trap particles that would otherwise contaminate the pump
mechanism.
PC Connectivity
With optional DataTrac USB adapter cable and PC software. Enables programming of
timed sample runs, delayed starts and intermittent sampling. Enables retrieval of pump
run-time data and history to the PC.
Twin port model available The 210-1003MTX twin port Pocket Pump includes an exhaust port enabling the pump
to be used for sample bag filling and similar applications.
Specifications

www.skcltd.com 210-PMTXM Issue L Page 7
Blank Page

Page 8 210-PMTXM Issue L www.skcltd.com
1) Pump Models
210-1002MTX Standard ATEX approved pump with NiMH battery pack
210-1003MTX Twin port ATEX approved pump with NiMH battery pack
2) Care of Pocket Pump MTX Series Pumps
• Always use the correct SKC battery pack and battery chargers designated for the Pocket Pump MTX series
pumps.
• Never run the pump long term without a tube or filter medium in place.
• When carrying out sampling using long term colour change tubes always use a tandem tube holder with trap
tube. This will prevent the aggressive fumes generated by these tubes from entering and damaging the pump
mechanism.
• The Pocket Pump MTX series pump cases are IP20 rated, they are not rated as water or splashproof and
therefore must not be used where it is possible for water to enter the pump casing.
• Pocket Pump MTX series pumps are fitted with a particulate filter which is easy to replace. For general maintenance
replace the filter every 2-3 months or if it appears dirty. New filters are white in colour (order Part No. P40010).
• If the sampling methodology to be used requires the collection of the sample from the outlet of the pump (210-
1003MTX twin port model only), i.e. the sample is passing through the pump mechanism, ensure that the sample
air is dry and does not contain corrosive constituents. Failure to do so could lead to contamination of the pump
mechanism, degradation of performance or even failure of the pump.
Warning - Failure to follow these guidelines will void the product warranty.
General Information

www.skcltd.com 210-PMTXM Issue L Page 9
General Information
3) Non ATEX Certified Variants of the Pocket Pump
The Pocket Pump is also produced in a variant range which is UL certified for intrinsic safety and these pumps are
therefore not suitable for use in potentially explosive atmospheres in Europe where ATEX approval is mandatory.
Pump components vary between the UL and ATEX certified variants, therefore components must not be interchanged
between these pumps. If in any doubt please contact SKC Ltd customer services for advice.
4) Sampling Methods
This instruction manual provides the necessary information to set up and operate the Pocket Pump MTX series
pumps. For more detailed information on specific sampling methods please refer to SKC’s Step-By-Step Guide to
Air Sampling (Part No. 224-G1). To obtain a free copy please contact SKC Ltd customer services on +44 (0) 1258
480188 or download at www.skcltd.com.
5) The WEEE Directive
This product is marked with the crossed out wheelie bin symbol, which identifies that it falls within the scope
of the EC Directive 2002/96/EC on waste electrical and electronic equipment (WEEE). At the end of it’s useful
life, this product must be disposed of in an environmentally sound way as detailed in the Directive. Note that
the battery pack must be separated from the pump and disposed of as detailed in the Batteries Directive
(see below). Please contact your local distributor or SKC Ltd for further details on how to comply with the
requirements of the WEEE Directive. SKC Ltd’s producer registration number is WEE/KH0054TQ.
6) The Batteries Directive
The NiMH battery pack supplied with this pump and any spare battery packs purchased for it, fall within the scope of
the EC Directive 2006/66/EC on batteries and accumulators and waste batteries and accumulators. At the end of the
battery pack’s life it must be disposed of in an environmentally sound way as detailed in the Directive. Please contact
your local distributor or SKC Ltd for further details on how to comply with the requirements of the Batteries Directive.
SKC Ltd’s batteries producer registration number is BPRN00454.

Page 10 210-PMTXM Issue L www.skcltd.com
Air Inlet Port Air Inlet Port Air Exhaust Port
(210-1003MTX only)
Belt Clip
Slide Cover
(Open Position)
Keypad
LCD Screen
PC Interface
Connector
Inlet
Particulate
Filter*
*At base of inlet port
Battery Pack
Charging Jack
Socket
Diagram of the Pocket Pump

www.skcltd.com 210-PMTXM Issue L Page 11

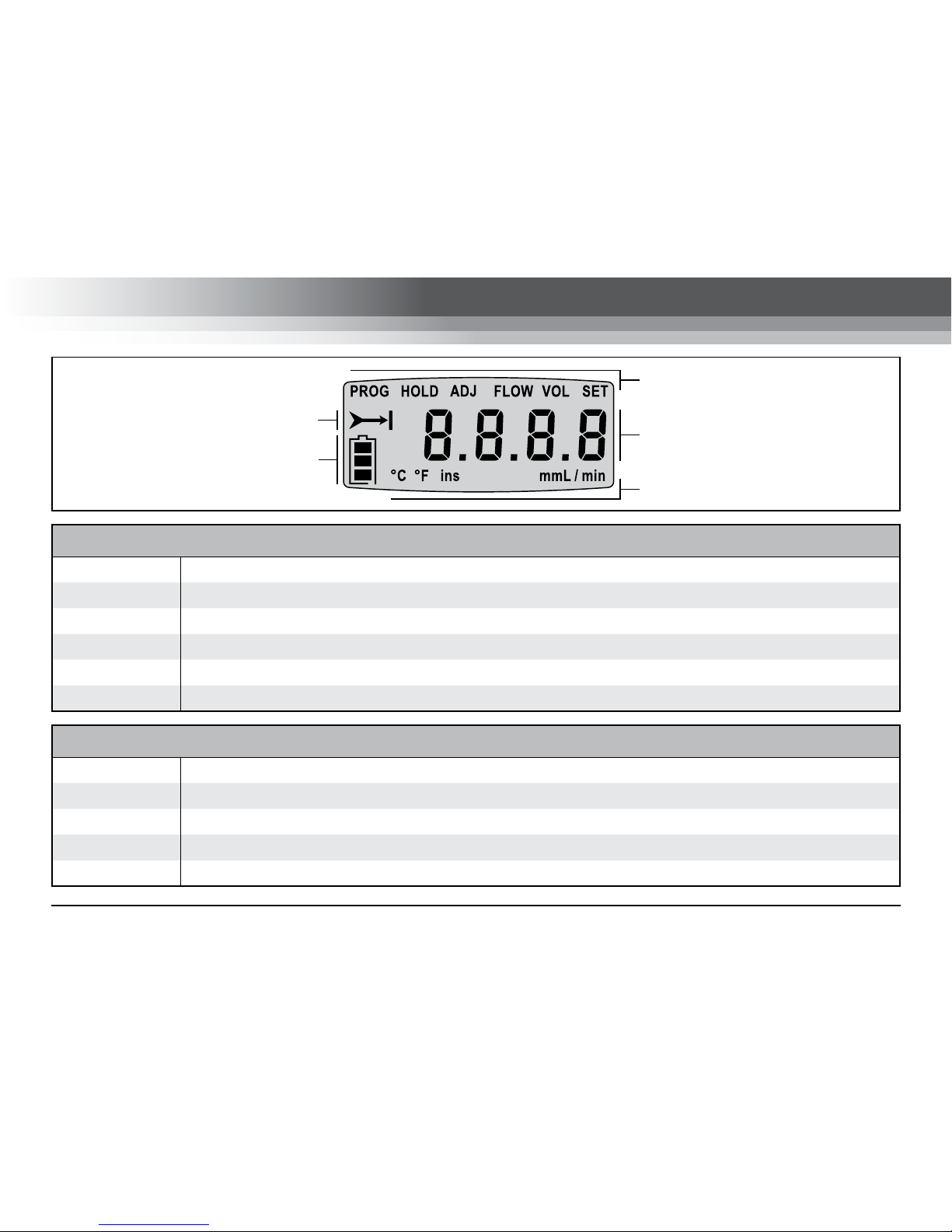

Pocket Pump LCD Screen
Operating Indicators
Display Units
Numerals
Flow Fault Indicator

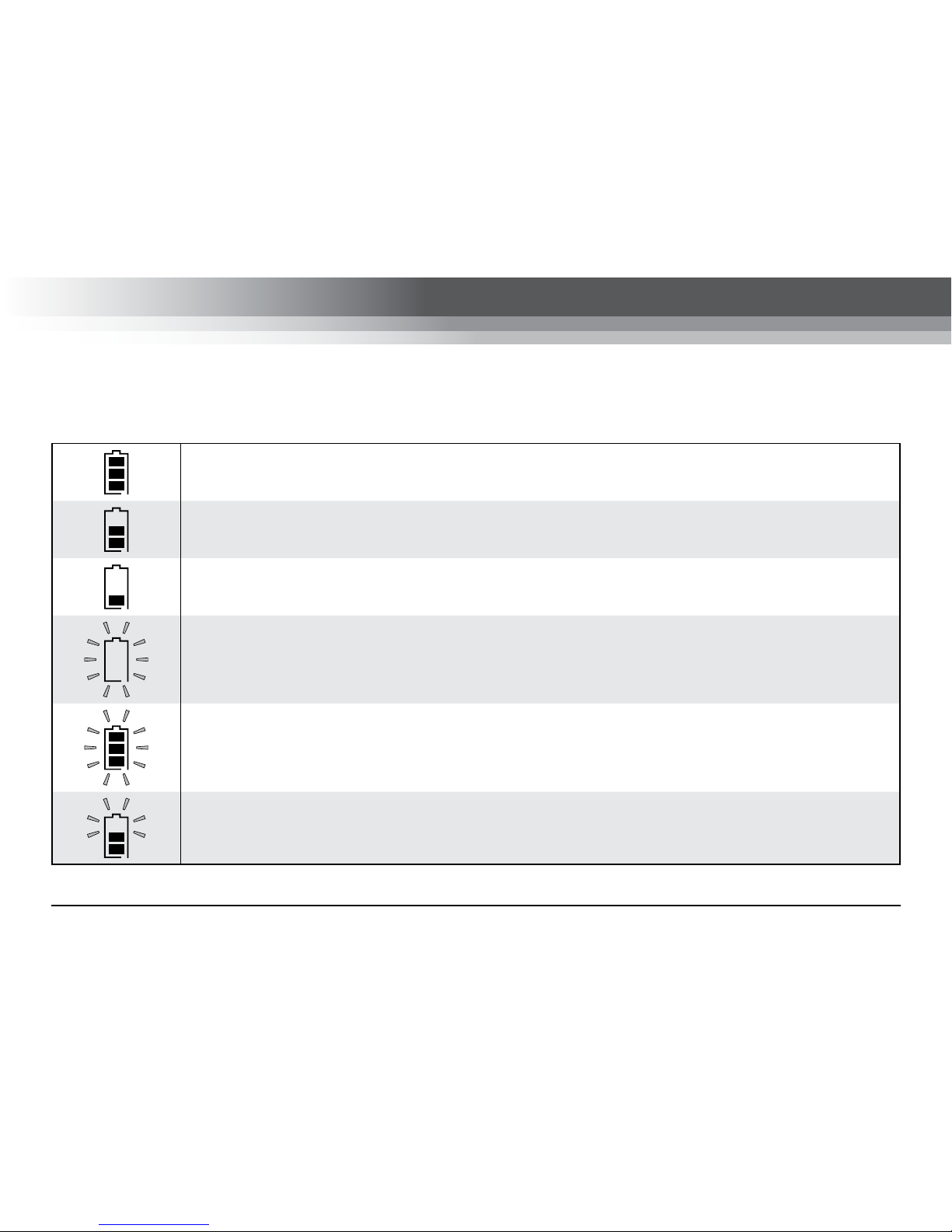

Battery Charge Status
Operating Indicators
PROG Active when a program is loaded into the pump memory using the DataTrac interface and software
HOLD Flashes when the pump is the HOLD state
ADJ Flashes when adjusting the pump flow rate during flow calibration
FLOW Active when the pump LCD screen displays the flow rate
VOL Active when the pump LCD screen displays the volume of air sampled
SET Flashes when setting the pump flow rate or back pressure setting
Display Units
°C or °F Sample air temperature in degrees Centigrade or Farenheit (Enhanced Display Mode only)
ins or mm Pump back pressure in inches of water or millimetres of mercury (Enhanced Display Mode only)
mL/min Pump flow rate in millilitres per minute
mL or L Total volume of air sampled in millilitres or litres since last reset
min Run time in minutes since last reset

Page 12 210-PMTXM Issue L www.skcltd.com
Getting Started
1) Charging the Battery Pack
The Pocket Pump MTX series pumps incorporate an intelligent charging function that monitors the battery pack
during charging and automatically switches to a trickle charging rate when the battery pack is fully charged to prevent
damage due to over-charging. A full charge will take up to 6 hours dependent on the charge state of the battery
pack at the start of charging. The charging function also includes a feature that enables full charge rate only when
the battery pack temperature is within the range +5 to +38°C. When the temperature is outside this range only trickle
charging rate is enabled.
Pocket Pump battery packs can also be charged when not fitted to the pump. In this case charging occurs only at the
trickle charging rate and a full charge will take up to 24 hours.
Use only the correct SKC chargers (Part Nos. 223-229A - single charger, 223-107A - five station charger). The
chargers are supplied with mains input plugs suitable for use in the UK, Europe, USA and Australia / New Zealand.
Prior to first use the battery pack should be fully charged, ideally overnight. It will take 2 – 3 full charge / discharge
cycles for the battery pack to achieve optimum capacity. If a new battery pack repeatedly exhibits a charging fault as
detailed below it is recommended to condition the battery pack by running the pump until it shuts down due to low
battery, then remove the battery pack from the pump and charge for 24 hours.
To charge the battery pack select the correct mains input plug and fit it to the charger. Plug the charger into the
electrical mains supply and switch on the power. Plug the charger output jack plug into the mating socket at the base
of the pump. The LED indicator on the charger will illuminate to indicate that the battery pack is connected.
During charging all three bars of the battery status icon on the pump LCD screen will flash. At the end of charging the
battery status icon will be on (not flashing) and showing three bars to indicate full charge.
If the battery icon shows one flashing bar at the end of charging, this indicates a charging fault. It is recommended to
disconnect the charger, wait for the battery pack temperature to stabilise to the ambient temperature then reconnect
the charger. If the charging fault condition re-occurs this would indicate a fault with the pump, battery pack or charger.
Contact SKC Limited customer services for further advice.

www.skcltd.com 210-PMTXM Issue L Page 13
Getting Started
When fully charged disconnect the charger jack plug from the battery pack.
2) Battery Status Indicator
The battery status indicator on the pump LCD screen shows the current battery charge level:
Fully charged. 3 bars displayed from approximately 100% to 75% capacity. Note: It is strongly
recommended to ensure that the battery is fully charged before starting a sample run.
2 bars displayed from approximately 75% to 25% capacity.
1 bar displayed below approximately 25% capacity.
Low battery. No bars and flashing outline indicates low battery. Pump automatically switches to
HOLD mode, and then SLEEP mode after 1 minute.
Battery charging. When the battery charger is connected, the battery status indicator flashes all 3
bars to indicate charging. At the end of charging the battery status indicator will stop flashing and
show 3 bars continuously.
Battery charging error. Bottom 2 bars showing continuously and top bar flashing at the end of
charging indicates a charging fault. Refer to text on page 10.

Page 14 210-PMTXM Issue L www.skcltd.com
Getting Started
3) Accessing the Pump Keypad
To access the pump keypad, slide the slide cover downwards until the buttons are exposed.
4) Operating the Three Button Keypad
The Pocket Pump operates by pressing various sequences of the three keypad buttons:
Star Button -
• Scrolls through run time data on the LCD screen.
• Sets up the pump operating parameters when used with other buttons.
Up and Down Arrow Buttons -
• Increases or decreases either the flow rate (in constant flow mode) or the pump back pressure (in constant
pressure mode) during setup.
Underlined Sequence -
• All buttons in the sequence must be pressed consecutively within 10 seconds of the previous command.
Bracketed Sequence - [ ]
• All buttons within the brackets must be pressed simultaneously.
Security code -
• The security code sequence is required to access the operating parameters, thus preventing unauthorised
changes to the parameters and flow rate or back pressure settings.
5) SLEEP Mode
If the pump is left in HOLD mode for longer than five minutes the pump will automatically set itself to a low

www.skcltd.com 210-PMTXM Issue L Page 15
Getting Started
power SLEEP mode, with the LCD screen switched off. To wake the pump from SLEEP mode simply press
any of the three buttons and the pump LCD screen will display the pump serial number followed by the internal
software version number before switching to HOLD mode.
The pump will also automatically wake from SLEEP mode when the battery charger is connected.
6) HOLD and RUN Modes
To switch from HOLD mode to RUN mode press [ ]. The pump will start to run and the run-time data will
be updated continuously in memory.
To switch from RUN mode to HOLD mode press [ ]. The pump will stop and retain the run-time data in
memory. The temperature and back pressure readings are still active in HOLD mode, and can be displayed on
the LCD screen (in Enhanced Display mode).
7) Flow Fault
If pump operation is interrupted due to blocked or restricted flow, the flow fault indicator will flash. If the
flow fault persists for 15 seconds the pump will stop and switch to HOLD mode, with the flow fault indicator
on continuously. The pump will then wait 5 minutes before automatically switching to RUN mode to continue
sampling. If the flow remains restricted the pump will return to HOLD mode, and attempt to restart every 5
minutes.
The accumated run time and and sample volume readings are not updated whilst the pump is in flow fault.
8) Resetting the Run-Time Data to Zero
To clear the run-time data including elapsed run time and accumulated sample volume, the following sequence
is required:
With the pump running, press [ ] to switch to HOLD mode, press , and then .

Page 16 210-PMTXM Issue L www.skcltd.com
Getting Started
The LCD screen will briefly show the pump serial number, the internal software version number and then the
elapsed run time at 0 min.
8) Switching Between Constant Flow and Constant Pressure Modes
The Pocket Pump is shipped set up in Constant Flow mode. To switch from Constant Flow mode to Constant
Pressure mode and vice versa the following sequence is required:
With the pump running, press [ ] to switch to HOLD mode, press , and then .
9) Switching Between Standard and Enhanced Display Modes
The Pocket Pump is shipped set up in Standard Display mode. In order to view all of the available run-time data
the pump must be switched to Enhanced Display mode, using the following sequence:
With the pump running, press [ ] to switch to HOLD mode, press , and then .
To revert to Standard Display mode from Extended Display mode the following sequence is required:
With the pump running, press [ ] to switch to HOLD mode, press , and then .
10) Changing the Temperature Display Units
To change the temperature display units from °C to °F and vice versa, ensure that the pump is in Enhanced
Display mode and enter the following sequence:
With the pump running, press [ ] to switch to HOLD mode, press , and then [ ].
11) Changing the Back Pressure Display Units
To change the temperature display units from inches of water to millimetres of mercury and vice versa, ensure
that the pump is in Enhanced Display mode and enter the following sequence:
With the pump running, press [ ] to switch to HOLD mode, press , and then [ ].

www.skcltd.com 210-PMTXM Issue L Page 17
Operating the Pocket Pump in Constant Flow Mode
Constant Flow mode provides compensated flow control for single sorbent tube sampling applications.
Ensure that the pump is set to Constant Flow mode before carrying out sampling.

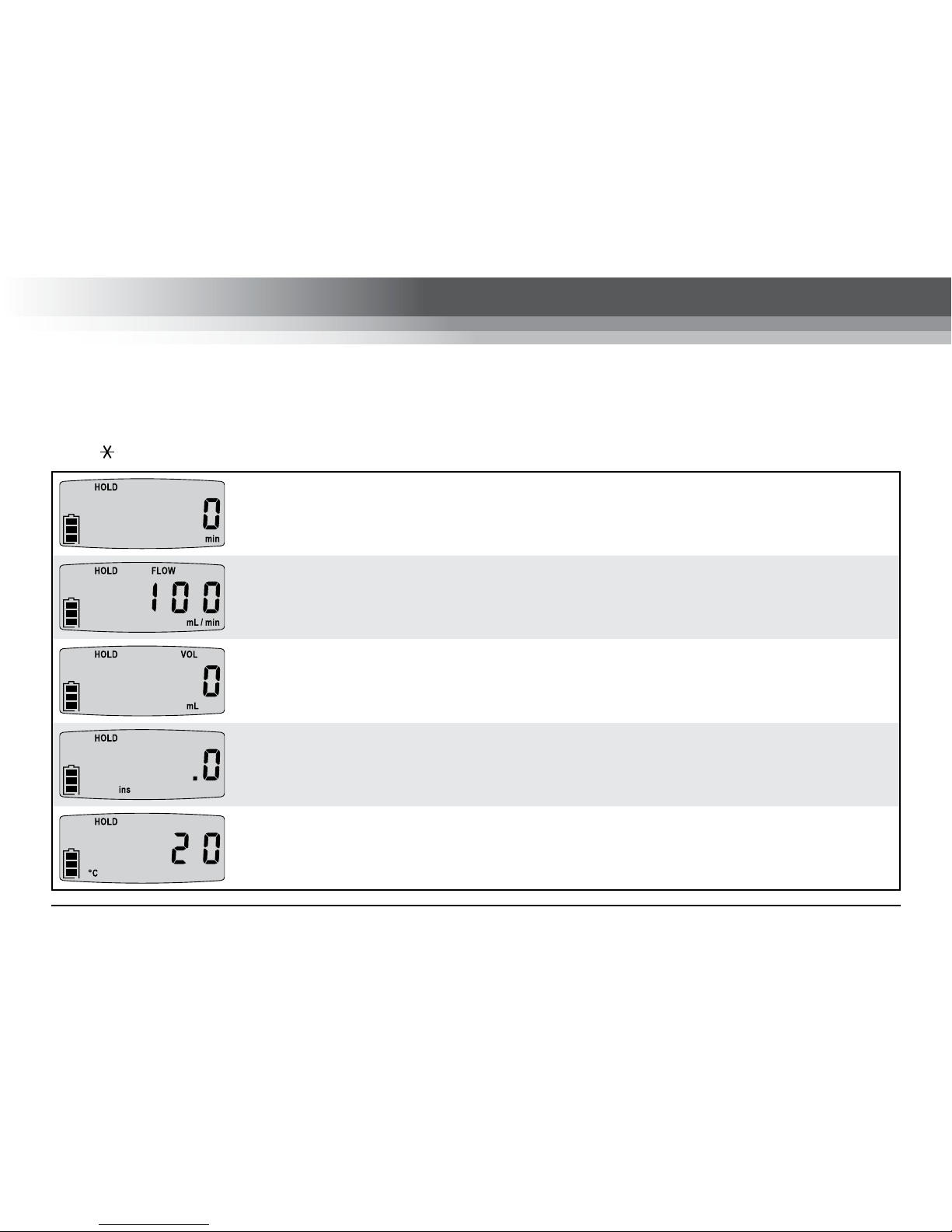

1) Viewing the Run-Time Data
Press to scroll through the available run-time data screens:
Elapsed run time since last reset in minutes up to 9999 minutes (approximately 1
week). Above 9999 minutes display reverts to 0 minutes and continues to count.
Flow rate in millilitres/minute.
Accumulated sample volume since last reset in millilitres or litres up to 9999 litres.
Pump back pressure in inches of water or millimetres of mercury. Enhanced Display
mode only.
Sample air temperature in °C or °F. Enhanced Display mode only.

Page 18 210-PMTXM Issue L www.skcltd.com
Operating the Pocket Pump in Constant Flow Mode

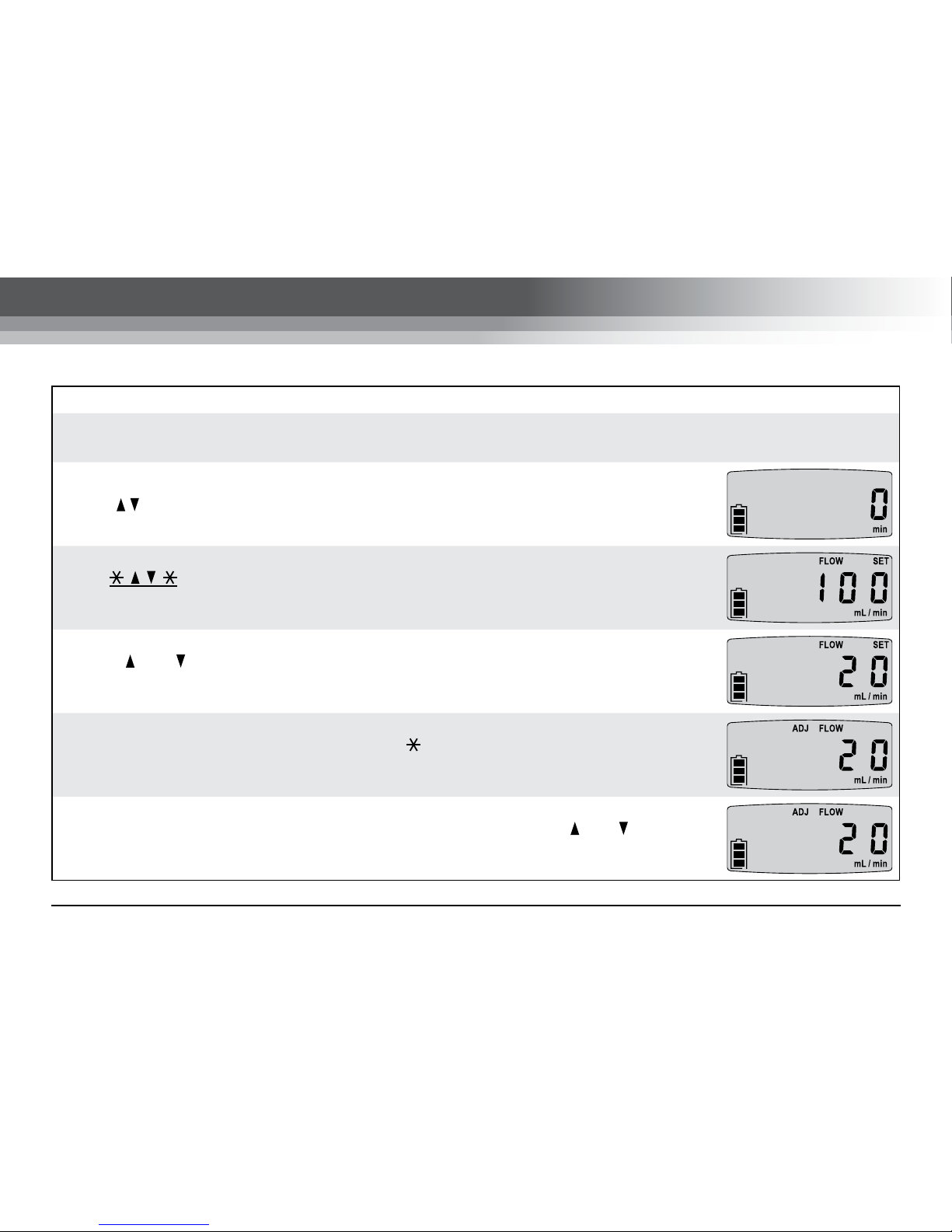

2) Setting and Calibrating the Pump Flow Rate
Ensure that the pump is set to Constant Flow mode and that the battery is fully charged.
Set up the sample train as specified in the sampling method and connect to the pump air inlet port. Connect
a suitable calibrated flowmeter (such as a chek-mate or rotameter) to the inlet of the sample train.
Press [ ] to start the pump running.
Press . The LCD screen will show the flow rate setting screen with ‘SET’
flashing.
Use the and buttons to set the required flow rate in millilitres per minute on the
LCD screen.
When the required flow rate is set press the button to display the flow rate adjust
screen, with ‘ADJ’ flashing.
Observe the indicated flow rate reading of the flowmeter. Use the and buttons to
adjust the pump flow rate up or down, to precisely calibrate the required flow rate.
