AirChek ESSENTIAL Sample Pump
Cat. No. 220-3000
Operating Instructions
Figure 1. AirChek Essential Parts Overview
INTRODUCTION
Checking Pump/Kit Contents
Use the table below to verify that you received all items associated with the Cat. No. ordered. If you are missing
items, contact SKC at 800-725-8472 (U.S. only) or 724-941-9701.
If you ordered Cat. No.
Your package should contain
220-3000
Pump with lithium-ion (Li-Ion) battery pack and screwdriver set
220-3000-S
Pump with Li-Ion battery pack, screwdriver set, Standard Charging Cradle, power supply with cord,
3 feet (0.9 meter) of Tygon tubing, and collar clip cable with tie 100-240 V
220-3000-K
Pump with Li-Ion battery pack, screwdriver set, Standard Charging Cradle, power supply with cord,
and filter cassette holder, in a soft-sided nylon carry case 100-240 V
220-3000-KD
Pump with Li-Ion battery pack, screwdriver set, Standard Charging Cradle, power supply with cord,
filter cassette holder, All-in-One adjustable tube holder, and Type A protective tube cover, in a soft-
sided nylon carry case 100-240 V
220-3000-K3D
3-pack High/Low Flow Pump Kit includes 3 pumps with Li-Ion battery packs, screwdriver set,
3 Standard Charging Cradles, power supply with cord, and 3 each: filter cassette holders,
All-in-One adjustable tube holders, and Type A protective tube covers, in a Pelican case 100-240 V
220-3000-K5
5-pack High Flow Pump Kit includes 5 pumps with Li-Ion battery packs, screwdriver set, 5 Standard
Charging Cradles, power supply with cord, and 5 filter cassette holders, in a Pelican case 100-240 V
220-3000-K5D
5-pack High/Low Flow Pump Kit includes 5 pumps with Li-Ion battery packs, screwdriver set,
5 Standard Charging Cradles, power supply with cord, and 5 each: filter cassette holders, All-in-One
adjustable tube holders, and Type A protective tube covers, in a Pelican case 100-240 V
Inlet
housing/filter
Screen with 3-segment touch keypad
Pump
inlet
Pump status LED indicators
Top view
Protective screen cover
On/Off button
Belt clip on back
(not shown)
Charging contacts
Battery pack
Front and side view

skcinc.com Form 37165 Rev 200217 Page 2
GETTING STARTED
Charging the Battery Pack
1. Set up the charging train (Figure 2) and completely charge the battery pack(s) before operating the pump.
2. Prepare charging cradle(s).
a. Single cradle: Insert connector on Single Cradle Power Supply Cat. No. 220-600 into power port
on side of Standard Charging Cradle Cat. No. 220-800 or Charging e-Cradle Cat. No 220-900.
Insert wall cube into a 100 or 240-volt wall outlet.
b. Up to five cradles: Press together the connector on the side of the first cradle with the connector
on the side of the next cradle. Repeat the connection to chain up to five Standard Charging
Cradles. Insert the connector of Multi-Cradle Power Supply Cat. No. 220-700 into the power port on
the side of the last cradle in the chain. Insert the wall cube into a 100 to 240-volt wall outlet.
3. Align the contacts on the bottom edge of the pump with the contacts inside the cradle and insert the pump in
the cradle. Repeat for each additional pump/cradle.
4. Charge the battery completely (approximately 3 hours). The left LED on the cradle will indicate charging
status (see Reading Charge Status on Cradle LED).
Figure 2. Charging Train, Single and Multiple Cradles
Multi-cradle power supply
Pump
100-240 V
Wall outlet
Charge status
Charging cradle
Single cradle power supply
Power port
Charging contacts

skcinc.com Form 37165 Rev 200217 Page 3
Reading Charge Status on Cradle LED
The left LED on the charging cradle indicates battery status. Observe the LED steadily for > 5 seconds.
LED Action
Charge Status
Red
steady
Charge in progress
Red
3 sec
Green
1 sec
(Pattern
repeats)
Approximately 75% charged
Green
steady
Charge completed/trickle charge
Notes and Cautions
•Power off pump before removing battery.
•Use only the SKC charging cradle Cat. No. 220-800 or 220-900 for pump.
•Failure to follow warnings, notes, and cautions may cause injuries and voids any warranty.
•WARNING: Substitution of components may impair intrinsic safety. AVERTISSEMENT: La substitution de
composants peut compromettre la Sécurité Intrinsèque.
•CAUTION: The battery used in this device may present a risk of fire or explosion when heated above 212 F
(100 C) or incinerated. Replace battery with SKC Battery Pack model P75718 only. Use of another battery may
present a risk of fire or explosion.
•WARNING: To prevent ignition of a hazardous atmosphere, batteries must only be changed [removed and
replaced] in an area known to be non-hazardous. AVERTISSEMENT: Afin de prévenir l’inflammation
d’atmosphères dangereuses, ne changer les batteries que dans des emplacements désignés non dangereux.
•Maximum charge input voltage is Um= 12 V
•CAUTION: Risk of Fire and Burns. Do Not Disassemble, heat above 212 F (100 C), or incinerate. Keep battery
out of reach of children and in original package until ready to use. Dispose of used batteries promptly according
to [all state and] local recycling or waste regulations.
•User may replace external components such as the inlet filter, battery, protective screen cover, and/or belt clip.
Service must be done by SKC to maintain performance and IS rating. Warranty is void if pumping compartment
is opened by user.
For more information on SKC pump lithium-ion (Li-Ion) battery packs, visit
skcinc.com/catalog/pdf/instructions/1918.pdf
Turning Pump Power On/Off (Figure 1)
Turn on: Press and hold briefly the power on/off button on the side of the pump. A
startup screen will very briefly display all status indicators, followed by the firmware
version (right) and then the set/calibrate flow screen or sampling screen showing
elapsed time from a previous run. See Using the Operation Screens.
Turn off: Press and hold briefly the power on/off button on the side of the pump.
The screen will turn off. Note: A non-running pump will shut off automatically after
60 seconds of inactivity but will hold the elapsed time from the last operation until
the timer is reset.
Note: The on/off button also locks and unlocks the touch pad and dims the screen during sampling (see
Options/Modes during Sampling)
Firmware version is displayed for 3 seconds.

skcinc.com Form 37165 Rev 200217 Page 4
Determining Battery Charge Status
The battery status icon at the top right of the pump display screen has four bars that decrease in number as battery
charge is depleted. Use the table below to interpret the battery status.
Icon Displayed
Battery Charge Remaining
Four bars
Full battery charge, approximately 75 to 100%
Three bars
Approximately 50 to 75%
Two bars
Approximately 25 to 50%
One bar
Approximately 5 to 25%
No bars
Low battery fault is imminent. Pump will stop and power off eventually. When pump is
powered on again, elapsed run time and fault icon will be displayed on the screen until
pump is reset. See Using the Operation Screens.
Using the Touch Keypad
Lift the protective screen cover. Use your fingertip to touch the three keys on the screen keypad:
Up and down arrows increase or decrease flow rate; during sampling, touching
either arrow key briefly displays the relative flow indicator. See Set/Calibrate Flow
Screen for more details.
PUMP starts and pauses/stops pump; touch and hold to reset elapsed time.
Using the Operation Screens: Set/Calibrate Flow and Sampling
Set/Calibrate Flow Screen
Touch and hold the up and down arrow keys on the touch keypad to increase or decrease flow rate (see below) with
pump connected to a calibrator. Actual flow rate is displayed on calibrator only.
Battery status indicator
See Determining Battery Charge Status.
Relative flow indicator
See Relative Flow below.
Flow rate being increased
Flow rate being decreased

skcinc.com Form 37165 Rev 200217 Page 5

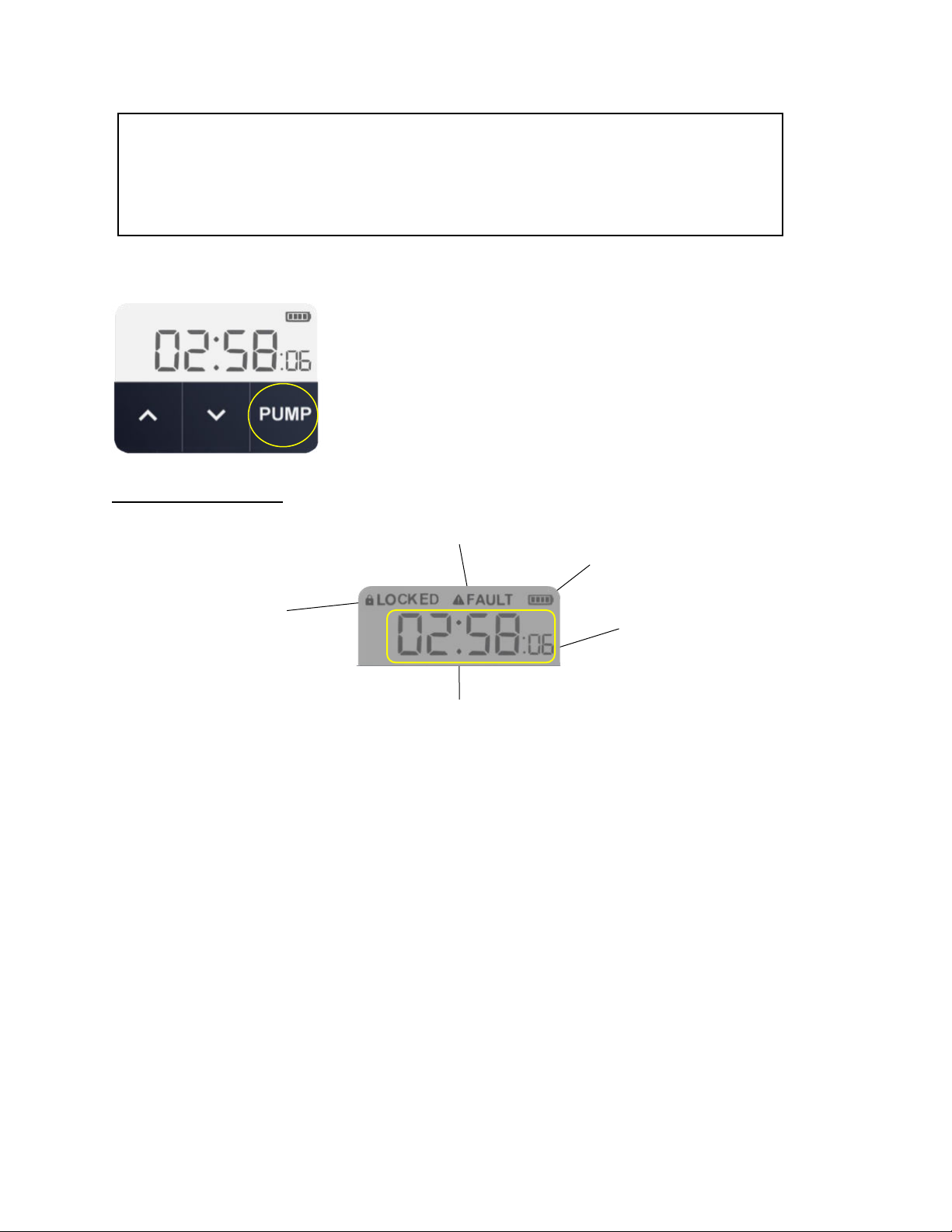

Sampling Screen
Touch the PUMP key to begin sampling.
Touch the PUMP key again to pause or stop sampling.
Sampling Screen Indicators
Note: The relative flow indicator is displayed in place of seconds on sampling screen when up or down arrow key is
touched during sampling. Also displayed on set/calibrate flow screen. See Set/Calibrate Flow Screen for details.
See Options/Modes during Sampling for details about the screen lock feature and flow fault mode.
Reading Pump Status Indicators
The status LEDs that bracket the screen display (see Figure 1) indicate pump status:
Green, flashing = Running
Red, flashing = Flow fault
Note: Status LEDs will flash red/green to indicate that the pump is out of flow tolerance just before entering flow fault
mode and during each auto-restart attempt while in flow fault mode.
Elapsed run time HH:MM:SS
Battery status
See Note
Screen lock
feature activated
Flow Fault or Low Battery Fault
Relative Flow—A number between 1 and 99 that is relative to a flow rate and changes as flow is
adjusted: 1 corresponds to the minimum and 99 to the maximum flow at which the pump can be set.
Relative flow is different for each pump. In most cases, 10 ± 5 will correspond to 1 L/min and 80 ± 5 will
correspond to 5 L/min. Also displayed on the sampling screen when you touch the up or down arrow
key during a run (if Screen Lock is not activated).

skcinc.com Form 37165 Rev 200217 Page 6
OPERATION
Setting/Calibrating Flow Rate from 1 to 5 L/min
•Allow pump to equilibrate after moving it from one temperature extreme to another.
•Charge pump battery completely before calibration and sampling.
•To achieve the best results, run the pump for 10 to 15 minutes before calibration.
1. Turn on the pump using the on/off button. If elapsed time from the last sampling run is still displayed, touch
and hold the PUMP key on the screen touch keypad to return to the set/calibrate flow screen.
2. Prepare the calibrator. See calibrator instructions.
3. Set up a calibration train (Figure 3).
4. Using the up and down arrow keys on the pump set/calibrate flow screen, adjust flow until the calibrator
indicates the method-specified flow rate.
5. Touch the PUMP key to pause/stop the pump. The pump is now set to the selected flow rate.
6. Disconnect the pump from the representative sampling medium and calibrator. Proceed to Sampling.

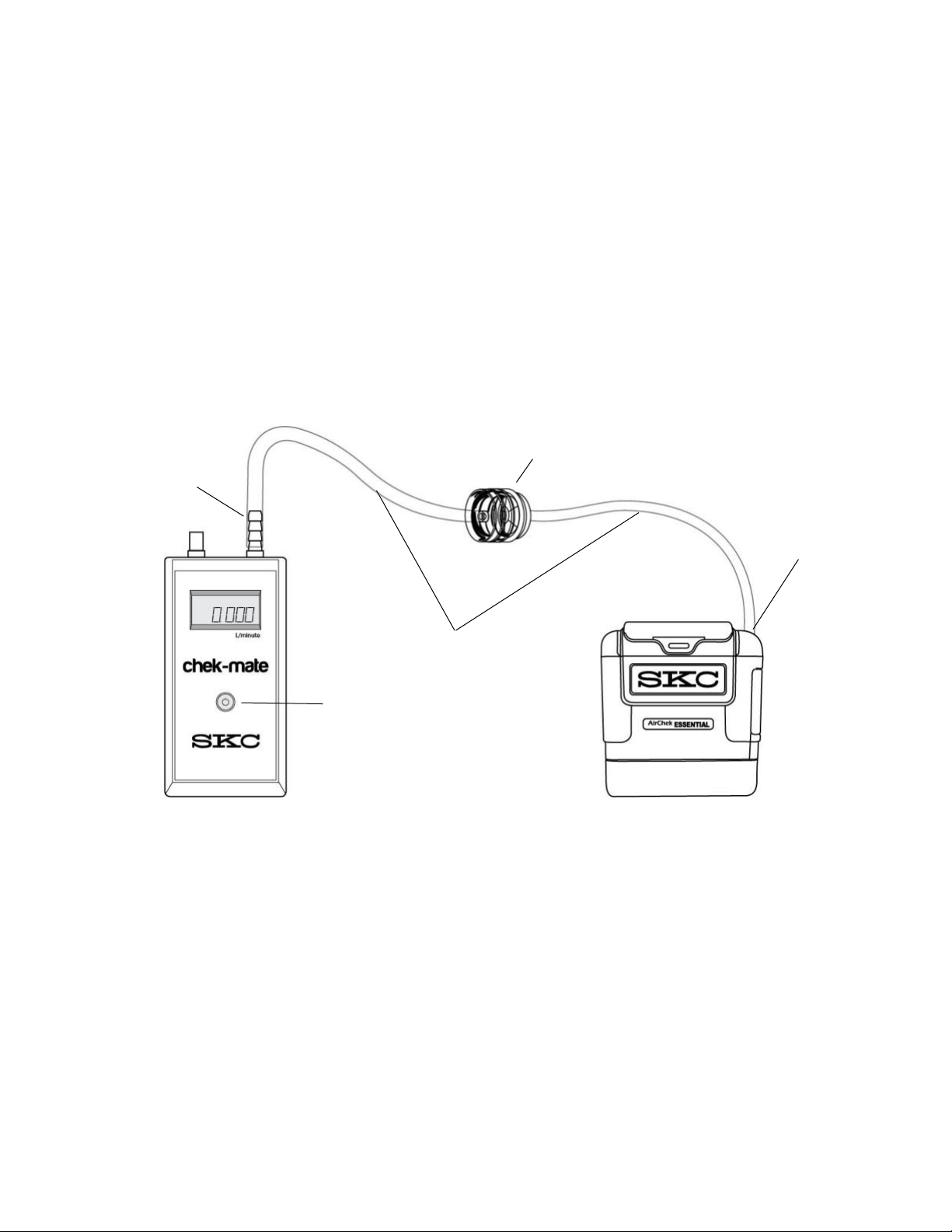

Figure 3. Calibration Train (1 to 5 L/min)
chek-mate calibrator
Pump
Representative sample medium
Tubing
On/off
button
Pump inlet
Suction
port

skcinc.com Form 37165 Rev 200217 Page 7
Setting/Calibrating Flow Rate from 5 to 500 ml/min
•Allow pump to equilibrate after moving it from one temperature extreme to another.
•Charge pump battery completely before calibration and sampling.
•Single-tube sampling requires All-in-One adjustable tube holder; see All-in-One operating instructions for
details on operation.
•Multiple-tube sampling requires Constant Pressure Controller (CPC) and Dual, Tri, or Quad Adjustable Low
Flow Tube Holder accessory; see CPC and Adjustable Low Flow Tube Holder operating instructions for
details on operation.
•Calibrate/verify pump flow rate before and after each sampling operation using the tube holder and pump to
be used for sampling.
•To achieve the best results, run the pump for 10 to 15 minutes before calibration.
Prepare the Sorbent Tube(s)
1. Determine the number and type of sorbent tubes needed for pre-sample calibration and sampling.
2. Break tips off representative sorbent tubes for pre-sample calibration.
3. If performing multiple-tube sampling, label tubes.
Prepare the Pump
1. Turn on the pump using the on/off button. If necessary, reset the timer by touching and holding PUMP on
the screen touch keypad.
2. After preparing the calibrator (see calibrator instructions), use flexible tubing to connect the calibrator outlet
(suction port) to the pump inlet.
3. Set pump flow rate using the up and down arrow keys on the set/calibrate flow screen to increase or
decrease flow:
a. Single-tube sampling—1.5 L/min.
b. Multiple-tube sampling—the sum of all flows + 15%. Note: Do not exceed 500 ml/min flow rate
per tube for multiple-tube sampling.
4. Disconnect the tubing from the pump inlet.

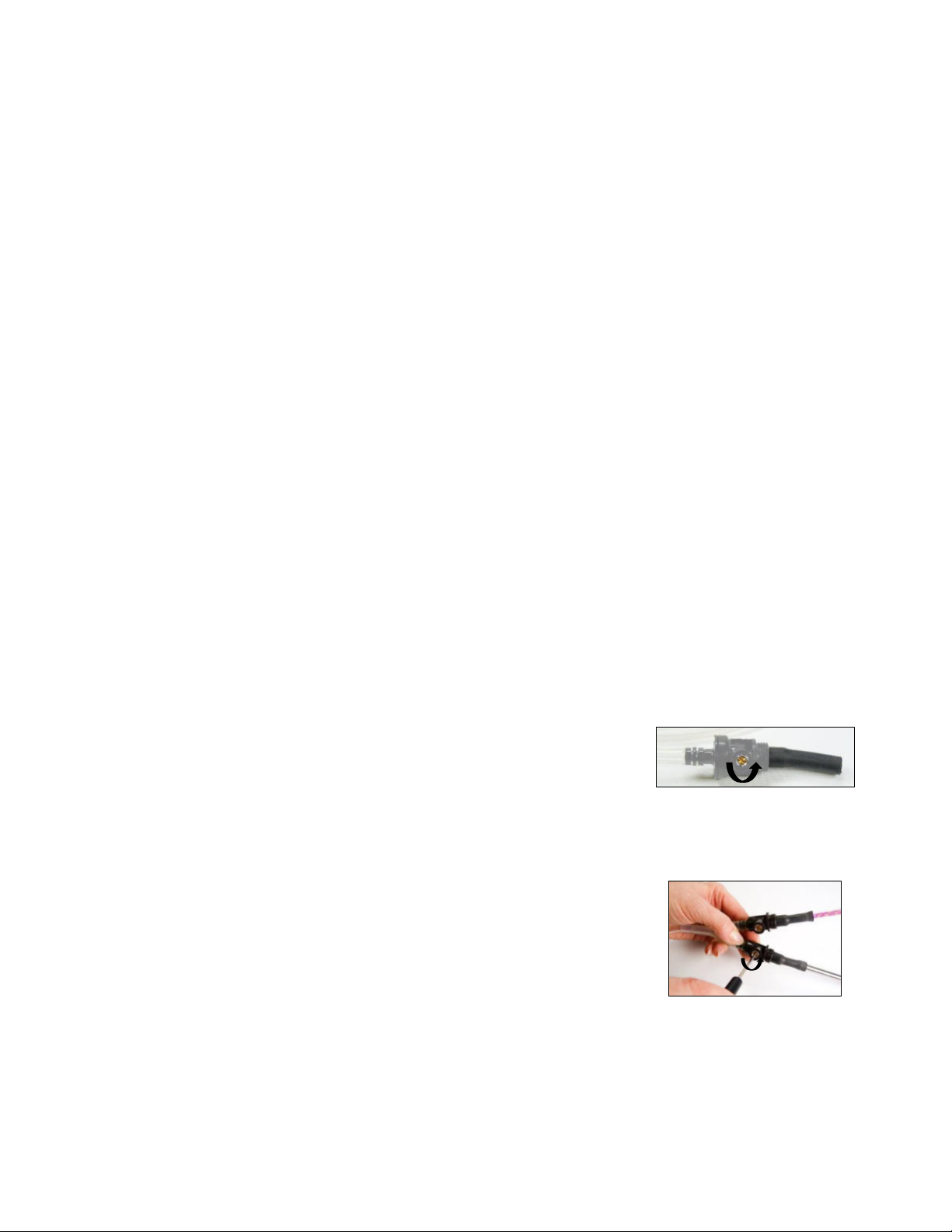

Prepare the All-in-One Adjustable Tube Holder (single-tube sampling)
1. On the tube holder, insert an opened representative tube (arrow on tube
pointing toward the pump) into the rubber sleeve on the port. See Figure 4.
2. Use a small flat-head screwdriver to turn counterclockwise the brass flow
adjust screw directly beneath the port.
Prepare the Dual, Tri, or Quad Adjustable Low Flow Tube Holder (multiple-tube sampling)
1. On the tube holder, insert an opened representative tube (arrow on tube pointing toward the pump) into the
rubber sleeve on the port. Repeat for the desired number of tube samples.
See Figure 5. Place an unopened (inactive) tube in any unused port to “seal”
it.
2. Label ports on the adjustable tube holder to match the tube labels.
3. Use a small flat-head screwdriver to turn counterclockwise the brass flow
adjust screw directly beneath the port holding the first active tube to be
calibrated.
Set Up the Calibration Train (Figures 4 and 5)
Connect the calibrator to the single sorbent tube or the first of multiple sorbent tubes.

skcinc.com Form 37165 Rev 200217 Page 8
Figure 4. Calibration Train (5 to 500 ml/min) for Single Tube
Figure 5. Calibration Train (5 to 500 ml/min) for Multiple Tubes
Flow adjust screw
All-in-One
Sorbent tube
Suction port
Pump inlet
Tubing
Tubing
chek-mate calibrator
Pump
chek-mate calibrator
Pump
Dual adjustable low flow holder
Sorbent tube
Flow adjust screw
Pump inlet
CPC
Tubing
Tubing
Suction port

skcinc.com Form 37165 Rev 200217 Page 9
Calibrate Pump Flow Rate with the All-in-One (single tube)
1. Using a small flat-head screwdriver, turn the flow adjust screw on the port clockwise to decrease flow or
counterclockwise to increase flow until the method-specified flow rate is indicated on the calibrator.
2. Once flow is calibrated for the tube, it is recommended practice to recheck the flow rate before removing the
tube. Any adjustment should be minimal.
3. Disconnect the pump from the representative sampling medium and calibrator. Proceed to Sampling.
Calibrate Pump Flow Rate with the Dual, Tri, or Quad Adjustable Low Flow Tube Holder
•See appropriate adjustable low flow holder instructions.
1. Using a small flat-head screwdriver, turn the flow adjust screw on the first active port clockwise to
decrease flow or counterclockwise to increase flow until the method-specified flow rate is indicated on the
calibrator.
2. Remove calibrator tubing from the current tube and install it on the next active tube. Use a small flat-head
screwdriver to turn counterclockwise the brass flow adjust screw directly beneath the port holding the tube to
be calibrated and repeat Step 1.
3. Repeat Steps 1 and 2 for each remaining active tube.
4. Once flow is calibrated for the tube, it is recommended practice to recheck the flow rate before removing the
tube. Any adjustment should be minimal.
5. Disconnect the pump from the representative sampling medium and calibrator. Proceed to Sampling.
Sampling
•Allow pump to equilibrate after moving it from one temperature extreme to another.
•Charge pump battery completely before calibration and sampling.
•Use of any device (including charging cradle) or battery pack other than P75718 to power the pump voids
intrinsic safety certifications and any warranty.
•Pump can be operated from cradle.
•If using sample tubes as media, calibrate/verify pump flow rate before and after each sampling operation
using the tube holder and pump used for
sampling.
1. After setting/calibrating flow rate, replace
representative media with new, unexposed media
for sample collection.
2. Set up the sampling train. See Figure 6.
3. Touch the PUMP key on the screen touch
keypad to start sampling. Note: To lock screen
during sampling, press pump on/off button (see
Options/Modes during Sampling below).
4. Touch the PUMP key to stop sampling. Record
run time and any other pertinent information. The
elapsed time will flash on the screen.
5. Remove sample medium and cap it. Reinstall
representative sample medium and perform post-
sampling calibration. See Setting/Calibrating
Flow Rate.

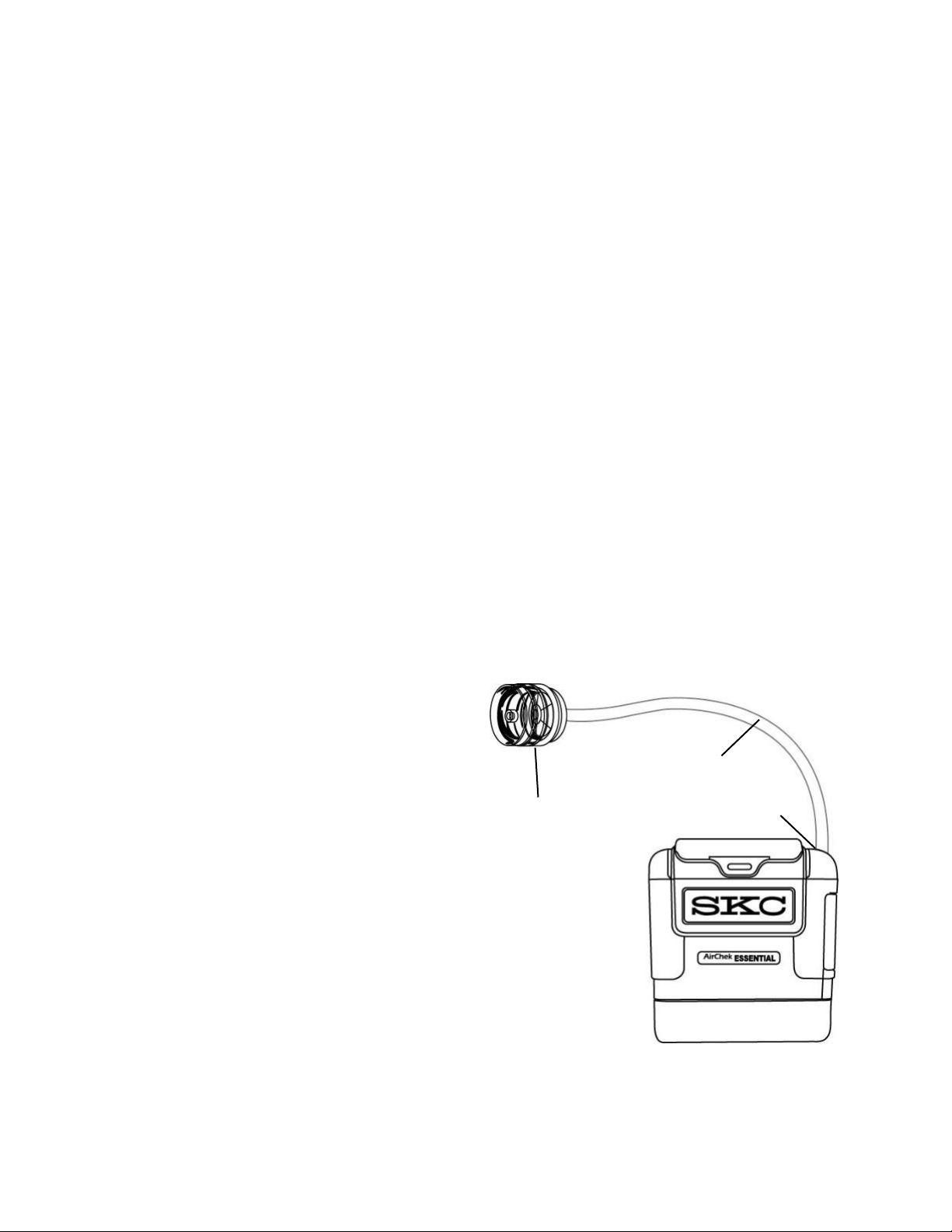

Figure 6. Sampling Train (high flow)
Sample medium
Tubing
Pump inlet

skcinc.com Form 37165 Rev 200217 Page 10
Options/Modes during Sampling
Screen Lock—Prevents the pump from being stopped by an accidental touch during sampling.
To lock the screen, press the pump on/off button while the pump is running. The screen locked indicator will be
displayed on the screen and the screen will dim (right).
To unlock the screen, press the pump on/off button again. The indicator will
disappear, and backlighting will be restored.
Fault Mode—Occurs when the pump cannot compensate due to insufficient
battery charge, overloaded sample media, or kinked tubing.
Low battery:
•Pump stops/powers off without warning (time varies with load)
•Elapsed time from sampling run is retained
•Charge the pump battery (see Figure 2).
•Fault icon displays when the pump is turned on but will disappear during subsequent sampling.
Flow fault—If a fault is sustained longer than 15 seconds:
•Pump status LEDs flash red
•Pump stops running
•Fault icon displays (above right)
•Pump attempts auto-restart every 15 seconds up to 5 times. If flow is corrected during auto-restart, pump
will continue sample accumulation. If flow is not corrected during auto-restart, pump will stop and run time
will reset.
MAINTENANCE
Replacing the Battery Pack
Ensure that pump is turned off before removing the battery pack and that no tubing or media are
attached to the pump.
1. Turn the pump off by pressing the on/off button.
2. Remove the existing battery pack.
a. Use a 2.5-mm hex driver (Allen wrench) to loosen two screws on the bottom of the battery pack
housing.
b. Pull the battery pack housing away from the pump case.
c. If replacing the battery pack with a new Cat. No. P75718, dispose of the used battery promptly.
Do not disassemble the battery pack. Do not dispose of in fire. Dispose of used batteries promptly
according to all state and local recycling of waste regulations.
3. Install a new battery pack or reinstall the existing battery pack.
a. Align the battery pack with the bottom of the pump case. Note: The connector on top of the battery
pack should align with the protruding power control board contacts on the bottom of the pump case.
b. Press the two parts together until snug. Note: When the battery pack is attached, the pump screen
will display a 20-second countdown as the zero setting of the flow sensor is performed.
c. Use a 2.5-mm hex driver (Allen wrench) to tighten two screws on the bottom of the battery pack
housing. Tighten the screws in an alternating fashion.
d. Charge the new battery pack completely before use; if reinstalling the existing battery pack, ensure
that it is charged to at least 25% (battery status icon upon startup shows two bars). See Charging
the Battery Pack.

skcinc.com Form 37165 Rev 200217 Page 11
Replacing the Screen Cover
1. Remove the two screws from the top of the screen cover mounting block.
2. Lift off the screen cover and mounting block.
3. Align and press-fit the mounting block onto the new screen cover posts (i.e., with the underside of the
mounting block facing up and its straight edge facing away from the cover). Rotate the mounting block away
from the screen cover until it is stopped by the inside edge of the screen cover.
4. Align the screen cover/mounting block with the holes in the top of the belt clip/top pump case.
5. Gently insert the two screws through the mounting block into the belt clip. Tighten until snug.
6. Ensure that the screen cover closes properly.
Replacing the Belt Clip
1. Remove the screen cover.
a. Remove the two screws from the top of the screen mounting block.
b. Lift off the screen cover and mounting block. Note: Do not remove the two lower hex nuts from the
main case.
2. Remove the screw from the bottom of the belt clip and pull the screw through the opening in the clip.
3. Lift the belt clip away from the pump. Ensure that the hex nut in the top of the case does not fall out.
4. Push the new belt clip into place until it fits snugly.
5. Gently insert the belt clip screw through the opening in the belt clip and into the pump case. Tighten the
screw until engaged. Do not tighten completely.
6. Replace the screen cover.
a. Place the screen cover and mounting block so that the two holes are aligned with the holes in the
top of the belt clip. Insert the two screws into the mounting block and tighten until snug.
b. Ensure that the screen cover closes properly.
7. Tighten the screw under the belt clip until snug.
Replacing the Inlet Housing and/or Inlet Filter
1. Remove the four screws from the inlet housing.
2. Pull the inlet housing away from the pump.
3. Remove the O-ring and filter.
4. Insert the new or existing filter and O-ring into the inlet recess. Ensure that the O-ring is fully flat.
5. Align the new or existing inlet housing with the inlet recess.
6. Insert the four screws into the inlet housing. Tighten the screws only until the gap between the inlet housing
and pump is closed.
TROUBLESHOOTING
If the pump is not responding to touch or the pump screen displays uncommon characters, remove and reinstall the
battery (see Replacing the Battery Pack). If these problems persist, contact SKC.
Pump Service
Pumps under warranty should be sent to SKC Inc. for servicing. See Limited Warranty and Return Policy.
User may replace external components such as the inlet filter, battery, screen protector, and/or belt
clip. Service must be performed by SKC to maintain performance and intrinsic safety rating.
Warranty is void if pumping compartment is opened by user.

skcinc.com Form 37165 Rev 200217 Page 12
ACCESSORIES/REPLACEMENT PARTS
Accessories Cat. No.
Standard Charging Cradle, requires power supply see below 220-800
Single Cradle Power Supply, for use with one charging cradle, 100-240 V 220-600
Multi Cradle Power Supply, for use with 2 to 4 charging cradles, 100-240 V 220-700
Low Flow (5 to 500 ml/min) Kit includes All-in-One adjustable tube holder
and Type A protective tube cover 210-500
Protective Pouch, nylon, with adjustable waist belt and shoulder strap, black 224-911
chek-mate Calibrator with CalChek, 0.50 to 5 L/min, includes 9-volt battery,
CalChek automatic calibration, and NIST-traceable calibration certificate 375-0550N
Replacement Parts Cat. No.
Replacement Battery Pack, Li-Ion* P75718
Belt Clip P51824
Inlet P20423
Inlet Filter/O-rings, pk/3 P4001
Screen Cover P20422
Use only SKC-approved parts to ensure reliable performance and to maintain the UL Listing for intrinsic
safety. Failure to do so voids any warranty.
Use of a repaired or rebuilt battery pack VOIDS ANY WARRANTY.
SKC Limited Warranty and Return Policy
SKC products are subject to the SKC Limited Warranty and Return Policy, which provides SKC’s sole liability and the
buyer’s exclusive remedy. To view the complete SKC Limited Warranty and Return Policy, go to
http://www.skcinc.com/warranty.
*Li-Ion Battery Testing and Shipment
Rechargeable lithium-ion (Li-Ion) batteries for use with SKC sample pumps have been tested in accordance with the UN Manual and are proven to
meet requirements of each test in the UN Manual of Tests and Criteria, Part III, subsection 38.3. The batteries are rated below 100 watt-hours (Wh).
AirChek ESSENTIAL pumps contain Li-Ion batteries and are subject to special shipping regulations. Consult with your carrier for more information on
Lithium Battery Shipping Regulations UN 3480 and UN 3481 or visit SKC’s website for more information at
skcinc.com/catalog/pdf/instructions/1921.pdf

skcinc.com Form 37165 Rev 200217 Page 13
APPENDIX
Appendix: Performance Profile
Flow range
Constant flow from 1000 to 5000 ml/min
(5 to 500 ml/min requires low flow holder)
Compensation range
(back pressure
capability)
5000 ml/min at 20 inches water back pressure
4000 ml/min at 30 inches water back pressure
3000 ml/min at 40 inches water back pressure
2000 ml/min at 50 inches water back pressure
1000 ml/min at 60 inches water back pressure
Flow control system
Isothermal, corrects for changes in back pressure, temperature, and atmospheric pressure
Flow fault/Auto-restart
After 3 to 10 seconds of restricted flow, pump stops running, elapsed time stops, status LEDs
flash red, and pump displays fault icon. After 20 seconds in fault, auto-restart is attempted up
to 5 times unless full airflow is restored prior to that. If full airflow is not corrected during 5
restart attempts within 5 minutes, the pump ends the run.
Power
Removable rechargeable lithium-ion (Li-Ion), 7.4 V, 2.6 Ah, 19.2 Wh or AC using cradle
Run time
40+ hours at 2000 ml/min*
15+ hours at 5000 ml/min*
Indefinite run from charging cradle
Charging method
Cradle, available as a single unit using Single Cradle Power Supply Cat. No. 220-600;
chainable up to 5 units using a Multi Cradle Power Supply Cat. No 220-700
Charging time
(varies with battery
capacity and level of
discharge)
Approximately 3 hours
Accuracy
Flow control: ± 5% of set-point after calibration to desired flow
Atmospheric pressure: ± 0.3 in Hg
Temperature: ± 1.0 C
Temperature ranges
Operating: 32 to 104 F (0 to 40 C)
Charging: 32 to 113 F (0 to 45 C)
Storage: -4 to 113 F (-20 to 45 C)
Humidity ranges
Operating: ≤ 95% RH, non-condensing
Storage: ≤ 95% RH, non-condensing
Altitude
Corrects flow for changes in temperature (32 to 104 F [0 to 40 C]) and ambient pressure up to
15,000 feet (4572 meters) above and down to 4500 feet (1372 meters) below sea level
Display/parameters
B&W display, elapsed sampling time
User interface
Capacitive touch screen with locking option
Status LEDs
Dual LED, blinking green = running pump, blinking red = flow fault
Sound level
Average 51.7 dB at 3-ft (1-m) distance using a 37-mm, 0.8-µm MCE filter cassette
Tubing
Requires ¼-inch ID tubing
Dimensions
4.1 x 3.7 x 2.8 in (10.4 x 9.4 x 7.1 cm)
Weight
19.4 oz
Certifications
•Intrinsic safety (SKC Cat. No. 220-3000 operated with SKC Battery Pack P75718)
Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III, T4; Class I, Zone 0,
AExia IIC T4 Ga; Exia IIC T4 Ga; -20°C ≤ Ta ≤ 45°C; Ex II 1G Exia IIC T4 Ga; IECEx UL
19.0100
•DEMKO 19ATEX 2288
•CE 0539
•RoHS compliant
•Designed to meet ISO 13137:2013
Case material
Polycarbonate with rubberized anti-static overmolding
Features
On-screen battery status display, ergonomic case design, secure clip, cradle for charging,
ultra-quiet operation
Media
Use to sample with sorbent tubes, filters, size-selective particulate samplers, and impingers
Warranty
1-year limited warranty
*Tested using 37-mm 0.8-µm MCE filter with new pump and battery. Pump performance may vary.
E62011
