BOMBARDIER ski-doo OLYMPIQUE 300 1974 User manual

1959
THE YEAR
OF OUR MILLIONTH
MACHINE
Wewish J. Armand Bombardier could be around to see that
millionth machine come off the production line this year. What
would the inventor of the snowmobile think about todav's jet-
age styling? Or the incredible technical advances under the
sleek cowling? We think he'd be amazed - and proud.
In this year of the
millionth machine, J. Armand Bombardier
would have a lot to be proud about. First of all, a million is an
impressive number of machines. But there's something more
important than quantity. The Ski-Doo" line-up of today reflects
all the experience and know-how gained from the making of a
million machines.
At Bombardier, we've had time to learn all the tricks of
power and flotation. We've found out the pitfalls of operating
an engine in freezing conditions over every conceivable winter
terrain. And our experience shows. It shows in Ski-Doo" styling,
performance and dependability.
Another thing our founder wouldn't recognize is the factory.
From its start in a small garage, it's grown into the most advanced
snowmobile
factory in the world. Bombardier employs designers,
engineers, specialists and craftsmen by the thousand. They put
every Ski-Doo* through its paces, both in the versatile test labora-
tory, and on our outdoor speed track.
We've discovered
that the best testing ground of all is the race
track. We're in racing
not only to win, but to learn. This year,
we've been able to make some pretty impressive technical improve-
ments to all our machines -- improvements made on the track to
help
you on the trail.
It adds up to a machine you can depend on, all the time. Your
Ski-Doo" will give you excellent performance in all weathers, on
all terrains. Look after it well, and it will serveyou well. Your
Ski-Doo dealer is always ready with information, parts and acces-
sories. He is backed up by an international Ski-Doo distributor
and Dealer network whose factory trained personnel are equipped
to give you
prompt and efficient service wherever you are in
snow
country.
Ride safe ... and have fun!
Laurent Beaudoin
President
Bombardier
Limited
•Registered Trademark of Bombardier Limited

This manual has been published by the
Technical Information Centre
Service Department
BOMBARDIER LIMITED
Valcourt, Quebec, Canada.
Bombardier
Elite
Everest
'The following are trademarks of Bombardier
Limited.
Ski-Doo T'NT
Ski·Boose Elan
Nordic Blizzard
Alpine Carry-Boose
PATENTS and DESIGNS
This vehicle is covered by one or more of the
follo\"ving patents and design registrations.
Canadian Patents: 605, 317 . 710, 592 - 724,
395 - 853, 505 - 895, 749 - 897, 747 - 914,
457 - 916,204
United States Patents: 2,899,242-3,066,546-
3,536.153 . 3,637,254 . 3,666,323
3,673,884 - 3,693,884 - 3,693,992 -
3,704,918-
Canadian Designs: D1/217 F/28172 -01/249
F/31317 and 316 ·032,479 . 032,535 .
D32,655 to 657 . 032,661 to '669 - 33,982
·33,933 - 34,006 and '007.
United States Design Patents:
Des. 221,332 to '334'
Des 221,637 and '638-
Des. 222,244 to '247
Others: Swedish Design No. 6038-
Swiss Design No, 104;756-
Norwegian Design No. 51,444.
Other patent and design applications pending.

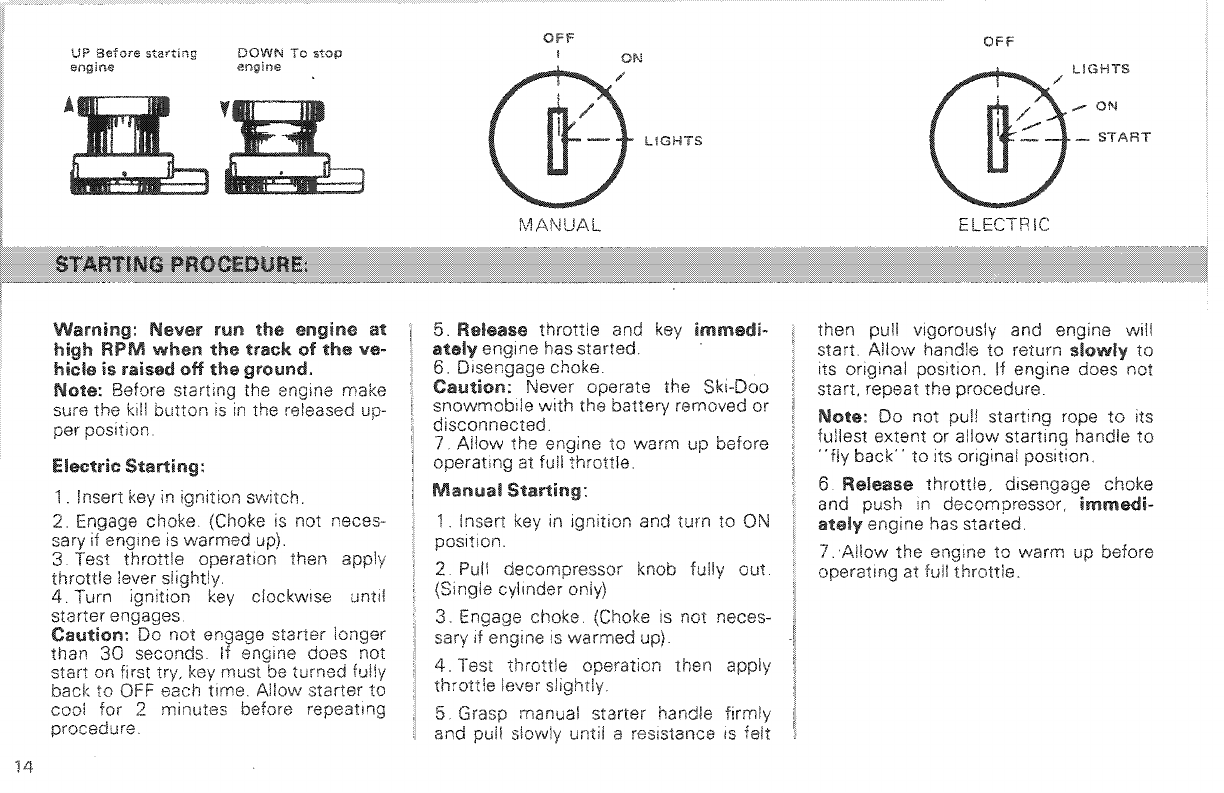

WHAT YOU SHOULD KNOW
BEFORE fiRST RIDE 2
SERVICE AREAS 3
DO'S 4
DONT'S 5

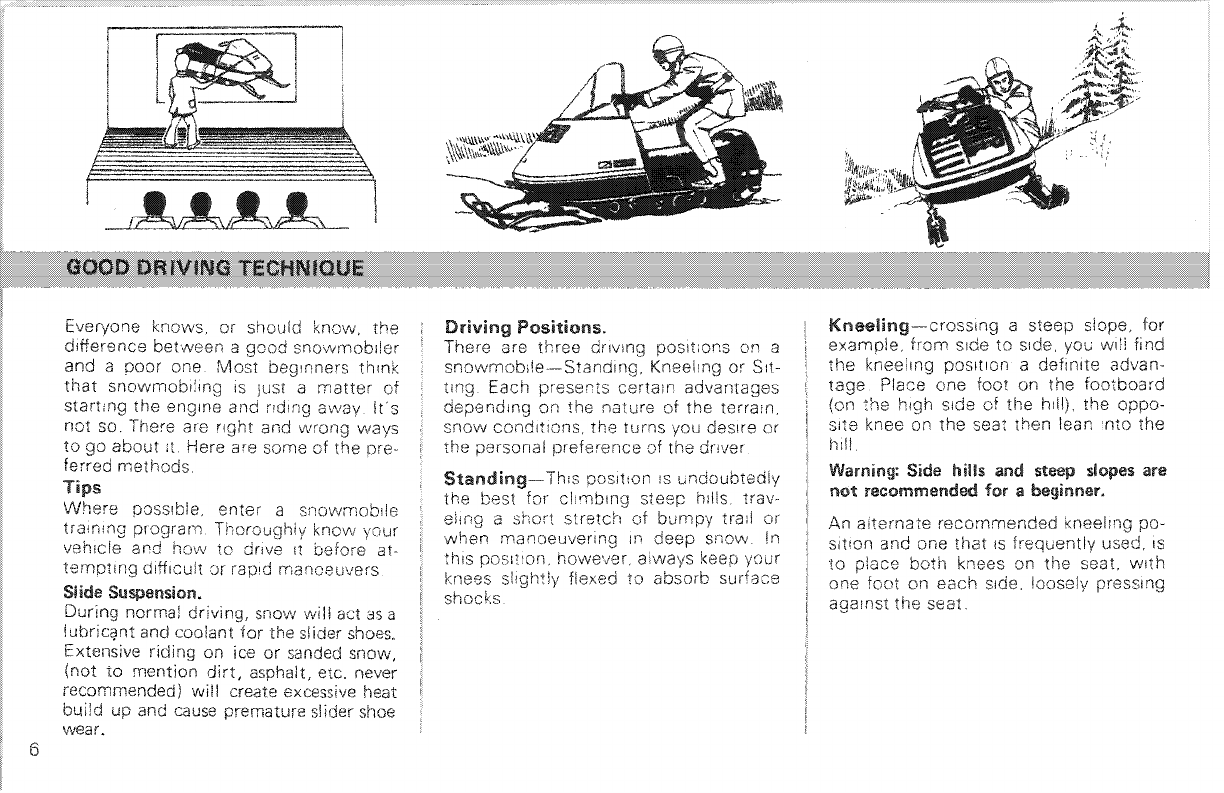

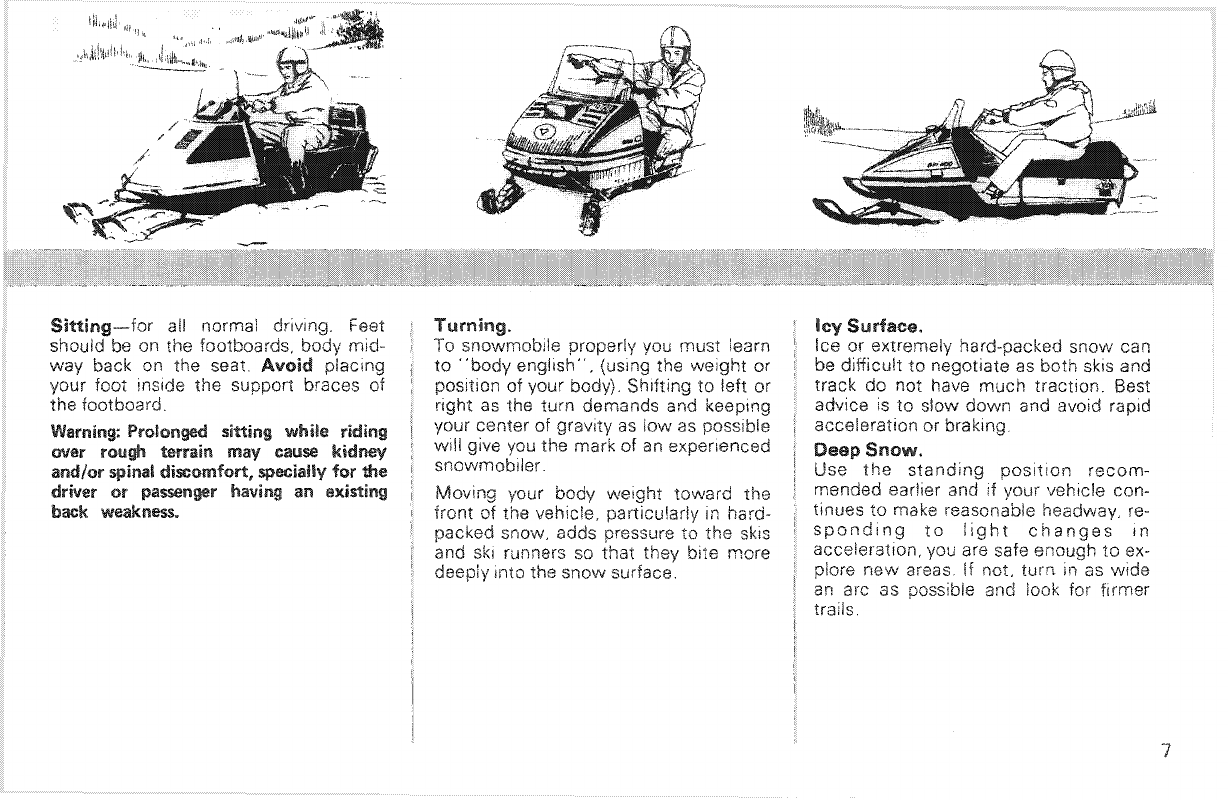

GOOD DRIVING TECHNIQUE 6,7
CONTROlS/INSTRUMENTS 8,9
FUEl MIXING 10,11
BREAK-IN PERIOD,
PRE-START CHECK
12,13

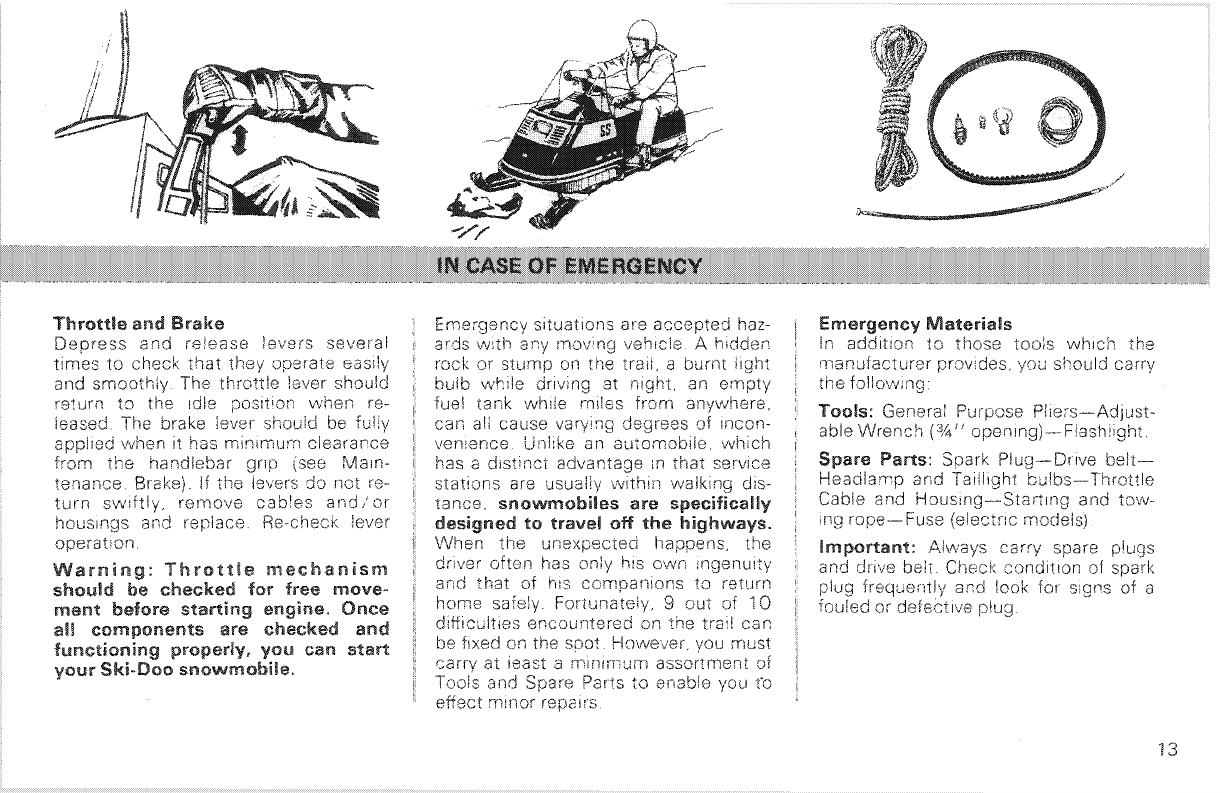

IN CASE OF EMERGENCY 13
STARTING PROCEDURE 14
lUBRICATlON 15, 16, 11
--~-,--,,_.--------- .._--,_._.. _,_._-~-_ .. __ .-

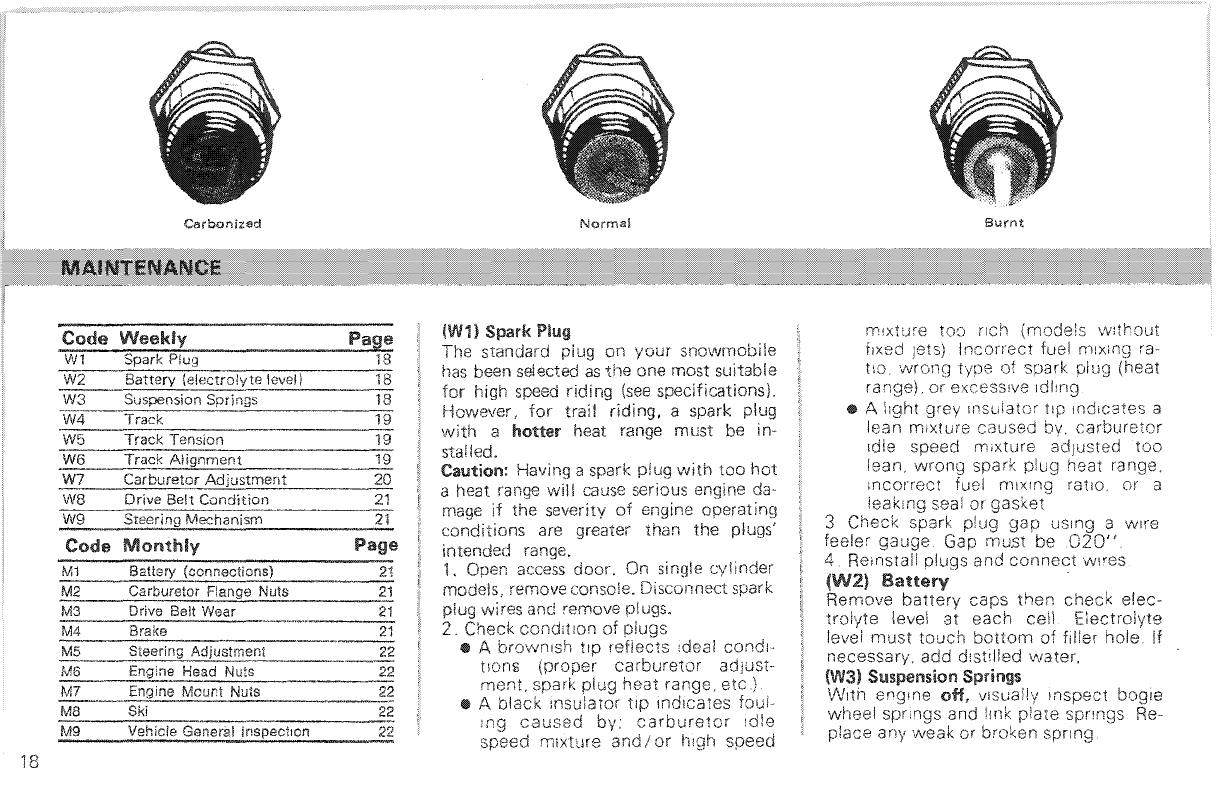

MAINTENANCE .... 18, 19,20,21,22
_____ _n_,, .. "-._ .. _._. __ .~_~ __ ~ _
EMERGENCY GUIDE.. 23
--_ .._ ....... _._-- ....
TROUBLE SHOOTING 24, 25
... _-~._ .._-----,,-."--,.. ,._. __ ._-_._-
Off SEASON STORAGE ... 26, 27,28
-- •. _----_._--~._-,."._-. __ ._-_ .. _._._ .. _,---_._--~._--_ ..'-
PRE SEASON PREPARATION .......29
SPIECIFICATIOflJS
30, 31
WARRANTY 32
1973

2

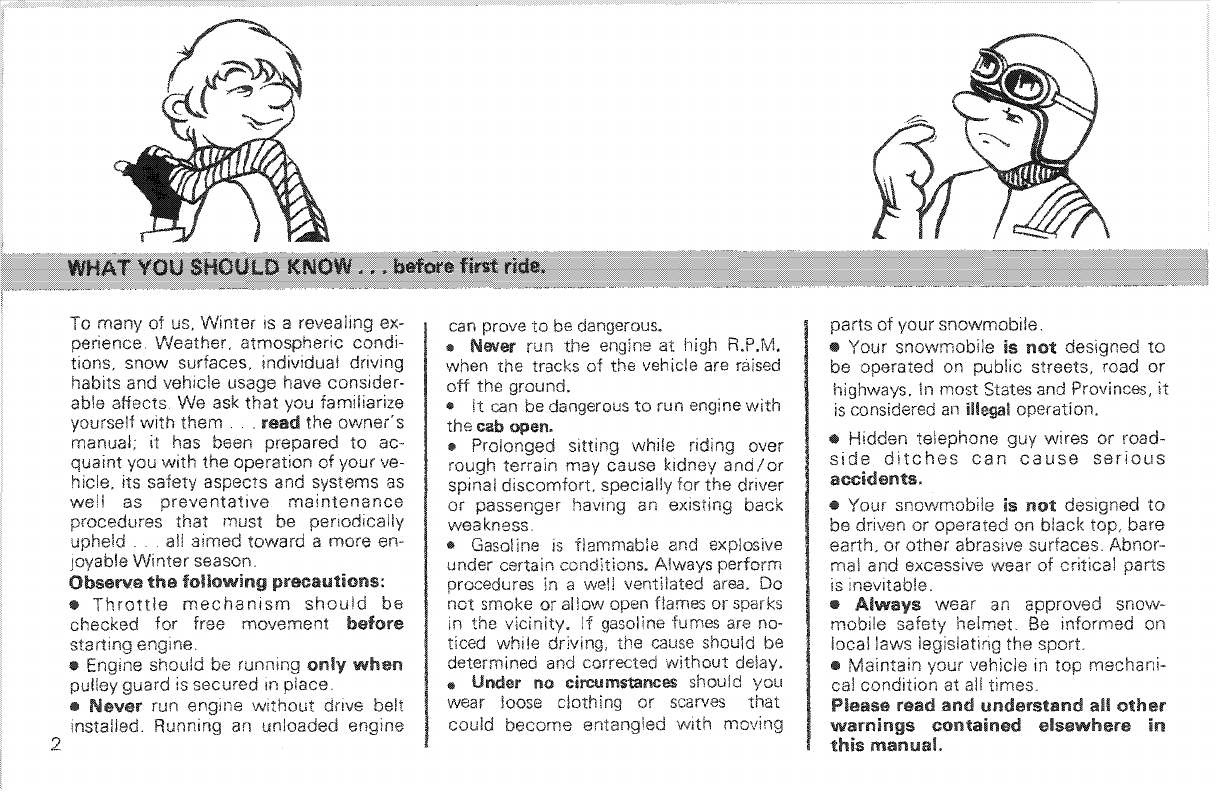

To many of us. Winter IS a revealing ex-
perience Weather. atmospheric condi-
tions. snow surfaces. individual driving
habits and vehicle usage have consider-
able affects. We ask
that you familiarize
yourself
with them ... read the owner's
manual; it has been prepared to ac-
quaint you with the operation of your ve-
hicle. its safety aspects and systems as
well as preventative maintenance
procedures that must be periodically
upheld. ali aimed toward a more en-
jovable Winter season
Observe the precautions:
• Throttle mechanism should be
checked for free movement
before
starting engine.
• Engine should be running only when
pulley guard is secured In place.
• Never run engine without drive belt
installed. Running an unloaded engine
can prove to be dangerous.
eNever run the engine at high R.P.M.
when the tracks of the vehicle are raised
off the ground.
• It can be dangerous to run engine with
the cab open.
•Prolonged sitting while riding over
rough terrain may cause kidney
and/or
spinal discomfort. specially for the driver
or passenger having an existinq back
weakness
• Gasoline is flammable and explosive
under certain conditions. Always perform
procedures in a well ventilated
area. Do
not smoke or allow open flames or sparks
in the vicinity. If gasoline fumes are no-
ticed while driving, the
cause should be
determined and corrected
without delay.
eUnder no circumstances should you
wear loose or
scarves that
could become entangled With moving
parts of your snowmobile.
• Your snowmobile is not designed to
be operated on public streets. road or
highways. In most Statesand Provinces.
it
is considered an illegal operation.
•Hidden telephone guy wires or road-
side ditches can cause serious
accidents.
e Your snowmobile is not desiqnsd to
be driven or operated on black top. bare
earth, or other abrasive surfaces Abner-
mal and excessive wear of critical parts
is inevitable.
• Always wear an approved snow-
mobile safety helmet. Be informed on
local laws legislating the sport.
.. Maintain your vehicle in top mechani-
cal condition at all times.
Please read and understand all other
warnings contained elsewhere in
this mamJsl,

CANADIAN DISTR.IBUTORS
BOMBARDiER QUE LTD. Quebec
1350 Nobel St.Bcucherv.ile Que.
AMERiCAN DiSTRIBUTORS
Lower Mlohigan
Indiana
Onio
Tennessee
Maine
New Hampshire
Vermont
North Dakota
South Dakota
Minnesota
Wisconsin
Iowa
lllinois
Missouri
Upper Michigan
T'MBERLAND MACHINES INC.
10 Main S:. Nonh, Lancaster,
New Hampshire 03534
HEATH INTERNATIONAL INC.
33737 - 32 Mile Road.
Richmond, Mich, 48062
HALVORSON INCORPORATED
325 South Lake Avenue
Duluth 2, Minn. 55802
New York
New
Maryland
Delaware
District of Columbia
\/irgini8
California New Mexico
Nevada Arizona
Montana Kansas
idaho Nebraska
Wyoming Washingion
Utah Oregon
Colorado
Coverage Area
Massacnusetts
Connecticut
Rhode Island
EQUIPMENT CO Alaska
Anchorage,
BOMBARDIER WEST INC.
609 West Broadway,
Idaho Falis. Idaho
83401
ELliOTT & HUTCHiNS INC
East Main Street Road,
Malone. New York 12953
CRAIG
PO Box
Alaska
Name of Distributors
BOMBARDIER EAST INC.
Railroad
SL
Massachusetts 238
Coverage Area
British Columbia
Prince Edward Island
Magdalen Island
Nova Scotia
New Brunswick
Ontario
Yukon
Alberta
Manitoba
Saskatchewan
North-'West
Territories
Newfoundland
Name of Distributors
ALPINE DiSTRIBUTORS
3206 - 28th Ave..Vernon. B.C
ATLANTIC SKI-DOD LTD
PO Box 670, Shedrac. N.B
BROOKS
EQUIPMENT LTD
Sox 985, Winnipeg 21, Man
HUDSON'S BAY CO
J2 1 Richmond 'N.,
Toronto.Dnt.
WRAND,Il,lL LTD
P.O. 80x 757, Corner Brook,
Newfoundland
TRACT EQUlPf\,'1ENT LTD
14325 - 114th Ave,
Edmonton, Alta
BOMBARDIER ONTARIO LTD.
28 Currie St. Barrie, Onto
3

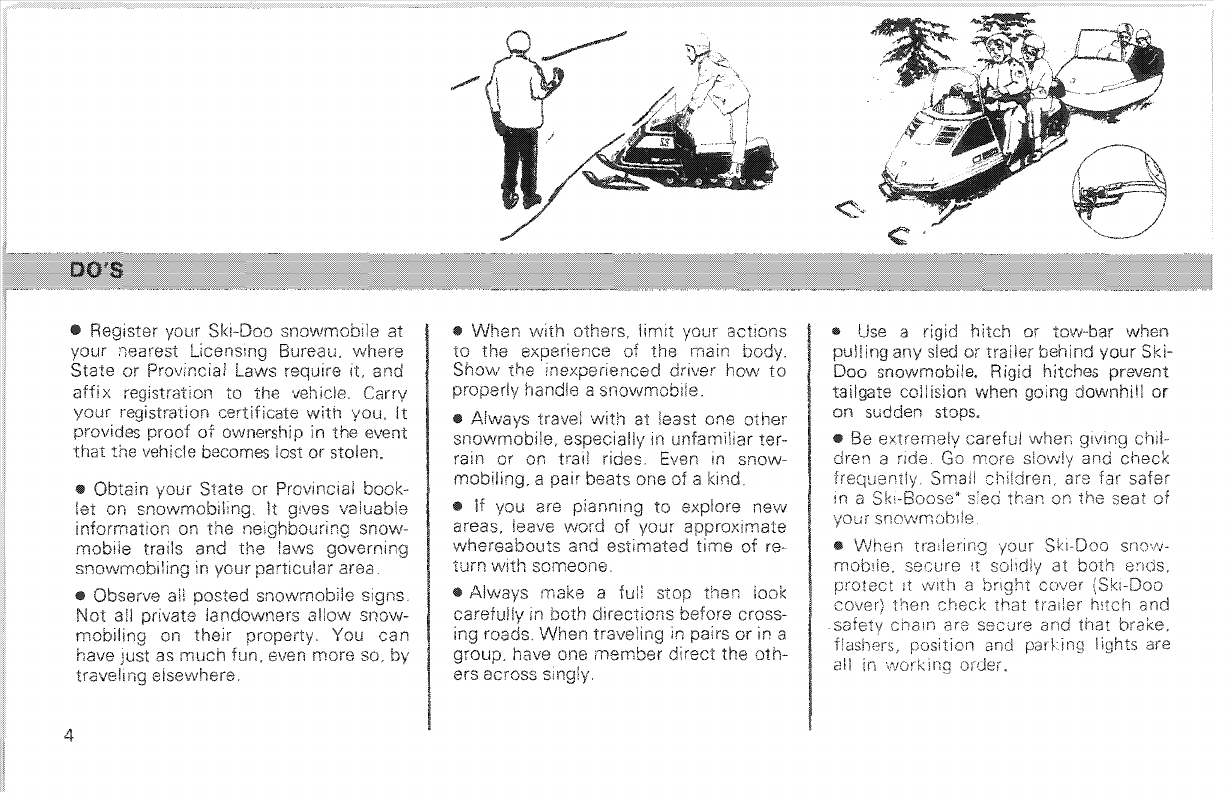

• Use a hitch or tow-bar when
pulling any sled or trailer behind your Ski-
Doo snowmobile. Rigid hitches prevent
tailgate collision when going downhill or
on sudden stops.
• 8e careful when chil-
dren a ride more and check
Smail children, are far safer
In asied then on the seat of
your snowmobile
!II When your Ski-Doo SflO',!J-
mobile, secure it at both ends,
protect It WIHl a cover \0"'-'-'VV
then check trader
chain are secure and that
nno.t.0n and parking I
all in vvorking order.
• When with others. limit your actions
to the experience of the main body.
Show the inexperienced driver how to
properly handle a
snowmobile.
• Always travel with at least one other
snowmobile, especially in unfamiliar ter-
rain or on trail rides Even In snow-
mobiling. apair beats one of a kind .
• If you are planning to explore new
areas, leave word of your approxunate
whereabouts and estimated time of re-
turn With someone.
G Always make afull stop then look
carefully in both directions before cross-
ing roads. When traveling in or in a
group, have one member direct the oth-
ers across sing!y.
• Obtain vour State or Provincial book-
let on snowmobiling It gives valuable
information on the neighbouring snow-
mobile trails and the laws governing
snowmobiling in your particular area
«> Observe ali posted snowmobile signs.
Not all private landowners allow snow-
mobiling on their property. You can
have just as much fun, even more so, by
traveling elsewhere.
•Register your Ski-Doo snowmobile at
your nearest licensing Bureau, where
State or Provincial Laws require it, and
affix registration to the vehicle, Carry
your registration certificate with you, It
provides
proof of ownership in the event
that the vehicle becomes lost or stolen.
4

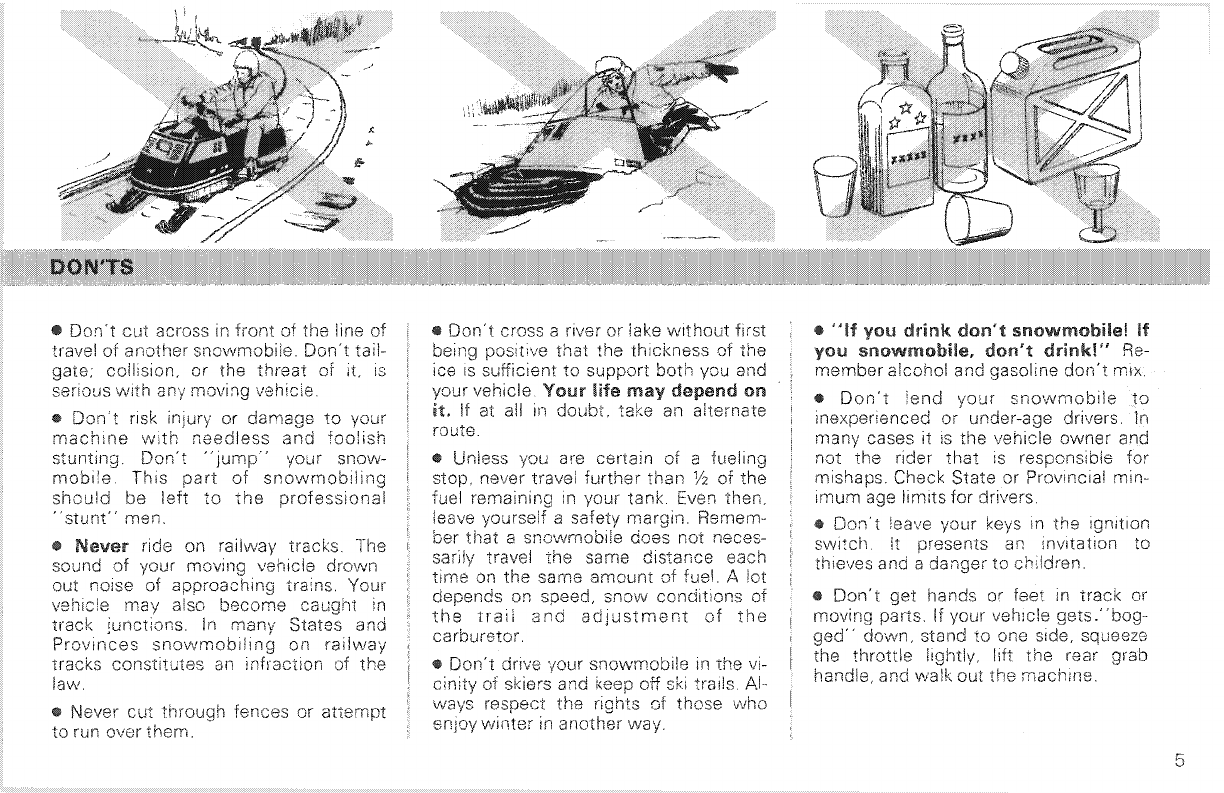

$ Don't cut across in front of the line of
travel of another snowmobile. Don't tail-
gate; collision, or the
threat of it, IS
serious with any moving vehicle
o Don't risk or damage to your
machine with needless and foolish
stunting, Don't "Jump" your snow-
mobile This part of snowmobiling
should be left to the professional
"stunt" men,
@ Never ride on railway tracks, The
sound of your moving vehicle
drown
out noise of approaching trains. Your
vehicle
may also become in
track junctions In many States and
Provinces snowrnobili railway
tracks constitutes an of the
law.
oNever cut th!'()llnh fences or attempt
to run over them.
@ Don't cross a river or lake Without first
being that the thickness of the
ice IS sufficient to support both you and
your vehicle
Your life may depend on
it, If at all in doubt, take an alternate
route.
@Unless you are certain of afueling
stop, never travel further than 1/2 of the
fuel remaining in your tank Even then,
leave yourself asafety margin Remem-
ber
that a snowmobile does not neces-
travel the same distance each
time on the same amount of fuel. Alot
depends on speed,
snow conditions of
the trail and adjustment of the
carburetor.
o Don't drive '{our snowmobile in the vi-
of skiers and off ski trails AI-
respect the rights of those who
winter in another way,
@ "If yOll drink don't snowmobile! If
you snowmobile, don't drink!" Re-
member alcohol and gasoline don't mix.
@ Don't lend your snovvmobileto
inexpenenced or under-age drivers. In
many cases it IS the vehicle owner and
not the rider that is responsible for
mishaps. Check
State or Provincial min-
.mum age limits for drivers.
@ Don't leave your keys In the ignition
switch It oresents an mvnanon to
thieves and a
danger to children
@ Don't get hands or feet in track or
moving parts. If your vehicle gets." bog-
ged" down. stand to one Side, squeeze
the
throttle lift the rear grab
handle, and out the machine
5

Kneeling-crossing a steep slope. for
example, from sloe to Side, you
WI!! find
the kneeling POSition a definite advan-
tage Place one foot on the footboard
the Side of the hill), the oppo-
site knee on the seat then lean .nto the
hill
Warning: Side hills and steep slopes are
not recommended for a beginner.
,Li,n alternate recommended kneeling po-
srtion and one that IS frequently used, IS
to place both knees on the seat, With
one foot on each Side, loosely oressmq
against the seat.
Stlllnding- Th.s POSition is undoubtedly
the best for steep hil!s. trav-
ashort of trail or
when rna
In In
thrs oosmon. however, alwavs keep
flexed to absorb
Driving Positions.
There are three POSitions on a
snowmobile-Standing, Kneeling or Sit-
ting Each presents certain advantages
depending on the nature of the terrain.
snow conditions, the turns you desire or
the personal preference of the driver
Everyone knows, or should know, the
difference between asnowmobiler
and a poor one
Most beginners think
that snowmobiling is just a matter of
start.nq the engine and
not so. There are right and
to go about it Here are some of pre-
ferred methods
Tips
Where possible. enter asnowmobile
program know your
vehicle and how to dnve It before at-
tempting difficult or rapid manoeuvers
Slide Suspension.
During normal driving, snow will act asa
lubricant and coolant
for the slider shoes.
Extensive riding on ice or sanded snow,
(not to mention dirt, asphalt, etc, never
recommended) will create excessive heat
build up and
cause premature slider shoe
vvear ~
6

Sitting-for all normal driving. Feet
should be on the footboards, body mid-
way back on the seat.
Avoid placing
your foot inside the support braces of
the footboard.
Warning: Prolonged sitting while riding
over rough terrain may cause kidney
andlor spinal discomfort, specially for
tbe
driver or passenger having an existing
back weakness.
Turning.
To snowmobile properly you must learn
to
"body english", (using the weight or
position of your body) Shifting to left or
right as the turn demands and keeping
your center of gravity as low as possible
will give you the mark of an experienced
snowmobiler.
Moving your body
weight toward the
front of the vehicle, particularly in hard-
packed snow, adds pressure to the skis
and ski runners so that they bite more
deeply Into the
snow surface.
icy Surface.
Ice or extremely hard-packed snow can
be difficult to negotiate as
both skis and
track do not have
much traction. Best
advice is to slow
down and avoid rapid
acceleration or braking.
Deep Snow.
Use the standing position recom-
mended earlier and if your vehicle con-
tinues to make reasonable headway, re-
sponding to light changes In
acceleration, you are safe enough to ex-
plore
new areas. If not, turn in as wide
an arc as possible and look for firmer
trails.
7

8
Steering
Rotation of the handlebar causes a
push-pull
action on the steering linkage
and forces the skis to turn In the re-
quired direction. Incorporated in the
crash padded handlebar are the
dimmer
switch, kill button, brake and throttle
levers
Throttle level' (A)
Located on right side of handlebar
When depressed, the lever controls the
engine speed and the engagement of
the transmission. When lever is re-
leased the engine speed returns auto-
matically to Idle.
Brake iever (B)
Located on left Side of handlebar When
lever IS depressed, the brake IS "fJfJ"\::;U
When released. It automatically returns
to its original position. Braking effect is
proportionate to the applied pressure on
the
lever
Igniticlnl lights Switch
Key operated. 3 po srtro n switch
(OFF/ON/LIGHTS). To start engine.
first turn key clockwise to ON position
To stop engine.
turn counter-clock-
wise to OFF
pOSItIOn key fully
clockwise, With engine illumi-
nates both head lamp and taillight.
switch
ON
started To
illuminate
and taillight turn
Headlamp Dimmer Switch (D)
The dimmer switch, located on left side
of handlebar, allows correct selection of
head tamp beam. To obtain Hi or Low
beam simply depress switch.
Note: The angle of your headlamp
beam has been pre-adjusted prior to de-
Should you VI/ish readjustment.
remove headlamp
chrome and turn
upper or lower adjusting screws to oh-
tam desired beam position.
Kill Button
A push button switch located on right
side of handlebar. For emergency stops,
press button down into iower position.
Before engine always de-
press button into released upper
position.

The driver of this vehicle should familiar-
rze himself
with the function of this de-
vice using It several times on first
thereby being mentally prepared
for emergency situations requirinq ItS
use
After such a situation, the source of
malfunction should be determined and
corrected before engine
Decompressor (F)
cylinder engine
pos.non. (OFF /
knob,
located on left of rl",,,hl,::lI,AI
engage,
out
Caution:
eaSier cta r rrr-r't
starting, but
"t,'hJ,:>n,,-,m,c> has started
Manual Starter (G)
Auto-rewind type located at lower rrght
side of console To start engine, pull
handle
Starting Procedure)
Choke (H)
Two position, (OFF ION) dial lo-
cated on left side of console To engage
choke,
turn dial clockwise to ON oosi-
tion To disengage, turn counter-clock-
Wise to OFF position The choke should
be used for easier cold engine
starts. After is warmed UP how-
ever, -rt IS not necessary to use choke
when ct",rt'nr.
lighter ill
Standard equipment on electric models.
Located on right side of dashpanei.
Push in to activate,
pops up auto-
matically when lit.
Access Door (J)
(Except 300 model)
To gain access to the carburetor or
spark plugs, lift
emblemed pressure lock
tab and pull open access door. To ad-
Just locking device turn nut in required
direction This adjustment is also appli-
cable to the rear compartment door.
Caution: Never operate your snowmo-
bile with console removed or access
door open otherwise serious engine dama-
ge may occur.
Console Removal (K)
(300modei)
Disengage the console from the dash-
panel by
turning buttons then tilt and
remove.

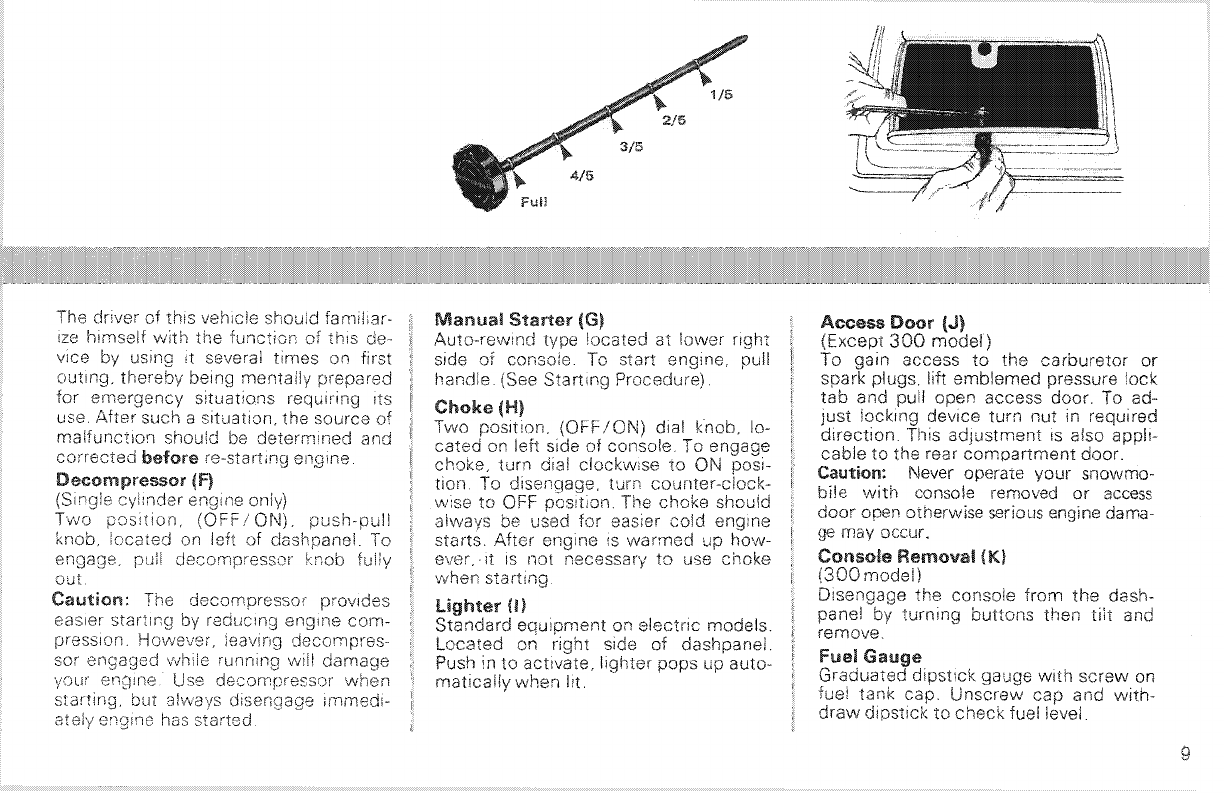

Fuel Gal.lge
Graduated dipstick gauge WIth screw on
fuel
tank cap. Unscrew cap and with-
draw dipstick to check fuel level.
9

10
With Ski-Doo snowmobiles. the oil must
be added to the gasoline in pre-mea-
sured
amounts then both oil and gaso-
line should be
thoroughly mixed to-
gether before fueling the tank
Which Gasoline to Use
On ali models except Olympique 400 the
correct gasoline is Regular gasoline, (not
less than 92 octane} available from all
service stations,
Due to the high compression
of the
Olympique 400 model, the correct
gas-
oline used is Premium gasoline,
Caution: Never experiment with other
than recommended fuels or fuel ratios
Never use no iead qasolinej .
methanol or simiiar products
tTests are not conclusive enough therefore wa
do
not recommend the use of no-!elld gasoiines.
Which Oil to Use
Use concentrated Ski-Doo oil available
from your Ski-Doo dealer. This type of
oi: has specially formulated oil bases to
meet the
lubrication requirements of the
Bombardier-Rotax engine.
Caution: The carburetors of the 1974
Ski-Doo snowmobile havebeen calibrated
for a mixture of ine and concen-
trated Ski-Doo oil.
Unless absolutely necessary. do not use
snowmobile
oil. if such oil is used,
observe instructions on the con-
tainer. Never use outboard or straight
mineral oils.
fuel Mixing Ratio
The importance of uSing the correct fuel
mixture cannot be overstressed. Prior
experience has
shown that an incorrect
fuel ratio results in senous engine dam-
age The correct fuel/oil ratio is 50/1
5 gallons recommended gasoline plus i
can of Ski-Doo concentrated oil == correct
fuel mixture.
Note: To facilitate fuel mixing, oil should
be at
room temperature.

1& IV
fuel Mixing Procedure
To mix the gasoline and oil always use a
separate clean container. Never mix
directly in your snowmobile tank. For
best results, acquire
two containers, ei-
ther plastic or metal. Draw from one un-
til empty then use the second one.
Warning: Gasoline is flammable and
explosive under certain conditions.
Always perform procedu res in a well
ventilated area. Do not smoke 01" al-
low open flames 01" sparks in the vi-
cinity. If gasoline fumes are noticed
while driving, the cause should be
determined and corrected without
delay. Never add fuel while engine is
l'l.Inning.
. Pour approximately one Ion of gas-
oline into aclean container.
2. Add the full amount of concentrated
Ski-Doo oil.
3. Shake the container thoroughly.
4. Add the remainder of the gasoline.
5. Once again thoroughly agitate the
container. Using a funnel
with afine
mesh screen to prevent the
entry of water
and foreign particles, transfer
mixture
from container into the snowmobile tank.
Note: When pre-mixed fuel. al-
ways shake the container thoroughly as
the oil has a
tendency to settle
Warning: Never 'top up' gas tank before
placing vehicle in a warm area. At certain
temperatures, gasoline will expand and
overflow.
fuel consumption
Agood idea is for you to rate the fuel
consumption of your snowmobile at the
first
opportunity Starting with afull fuel
tank, mark the time of your departure
then note
time elapsed until tank is
half-full. Repeat on different occasions
to
get amean average of your snow-
mobiles' consumption and length of
running
time under varying conditions.

Fuel Tank Quantity
Check that there IS sufficient fuel in the
tank for your A good habit to ac-
quire IS to refill tank before Qt~lrtlnn
out each
12
Vvith Ski-Doo snowmobile engines, a
break-In is before run-
the vehicle at throttle Manu-
facturer's recommendation for the
Bombardier-Rotax engine IS 10 to 15
operating hours, DUring this period,
maximum throttle should not exceed 'VI
However, brief full accelerations and
speed
vanations contribute to a good
break-In Continued wide open throttle
accelerations, prolonged cruIsing'
speeds and lugging are detrimental dur-
the break-in period,
inspection
After the break-In we suggest
that each Ski-Doo snowmobile has an
check This is at
the discretion and expense of the V8-
hicle owner
Since mixed
settle
tank by sta
rockino the
fuel has aTO
agitate the fuel In the
on the footboards and
from Side to Side
Track , before first
Under certain climatic the
track of a snowmobile left outdoors
may freeze to the or
snow surface Always make sure that
the track is free before attempting to
start the vehicle (This procedure will
eliminate unnecessary drive belt vvear)
Steering Operation
Check of steering mechanism
by the handlebar several times
from Side to Side If roughness or bind-
in9 is felt, check for Ice or snow that
may be the mechanism

Throttle and Brake
Depress and release
tim<es to check that
and smoothly The thrntt'lp
return to the Idle when re-
leased The brake lever should be
apIJI18id when it has minimum clearance
from the handlebar gnp (see Main-
tenance Brake) If the levers do not re-
turn remove cables and/or
housrnqs replace Re-check lever
operation
Warning: Throttle mechanism
should be checked for free move-
ment before starting engine. Once
ai! components are checked and
functioning properly, you can start
your Ski-Doo snowmobile.
Emergency situations are accepted haz-
ards With any vehicle Ahidden
rock or on the trail, a
burnt
bulb while at an empty
fuel tank while miles from anywhere,
can ali cause of incon-
venience Unlike an automobile, which
has a distinct advantage In that service
stations are usually Within walking dis-
tance, snowmobiles are specifically
designed to travel off the highways.
When the unexpected happens, the
driver often has his own mrlArll'iChJ
and that of his to return
home Fortunatetv. 9 out of 10
difficulties encountered on the trail can
be fixed on the spot However, you
must
carry at least a minimum assortment of
Tools and Parts to enable you fa
effect minor ''''IJ''''"'''<
Emergency Materials
In addition to those tools which the
manufacturer provides. you should carry
the
tollowinq
Tools: General Purpose Pliers-i-Adjust-
able
Wrench (% J! openinqi-> Flash light
Spare Parts: Spark PI Drive belt-
Headlamp and Taiillght bulbs-c-Throttle
Cable and HOUSing-Starting and tow-
rope- Fuse (electric models)
Important: Always carry spare plugs
and drive belt Check condition of spark
and look for of a
or
defective
13

lJP Before starting
engine
DOWN To stop
engine
MAI\JUAL
OFF
LIGHTS
.- ON
_ START
ELECTRIC
14
Never run the engine at
high when the track of the ve-
hicle is raised off the ground.
Note: Before starting the engine make
sure the kill
button is in the released up-
per position
Electric Starting:
1. Insert key in switch.
2. Engage choke (Choke is not neces-
sary if enqme is warmed up).
3 Test
throttle operation then apply
throttle lever slightly.
4. Turn ignition key clockwise until
starter engages
Caution: Do not engage starter longer
than 30 seconds if enqine does not
start on first try, key must be turned
back to OFF each
time Allow starter to
cool for 2 minutes before repeating
procedure.
5.
Release throttle and key immedi-
ately enqrne has started.
6. Disengage choke.
Caution: Never operate the Ski-Doo
snowmobile with the battery removed or
disconnected.
7 Allow the engine to warm up before
operating at full
throttle.
Manual Starting:
1. Insert key in ignition and turn to ON
POSition.
2 Pull decompressor knob out
(Single cylinder only)
3. choke (Choke is not neces-
engine is
warmed up)
4. Test
throttle operation then apply
throttle lever slightly.
5manual starter handle
and slowly until aresistance IS
then pull vigorously and engine will
start Ailow handle to return slowly to
its original position. If engine does not
start, repeat the procedure
Note: Do not pull starting rope to its
fullest
extent or allow starting handle to
"fly back" to its anginal position.
6
Release throttle, disengage choke
and push In decompressor,
immedi-
engine has started.
7
.f->,!Iow the engine to warm up before
operating at full throttle.

Frequency of lubrication
It is recommended that the steering
mechanism and suspension be lubricated
monthly or after every 40 hours of
operation. However,
if the vehicle is
operated in wet snow, the suspension and
steering system should be lubricated more
frequently.
Cab latches
For those procedures that cab
open, unlock latches on
both sides
where cab meets frame then lift cab
gently up until stopped restraining
device
Warning: It can be dangerous to run
engine with cab open.
Pulley Guard Remova!
1 Tilt cab.
2 Pullout rettllning clip and push on
spring bolt to disengage pin from
bracket
3Move pulley guard forward to disen-
gage it from chain case
bracket
Warning: Engine should be mnning
only when pulley guard is secured in
place.
Drive Belt Removal
1. Tilt cab and remove pulley guard
2Open the driven pulley, (larger pulley
most forward). Twist and push the slid-
Ing half then hold In open position.
3. Pull the
bottom of belt In toward the-
front of the driven pulley then slip slack-
ened belt over the top edge of the slid-
ing half
4Slip the belt out from the dnve pulley
(centrifugal governor) and remove com-
pletely from vehicle by passing it be-
tween muttler and end of driven pulley.
To install drive belt. reverse procedure.
Warning: Never run the engine with-
out drive belt installed. Running an
unloaded enginE! can prove to be
dangerous.
15

16
Steering Mechanism
USing light machine oil, lubricate the
lower steering column bushing. Lubri-
cate the ski legs at grease fittings until
new grease appears at the Joints
Chain Case (Oil Level)
Check oil level through sight glass of
chain case. The oil level should not be
below the level line of the sight glass.
The chain case has an oil capacity of
approximately 9ozs. To replenish, re-
move filler cap a spark plug
wrench. Refill to level
Bogie Wheels
Lubricate the suspension bogie wheels
with 'low-temp grease, using a low pres-
sure grease gun Pump through the
grease fitting at the centre of each
wheel until new grease appears at the
joint of inner Side of shaft.
Rear Axle
Lubricate the rear axle with low-terno.
grease. Pump grease through the rear
axle fittings.
Caution: A!ways use alow-pressure
grease gun.

rope
Note: On tw.n engine, both
spark plugs removed and the
inserted into the left side cvunoer
oside)
• Pull manual starter to rotate crank-
shaft until bears
Warning: Make sure that the gover-
nor bolt is fully tightened before re-
moving rope from cylinder.
Note: Installation procedure is reversed
insuring
that the rope is inserted into the
same cylinder when piston is 3
14
"approx.
after top dead center.
bolt. remove
outer
3.Thoroughly clean the inner pulley
shaft using fine steel wool and clean
cloth Inspect all components for exces-
sive wear.
4. Apply alight coat of approved grease
to the
four (4) flyweights of the centrifu-
gal governor.
5Install and outer pulley half,
~.l1aking sure the aligning mark on
inner pulley half coincides
with the
aligning mark
of the outer half pulley
half, pack inside of puiley shaft with
low temp. greaSB .
6. Using machine all, lubricate the
governor threads. install governor
and
torque bolt to 33-40 ftl ibs
and
t t cia
@ Accece
DrivEl Pulley
The drive pulley requires lubrication bi-
monthIy or every 20 hours
of operation.
1. With cab tilted, remove pulley guard
and drive belt.
2. Remove governor as tel-
lows:
eBernove
7

Carbonized Normal
Burnt
18
Code
W1
W2
W3
W4
W5
W6
W7
W8
W9
Code
Weekly
Spark Plug
Battery (electroiyte level)
Suspension Springs
Track
Track
Tension
Track Alignment
Carburetor Adjustment
Drive Belt Condition
Steering Mechanism
Monthly
Page
18
18
18
19
19
19
20
21
21
(W11 Spark Plug
The standard plug on your snowmobile
has been selected asthe one most suitable
for high speed riding (seespecifications),
However, for trail riding, a spark plug
with a hotter heat range must be in-
stalled.
Caution: Having a spark plug with too hot
a heat range will cause serious engine da-
mage if the severity of engine operating
conditions are greater than the plugs'
intended range.
I. Open access door. On single cylinder
models, remove console. Disconnect spark
plug wires and remove otuos.
2, Check condition of plugs
• A brownish up reflects :deal condi-
tions (propel' carburetor
merit spark plug heat range, etc)
11& Ablack Insulator Indicates tout-
Ing
caused by: carburetor Idle
mixture and / or speed
rmxture too rich
fixed Incorrect fuel
t.o.
wrong type of spark
range), or excessive
eAgrey Insulator np Indicates a
lean
mixture caused ,carburetor
idle speed mixture too
lean, wrong spark range,
.ncorrect fuel mixing rauo or a
seal or gasket
3Check spark
gap usinq awire
feeler
qauqe Gap must be 020"
4Reinstall plugs and connect Wires
(W2)
Remove battery caps then check elec-
trol~te level at each ceil Electrolyte
level must touch bottom of filler hole If
necessary, add distilled
water
(W3) Suspension Springs '
With engine off, Visually Inspect bogie
wheel spnnqs and !:nk plate spnngs Re-
any weak or broken spring
