Ski-Doo Alpine II 1990 User manual

ALPINES II
OPERATOR'S MANUAL
414

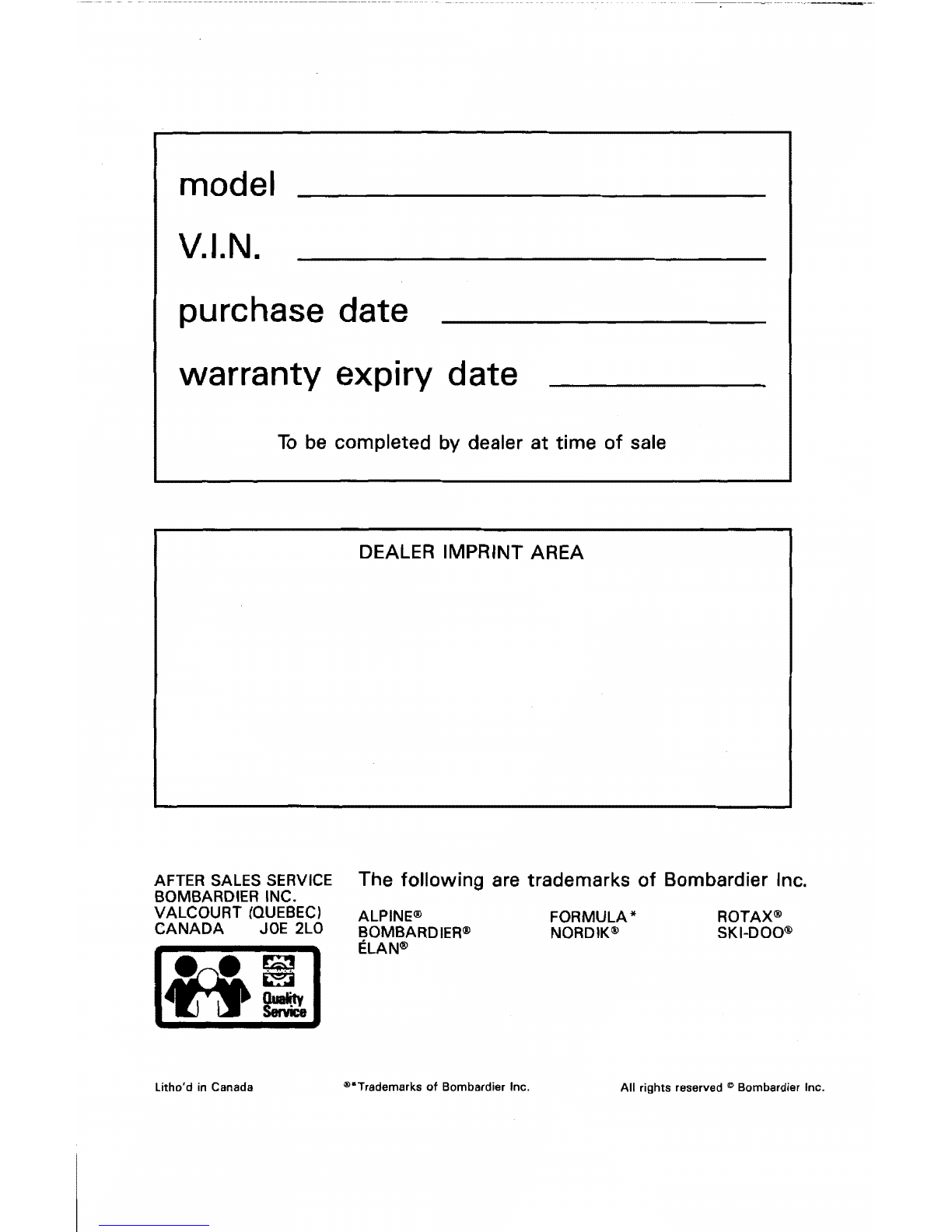

model
V.I.N.
purchase date
warranty expiry date
To be completed by dealer at time of sale
DEALER IMPRINT AREA
AFTER SALES SERVICE
BOMBARDIER INC.
VALCOURT (QUEBEC)
CANADA JOE 2LO
The following are trademarks of Bombardier Inc.
Litho'd in Canada
ALPINE®
BOMBARDIER®
ELAN®
®*Trademarks of Bombardier Inc.
FORMULA*
NORDIK® ROTAX® SKI-DOO®
All rights reserved e Bombardier Inc.

FOREWORD __________________ __
The operator manual and the Snowmo-
bile Safety Handbook have been pre-
pared to acquaint the ownerIoperator
or passenger
of a new snowmobile with
the various vehicle controls, mainte-
nance and safe operating instructions.
Each is indispensable for the proper use
of the product, and should be kept with
the vehicle at all times.
Should you have any questions pertain-
ing to the warranty and its application,
please consult the
"Often Asked Ques-
tion" section of this manual, or your au-
thorized dealer.
This manual uses the following symbols.
•
WARNING: Identifies an instruc-
tion which, if not followed, could
cause serious personal injuries includ-
ing possibility of death.
,.,. CAUTION : Denotes an instruc-
T tion which, if not followed, could
severely damage vehicle components.
0 NOTE : Indicates supplementary
information needed to fully
com-
plete an instruction.
Although the mere reading
of such in-
formation does not eliminate the hazard,
your understanding
of the information
will promote its correct use.
• WARNING
:The engines and the
corresponding components iden-
tified
in this manual should not be uti-
lized
on product(s) other than those
mentioned
on the cover page of this
manual.
•
WARNING: Maintenance proce-
dures and tightening torques must
be strictly adhered to, never attempt
repairs unless the appropriate tools
are available.
The information and componentsIsys-
tem descriptions contained
in this man-
ual are correct at time
of publication.
Bombardier Inc. however, maintains a
policy of continuous improvement
of its
products
without imposing upon itself
any obligation to install them on prod-
ucts previously manufactured.
Bombardier
Inc. reserves the right at any
time to discontinue or change specifi-
cations, designs, features, models or
equipment
without incurring obligation.
The illustrations show the typical con-
struction
of the different assemblies and,
in all cases, may not reproduce the full
detail or exact shape
of the parts shown,
however, they represent parts which
have the same or a similar function.
Most specifications are given
in both
metric and customary units. Where pre-
cise accuracy
is not required, some con-
versions are rounded to even numbers
for easier
use.
A shop manual can be obtained for com-
plete service, maintenance and repair in-
formation.
,.,. CAUTION : Most components of
T this vehicle are built with parts
dimensioned
in the metric system.
Most fasteners are metric and must
not
be replaced by customary fasten-
ers
or vice versa. Mismatched or in-
correct fasteners could cause damage
to the vehicle or possible personal in-
jury.

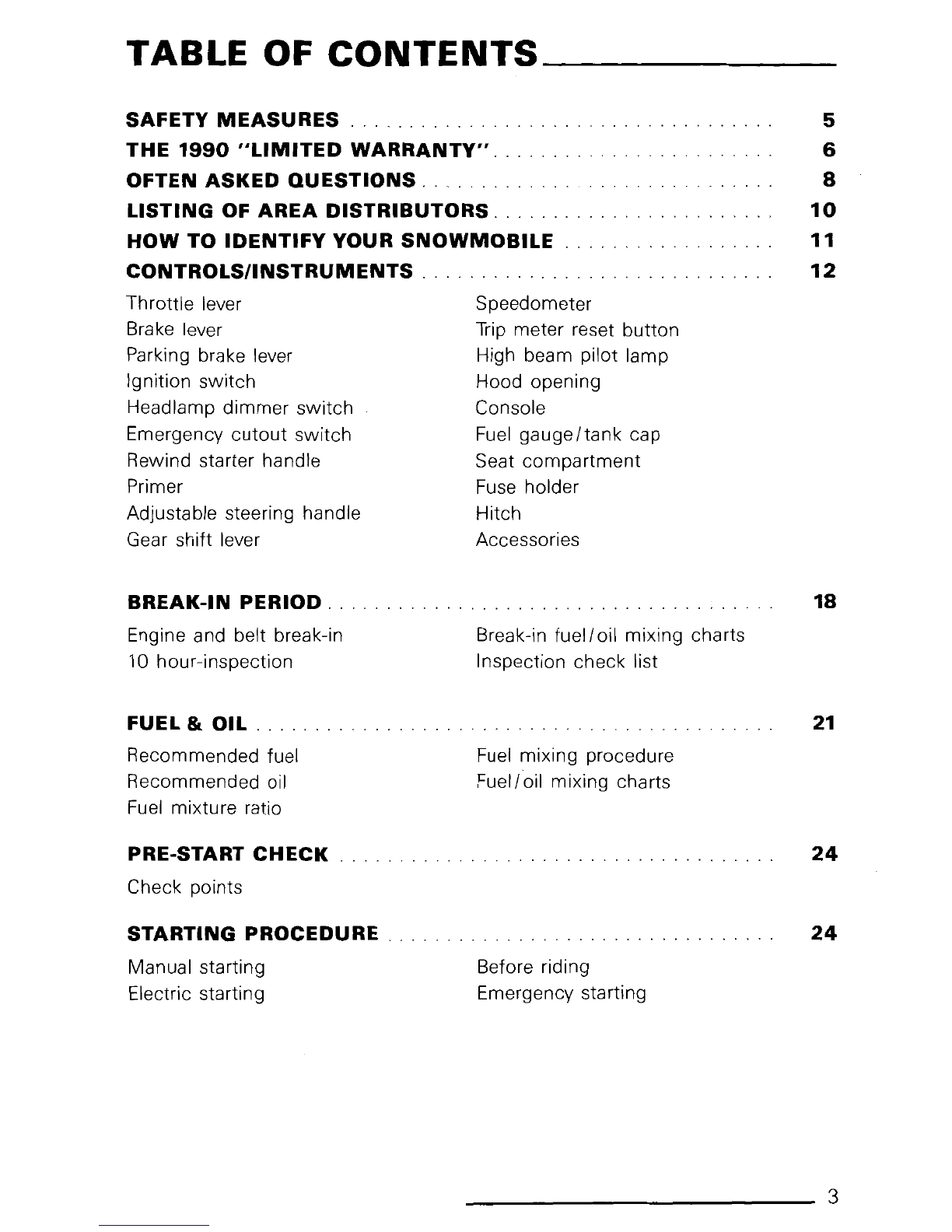

TABLE OF CONTENTS _____ _
SAFETY MEASURES ...... .
THE 1990 "LIMITED WARRANTY".
OFTEN ASKED QUESTIONS ...... .
LISTING OF AREA DISTRIBUTORS.

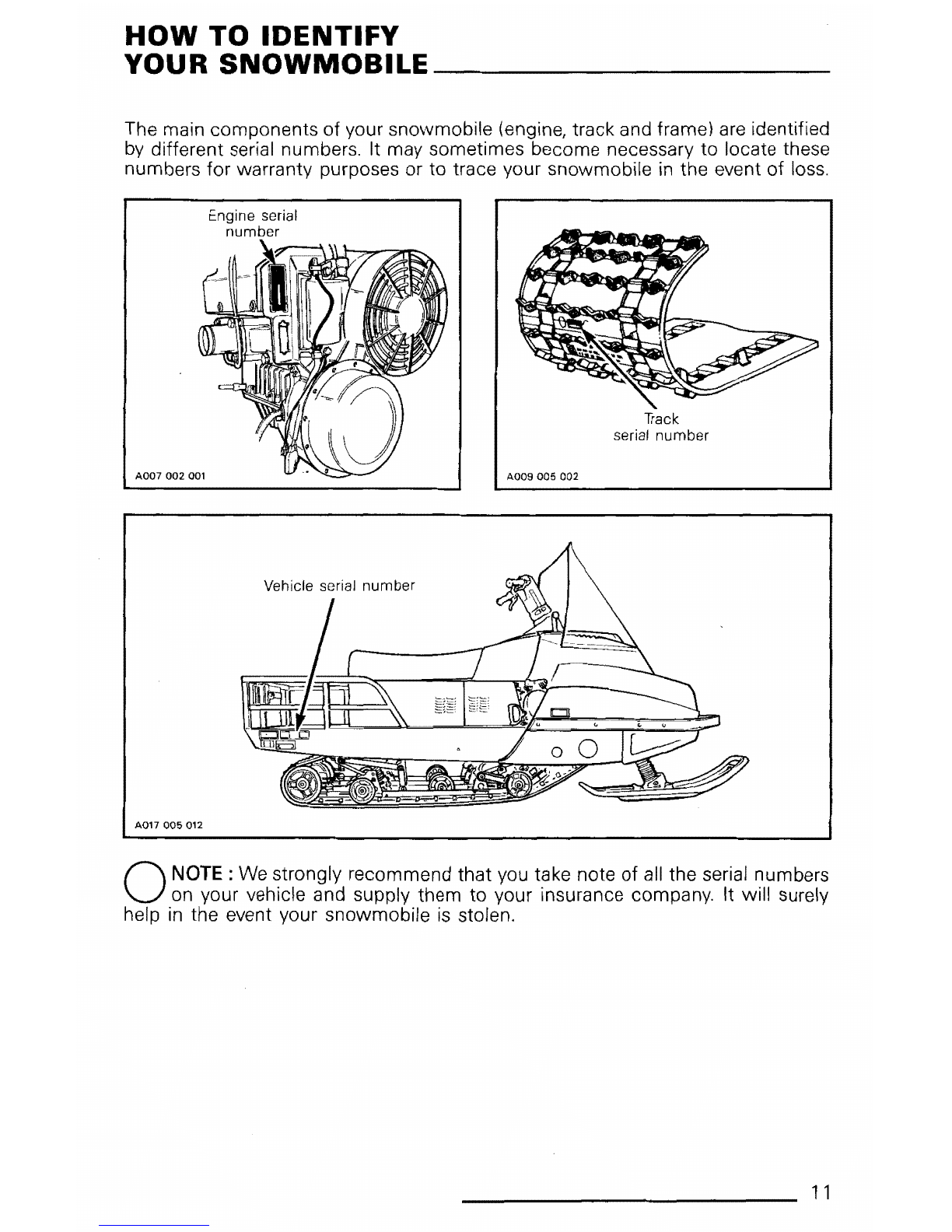

HOW TO IDENTIFY YOUR SNOWMOBILE

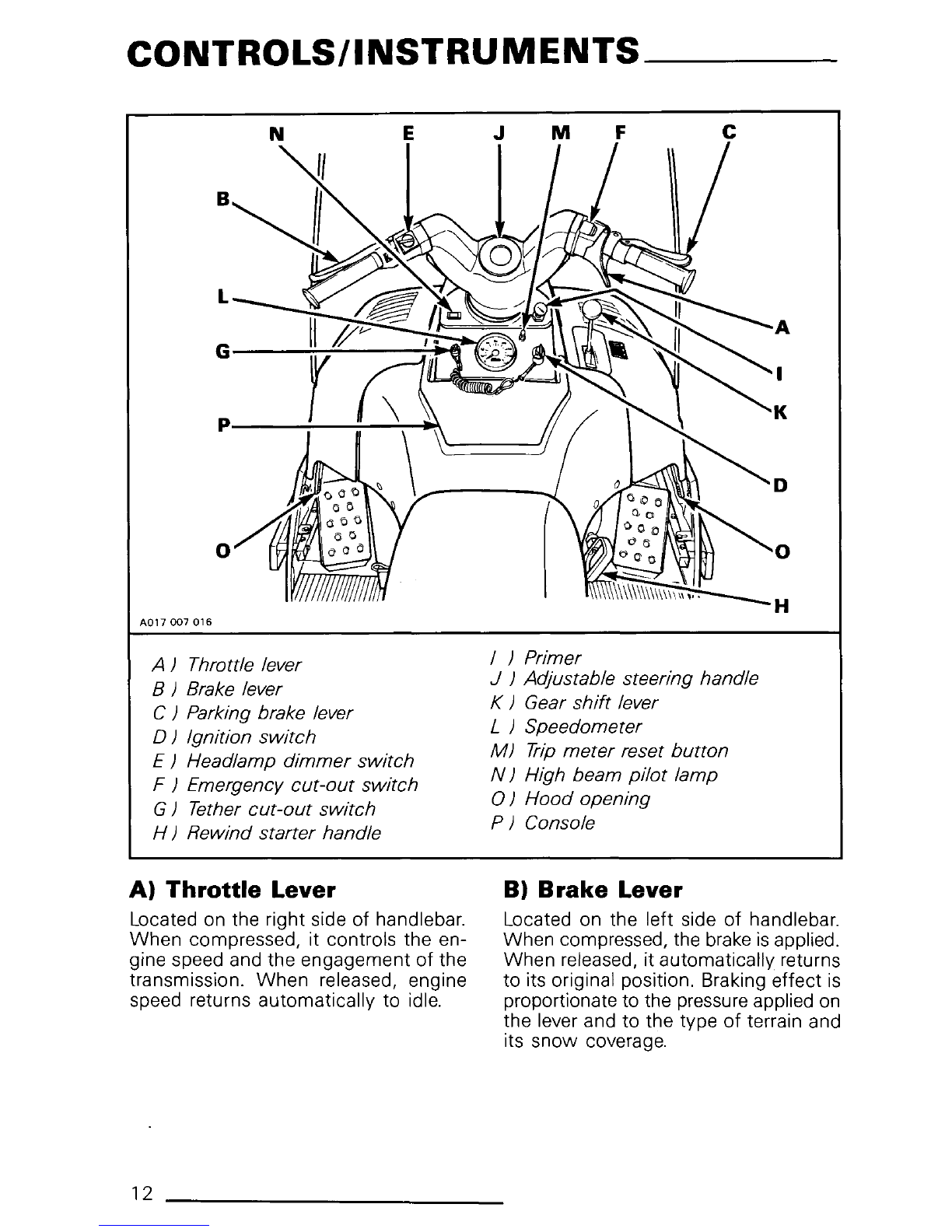

CONTROLS/INSTRUMENTS.. . ....... .
Throttle lever
Brake lever
Parking brake lever
Ignition switch
Headlamp dimmer switch
Emergency
cutout switch
Rewind starter handle
Primer
Adjustable steering handle
Gear shift lever

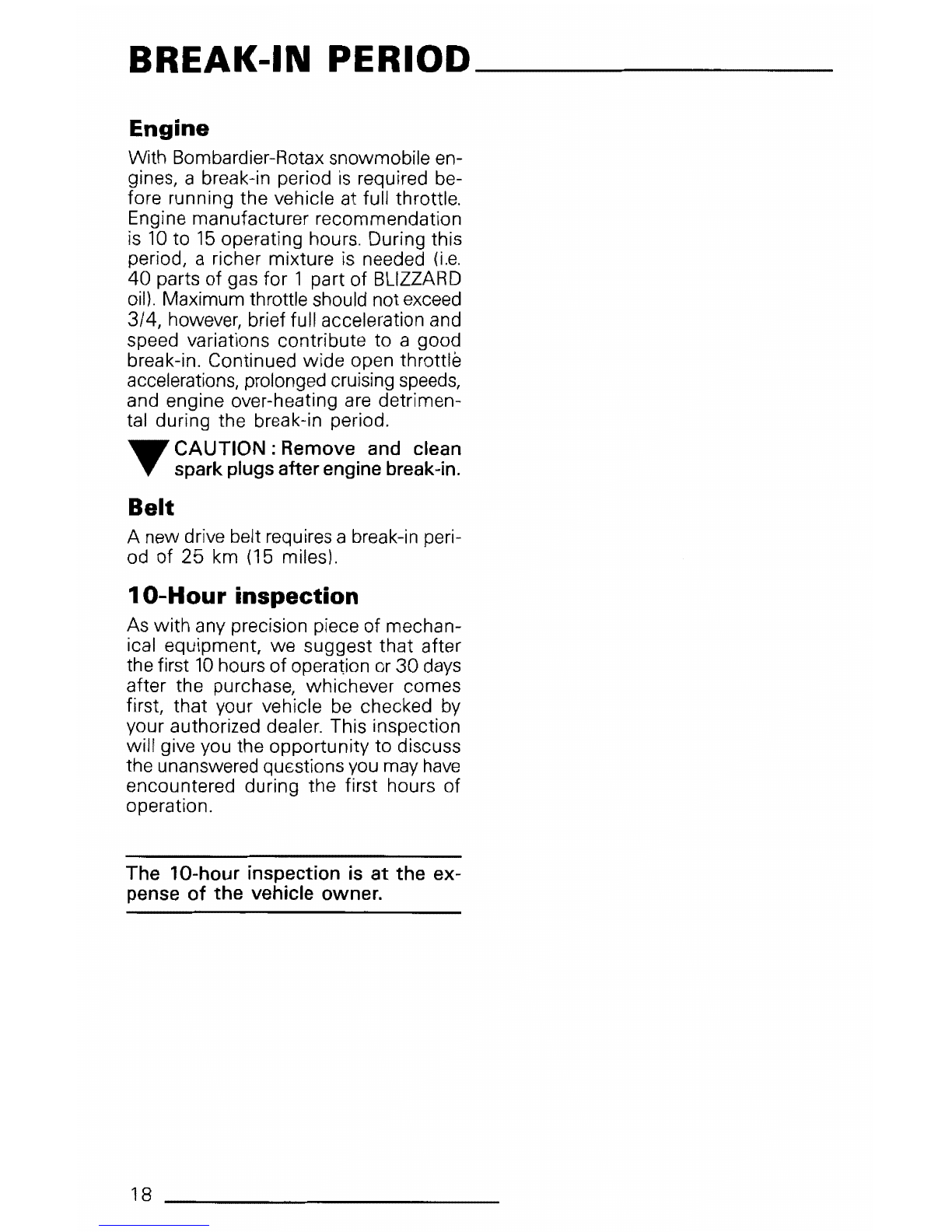

BREAK-IN PERIOD .
Engine and belt break-in
10 hour-inspection
FUEL & OIL.
Recommended fuel
Recommended oil
Fuel mixture ratio
PRE-START CHECK
Check points
STARTING PROCEDURE.
Manual starting
Electric starting
Speedometer
Trip meter reset button
High beam pilot lamp
Hood opening
Console
Fuel gauge/tank cap
Seat compartment
Fuse holder
Hitch
Accessories
Break-in fuel/oil mixing charts
Inspection check list
Fuel mixing procedure
Fuel Ioil mixing charts
Before riding
Emergency starting
5
6
8
10
11
12
18
21
24
24
3

LUBRICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Frequency
Steering mechanism
Drive axles
Driven pulley
MAINTENANCE
Chart
Belt guard removal
Drive belt removal and installation
Drive belt condition
New drive belt
Brake condition
Brake adjustment
Spark plugs
Battery
Suspension condition
Stopper strap condition
Suspension adjustment
Track condition
Track tension and alignment
STORAGE
Tracks
Suspension
Ski
Controls
Gearbox
Drive pulley
Slide suspension
Hitch sliding action
Gearbox oil
level
Drive pulley
Steering mechanism
Steering adjustment
Muffler attachment
Engine head nuts
Engine mount nuts
Carburetor adjustment
High altitude kit
Fan belt
Drive chain tension
Headlamp beam aiming
Bulb replacement
General inspection
Engine
Fuel tank and carburetor
Battery
Chassis
General inspection
Suspension stopper strap
31
44
PRE-SEASON PREPARATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Pre-season preparation chart
TROUBLE SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
TOOLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
SPECIFICATIONS ......................... .
Sl METRIC INFORMATION GUIDE . . . . . . . .
4 ----------------------------
53
55

SAFETY
MEASURES __________________________ __
Observe the following
precautions:
• Throttle mechanism should be check-
ed for free movement before starting
engine.
•
Do not operate vehicle near snow
making equipment.
• Engine should
be running only when
belt guard andIor pulley guard
is se-
cured
in place.
• Never run the engine
without drive
belt installed. Running
an unloaded
engine can prove to
be dangerous.
• Never run the engine when the track
is raised off the ground.
• It can
be dangerous to run engine
with the hood removed.
• Gasoline
is flammable and explosive
under certain conditions. Always ma-
nipulate
in a well ventilated area. Do
not smoke or allow open flames or
sparks
in the vicinity. If gasoline fumes
are noticed while driving, the cause
should
be determined and corrected
without delay.
• Maintain your vehicle
in top mechan-
ical condition at all times.
•
Your snowmobile is not designed to
be driven or operated on black top,
bare earth,
ice, hard pack or other
abrasive surfaces.
On such surfaces
abnormal and excessive wear
of cri-
tical parts
is inevitable.
•
Your snowmobile is not designed to
be operated on public streets, road
or highways.
In most States and Prov-
inces, it is considered an illegal oper-
ation.
• Installation
of other than standard
equipment, including ski-spreaders,
bumpers, pack racks, etc., could se-
verely affect the stability and safety
of your vehicle. Avoid adding on ac-
cessories that alter the basic vehicle
configuration.
• The snowmobile engine can
be stop-
ped by activating the emergency cut-
out switch, tether switch or
by turn-
ing
off the key.
• Whenever the vehicle is parked out-
doors, overnight or for a long period,
it
is suggested to protect it against
the inclemency
of the weather with
a snowmobile cover.
•
Do not lubricate throttle and Ior brake
cables and housings.
• Only perform procedures
as detailed
in this manual. Unless otherwise spec-
ified, engine should
be turned OFF
for all lubrication and maintenance
procedures.
• Clean and check operation of the
headlight, taillight and brake light.
• These vehicles
are designed for the
driver only. No provisions have been
made for a passenger.
• Should removal
of a locking device
be required when undergoing repairs/
disassembly, always replace
by new
ones. Tighten fasteners
as specified
in the applicable Shop Manual.
PLEASE READ AND UNDERSTAND ALL WARNINGS AND CAUTIONS IN THE
SNOWMOBILER'S SAFETY HANDBOOK, THE OPERATOR'S MANUAL AND ON
THE VEHICLE
BOTH MANUALS SHOULD REMAIN WITH THE VEHICLE
AT
THE TIME OF RESALE
5

THE 1990 SNOWMOBILE
LIMITED WARRANTY _________ _
1 -PERIOD
BOMBARDIER INC. as manufacturer, warrants FROM THE DATE OF DELIVERY TO THE
FIRST CONSUMER, every
1990 BOMBARDIER® snowmobile, sold as NEW AND UNUSED,
and predelivered by an authorized BOMBARDIER® dealer
for a period of:
• 12 consecutive months.
• Warranty coverage on all new snowmobiles delivered between August ·1st and
December
1st of a year will expire on December 1st of the following year.
2- WHAT BOMBARDIER INC. WILL DO
BOMBARD lEA INC. will repair andIor replace, at its option, components defective
in material andIor workmanship (under normal use and service), with a genuine
BOMBARD
lEA® component without charge for parts or labour, at any authorized
BOMBARDIER® dealer during said
warranty period.
3- CONDITION TO HAVE WARRANTY WORK PERFORMED
Present to the servicing dealer, the hard copy of the BOMBARDIER® Warranty Registration
card
or proof of purchase received by the customer from the selling dealer at time of
delivery.
4 - EXCLUSIONS -ARE NOT WARRANTED
• Normal wear on all items such as, but not limited to :
drive belts bulbs
-slider shoes
spark plugs runners on skis
• Replacement parts and/or accessories which are not genuine BOMBARDIER® parts
andI
or accessories.
• Damage resulting from installation
of parts other than genuine BOMBARD lEA® parts.
• Damage caused by failure
to provide proper maintenance as detailed in the Operator's
Manual. The labour, parts and lubricants
costs of all maintenance services, including
tune-ups and adjustments
will be charged to the owner.
• Cold seizure and piston
scuffing caused by insufficient warm-up.
• Vehicles designed andI
or used for racing purposes.
• All optional accessories installed on
the vehicle. (The normal warranty policy for parts
and accessories,
if any, applies).
• Damage resulting
from accident, fire or other casualty, misuse, abuse or neglect.
• Damage resulting
from operation of the snowmobile on surfaces other than snow.
• Damage resulting
from modification to the snowmobile not approved in writing by
BOMBARDIER INC.
• Damage incurred by
track studs.
• Losses incurred by
the snowmobile owner other than parts and labour, such as, but
not limited to, transportation, towing, telephone calls, taxis, or any other incidental
or consequential damage.
6

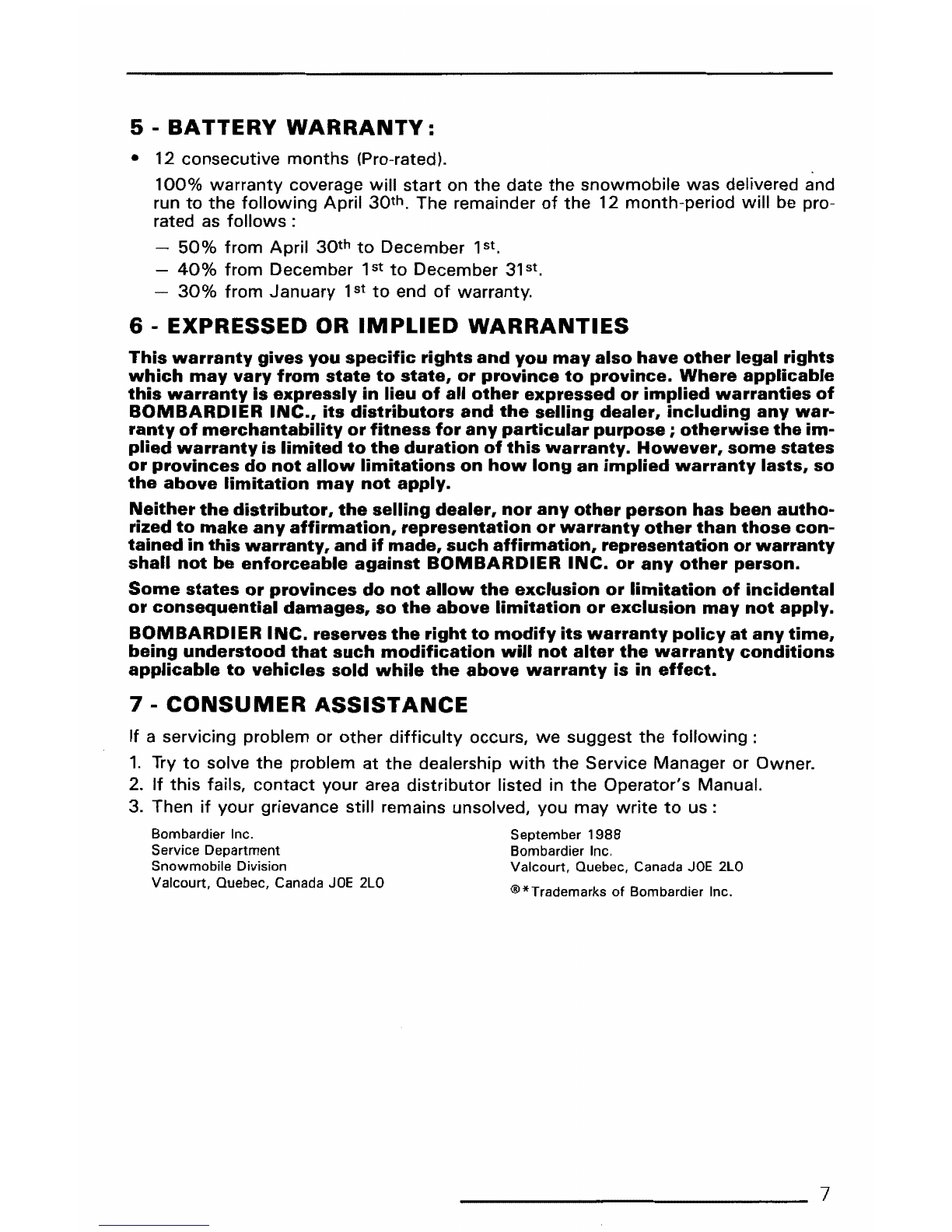

5- BATTERY WARRANTY:
• 12 consecutive months (Pro-rated).
1
00% warranty coverage will start on the date the snowmobile was delivered and
run
to the following April 30th. The remainder of the 12 month-period will be pro-
rated
as follows :
- 50% from April 30th to December 1st.
-
40% from December 1st to December 31st.
30o/o from January 1st to end of warranty.
6 - EXPRESSED OR IMPLIED WARRANTIES
This warranty gives you specific rights and you may also have other legal rights
which may vary from state to state, or province to province. Where applicable
this warranty is expressly in lieu of all other expressed or implied warranties of
BOMBARDIER INC., its distributors and the selling dealer, including any war-
ranty of merchantability or fitness for any particular purpose; otherwise the im-
plied warranty is limited to the duration of this warranty. However, some states
or provinces do not allow limitations on how long an implied warranty lasts, so
the above limitation may not apply.
Neither the distributor, the selling dealer, nor any other person has been autho-
rized to make any affirmation, representation or warranty other than those con-
tained in this warranty, and if made, such affirmation, representation or warranty
shall not be enforceable against BOMBARDIER INC. or any other person.
Some states or provinces do not allow the exclusion or limitation of incidental
or consequential damages, so the above limitation or exclusion may not apply.
BOMBARDIER INC. reserves the right to modify its warranty policy at any time,
being understood that such modification will not alter the warranty conditions
applicable to vehicles sold while the above warranty is in effect.
7- CONSUMER ASSISTANCE
If a servicing problem or other difficulty occurs, we suggest the following :
1. Try to solve the problem at the dealership with the Service Manager or Owner.
2.
If this fails, contact your area distributor listed in the Operator's Manual.
3. Then
if your grievance still remains unsolved, you may write to us :
Bombardier Inc.
Service Department
Snowmobile Division
Valcourt, Quebec, Canada JOE 2LO
September 1988
Bombardier Inc.
Valcourt, Quebec, Canada
JOE 2LO
®*Trademarks of Bombardier Inc.
7

OFTEN ASKED
QUESTIONS __________________________ _
0 : Why must my snowmobile be registered at the factory ?After all I do have my
original invoice
as proof of when I purchased my snowmobile.
A : Your warranty is valid at anyauthorizeddealer of theproduct. Your registration
is the key elemen( in providing the servicing dealer with the necessary data to
complete warranty claim forms. This information is also usedto
notify owners
in the event
of a safety recall.
0: Who should send the registration card to Bombardier Inc. 7
A : The dealer. However, it is important that the customermake sure that it has
been sent.
The company might contact you should your vehicle be recalled
or in case of a particular warranty campaign.
0: I bought my snowmobile in O'King County but I snowmobile in Washington
County.
Can the dealer in Washington County accept to perform warranty work
on my snowmobile?
A : Yes, any authorizeddealer in North America can perform warranty repairs,
providing the customer warranty registration card is presented.
0 :Where can I find information on the lubrication and maintenance of my snow-
mobile?
A : In this Operator Manual provided with the vehicle at the time of delivery.
0: Will the entire warranty be void or cancelled, if I do not operate or maintain my
new snowmobile exactly
as specified in the Operata(s Manual ?
A : The warranty of the new snowmobile cannotbe "Voided" or "Cancelled'~
However, if a particularfailure is causedbyoperation or maintenance otherthan
is shown in the Operator Manual, THAT fatlure may
not be covered under war-
ranty. This includes service work performed
by the customer, especially the
critical adjustments to ignition, timing, carburation
and oil injectionI or oil
mixture.
0 : Would you give some examples of abnormal use or strain, neglect or abuse?
8
A : These terms are general and overlap each otherin areas. Some specific ex-
amples
may include : running the machine out of oil, chain fatlure causedby a
lack
of lubrication, operating the machine with a broken or damagedpart which
causes another
part to fail, and so on. If you have any specific questions on
operation
or maintenance, please contact your dealer for advice.

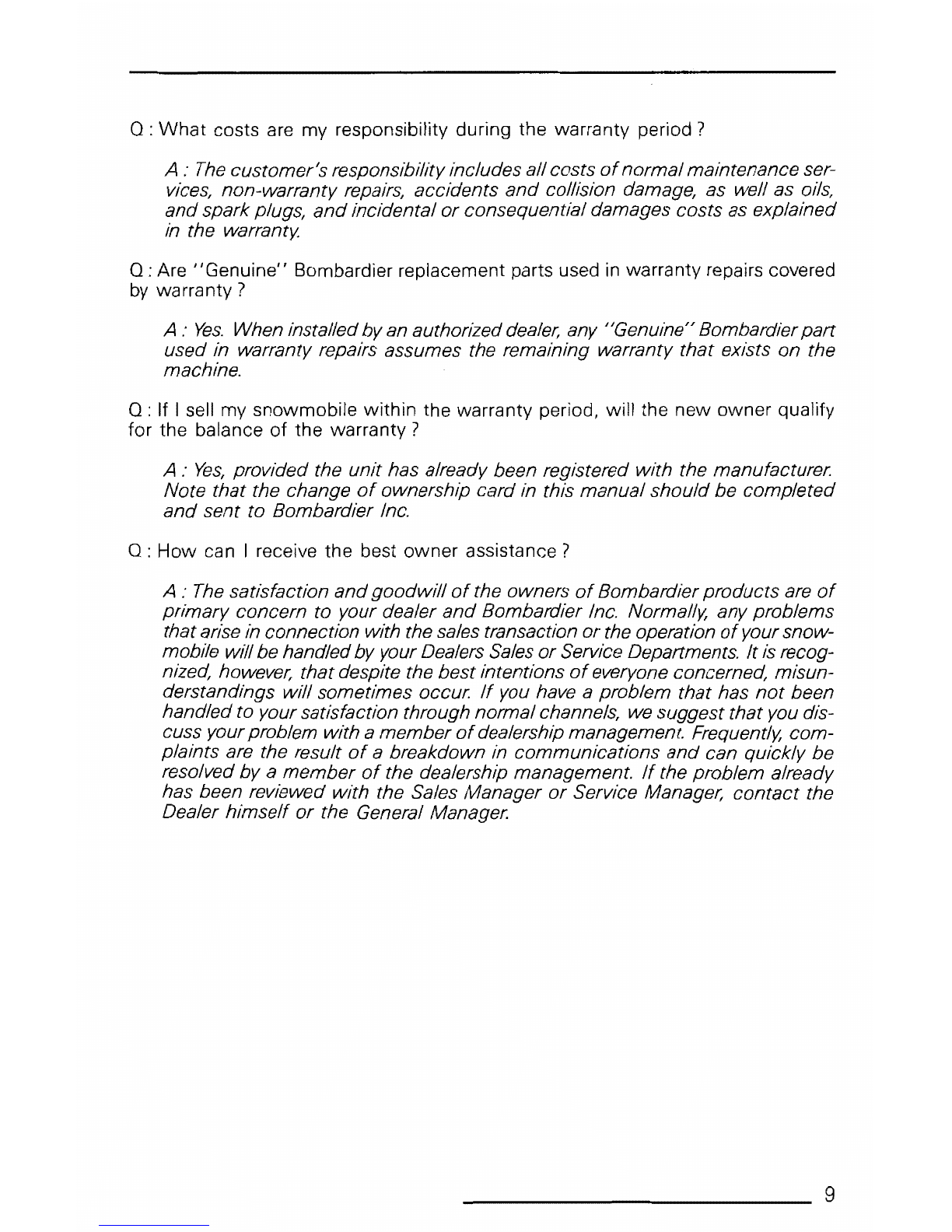

0: What costs are my responsibility during the warranty period?
A : The customer'sresponsibility includes all costs of normalmaintenance ser-
non-warranty repairs, accidents
and collision damage, as well as oils,
and spark plugs, and incidental or consequential damages costs as explained
in the warranty.
0: Are ''Genuine" Bombardier replacement parts used in warranty repairs covered
by warranty?
A : Yes. When installedbyan authorized dealer, any "Genuine"Bombardierpart
used in warranty repairs assumes the remaining warranty that exists on the
machine.
0 : If I sell my snowmobile within the warranty period, will the new owner qualify
for the balance
of the warranty ?
A : Yes, provided the unit has already been registered with the manufacturer.
Note that the change
of ownership card in this manualshould be completed
and sent to Bombardier Inc.
0 : How can I receive the best owner assistance ?
A : The satisfaction and goodwill of the owners of Bombardierproducts are of
primary concern to your dealer and Bombardier Inc. Normally, any problems
thatarise in connection with the sales transaction
or the operation of yoursnow-
mobile willbe handledby your Dealers
Sales or Service Departments. It is recog-
nized, however, that despite the bestintentions
of everyone concerned, misun-
derstandings will sometimes occur.
If you have a problem that has not been
handledto yoursatisfaction through normalchannels, we suggest that you dis-
cuss yourproblem with a member
of dealership management. Frequently, com-
plaints are the result
of a breakdown in communications and can quickly be
resolved by a member
of the dealership management. If the problem already
has been reviewed with the Sales Manager
or Service Manager, contact the
Dealer himself
or the General Manager.
9

LISTING OF AREA
DISTRIBUTORS ___________ _
CANADIAN DISTRIBUTORS
PROVINCE OF QUEBEC
SERVICE OFFICE
BOMBARDIER INC.
Valcourt (Quebec) JOE 2LO
[phone]
SALES OFFICE
BOMBARDIER INC.
1350 Nobel Street
Boucherville {Quebec) J4B 1A1
[phone]
PROVINCE OF ONTARIO
SERVICE AND SALES OFFICE
BOMBARDIER INC.
230 Bayview Drive
Barrie (Ontario) L4N 5E9
[phone]
ATLANTIC REG ION
SERVICE OFFICE
BOMBARDIER INC.
P.O. Box 7060
Riverview (New Brunswick) E1B 1VO
[phone]
SALES OFFICE
BOMBARDIER INC.
1350 Nobel Street
Boucherville (Quebec)
J4B 1A1
[phone]
ALBERTA, BRITISH COLUMBIA, MANITOBA,
SASKATCHEWAN, YUKON
SERVICE AND SALES OFFICE
BROOKS EQUIPMENT LIMITED
1616 King Edward Street
P.O. Box 985
Winnipeg (Manitoba) R3C 2V8
[phone]
NEWFOUNDLAND, LABRADOR
SERVICE AND SALES OFFICE
CHARLES R. BELL LIMITED
Riverside Drive
P.O. Box 1050
Corner Brook (Newfoundland) A2H 6J7
[phone]
NORTH-WEST TERRITORIES,
FRANKLIN DISTRICT & KEEWATIN
SERVICE AND SALES OFFICE
HUDSON'S BAY CO. LIMITED
165 Hymus Blvd
Pointe-Claire (Quebec) H9R 1G2
(514)
630-5279
10
AMERICAN DISTRIBUTORS
EAST-CENTRAL, CENTRAL,
WESTERN
REG ION
SALES OFFICE
BOMBARDIER CORPORATION
7575 Packer Drive
P.O. Box 8035
Wausau, Wisconsin 54402-8035
U.S.A.
[phone]
EAST-CENTRAL, CENTRAL REGION
SERVICE OFFICE
BOMBARDIER CORPORATION
4505 West Superior Street
P.O. Box 16106
Duluth, Minnesota 55816-0106
U.S.A.
[phone]
WESTERN REGION
SERVICE OFFICE
BOMBARDIER CORPORATION
P.O. Box 1572
Golden, Colorado 80402-1572
U.S.A.
{303) 232-5284
EASTERN REG ION
SERVICE AND SALES OFFICE
BOMBARDIER CORPORATION
East Main Street Road
Malone,
New York 12953
U.S.A.
[phone]
ALASKA
SERVICE AND SALES OFFICE
THE BRYANT CORPORATION
NE. 190th & Woodinville
Snohomish Road
P.O. Box 389
Woodinville, Wa 98072
U.S.A.
[phone]

HOW TO IDENTIFY
YOUR SNOWMOBILE
_________ _
The main components of your snowmobile (engine/ track and frame} are identified
by different serial numbers. It may sometimes become necessary to locate these
numbers for warranty purposes or to trace your snowmobile
in the event of loss.
A017 005 012
Engine serial
number
A009 005 002
Track
serial number
0
NOTE :We strongly recommend that you take note of all the serial numbers
on your vehicle and supply them to your insurance company. It will surely
help
in the event your snowmobile is stolen.
11

CONTROLS/INSTRUMENTS ___ _
A017 007 016
A ) Throttle lever
8 ) Brake lever
C ) Parking brake lever
D ) Ignition
switch
E
E ) Head/amp dimmer switch
F) Emergency cut-out switch
G) Tether cut-out switch
H) Rewind starter handle
A) Throttle Lever
Located on the right side of handlebar.
When compressed, it controls the en-
gine speed and the engagement
of the
transmission. When released, engine
speed returns automatically to
idle.
12
J M F c
I ) Primer
J ) Adjustable steering handle
K ) Gear
shift lever
L ) Speedometer
M) Trip meter reset button
N) High beam pilot lamp
0 ) Hood opening
P) Console
B) Brake Lever
A
0
H
Located
on the left side of handlebar.
When compressed, the
brake is applied.
When released, it automatically returns
to its original position. Braking effect
is
proportionate to the pressure applied on
the lever and to the type of terrain and
its snow coverage.

C) Parking Brake Lever
Located on right side of handlebar. To
engage parking brake, squeeze lever and
turn lock clockwise.
To turn lock
counterclockwise.
Lock
A009 006 001
D) Ignition Switch
OFF
A002 007 002
Key operated, 3 position switch. To start
engine, turn
key to START position and
hold. Return
key to ON position immedi-
ately when engine has started.
To stop
engine, turn
key to OFF position. If en-
gine does notstart
on first try/ key must
be turned fully back to OFF each time.
.... CAUTION : Holding key in START
-,.. position when engine has started
could damage starter mechanism.
The lights are automatically ON when-
ever the engine
is running.
E) Headlamp Dimmer Switch
Two position switch/ located on left side
of handlebar. to obtain high or low
beam simply flick switch.
AOOB 006 003
F) EmergencyCut-Out Switch
A push pull type switch located on the
right side
of the handlebar. To stop the
engine
in an emergency, push the but-
ton to the lower
off position and simul-
taneously apply the brakes.
To start en-
gine/ button must
be at the upper on po-
sition.
A017 006 045
13

.A WARNING: For safety reasons,
T the emergency cut-out switch is
easily
~ccessible ; be careful not to
operate it inadvertently. If the switch
~as been used in an emergency situa-
tion the source of malfunction should
be determined and corrected before
restarting engine.
The driver of this vehicle should famil-
iarize himself with the function of this
device
by using it several times on first
outing. Thereby being mentally
prepared
for emergency situations requiring its use.
G) Tether Cut-Out Switch
A pull switch located below the handle-
bar.
Attach tether cord to wrist or other con-
venient location then
snap tether cut-out
c~p over receptacle before starting en-
gine.
If emergency engine
11
Shut off" is re-
qui_red, comple~ely pull cap from safety
sw1tch and eng1ne power will automatic-
ally shut off.
0
NOTE :The cap must be installed
on the safety switch at all times in
order to operate the vehicle.
.A Y'fARNING : If the switch is used
T 1n an emergency situation the
source
of malfunction should be deter-
min~d and corrected before restarting
eng
me.
H) Rewind Starter Handle
J:uto rewin~ type located ·On right hand
s1de of veh1cle. To engage mechanism,
pull handle/ slowly until a resistance
is
felt then pull vigorously.
I) Primer
Pull and push button (2-3 times) to start
a
.col~ engine. Not necessary when en-
gme IS warm.
14 -------------------------
J) Steering Handle
Steering handle height is adjustable/ see
your authorized dealer.
K) Gear Shift Lever
The gear shift lever is located right side
of the dashboard. It
is a 3-position lever :
2 forward and 1 reverse. Pull lever up-
wards before selecting position.
.A WARNING :This snowmobile is
T capable of a fast reverse. Oper-
ator should become familiar
with this
operation by practicing on level ground.
Always apply the brake before shift-
ing and come to a complete stopthen
while holding brake on, change gear:
Ensure
the path behing is clear of ob-
stacles or bystanders. Fast reverse
while turning, could result in loss of
stability.
L) Speedometer/Odometer/
Trip Meter
The speedometer indicates the speed of
the
vehicle in kilometers per hour. Odom-
eter records the total number of kilome-
ters travelled. A trip meter
is also com-
bined with speedometer.

M) Trip Meter Reset Button
The trip meter button is located in dash-
board right to speedometer.
To reset,
turn button clockwise until
all numbers
read zero.
A017 007 018
N) High Beam Pilot Lamp
Lights up when headlamp is on high
beam.
0) Hood Opening
Pull down the latches to unlock the hood
from the anchors. Always lift hood gent-
ly up until stopped
by restraining device.
.A. WARNING : It is dangerous to run
T an engine with the hood opened,
unfastened or removed.
P) Console
To gain access to the engine, carburetor
and spark plugs, pull down the latch and
tip seat over from right, raise rear part
of console then pull rearward.
Raise and pull
rearward
A017 007 019
When installing console to vehicle/ en-
sure to insert console tabs into dash-
board slots.
Slots
Tabs
A017 007 021
15

Fuel Gauge/Tank Cap
Under the hood, the fuel tank cap fea-
tures a built-in needle fuel
level gauge
which indicates the amount of fuel re-
maining
in tank.
•
WARNING: Remove fuel tank
cap slowly. Fuel may be under
pressure
and spray may cause fire and
injuries. Never use open flame to check
fuel level.
A017 002 012
Fuel gauge Itank cap
Seat Compartment
Pull down the latch and tip seat. Ideal
location for spare spark plugs, belt, rope
etc.
Tip seat Latch
16
0
NOTE :Emergency materials should
be wrapped in foam or similar ma-
terial. This will prevent possible damage
to breakable items when travailling over
rough or bumpy terrain.
Battery IFuel Pump Compartment
Battery and fuel pump are located in
front portion of seat compartment.
•
WARNING: Do not store any-
thing
in the battery/fuel pump
compartment.
Fuse Holder
Starting system is protected with 30
amperes rated fuse. Fuse holder is lo-
cated near starter and gearbox. If starter
does
not operate, check fuse condition
and replace
by the same rate if nec-
essary.
A017 004 004
Fuse holder
Hitch
A hook-type hitch is provided to pull
most equipments.
The hitch may be used
fixed or floating depending the type of
equipment towed. This allows smooth
operation when towing a load.

While towing a trailer with a fixed draw
bar, keep the hitch locked. With a float-
ing draw
bar, allow the hitch to move up
and down by removing its locking pin.
A017 007 022
Remove for
floating
use
The locking pin can be installed into hair
pin when the hitch is used floating.
A017 007 024
Locking pin ring
closed over hair
pin
Hair pin
0 NOTE :To maintain the hitch lock-
ed, install the locking pin into hitch
post and place its flat side against the
hitch
plate.
A hair pin is provided to lock the hook
of the hitch.
Hair pin
A017 007 022
• WARNING :Whentowing
any sled
or trailer, always ensure to lock
the hook type attachment with the
hair
pin.
Trailers or sleds towed behing a snow-
mobile should always
be loaded with the
lowest possible center
of gravity. Use a
sled with a rigid draw
bar. When pull-
ing passengers
in a tower vehicle, drive
at moderate speed and avoid rough ter-
rain for their safety. Besides,
have all
passengers get out of the towed vehi-
cle and walk across all roads.
Accessories
Some optional accessories might be ad-
ded to your vehicle such
as horn, hour-
meter, long seat with backrest, linen
cabin kit, tongue type hitch, etc. Ask
your authorized dealer for more in-
formation.
17

BREAK-IN PERIOD ______ _
Engine
With Bombardier-Rotax snowmobile en-
gines, a break-in period
is required be-
fore running the vehicle at full throttle.
Engine manufacturer recommendation
is 10 to 15 operating hours. During this
period, a richer mixture
is needed (i.e.
40 parts of gas for 1 part of BUZZARD
oil). Maximum throttle should not exceed
3/4, however, brief full acceleration and
speed variations contribute to a good
break-in. Continued wide open throttle
accelerations, prolonged cruising
speeds,
and engine over-heating are detrimen-
tal during the break-in period.
.,., CAUTION : Remove and clean
T spark plugs after engine break-in.
Belt
A new drive belt requires a break-in peri-
od
of 25 km (15 miles).
1 0-Hour inspection
As with any precision piece of mechan-
ical equipment, we suggest that after
the first
10 hours of operation or 30 days
after the purchase, whichever comes
first, that your vehicle
be checked by
your authorized dealer. This inspection
will give you the opportunity to discuss
the unanswered quEstions
you may have
encountered during the first hours of
operation.
The 10-hour inspection is at the ex-
pense
of the vehicle owner.
18
