Owner’s Manual
Guide d’utilisation
Manual del propietario
For Customer Service
Pour le service à la clientèle
Servicio al cliente
12V Mechanical Light
Lampe mécanique de 12 V
Luz mecánica de 12 V
Model/ Modelo/ Modèle: LH5537A-00

2
TABLE OF CONTENTS
Important Safety Warnings .......................................3
FCC Caution....................................................4
Symbols .....................................................5-8
Get to Know Your Light...........................................9
Specications ..................................................9
Operating Instructions .......................................10-13
Maintenance...................................................14
Troubleshooting ...............................................14
Limited Warranty of SKIL Consumer Tools..........................15

3
IMPORTANT SAFETY WARNINGS
WARNING Read all safety warnings, instructions, illustrations and specications
provided with this power tool. Failure to follow all instructions listed
below may result in electric shock, re and/or serious injury.
Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to battery pack, picking up or carrying the appliance. Carrying the appliance
with your nger on the switch or energizing appliance that have the switch on invites
accidents.
Disconnect the battery pack from the appliance before making any adjustments,
changing accessories, or storing appliance. Such preventive safety measures reduce the
risk of starting the appliance accidentally.
Recharge only with the charger specified by the manufacturer. A charger that is suitable
for one type of battery pack may create a risk of re when used with another battery pack.
Use appliances only with specifically designated battery packs. Use of any other battery
packs may create a risk of injury and re.
When battery pack is not in use, keep it away from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal objects, that can make a connection
from one terminal to another. Shorting the battery terminals together may cause burns or a
re.
Under abusive conditions, liquid may be ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery may cause irritation or burns.
Do not use a battery pack or appliance that is damaged or modified. Damaged or
modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.
Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to
re or temperature above 265°F (130°C) may cause explosion.
Follow all charging instructions and do not charge the battery pack or appliance
outside of the temperature range specified in the instructions. Charging improperly or at
temperatures outside of the specied range may damage the battery and increase the risk of
re.
Have servicing performed by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the product is maintained.
Do not modify or attempt to repair the appliance or the battery pack except as indicated
in the instructions for use and care.
To reduce the risk of injury, close supervision is necessary when a product is used near
children.
Do not contact hot parts.
Only use attachments recommended or sold by the manufacturer.
Do not use in the rain.
To reduce the risk of electrical shock, do not put the tool in water or other liquid. Do not
place or store product where it can fall or be pulled into a tub or sink.
To reduce the risk of injury, do not stare at operating lamp. Serious eye injury could
occur.
Do not use magnet for horizontal overhead mounting.
To reduce the risk of burns, do not touch hot lens.
To reduce the risk of re, keep away from combustible materials while in operation.

4
FCC CAUTION
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
2. Changes or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
DANGER People with electronic devices, such as pacemakers, should consult
their physician(s) before using this product. Operation of electrical
equipment in close proximity to a heart pacemaker could cause interference or failure
of the pacemaker.

5
SYMBOLS
Safety Symbols
The purpose of safety symbols is to attract your attention to possible dangers. The safety
symbols and the explanations with them deserve your careful attention and understanding.
The symbol warnings do not, by themselves, eliminate any danger. The instructions and
warnings they give are no substitutes for proper accident prevention measures.
WARNING Be sure to read and understand all safety instructions in this Operator’s
Manual, including all safety alert symbols such as “DANGER,”
“WARNING,” and “CAUTION” before using this tool. Failure to following all instructions listed
below may result in electric shock, re, and/or serious personal injury.
The denitions below describe the level of severity for each signal word. Please read the manual
and pay attention to these symbols.
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow this
symbol to avoid possible injury or death.
DANGER DANGER indicates a hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING WARNING indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION CAUTION, used with the safety alert symbol, indicates a hazardous
situation which, if not avoided, will result in minor or moderate injury.
Damage Prevention and Information Messages
These inform the user of important information and/or instructions that could lead to equipment
or other property damage if they are not followed. Each message is preceded by the word
“NOTICE”, as in the example below:
NOTICE: Equipment and/or property damage may result if these instructions are not followed.
WARNING The operation of any power tools can result in foreign
objects being thrown into your eyes, which can result
in severe eye damage. Before beginning power tool operation, always
wear safety goggles or safety glasses with side shields and a full face
shield when needed. We recommend a Wide Vision Safety Mask for use
over eyeglasses or standard safety glasses with side shields. Always
use eye protection which is marked to comply with ANSI Z87.1.

6
SYMBOLS (CONTINUED)
IMPORTANT: Some of the following symbols may be used on your tool. Please study them
and learn their meaning. Proper interpretation of these symbols will allow you to operate the
tool better and more safely.
Symbol Name Designation/Explanation
V Volts Voltage (potential)
AAmperes Current
Hz Hertz Frequency (cycles per second)
WWatt Power
kg Kilograms Weight
min Minutes Time
s Seconds Time
Wh Watt-hours Battery capacity
Ah Ampere-Hours Battery capacity
ØDiameter Size of drill bits, grinding wheels, etc.
n0No load speed Rotational speed, at no load
nRated speed Maximum attainable speed
…/min Revolutions or reciprocation
per minute Revolutions, strokes, surface speed, orbits, etc. per minute
0 Off position Zero speed, zero torque...
1,2,3,…
I,II,III, Selector settings Speed, torque or position settings. Higher
number means greater speed
Innitely variable selector
with off Speed is increasing from 0 setting
Arrow Action in the direction of arrow
Alternating current Type or a characteristic of current
Direct current Type or a characteristic of current
Alternating or direct current Type or a characteristic of current
Class II tool Designates Double Insulated Construction
tools.
Earthing terminal Grounding terminal
Li-ion RBRC seal Designates Li-ion battery recycling
program
Ni-Cad RBRC seal Designates Ni-Cad battery recycling
program

7
Symbol Name Designation/Explanation
Read manual symbol Alerts user to read manual
Wear eye protection symbol Always wear safety goggles or safety glasses with side shields and a full face
shield when operating this product.
Warning symbol Do not stare at operating lamp

8
SYMBOLS (CONTINUED)

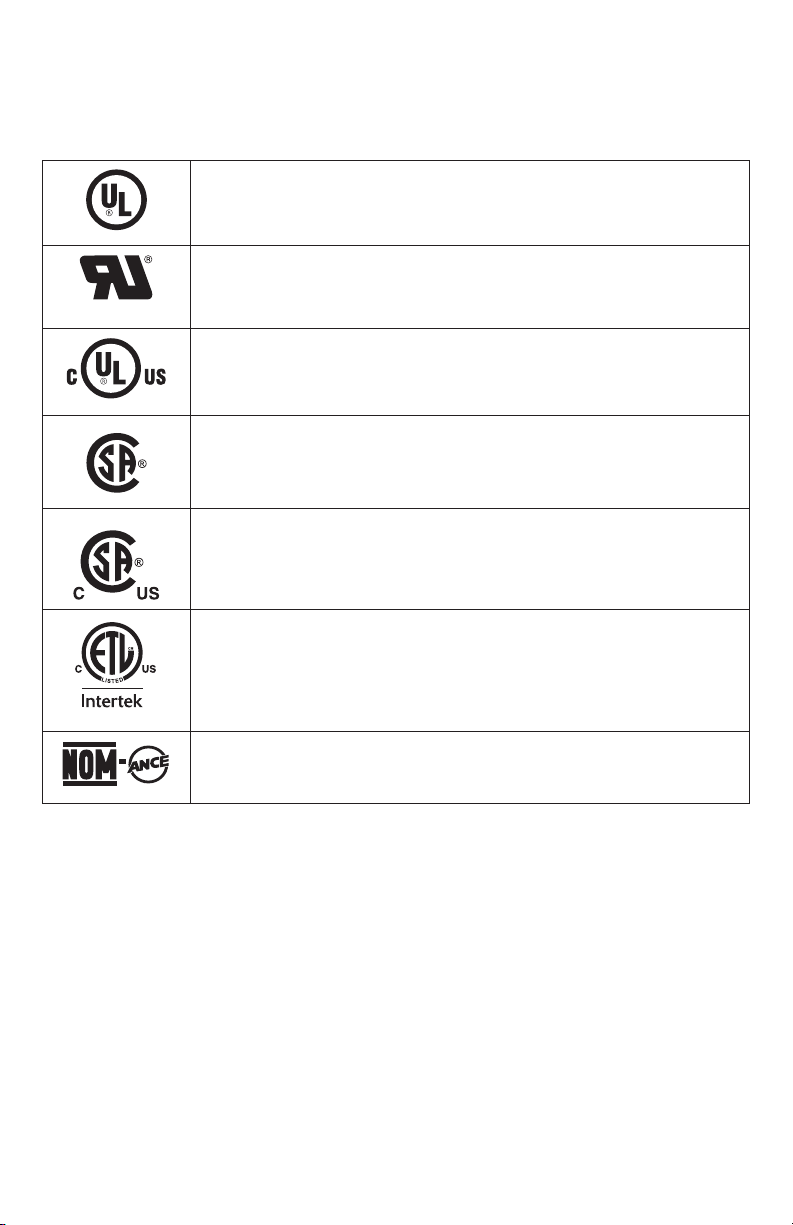

IMPORTANT: Some of the following symbols for certication information may be used on
your tool. Please study them and learn their meaning. Proper interpretation of these symbols
will allow you to operate the tool better and more safely.
This symbol designates that this tool is listed by Underwriters Laboratories.
This symbol designates that this tool is recognized by Underwriters
Laboratories.
This symbol designates that this tool is listed by Underwriters
Laboratories, to United States and Canadian Standards.
This symbol designates that this tool is listed by the Canadian
Standards Association.
This symbol designates that this tool is listed by the Canadian
Standards Association, to United States and Canadian Standards.
This symbol designates that this tool is listed by the Intertek Testing
Services, to United States and Canadian Standards.
This symbol designates that this tool complies to NOM Mexican
Standards.

9
GET TO KNOW YOUR LIGHT
12V Mechanical Light
Fig. 1
Swiveling
Head
Transparent
Cover
ON/OFF
Button
Hinge
Handle
Hanging
Loop
Magnets
Carrying
Hook
SPECIFICATIONS
General
Rated Voltage 12V d.c.
Max. swivel angle 270°
Max. pivot angle 180°
Recommended working temperature 14 ~ 104°F (-10 ~ 40℃)
Recommended storage temperature 32 ~ 104°F (0 ~ 40℃)

10
OPERATING INSTRUCTIONS
WARNING To reduce the risk of fire, personal injury, and product damage due to
a short circuit, never immerse your tool, battery pack or charger in
fluid or allow a fluid to flow inside them. Corrosive or conductive uids, such as seawater,
certain industrial chemicals, and bleach or bleach-containing products, etc. can cause a short
circuit.
WARNING If any parts are damaged or missing, do not operate this product until
the parts are replaced. Use of this product with damaged or missing parts
could result in serious personal injury.
WARNING Do not attempt to modify this tool or create accessories not
recommended for use with this tool. Any such alteration or modication
is misuse and could result in a hazardous condition leading to possible serious injury.
WARNING To prevent accidental starting that could cause serious personal
injury, always remove the battery pack from the tool when assembling
parts, making adjustments, cleaning, or performing maintenance.
This mechanical light must be used only with the battery packs and chargers listed
below:
Battery Pack Charger
2Ah 4Ah
SKIL BY500101
SKIL BY519901 SKIL BY519801 SKIL QC535701 SKIL SC536501
NOTICE: Please refer to the battery pack and charger manuals for detailed operating information.

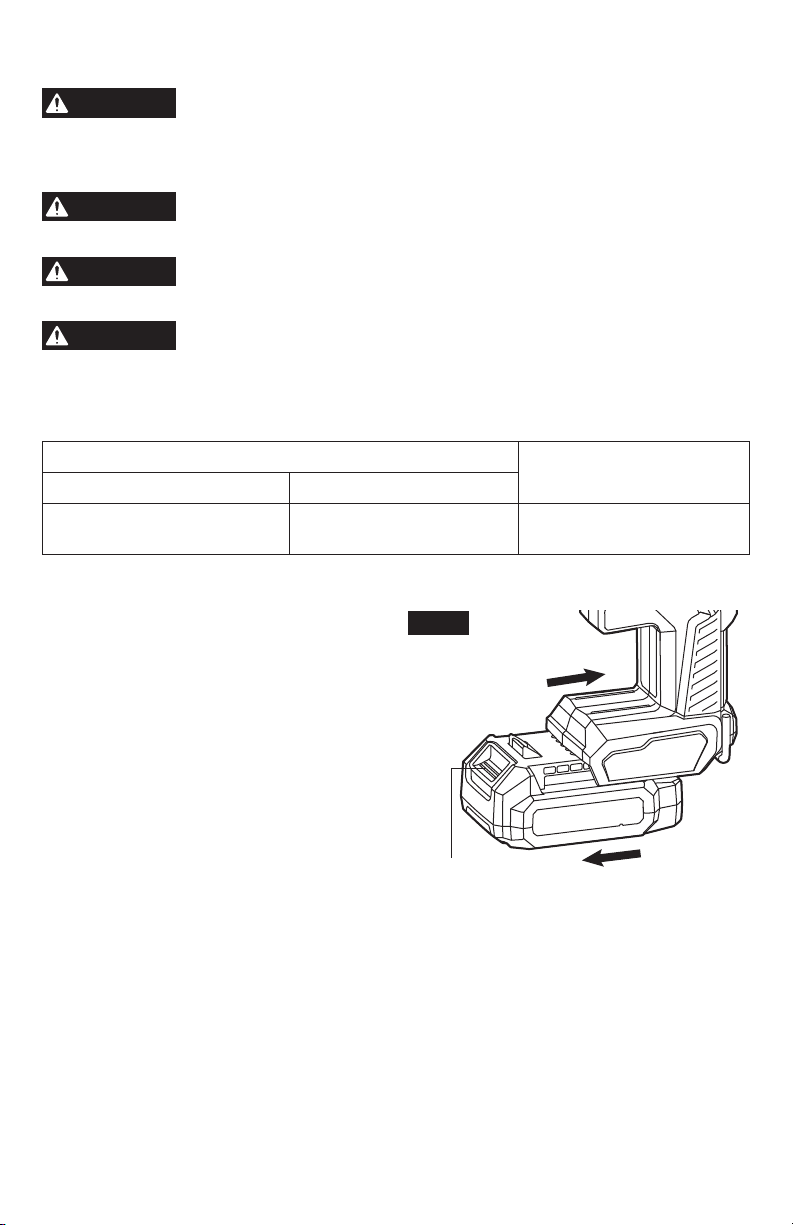

To Attach/Detach Battery Pack
(Fig.2)
To attach the battery pack:
Align the raised rib on the battery pack with the
grooves of the tool, and then slide the battery
pack onto the tool.
To detach the battery pack:
Depress the battery-release button, located
on the front of the battery pack, to release the
battery pack. Pull the battery pack out and
remove it from the tool.
NOTICE: When placing the battery pack on the
tool, be sure that the raised rib on the battery
pack aligns with the groove inside the tool and
that the latches snap into place properly. Improper attachment of the battery pack can cause
damage to internal components.
Fig. 2
Attach
Detach
Battery-Release
Button

11
Two-Stage Brightness Adjustment
and Strobe Setting Controlled by
ON/ OFF Button (Fig.3)
Your tool is equipped with a two-stage
brightness adjustment, providing different light
intensities for your operation.
a. Depress the ON/OFF button to turn on the
light: the light is in the high light mode.
b. Depress the ON/OFF button again to change
to the low light mode.
c. Depress a third time to turn the light off.
Strobe setting
Press and hold the ON/OFF Button for about
2 seconds to activate the strobe setting. Press
the ON/OFF Button again to skip the strobe setting and back to the last operating status.
Adjusting the Light Head (Fig. 4a,4b)
The light head can be pivoted vertically 180° or swiveled horizontally 270° for maximum
exibility. Manually move the head to any position within its range. Do not force the head
beyond that range.
Fig. 4a
MAX:180o
Fig. 4b MAX:270o
Fig. 3
ON/OFF Button

12
Hanging Loop, Carrying Hook, Magnets and Clamp
Using the hanging loop, carrying hook, magnets and clamp, the light can be placed in multiple
locations for ideal lighting.
Hanging loop (Fig.5)
Your tool is equipped with a hanging loop,
located on the top of the light. It can be hung to
an object with this loop, such as a hook, a screw,
a sling, a carabiner, etc.
Carrying hook
Your tool is also equipped with a carrying hook.
You can use the carrying hook to hang the light
from a secured object, such as a rod, especially,
a hood on the engine cover of your car.
To use the carrying hook, release it from the
storage place (Fig.6).
To store the carrying hook when it is not in use,
press it down until it is locked in placed with a
“click” sound (Fig.6).
Fig. 5
Fig. 6

13
Magnets (Fig.7)
Attach the mechanical light to ferromagnetic
area with the integrated magnets.
Clamp (Fig.8)
An opening between the protruding part and the
foot of your light serves as a clamp throat, it may
be used for clamping the light to a 2×4 lumber or
other objects with the same dimension.
WARNING When the light is hung by
the hanging loop, carrying
hook, magnets, or clamp, do not shake the light
or the object that it is hanging from. Do not hang
the light from any electrical wires or anything that
it is not secure. Personal injury or property
damage may occur. Only use the hanging loop,
carrying hook, magnet, or clamp for hanging the
light. Using the hanging loop, carrying hook,
clamp, or integrated magnets to hang anything
else could lead to serious injury. Do not use the
magnets, hanging hook, carrying loop or clamp to reach another object or use the magnets,
hanging hook, carrying loop or clamp to support your weight in any situation.
Fig. 7
Fig. 8
2x4 Lumber
Protrusion
Foot
Opening

14
MAINTENANCE
WARNING To avoid serious personal injury, always remove the battery pack
from the tool when cleaning or performing any maintenance.
Service
WARNING Preventive maintenance performed by unauthorized personnel may
result in misplacing of internal wires and components which could
cause a serious hazard. We recommend that all tool service be performed by a SKIL Factory
Service Center or Authorized SKIL Service Station.
General Maintenance
WARNING When servicing, use only identical replacement parts. Use of any
other parts could create a hazard or cause product damage.
Periodically inspect the entire product for damaged, missing, or loose parts such as screws,
nuts, bolts, caps, etc. Tighten securely all fasteners and caps and do not operate this product
until all missing or damaged parts are replaced. Please contact customer service or an
authorized service center for assistance.
Cleaning
WARNING The tool may be cleaned most effectively with compressed dry air.
Always wear safety goggles when cleaning tools with compressed
air. Ventilation openings and switch levers must be kept clean and free of foreign matter. Do
not attempt to clean by inserting pointed objects through openings.
WARNING Certain cleaning agents and solvents damage plastic parts. Some of
these are: gasoline, carbon tetrachloride, chlorinated cleaning solvents,
ammonia and household detergents that contain ammonia.
Storage
Store the tool indoors in a place that is inaccessible to children. Keep away from corrosive
agents.
TROUBLESHOOTING
Problem Cause Remedy
Light does not illuminate.
1. The battery is depleted. 1. Charge the battery.
2. The battery pack is not
installed properly. 2. Conrm that battery is properly secured to the
tool.
3. The switch is
malfunctioning. 3. Contact an Authorized SKIL Service Center or Service
Station.

15
LIMITED WARRANTY FOR SKIL CONSUMER TOOLS
5 YEAR LIMITED WARRANTY- LEGAL
Chervon North America, Inc. (“Seller”) warrants to the original purchaser only, that all SKIL
consumer TOOLS will be free from defects in material or workmanship for a period of ve
years from date of purchase, if original purchaser registers the product within 30 days from
purchase. BATTERIES AND CHARGERS are warranted for 2 years. Product registration
can be completed online at www.Registermyskil.com. Original purchasers should also retain
their receipt as proof of purchase. THE FIVE-YEAR WARRANTY PERIOD FOR TOOLS IS
CONDITIONED ON REGISTRATION OF THE PRODUCT WITHIN 30 DAYS OF PURCHASE.
If original purchasers do not register their product timely, the foregoing limited warranty will
apply for a duration of three years for tools. All batteries and chargers will remain under the
two-year limited warranty.
Notwithstanding the foregoing, if a SKIL consumer tool is used for industrial, professional
or commercial purposes, the foregoing warranty will apply for a duration of ninety days,
regardless of registration.
SELLER’S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited
Warranty and, to the extent permitted by law, any warranty or condition implied by law, shall
be the repair or replacement of parts, without charge, which are defective in material or
workmanship and which have not been misused, carelessly handled, or repaired by persons
other than Seller or Authorized Service Station. To make a claim under this Limited Warranty,
you must return the complete product, transportation prepaid, to any SKIL Factory Service
Center or Authorized Service Station. For Authorized SKIL Power Tool Service Stations,
please visit www.Registermyskil.com or call 1-877-SKIL-999 (1-877-754-5999).
THIS LIMITED WARRANTY DOES NOT APPLY TO ACCESSORY ITEMS SUCH AS
CIRCULAR SAW BLADES, DRILL BITS, ROUTER BITS, JIGSAW BLADES, SANDING
BELTS, GRINDING WHEELS AND OTHER RELATED ITEMS.
ANY IMPLIED WARRANTIES APPLICABLE TO A PRODUCT SHALL BE LIMITED IN
DURATION EQUAL TO THE DURATION OF THE EXPRESS WARRANTIES APPLICABLE
TO SUCH PRODUCT, AS SET FORTH IN THE FIRST PARAGRAPH ABOVE. SOME STATES
IN THE U.S., SOME CANADIAN PROVINCES DO NOT ALLOW LIMITATIONS ON HOW
LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO
YOU.
IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES (INCLUDING BUT NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS)
ARISING FROM THE SALE OR USE OF THIS PRODUCT. SOME STATES IN THE U.S.
AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO YOU.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO
HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE IN THE U.S., PROVINCE
TO PROVINCE IN CANADA AND FROM COUNTRY TO COUNTRY.
THIS LIMITED WARRANTY APPLIES ONLY TO PRODUCTS SOLD WITHIN THE UNITED
STATES OF AMERICA, CANADA AND THE COMMONWEALTH OF PUERTO RICO. FOR
WARRANTY COVERAGE WITHIN OTHER COUNTRIES, CONTACT YOUR LOCAL SKIL
DEALER OR IMPORTER.
© Chervon North America, 1203 E. Warrenville Rd, Naperville, IL 60563.
07/20

16
TABLE DES MATIÈRES
Avertissements importants pour la sécurité .....................17-18
Mise en garde de la FCC ........................................18
Symboles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-22
Familiarisez-vous avec votre lampe ...............................23
Spécications .................................................23
Mode d’emploi .............................................24-27
Maintenance ..................................................28
Recherche de la cause des problèmes ............................29
Garantie limitée des outils grand public SKIL ....................30-31

17
AVERTISSEMENTS DE SÉCURITÉ IMPORTANTS
AVERTISSEMENT Lisez tous les avertissements, instructions, illustrations et
spécifications fournis avec cet outil électrique. Le
nonrespect des consignes de sécurité ci-dessous peut occasionner un choc électrique, un
incendie ou des blessures graves.
Prenez des mesures afin d’éviter que l’outil se mette en marche accidentellement.
Assurez-vous que l’interrupteur est en position d’arrêt avant de connecter l’appareil
au bloc-piles, de le prendre ou de le transporter. Transporter l’appareil avec le doigt sur la
gâchette ou brancher un appareil lorsque l’interrupteur est à la position de marche augmente
les risques d’accident.
Retirez le bloc-piles de l’outil électrique avant d’effectuer des réglages, de changer des
accessoires ou de le ranger. Ces mesures de sécurité préventives réduisent les risques de
mise en marche accidentelle de l’outil électrique.
N’exposez pas les outils électriques à la pluie ni à tout environnement humide.
L’inltration d’eau dans un outil électrique augmente les risques de décharge électrique.
Utilisez les appareils uniquement avec les blocs-piles qui leur sont destinés. L’utilisation
de tout autre bloc-piles peut constituer un risque de blessure et d’incendie.
Rechargez uniquement le bloc-piles au moyen du chargeur approuvé par le fabricant.
Un chargeur conçu pour un type de bloc-piles peut causer un incendie s’il est utilisé avec un
autre blocpiles.
Utilisez les outils électriques uniquement avec les blocs-piles désignés. L’utilisation de
tout autre bloc-piles peut constituer un risque de blessure et d’incendie
N’utilisez pas un bloc-piles ou un appareil endommagé ou modifié. Les blocs-piles
modiés ou endommagés peuvent fonctionner de façon imprévisible et représenter un risque
d’incendie, d’explosion ou de blessures.
N’exposez pas un bloc-piles ou un appareil à un feu ou à une température excessive.
L’exposition au feu ou à une température supérieure à 130 °C (265 °F) peut provoquer une
explosion.
Suivez toutes les instructions pour le chargement et ne chargez pas le bloc-piles ou
l’appareil en dehors de la plage de température spécifiée dans les instructions. Une
recharge inadéquate ou effectuée à des températures en dehors de la plage spéciée peut
endommager le bloc-piles et augmenter le risque d’incendie.
Demandez à un technicien qualifié qui utilise seulement des pièces de rechange
identiques aux pièces d’origine d’effectuer l’entretien de l’appareil. Vous vous assurerez
ainsi que l’article demeure sécuritaire.
Ne tentez pas de modifier ni de réparer l’appareil ou le bloc-piles, sauf comme indiqué
dans les instructions pour l’utilisation et l’entretien.
Lorsqu’un article est utilisé en présence d’enfants, une surveillance étroite doit être
exercée afin de réduire les risques de blessure.
Ne touchez pas aux composants chauds.
N’utilisez que des pièces recommandées ou vendues par le fabricant.
N’utilisez pas l’appareil sous la pluie.
Afin de diminuer les risques de décharge électrique, n’exposez pas l’outil à l’eau ni à
aucun autre liquide. Ne placez pas ou ne rangez pas l’article à un endroit où il pourrait
tomber ou être entraîné dans une baignoire ou un évier.

18
Afin de réduire les risques de blessure, ne regardez pas directement la lampe en
fonctionnement. Cela pourrait causer de graves blessures aux yeux.
N’utilisez pas d’aimant pour monter l’appareil horizontalement en hauteur.
Afin de réduire les risques de brûlure, ne touchez pas à la lentille lorsqu’elle est
chaude.
Afin de réduire les risques d’incendie, gardez l’appareil à l’écart des matériaux
combustibles pendant qu’il fonctionne.
MISE EN GARDE DE LA FCC (COMMISSION FÉDÉRALE DES
COMMUNICATIONS DES ÉTATS-UNIS)
1. Cet appareil est conforme à la partie 15 des règlements de la FCC. Son utilisation est
soumise aux deux conditions suivantes :
(1) Cet appareil ne doit provoquer aucune interférence nuisible.
(2) Cet appareil doit accepter toute interférence reçue, y compris des interférences
susceptibles de causer un fonctionnement non désiré.
2. Les modications non autorisées expressément par la partie responsable de la conformité
peuvent annuler le droit de l’utilisateur de se servir de cet appareil.
REMARQUE: Cet équipement a été testé et a été déclaré conforme aux restrictions pour
dispositifs numériques de classe B en vertu de la partie 15 des règles de la FCC. Ces limites
sont destinées à assurer une protection raisonnable contre les interférences nuisibles dans
un environnement résidentiel. Cet équipement génère, utilise et peut émettre de l’énergie de
fréquence radio et, s’il n’est pas installé et utilisé conformément aux instructions, il peut causer
une interférence nuisible aux radiocommunications. Cependant, tout risque d’interférence ne
peut être totalement exclu. S’il constate des interférences lors de la réception d’émissions de
radio ou de télévision (il suft, pour le vérier, d’allumer et d’éteindre successivement l’appareil),
l’utilisateur devra prendre les mesures nécessaires pour les éliminer. À cette n, il devra :
• réorienter ou déplacer l’antenne réceptrice;
• accroître la distance entre l’appareil et le récepteur;
• brancher l’appareil sur une prise de courant appartenant à un autre circuit que celui du
récepteur;
• obtenir de l’aide auprès du détaillant ou d’un technicien en radio ou en télévision
expérimenté.
DANGER Les personnes qui portent des dispositifs électroniques, comme un
stimulateur cardiaque, doivent consulter leur médecin avant d’utiliser
l’appareil. L’utilisation d’équipement électrique à proximité d’un stimulateur cardiaque
peut causer des interférences et l’arrêt du stimulateur.

19
SYMBOLES
Symboles de sécurité
L’objectif des symboles de sécurité est d’attirer votre attention sur les dangers potentiels. Vous
devez examiner attentivement et bien comprendre les symboles de sécurité et les explications
qui les accompagnent. Les symboles d’avertissement en tant que tels n’éliminent pas le
danger. Les consignes et les avertissements qui y sont associés ne remplacent en aucun cas
les mesures préventives adéquates.
AVERTISSEMENT Avant d’utiliser cet appareil, assurez-vous de lire et de
comprendre toutes les consignes de sécurité présentées dans
le présent guide d’utilisation, notamment toutes les consignes de sécurité indiquées par
«DANGER», « AVERTISSEMENT » et « ATTENTION ». Le fait de ne pas respecter toutes
les consignes de sécurité ci-dessous peut causer un choc électrique, un incendie ou des
blessures graves.
Les dénitions ci-dessous décrivent le degré de gravité pour chaque mot-indicateur. Veuillez
vous assurer de lire ce manuel et de prêter attention à ces symboles.
Voici le pictogramme d’alerte de sécurité. Il sert à vous
indiquer les risques potentiels de blessures. Respectez
toutes les consignes de sécurité associées à ce
pictogramme pour éviter les risques de blessures ou de
mort.
DANGER DANGER indique un danger imminent qui, s’il n’est pas
évité, causera des blessures graves ou la mort.
AVERTISSEMENT AVERTISSEMENT indique un risque pouvant entraîner des
blessures graves ou la mort s’il n’est pas prévenu.
ATTENTION
ATTENTION, utilisée avec le symbole d’alerte de sécurité,
indique un risque potentiel qui, s’il n’est pas éliminé,
provoquera des blessures mineures ou moyennement
graves.
Messages d’information et de prévention des dommages
Ces messages fournissent à l’utilisateur de l’information et des consignes importantes. Les
ignorer pourrait occasionner des dommages à l’équipement ou d’autres dommages matériels.
Le mot « REMARQUE » précède chaque message, comme dans l’exemple ci-dessous :
REMARQUE: Ne pas suivre ces consignes pourrait occasionner des dommages à
l’équipement ou d’autres dommages matériels.
AVERTISSEMENT L’utilisation de tout outil électrique peut
entraîner la projection de corps étrangers
dans les yeux et ainsi causer des lésions oculaires graves. Avant
d’utiliser un outil électrique, veillez à toujours porter des lunettes de
sécurité couvrantes ou à écrans latéraux, ou un masque complet au
besoin. Nous recommandons le port d’un masque de sécurité
panoramique par-dessus les lunettes de vue ou de lunettes de sécurité
standard avec écrans latéraux. Portez toujours des lunettes de sécurité
conformes à la norme ANSI Z87.1.

20
SYMBOLES (SUITE)
IMPORTANT: Les symboles suivants peuvent gurer sur votre outil. Familiarisez-vous avec
eux et apprenez leur signication. En comprenant ces symboles, vous serez en mesure de
faire fonctionner cet outil de façon adéquate et sécuritaire.
Symbole Nom Forme au long et explication
V Volts Tension (possible)
AAmpère Courant
Hz Hertz Fréquence (cycles par seconde)
WWatt Puissance
kg Kilogrammes Poids
min Minutes Durée
s Secondes Durée
Wh Wattheures Capacité de la pile
Ah Ampères-heures Capacité de la pile
ØDiamètre Taille des forets, des meules, etc.
n0Vitesse à vide Vitesse de rotation à vide
nVitesse nominale Vitesse maximale atteignable
…/min Tours ou va-et-vient par
minute Tours, coups, vitesse périphérique, de la course, etc. par minute
0 Position d’arrêt Vitesse nulle, couple nul...
1,2,3,…
I,II,III, Réglages du sélecteur Réglages de vitesse, de couple ou de
position. Plus le chiffre est élevé, plus la
vitesse est rapide
Sélecteur à réglages innis
avec mode d’arrêt La vitesse augmente à partir du réglage 0
Flèche L’activation se fait dans le sens de la
èche
Courant alternatif Type de courant ou caractéristique de
courant
Courant continu Type de courant ou caractéristique de
courant
Courant alternatif ou continu Type de courant ou caractéristique de
courant
Appareil de classe II Désigne les outils de construction à
double isolation.
Borne de mise à la terre Borne de mise à la terre
