Skil Masters 3855 User manual

ORIGINAL INSTRUCTIONS 16
NOTICE ORIGINALE 20
ORIGINALBETRIEBSANLEITUNG 26
ORIGINELE GEBRUIKSAANWIJZING 32
BRUKSANVISNING I ORIGINAL 38
ORIGINAL BRUGSANVISNING 43
ORIGINAL BRUKSANVISNING 48
ALKUPERÄISET OHJEET 53
MANUAL ORIGINAL 58
MANUAL ORIGINAL 64
ISTRUZIONI ORIGINALI 69
EREDETI HASZNÁLATI UTASÍTÁS 75
PŮVODNÍM NÁVODEM K POUŽÍVÁNÍ 80
ORİJİNAL İŞLETME TALİMATI 85
INSTRUKCJA ORYGINALNA 91
ПОДЛИННИК РУКОВОДСТВА
ПО ЭКСПЛУАТАЦИИ 97
ОРИГІНАЛЬНА ІНСТРУКЦІЯ
З ЕКСПЛУАТАЦІЇ 103
ΠΡΩΤΟΤΥΠΟ Ο∆ΗΓΙΩΝ ΧΡΗΣΗΣ 109
INSTRUCŢIUNI DE FOLOSIRE
ORIGINALE 115
ОРИГИНАЛНО РЪКОВОДСТВО
ЗА ЕКСПЛОАТАЦИЯ 121
PÔVODNÝ NÁVOD NA POUŽITIE 127
ORIGINALNE UPUTE ZA RAD 132
ORIGINALNO UPUTSTVO ZA RAD 137
IZVIRNA NAVODILA 142
ALGUPÄRANE KASUTUSJUHEND 147
ORIĢINĀLĀ LIETOŠANAS PAMĀCĪBA 153
ORIGINALI INSTRUKCIJA 158
AR
FA
173
AR
FA
169
SKIL Europe BV - Konijnenberg 60 11/10 2610Z00731
4825 BD Breda - The Netherlands
SLIDING MITRE SAW
3855 (F0153855..)
GB
F
D
NL
S
DK
N
FIN
E
P
I
H
CZ
TR
PL
RU
UA
GR
RO
BG
SK
HR
SRB
SLO
EST
LV
LT
AR
FA
GB
F
D
NL
S
DK
N
FIN
E
P
I
H
CZ
TR
PL
RU
UA
GR
RO
BG
SK
HR
SRB
SLO
EST
LV
LT
AR
FA
www.skilmasters.com

2
2 3
14,4 kg
EPTA 01/2003
5000 /min
RUBBER
216 mm
MAX.
30 mm
216 mm
MIN.
30 mm
Watt
1500
4
MAX mm 0°
0°
305
65
MAX mm 45°
0°
65
215
MAX mm
45°
0°
305
30
MAX mm
45°
45°
30
215
2,0 - 3,2 mm
1,4 - 2,2 mm
13855

3
P1 Q1
D
BE
T2
A
N
R
K
H
W6
S
W
W1
J
J
F
F
X G
L
V
M J1
J1
W4
M1
T1
5a

4
C
90º
W2
C
Y
N1
P
Q
5b
6

5
NOT INCLUDED
F
G
NOT INCLUDED
7a
7b

6
H
ø 35 mm
8
J1J
9
K1
K2
L
K3
K4
K4
K5
K6
0a0b

7
M
M1

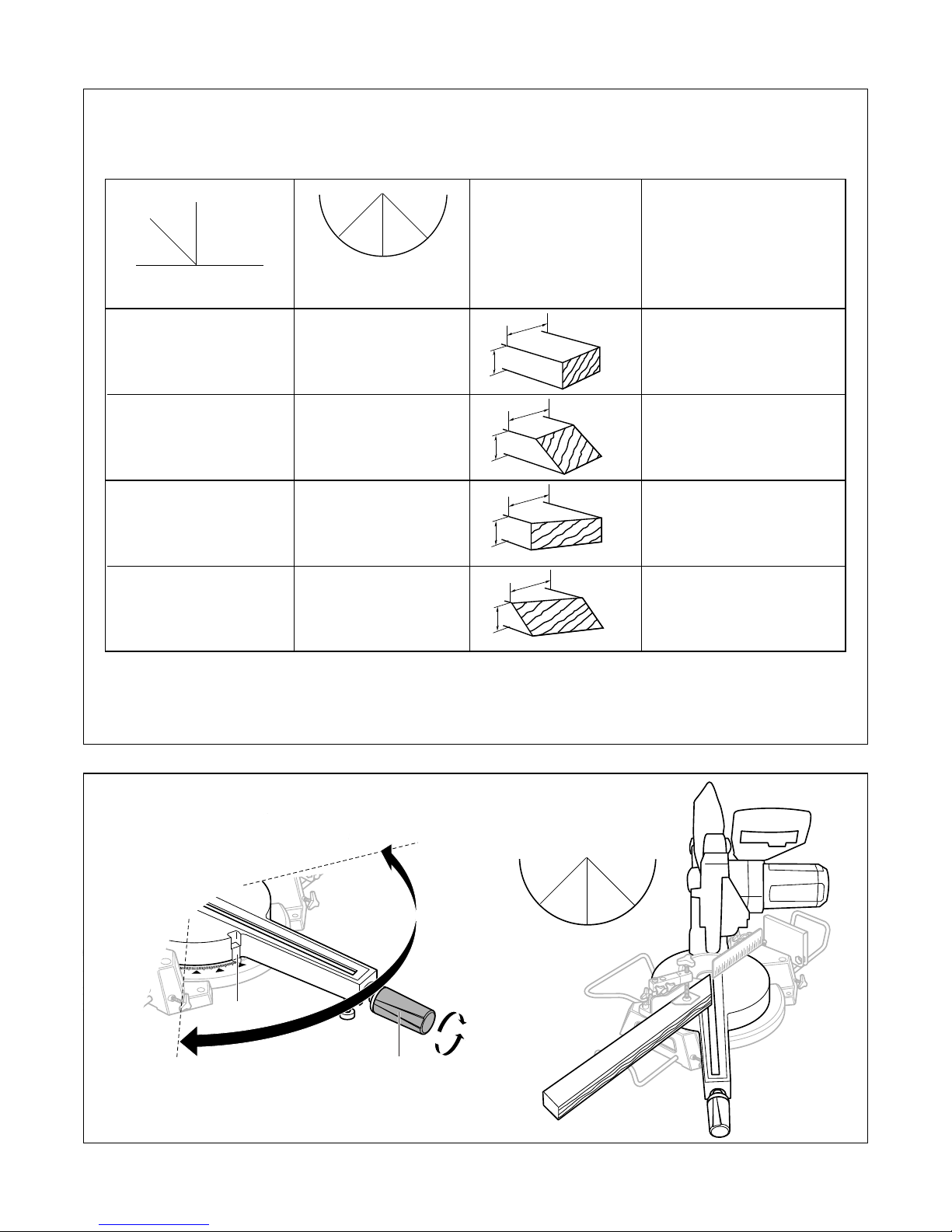

Max A x Max B
65 x 305 mm
0° 0°
45° 0°
0° 45°
45° 45°
30 x 305 mm
65 x 215 mm
30 x 215 mm
0°
0°
45° 45°
45°
B
A0°
0°
B
A45°
0°
B
A0°
45°
B
A45°
45°
!
0º
47º 47º
@

8
#
0º
45º
NN1
0º
45º
0º
45º 45º +
$

9
Q1
CLASS 2 LASER
LASER RADIATION
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
P max < 1mW, λ=650nm
IEC/EN 60825-1: 2007
A
P1
^
%

10
&a
D S
B
R
&b

11
*
R
T1
T2
T3
V
V1
)
(

12
W3
W5
W4
W
W3
W4
360º
W2
W W1
W6
¡ab
cd
e f

13
5x
™
N2
N1
NOT INCLUDED
4 mm
NOT INCLUDED
0º
N
£

14
L1
L1
L1
L1
L
W
∞
≤
45º
N3
N1
NOT INCLUDED
4 mm
NOT INCLUDED
N

15
≥
•
§

16

Sliding mitre saw 3855
INTRODUCTION
• This tool is intended as a stationary machine for
lengthways and crossways cutting of wood with straight
cuts as well as angle cuts (horizontal mitre angles of -47°
to +47° as well as vertical bevel angles of 0° to 45° are
possible)
• Read and save this instruction manual 2
• The sequence of the numbers appearing in the
separate assembly instruction sheet corresponds
with the sequence of the steps to be followed for
assembling the tool
• Only use the tool when correctly and completely
assembled (be aware that Skil cannot be hold
responsible for tool damage and/or personal injuries
resulting from the incorrect assembly of the tool)
• Before using the tool for the rst time, paste the supplied
sticker in your national language over the English text of
warning label A 5

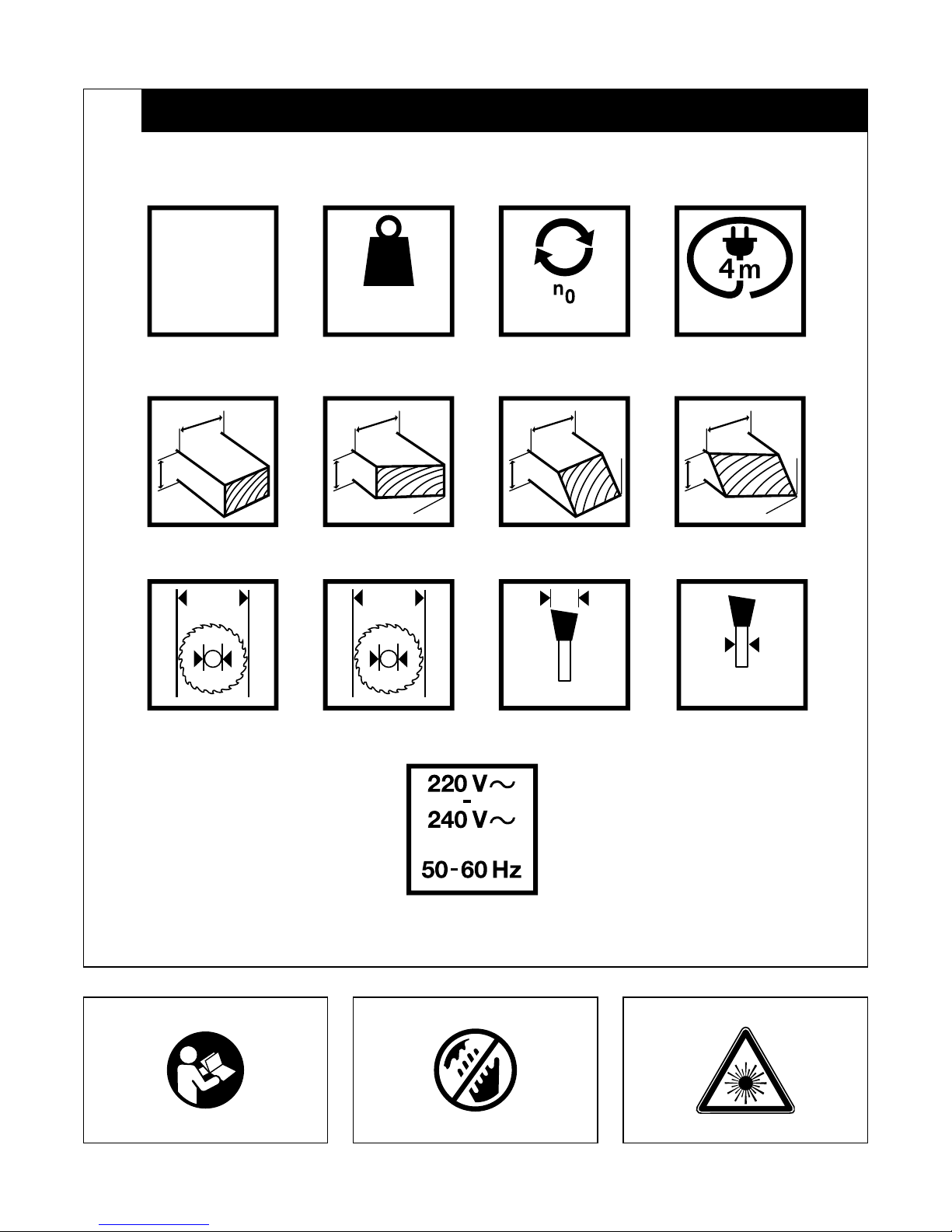

TECHNICAL SPECIFICATIONS 1

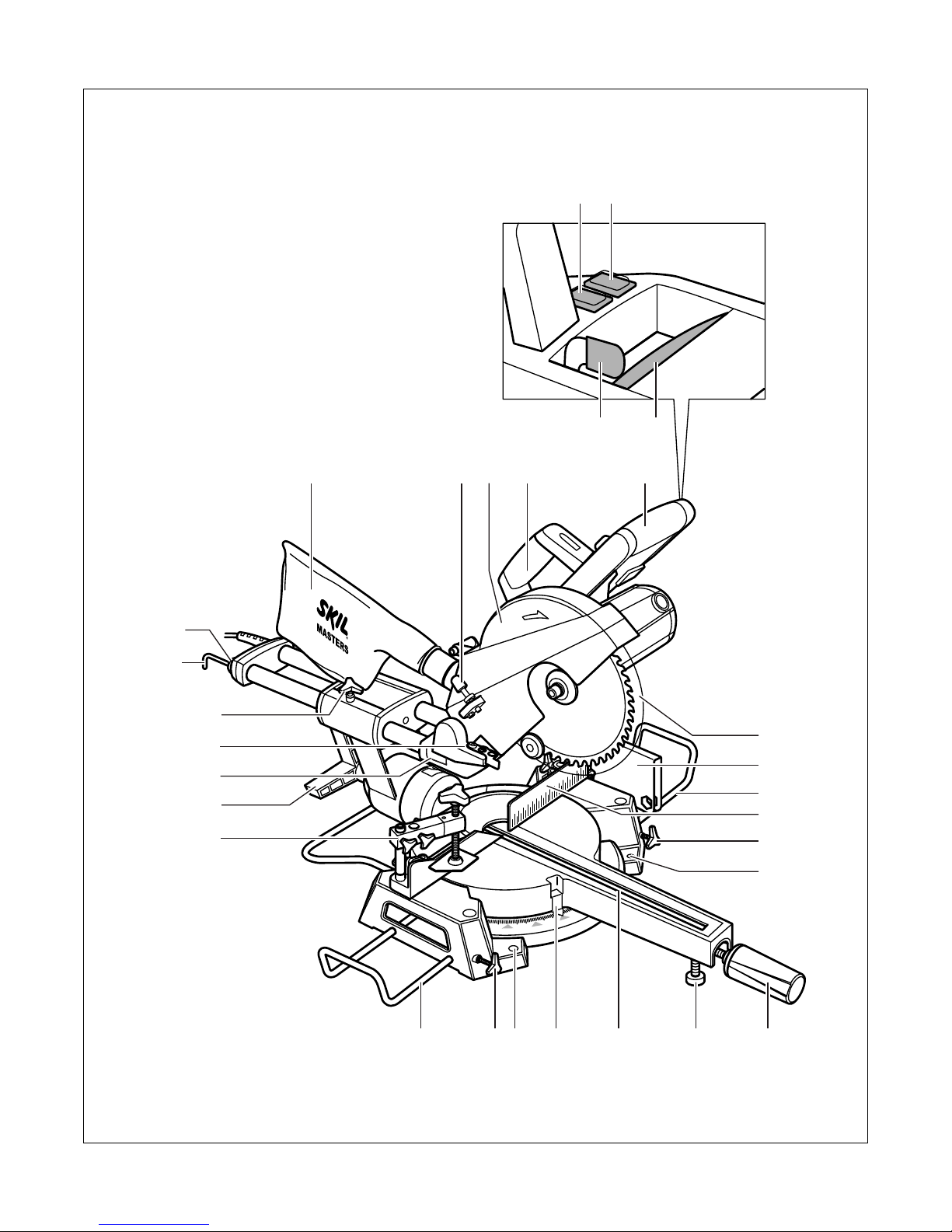

TOOL ELEMENTS 5
AWarning label
B Switch handle
C Locking pin for transport
D Safety lever
ETransport handle

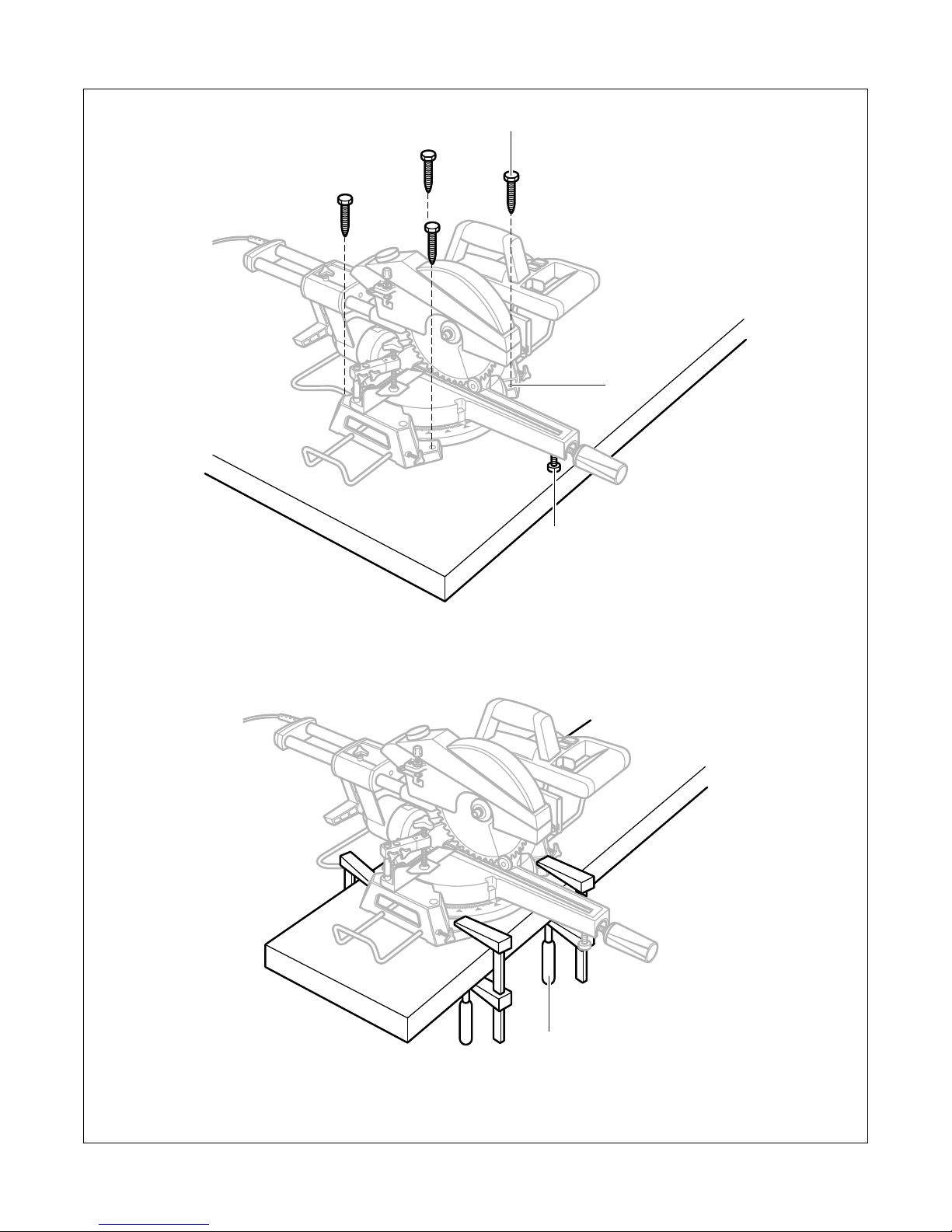

FMounting holes
GSupport foot

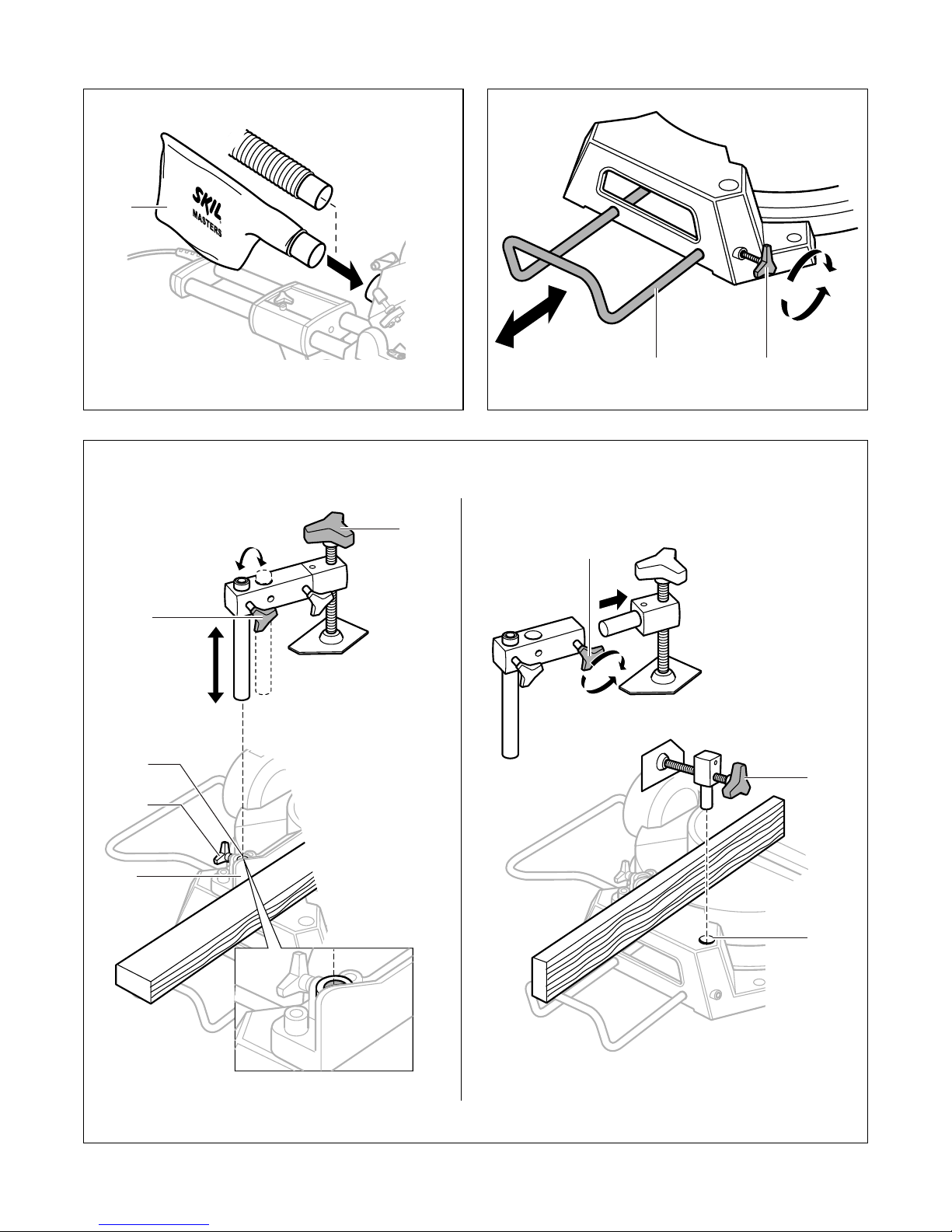

HDust bag
J Extension bars
J1 Knobs for locking extension bars
K Clamp for mounting workpiece
L Fence

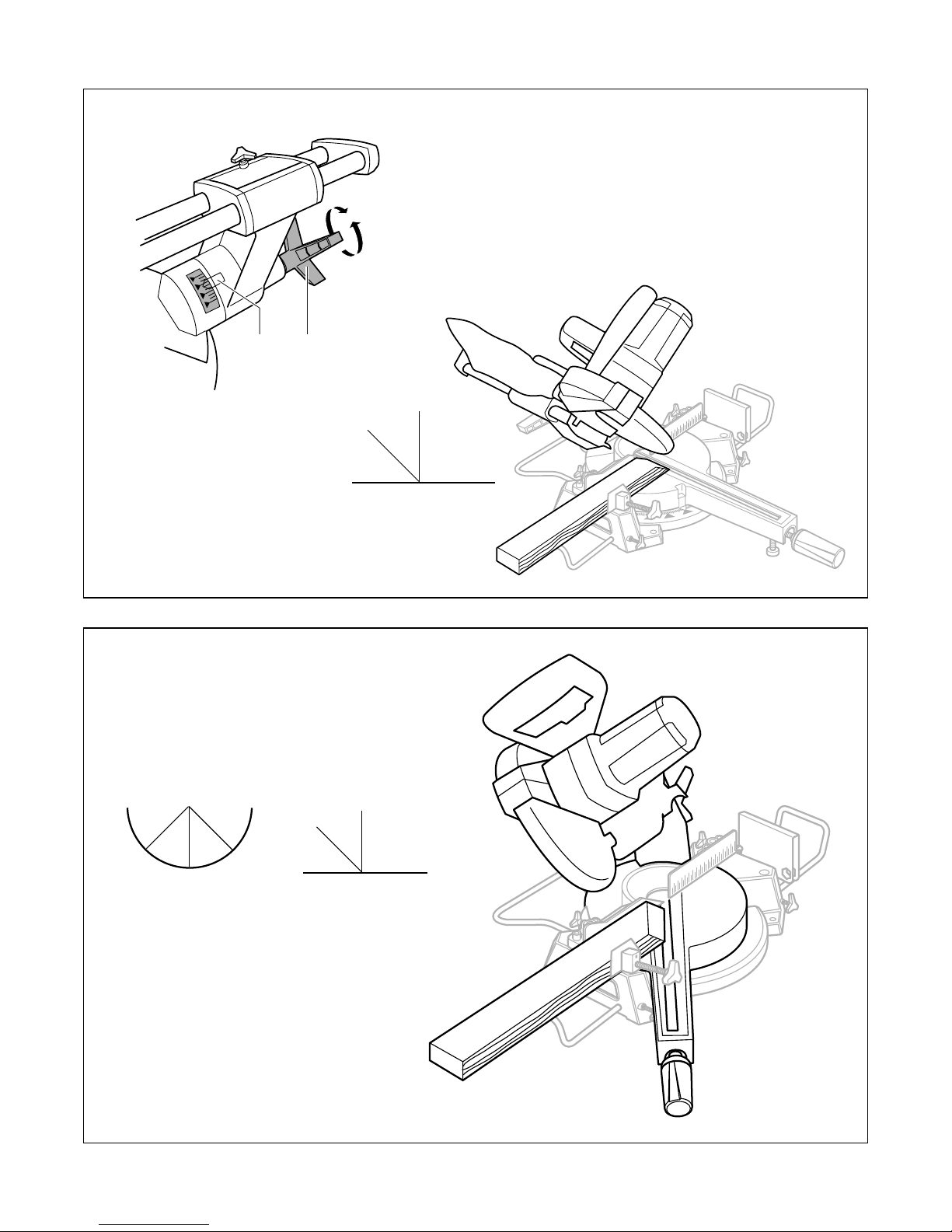

M Locking handle (mitre angles)
M1 Mitre angle indicator

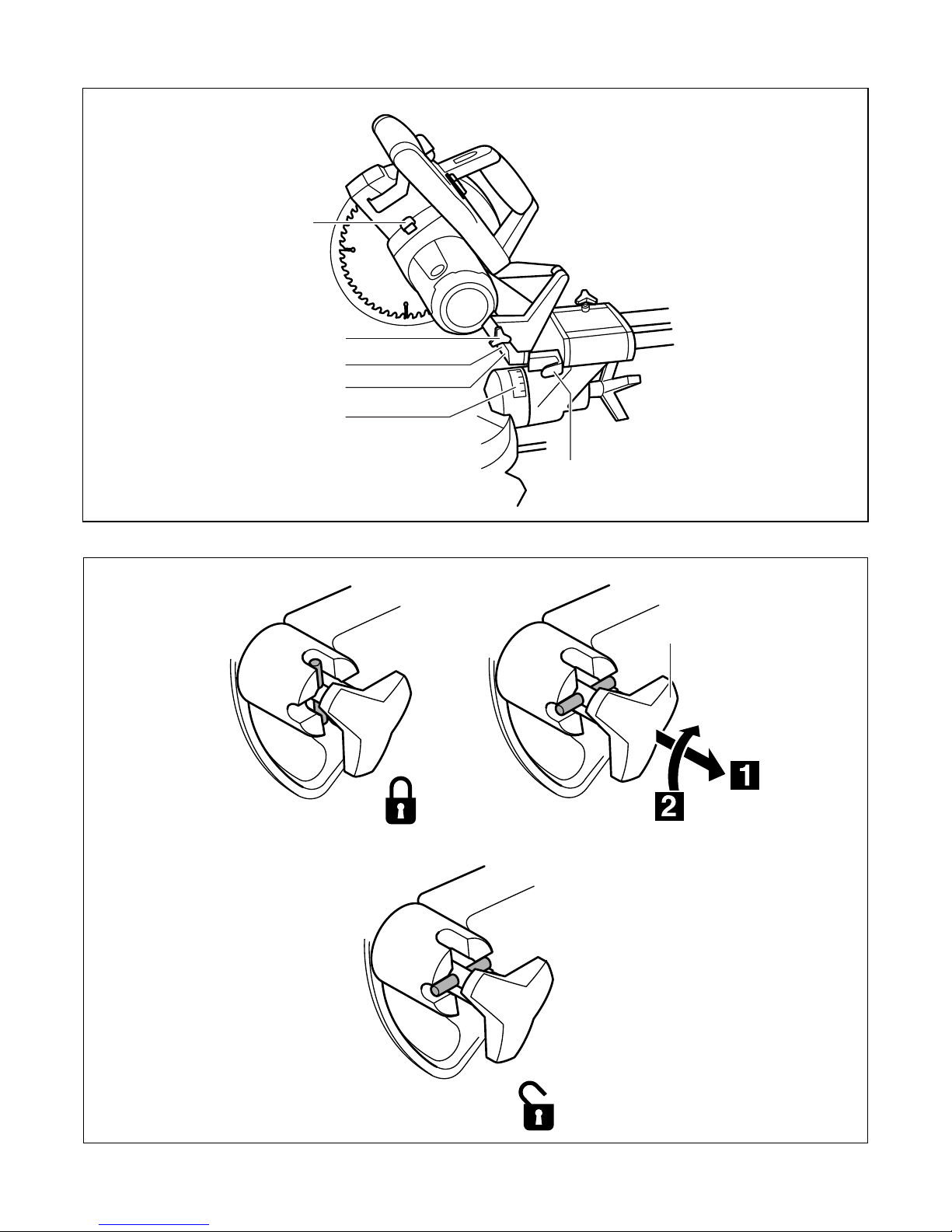

N Locking knob (bevel angles)
N1 Bevel angle indicator

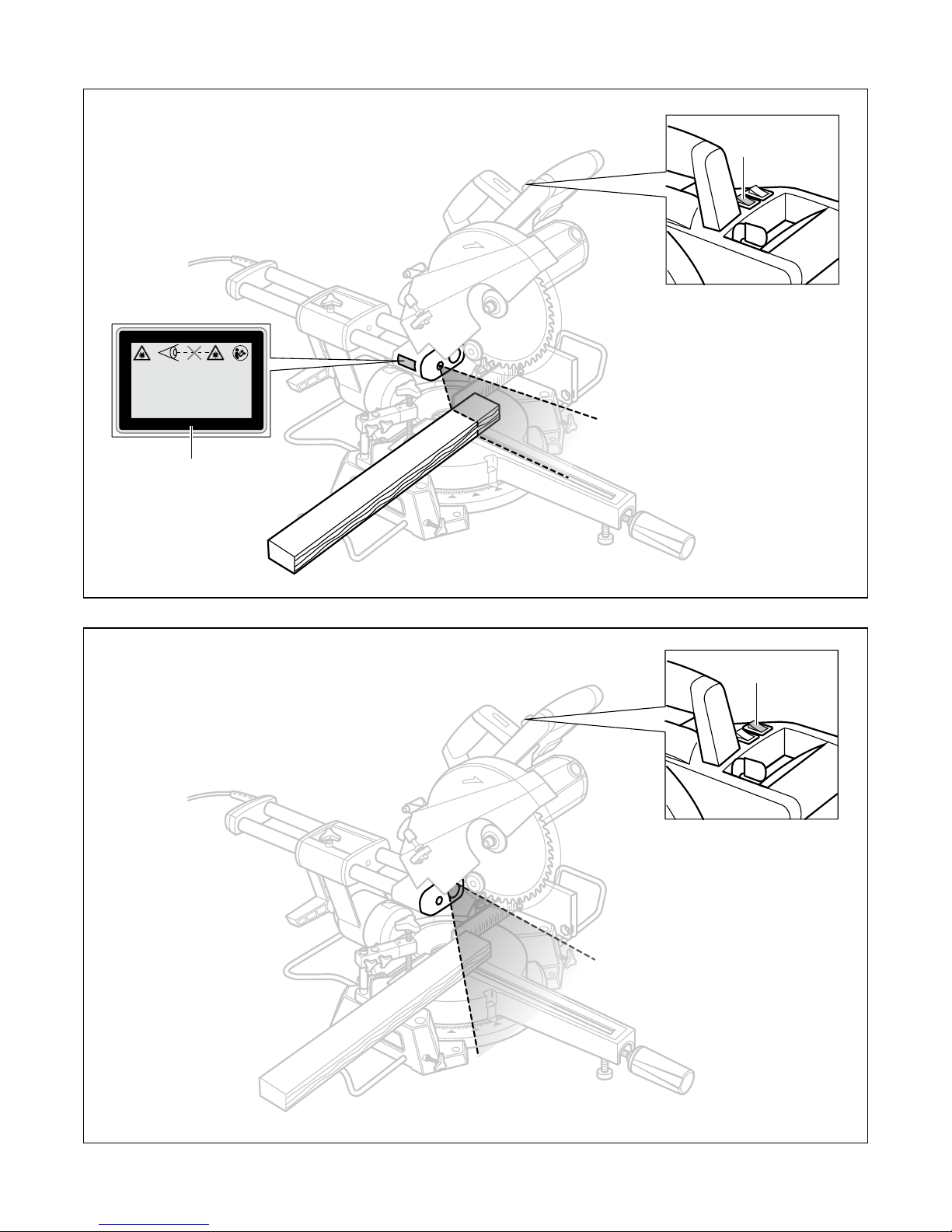

PLaser light
P1 On/o switch laser
QSpot light
Q1 Switch for spot light
R Locking knob for slide device
S On/o switch
T1 Cutting depth limiter
T2 Depth stop
VLength stop
W Hex key
W1 Storage for hex key
W2 Spindle-lock button
W4 Lower guard
W6 Upper guard
XTable insert
Y Cable storage hook
SAFETY
GENERAL SAFETY INSTRUCTIONS
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury. Save all
warnings and instructions for future reference. The term
“power tool” in the warnings refers to your mains-operated
(corded) power tool or battery-operated (cordless) power tool.
1) WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which
may ignite the dust or fumes.
c) Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodied plugs and matching outlets will reduce risk of
electric shock.
b) Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk of
electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is
unavoidable, use an earth leakage circuit breaker.
Use of an earth leakage circuit breaker reduces the risk
of electric shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do not
use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in
serious personal injury.
b) Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
c) Prevent unintentional starting. Ensure the switch is
in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your nger on the
switch or energising power tools that have the switch on
invites accidents.

17
d) Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power tool
in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair
can be caught in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power
tool for your application. The correct power tool will do
the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate
the power tool. Power tools are dangerous in
the hands of untrained users.
e) Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc.,
in accordance with these instructions, taking into
account the working conditions and the work to
be performed. Use of the power tool for operations
dierent from those intended could result in a
hazardous situation.
5) SERVICE
a) Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
SPECIFIC SAFETY INSTRUCTIONS FOR
SLIDING MITRE SAWS
GENERAL
• Only use the tool for cutting wood
• Always saw a single workpiece (workpieces placed
one on the other or next to each other cannot be properly
clamped which may result in saw blade binding or
workpiece slipping during sawing)
• Inrush currents cause short-time voltage drops; under
unfavourable power supply conditions, other equipment
may be aected (if the system impedance of the power
supply is lower than 0,295 + j0,184 Ohm, disturbances
are unlikely to occur); if you need further clarication, you
may contact your local power supply authority
• Alwaysdisconnectplugfrompowersourcebefore
making any adjustment or changing any accessory
• This tool should not be used by people under the age
of 16 years
• This tool is not suitable for wet cutting
OUTDOOR USE
• When used outdoors, connect the tool via a fault current
(FI) circuit breaker with a triggering current of 30 mA
maximum, and only use an extension cord which is
intended for outdoor use and equipped with a
splashproof coupling-socket
BEFORE USE
• Always check that the supply voltage is the same as the
voltage indicated on the nameplate of the tool
• Use completely unrolled and safe extension cords with a
capacity of 16 Amps (U.K. 13 Amps)
• Always mount the tool on a at and stable working
surface (e.g. workbench)
• Wear protective glasses, hearing protection, and
protective gloves
• Dust from material such as paint containing lead, some
wood species, minerals and metal may be harmful
(contact with or inhalation of the dust may cause allergic
reactions and/or respiratory diseases to the operator or
bystanders); wear a dust mask and work with a dust
extraction device when connectable
• Certain kinds of dust are classied as carcinogenic (such
as oak and beech dust) especially in conjunction with
additives for wood conditioning; wear a dust mask and
work with a dust extraction device when connectable
• Follow the dust-related national requirements for the
materials you want to work with
• Do not work materials containing asbestos
(asbestos is considered carcinogenic)
• Never use the tool without the original protection
guard system
• Check the protective guard for proper closing before
each use
• Do not operate the saw if the protective guard does not
move freely and close instantly
• Never clamp or tie the protective guard into the
open position
• Alwaysfirmlyclamptheworkpiece(donotwork
with pieces that are too small to clamp)
• Always support the free ends of a long workpiece
• Never allow another person to hold or support the
workpiece while working; use the saw table extension
• Never use the tool without the table insert; replace
a defective or worn table insert
• Remove all obstacles on top of as well as underneath
the cutting path before you start cutting
• Avoid damage that can be caused by screws, nails and
other elements in your workpiece; remove them before
you start working
ACCESSORIES
• Never use grinding/cutting discs with this tool

18
• SKIL can assure awless functioning of the tool only
when the correct accessories are used which can be
obtained from your SKIL dealer
• For mounting/using non-SKIL accessories observe the
instructions of the manufacturer concerned
• Use only accessories with an allowable speed matching
at least the highest no-load speed of the tool
• Never use saw blades made of high speed steel (HSS)
• Do not use a saw blade which is cracked, deformed or dull
• Only use saw blades with a hole diameter which ts the
tool spindle without play; never use reducors or adaptors
to t large-hole saw blades
• Protect accessories from impact, shock and grease
DURING USE
• Do not force the tool; apply light and continuous pressure
• Keepfingers,handsandarmsawayfromthe
rotating saw blade 3
• Push spindle-lock button only when tool is at a standstill
• When slotting, ensure that the saw blade does not get
jammed in the workpiece
• If the saw blade becomes blocked, switch o the tool
immediately and disconnect the plug; only then remove
the wedged workpiece
• In case of jamming or electrical or mechanical
malfunction, immediately switch o the tool and
disconnect the plug
• If the cord is damaged or cut through while working, do
not touch the cord, but immediately disconnect the plug
• Never use the tool when cord is damaged; have it
replaced by a qualied person
LASER RADIATION
• Do not look into the laser beam (laser radiation) 4
• Do not point the laser beam at persons or animals
• Do not use any magnifying optical tools (such as
magnifying glasses, telescopes, or binoculars)
to view the laser beam
• Do not operate the tool in the presence of ammable
liquids, gases or dust
• Do not operate the tool with children around
• Do not replace the installed laser with another laser type
AFTER USE
• After switching o the tool, never stop the rotation of the
accessory by a lateral force applied against it
• Only remove cut-os or other parts of the workpiece from
the cutting area when all moving parts have come to a
complete standstill
• The saw blade becomes very hot during use; do not
touch it before it has cooled down
WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):
• Do not connect the blue (= neutral) or brown (= live) wire
in the cord of this tool to the earth terminal of the plug
• If for any reason the old plug is cut o the cord of this tool,
it must be disposed of safely and not left unattended
USE
• Transport/working position 6
For releasing the tool (working position)
- press handle B 5downward with one hand while pulling
out locking pin C with the other hand, rotating it 1/4 turn
in either direction and releasing it in that position
- guide the tool arm slowly upward
- for sawing with slide movement loosen locking knob R
For securing the tool (transport position)
- slide the tool arm to the stop in the direction of fence
L and tighten locking knob R
- press safety lever D 5 while lowering the tool arm with
handle B to the stop
- release safety lever D and hold handle B downward
with one hand while pulling out locking pin C with the
other hand, rotating it 1/4 turn in either direction and
releasing it in that position
- use transport handle E 5 for carrying the tool
• Mounting tool on working surface 7
! for safe handling always mount tool on a flat and
stable working surface (e.g. workbench)
- use 4 mounting holes F for attaching the tool with
suitable screws to the working surface
- you may also clamp the tool to the working surface
with commercially available screw clamps
- for stabilizing the tool the height of support foot G can
be adjusted
• Dust/chip extraction 8
- mount dustbag H/vacuum cleaner as illustrated
- empty dustbag regularly for optimal dust pick-up
performance
! never let the vacuum cleaner hose interfere with
the lower guard or the cutting operation
• Saw table extension 9
- use knobs J1 to fasten extension bars J (on either side
of the tool)
- the length of extension bars J is steplessly adjustable
from minimum to maximum
• Clamping the workpiece 0
! for optimum working safety always firmly clamp
the workpiece with the adjustable clamp supplied
- do not work with workpieces that are too small to clamp
! for maximum workpiece dimensions use table !
as reference
For vertical clamping 0a
- fasten assembled clamp into support hole K1 with
knob K2 (on either side of the tool)
- press the workpiece rmly against fence L
- adapt clamp to the workpiece with knob K3
- rmly clamp the workpiece by turning down knob K4
For horizontal clamping 0b
- remove clamp from holder using knob K5
- position clamp into support hole K6 as illustrated
(on either side of the tool)
- press the workpiece rmly against fence L
- rmly clamp the workpiece by turning down knob K4
• Setting mitre angles @
- loosen locking handle M
- rotate the saw table to the left or right and set the desired
mitre angle (from 0° to 47°) by using indicator M1
- tighten locking handle M (do not tighten the handle
too firmly)
- for quick and precise setting of often used mitre angles
(0°, 15°, 22.5°, 30°, 45°) the saw table clicks into place
at the corresponding positions
• Setting bevel angles #
- loosen three-legged knob N
- swing the tool arm to the left until bevel angle indicator
N1 points to the desired bevel angle
- hold the tool arm in this position and tighten knob N

19

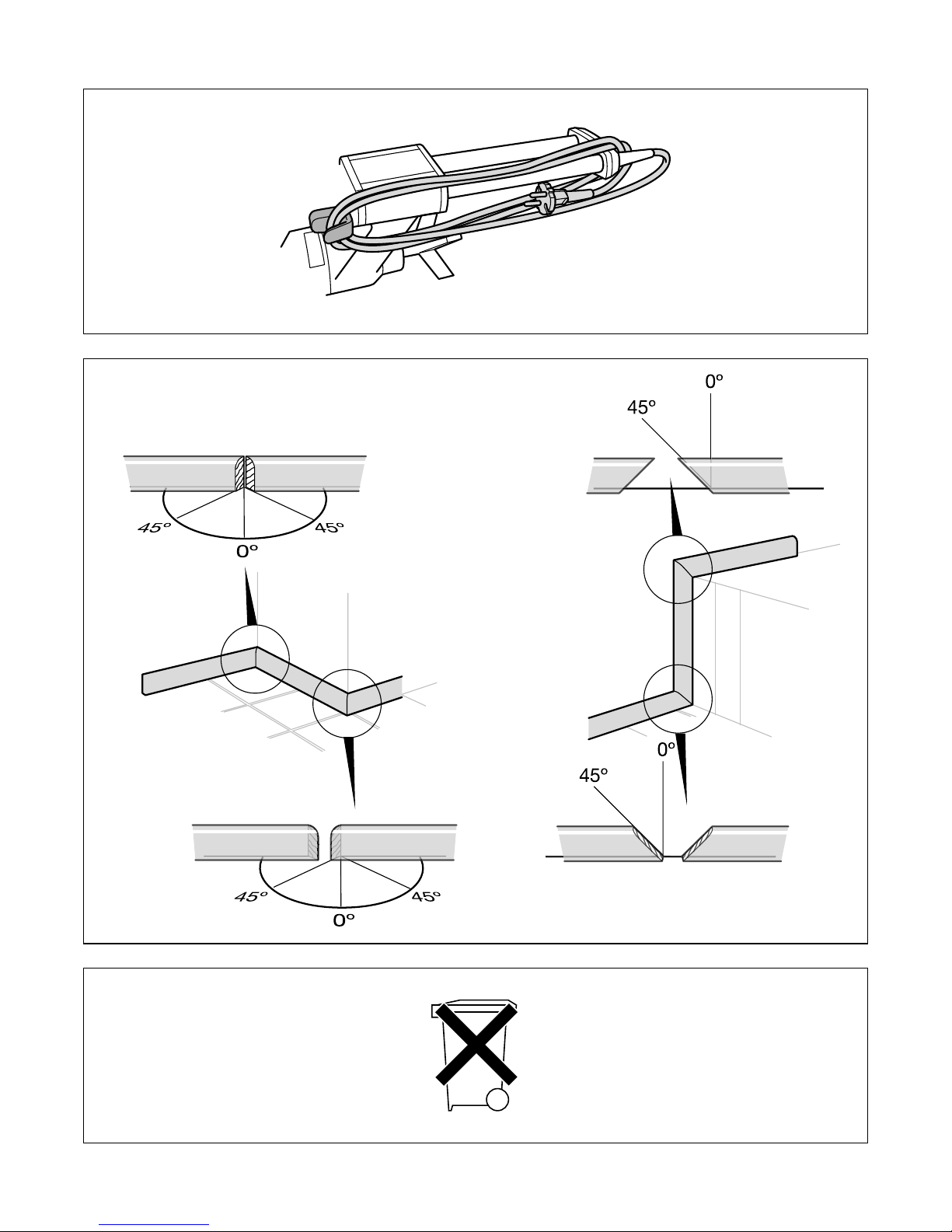

• Compound cuts $
- compound cuts require both a mitre angle setting and
a bevel angle setting
! always test out first on a piece of scrap material
• Laser line %
- for guiding tool along desired line of cut marked on
the workpiece
- switch on/o laser line by pressing switch P1
- before starting a job, check the alignment of the laser
line with the actual line of cut by making a trial cut on a
piece of waste material
! do not remove or damage warning label A
• Spot light ^
- for accurate tracing of marked line of cut
- switch on/o spot light by pressing switch Q1
• Sawing without slide movement (small workpieces)
- loosen locking knob R in case it is tightened
- slide the tool arm to the stop in the direction of fence L
and retighten locking knob R
- set tool into working position
! ensure that the workpiece is firmly clamped
against the saw table and fence L
- switch on the tool by pulling switch S into handle B and
press safety lever D simultaneously for guiding the tool
arm downward &a
! do not cross your arms when operating the tool
arm &b
- saw through the workpiece with uniform advancing
! the tool should run at full speed before the blade
enters into the workpiece
- switch o the tool by releasing switch S
- wait until the sawblade has come to a complete
standstill before guiding the tool arm slowly upward

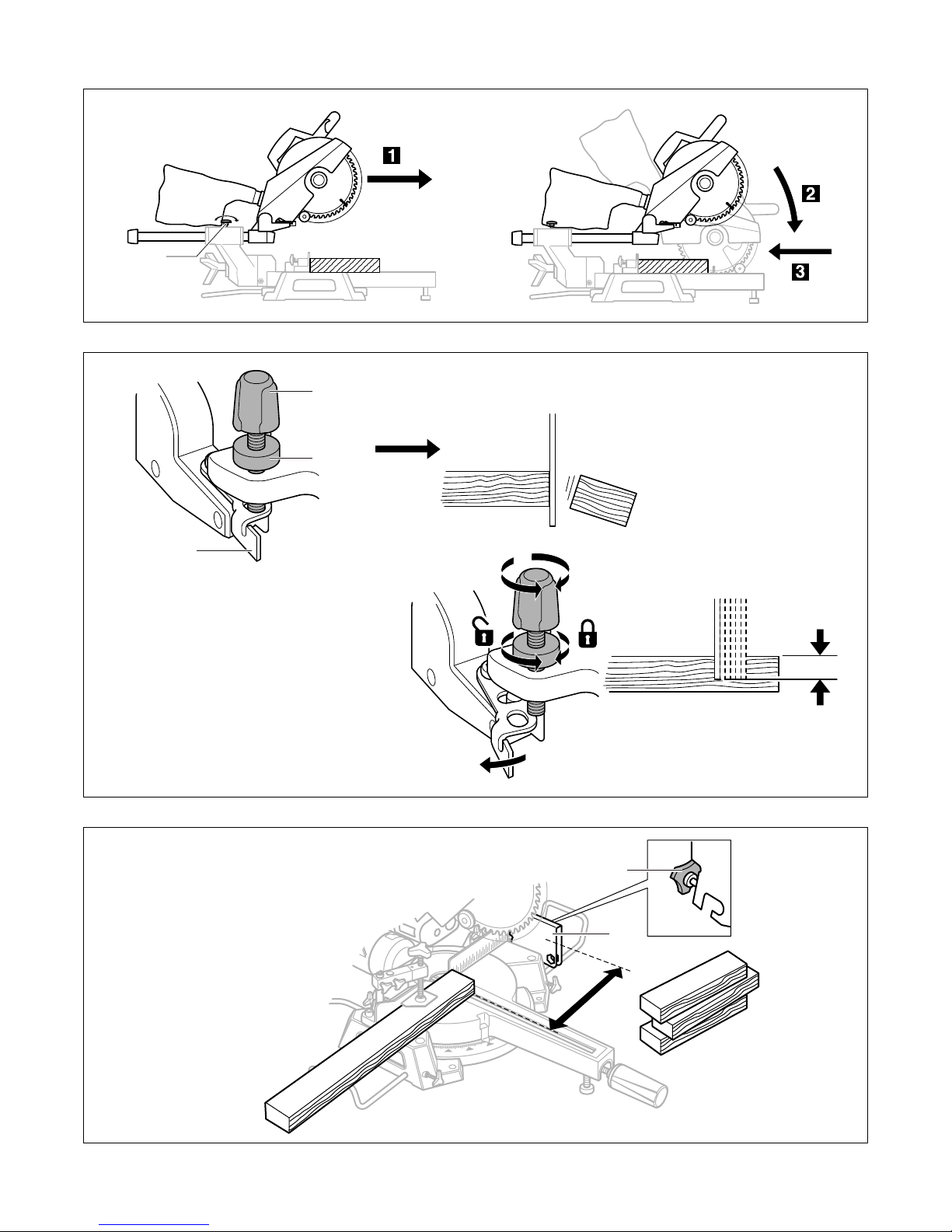

• Sawing with slide movement (wide workpieces) *
! be aware that the method described below is the
only safe one
- loosen locking knob R in case it is tightened
! ensure that the workpiece is firmly clamped
against the saw table and fence L
- pull the tool arm away from fence L far enough so that
the saw blade is in front of the workpiece
- switch on the tool by pulling switch S into handle B and
press safety lever D simultaneously for guiding the tool
arm downward &a
! do not cross your arms when operating the tool
arm &b
- push the tool arm in the direction of fence L and saw
through the workpiece with uniform advancing
! the tool should run at full speed before the blade
enters into the workpiece
- switch o the tool by releasing switch S
- wait until the sawblade has come to a complete
standstill before guiding the tool arm slowly upward
• Sawing grooves (
- slide cutting depth limiter T1 to the left
- set the desired depth with depth stop T2 and lock it in
place by tightening nut T3
• Sawing workpieces of the same length )
- loosen knob V1 and position length stop V at the
required distance to the saw blade
- tighten knob V1 again
- position workpiece against length stop V
- saw this and the other workpieces to the same length
• Changing saw blade ¡
! disconnect the plug
- take hex key W from storage W1
- set tool into working position
- push spindle-lock button W2 and hold it while you
loosen blade bolt W3 one turn by turning hex key W
CLOCKWISE (= in same direction as arrow printed on
saw blade)
- release spindle-lock button W2
- press safety lever D 5 and lower the tool arm
somewhat with one hand while lifting lower guard W4
with the other hand
- keep lower guard W4 opened with one hand while
removing blade bolt W3, ange W5 and saw blade
with the other hand
! change saw blade with saw teeth and arrow
printed on saw blade pointing in same direction
as arrow on upper guard W6
- keep lower guard W4 opened with one hand while
mounting ange W5 and blade bolt W3 with the
other hand
- release lower guard W4 and guide the tool arm
slowly upward
- rmly tighten blade bolt W3 by turning hex key W
COUNTER-CLOCKWISE while pushing spindle-lock
button W2
! remove hex key W from blade bolt W3

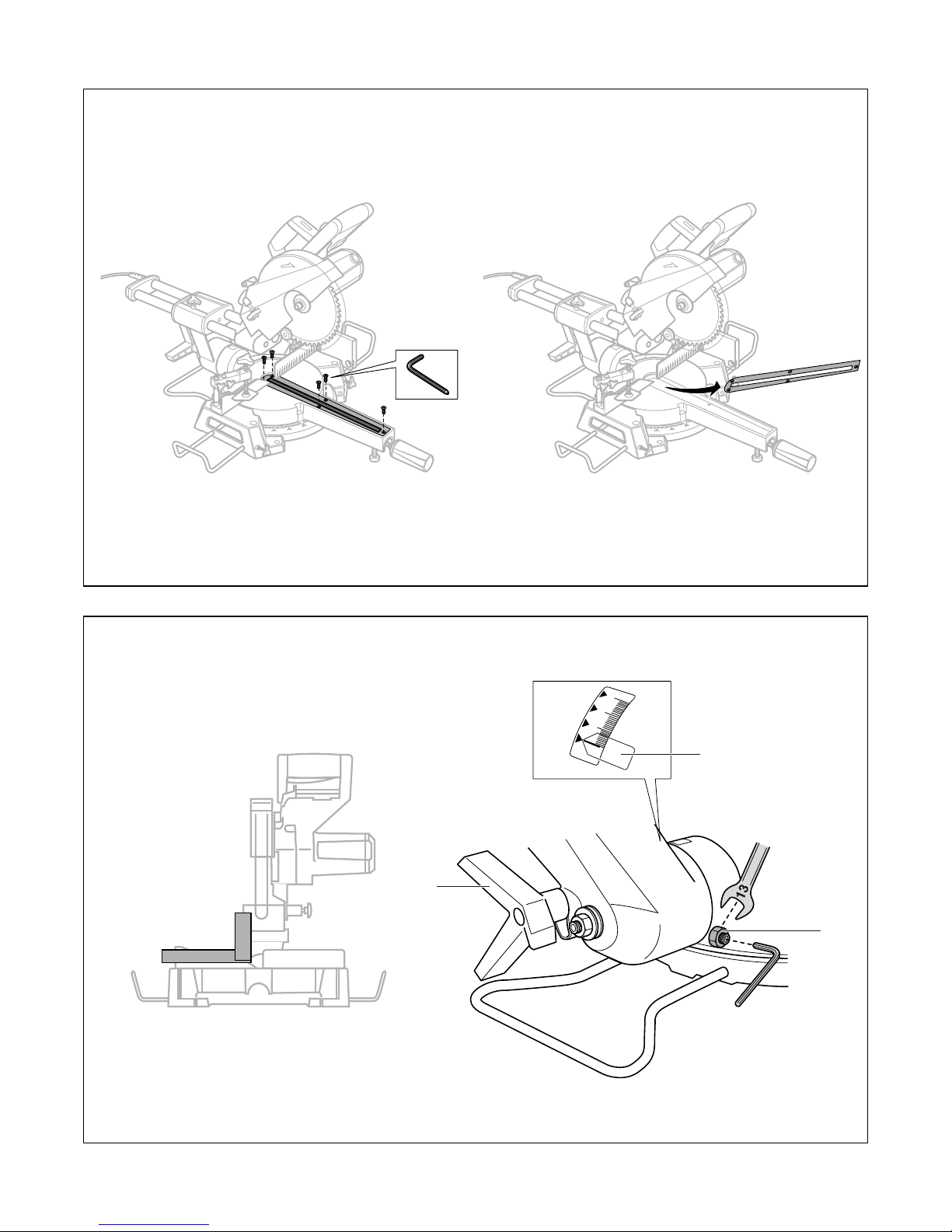

• Replacing table insert ™
Replace a defective or worn table insert as follows:
! disconnect the plug
- remove all 5 screws as illustrated
- remove old table insert by rst lifting it at the front and
then pulling it out completely
- place new table insert
! firmly tighten all 5 screws

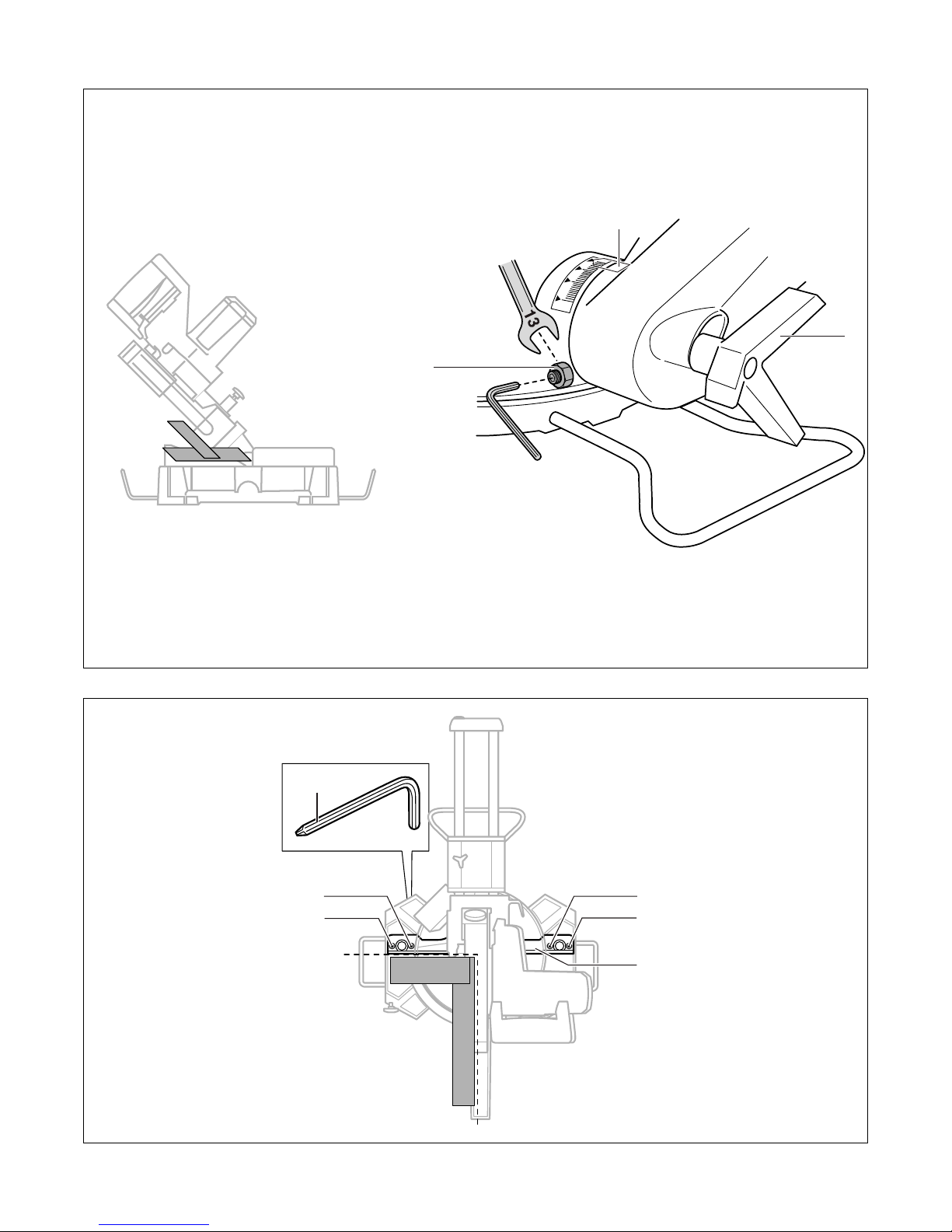

• Checking/adjusting of 90° blade alignment £
! disconnect the plug
- rotate the saw table to the 0° position and lock in place
- lower the tool arm and lock in place
- check for a 90° angle between blade and table with
a square
- if necessary, adjust the 90° blade alignment as follows:
1) loosen three-legged knob N
2) adjust screw N2 with a blade wrench 13
(not standard included) and a 4 mm hex key
(not standard included)
3) re-check with square
• Checking/adjusting of 45° blade alignment ≤
! disconnect the plug
- rotate the saw table to the 0° position and lock in place
- lower the tool arm and lock in place
- loosen three-legged knob N
- swing the tool arm to 45°
- check for a 45° angle between blade and table with a
mitre square
- check that bevel indicator N1 is on the 45° mark
- if necessary, adjust the 45° blade alignment as follows:
1) adjust screw N3 with a blade wrench 13
(not standard included) and a 4 mm hex key
(not standard included)
2) re-check with mitre square

20
• Checking/adjusting of 90° fence alignment ∞
! disconnect the plug
- rotate the saw table to the 0° position and lock in place
- lower the tool arm and lock in place
- check for a 90° angle between blade and fence L with
a square (ensure the square contacts the saw blade
body and not its teeth)
- if necessary, adjust the 90° fence alignment as follows:
1) loosen 4 hex screws L1
2) adjust fence until blade and fence have full contact
with the square
3) tighten 4 hex screws L1
• Cable storage §
APPLICATION ADVICE
• Special workpieces
- ensure that curved or round workpieces are especially
secured against slipping
- at the cutting line no gap may exist between the
workpiece and the fence or saw table
- if necessary, fabricate a special xture
• For working with oor mouldings illustration ≥ can be
used as reference
• Always face the good side of the workpiece down to
ensure minimum splintering
• Only use sharp saw blades of the correct type
- quality of cut improves by the number of teeth
- carbide tipped blades stay sharp up to 30 times longer
than ordinary blades
MAINTENANCE / SERVICE
• Always keep tool and cord clean (especially the
ventilation slots at the back-end of the motor housing)
! disconnect the plug before cleaning
• Clean saw blade immediately after use (especially from
resin and glue)
! the saw blade becomes very hot during use;
do not touch it before it has cooled down
• If the tool should fail despite the care taken in
manufacturing and testing procedures, repair should be
carried out by an after-sales service centre for SKIL
power tools
- send the tool undismantled together with proof of
purchase to your dealer or the nearest SKIL service
station (addresses as well as the service diagram of
the tool are listed on www.skilmasters.com)
ENVIRONMENT
• Do not dispose of electric tools, accessories and
packaging together with household waste material
(only for EU countries)
- in observance of European Directive 2002/96/EC on
waste of electric and electronic equipment and its
implementation in accordance with national law,
electric tools that have reached the end of their life
must be collected separately and returned to an
environmentally compatible recycling facility
- symbol • will remind you of this when the need for
disposing occurs
DECLARATION OF CONFORMITY
• We declare under our sole responsibility that this product
is in conformity with the following standards or
standardized documents: EN 61029, EN 61000,
EN 55014, in accordance with the provisions of the
directives 2006/95/EC, 2004/108/EC, 2006/42/EC
• Technical file at: SKIL Europe BV (PT-SEU/PJE),
4825 BD Breda, NL
Arno van der Kloot
Vice President
Operations & Engineering
SKIL Europe BV, 4825 BD Breda, NL
Jan Trommelen
Approval Manager
01.11.2010
NOISE/VIBRATION
• Measured in accordance with EN 61029 the sound
pressure level of this tool is 93 dB(A) and the sound
power level 106 dB(A) (standard deviation: 3 dB),
and the vibration < 2.5 m/s² (hand-arm method;
uncertainty K = 1.5 m/s²)
• The vibration emission level has been measured in
accordance with a standardised test given in EN 61029;
it may be used to compare one tool with another and as
a preliminary assessment of exposure to vibration when
using the tool for the applications mentioned
- using the tool for dierent applications, or with dierent
or poorly maintainted accessories, may signicantly
increase the exposure level
- the times when the tool is switched o or when it is
running but not actually doing the job, may signicantly
reduce the exposure level
! protect yourself against the effects of vibration by
maintaining the tool and its accessories, keeping
your hands warm, and organizing your work patterns

Scie à onglets radiale 3855
INTRODUCTION
• Cet outil est une machine xe, conçue pour eectuer dans
le bois des coupes droites longitudinales et transversales
ainsi que des angles d’onglet (il est possible de réaliser
des angles d’onglet horizontaux de -47° à +47° et des
angles de biseau verticaux de 0° to 45°)
• Lisez et conservez ce manuel d’instruction 2
• La séquence des numéros apparaissant sur la che
d’instructions d’assemblage séparée correspond à la
séquence des étapes à suivre pour le montage de l’outil
• Utilisez uniquement l’outil lorsqu’il est tout à fait
assemblé correctement (veuillez noter que Skil ne peut
être tenue responsable de dégâts à l’outil et/ou de blessures
personnelles résultant du montage incorrect de l’outil)
• Avant d’utiliser cet outil pour la première fois, collez
l’autocollant fourni dans votre langue sur le texte anglais
de l’étiquette d’avertissement A 5
