Skope Pegasus PG100HC-2 User manual

PG100/250/400/550HC-2
Horizontal Chiller - INTEGRAL
User Manual MAN6787O Rev. 4.0 Nov. 2011
SKOPE PEGASUS
PG100HC-2
PG250HC-2
PG400HC-2
PG550HC-2

SKOPE PEGASUS Horizontal Chiller - Integral
PG100/250/400/550HC-2
User Manual
MAN6787O
Rev. 4.0 Nov. 2011
© 2007 SKOPE Industries Limited. All rights reserved.
SKOPE Industries Limited reserve the right to alter specifications without notice.
is a registered trademark of SKOPE Industries Limited.
SKOPE INDUSTRIES LIMITED
Head Office
PO Box 1091, Christchurch
New Zealand
Freephone: 0800 947 5673
Fax: [phone]
E-mail: [email protected]
Website: www.skope.co.nz
Trademark Infringement
The SKOPE trademark on this product is infringed if the owner, for the time being, does
any of the following:
• Applies the trade mark to the product after their state, condition, get-up or packaging
has been altered in any manner
• Alters, removes (including part removal) or obliterates (including part obliteration) the
trade mark on the product
• Applies any other trade mark to the product
• Adds to the product any written material that is likely to damage the reputation of the
trade mark
Notice of the above contractual obligations passes to:
• Successors or assignees of the buyer
• Future owners of the product

SKOPE Pegasus Horizontal Chiller - Integral
User Manual iii
CONTENTS
1 Installation
Safety First . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Fitting the Legs or Castors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Adjustable Legs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Adjustable Castors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Castor Mounting Plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Positioning the Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Shelving. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Loading Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2 Operation
Automatic Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Refrigeration Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Electronic Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Cabinet Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
HACCP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Electronic Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

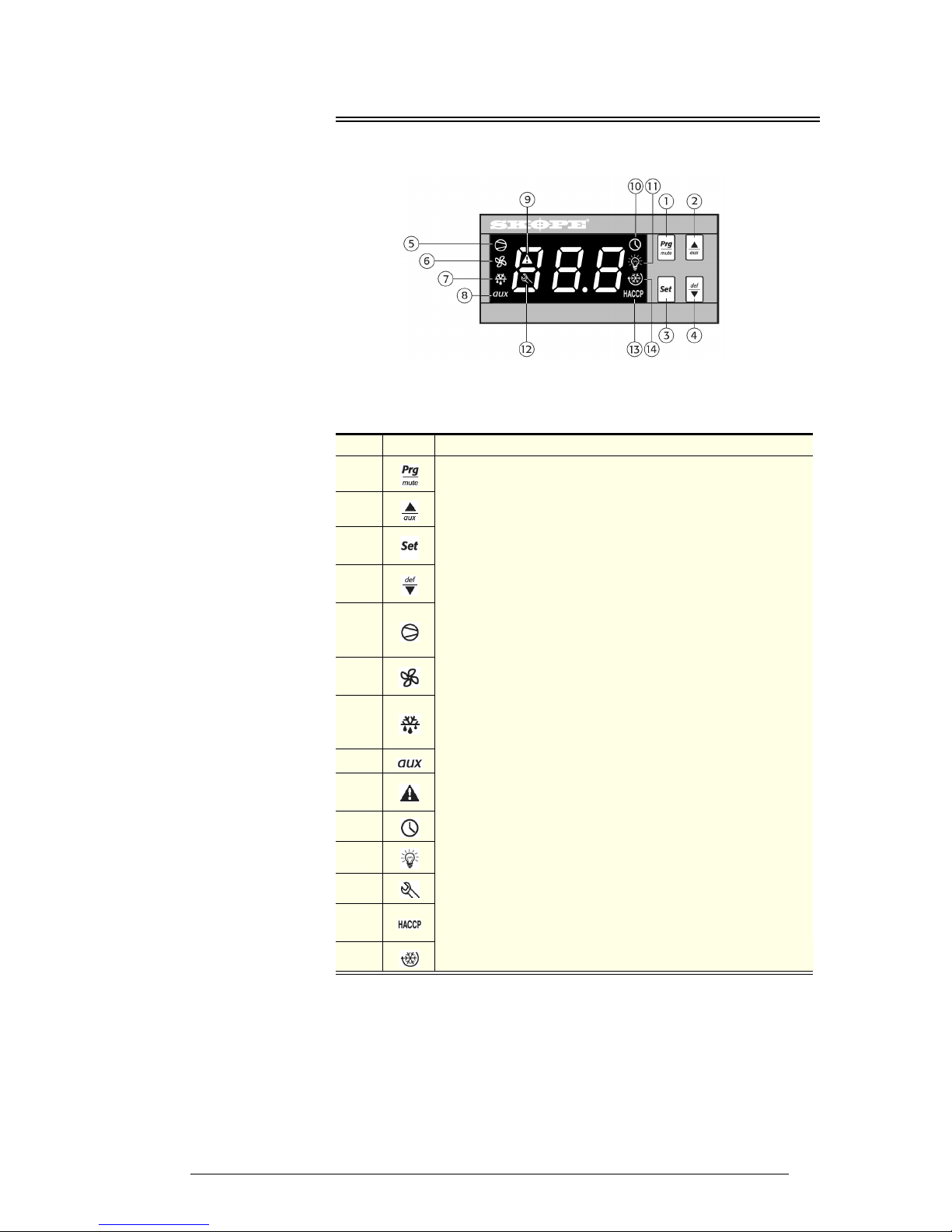

Controller Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Controller Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

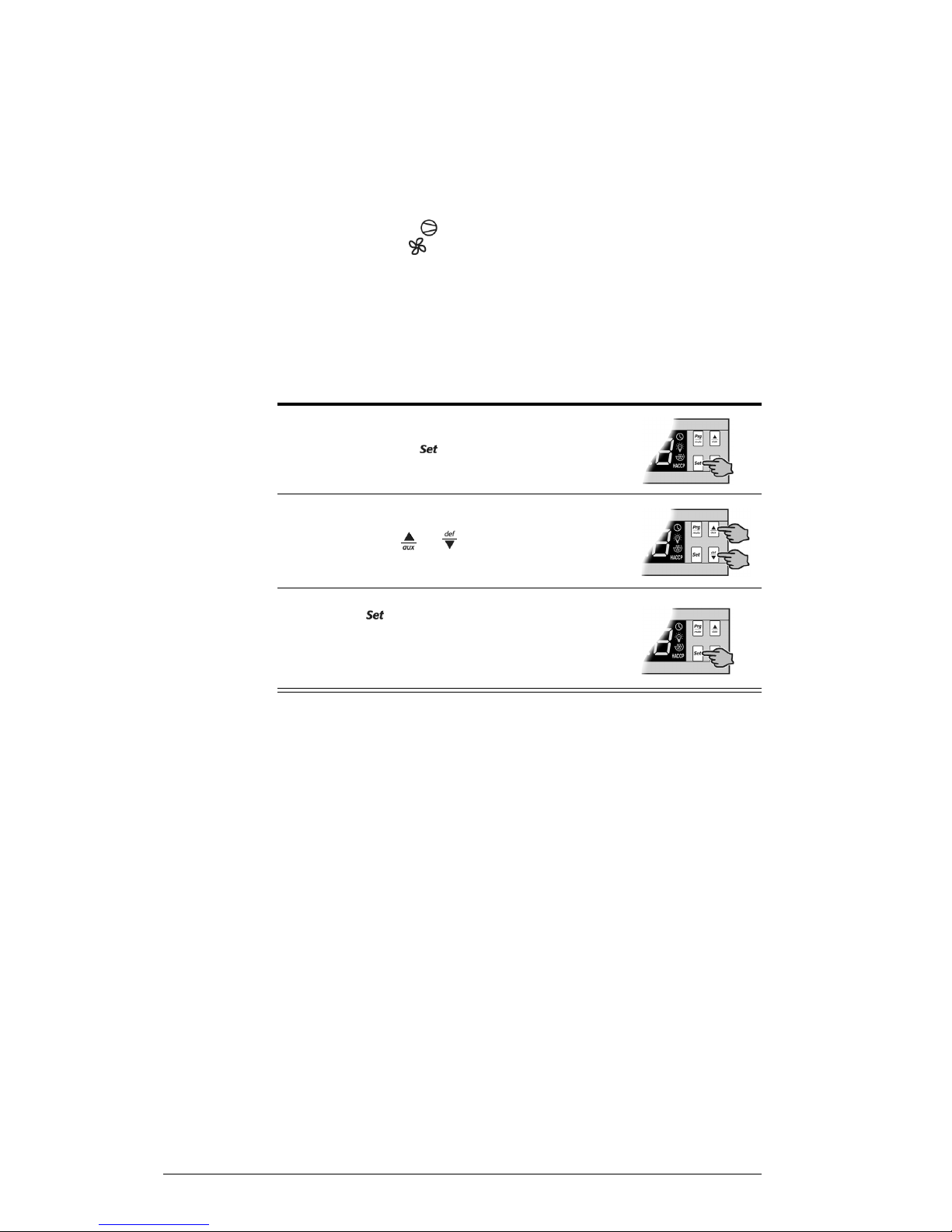

Temperature Setpoint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Controller Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3 Servicing
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cabinet Interior Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

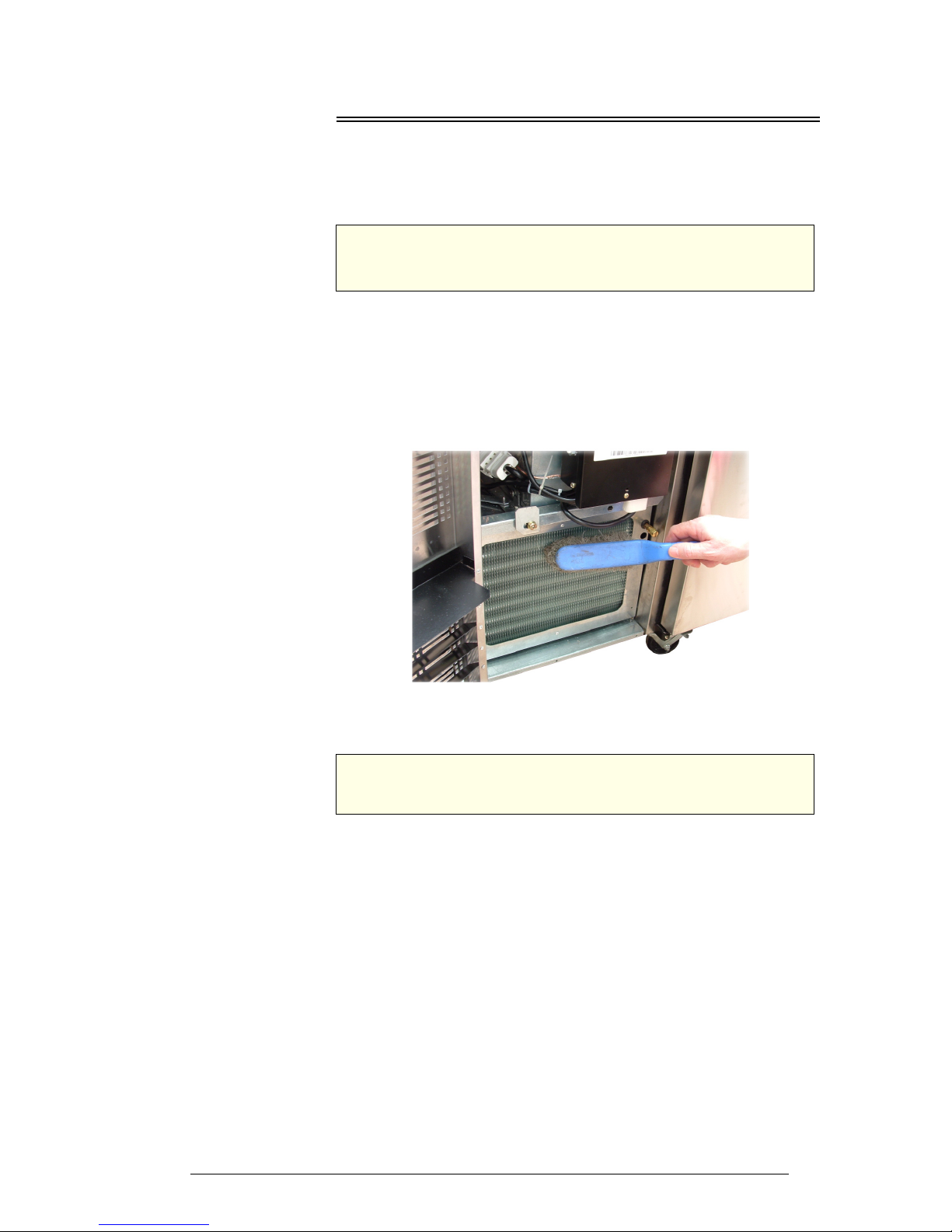

Condenser Coil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

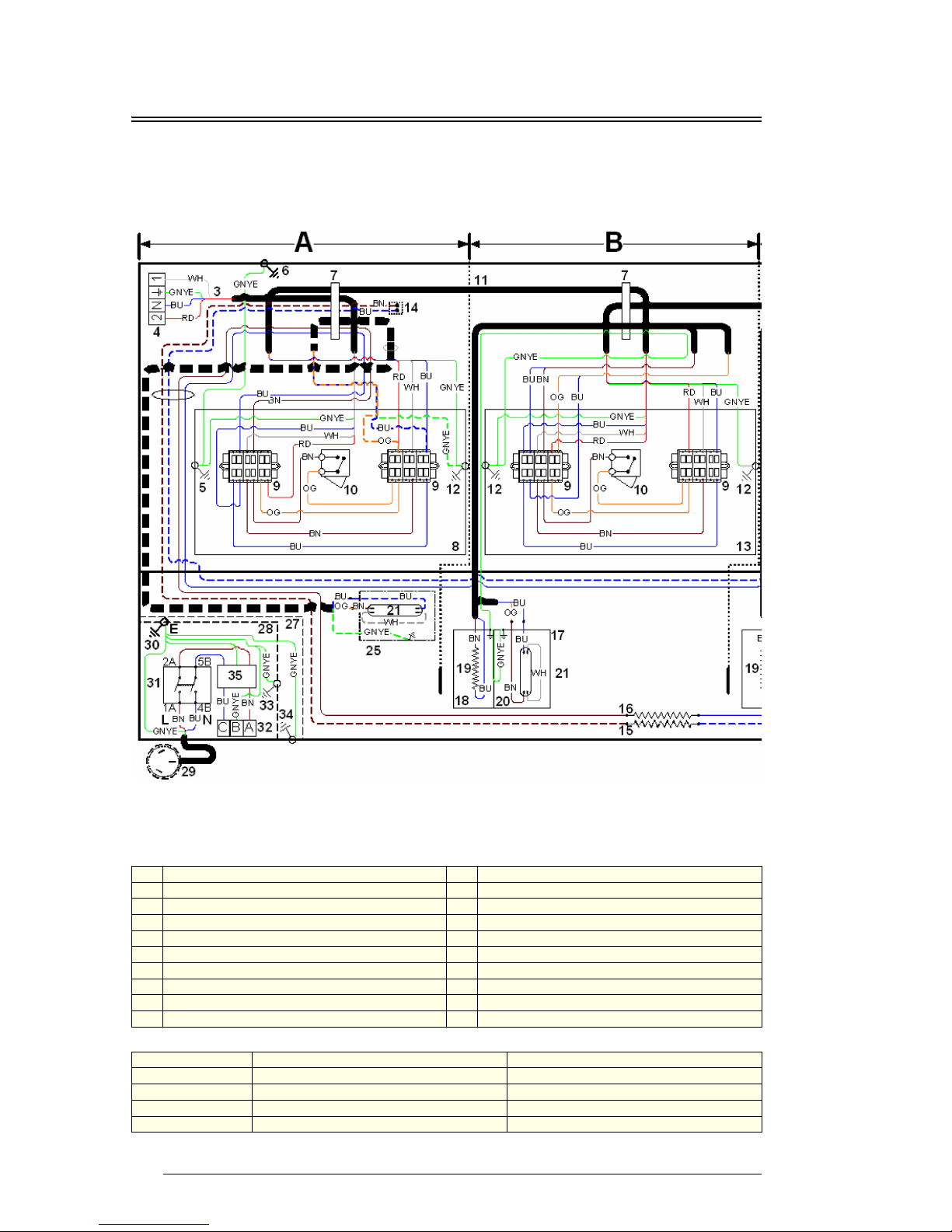

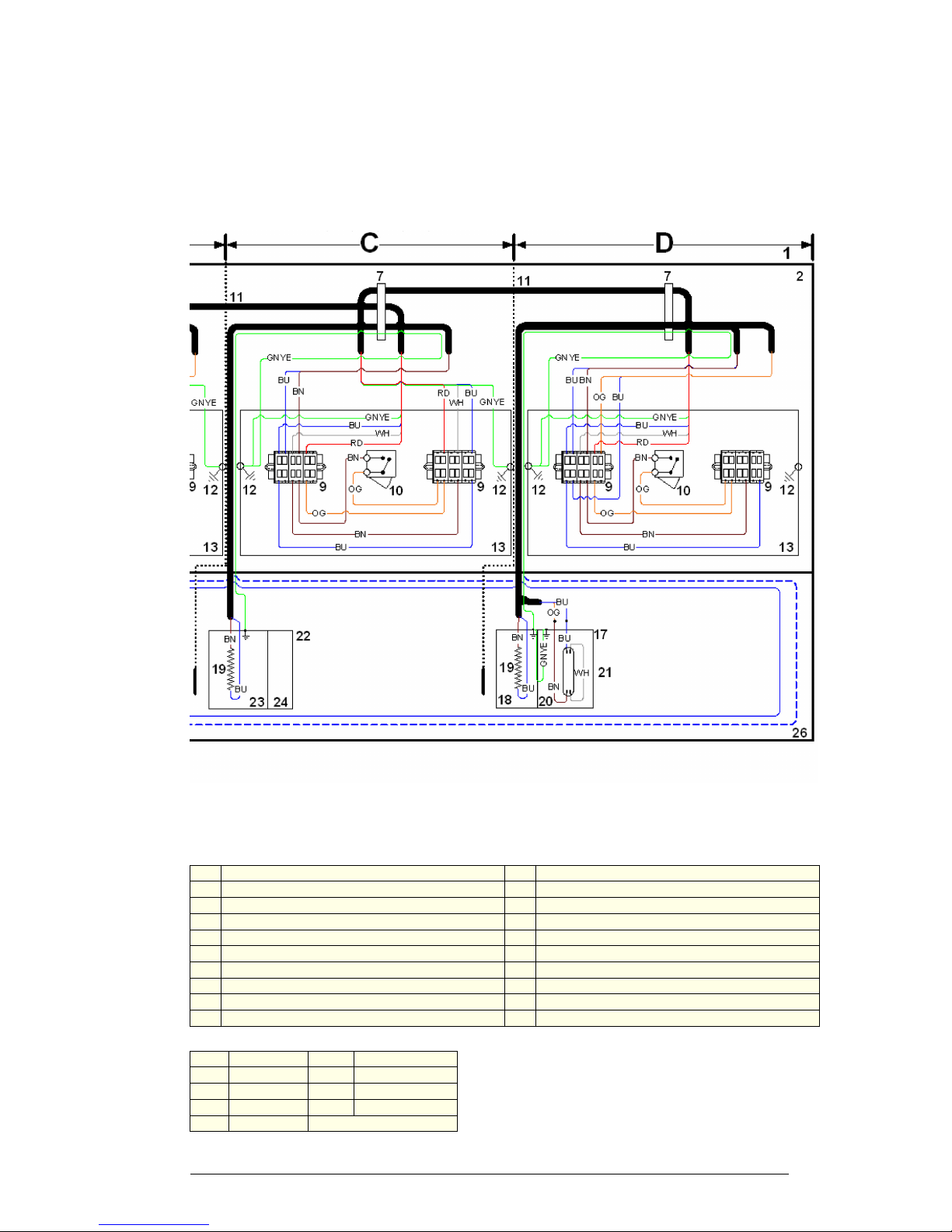

Cabinet Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Refrigeration Unit Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . .16
Advanced Servicing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

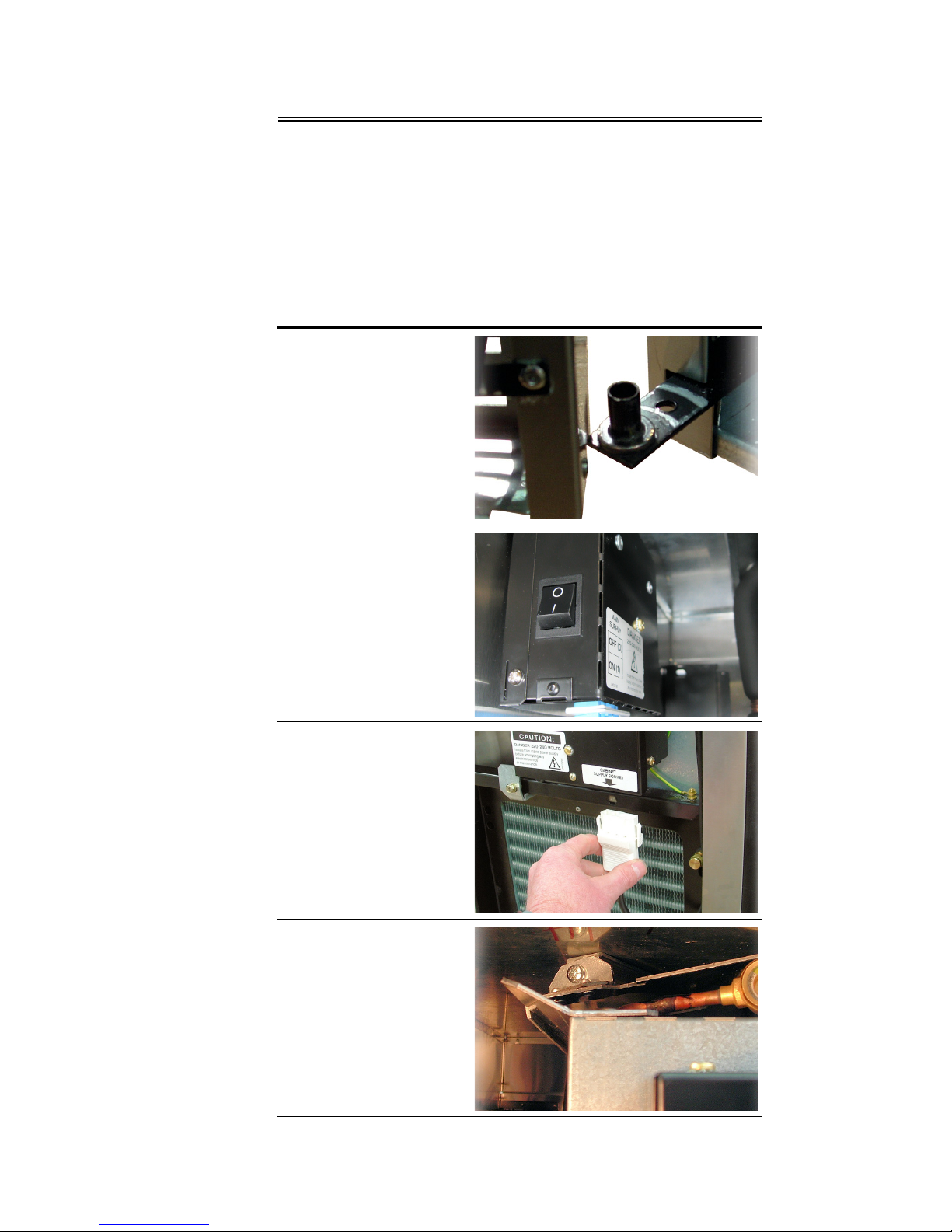

Removing the Refrigeration Unit . . . . . . . . . . . . . . . . . . . . . . . . .18
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

4Installation
User Manual
SKOPE Pegasus Horizontal Chiller - Integral
1Installation
Safety First Always observe safety precautions when using any electrical appliance.
Read these instructions carefully and retain them for future reference.
When the appliance is used by or near young children or infirm persons,
close supervision is necessary, especially to ensure children do not play
with it.
Do not use this appliance for other than its intended use.
Do not cover the grilles or block the entry or exhaust of airflow by
placing objects up against the refrigeration unit.
Do not probe any opening.
Only use this appliance with the voltage specified on the rating label.
Ensure the appliance has adequate ventilation as this is essential to
economical, high performance.
Be careful not to touch moving parts and hot surfaces.
For your own safety and that of others, ensure that all electrical work is
done by authorised personnel.
If the power supply flexible cord becomes damaged, it must be replaced
by an authorised service agent or similarly qualified person in order to
avoid a hazard.
Ensure all necessary safety precautions are observed during installation
or removal of the refrigeration unit.
The appliance is not designed to be stable while in motion. Use extreme
caution when moving or transporting it.
Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
CAUTION
Never overload the power supply, which could damage the
chiller and product. See the rating label inside the cabinet for
the safe power supply and current draw.
WARNING
Always disconnect the chiller from the mains power supply
before cleaning or maintenance.

5
SKOPE Pegasus Horizontal Chiller - Integral
Installation
User Manual
Fitting the Legs or Castors
Packed inside the the cabinet is a set of adjustable height legs and a set of
adjustable height castors. Either of these sets can be fitted to the cabinet
depending on specific height and manoeuvrability requirements. The legs or
castors should be fitted to the base of the cabinet before final positioning of
the chiller.
Adjustable
Legs
The adjustable legs screw into the castor mounting plates attached to the
bottom of the cabinet. The adjustable legs can adjust the cabinet height up
to 30mm.
To adjust the height of each leg, turn the black plastic foot at the bottom of
the leg counter-clockwise to raise the height or clockwise to lower (see
Figure 2 below).
Adjustable
Castors
The adjustable castors screw into the castor mounting plates attached to the
bottom of the cabinet. The two lockable castors should be fitted to the front
of the cabinet (see Figure 3 below) and the non-locking castors fitted to the
rear (see Figure 4 below). The adjustable castors can adjust the cabinet
height up to 15mm.
To adjust the height of each castor, loosen the lock nut and turn the castor
counter-clockwise to raise the height or clockwise to lower. Re-tighten each
lock nut after final adjustment has been made.
Castor
Mounting
Plates
If the chiller is intended to be mounted on a plinth, the castor mounting
plates attached to the bottom of the cabinet can be removed to provide a flat
bottom. Each castor mounting plate is held in place by four pozi-drive
hexagon head screws (see Figure 1 above).
Figure 1: Castor Mounting Plate Figure 2: Adjustable Leg
Figure 3:
Lockable Castor (front)
Figure 4:
Non-Locking Castor (rear)
Castor Lock Nut
Castor Mounting Plate

6Installation
User Manual
SKOPE Pegasus Horizontal Chiller - Integral
Positioning the Cabinet
Location When positioning the cabinet, avoid direct sunlight and warm draughts etc.
The cabinet must NOT be situated where it is affected by warm or hot air
from adjacent equipment, as this will compromise the airflow and
performance of the chiller.
The cabinet must be positioned on a level surface for the doors to shut and
seal correctly, and to prevent the condensate tray from overflowing.
Adequate allowance should be made for door opening.
Always ensure that the top of the cabinet is shielded from impact and
moisture, with either a SKOPE provided bench top or with a custom or
existing bench top.
Ventilation For efficient operation of the chiller, it is essential that adequate ventilation
be provided around the front of the refrigeration unit. Normal operating
conditions should not exceed 40°C at 65% RH.
It is critical that the hot refrigeration exhaust air is not restricted and that it
can easily flow out and away from the front of the cabinet.
Never store cardboard cartons or other items in front of the refrigeration unit
and the ventilation slots in the unit front cover must be kept clear at all times.
When installing the cabinet
Avoid direct sunlight and warm draughts etc.
Allow adequate space for the door/s and/or drawer/s to open fully.
Ensure the cabinet is positioned on a level surface so the door/s shut
and seal correctly and to prevent the condensate tray from overflowing.
Power Supply The chiller is supplied with a 1.8m flexible power cord and plug, which for
transit purposes is located inside a compartment in the rear of the cabinet
(see Figure 5 below).
Before final positioning of the chiller, pull the power cord out from the rear
compartment and connect to the power supply. For convenience, any
surplus cord length may be left inside the cabinet compartment.
Once the chiller has been installed it can be disconnected from the mains
power supply by turning off the cabinet isolating switch and unplugging the
unit supply isolation flex, located inside the refrigeration unit compartment
(see Figure 6 below).
Figure 5: Power Cord
Cabinet Isolating Switch
Figure 6: Isolating Switch
WARNING:
Do NOT overload the power supply. See the rating label inside
the cabinet for power supply and current draw.

7
SKOPE Pegasus Horizontal Chiller - Integral
Installation
User Manual
Shelving
The cabinet is supplied with two sets of shelves and shelf support brackets
per door. The shelves can be positioned at different heights to suit various
products.
To fit the shelves
Loading
Product
The chiller should be left running for 30 minutes before loading with product.
When loading the cabinet shelves with product:
Allow air space around all the product, to ensure even cooling and
efficient operation of the chiller.
Do not allow products to overhang the front of the shelf as this could
prevent the doors from shutting. Leave an airspace of at least 75mm
above product loaded on the top shelf.
Do not exceed a maximum loading of 20kg per shelf.
Remove some product if the shelves are flexing or bending.
1. Unpack the shelving items from inside the cabinet.
2. Establish the desired position for each of the shelves, based on the height of
the product intended to go on each shelf.
3. Fit the shelf support
brackets into the
corresponding slots in
both the front and back
support rails. Each shelf
requires two support
brackets.
4. Slide each shelf into the
support brackets.

8Operation
User Manual
SKOPE Pegasus Horizontal Chiller - Integral
2Operation
Automatic Start-Up
Connect the cabinet to the mains power supply and check operation of the
refrigeration unit, electronic controller and cabinet lighting.
Ensure the cabinet isolating switch, located inside the refrigeration unit
compartment, is turned on (see Figure 6 on page 6).
Refrigeration
Unit
The compressor, and the condenser and evaporator fans should all operate
within two minutes from the time the cabinet is plugged in. This may be
verified by listening for compressor switch-on and checking for air
movement inside the cabinet. The compressor and condenser fan will
switch off when the cabinet internal temperature reaches 2°C.
Electronic
Controller
When the cabinet is connected to the power supply, the electronic controller
will display the current cabinet temperature. The compressor LED will
indicate the compressor is operating and the evaporator fan LED will
normally come on within two minutes (see page 9 for controller display).
To ensure efficient operation, the electronic controller forces six hourly
defrosts. During the defrost cycle, the compressor and condenser fan switch
off and the evaporator fan stays on.
Cabinet
Lighting
The interior lighting will go on when a cabinet door or top drawer is opened.
The only time that a light should not turn on is either if an LED tube is faulty
or the ‘CHt’ high temperature shutdown alarm has been activated (see
pages 11 for controller alarms). To replace a LED tube see service
instructions on page 12.
HACCP If Hazard Analysis Critical Control (HACCP) functions are required, to
monitor food storage temperature, please contact SKOPE to arrange for an
authorised SKOPE service technician to setup the electronic controller.
IMPORTANT
If the cabinet has been on its back, leave for 30 minutes
before running.

9
SKOPE Pegasus Horizontal Chiller - Integral
Operation
User Manual
Electronic Controller
Controller
Display
Item Icon Function
1Prg / mute: n.a.
2UP / aux: To scroll settings UP (in programme mode).
3Set: If pressed for more than 2 seconds displays and / or
enables changing the temperature setpoint (see page 10).
4DOWN / def: To scroll settings DOWN (in programme mode).
Press for more than 5 seconds to initiate manual defrost.
5
COMPRESSOR: ON when the compressor and condenser fan
starts. Flashes when activation of the compressor is temporarily
delayed.
6FAN: ON when the internal cabinet fans are activated. Flashes
when activation of the fans is temporarily delayed.
7
DEFROST: ON when the defrost is activated. Flashes when the
activation of the defrost is temporarily delayed due to
procedures in progress.
8AUX: n.a.
9ALARM: Flashes in the event of alarms and when a door is
opened.
10 CLOCK: n.a.
11 LIGHT: n.a.
12 SERVICE: Flashes in the event of malfunctions.
13 HACCP: On if HACCP function is enabled. Flashes if HACCP
alarm has occurred.
14 CONTINUOUS CYCLE: n.a.
Figure 7:
Controller Display

10 Operation
User Manual
SKOPE Pegasus Horizontal Chiller - Integral
Controller
Overview
The CAREL ir33 electronic controller controls and displays the internal
cabinet temperature. The preset temperature setting controls the product
temperature between 1°C and 4°C. The electronic controller also signals
temperature alarms (see page 11).
For general operation, the electronic controller requires no initial setup or
additional programming. When the cabinet is connected to the power
supply, the electronic controller will display the current cabinet temperature.
The compressor LED will indicate the compressor is operating and the
evaporator fan LED will normally come on within 2 minutes (see Figure
9 for controller display).
Temperature
Setpoint
The chiller temperature setpoint is factory set at 2.0°C. If necessary the
standard setting can be adjusted between 1.5°C and 3.5°C.
SKOPE do not recommend that the setpoint be changed unless it is
absolutely necessary, and then only by small increments at a time.
To view and adjust the temperature setpoint
1. To view the setpoint:
Press and hold the key for 2 seconds, until the
setpoint value flashes.
2. To adjust the setpoint:
Press either the or keys to display the required
setpoint value.
3. Press the key again to memorise the new setpoint
value. If this is not done within 60 seconds changes will
be lost and you will need to repeat the above
procedure.

11
SKOPE Pegasus Horizontal Chiller - Integral
Operation
User Manual
Controller Alarms
Code Display Buzzer Alarm Action
Flashing
on
Product HIGH
temperature alarm
(auto reset)
1. Check the cabinet product loading to ensure ventilation
slots are not blocked, and that product does not overhang
the shelves. Ensure the doors are closed.
2. Ensure the cabinet is installed with good refrigeration unit
ventilation.
3. Check and clean the condenser coil (see page 13).
4. If immediate alarm recovery is required - unplug the
cabinet from the power supply for 1 minute, then
reconnect to power supply. If alarm persists, contact
SKOPE.
NOTE: The ‘HI’ and ‘LO’ alarms deactivate the cabinet
lighting and trim heaters.
Flashing
on
Product LOW
temperature alarm
(auto reset)
Flashing
off
Refrigeration system
high temperature
pre-warning (auto reset)
1. Clean the condenser coil (see page 13).
2. Check refrigeration ventilation. Ensure clear airpath at the
top and front of the cabinet (to extract hot air). A minimum
of 200mm clear space is required above and in front of the
refrigeration unit.
3. Ensure the cabinet is installed in a suitable environment.
4. To reset the ‘CHt’ alarm - unplug the cabinet from the
power supply for 1 minute, then reconnect to power
supply. If alarm persists, contact SKOPE.
Flashing
on
Refrigeration system
and cabinet high
temperature shutdown
(manual reset)
Flashing
off Ambient probe fault
(also flashes ‘rE’)
To reset alarm - unplug the cabinet from the power supply for
1 minute, then reconnect to power supply.
1. If alarm persists, contact SKOPE.
Flashing
off Evaporator probe fault
Flashing
off Condenser probe fault
None off Defrost over-time limit
Flashing
off Real-time clock fault
Flashing
off Controller E prom error
Flashing
off Controller E prom error
None -Start defrost request
None
None -End defrost request
Flashing
on Door open alarm Check that a door or drawer has not been left open. Note:
The audible alarm buzzer cannot be turned off manually.

12 Servicing
User Manual
SKOPE Pegasus Horizontal Chiller - Integral
3Servicing
Lighting
Cabinet
Interior Lights
Depending on the model, the cabinet interior is lit by one or two 5 Watt T8
LED tubes, fitted behind the centre pillars. The single door model, without a
centre pillar, has the interior interior LED light tube fitted on the ceiling of the
cabinet.
To replace the interior LED light tube
1. Open the refrigeration
compartment door and
isolate the chiller from the
power supply by switching
off the mains isolation
switch.
2. Remove the diffuser by
squeezing it until it is
released from the
housing, and then push
the diffuser out of the way
(multiple door cabinet
pictured for clarity).
3. Rotate the LED tube until
the pins on the ends of the
tube align with the slots,
then slide it out. Note:
access can be made
easier by removing the
shelves.
4. Fit a new LED tube and
clip the diffuser back into
place

13
SKOPE Pegasus Horizontal Chiller - Integral
Servicing
User Manual
Cleaning
Cabinet When necessary, wipe both the interior and exterior of the cabinet with a
damp cloth. Ensure the cabinet is disconnected from the mains power
supply before cleaning the cabinet.
Condenser
Coil
The condenser coil should be brushed clean once a month and blown clean
by qualified service personnel, every six months. Over time, dust may
accumulate within the condenser that cannot be removed with a brush. If
this occurs, contact SKOPE to arrange for a SKOPE authorised service
agent to clean the condenser with compressed air. The condenser coil is
located inside the refrigeration unit compartment and is accessed by
opening the unit front cover.
CAUTION
Disconnect the cabinet from the mains power supply before
cleaning the condenser coil or washing the cabinet with water.
IMPORTANT
If the electronic controller display flashes ‘cht’ the condenser
coil must be cleaned immediately.
Figure 8:
Condenser Coil

14 Servicing
User Manual
SKOPE Pegasus Horizontal Chiller - Integral
Wiring
Cabinet Wiring Diagram
Cabinet Wiring Component Key
Wiring Key
Item Description Item Description
1Foamed cabinet 10 Single pole door activated switch
2Cabinet stepped front top 11 4-Core link flex
3Cabinet supply flex with 4-Pole ENSTO plug 12 Link flex earth connections
44-Pole ENSTO plug* 13 Cabinet wiring switched extension tray
5 Cabinet supply flex earth connection 14 Spare cabinet fascia heater wire supply wires (if available)
6Main cabinet chassis earth connection 15 Spare cabinet fascia heater wire (not connected, if available)
7Flex tie (to guide wires & flexes on stepped cabinet front top) 16 Cabinet fascia heater wire (chiller, otherwise freezer)
8Cabinet wiring switched supply tray 17 Heated lit centre pillar assembly
93-Pole screwless connector block 18 Heated lit centre pillar fascia assembly
Cabinet Model Portions of Wiring Diagram Single Door Roof Mount Light Assembly (item 25)
1-Door Portion A Included
2-Door Portions A & D Excluded
3-Door Portions A, B & D Excluded
4-Door Portions A, B, C & D Excluded

15
SKOPE Pegasus Horizontal Chiller - Integral
Servicing
User Manual
Cabinet Wiring Component Key (continued)
Wire Colour Key
Item Description Item Description
19 Centre pillar fascia heater wire (chiller, otherwise freezer) 28 Mains isolation box assembly (**NOT on remote cabinets)
20 Heated lit centre pillar back assembly 29 Mains supply flex (with 3-Pin plug fitted)
21 LED tube cabinet light (5W) 30 Mains supply earth connection
22 Heated centre pillar assembly (no light) 31 2-Pole isolation switch
23 Heated centre pillar fascia assembly 32 3-Pole BLUE panel mount ENSTO socket - isolation socket
24 Heated centre pillar back assembly 33 Mains isolation box cover earth connection
25 Single door cabinet roof mounted light assembly 34 Refrigeration unit enclosure earth connection
26 Cabinet fascia 35 Schaffer EMI filter
27 Refrigeration unit enclosure
BK Black BU Blue
BN Brown GY Grey
RD Red WH White
OG Orange GNYE Green-Yellow
GN Green Based upon IEC 757 Standard
* For refrigeration unit wiring details, refer to ‘Refrigeration Unit Wiring Diagram’
on the following pages.
** For remote refrigerators, the mains isolation box assembly is part of the
refrigeration unit assembly.

16 Servicing
User Manual
SKOPE Pegasus Horizontal Chiller - Integral
Refrigeration Unit Wiring Diagram
Models: UE50/60ACD
Wire Colour Key
BK Black BU Blue
BN Brown GY Grey
RD Red WH White
OG Orange GNYE Green-Yellow
GN Green Based upon IEC 757 Standard

17
SKOPE Pegasus Horizontal Chiller - Integral
Servicing
User Manual
Refrigeration Unit Wiring Component Key
Models: UE50/60ACD
Item Description Item Description
1Refrigeration Unit Assembly 21 Terminal Box (for evaporator fan flex extension)
2Unit Wiring Junction Box 22 Evaporator Fan (CW rotation LE*)
3Refrigeration Unit Supply Isolation Flex (with 3-Pole Blue ENSTO
plug fitted) 23 Cabinet Ambient Temperature Probe (1.5m)
43-Pole Blue Free ENSTO Plug 24 Evaporator Coil Temperature Probe (1.5m with red sleeve)
5Refrigeration Unit Supply Isolation Flex Earth Connection 25 Condenser Assembly
67-Pole Terminal Block 26 Condenser Assembly Earth Connection
7Cabinet Supply Fuse (3A) 27 Compressor (used in UE50ACD unit only)
84-Pole Panel Mount ENSTO Socket (cabinet supply) ** 28A Compressor (used in UE60ACD unit only)
9Relay (HONGFA) 28B Winding Protector / Compressor Thermal Overload
(external for UE50ACD unit, internal for UE60ACD unit)
10 3-Core Compressor Supply Flex 29 Compressor Main Winding
11 Evaporator Fan 4-Core Extension Flex 30 Compressor Start Relay
12 Evaporator Fan Capacitor 31 Compressor Start Winding
13 Condenser Fan 4-Core Extension Flex (with 4-pole ENSTO
socket fitted) 32 Compressor Start Capacitor
14 Condenser Fan Capacitor 33 Compressor Run Capacitor (UE50ACD unit only)
15 Unit Wiring Junction Box Cover Earth Connection 34 Compressor NTC (UE50ACD only)
16 Electronic Controller Enclosure Assembly 35 Condenser Fan (fitted with 4-pole ENSTO plug - CW rotation
LE*)
17 Electronic Controller Enclosure Earth Connection 36 4-Pole Free ENSTO Plug
18 Programmed Electronic Controller 37 4-Pole Free ENSTO Socket
19 Evaporator Box Assembly 38 Condenser Coil Temperature Probe (1.5m with blue sleeve)
20 Evaporator Box Exterior Earth Connection
*LE denotes the motor direction as viewed from the lead end.
**For refrigeration cabinet wiring details, refer to ‘Cabinet Wiring Diagram’ on the previous pages.

18 Servicing
User Manual
SKOPE Pegasus Horizontal Chiller - Integral
Advanced Servicing
Servicing should be carried out by an authorised service agent. Detailed
service and spares information is available in the SKOPE Pegasus Service
Manual (MAN6787S) and detailed technical information on the SKOPE ir33
Controller can be found in the SKOPE Pegasus Technicians Manual
(MAN3224).
Removing the
Refrigeration
Unit
For ease of servicing, the entire refrigeration unit can be removed from the
cabinet.
To remove the refrigeration unit
1. Open the unit cover.
Remove the cover from
the cabinet by lifting the
bottom corner of the cover
off the bottom hinge pin..
2. Switch off the cabinet
isolating switch and
unplug the blue power
supply plug from
underneath the isolating
socket box.
3. Disconnect the cabinet
supply plug from
underneath the wiring
junction box on the front of
the refrigeration unit.
4. Remove the top clamp
screw from the clamp
mechanism on top of the
unit.

19
SKOPE Pegasus Horizontal Chiller - Integral
Servicing
User Manual
5. Pull the top clamp
mechanism fully forward,
into the relocation position
on the front flange of the
cabinet (this keeps the
mechanism up out of the
way).
6. Remove the bottom clamp
screw from the front of the
refrigeration unit.
7. Pull the bottom clamp
lever forward, while
applying adequate force to
the right hand side of the
wiring junction box to
disengage the unit from
the cabinet wall (the unit
will need to move over
approx. 60mm).
8. Carefully pull the
refrigeration unit out from
the unit compartment.
IMPORTANT: When
refitting the refrigeration
unit, refit the bottom clamp
screw first before fitting
the top clamp screw and
prior to refitting, ensure
that all seals are in good
condition.

20 Servicing
User Manual
SKOPE Pegasus Horizontal Chiller - Integral
Troubleshooting
Complaint Possible Cause Repair
1. Cabinet not
operating and
no controller
display:
• Loss of power supply. • Check mains power supply.
• Check that the cabinet
isolating switch is turned on
(see page 6).
2. Cabinet lights
not operating:
• Failed LED light tube. • Replace LED light tube (see
page 12).
• Controller high temperature
shutdown alarm ‘CHt’.
• Determine cause and
eliminate (see pages 11).
• Cabinet ENSTO supply plug
not plugged into control box.
• Reconnect plug (see page
18).
3. Power
consumption
is higher than
expected:
• Unit operating too hot. • Clean condenser. Ensure
the chiller is installed with
good ventilation around the
refrigeration unit.
• Cabinet doors are opened
excessively.
• Keep door/s open for
minimum time.
4. Product is too
warm and
spoiling:
• Restricted cabinet airflow. • Ensure product is not
blocking airflow slots and the
product is no closer than
75mm from the cabinet top.
• Temperature setpoint is too
warm.
• Adjust setpoint (see page
10).
5. Warm cabinet
temperatures
and/or
compressor
operating for
long periods
(more than 1
hour):
• Blocked condenser. • Clean condenser (see page
13).
• Poor refrigeration unit
ventilation.
• Ensure the cabinet is
installed with good
ventilation around the
refrigeration unit (see page
6).
