SKYDANCE T21-1 User manual

● Touch panel 4 zone 1-4 color RF remote.
● Each zone can remote control multiple Skydance’s 2.4G LED controllers.
● Ultra sensitive high strength glass touch panel with touch color wheel in the middle.
● Smooth and accurate color adjustment by touching the color slide.
● Touch keys with chord tones and LED indicator.
● Free installation, no wiring, removable.
● AAA x 2 attery powered.b
Model No.: T21-1,T22-1,T24-1
4 Zone/1-4 color/Glass touch panel/Color wheel/Wireless remote 30m distance/AAA x 2 battery
Features
Wall Mounted Touch Panel
LVD RED
T24-1
T22-1
T21-1
4 Zone dimming 4 Zone CCT 4 Zone RGB/RGBW
Technical Parameters
Input and Output
Warranty
5 years
Warranty
Operation temperature
Case temperature (Max.)
Environment
IP20
IP rating
Ta: -30
O
C ~ +55
O
C
T c: +85
O
C
Output signal RF 2.4GHz( )
Working voltage 3VDC AAA x 2( )
Working current ＜20mA
Standby current ＜20μA
Standby time 1 year
Remote distance 30m
Safety and EMC
EMC standard (EMC) EN301 489,EN 62479
Radio Equipment(RED) EN300 328
Certification CE,EMC,LVD,RED
EN60950
Safety standard(LVD)
User Manual Ver 1.0.2 2018.09.29 Page 1
www.iskydance.com

User Manual Ver 1.0.2 2018.09.29 Page 2
www.iskydance.com
Mechanical Structures and Installations
Typical base as below:
European style 86 size
Touch panel Baseplate Base
Uninstall
Installation diagram:
T21-1,T22-1,T24-1 Wall Mounted Touch Panel
Match Remote Control (two match ways)
Use the controller’s Match key
Match:
Short press match key, immediately press Zone
key of the touch panel.
Use Power Restart
Match:
Switch off the power of the receiver, then switch on power again,
immediately short press Zone key 3 times on the touch panel.
The light blinks 3 times means match is successful.
.
Delete:
Switch off the power of the receiver, then switch on power again,
immediately short press Zone key 5 times on the touch panel.
The light blinks 5 times means all matched remotes were deleted.
Delete:
Press and hold match key for 5s to delete all match,
The light blinks 5 times means all matched remotes
were deleted.
End user can choose the suitable match/delete ways. Two options are offered for selection:
86.00 mm
86.00 mm
61.00 mm
61.00 mm
20.50 mm
Installation rack
Battery compartments
To fix the panel, two options are offered for selection:
Option 1: fix it on the wall with two screws.
Option 2: adhere it to the wall with paster.

User Manual Ver 1.0.2 2018.09.29 Page 3
www.iskydance.com
T21-1,T22-1,T24-1 Wall Mounted Touch Panel
Note: After touch power key to turn off light, long press power key for 5 seconds will turn on or turn off tone.

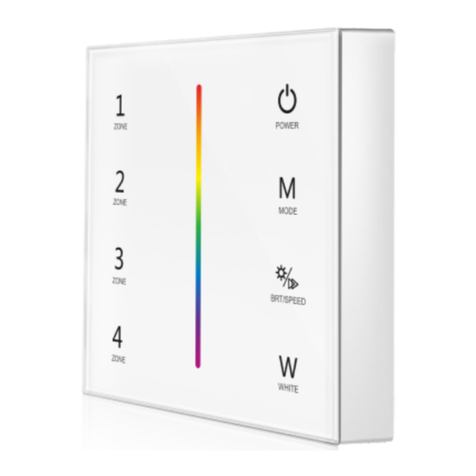

T24-1 RGBW panel
ZO NE ZO NE Z ON E ZON E
WH ITE
BL UEGR EEN
RE D
BR T/S PE EDMO DE
Turn on/off all zone light.
Color wheel.
Short press play 10 built-in mode, long press 2s run mode-cycle.
Short press turn on zone light and select zone simultaneously, long press 2s turn off zone light.
4 zone control seperately or synchronously, each zone could control multiple receivers.
ZO NE Z ON E ZO NE Z ON E
MO DE
BR T/ SP EED Adjust dynamic mode speed or static color brightness,10 levels.
WH IT E
BL UEGR EE N
RE D Short press get red,green,blue,white color,
long press adjust each color brightness.
CC T
DI M
T21-1 Single color panel
T22-1 Dual color panel
BR IGH T PO WER
ZO NE ZO NE Z ON E ZON E
Short press turn on zone light and select zone simultaneously, long press 2s turn off zone light.
4 zone control seperately or synchronously, each zone could control multiple receivers.
Brightness wheel.
Brightness,10 levels.
Turn on/off all zone light.
PO WE R
BR IG HT
ZO NE Z ON E ZO NE Z ON E
Turn on/off all zone light.
DI M
CC T
Brightness,10 levels.
Color temperature,11 levels.
ZO NE ZO NE Z ON E ZON E
Color temperature/Brightness wheel.
Short press turn on zone light and select zone simultaneously, long press 2s turn off zone light.
4 zone control seperately or synchronously, each zone could control multiple receivers.
ZO NE Z ON E ZO NE Z ON E
Key function

Safety information
1. Read all instructions carefully before you begin this installation.
2. When installing battery, pay attention to the battery positive and negative polarity.
A long time without the remote control, remove the battery.
When remote distance becomes smaller and insensitive, replace the battery.
3. If no response from the receiver, please re-match the remote.
4. Gently handle remote, beware of falling.
5. For indoor and dry location use only.
T21-1,T22-1,T24-1 Wall Mounted Touch Panel
User Manual Ver 1.0.2 2018.09.29 Page 4
www.iskydance.com
