Skyjack 3219 SJIII Compact Series User manual

.
210274AB-A December 2016
DC ELECTRIC SCISSORS
MODELS SJIIII 3219 SJIII 3226 SJIII 4632
OPERATING MANUAL (ANSI/CSA)

This manual is based on Serial Number(s):
SJIII 3219 80 100 000 – 80 149 999
SJIII 3226 80 150 000 – 80 179 999
SJIII 4632 80 180 000 – 80 199 999
Please refer to the website (www.skyjack.com) for older Serial Numbers.
Parts (North America)
Toll Free: 1-800-965-4626
Toll Free Fax: [phone]
E-mail: [email protected]
Skyjack Australia Pty Ltd.
4 Coates Place
Wetherill Park
New South Wales 2164
Australia
Tel: [phone]
Fax: [phone]
Skyjack Brasil
Indaiatuba, SP, Brasil 13347-653
Tel: [phone]
Alameda Júpiter, 710
Loteamento American Park Empresarial
Skyjack Service Center
3451 Swenson Ave. St. Charles,
Phone: [phone]
Toll Free: 1-800-275-9522
Fax: [phone]
Email: [email protected]om
Illinois, 60174 USA
Parts & Service (Europe)
Unit 1 Maes Y Clawdd
Oswestry, Shropshire SY10 8NN UK
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Maesbury Road Industrial Estate

DANGER
DANGER indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury. It may also be used to alert against
unsafe practices.
IMPORTANT
IMPORTANT indicates a procedure essential for safe operation and which,
if not followed, may result in a malfunction or damage to the aerial platform.
The Safety Alert Symbol identifies important
safety messages on aerial platform, safety signs
in manuals or elsewhere. When you see this
symbol, be alert to the possibility of personal
injury or death. Follow the instructions in the
safety message.
This Safety Alert Symbol means attention!
Become alert! Your safety is involved.
SJIII DC Electric
Page 3

Table of Contents
Section 1 - About Your Aerial Platform ................................................................................................. 5
Read and Heed .....................................................................................................................................................5
Safety Rules...........................................................................................................................................................6
Section 2 - Familiarization ................................................................................................................... 13
2.1 Familiarization of SJIII Series...........................................................................................................13
2.2 Component Identification ................................................................................................................14
2.3 Visual & Daily Maintenance Inspections .........................................................................................18
2.4 Function Tests..................................................................................................................................25
2.5 Winching and Towing Procedures ..................................................................................................32
2.6 Emergency Lowering Procedure.....................................................................................................34
Section 3 - Operation ........................................................................................................................... 35
3.1 General ............................................................................................................................................35
3.2 Major Components..........................................................................................................................36
3.3 Major Assemblies ............................................................................................................................37
3.4 Serial Number Nameplate ...............................................................................................................37
3.5 Component Identification ................................................................................................................38
3.6 Component Identification (Optional Equipment/Attachments).......................................................41
3.7 Operator’s Responsibility ................................................................................................................44
3.8 Start Operation ................................................................................................................................45
3.9 Guardrail Folding Procedure...........................................................................................................50
3.10 Loading/Unloading ..........................................................................................................................52
3.11 Moving the Aerial Platform Through a Doorway .............................................................................54
3.12 Maintenance Support Procedure ....................................................................................................56
3.13 Battery Maintenance........................................................................................................................57
Section 4 - Tables.................................................................................................................................. 61
Table 4.1 Standard and Optional Features - ANSI/CSA .....................................................................................61
Table 4.2 Owner’s Annual Inspection Record.....................................................................................................62
Table 4.3 Specifications and Features ................................................................................................................63
Table 4.4 Floor Loading Pressure .......................................................................................................................64
Table 4.5 Maximum Platform Capacities (Evenly Distributed)............................................................................66
Table 4.6 Maintenance and Inspection Schedule...............................................................................................67
Table 4.7 Operator’s Checklist ............................................................................................................................68
Section 5- Labels................................................................................................................................... 69
Section 6 - Skyjack Features .............................................................................................................. 102
Page 4
SJIII DC Electric

SKYJACK is continuously improving and expanding product features on its equipment, therefore, specifications
and dimensions are subject to change without notice.
Aerial Platform and Mobile Elevating Work Platform Definition
A mobile device that has a positionable platform supported from ground level by a structure.
Purpose of Equipment
The SKYJACK SJIII DC Electric series aerial platforms are designed to transport and raise personnel, tools and
materials to overhead work areas.
Use of Equipment
The aerial platform is a highly maneuverable, mobile work station. Work platform elevation and elevated driving
must only be done on a firm, level surface.
Manual
The operating manual is considered a fundamental part of the aerial platform. It is a very important way to
communicate necessary safety information to users and operators. A complete and legible copy of this manual
must be kept in the provided weather-resistant storage compartment on the aerial platform at all times.
Operator
The operator must read and completely understand both this operating manual and the safety panel label located
on the platform and all other warnings in this manual and on the aerial platform. Compare the labels on the aerial
platform with the labels found within this manual. If any labels are damaged or missing, replace them immediately.
Service Policy and Warranty
SKYJACK warrants each new SJIII Series work platform to be free of defective parts and workmanship for the first
24 months. Any defective part will be replaced or repaired by your local SKYJACK dealer at no charge for parts or
labor. Contact the SKYJACK Service Department for warranty statement extensions or exclusions.
Optional Accessories
The SKYJACK aerial platform is designed to accept a variety of optional accessories. These are listed under
“Standard and Optional Features” in Table 4.1. Operating instructions for these options (if equipped) are located
in Section 3 of this manual.
For non-standard components or systems, contact the SKYJACK Service Department at
(: 800 275-9522
7: 630 262-0006
Include the model and serial number for each applicable aerial platform.
Scope of this Manual
a. This manual applies to the ANSI/SIA, CSA version of the SJIII Series aerial platform models listed on Table 4.1.
- Equipment identified with “ANSI” meets the ANSI SIA-A92.6-2006 standard.
-Equipment identified with “CSA” meets the CSA B354.2-01 standard.
b. CSA (Canada)
Operators are required to conform to national, territorial/provincial and local health and safety regulations
applicable to the operation of this aerial platform.
c. ANSI/SIA (United States)
Operators are required by the current ANSI/SIA A92.6 standards to read and understand their responsibilities
in the manual of responsibilities before they use or operate this aerial platform.
1
1
Section 1 - About Your Aerial Platform
Read and Heed
SJIII DC Electric
Page 5
Section 1 - About Your Aerial Platform Read and Heed
1
1

WARNING
Failure to comply with your required responsibilities in the use and operation of the aerial platform
could result in death or serious injury!
Operator Safety Reminders
A study conducted by St. Paul Travelers showed that most accidents are caused by the failure of the operator to
follow simple and fundamental safety rules and precautions.
You, as a careful operator, are the best insurance against an accident. Therefore, proper usage of this aerial
platform is mandatory. The following pages of this manual should be read and understood completely before
operating the aerial platform.
Common sense dictates the use of protective clothing when working on or near machinery. Use appropriate safety
devices to protect your eyes, ears, hands, feet and body.
Any modifications from the original design are strictly forbidden without written permission from SKYJACK.
Safety Rules
Page 6
SJIII DC Electric
Safety Rules Section 1 - About Your Aerial Platform

Electrocution Hazard
This aerial platform is not electrically insulated. Maintain a Minimum Safe Approach Distance (MSAD) from
energized power lines and parts as listed below. The operator must allow for the platform to sway, rock or sag.
This aerial platform does not provide protection from contact with or proximity to an electrically charged conductor.
Per ANSI A92.6-2006 8.10(7)
“The operator shall perform only that work for which he or she is qualified, in compliance with all applicable safety
related work practices intended to prevent electric shock covered by the Code of Federal Regulations (CFR)
1910.333. The operator’s level of competence shall be established only by persons qualified to do so. Operators
shall maintain the appropriate minimum approach distance (MAD) from energized power lines and parts covered
by CFR 1910.333 (c).”
Unqualified persons must maintain a minimum approach distance of 10 feet from any energized power line up to
50 kV. Energized power lines over 50 kV require a greater minimum approach distance to be maintained. Refer to
CFR 1910.333.
As per CSA B354.2-01
“The operator shall maintain the minimum safe approach distance (MSAD) from energized conductors at all times
in accordance with the authority having jurisdiction.”
DO NOT USE THE AERIAL PLATFORM AS A GROUND FOR WELDING.
DO NOT OPERATE THE AERIAL PLATFORM DURING LIGHTNING OR STORMS.
DO NOT OPERATE THE AERIAL PLATFORM NEAR POWER LINES. MAINTAIN A MINIMUM SAFE
APPROACH DISTANCE (MSAD) FROM ENERGIZED POWER LINES.
Voltage Range Minimum Safe Approach Distance
(Phase to Phase) (Feet)
0 to 300V Avoid Contact
Over 300V to 50KV 10
Over 50KV to 200KV 15
Over 200KV to 350KV 20
Over 350KV to 500KV 25
Over 500KV to 750KV 35
Over 750KV to 1000KV 45
60023AD-ANSI
DANGER
FAILURE TO AVOID THIS HAZARD WILL RESULT IN DEATH OR SERIOUS INJURY!
Avoid Power Lines
Minimum Safe Approach Distance
ANSI/SIA A92.6-2006 & CSA B354.2-01 Requirements
SJIII DC Electric
Page 7
Section 1 - About Your Aerial Platform Safety Rules

Safety Precautions
Know and understand the safety precautions before going on to next section.
WARNING
Failure to heed the following safety
precautions could result in tip over,
falling, crushing, or other hazards leading
to death or serious injury.
• KNOW all national, state or territorial/provincial
and local rules which apply to your aerial platform
and jobsite.
• TURN main power disconnect switch “ ” off
when leaving the aerial platform unattended.
Remove the key to prevent unauthorized use of
the aerial platform.
• WEAR all the protective clothing and personal
safety devices issued to you or called for by job
conditions.
• DO NOT wear loose clothing,
dangling neckties, scarves,
rings, wristwatches or other
jewelry while operating this lift.
• AVOID entanglement with
ropes, cords or hoses.
• AVOID falling. Stay within the
boundaries of the guardrails.
• DO NOT raise the aerial
platform or operate elevated in
windy or gusty conditions that
exceed the limits specified in
Section 4, Table 4.5.
• DO NOT increase the lateral
surface area of the platform.
Increasing the area exposed
to the wind will decrease
aerial platform stability. Avoid
tenting.
• DO NOT drive elevated on a
soft or uneven surface.
• DO NOT elevate the aerial
platform if it is not on a firm,
level surface.
• DO NOT drive elevated near
depressions or holes of any
type, loading docks, debris,
drop-offs or surfaces that may
affect the stability of the aerial
platform.
• IF OPERATION IN AREAS
WITH HOLES OR DROP-
OFFS IS ABSOLUTELY
NECESSARY, elevated driving
shall not be allowed. Position
the aerial platform horizontally
only with the platform fully-
lowered. After ensuring that
all 4 wheels or outriggers (if
equipped) have contact with
a firm, level surface, the aerial
platform can be elevated. After
elevation, the drive function
must not be activated.
• DO NOT elevate or drive
elevated on a slope. Elevated
driving must be done on a
firm, level surface.
• DO NOT ascend or descend
a grade when elevated.
When fully-lowered, ascend
or descend grades up to
maximum rated inclines listed
in Table 4.
Page 8
SJIII DC Electric
Safety Rules Section 1 - About Your Aerial Platform

• DO NOT operate on surfaces not capable of
holding the weight of the aerial platform including
the rated load, e.g. covers, drains, and trenches.
• DO NOT operate an aerial
platform that has ladders,
scaffolding or other devices
mounted on it to increase
its size or work height. It is
prohibited.
• DO NOT exert side forces on
aerial platform while elevated.
• DO NOT use the aerial platform
as a crane. It is prohibited.
• DO NOT sit, stand or climb on
the guardrails. It is prohibited.
• DO NOT climb on scissor arm
assembly. It is prohibited.
• AVOID overhead obstructions.
Be aware of overhead
obstructions or other possible
hazards around aerial platform
when lifting or driving.
• AVOID crushing hazards. Be
aware of crushing hazards
when lifting or driving. Keep
all body parts inside the aerial
platform.
• DO NOT raise the aerial
platform while the aerial
platform is on a truck, fork lift
or other device or vehicle.
• DO NOT lower the platform
unless the area below is clear
of personnel and obstructions.
• ENSURE that there are no
personnel or obstructions in
the path of travel, including
blind spots.
• BE AWARE of blind spots when operating the
aerial platform.
• DO NOT use with improperly
inflated/damaged tires or
wheels. Refer to Section 2:
Wheel/Tire Assembly.
• ENSURE ALL tires are in
good condition and bolts are
properly tightened.
• DO NOT alter or disable
limit switches or other safety
devices.
Safety Precautions (Continued)
Know and understand the safety precautions before going on to next section.
SJIII DC Electric
Page 9
Section 1 - About Your Aerial Platform Safety Rules

Safety Precautions (Continued)
Know and understand the safety precautions before going on to next section.
• DO NOT use the aerial platform
without guardrails, locking pins
and the entry gate(s) in place.
• DO NOT use under influence
of alcohol or drugs.
• STUNT driving and horseplay are prohibited.
• DO NOT exceed the rated
capacity of the aerial platform.
• DO NOT distribute load
unevenly.
• DO NOT operate if aerial
platform is not working properly
or if any parts are damaged or
worn.
• DO NOT leave aerial platform
unattended with key in key
switch.
• DO NOT position the aerial platform against
another object to steady the platform.
• DO NOT place materials on the guardrails
or materials that exceed the confines of the
guardrails unless approved by Skyjack.
Page 10
SJIII DC Electric
Safety Rules Section 1 - About Your Aerial Platform

Safety Precautions (Continued)
Know and understand the safety precautions before going on to next section.
Fall Protection
As per the ANSI A92.6-2006 standard, “The
guardrail system of the aerial platform provides
fall protection. If occupant(s) of the platform are
required to wear personal fall protection equipment
(PFPE), occupants shall comply with instructions
provided by the aerial platform manufacturer
(remanufacturer) regarding anchorage(s).”
If additional fall protection is required, by an
employer or the authority having jurisdiction,
Skyjack recommends the use of a fall restraint
system to keep an occupant within the confines
of the platform, and thus not expose the occupant
to any fall hazard requiring a fall arrest.
All personal fall protection equipment must
comply with applicable governmental regulations
and must be inspected and used in accordance
with the manufacturer’s recommendations.
All personal fall protection equipment must be
attached only to approved anchorage points
within the platform of the aerial platform.
WARNING
Entering and exiting the aerial platform
should only be done using the three
points of contact.
• Use only equipped access openings.
• Enter and exit only when the aerial platform
is in the fully retracted position.
• Do use three points of contact to enter and exit
the platform. Enter and exit the platform from
the ground only. Face the aerial platform when
entering or exiting the platform.
• Three points of contact means that two hands and
one foot or one hand and two feet are in contact
with the aerial platform or the ground at all times
during entering and exiting.
WARNING
An operator should not use any aerial
platform that:
• does not appear to be working
properly.
• has been damaged or appears to have
worn or missing parts.
• has alterations or modifications not
approved by the manufacturer.
• has safety devices which have been
altered or disabled.
• has been tagged or locked out for
non-use or repair.
Failure to avoid these hazards could
result in death or serious injury.
Jobsite Inspection
• Do not use in hazardous locations (see NFPA
505).
• Perform a thorough jobsite inspection prior to
operating the aerial platform, to identify potential
hazards in your work area.
• Be aware of moving equipment in the area. Take
appropriate actions to avoid collision.
SJIII DC Electric
Page 11
Section 1 - About Your Aerial Platform Safety Rules

Page 12
SJIII DC Electric
Notes

FAMILIARIZATIONFAMILIARIZATION
Section 2 - Familiarization
SJIII DC Electric
Page 13
Section 2- Familiarization SJIII Series
2.1 Familiarization of SJIII Series
2
1
2
1
2
1
2
WARNING
Aerial Platform Familiarization should be given only to individuals who are QUALIFIED And
TRAINED to operate an aerial platform.
Do not operate this aerial platform without proper authorization and training. Failure to avoid
this hazard could result in death or serious injury.
It is the responsibility of the operator to read, completely understand and follow all
instructions and warnings contained in this operating manual and on the aerial platform.
SJIII 3219
Manual
Box
Platform Control
Console
Main Power
Disconnect
Holding Valve
Manual Override
Knob
Base
Control
Console
Free-wheeling
Valve
Free-
wheeling
Valve
SJIII 3226 & 4632
Brake
(If Equipped)
Emergency
Lowering
Valve

It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
2.2 Component Identification
The following descriptions are for identification,
explanation and locating purposes only.
2.2-1 Main Power Disconnect Switch
This switch is located at the rear of the base.
1
Figure 2-1. Main Power Disconnect Switch
1. Main Power Disconnect Switch - This switch,
when in “ ” off position, disconnects power to
all circuits. Switch must be in “ ” on position to
operate any circuit. Turn switch “ ” off when
transporting aerial platform.
2.2-2 Tilt Alarm
The aerial platform is equipped with a device which
senses when the aerial platform is out of level in any
direction. When activated, it disables drive and lift
functions of the aerial platform and an alarm produces
an audible sound accompanied by the amber light (if
equipped).
WARNING
If the tilt alarm sounds and the platform
does not, or only partially raises,
immediately lower the platform completely
and ensure that the aerial platform is on
a firm level surface.

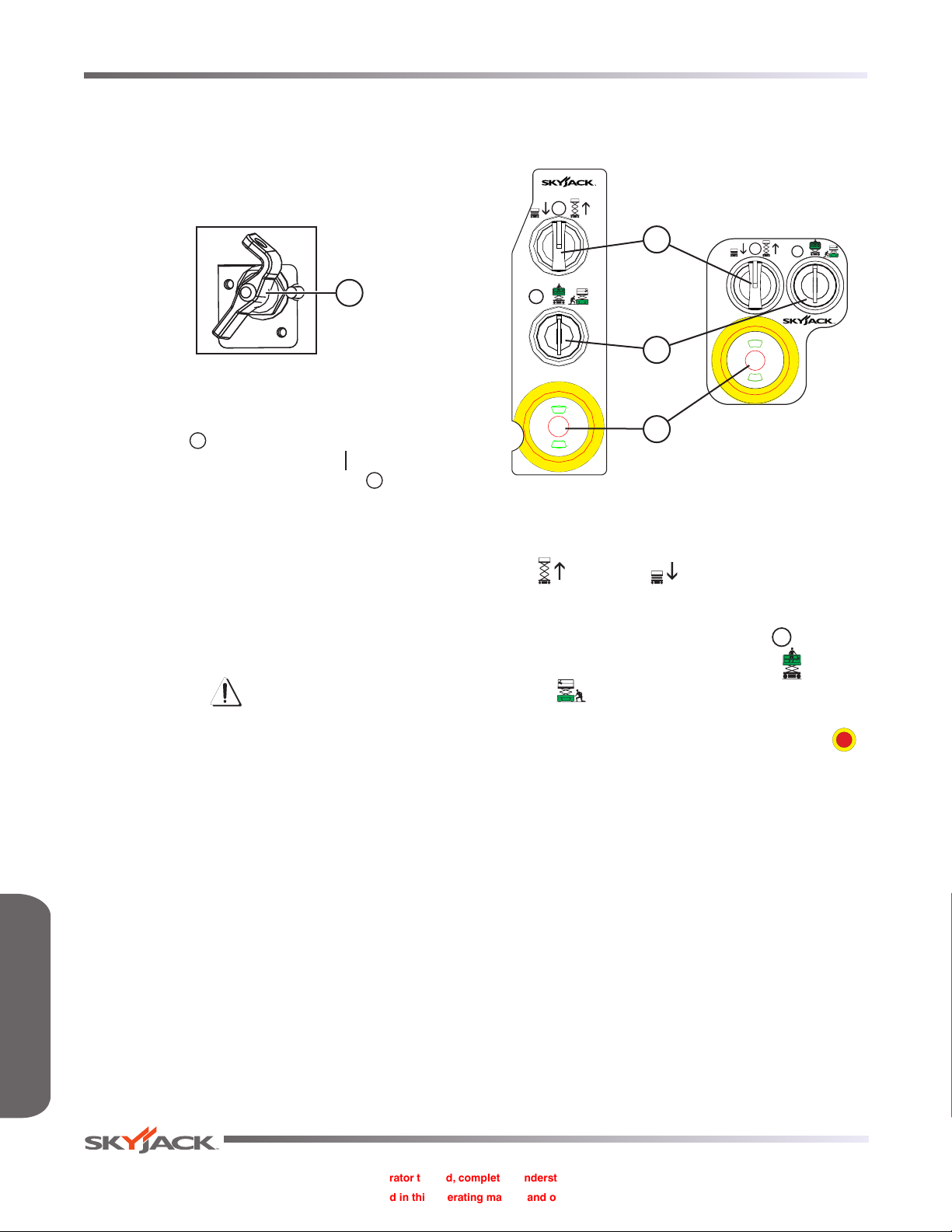

2.2-3 Base Control Console
This control console is located at the rear of the base.
It contains the following controls:
1
2
3
Figure 2-2. Base Control Console
1. Lower/Neutral/Raise Switch - This switch controls
“ ” raising or “ ” lowering of platform.
2. Off/Platform/Base Key Switch - This three-way
switch allows the operator to turn “ ” off power
to aerial platform or to activate either “ ” platform
or “ ” base controls.
3. Emergency Stop Button - This button “ ”,
when depressed, disconnects power to the control
circuit.
FAMILIARIZATIONFAMILIARIZATION
Page 14
SJIII DC Electric
Control Functions Section 2 - Familiarization

It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
2.2-4 Brake System
The brake system is located at the rear of the base. The
brakes must be manually disengaged before pushing,
winching or towing. Refer to Section 2.5-2 for procedure
on how to release brakes manually. The system contains
the following controls:
Pin Brakes (If Equipped)
1
2
Disc Brakes (If Equipped)
Figure 2-3. Brake System
1. Brake auto reset valve plunger
2. Brake hand pump
2.2-5 Free-wheeling Valve
1
Model 3219
1
Models 3226 and 4632
Figure 2-4. Free-wheeling Valve
1. Free-wheeling Valve - The free-wheeling valve
is located at the front and/or rear of the aerial
platform (depending on the model). Refer to
Section 2.5-1 for procedure on how to release the
free-wheeling valve.
FAMILIARIZATIONFAMILIARIZATION
SJIII DC Electric
Page 15
Section 2 - Familiarization Control Functions

It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
2.2-6 Emergency Lowering System
This emergency lowering system allows platform
lowering in the event of an emergency or an electrical
system failure. Refer to Section 2.6 for the emergency
lowering procedure. The system contains the following
controls:
1
158914AA
ZZ
23
A
B
1
2
3
Figure 2-5. Emergency Lowering System
1. Holding Valve Manual Override Knob - Located
on the holding valve at the bottom of each lift
cylinder.
2. Emergency Lowering Valve - Located at the rear
of the hydraulic/electric tray.
3. Emergency Lowering Access Rod (3226 & 4632)
- Located at the left side of the base.
FAMILIARIZATIONFAMILIARIZATION
Page 16
SJIII DC Electric
Control Functions Section 2 - Familiarization

It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
2.2-7 Platform Control Console
This removable control console is mounted at the right
front of the platform. It contains the following controls:
12
3
54
6
Figure 2-6. Platform Control Console
1. Lift/Drive/Steer Enable Trigger Switch -This
momentary “ ” switch energizes the controller.
It must be held depressed continuously while
engaging either the lift/drive or steer functions.
2. Lift/Drive/Steer Controller - This one-hand lever
controls lift/drive and steer motions. Internal
springs return it to neutral when controller is
released.
3. Emergency Stop Button/Operation Light - This
button “ ”, when depressed, disconnects
power to the control circuit. The operation light
indicates upper control availability. It glows when
both emergency stop buttons on the platform
control console and the base control console
are pulled out.
4. Horn Push Button - This “ ” push button
sounds an automotive-type horn.
5. Inclined Drive/Level Drive Switch - This switch
selects “ ” inclined drive (low speed/high
torque) or “ ” level drive (high speed/low
torque).
6. Lift/Off/Drive Switch - Selecting “ ” off position
disconnects power from both lift and drive circuits.
Selecting “ ” lift position energizes the lift circuit.
Selecting “ ” drive position energizes the drive
circuit.
WARNING
Skyjack scissor lifts are to be operated
from the operator’s position on the
platform with the control box secured on
the mounting bracket at the front right
portion of the platform. Operation of the
unit from the ground is permissible only
when maintaining the lift or, in limited
circumstances, when an obstruction
precludes the safe operation of the
lift from the operator’s position on the
platform. Operation from the ground is to
be performed as set forth in the Operating
Manual.
FAMILIARIZATIONFAMILIARIZATION
SJIII DC Electric
Page 17
Section 2 - Familiarization Control Functions

It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
2.3 Visual & Daily Maintenance Inspections
Begin the visual and daily maintenance inspections
by checking each item in sequence for the conditions
listed in this section.
WARNING
To avoid injury, do not operate an aerial
platform until all malfunctions have been
corrected.
WARNING
To avoid possible injury, ensure aerial
platform power is off during your visual
and daily maintenance inspections.
CAUTION
Ensure aerial platform is on a firm, level
surface.
NOTE
While performing visual and daily
inspections in different areas, be aware to
also inspect limit switches, electrical and
hydraulic components.
2.3-1 Labels
Refer to Section 5 - Labels in this manual and determine
that all labels are in place and are legible.
2.3-2 Electrical
Maintaining the electrical components is essential to
good performance and service life of the aerial platform.
Inspect the following areas for chafed, corroded and
loose wires:
• base to platform cables and wiring harness
• battery tray wiring harnesses
• hydraulic/electrical wiring harnesses
2.3-3 Limit Switches
Ensure limit switches are properly secured with no signs
of visible damage and movement is not obstructed.
2.3-4 Hydraulic
Maintaining the hydraulic components is essential to
good performance and service life of the aerial platform.
Perform a visual inspection around the following
areas:
• hoses and fittings
• all hydraulic cylinders
• all hydraulic manifolds
• the underside of the base
• ground area under the aerial platform
CONVENTIONALS COMPACTS
Pothole Protection
Limit Switch
FAMILIARIZATIONFAMILIARIZATION
Page 18
SJIII DC Electric
Visual & Maintenance Inspection Section 2 - Familiarization

It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
2.3-5 Entrance Side
• Main Power Disconnect Switch
- Turn main power disconnect switch to “
” off position.
- Ensure all cables are secure and switch
is in proper working condition.
• Base Control Switches
- Ensure there are no signs of visible
damage and all switches are in their
neutral positions.
• Free-wheeling Valve Knob
(SJIII 3219 - Front Side)
- Ensure there are no loose or missing
parts and there is no visible damage.
• Brakes
- Ensure there are no loose or missing
parts and there is no visible damage.
- Ensure tabs are not locked.
• 110V Outlet Receptacle
- Ensure receptacle is free from dirt and
obstructions.
• Ladder
- Ensure there are no loose or missing
parts and there is no visible damage.
SJIII 3226 & 4632
(Back View)
SJIII 3219
(Back View)
SJIII 3219
Main Power
Disconnect
Switch
Base
Control Console
110V Outlet
Receptacle
110V Outlet
Receptacle
Ladder
Ladder
Brakes
Brakes
Free-wheeling
Valve
Free-wheeling
Valve
FAMILIARIZATIONFAMILIARIZATION
SJIII DC Electric
Page 19
Section 2 - Familiarization Visual & Maintenance Inspection

It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
2.3-6 Battery Tray Side
• Pothole Protection Device
- Ensure mechanisms have no sign of
visible damage and are free from dirt and
obstructions.
• Battery Tray
- Ensure tray latch is secure and in proper
working order.
• Battery Charger
(SJIII 3219 - Entrance Side)
- Ensure charger is secure and shows no
visible damage.
• Battery
Proper battery condition is essential to
good performance and operational safety.
Improper fluid levels or damaged cables and
connections can result in component damage
and hazardous conditions.
WARNING
Explosion hazard. Keep flames
and sparks away. Do not smoke
near batteries.
WARNING
Battery acid is extremely corrosive -
Wear proper eye and facial protection as
well as appropriate protective clothing.
If contact occurs, immediately flush with
cold water and seek medical attention.
1. Check battery case for damage.
2. Clean battery terminals and cable ends
thoroughly with a terminal cleaning tool or
wire brush.
3. Ensure all battery connections are tight.
4. If applicable, check battery fluid level. If plates
are not covered by at least 1/2" (13 mm) of
solution, add distilled or demineralized water.
5. Replace battery if damaged or incapable of
holding a lasting charge.
WARNING
Use original or manufacturer-approved
parts and components for the aerial
platform.
Pothole Protection Device Battery Tray
Battery
Charger Battery
Battery Tray
Hydraulic/Electric
Tray
Battery Fuse Box
Battery
Charger
SJIII 3226 & 4632 SJIII 3219
FAMILIARIZATIONFAMILIARIZATION
Page 20
SJIII DC Electric
Visual & Maintenance Inspection Section 2 - Familiarization
