SKYLOTEC COUNTERWEIGHT User manual

ARTIKELÜBERSICHT / ARTICLE OVERVIEW 03
MODELLÜBERSICHT / MODEL OVERVIEW 05
AUFBAU-ANLEITUNG / SETUP INSTRUCTION 06 - 33
COUNTERWEIGHT 06
COUNTERWEIGHT 30° 07
H-BRACKET 08
H-BRACKET 30° 09
V-BRACKET 10
V-BRACKET 30° 11
Z-BRACKET 12
Z-BRACKET 30° 13
PARALLEL 14
FIXING 15
JUNCTION | MODEL OVERVIEW 17
JUNCTION CORNER 24
JUNCTION DROP 25
JUNCTION GATE 26
KICKBOARD COUNTERWEIGHT 27
KICKBOARD H-BRACKET 28
KICKBOARD JUNCTION 29
KICKBOARD CORNER 30
FREE END PART 31
GAP 32
WALL END PART 33
GENERAL 34
Industry-born. Sports-driven.
HAVEN
SICHERHEITSGELÄNDER / SAFETY RAIL
MAT-BA-0172 Stand 09/04/2018

ARTIKELÜBERSICHT / ARTICLE OVERVIEW:
GR-001-1
GR-002
GR-003
GR-003-N
GR-004-3
GR-004-6
GR-005-1-3
GR-005-1-6
GR-006-1
GR-007-1
GR-008
GR-009-1 (2x GR-006-1)
GR-010
GR-011
GR-012
GR-013
GR-014
GR-015
GR-016
GR-017
GR-018
GR-018-2
GR-021
2
GR-019 HAVEN RIVET
GR-020 HAVEN SCREW
GR-022 HAVEN KICKBOARD
H-FIXING
GR-023 HAVEN SCREW
COUNTERWEIGHT

HAVEN Komponenten / Components
Art. Nr.
Art. No.
Bezeichnung
Name
Beschreibung Description Länge mm
Length
mm
Breite mm
Width mm
Höhe mm
Heigth
mm
Gewicht
kg
Weight kg
GR-001-1 HAVEN UPRIGHT 40 40 Pfosten mit Rohrklammer, Alu Post with tube xing, aluminium 1.100 110 33 1,35
GR-002 HAVEN BASE Freistehender Fuß, vormontiert,
Alu
Freestanding base, pre-assemb-
led, aluminium
1.215 160 157 2,35
GR-003 HAVEN COUNTER WEIGHT 25 kg-Gewicht (Beton)
mit Plastikgehäuse, SKYLOTEC
25 kg counterweight (concrete)
with plastic housing, SKYLOTEC
370 290 135 25
GR-003-N HAVEN COUNTER WEIGHT 25 kg-Gewicht (Beton)
mit Plastikgehäuse, NEUTRAL
25 kg counterweight (concrete)
with plastic housing, NEUTRAL
370 290 135 25
GR-004-3 HAVEN HANDRAIL TUBE 40 mm Handlauf, Alu 40 mm handrail, aluminium 3.000 40 40 1,98
GR-004-6 HAVEN HANDRAIL TUBE 40 mm Handlauf, Alu 40 mm handrail, aluminium 5.800 40 40 3,83
GR-005-1-3 HAVEN KNEERAIL 40 40 mm Knieleiste, Alu 40 mm kneerail, aluminium 3.000 40 40 1,47
GR-005-1-6 HAVEN KNEERAIL 40 40 mm Knieleiste, Alu 40 mm kneerail, aluminium 5.800 40 40 2,85
GR-006-1 HAVEN HANDRAIL JUNCTI-
ON 40
40 mm Handlauf-Verbinder, Alu 40 mm handrail junction,
aluminium
90 40 40 0,06
GR-007-1 HAVEN HANDRAIL VAR 40 40 mm Handlauf, Variabler
Eck-Verbinder, Alu
40 mm handrail, variable corner
connector, aluminium
140 40 40 0,27
GR-008 HAVEN INCLINATION 30° Neigungsadapter, Alu 30° tilt adapter, aluminium 275 113 33 0,48
GR-009-1 HAVEN FREE END Abschluss offenes Ende 40-40,
Alu
Closing open end, 40-40,
aluminium
580 230 40 0,45
GR-010 HAVEN WALL END Abschluß Wandmontage 40, Alu Closing wall mounting, 40,
aluminium
85 85 64 0,70
GR-011 HAVEN HORIZONTAL FIXING H-Typ Horizontaler Wandhalter,
Alu
H-type, horizontal wall xing,
aluminium
150 90 90 0,56
GR-012 HAVEN VERTICAL FIXING V-Typ Vertikaler Wandhalter, Alu V-type, vertical wall xing,
aluminium
190 130 90 0,63
GR-013 HAVEN Z TYPE FIXING Z-Typ Wandhalter für Brüstung,
Attikaabdeckung, Alu, Stahl
Z-type, wall xing for parapets,
parapet closings, aluminium,
steel
270 220 165 2,65
GR-014 HAVEN KICKBOARD Fußleiste, Alu Kickboard, aluminium 3.000 155 10 2,45
GR-015 HAVEN ADJUSTABLE KICK-
BOARD
Fußleiste Montageklammer, Alu Kickboard mounting clamp,
aluminium
150 30 30 0,06
GR-016 HAVEN KICKBOARD JUNC-
TION
Fußleiste Verbinder, Alu Kickboard junction, aluminium 130 80 10 0,08
GR-017 HAVEN CORNER JUNCTION Fußleiste Eckverbinder, Alu Kickboard corner junction,
aluminium
130 60 10 0,10
GR-018 HAVEN GATE Durchgang, Abstand 500mm,
Alu
Gate, gap 500mm, aluminium 900 540 40 2,90
GR-018-2 HAVEN GATE Durchgang, Abstand 470mm,
Alu
Gate, gap 470mm, aluminium 900 540 40 2,86
GR-019 HAVEN RIVET Ersatzteilset Nieten, Alu Spare part kit, rivets, aluminium 200 75 60 0,60
GR-020 HAVEN SCREW Ersatzteilset Schrauben, Alu,
Stahl
Spare part kit, screws, alumini-
um, steel
200 75 60 0,65
GR-021 HAVEN PLUG Kappe, SKYLOTEC, PE Plug, SKYLOTEC, PE 0,01
GR-022
HAVEN KICKBOARD H-FIXING Fußleiste Montageklammer
H-Bracket, Alu
Kickboard mounting bracket
H-type
230 220 250 0,06
GR-023
HAVEN SCREW COUNTER-
WEIGHT
Schraube zur Verbindung
zweier Gewichte
Screw for connecting two
weights
3
ARTIKELÜBERSICHT / ARTICLE OVERVIEW:

MODELLÜBERSICHT / MODEL OVERVIEW:
COUNTERWEIGHT 30°COUNTERWEIGHT
V-BRACKET 30°V-BRACKET
Z-BRACKET 30°Z-BRACKET
4
COUNTERWEIGHT 30° KICKBOARDCOUNTERWEIGHT KICKBOARD
H-BRACKET 30°H-BRACKET H-BRACKET KICKBOARD

AUFBAU-ANLEITUNG / SETUP INSTRUCTION:
COUNTERWEIGHT
5
X 2
10 Nm
m
ax.
1750 mm*
+
4 5 6
7
1 2 3
8
1100 mm
7 Nm
m
ax.
2500 mm**
* EN ISO 14122-3:2016
** EN 13374:2013

AUFBAU-ANLEITUNG / SETUP INSTRUCTION: COUNTERWEIGHT 30°
6
X 2
+
4 5 6
8
1 2 3
7 9
7 Nm
10 Nm
7 Nm
1100 mm
m
ax.
1750 mm
+
Layout EN ISO 14122-3

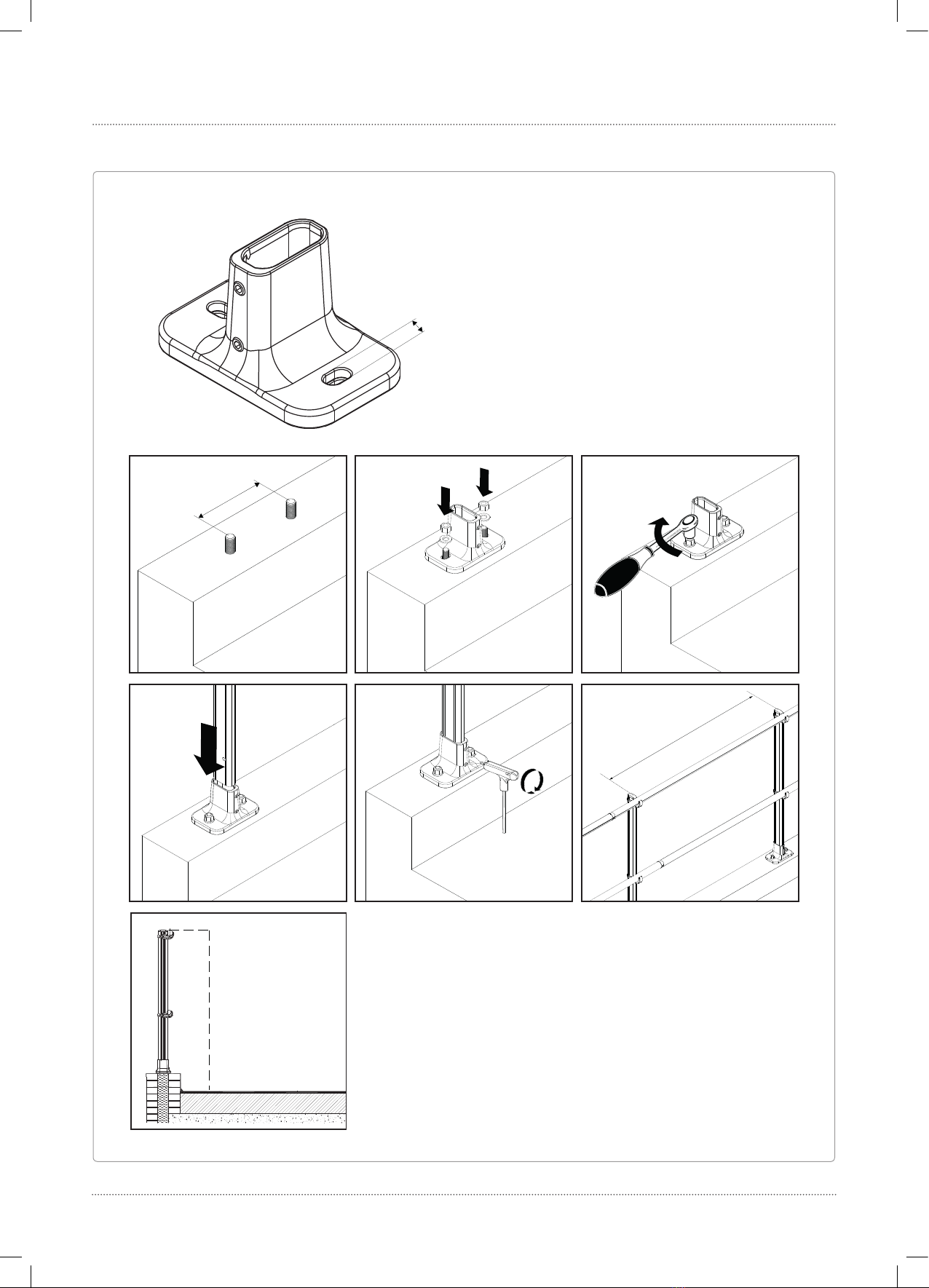

AUFBAU-ANLEITUNG / SETUP INSTRUCTION: H-BRACKET
105 mm
m
ax. 1750
mm
1100 mm
1 2 3
4 5 6
7
17 Nm
7 Nm
12,5 mm
7
Layout EN ISO 14122-3

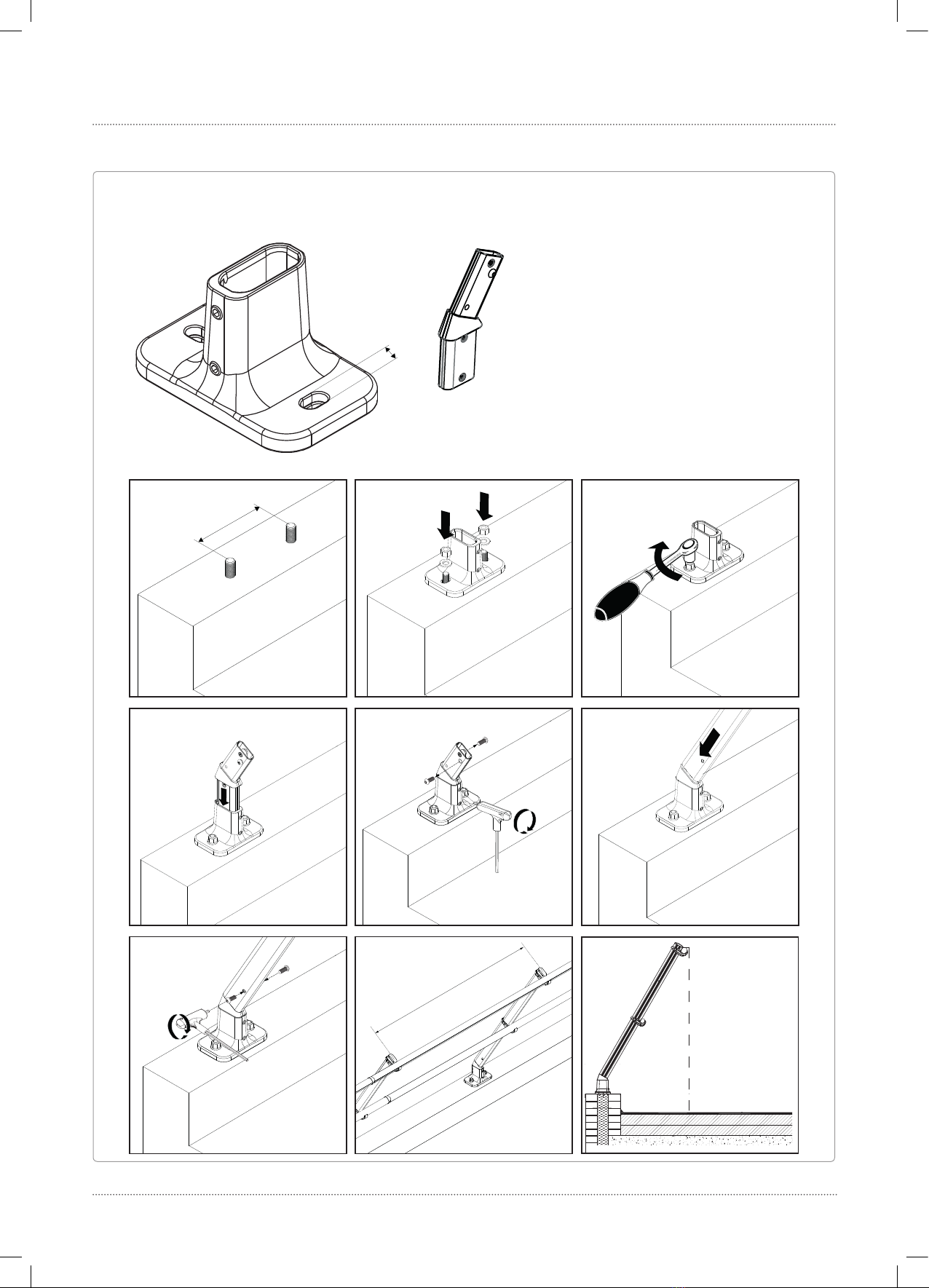

AUFBAU-ANLEITUNG / SETUP INSTRUCTION: H-BRACKET 30°
105 mm
max. 1750 mm
+
1 2 3
4 5 6
7 8 9
7 Nm
1100 mm
17 Nm
7 Nm
12,5 mm
8
Layout EN ISO 14122-3

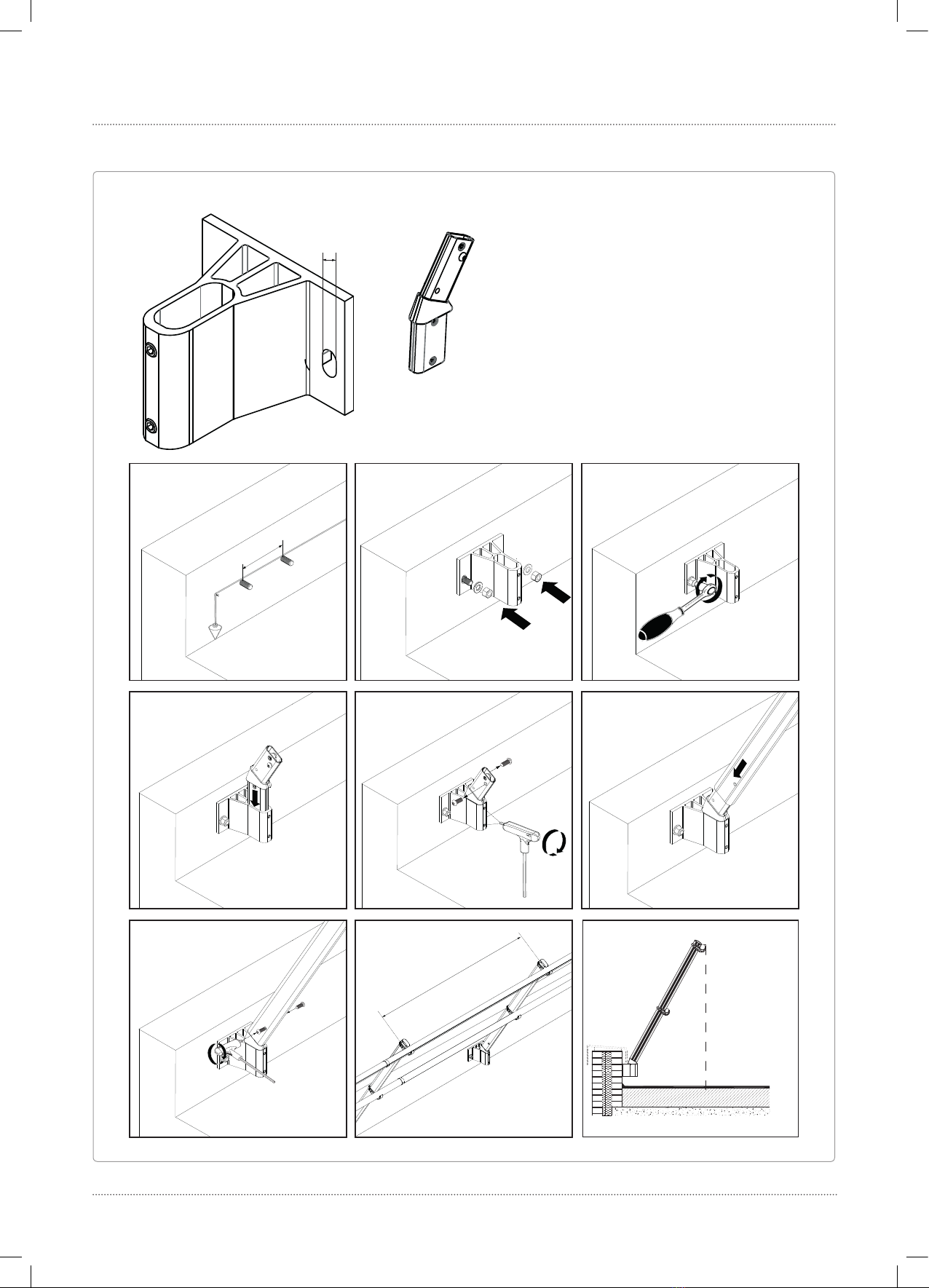

AUFBAU-ANLEITUNG / SETUP INSTRUCTION: V-BRACKET
7 Nm
m
ax. 1750
mm
1 2 3
4 5 6
105 mm
7
1100 mm
12,5 mm
Layout EN ISO 14122-3
9

AUFBAU-ANLEITUNG / SETUP INSTRUCTION: V-BRACKET 30°
105 mm
max. 1750 mm
+
1 2 3
4 5 6
789
7 Nm
7 Nm
1100 mm
12,5 mm
10
Layout EN ISO 14122-3

AUFBAU-ANLEITUNG / SETUP INSTRUCTION: Z-BRACKET
140 mm
m
ax. 1750
mm
1 2 3
4 5 6
7
1100 mm
17 Nm
7 Nm
14 mm
11
1100 mm
Layout EN ISO 14122-3

AUFBAU-ANLEITUNG / SETUP INSTRUCTION: Z-BRACKET 30°
max. 1750mm
+
4 5 6
7 8
140 mm
1 2 3
9
1100 mm
7 Nm
7 Nm
17 Nm
14 mm
12
Layout EN ISO 14122-3

13
OK
OK
OK
NO
NO
NO

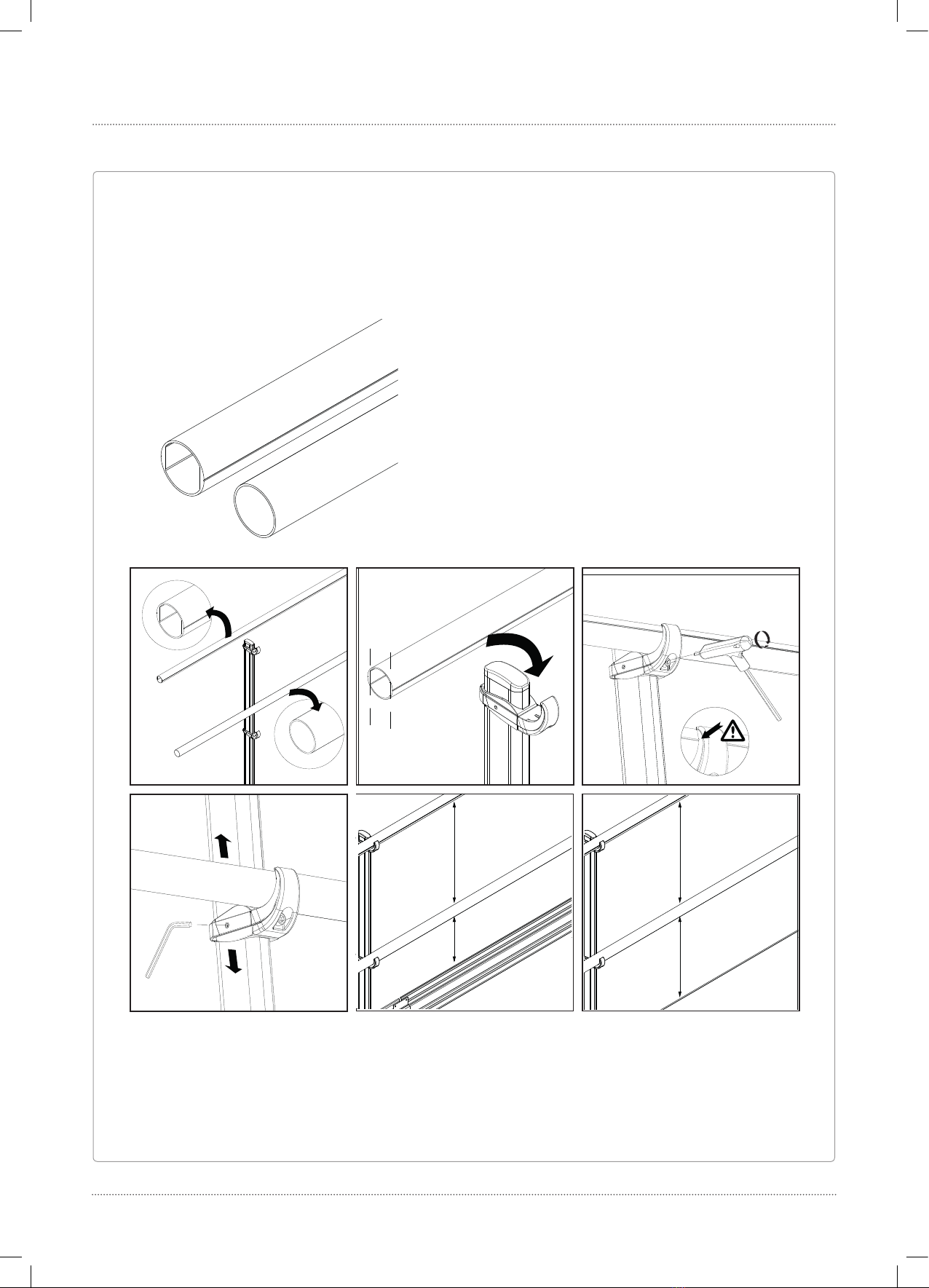

AUFBAU-ANLEITUNG / SETUP INSTRUCTION: PARALLEL

4 5A
1 2 3
7 Nm
2 Nm
5B
max. Xmax. X
EN ISO 14122-3:2016 ->
X=500mm
EN 13374:2013 ->
X=470mm
14
AUFBAU-ANLEITUNG / SETUP INSTRUCTION: FIXING
max. Xmax. X
EN ISO 14122-3:2016 ->
X=500mm
EN 13374:2013 ->
X=470mm

AUFBAU-ANLEITUNG / SETUP INSTRUCTION: FIXING
Load on the fixing
in daN
Span (m)
1,75
52,5 52,5
H type Bracket 48,5 48,5
h (mm) daN h (mm) daN
600
380 600 346
700
442 700 401
800
504 800 455
900
567 900 509
1000
629 1000 563
1100
667 1100 617
53 53
V type Bracket 42 42
h (mm) daN Bh (mm) daN
600
351 634 600 263
700
423 741 700 325
800
495 849 800 388
900
567 956 900 450
1000
639 1063 1000 513
1100
683 1171 1100 575
53 53
Z type Bracket 45 45
h (mm) daN h (mm) daN
600
858 600 595
700
988 700 712
800
1119 800 828
900
1251 900 945
1000
1383 1000 1062
1100
1442 1100 1178
Inclined upright
Straight upright
A & B
A
15

max. 1,75 m *
max. 2,50 m **
1 x 25 Kg
max. 1,75 m *
max. 2,50 m **
* EN ISO 14122-3:2016
** EN 13374:2013
max. 1,75 m *
max. 2,50 m **
max.1,25 m
max.0,50 m
* EN ISO 14122-3:2016
** EN 13374:2013

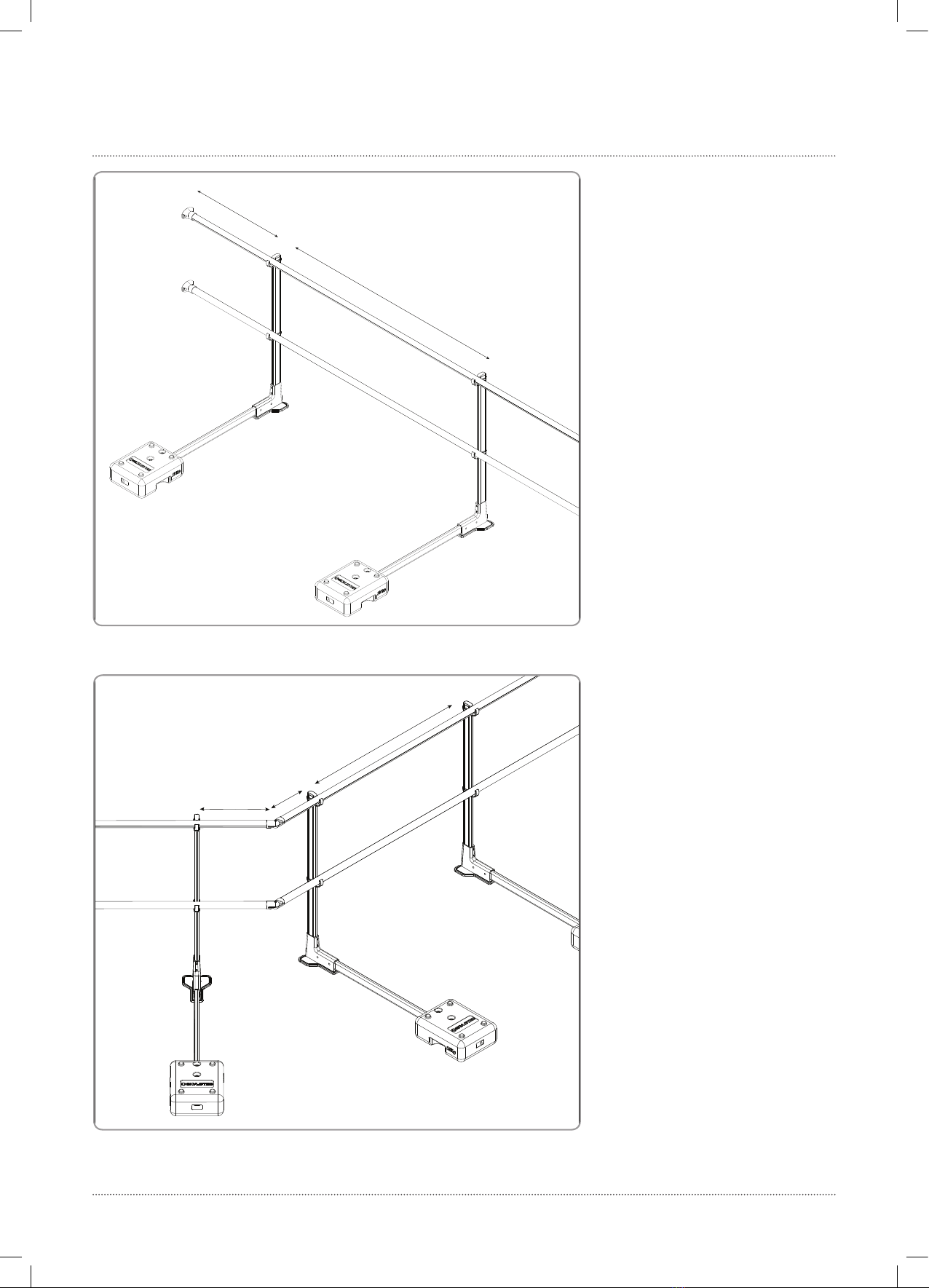

JUNCTION COUNTERWEIGHT 1
JUNCTION COUNTERWEIGHT 2
16
MODELLÜBERSICHT / MODEL OVERVIEW: JUNCTION
COUNTERWEIGHT

max.1,75 m *
max. 2,50 m **
max. 0,25 m
max.1, 50 m
* EN ISO 14122-3:2016
** EN 13374:2013
JUNCTION COUNTERWEIGHT 3
max. 1,00 m
max. 0,75 m
max. 1,75 m *
max. 2,50 m **
* EN ISO 14122-3:2016
** EN 13374:2013
JUNCTION COUNTERWEIGHT 4
17
MODELLÜBERSICHT / MODEL OVERVIEW: JUNCTION
COUNTERWEIGHT

max. 1,75 m *
max. 2,50 m **
max. 0,50 m
max. 1,25 m
* EN ISO 14122-3:2016
** EN 13374:2013
JUNCTION COUNTERWEIGHT 5
max. 1,75 m *
max. 2,50 m **
max. 0,75 m
* EN ISO 14122-3:2016
** EN 13374:2013
max.1,00 m
JUNCTION COUNTERWEIGHT 6
18
MODELLÜBERSICHT / MODEL OVERVIEW: JUNCTION
COUNTERWEIGHT

MODELLÜBERSICHT / MODEL OVERVIEW : JUNCTION BRACKET
max. 1,75 m max. 1,75 m
JUNCTION BRACKET 1
max. 1,75 m
max.0,50 m
max. 1,25 m
JUNCTION BRACKET 2
19

20
max.1,75 m
max. 0,25 m
max.1, 50 m
JUNCTION BRACKET 3
max. 1,00 m
max. 0,75 m
max. 1,75 m
JUNCTION BRACKET 4
MODELLÜBERSICHT / MODEL OVERVIEW : JUNCTION BRACKET
