Skyrc B6neo User manual

- 1 -
Smart Charger
Instruction Manual
V1.0

- 2 -
Introduction
Chart
Specification
Warning
Standard Battery Parameters
Explanation of Buttons
Power and Battery Connection
Operation Description
Lithium Battery Program(LiPo/LiFe/Lilon/LiHV)
NiMH/NiCd Battery Program
Pb Lead-Acid Battery Program
DC Power
Voltage Calibration
Errors and Warnings
System Setting
Conformity Declaration
Warranty and Service
01
02
04
06
07
08
09
11
13
16
20
23
25
26
27
28
29

- 1 -
Congratulations on your choice of SkyRC B6neo smart charger.
B6neo features a stylish and ultra-compact design. It may be simple to use, but the
operation requires some knowledge. And the purpose of these operating instructions
is to help you quickly become familiar with its functions. Therefore, it is extremely
important that you read the Operating Instructions, Warnings and Safety Notes
thoroughly before using B6neo. It is our hope that B6neo will give you many years of
pleasure and success.
B6neo is a DC smart charger with a maximum output of 200W. It is capable of
charging batteries of varying chemistries (LiPo/LiFe/Lilon/LiHV/NiMH/NiCd/Pb) and
operating as a power supply, making it useful for hobbyists who need to power their
DC equipment. With its unprecedented function of voltage measurement without
power on, it becomes easy to measure battery voltage without hurdles.
Please BE SURE to read these INSTRUCTIONS, WARNINGS, and SAFETY NOTES
prior to using for the first time.
It can be dangerous to mishandle batteries and battery chargers, as batteries always
risk catching fire and exploding.
Mishandling batteries and battery chargers are hazardous and may cause fire and
explosion.
Introduction

- 2 -
Chart
123456 OUT
DC IN 10-28V
PD INPUT
2
13
4
5 6 7 8

- 3 -
Package
scroll up, increase the
current, etc.
LCD Display Balance port
scroll down, decrease the
current, etc.
DC Input, 10.0-28.0V/12A
confirm the choice, terminate the
current program, enter into the
setting, etc.
1*SkyRC B6neo Charger
1*Quick Start Guide
main port, DC output
port, etc.
PD Input, must comply with
PD3.0 specification
2
1
3
4
5
6
7
8

- 4 -
Specifications
Item Option Specs
Input voltage
DC 10.0-28.0V
PD3.0/QC 12.0-20.0V
Input current
DC 12A
PD 5A
Max. output power
DC 200W
PD 80W
Working mode
LiPo/LiFe/LiIon/LiHV Balance CHG, Charge, Storage, Discharge
NiMH/NiCd Charge, Re-Peak, CYCLE_C_D, CYCLE_D_C,
Discharge
Pb Normal, AGM Charge, Cold Charge, Discharge
DC power supply 5.0-27.0V, 1.0-10.0A

- 5 -
LiPo/LiFe/LiIon/LiHV 1S-6S
Battery type/cells NiMH/NiCd 1S-15S
Pb 3S/6S
LiPo/LiFe/LiIon/LiHV 0.2A-10.0A
Charge current NiMH/NiCd 0.2A-10.0A
Pb 0.2A-10.0A
Discharge current Current 0.1A-2A
Power Max. 24W (±10%) based on 6S(4.2V/cell)
Balance current LiPo/LiFe/LiIon/LiHV Max.500mA
Size 70x50x32mm
Weight 82g

- 6 -
B6neo is not intended for use by persons with reduced physical, sensory or
mental capabilities,
or lack of experience and knowledge, unless they have been given supervision
or instruction concerning the use of the charger by a person responsible for their
safety.
Failure to exercise caution while using this product and comply with the following
warnings could result in a product malfunction, electrical issues, excessive heat,
FIRE, and ultimately injury and property damage.
Never leave charging batteries unattended during use.
Never charge batteries overnight.
Never attempt to charge dead, damaged, or wet battery packs.
Never attempt to charge a battery pack containing different types of batteries.
Never charge batteries in extremely hot or cold places or place in direct sunlight.
Never charge a battery if the cable has been pinched or shorted.
Never connect the charger if the power cord has been pinched or shorted.
Never attempt to dismantle the charger or use a damaged charger.
Always use the charger with the correct charging and discharging program.
Warning
!
!
!
!
!
!
!
!
!
!

- 7 -
Warning Always use only rechargeable batteries designed for use with this type of charger.
Never use the charger on car seats, carpets, or similar surfaces.
Always operate the charger away from flammable and explosive materials.
Select the correct operating procedure in accordance with the battery parameters.
Incorrect settings may cause the battery to burn or even explode.
Standard Battery Parameters
!
!
!
LiPo Lilon LiFe LiHV MiMH NiCd Pb
Nominal
voltage 3.7V/cell 3.6V/cell 3.3V/cell 3.8V/cell 1.2V/cell 1.2V/cell 2.0V/cell
Max. charge
voltage 4.2V/cell 4.1V/cell 3.6V/cell 4.35V/cell 1.5V/cell 1.5V/cell 2.4V/cell
Storage
voltage 3.8V/cell 3.7V/cell 3.3V/cell 3.85V/cell N/A N/A N/A
Allowable fast
charge current ≤1C ≤1C ≤4C ≤1C 1C-2C 1C-2C ≤0.4C
Min. discharge
voltage
3.0-3.3V/
cell
2.9-3.2V/
cell
2.6-2.9V/
cell
3.1-3.4V/
cell
0.1-
1.1V/cell
0.1-
1.1V/cell
1.8V~2.0V/
cell

- 8 -
Standard Battery Parameters
Go through the menus and increase the parameter value.
Enter the setting, confirm the choice, terminate the progress,
or go back to the previous screen.
Go through the menus and decrease the parameter value.

- 9 -
Standard Battery Parameters
1. Connecting to a power source
2. Connecting the battery
There are two options of inputs for SkyRC B6neo, DC 10.0-28.0V and PD3.0
12.0-20.0V
DC 10.0-28.0V
power source
connection.
PD3.0 12.0-20.0V
power supply
connection.
DC IN 10-28V
PD INPUT
TO AVOID SHORT CIRCUITS, ALWAYS CONNECT THE CHARGE
LEADS TO THE CHARGER FIRST, AND THEN TO THE BATTERY.
REVERSE THE SEQUENCE WHEN DISCONNECTING THE PACK

- 10 -

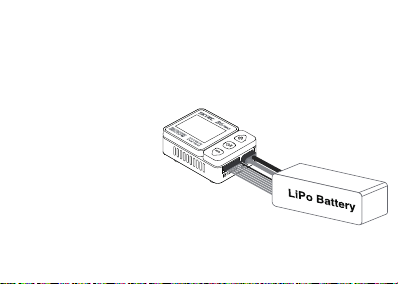

1) Lithium Battery Connection with Balance Adapter
For safety reasons, it is highly recommended to charge Lithium batteries
(LiPo, Lilon, LiFe and LiHV) using Balance CHG mode, unless the battery
comes without a balance wire.
The balance wire attached to the battery must be connected to the charger
with the black wire aligned with the negative marking. Ensure correct polarity!

- 11 -
2) NiMH/NiCd or Pb Battery Connection
Specifications
Battery Type Working Mode Description
LiPo
Lilon
LiFe
LiHV
Balance CHG
To charge the lithium battery in balance mode so that the voltages
of each cell can be well balanced.
The balance lead must be connected.
Charge To charge the lithium battery without a balance lead connected.
Storage By charging or discharging the battery, a specic storage value
can be achieved. LiPo: 3.8V, LiFe: 3.3V, LiIon: 3.70V, LiHV: 3.85V
Discharge To discharge the lithium battery to a specic value, which can be
set before discharging.

- 12 -
NiMH
NiCd
Charge To charge the NiMH/NiCd battery according to user preferences.
Re-Peak To charge the battery twice in a row automatically, which is
useful for ensuring the battery is fully charged.
Cycle_C_D A 1 to 5 cycle charge-discharge process is e󰀨ective in refreshing
NiMH/NiCd batteries and restoring their performance.
Cycle_D_C A 1 to 5 cycle discharge-charge process is e󰀨ective in refreshing
NiMH/NiCd batteries and restoring their performance.
Discharge To discharge NiMH/NiCd battery to a specic value, which can
be set before discharging.
Pb
Normal To charge the Pb battery according to user preferences.
AGM Charge To charge the AGM battery according to user preferences.
Cold Charge To charge the Pb battery at a low temperature according to user
preferences.
Discharge To discharge the Pb battery to a specific value, which can be
set before discharging.
In this chart, you can see which operations B6neo is capable of performing based
on the type of battery.

- 13 -
Here is a flowchart to guide you to set up the program.
Enter charge setting
Battery type select
Press ENTER to enter Charge Setting;
Press ENTER to call out the Battery Type menu, and
select your preferred lithium battery type.
Lithium Battery Program(LiPo/LiFe/Lilon/LiHV)
0
mAh 00:00:00
LiPo/6S/Balance CHG
0.00 0
V
0.00
AW
0.0Wh
Charge Setting
Battery Type: LiPo
Battery Cell: 6S(22.2V)
Task: Balance CHG
Conditon: 4.20V
LiPo
Lilo
LiFe
LiHV
LiHV

- 14 -
Battery cell select
Task select
Condition select
Call out the Battery Cell menu, and select the battery
cells correspondingly.
Call out the Task menu, and select your desired working
mode.
Call out the Condition menu, and adapt the cut-off
voltage to the demand.
Charge Setting
Battery Type: LiPo
Battery Cell: 6S(22.2V)
Task: Balance CHG
Conditon: 4.20V
1S
2S
3S
4S
5S
Charge Setting
Battery Type: LiPo
Battery Cell: 6S(22.2V)
Task: Balance CHG
Conditon: 4.20V
Banlance CHG
Charge
Storage
Discharge
Charge Setting
Conditon: 4.20V
Charge Current: 10.0A
Start
Back
4.18V
4.19V
4.20V
4.21V
4.22V

- 15 -
Charge/Discharge current select
Start
Back
Call out the Battery Cell menu, and select the battery
cells correspondingly.
Confirm to initiate the program.
Confirm to initiate the program.
Charge Setting
Conditon: 4.20V
Charge Current: 10.0A
Start
Back
9.6A
9.7A
9.8A
9.9A
10.0A
Charge Setting
Conditon: 4.20V
Charge Current: 10.0A
Start
Back
Charge Setting
Conditon: 4.20V
Charge Current: 10.0A
Start
Back

- 16 -
2235 mAh
00:15:08
LiPo/6S/Balance CHG
22.96 200
V
8.73
AW
50Wh
Stop
To terminate the current program, press ENTER
button once.
Do not connect the battery before turning on the charger!
Enter charge setting
Press ENTER to enter Charge Setting;
Here is a flowchart to guide you to set up the program.
0
mAh 00:00:00
LiPo/6S/Balance CHG
0.00 0
V
0.00
AW
0.0Wh
NiMH/NiCd Battery Program

- 17 -
Battery type select
Press ENTER to call out the Battery Type menu, and
select NiMH or NiCd.
Charge Setting
Battery Type: LiPo
Battery Cell: 6S(22.2V)
Task: Balance CHG
Conditon: 4.20V
LiFe
LiHV
MiMH
NiCd
PB
Battery cell select
Task select
Call out the Battery Cell menu, and select the battery
cells correspondingly.
Call out the Task menu, and select your desired working
mode.
Charge Setting
Battery Type: LiPo
Battery Cell: 6S(22.2V)
Task: Balance CHG
Conditon: 4.20V
1S
2S
3S
4S
5S
Charge Setting
Battery Type: LiPo
Battery Cell: 6S(22.2V)
Task: Balance CHG
Conditon: 4.20V
Re-Peak
Discharge
Charge
CYCLE_C_D
CYCLE_D_C

- 18 -
Condition select
Call out the Condition menu, and adapt the cut-off
voltage to the demand.
Charge/Discharge current select
Start
Call out the Charge/Discharge Current menu, and adapt
the working current to the demand.
For Re-Peak, Cycle_C_D, and Cycle_D_C, you must set
the cycles and rest times appropriately.
Confirm to initiate the program.
Charge Setting
Conditon: 4.20V
Charge Current: 10.0A
Start
Back
9.6A
9.7A
9.8A
9.9A
10.0A
Charge Setting
Conditon: 4.20V
Charge Current: 10.0A
Start
Back
Charge Setting
Conditon:
Charge Current:
Start
Back
-4 mV
-5 mV
-6 mV
-7 mV
-8 mV
