AC/DC Smart Charger
Instruction Manual
V1.0

- 2 -
Introduction
Chart
Package
Specification
Warning
Standard Battery Parameters
Buttons Explained
Power and Battery Connection
Charging
Lithium Battery Program(LiPo/LiFe/Lilon/LiHV)
NiMH/NiCd Battery Program
Pb Lead-Acid Battery Program
DC Power
USB Type-C PD/QC3.0 Output
Voltage Calibration (For expert user only)
Battery Voltage Meter
Battery Resistance Meter
Firmware Upgrade
Charge Settings
System Setting
Errors and Warnings
Conformity Declaration
Warranty and Service
01
02
03
04
07
08
09
10
12
14
17
21
24
29
29
30
31
32
33
34
36
37
38

- 1 -
Congratulations on your choice of SkyRC B6ACneo smart charger.
B6ACneo boasts a stylish and ultra-compact design, but operating it effectively
requires some knowledge. These operating instructions aim to quickly acquaint you
with its functions. Therefore, it's vital to thoroughly review the Operating Instructions,
Warnings, and Safety Notes before using B6ACneo. We hope it provides years of
satisfaction and success.
B6ACneo, an AC/DC smart charger with a 200W maximum output, accommodates
various battery chemistries (LiPo/LiFe/Lilon/LiHV/NiMH/NiCd/Pb) and serves as a
power supply, offering adjustable voltage (2.0V-27.0V) and current (1.0A-10.0A)
per output. The 65W USB-C PD 3.0 charging port ensures swift device charging.
Additionally, it allows voltage measurement without power on, simplifying battery
voltage assessment.
Before initial use, please read these INSTRUCTIONS, WARNINGS, and SAFETY
NOTES carefully!
Mishandling batteries and chargers poses significant risks, including fire and
explosions!
Introduction

- 2 -

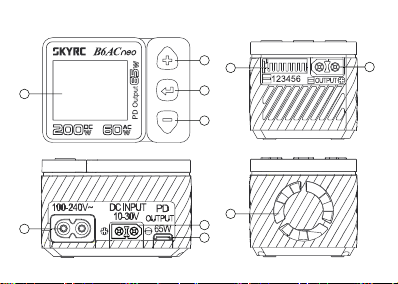

Chart
1
7
5
10
2
6
3
4
9
8

- 3 -
Package
Selection Buttons
LCD display
Balance port
Selection Buttons
AC Input 100-240V
Confirm Button
1*SkyRC B6ACneo Charger
1*AC Power Cord
1*Quick Start Guide
Main Port / DC Output Port
DC Input 10.0-30.0V/12A
PD Output 65W
Smart Ventilation Fan
2
1
3
4
5
6
7
8
9
10

- 4 -
Specifications
Item Option Specs
Input Voltage
AC 100-240V (50/60Hz)
DC 10.0-30.0V
Input Current DC 12.0A
Charge Power
AC 60W
DC 200W
Discharge Power
Main Port 5W
Main Port+Balance Port 19W Max (LiPo/6S)
Charge Current LiPo/LiFe/LiIon/LiHV/
NiMH/NiCd/Pb 0.2-10.0A
Discharge Current LiPo/LiFe/LiIon/LiHV/
NiMH/NiCd/Pb 0.1-2.0A
Balance Current LiPo/LiFe/LiIon/LiHV 500mA Max
Trickle Charge Current NiMH/NiCd 200mA & OFF

- 5 -
Item Option Specs
Battery Types
LiPo/LiFe/LiIon/
LiHV 1-6S
NiMH/NiCd 1-15S
Pb 3S/6S
Working
Modes
LiPo/LiFe/LiIon/
LiHV Balance CHG, Charge, Storage, Discharge
NiMH/NiCd Charge, Re-Peak, CYCLE_C_D, CYCLE_D_C, Dishcarge
Pb Normal, AGM Charge, Cold Charge, Discharge
DC Power
Supply
Voltage 2.0-27.0V
Current 1.0-10.0A
Power AC Input: 60W
DC Input: 200W
USB Type-C
Output
QC3.0 5V⎓3A, 9V⎓2A, 12V⎓1.5A 18W
PD 5V⎓3A, 9V⎓3A, 12V⎓3A, 20V⎓3.25A Max. 65W

- 6 -
Item Option Specs
Size Length*Width*Height 70.6*50.6*46mm
Weight Net Weight 150g
Working
Environment
Working Temperature 0℃-40℃
Working Humidity 0%-75%
Storage
Environment
Storage Temperature -10℃-70℃
Storage Humidity 0%-75%

- 7 -
B6ACneo is not intended for use by persons with reduced physical, sensory or
mental capabilities,
or lack of experience and knowledge, unless they have been given supervision or
instruction concerning the use of the charger by a person responsible for their safety.
Failure to exercise caution while using this product and comply with the following
warnings could result in a product malfunction, electrical issues, excessive heat,
FIRE, and ultimately injury and property damage.
Never leave charging batteries unattended during use.
Never charge batteries overnight.
Never attempt to charge dead, damaged, or wet battery packs.
Never attempt to charge a battery pack containing different types of batteries.
Never charge batteries in extremely hot or cold places or place in direct sunlight.
Never charge a battery if the cable has been pinched or shorted.
Never connect the charger if the power cord has been pinched or shorted.
Never attempt to dismantle the charger or use a damaged charger.
Never attach your charger to both an AC and a DC power source at the same time.
Always use the charger with the correct charging and discharging program.
Warning
!
!
!
!
!
!
!
!
!
!
!

- 8 -
Always use only rechargeable batteries designed for use with this type of charger.
Never use the charger on car seats, carpets, or similar surfaces.
Always operate the charger away from flammable and explosive materials.
Select the correct operating procedure in accordance with the battery parameters.
Incorrect settings may cause the battery to burn or even explode.
Standard Battery Parameters
!
!
!
LiPo Lilon LiFe LiHV MiMH NiCd Pb
Nominal
voltage 3.7V/cell 3.6V/cell 3.3V/cell 3.8V/cell 1.2V/cell 1.2V/cell 2.0V/cell
Max. charge
voltage 4.2V/cell 4.1V/cell 3.65V/cell 4.35V/cell 1.5V/cell 1.5V/cell 2.4V/cell
Storage
voltage 3.8V/cell 3.7V/cell 3.3V/cell 3.85V/cell N/A N/A N/A
Allowable fast
charge current ≤1C ≤1C ≤4C ≤1C 1C-2C 1C-2C ≤0.4C
Min. discharge
voltage
3.0-3.4V/
cell
2.9-3.3V/
cell
2.6-3.0V/
cell
3.1-3.5V/
cell
0.6-
1.0V/cell
0.6-
1.0V/cell
1.8V~2.0V/
cell

- 9 -

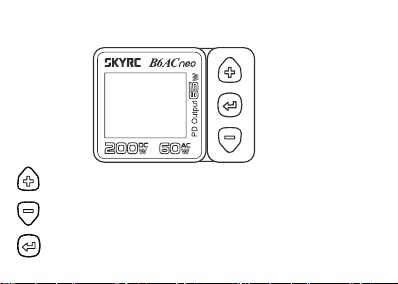

Buttons Explained
Go through the menus or increase the parameter value
Enter the setting, confirm the choice and stop the progress
Go through the menus or decrease the parameter value

- 11 -
1) LiPo Battery Connection with Balance Adapter
For safety reasons, it is highly recommended to charge Lithium batteries
(LiPo, Lilon, LiFe and LiHV) using Balance CHG mode unless the battery
comes without a balance connector.
The battery balance connector must connect to the charger with the black
wire aligned with the negative marking. Ensure correct polarity!
LiPo Battery

- 12 -

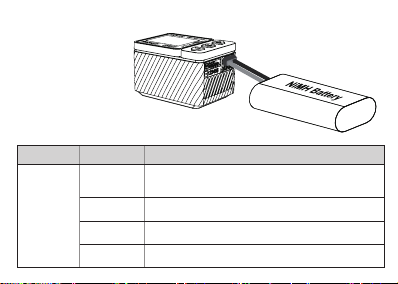

2) NiMH/NiCd or Pb Battery Connection
Charging
Battery Type Working Mode Description
LiPo
Lilon
LiFe
LiHV
Balance CHG
This mode is to balance charge the lithium battery based on
the charging rate the user set. It can balance each cells of the
battery.
Charge This mode is to charge the lithium battery based on the charging
rate selected.
Storage This mode is to store the battery via charging or discharging its
votlage to a specic storage value.
Discharge This mode is to dishcarge the lithium battery based on the
discharging rate selected.

- 13 -
NiMH
NiCd
Charge This mode is to charge the NiMH/NiCd battery based on the
charging rate selected.
Re-Peak
In re-peak charge mode, the charger can peak charge the
battery twice in a row automatically. This is good for conrming
the battery is fully charged.
Cycle_C_D
1 to 3 cyclic and continuous process of discharge>charge is
operable for refreshing and restoring the performance of NiMH/
NiCd batteries.
Cycle_D_C
1 to 3 cyclic and continuous process of charge>discharge is
operable for refreshing and restoring the performance of NiMH/
NiCd batteries.
Discharge This mode is to discharge the NiMH/NiCd battery based on the
discharging rate selected.
Pb
Normal This mode is to charge the Pb battery based on the charging
rate selected.
AGM Charge This mode is to charge the AGM battery based on the charging
rate selected.
Cold Charge This mode is to charge the Pb battery under a low temperature
based on the charging rate selected.
Discharge This mode is to discharge the Pb battery based on the
discharging rate selected.
Various operations are applicable depending on the battery type. This chart
illustrates operations relevant to different types of batteries.

- 14 -
Here is a flowchart to guide you to set up the program.
Enter Charge Setting
Select Battery Type
Press button to enter Charge Setting.
Press button to call out the Battery Type menu, and
select LiPo.
Lithium Battery Program(LiPo/LiFe/Lilon/LiHV)
0
mAh 00:00:00
LiPo/6S/Balance CHG
0.00 0
V
0.00
AW
0.0Wh
Charge Setting
Battery Type: LiPo
Battery Cell: 6S(22.2V)
Task: Balance CHG
Condition: 4.20V
LiPo
Lilo
LiFe
LiHV
NiMH

- 15 -
Select Battery Cell
Select Task
Select Condition
Press and button to select the correct battery
cells.
Press and button to select your desired working
mode.
Press and button to select the terminal charging
voltage.
Charge Setting
Battery Type: LiPo
Battery Cell: 6S(22.2V)
Task: Balance CHG
Condition: 4.20V
1S
2S
3S
4S
5S
Charge Setting
Battery Type: LiPo
Battery Cell: 6S(22.2V)
Task: Balance CHG
Condition: 4.20V
Banlance CHG
Charge
Storage
Discharge
Charge Setting
Condition: 4.20V
Charge Current: 10.0A
Start
Back
4.18V
4.19V
4.20V
4.21V
4.22V

- 16 -

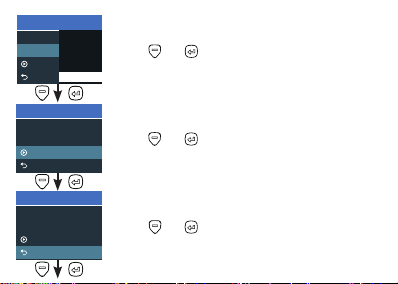

Select Charge/Discharge Current
Start
Back
Press and button to select the current.
Press and button to initiate the program.
Press and button to step back to the main
interface.
Charge Setting
Condition: 4.20V
Charge Current: 10.0A
Start
Back
9.6A
9.7A
9.8A
9.9A
10.0A
Charge Setting
Condition: 4.20V
Charge Current: 10.0A
Start
Back
Charge Setting
Condition: 4.20V
Charge Current: 10.0A
Start
Back

- 17 -
2235 mAh
00:15:08
LiPo/6S/Balance CHG
22.96 200
V
8.73
AW
50Wh
Stop
Press button to stop the program, If prompted to
stop, short-press the again to confirm, or short-press
the button to return.
Do not connect the battery before turning on the charger!
Enter Charge Setting
Press button to enter Charge Setting.
Here is a flowchart to guide you to set up the program.
0
mAh 00:00:00
LiPo/6S/Balance CHG
0.00 0
V
0.00
AW
0.0Wh
NiMH/NiCd Battery Program

- 18 -
Select Battery Type
Press button to call out the Battery Type menu, and
select NiMH.
Select Battery Cell
Select Task
Press and button to select the correct battery
cells.
Press and button to select your desired working
mode.
Charge Setting
Battery Type: LiPo
Battery Cell: 6S(22.2V)
Task: Balance CHG
Condition: 4.20V
LiFe
LiHV
NiMH
NiCd
PB
Charge Setting
Battery Type: LiPo
Battery Cell: 6S(22.2V)
Task: Balance CHG
Condition:4 .20V
Re-Peak
Discharge
Charge
CYCLE_C_D
CYCLE_D_C
Charge Setting
Battery Type: LiPo
Battery Cell: 6S(22.2V)
Task: Balance CHG
Condition: 4.20V
1S
2S
3S
4S
5S
