LAD/AQ7000
Battery Charger User Guide
MODEL: AQ7000
AC Input: 220-240VAC, 50-60Hz, 1A
DC Output: 12VDC, 7A;
24VDC, 3.5A;
Temperature Controlled
Please read and understand all important safety and operating instructions before using this
charger. In addition, please read and follow all battery and vehicle manufacturer’s
instructions and cautionary markings.

MANUAL
www.aqtron.com - [email protected] ®
LAD/AQ7000
1
IMPORTANT SAFETY INSTRUCTIONS
SAFETY PRECAUTIONS FOR WORKING IN THE PROXIMITY OF A BATTERY
1) Batteries generate explosive gases during normal operation. Use in well-ventilated area.
2) Consider having someone close enough or within the range of your voice to come to
your aid when you work near a battery.
3) Do NOT smoke, strike a match, or cause a spark in Proximity of battery or engine.
Avoid explosive gas, flames and sparks.
4) Remove all personal jewelry, such as rings, bracelets, necklaces, and watches while
working with a vehicle battery. These items may produce a short-circuit that could cause
severe burns.
5) Be extra cautious to reduce risk of dropping a metal tool onto the battery. It might spark
or short-circuit a battery or other electrical hardware which may cause an explosion or fire.
6) Wear complete eye protection, hand and clothing protection. Avoid touching eyes while
working near a battery.
7) Study all battery manufacturer’s specific precautions such as removing or not removing
cell caps while charging and recommended rates of charge.
8) Clean battery terminals before connected with the charger. Be careful to keep corrosion
from coming in contact with eyes.
9) When it is necessary to remove a battery from vehicle to charge, always remove
grounded terminal from battery first. Make sure all accessories in the vehicle are off in
order to prevent an arc.
10) It is NOT intended to supply power to an extra-low-voltage electrical system or to
charge dry-cell batteries. Charging dry-cell batteries may burst and cause injury to persons
and property.
11) NEVER charge a frozen, damaged, leaking or non-rechargeable battery.
12) If battery electrolyte contacts skin or clothing, wash immediately with soap and water.
If electrolyte enters eye, immediately flood eye with running clean cold water for at least
15 minutes and get medical attention immediately.
SAFETY PRECAUTIONS FOR USING THE CHARGER
1) Do NOT place the charger in the engine compartment or near moving parts or near the
battery; place as far away from them as DC cable permits. NEVER place a charger directly

MANUAL
www.aqtron.com - [email protected] ®
LAD/AQ7000
2
above a battery being charged; gases or fluids from battery will corrode and damage
charger.
2) Do NOT cover the charger while charging.
3) Do NOT expose to rain or wet conditions.
4) Connect and disconnect DC output only after setting AC cord from electric outlet.
5) Use of an attachment not recommended or sold by the manufacturer may result in a risk
of fire, electric shock or injury to persons.
6) Do not overcharge batteries by selecting the wrong charge mode.
7) To reduce the risk of damage to electric plug and cord, pull by the plug rather than the
cord when disconnecting charger.
8) To reduce risk of electric shock, unplug charger from outlet before attempting any
maintenance or cleaning.
9) Operate with caution if the charger has received direct hit of force or been dropped.
Have it checked and repaired if damaged.
10) Any repair must be carried out by the manufacturer or an authorized repair agent in
order to avoid danger.
ABOUT AQ7000
1) The AQ7000 is designed for charging all types of 12V lead-acid ,24V lead-acid and 12V
lithium-ion batteries, including WET (Flooded), GEL, MF (Maintenance-Free), EFB
(Enhanced Flooded Battery), AGM (Absorbed Glass Mat),AGM+ (Absorbed Glass Mat+)
and LIB (Lithium Ion) batteries.
2) Built-in intelligent microprocessor makes charging faster, easier and safer.
3) This charger has safety features, including spark proof, protection for reverse polarity,
short circuit, overcurrent, overcharge and overheat.
4) It has auto-memory, which returns to last selected mode when restarted (except Standby
Mode).
5) When battery level indicator turns to 100% solid Green LED, it will automatically
switches from full charge to maintenance status to maintain batteries during prolonged
periods of storage without overcharging or damaging the battery.
6) The AQ7000 has four external holes for mounting. Mount the charger in a desired
location with equipped self-drill screws. It is important to keep in mind the distance to the

MANUAL
www.aqtron.com - [email protected] ®
LAD/AQ7000
3
battery.
7) Following is the charger’s technical specification:
AC Input 220-240VA C , 50-60Hz, 1A
DC Output 12VDC, 7A;
24VDC, 3.5A;
Temperature Controlled
Charger Type 8 steps, Full-automatic Charging Cycle
Start Voltage > 1V
Housing Protection IP54
Battery Type All Types of 12V & 24V Lead-acid
Batteries, and 12V Lithium Ion Batteries
Battery Capacity 14-230Ah (12V), 14-115Ah (24V),
Maintains All Battery Sizes
Accessories Included Clamp Connectors, Ring Connectors
Ambient Temperature 0℃~ +40℃
CONNECTING TO THE BATTERY
1) Identify polarity of battery posts. The positive battery terminal is typically marked by
these letters or symbol (POS,P,+). The negative battery terminal is typically marked by
these letters or symbol (NEG,N,-).
2) Do not make any connections to the carburetor, fuel lines, or thin metal parts.
3) Identify if you have a negative or positive grounded vehicle. This can be done by
identifying which battery post (NEG or POS) is connected to the chassis.
4) For a negative grounded vehicle (most common): connect the RED POSITIVE clamp /
ring connector first to the positive battery terminal, then connect the BLACK NEGATIV
clamp / ring connector to the negative battery terminal or vehicle chassis.
5) For a positive grounded vehicle (very uncommon): connect the BLACK NEGATIV
clamp / ring connector first to the negative battery terminal, then connect the RED
POSITIVE clamp / ring connector to the positive battery terminal or vehicle chassis.
6) When disconnecting, disconnect in the reverse sequence, removing the negative first (or
positive first for positive ground systems).
7) Follow these steps when using 12V accessory plug: keep the vehicle hood open.

MANUAL
www.aqtron.com - [email protected] ®
LAD/AQ7000
4
Connect the end of the 12V accessory plug to the charger; insert the 12V accessory plug
into the vehicle’s 12V outlet. If the vehicle’s ignition key has to be on in order for the 12V
outlet to supply / receive power, turn the key, without starting the engine.
8) A marine (boat) battery must be removed and charged on shore. To charge it on board
requires equipment specially designed for marine use.
CHARGING MODES
AQ7000 has nine modes: Standby,12V NORM, 12V COLD/AGM, 24V NORM, 24V
COLD/AGM, 12V AGM+, 12V LITHIUM, REPAIR and 13.6V SUPPLY. Some charge
modes must be held for three (3) seconds or / and pressed to enter the mode. Do not
operate the charger until you confirm the appropriate charge mode for your battery.
Mode Battery
Size (Ah) Explanation
Standby ––– Not charging or providing any power (Green LED)
12V NORM 14-230 Charging 12V WET/GEL/MF/EFB batteries (Green
LED)
12V
COLD/AGM 14-230 Charging 12V batteries below 10℃(50℉) or 12V
AGM battery (Green LED)
24V NORM 14-115 Charging 24V WET/GEL/MF/EFB batteries (Blue
LED)
24V
COLD/AGM 14-115 Charging 24V batteries below 10℃ (50℉) or 24V
AGM batteries (Blue LED)
12V AGM+ (Hold
Mode button for 3
seconds to enter)
14-230
Charging 12V advanced AGM batteries that
requires a higher than normal charging voltage
(Blue LED)
12V LITHIUM
(Hold & Press) 14-230 Charging 12V lithium-ion batteries only, including
LiFePO4 (White LED)
REPAIR (Hold &
Press) 14-230 An advanced battery recovery mode for repairing
old, idle, stratified or sulfated batteries. REPAIR

MANUAL
www.aqtron.com - [email protected] ®
LAD/AQ7000
5
Yellow LED + 12V/24 mode LEDs
13.6V SUPPLY
(Hold & Press) –––
Converting to a DC power supply for powering 12V
DC device or as a memory retainer when replacing
a battery (Yellow LED)
These “Hold or / and Press” modes are advanced charging modes that require your
full attention before selecting.
Using 12V AGM+ (Hold)
This mode is designed for 12V advanced AGM batteries only. Advanced AGM batteries
are typically found in startstop micro-hybrid vehicles. These batteries accept a higher than
normal charging voltage. 12V AGM+ charge mode is NOT suitable for traditional AGM
batteries. Consult the battery manufacturer before using this mode.
Using 12V LITHIUM (Hold & Press)
This mode is designed for 12V lithium-ion batteries only, including LiFePO4. Some
lithium-ion batteries may be unstable and unsuitable for charging. Consult the lithium
battery manufacturer before charging and ask for recommended charging voltage and
current.
Using REPAIR (Hold & Press)
This mode is for LEAD-ACID batteries only. It is an advanced battery recovery mode for
repairing old, idle, stratified or sulfated batteries. NOT all batteries can be recovered. For
optimal results, take the battery through a full charge cycle, bringing the battery to full
charge, before using this mode. When this mode is chosen, do remember press Mode
button for choosing appropriate 12V Mode(s) or 24V Mode(s). One REPAIR cycle can
take up to eight (8) hours to complete the recovery process and will enter to charge (8
steps charging cycle) when completed. This mode uses a high charging voltage and may
cause some water loss in WET cell batteries. Plus, some batteries and electronics may be
sensitive to high charging voltages. To minimize risks, disconnect the battery from the
vehicle before using this mode.
Using 13.6V SUPPLY (Hold & Press)
This mode converts the charger to a constant voltage, constant current DC power supply.
It can be used to power 12VDC devices. Prior to use, read your 12VDC device manual to
determine if it is suitable for use with this mode. As a power supply, it can also be used to
retain a vehicle’s on-board computer settings during battery repair or replacement. 13.6V

MANUAL
www.aqtron.com - [email protected] ®
LAD/AQ7000
6
Supply Mode provides 13.6V at 5A with overload protection at 6A (Max). Both spark
proof and reverse polarity protection are disabled in this mode. Do NOT allow the positive
and negative battery clamp or ring terminal to touch or connect to each other as the charger
could generate sparks.

MANUAL
www.aqtron.com - [email protected] ®
LAD/AQ7000
7
CHARGING STEPS
STEP 1: DIAGNOSIS (Check if battery has connected with the charger and also check
battery voltage)
STEP 2: DESULPHATION (If battery voltage is too low, programs automatically
generate pulsing current to remove sulphate, up to 5 hours)
STEP 3: ANALYSE (Check if the battery voltage reaches to the threshold after
desulphation, and charging begins if the battery voltage is OK)
STEP 4: SOFT START (Charge with echelon constant current)
STEP 5: BULK (Charge with constant maximum current until battery voltage is reached
to the threshold)
STEP 6: ABSORPTION (Provide gradually declining current charge for maximum
battery voltage)
STEP 7: ANALYSE (Test if the battery can hold charge)
STEP 8: MAINTENANCE (Continuously monitor the battery, and charging current will
intelligently adapt to the variable battery voltage)

MANUAL
www.aqtron.com - [email protected] ®
LAD/AQ7000
8
BATTERY LEVEL INDICATOR
LED Explanation
25%
The 25% Charge Red LED will slowly flash when the battery
level is less than 25%. When 25% is reached, the LED will be
solid.
50%
The 50% Charge Red LED will slowly flash when the battery
level is less than 50%. When 50% is reached, the LED will be
solid.
75%
The 75% Charge Red LED will slowly flash when the battery
level is less than 75%. When 75% is reached, the LED will be
solid.
100%
The 100% Charge Green LED will slowly flash when the
battery level is less than 100%. When 100% is reached, the
100% Charge LED will be solid. The 25%, 50% and 75%
Charge LEDs will turn off.
LED COMMUNICATION OF ABNORMAL RESULTS
No. LIGHT(S)
CONDITION CAUSE(S) SOLUTION(S)
1 Solid Red Warning!
LED Reverse Polarity
Exchange the red and
black clamps or ring
terminals to the correct
battery posts
2
Flashing Red Warning!
LED
+
Corresponding charging
1) Open-circuit
2) Dirty Battery Posts
3) Dead Battery
4) Output Short Circuit
1) Connect the red and
black clamps or ring
terminals to the battery
posts

MANUAL
www.aqtron.com - [email protected] ®
LAD/AQ7000
9
mode LED 2) Clean the battery posts
3) Replace the battery
with a new one
immediately
4) Disconnect red and
black output terminals
3
Slow flashing Red
Warning! LED
+
Corresponding charging
mode LED
Charging in 12V
Mode(s) for 24V battery
Please do manually press
Mode button to choose
correct charge mode.
CAUTION: If you
choose 24V Mode(s) for
12V battery, the 12V
battery will be damaged!
4
Charging mode LED is
on, four battery level
indicator LEDs are
flashing
Overheat protection
Current reduces when
temperature in charger is
too high. After cooling
down, charge will begin
5
Solid yellow REPAIR
LED
+
12V corresponding
charging mode LED
In 12V REPAIR mode ------
6
Solid yellow REPAIR
LED
+
24V corresponding
charging mode LED
In 24V REPAIR mode ------
7
Solid Red Warning!
LED
+
Solid yellow SUPPLY
LED
Overload in SUPPLY
Mode (will automatically
shut down for 30 seconds
as protection)
Disconnect the external
device

MANUAL
www.aqtron.com - [email protected] ®
LAD/AQ7000
10
8
Quick flashing Red
Warning! LED
+
Corresponding charging
mode LED
Battery cannot store
electric charge during
charging process
Replace the battery with a
new one immediately
9
Only corresponding
charging mode LED
+
Four battery level
indicator LEDs are all
OFF
In Desulphation Process ------
10
Red Warning! LED
light flashes 2x stop for
3secs, 2x stop for 3
secs…
Battery cannot be
recovered through
Desulphation Process or
Battery cannot be
recovered through Repair
Mode
1) Replace with a new
battery
2) If battery cannot be
recovered through
Desulphation Process, try
REPAIR Mode for
recovery
11
Flashing Yellow
Warning! LED (for
both 12V and 24
lead-acid batteries.)
Heavily Corroded
Battery (voltage is less
than 3V), need Repair
Mode
Replace with a new
battery or try REPAIR
Mode for recovery
NOTICE: following situation indicates that battery need to be replaced, although
there is no abnormal result LED communication.
After full charging cycle and with 100% of battery level indicator, use this battery to start
matched vehicle’s engine. If engine cannot be activated (exclude the problem of vehicle
itself), it indicates this battery has declined storage capacity and need to be replaced or try
REPAIR Mode for recovery (press REPAIR button).

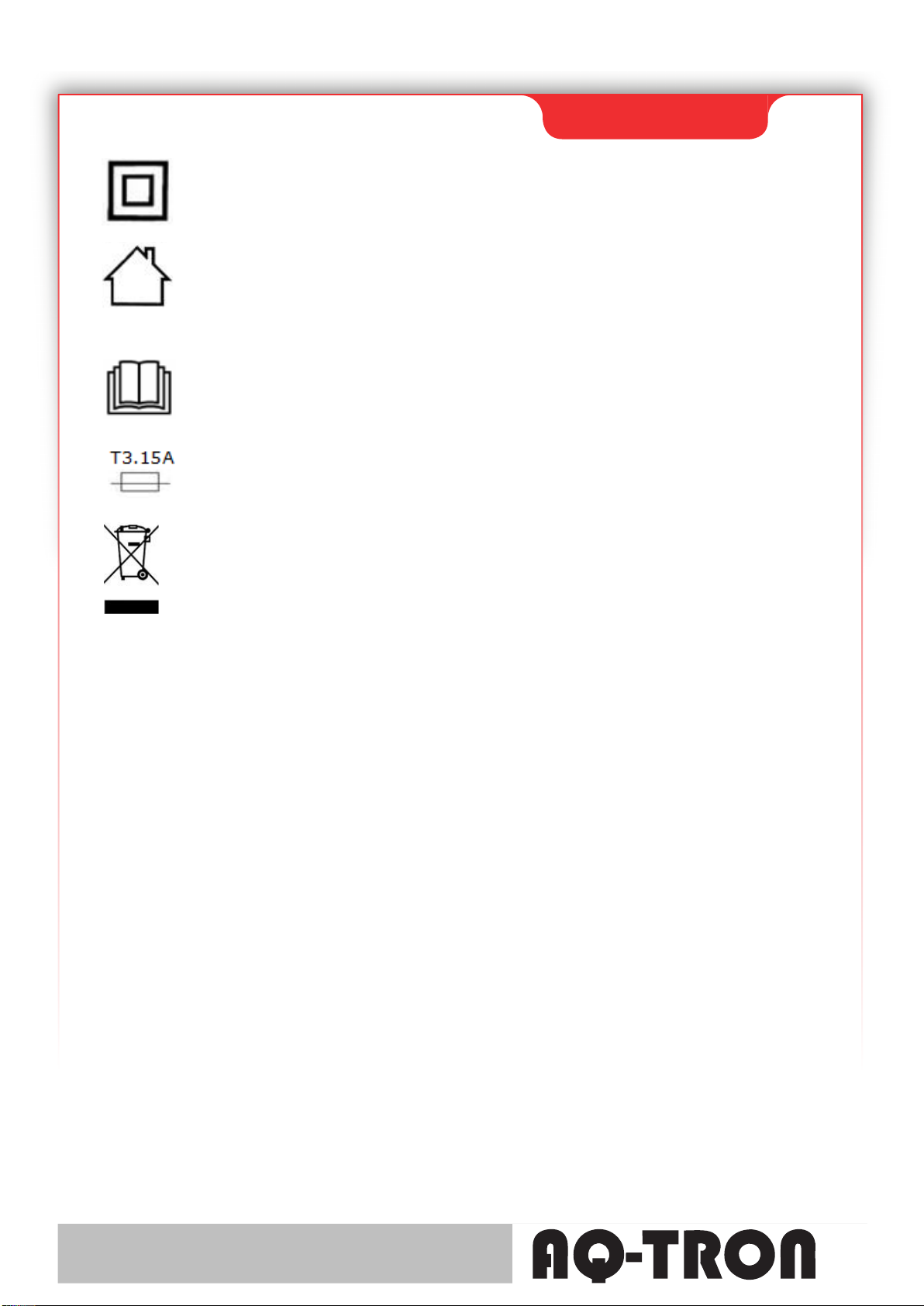

Nameplate icon description

MANUAL
www.aqtron.com - [email protected] ®
LAD/AQ7000
11
:Class II
:For indoor use only
:Before charging, read the instructions
:Fuse
:Correct Disposal of this product
This marking indicates that this battery charger and batterypack should not be
disposed with other household wastes throughout the EU. To prevent possible harm
to the environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources. To return your
used device, please use the return and collection systems or contact the retailer
where the product was purchased. They can take this product for environmental safe
recycling.

MANUAL
www.aqtron.com - [email protected] ®
LAD/AQ7000
12
WARRANTY
1) This product is warranted to the original purchaser for a period of two (2) years from the
original shipping date, to be free of defects in material and workmanship.
2) Warranty Performance: During the above two (2) years warranty period, a product with
a defect will be replaced with a new one when the product is returned to the manufacturer.
The replacement product will be in warranty for the balance of the original two (2) years
warranty period.
3) This warranty is void if the product has been damaged by accident, in shipment,
unreasonable use, misuse, neglect, improper service, commercial use, repairs by
unauthorized personnel or other causes not arising out of defects in materials or
workmanship.
Important safety instructions
1)This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
2)Children should be supervised to ensure that they do not play with the appliance.

MANUAL
www.aqtron.com - [email protected] ®
LAD/AQ7000
13
3)If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
3)The battery terminal not connected to the chassis has to be connected first. The other
connection is to be made to the chassis, remote from the battery and fuel line. The battery
charger is then to be connected to the supply mains;After charging, disconnect the battery
charger from the supply mains. Then remove the chassis connection and then the battery
connection.
4)Do not recharging non-rechargeable batteries.
5)During charging, the battery must be placed in a well ventilated area.
