Skyrc Ultimate 400W 20AMP User manual

Version 1.0
Printed in China 2011
All specifications and figures are subject to change without notice.
Professional Balance
Charger / Discharger
Professional Balance
Charger / Discharger
SkyRC Technology Co., Ltd. 2011
Manufactured by
SKYRC TECHNOLOGY CO.,LTD.
www.skyrc.com

Introduction................................................................................................................................................................02
Special Features.........................................................................................................................................................05
Warning And Safety Notes..........................................................................................................................................08

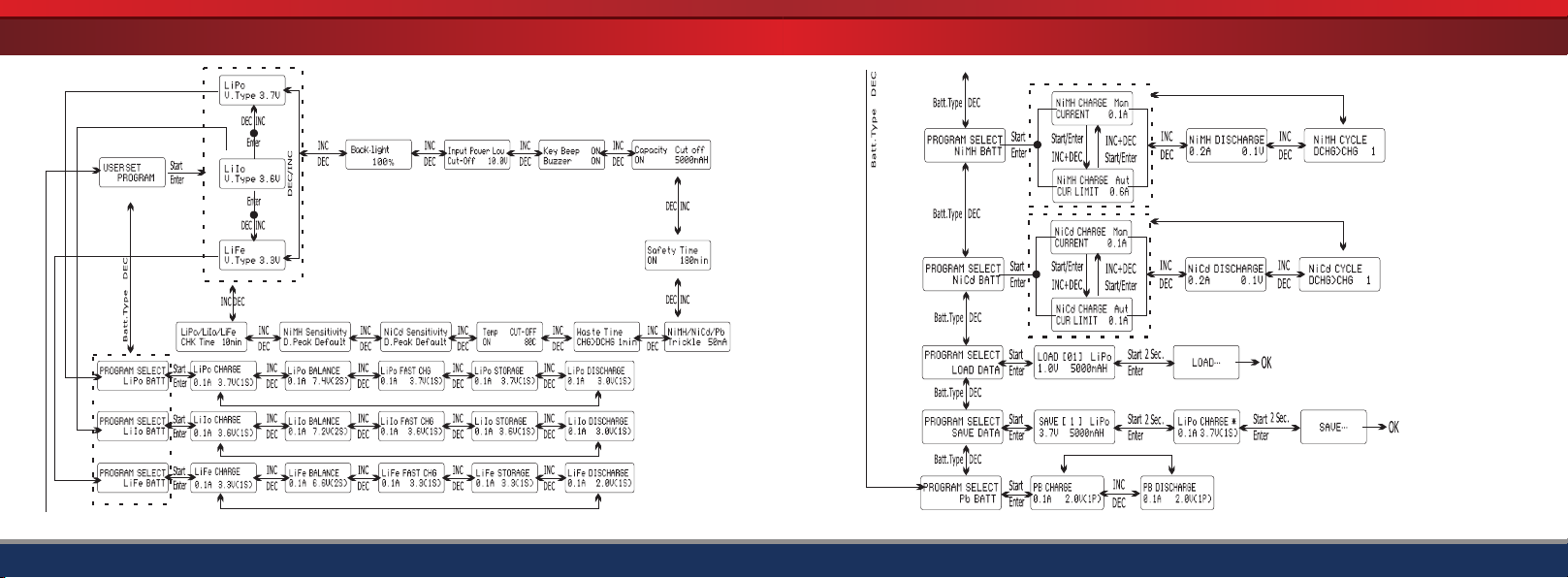

Program Flow Chart....................................................................................................................................................13
Lithium Polymer Balance Charge Program Connection Diagram..............................................................................15
Initial Parameter Petup (Users Set Up).......................................................................................................................17
..................................................................................................................20
Charging Lithium Battery In The Charge Mode...........................................................................................................21
Charging Lithium Battery In The Balance Mode..........................................................................................................22
Charging Lithium Battery In The Fast Charge Mode....................................................................................................23
Charging Lithium Battery In The S Mode ........................ ............................24
Discharging Of Lithium Battery....................................................................................................................................25
Charging NiCd/NiMH Battery In The Charge Mode ...................................................
Discharge Of NiCd/NiMH Battery...............................................................................................................................27
...............................................................
Charging Pb (lead-acid) Battery In The Charge Mode................................................................................................29
Discharging Of The Pb Battery.....................................................................................................................................30
Storage Data Program................................................................................................................................................31
Load Data Program....................................................................................................................................................32
Various Information In The Program............................................................................................................................33
Warning And Error Message.......................................................................................................................................34

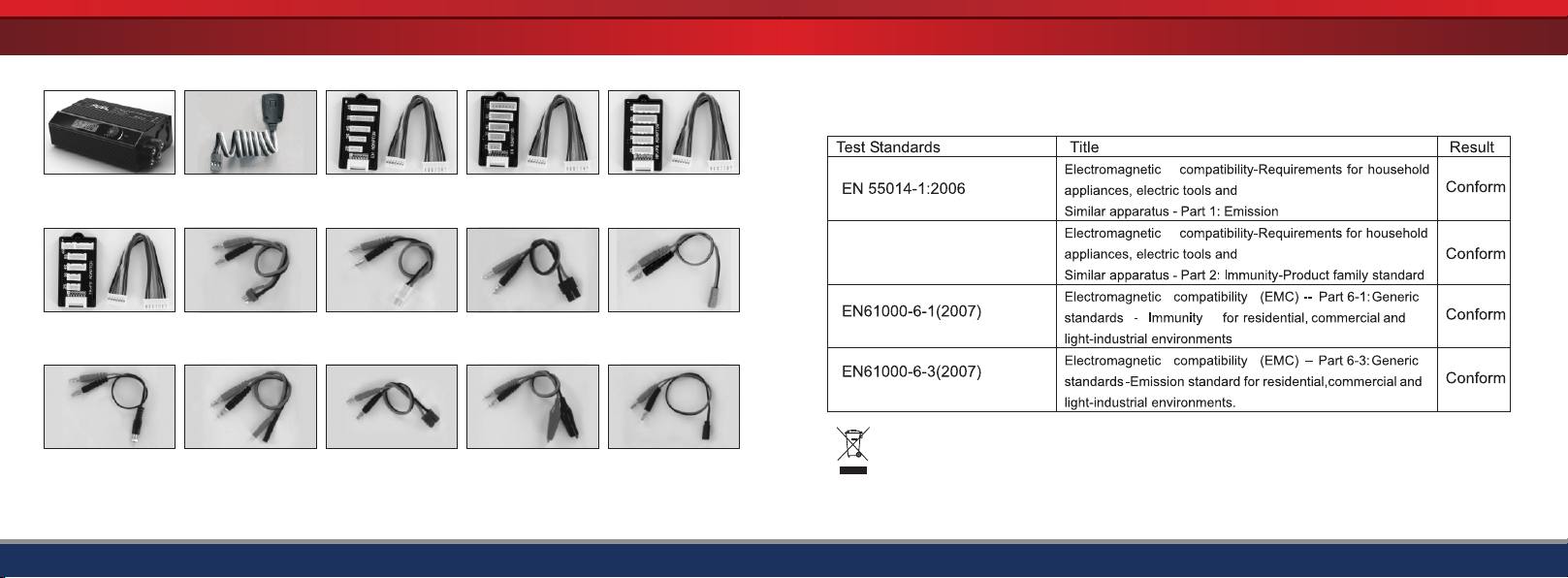

Recommended Accessories......................................................................................................................................35
Conformity Declaration...............................................................................................................................................36
...................
Specification...............................................................................................................................................................39
Liability Exclusion.......................................................................................................................................................40
Commonly Used Terms...............................................................................................................................................41
Warranty And Service...................................................................................................................................................42
Lithium Battery (LiIon/LiPo/LiFe) Program
torage ................................................. .....
................................................. 26
Charge/discharge And Discharge/Charge Cycle Of NiCd/NiMH Battery.... .28
Maximum Circuit Power Chart...................................................................................................... ............37
· 01
TABLE OF CONTENTS
Congratulations on your choice of the digital intelligent charger from SKYRC Technology
Co., Ltd. You are now the owner of a professional charger with battery management and integral balancer.
The unit is simple to use, but the operation of a sophisticated automatic charger such as the
does require some knowledge on the part of the user. These operating instructions are designed to ensure
that you quickly become familiar with its functions.
It is therefore important that you read right through the Operating Instructions, Warning and Safety Notes
before you attempt to use your new automatic charger for the first time. We hope you have many years of
pleasure and success with your new battery charger.
employs the circuit that features output power of 400 watts. It can charge or discharge up
15 cells of NiCd/NiMH or 6 series of Lithium batteries with maximum current of 20A. has an
individual cell voltage balancer, so it does not required any balancer separately when charging Lithium
batteries (LiPo/LiIon/LiFe) for voltage balancing.
The fan cooling system is so smart and efficiently. The fan speed is controlled by internal temperature
sensor.
Please BE SURE to read these instructions and Warning and Safety Notes before you use the charger for
the first time.
It can be dangerous to mishandle batteries and battery chargers, as there is always a risk of batteries
catching fire and exploding.
Ultimate 400W
Ultimate 400W
Ultimate 400W
Ultimate 400W
02 ·
INTRODUCTION
Ultimate 400W Ultimate 400W

· 03 04 ·
INTRODUCTION
Please read this operating manual completely and attentively before using this product, as it covers a wide
range of information on operating and safety. Or please do use this product in company with a specialist!
INTRODUCTION

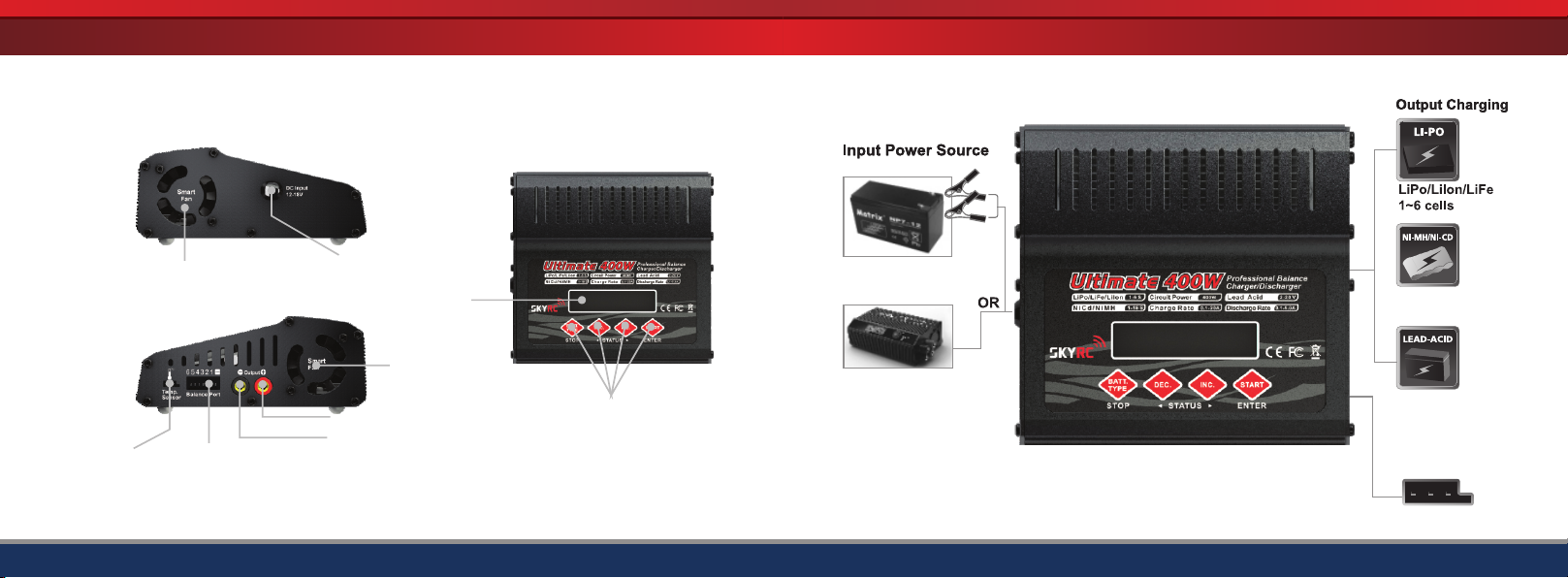

Left View
Right View
Ventilation Fan DC input 12V~18V
Temperature
Probe Socket
Positive[+] Charger Output
Universal
Balancing Port
Pitch=2.54mm
Ventilation Fan
LCD
Screen
Membrane Switch
Temperature
Probe Socket
Top View
Negative[-] Charger Output
AC Power Supply
540Watt, DC12-18V
NiMH/NiCd
1~15 cells
Lead Acid
2~20V
Lead-Acid
DC12V
Ultimate 400W Ultimate 400W

· 05 06 ·
SPECIAL FEATURES
Ultimate 400W features the so-called AUTO function that set the feeding current during the process of
charging or discharging. Especially for Lithium batteries, it can prevent the overcharging which may lead to
an explosion due to the user's fault. It can disconnect the circuit automatically and alarm once detecting any
malfunction. All the programs of this product were controlled through two way linkage and communication,
to achieve the maximum safety and minimize the trouble. All the settings can be configured by users!
Optimized operating software

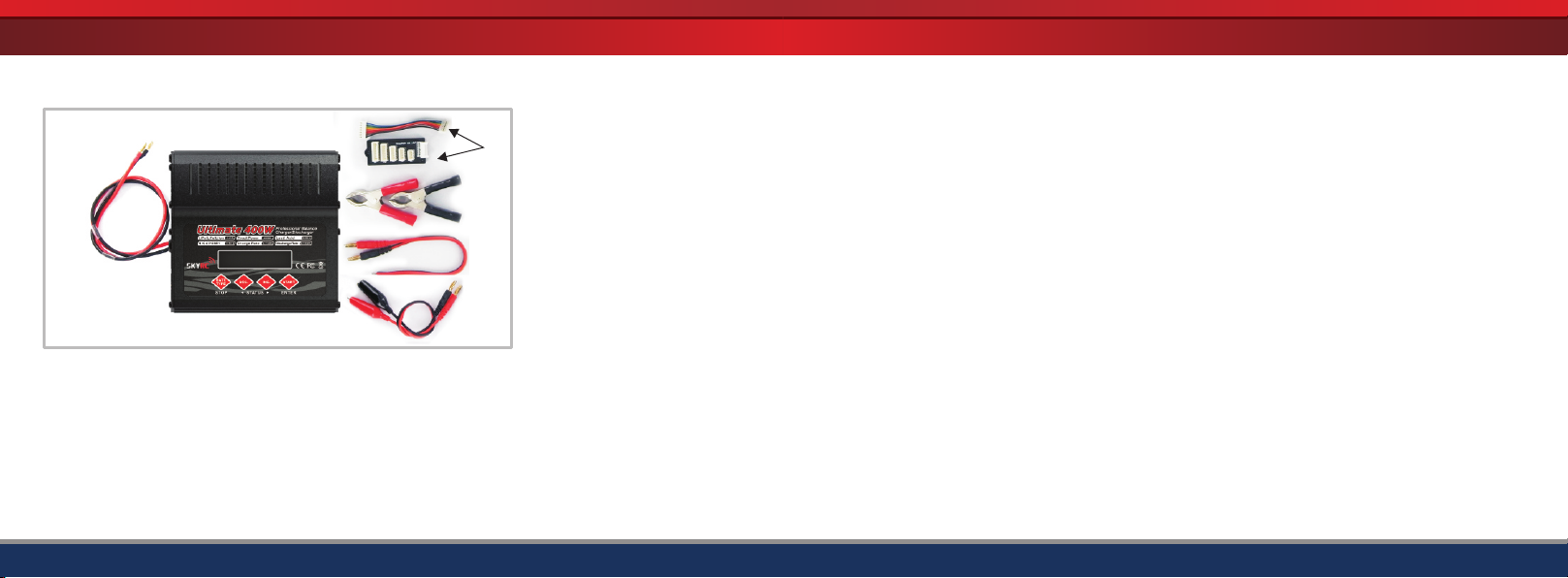

Set contents
Special features
1. Ultimate 400W Charger
2. XH Adaptor
3. Plug-in Battery Clamps
4. 18AWG Wire Charging Cable
5. Crocodile Clip Charging Cable
SPECIAL FEATURES
Internal independent lithium battery balancer
Ultimate 400W employs an individual-cell-voltage balancer. It is not necessary to connect an external
balancer for balance charging.
Balancing individual cells battery discharging
During the process of discharging, Ultimate 400W can monitor and balance each cell of the battery
individually. Error message will be indicated and the process will be ended automatically if the voltage of any
single one cell is abnormal.
Adaptable to various type of lithium battery
Ultimate 400W is adaptable to various types of lithium batteries, such as Li-ion, LiPo and the new LiFe series
of batteries.
Fast and storage mode of lithium battery
Purposes to charge Lithium battery varies, fast charge reduce the duration of charging, whereas store state
can control the final voltage of your battery, so as to store for a long time and protect useful time of the battery.
Maximum safety
Delta-peak sensitivity: The automatic charge termination program based on the principle of the Delta-peak
voltage detection. When the battery's voltage exceeds the threshold, the process will be terminated
automatically.
Automatic charging current limit
You can set up the upper limit of the charging current when charging your NiCd or NiMH battery; it is useful for
the NiMH battery of low impedance and capacity in the 'AUTO' charging mode.
12
3
4
5
Ultimate 400W Ultimate 400W

· 07 08 ·
SPECIAL FEATURES
Capacity limit
The charging capacity is always calculated as the charging current multiplied by time. If the charging
capacity exceeds the limit, the process will be terminated automatically when you set the maximum value.
Temperature threshold
The battery internal chemical reaction will cause the temperature of the battery to rise. If the temperature
limit is reached, the process will be terminated.
This function is available by connecting temperature probe, which is not included in the package.
Processing time limit
You can also limit the maximum process time to avoid any possible defect.
Data store/load
For user’s convenience, it can store maximum 10 data of different batteries. You can establish
the data contains program setting of the battery to charge or discharge. These data can be called
back at any time you need and the process can be executed without program setting.
Cyclic charging/discharging
1 to 5 cyclic and continuous process of charge>discharge or discharge>charge is operable for battery
refreshing and balancing to stimulate the batterys activity.
Never leave the charger unattended when it is connected to its power supply. If any malfunction is
found, Terminate THE PROCESS AT ONCE and refer to the operation manual.
Keep the charger well away from dust, damp, rain, heat, direct sunshine and vibration. Never drop it.
The allowable input voltage is 12~18V DC
This charger and the battery should be put on a heat-resistant, noninflammable and nonconductive
surface. Never place them on a car seat, carpet or similar.
Keep all the inflammable volatile materials away from operating area.
Make sure you know the specifications of the battery to be charged or discharged to ensure it meets
the requirements of this charger. If the program is set up incorrectly, the battery and charger may be
damaged .It can cause fire or explosion due to overcharging. This warranty is not valid for any damage
or subsequent damage arising as a result of a misuse or failure to observe the procedures outlined in
this manual.
These warnings and safety notes are particularly important. Please follow the instructions for maximum
safety; otherwise the charger and the battery can be damaged or at worst it can cause a fire.
Charge in an environment where the temperature range is between 10℃-30℃（50℉-86℉）.
Charging may not be as effective when performed in other environments.
WARNING AND SAFETY NOTES
Ultimate 400W Ultimate 400W

· 09 10 ·
WARNING AND SAFETY NOTES
Standard Battery Parameters
3.7V/cell 3.6V/cell 3.3V/cell 1.2V/cell 1.2V/cell 2.0V/cell
4.2V/cell 4.1V/cell 3.6V/cell 1.5V/cell 1.5V/cell 2.46V/cell
3.8V/cell 3.7V/cell 3.3V/cell n/a n/a n/a
≧3.0V/cell ≧2.5V/cell ≧2.0V/cell ≧0.85V/cell ≧1.0V/cell ≧1.75V/cell
Nominal Voltage
Min. Discharge Voltage
LiPo
Max Charge Voltage
Storage Voltage
LiIon LiFe NiCd MiMH Pb
Be very careful to choose the correct voltage for different types of battery otherwise you may cause damage
to the batteries. Incorrect settings could cause the cells to fire or explode.
WARNING AND SAFETY NOTES
During charge process, a specific quantity of electrical energy is fed into the battery. The charge quantity is
calculated by multiplying charge current by charge time. The maximum permissible charge current varies
depending on the battery type or its performance, and can be found in the information by the battery
manufacturer. Only batteries that are expressly stated to be capable of quick-charge are allowed to be
charged at rates higher than the standard charge current.
Charging
Did you select the appropriate program suitable for the type of battery you are charging?
Did you set up adequate current for charging or discharging?
Have you checked the battery voltage? Lithium battery packs can be wired in parallel and
in series, i.e. a 2 cell pack can be 3.7V (in parallel) or 7.4V (in series).
Have you checked that all connections are firm and secure?
Make sure there are no intermittent contacts at any point in the circuit.
Please bear in mind the following points before commencing charging:
A battery pack which consists of different types of cells (including different manufacturers)
A battery that is already fully charged or just slightly discharged.
Non-rechargeable batteries (Explosion hazard).
Batteries that are require a different charge technique from NiCd, NiMh, LiPo or Gel cell
(Pb, Lead acid).
A faulty or damaged battery.
A battery fitted with an integral charge circuit or a protection circuit.
Batteries installed in a device or which are electrically linked to other components.
Batteries that are not expressly stated by the manufacturer to be suitable for the currents
the charger delivers during the charge process.
Never attempt to charge or discharge the following types of batteries.
Ultimate 400W Ultimate 400W

· 11 12 ·
WARNING AND SAFETY NOTES
Connect the battery to the terminal of the charger: red is positive and black is negative. Due to the
difference between resistance of cable and connector, the charger can not detect resistance of the battery
pack, the essential requirement for the charger to work properly is that the charge lead should be of
adequate conductor cross-section, and high quality connectors which are normally gold-plated should be
fitted to both ends.
Always refer to the manual by the battery manufacturer pertaining to charging methods, recommended
charging current and charging time. Especially, the Lithium battery should be charged according the
charging instruction provided by the manufacturer strictly.
Attention should be paid to the connection of Lithium battery especially.
Do not attempt to disassemble the battery pack arbitrarily.
Please get highlighted that Lithium battery packs can be wired in parallel and in series. In the parallel
connection, the battery capacity is calculated by multiplying single battery capacity by the number of cells
with total voltage stay the same. The voltage imbalance may cause fire or explosion. Lithium battery is
recommended to charge in series.
WARNING AND SAFETY NOTES
The main purpose of discharging is to clean residual capacity of the battery, or to reduce the
battery voltage to a defined level. The same attention should be paid to the discharging process as
charging. The final discharge voltage should be set up correctly to avoid deep-discharging. Lithium
battery can not be discharged to lower than the minimum voltage, or it will cause a rapid loss of
capacity or a total failure. Generally, Lithium battery doesn’t need to be discharged. Please pay
attention to the minimum voltage of Lithium battery to protect the battery.
Some rechargeable batteries have a memory effect. If they are partly used and recharged before
the whole charge is accomplished, they remember this and will only use that part of their capacity
next time. This is a memory effect. It is said that NiCd and NiMH batteries are suffering from memory
effect. NiCd has more memory effect than NiMH.
Lithium batteries are recommended to be discharged partially rather than fully discharged. Frequent
full discharging should be avoided if possible. Instead, charge the battery more often or use a
battery of larger capacity. Full capacity cannot be reached until it has been subjected to 10 or more
charge cycles. The cyclic process of charge and discharge will optimize the capacity of battery pack.
Discharging
Ultimate 400W Ultimate 400W

Continue on next page!
· 13 14 ·
PROGRAM FLOW CHART PROGRAM FLOW CHART
Ultimate 400W Ultimate 400W

· 15 16 ·

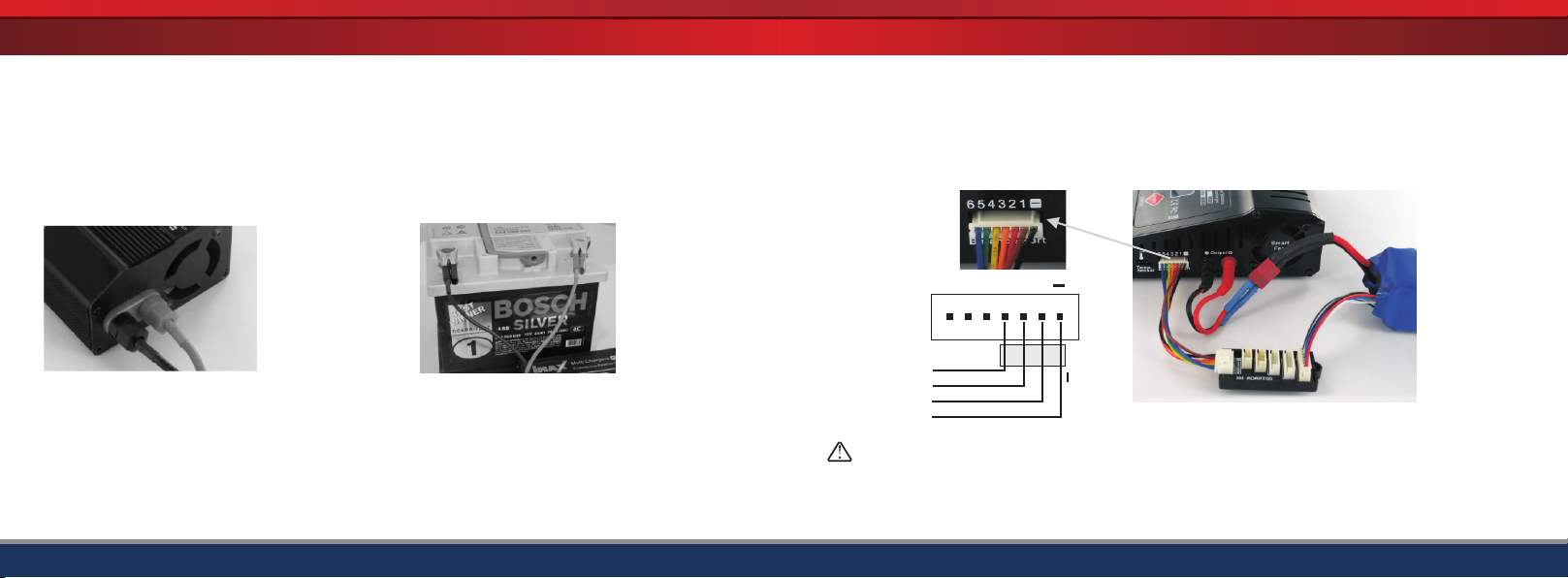

LITHIUM POLYMER BALANCE CHARGE PROGRAM CONNECTION DIAGRAM
Ultimate 400W comes with male 4mm Bullet connectors attached to the power INPUT cables. These cables
are appropriate for attaching directly to most high-quality AC-DC power supply units, such as eFUEL model
PSU30A (18V, 30A). Also included are large Terminal Clips with matching 4mm female bullet connectors, for
attaching directly to 12V car batteries. It is critically important that you use either a fully charged 13.8 car
battery or a high quality AC-DC power supply in the range of 12V to18V DC output, with minimum current
rating of 30A to insure reliable performance.
CONNECTING THE CHARGER
4mm Bullet
Connectors
plugging
to eFUEL power
supply directly
Using terminal
clip attaching to
car battery
CONNECTING THE BATTERY
Important !!! Before connecting a battery it is absolutely essential to check one last time that you have set
the parameters correctly. If the settings are incorrect, the battery may be damaged, and could even burst
into flames or explode. To avoid short-circuits between the banana plugs, always connect the charge leads
to the charger first, and only then to the battery. Reverse the sequence when disconnecting the pack.
LITHIUM POLYMER BALANCE CHARGE PROGRAM CONNECTION DIAGRAM
The balance wire attached to the battery must be connected to the charger with the black wire aligned with
the negative marking. Take care to maintain correct polarity! (Wiring diagram: see below.)
This diagram shows the correct way to connect your battery to the Ultimate 400W while charging in the
balance charge program mode only.
Balance socket:
3456 12
+
S2
+
S3
+
S1
WARNING:
Failure to connect as shown in this diagram will damage this charger.
To avoid short circuit between the charge lead always connect the charge cable to the charger first, then
connect the battery. Reverse the sequence when disconnecting.
Ultimate 400W Ultimate 400W

· 17 18 ·
INITIAL PARAMETER SETUP (USERS SET UP)
Ultimate 400W will be operated with the default value of the essential user settings when it is connected
to a 12V battery for the first time. The screen displays the following information in sequence and the user
can change the value of parameter on each screen.
When you are willing to alter the parameter value in the program, press start/enter key to make it blink then
change the value with Inc> or <Dec key. The value will be stored by pressing start/enter key once.
Initial parameter set up (Users set up)
INC
DEC INC
INCDEC
User set up starting screen.
The screen displays the nominal voltage of Lithium battery. There are three kinds of
Lithium battery: LiFe(3.3V), Lilo(3.6V) or LiPo(3.7V). This is very important so you
have to check the battery carefully and set it up correctly. If it is different from
correct value the battery may be exploded during charge process.
Ultimate 400W recognize the cell count of Lithium battery automatically at the
beginning of charge or discharge process to avoid from erroneous setting by user.
But deeply discharged battery can be perceived incorrectly. To prevent the error,
you can set the time term to verify the cell count by the processor. Normally, 10
minutes are enough to perceive the cell count correctly. For the battery of larger
capacity, you may extend the time term. But if you set the time term too long for the
battery of smaller capacity, the charge or discharge process can be finished within
the time term with the erroneous cell count. This may cause the fatal result. If the
processor recognizes the cell count incorrectly at the beginning of charge or
discharge process, you may extend the time. Otherwise, you had better use with
the default value.
INITIAL PARAMETER SETUP (USERS SET UP)
INCDEC
INCDEC
DEC INC
DEC INC
DEC INC
DEC INC
INCDEC
DEC INC
DEC INC
DEC INC
INCDEC
Termination of NiMH and NiCd battery, the effective value ranges from 5 to 20mV
per cell. If the trigger voltage is set higher, there is a danger of over charging the
battery; if it is set lower, there is a possibility of premature termi nation. Please
refer the technical specification of the battery. (NiCd default: 12mV, NiMH default:
7mV)
An optional feature using temperature probe contacting the surface of battery,
the temperature cut-off can be on or off. If it is on, set the maximum temperature
at which the charger should allow battery to reach during charge. Once a battery
reaches this temperature during charge, the process will be terminated to protect
the battery.
The battery is on the cyclic process of charge and discharge can often become
warm after charge or discharge period. The program can insert a time delay to
occur after each charge and discharge process to allow the battery adequate
time to cool down before being subjected to the next process. The value ranges
from 1 to 60 minutes.
You can set the trickle charge mode on or off. If it is on, the charger will
automatically supply the trickle charge current to achieve the full charge without
overheating the battery after fast charge has been terminated.
Ultimate 400W Ultimate 400W

· 19 20 ·
INITIAL PARAMETER SETUP (USERS SET UP)
DEC INC
INCDEC
INCDEC
DEC INC
DEC INC DEC INC
INCDEC
DEC INC DEC INC
INCDEC
DEC INC
INCDEC

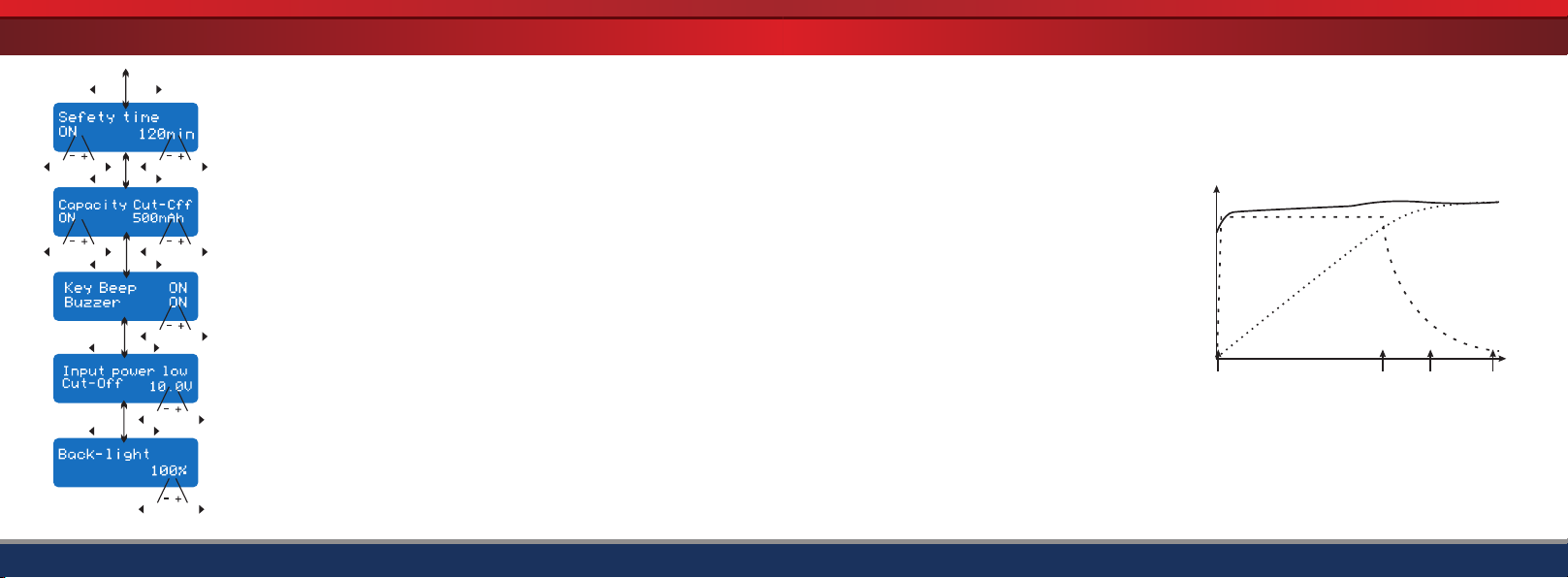

When you start a charge process, the integral safety timer automatically starts
running at the same time. This is programmed to prevent overcharge the battery
if it proves to be faulty, or if the termination circuit cannot detect the battery full.
The value for the safety timer should be generous enough to allow a full charge
of the battery.
This program sets the maximum charge capacity that will be supplied to the
battery during charge. If the delta-peak voltage is not detected nor the safety
timer expired by any reason, this feature will automatically stop the process at
the selected capacity value.
The beep sounds at every time pressing the buttons to confirm your action. The
beep or melody sounded at various times during operation to alert different mode
changes. These audible sounds can be turned on or off.
This program monitors the voltage of input battery. If the voltage drops below the
value you set the operation forcibly terminated to protect the input battery.
You can adjust the brightness of LCD screen at the charger.
LITHIUM BATTERY (LILON/LIPO/LIFE) PROGRAM
Lithium battery (LiIon/LiPo/LiFe) program
These programs are only suitable for charging and discharging Lithium batteries with a nominal voltage of
3.3V, 3.6V and 3.7V per cell. These batteries need to adopt different charge technique that is termed
constant current (CC) and a constant voltage (CV) method. The charge current varies according to the
battery capacity and performance.
4.2V
V
A
Ah
ABCD
t
V/A/Ah
The Lithium polymer battery is charged at a constant
current until it reaches the final charge voltage of 4.2 V
per cell (B). After this point the voltage is kept at a
constant level, and the residual charge takes the form
of a declining current curve (C) until the cut-off point
(D) is reached. Charge current = C/10. At this point
the battery can be disconnected from the charger, and
is ready for use.
The final voltage of charge process is also very important; it should be precisely matched with the charged
voltage of the battery. They are 4.2V for LiPo, 4.1V for Lilo, and 3.6V for LiFe. The charge current and
nominal voltage as for cell count set on the charge program must always be correct for the battery to be
charged.
When you are willing to alter the parameter value in the program, press start/enter key to make it blink then
change the value with Inc> or <Dec key. The value will be stored by pressing start/enter key once.
Ultimate 400W Ultimate 400W

· 21 22 ·
CHARGING LITHIUM BATTERY IN THE CHARGE MODE
Charging lithium battery in the charge mode
This charging mode is for charging Li-Po/Ion/Fe battery without balance lead.
>3 seconds
INC
INC DEC
DEC -
-+
+
Start
Enter
Batt type
Stop
Start
Enter
Charged
capacity
Number
of
cells
Charging
time
Charging
current
Battery
voltage
The left side of the first line shows the type of battery you choose.
The value on the left of the second line of the charger is current
user set. After setting the current and voltage, press START/ENTER
key for more than 3 seconds to start the process.(charge current:
0.1-10.0A, voltage: 3.7-22.2V).
This displays the number of cells you set up and the processor
detects.R shows the number of cells detected by the charger and S is
the number of cells set by you at the previous screen. If both numbers
are identical you can start charging by press START/ENTER button. If
not, press BATT TYPE/STOP button to go back to previous screen
to carefully check the number of cells of the battery pack before going
ahead.
This screen shows the real-time status during charge process. Press BATT
TYPE/STOP key once to stop the charge process.
CHARGING LITHIUM BATTERY IN THE BALANCE MODE
Charging lithium battery in the balance mode
This function is for balancing the voltage of Lithium-polymer battery cells while charging. In the balance
mode, the battery needs to have a balance lead to connect to the individual balance port of the charger. And
you need to connect the battery's power lead to the output of charger. Charging in this mode is different
from the normal modes, because the built-in processor monitors voltage of individual cell and control input
current fed into each cell to equalized voltage of individual cell.
INC
INC DEC
DEC -
-+
+
Start
Enter
Batt type
Stop
Start
Enter
Charged
capacity
Number
of
cells
Charging
time
Charging
current
Battery
voltage
The left side of the first line shows the type of battery you choose.The
value on the left of the second line of the charger is current user set.
After setting the current and voltage, press START/ENTER key for
more than 3 seconds to start the process.(charge current: 0.1-20.0A,
voltage: 3.7-22.2V).
This displays the number of cells you set up and the processor
detects.R shows the number of cells detected by the charger and S is the
number of cells set by you at the previous screen. If both numbers are
identical you can start charging by press START/ENTER button. If not,
press BATT TYPE/STOP button to go back to previous screen to
carefully check the number of cells of the battery pack before going
ahead.
This screen shows the real-time status during charge process. Press BATT
TYPE/STOP key once to stop the charge process.
>3 seconds
Ultimate 400W Ultimate 400W

· 23 24 ·
CHARGING LITHIUM BATTERY IN THE FAST CHARGE MODE
Charging lithium battery in the fast charge mode
The charging current is getting smaller as the process goes to the near end term of Lithium battery
charging. To finish charging process earlier, this program eliminate certain term of CV process. Actually, the
charging current will goes to 1/5 from the initial value to end the process while the normal charging goes to
1/10 during CV term. The charging capacity may be a bit smaller than normal charging but the process time
will be reduced.
INCINC DECDEC
-- ++
Start
Enter
Start
Enter
Batt type
Stop
Current
voltage
battery
Supplied
capacity
Charge
current
Charging
time
Number
of
cells
>3 seconds
The value on the left side of the second lines sets the charge current. The
value on the right side of the second lines sets the battery pack's voltage.
After setting current and voltage, press STAR/ENTER for more than 3
seconds to start the process.
This displays the number of cells you set up and the processor
detects.R shows the number of cells detected by the charger and S is
the number of cells set by you at the previous screen. If both
numbers are identical you can start charging by press START/ENTER
button. If not, press BATT TYPE/STOP button to go back to
previous screen to carefully check the number of cells of the battery
pack before going ahead.
This screen shows the real-time status during charge process. Press
BATT TYPE/STOP key once to stop the charge process.
CHARGING LITHIUM BATTERY IN THE STORAGE MODE
This is for charging or discharging Lithium battery not to be used for the time being. The program will
determine to charge or discharge the battery to the certain voltage depending on the voltage of the battery
at its initial stage. They are different from the type of the battery, 3.75V for LiIo, 3.85V for LiPo and 3.3V for
LiFe per cell. If the voltage of battery at its initial stage is over the voltage level to storage, the program will
start to discharge.
Charging lithium battery in the storage mode
Number
of
cells
DEC
-
Batt type
Stop
Elapsed
time
INC
+
Charge
or discharge
current
Supplied
capacity
DEC
Start
Enter
-
INC
+
Current
voltage
battery
This screen shows the real-time status charging. Press BATT
TYPE/STOP key once to stop the charge process.
At this screen, you can set up the current and voltage of the battery
pack. Charging and discharging will make the batteries come to the
voltage level of storage state.
>3 seconds
Ultimate 400W Ultimate 400W

· 25 26 ·
DISCHARGING OF LITHIUM BATTERY
Discharging of lithium battery
Number
of
cells
DEC
-
Batt type
Stop
elapsed
time
INC
+
Battery
voltage
DEC
Start
Enter
-
INC
+
Discharged
capacity
discharge
current
The value of discharge current on the left can not exceed 1C, and the value
on the right can not be under the voltage recommended by the manufacturer
to avoid deep discharging. Press START/ENTER for more than 3 seconds to
start discharging.
This shows the real-time status of discharging, you can press BATT
TYPE/STOP key to stop discharging.
INC
The processor detects voltage of one cell is too low.
The 4th cell was damaged. The value of voltage may be zero if disconnection
occurs.
Voltage balancing and monitoring in the discharge process
>3 seconds
The processor monitors voltage of each cell when the battery packs are during its storage and
discharging process. If voltage of any cell is abnormal, Ultimate 400W will show error message and
terminate the program forcibly. So if there is battery damage or disconnection, you can see the error
message and press INC to know which cell is damaged.
CHARGING NICD/NIMH BATTERY IN THE CHARGE MODE
DEC
-
Batt type
Stop
Elapsed
time
INC
+
DEC
Start
Enter
-
INC
+
Charged
capacity
Battery
type Charge
current
Battery
voltage
This program is for charging of NiCd/NiMH batteries associated with R/C
models applications. You can press START/ENTER key to make it blink and
then INC or DEC to change the parameter value. Press START/ENTER key to
store the value.
The screen shows the real-time status. Press BATT TYPE/STOP key to end
the program. The sound will emitted to indicates the end of program.
Charging NiCd/NiMH battery in the charge mode
>3 seconds
This program charge the battery using the current you set up. In the auto state,you should set up the upper
limit of the charge current to avoid damage by excessive feeding current. Some batteries of low resistance
and capacity can lead to higher current in the auto charging mode. But in the manual mode, it will charge
with the current you set. You can make it blink in the current field and press INC and DEC simultaneously to
swap between Auto and Manual Mode. NOTE: Allowable fast charge current: 1C-2C
Ultimate 400W Ultimate 400W

· 27 28 ·

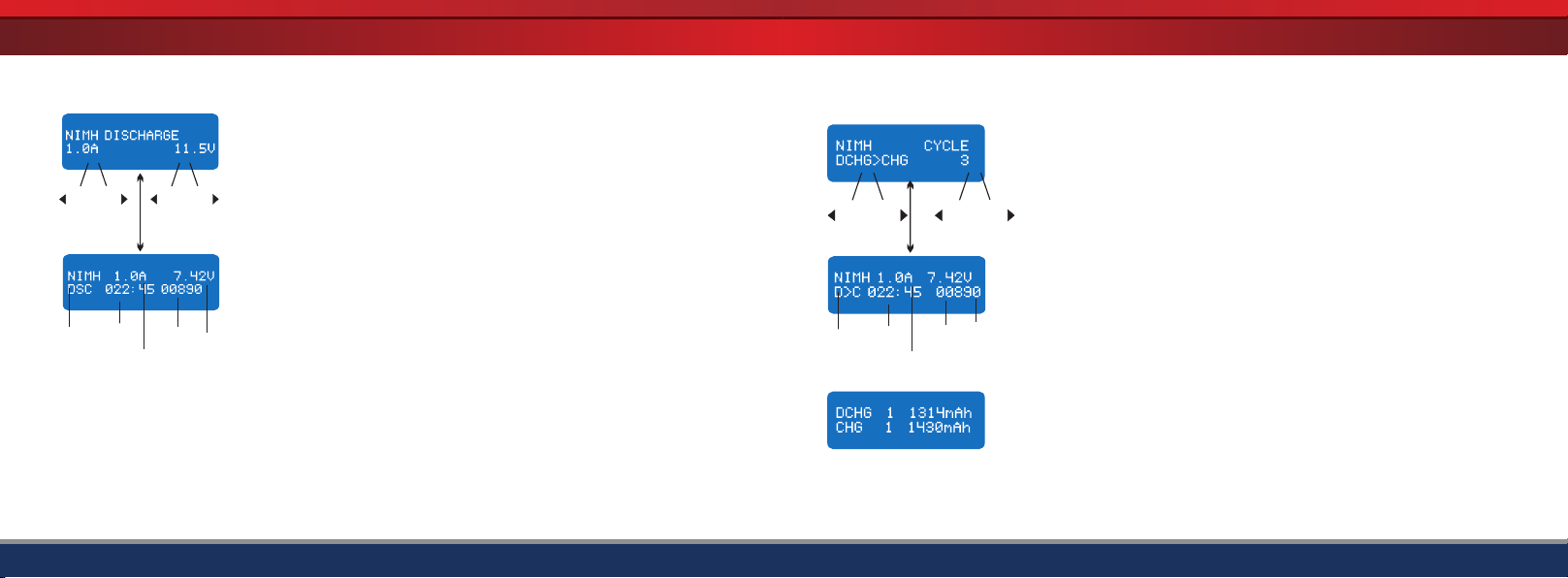

DISCHARGE OF NICD/NIMH BATTERY
Discharge of NiCd/NiMH battery
Discharge
current
The screen indicates the discharging state. You can press START/ENTER
key to alter discharge current. Press START/ENTER again to store the
value. Press BATT TYPE/STOP key to stop discharging. The emitted sound
alerts the end of discharging.
Battery
type
Battery
voltage
Elapsed
time Discharged
capacity
Batt type
Stop Start
Enter
DEC INC DEC INC
-+-+
Set discharge current on the left and the final voltage on the right. Range
of the discharge current is 0.1-5.0A; range of final voltage is 0.1-25.0V.
Press START/ENTER key for more than 3 seconds to start the program.
>3 seconds
CHARGE/DISCHARGE AND DISCHARGE/CHARGE CYCLE OF NICD/NIMH BATTERY
Charge/discharge and discharge/charge cycle of NiCd/NiMH battery
DEC
-
Batt type
Stop
INC
+
DEC
Start
Enter
-
INC
+
Battery
type
Elapsed
time
Battery
voltage
Discharged
or charged
capacity
Discharge
or charge
current
You can set up sequence on the left and the number of cycles on the
right. Range of the cycle number is 1-5.
Press BATT TYPE/STOP key to stop program, you can press
START/ENTER key to alter charge current. The sound indicates the
end of program.
When it approaches to the end, you can see the capacity of the
battery being charged or discharged. You can press INC or DEC key
to display result of each cycle.
>3 seconds
Ultimate 400W Ultimate 400W

· 29 30 ·
CHARGING PB (LEAD-ACID) BATTERY IN THE CHARGE MODE
Charging Pb (lead-acid) battery in the charge mode
This program is only suitable for charging Pb（lead-acid）battery with nominal voltage from 2 to 20V. Pb
（lead-acid）battery is completely different from NiCd/NiMH battery. These batteries can only deliver
current lower in comparison to their capacity. The same restriction applies to the charging process.
Consequently, the optimum charge current can only be 1/10 of the capacity. Pb battery can not be used for
fast-charging, please follow the instructions provided by the battery manufacturer.Due to the chemistry
characteristic of Pb battery, the cut off point may be difficult to detect sometimes. We recommend user to
use CAPACITY CUT OFF feature to protect the battery. You can press START/ENTER key to make it blink
and alter the value of parameters using INC or DEC key, press START/ENTER key to store the value.
Battery
type
DEC
-
Batt type
Stop
Elapsed
time
INC
+
Charge
current
Battery
voltage
DEC
Start
Enter
-
INC
+
Charged
capacity
>3 seconds
Set up the charge current on the left and nominal voltage on the right. Range
of current is 0.1-20A, the voltage should match the battery being charged.
Press START/ENTER key for more than 3 seconds to start charging.
The screen displays the real-time discharging status. Press START/ENTER
key to alter discharge current. Press START/ENTER key again to store the
parameter value you set. Press BATT TYPE/STOP key to end the program.
DISCHARGING OF THE PB BATTERY
Discharging of the Pb battery
DEC
-
Batt type
Stop
INC
+
DEC
Start
Enter
-
INC
+
Battery
type
Elapsed
time
Discharge
current
Battery
voltage Discharged
capacity
Set up the discharge current on the left and nominal voltage on the right.
Range of discharge current is 0.1-5A, the voltage should match the battery
being charged. Press START/ENTER key for more than 3 seconds to start
charging.
The screen displays the real-time discharging status. Press START/ENTER
key to alter discharge current. Press START/ENTER key again to store the
parameter value you set. Press BATT TYPE/STOP key to end the program.
>3 seconds
Ultimate 400W Ultimate 400W

· 31 32 ·
STORAGE DATA PROGRAM
Storage data program
Voltage Data
number
Capacity Type of
battery
Start
Enter Setting of the parameter in the screen will not affect the charge and
discharge process. They just present the specification of the battery. The
example is NiMH battery pack, including 12 cells, which the capacity is
3000m Ah.
DEC INC DEC
DEC
DEC
-
-
-
INC
INC
INC
+
+
+
Start
Enter
Batt type
stop
Set up the discharge current and final voltage.
Set up the charge current in the manual mode, or current limit in the auto
mode. Press INC and DEC key simultaneously to make the current field blink
to switch the charge mode.
DEC INC
>3 seconds
For your convenience, Ultimate 400W has a data storage and load program. It can store ten batteries data
representing the respective specifications of batteries. You can call back the data when charging or
discharging without setting up the program again. Press START/ENTER key to make it blink, and use INC
or DEC to set up the parameter.
LOAD DATA PROGRAM
DEC INC
DEC
DEC -
-INC
INC +
+
Start
Enter
Saving the data
Set up the charge/ discharge sequence and cycle number.
>3 seconds
Load data program
Start
Enter
Start
Enter
Choose the data number you want to call back. The data you want to call back
will be displayed.
Loading the data.
This program is to load the date stored at the save data program. Press START/ENTER key to make the
data field blink and press INC or DEC for more than 3 seconds to load the data.
>3 seconds
Ultimate 400W Ultimate 400W

· 33 34 ·
VARIOUS INFORMATION IN THE PROGRAM
Various information in the program
C 5 : 4 . 1 8 C 6 : 4 . 1 5 V
C 7 : 0 . 0 0 C 8 : 0 . 0 0 V
It comes to the final voltage when the program ended.
Displayed temperature cut-off function is turn on.
The external temperature is displayed when the temperature probe is used.
Present input voltage.
Displayed safety timer is turn on and duration of time in minutes.
Displayed capacity cut-off function is turn on and the setting value of capacity.
The battery is connected with balance lead. You can check voltage of each cell in the
battery pack.
You can inquire the variety of information during the process of charging and discharging on the LCD
screen.Press DEC key, the charger will display users’ setting. You can press INC key to monitor voltage of
each cell while the batteries balance lead is connected to the charger.
WARNING AND ERROR MESSAGE
Ultimate 400W incorporates a various functions of protective and monitoring the system to verify functions
and the state of its electronics. In any case of occurring error, the screen displays the cause of error that is
self-explanatory with audible sound.
Incorrect polarity connected.
Battery connection is interrupted.
Short-circuit of the output termination.
Input voltage wrong.
The voltage of the battery pack has been selected incorrectly!
The charger has malfunctioned for some reason. Seek professional advice.
The voltage is lower than which is set. Please check the number of cells in the battery pack.
The processor cannot control the feeding current, please repair it.
Wrong connection of the connector detected; please check the connector and cable.
Voltage of one cell in the battery pack is too high; please check the voltage of each cell.
Voltage of one cell in the battery pack is too low; please check the voltage of each cell.
The voltage is higher than which is set. Please check the number of cells in the battery pack.
The internal temperature of the unit goes too high. Cool down the unit.
Ultimate 400W Ultimate 400W

· 35 36 ·
RECOMMENDED ACCESSORIES
30A 540Watt DC
Power Supply
HP/PQ Adaptor
XH AdaptorTemperature
Sensor Cable
EH Adaptor
TP/FP Adaptor Dean charging cable Tamiya charging
cable
TRAXXAS
cable
charging
Glow charging cable Bullet charging cable EC3 charging cable Crocodile clip
charging cable
Futaba RX
charging cable
JST/BEC charging
cable
CONFORMITY DECLARATION
This symbol means that you must dispose of electrical from the
General household waste when it reaches the end of its useful life.
Take your charger to your local waste collection point or recycling centre.
This applies to all countries of the European Union, and to other European
countries with a separate waste collection system.
Ultimate 400W satisfy all relevant and mandatory EC directives and .FCC Part 15 Subpart B: 2008
For EC directives:
The product has been tested to meet the following technical standards:
EN55014-2:1997+A1:2001
+A2:2008
Ultimate 400W Ultimate 400W

· 37 38 ·
MAXIMUM CIRCUIT POWER CHART
The actual amount of charge current feeding to the battery is automatically be limited to 400 Watts, so not to
exceed the charger's maximum rated charging power.
The maximum discharge power is approximately 25 Watts. The discharge current delivered to the charger is
limited by charger's internal thermal sensor for maximum discharge current. If the internal temperature over
80 Celsius, the charger will be cut off and "TEMP OVER ERR" will show on the LCD. In this case, please
decrease discharging current.
Please refer following chart for maximum charging/discharging current.
Maximum circuit power chart
Battery
Type
MAXIMUM CIRCUIT POWER CHART
Battery
Type
Charge Current (A)
Charging Power 400W
20.0
20.0
20.0
20.0
20.0
18.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
19.0
18.0
20.0
20.0
20.0
20.0
20.0
20.0
18.0
16.0
3.6
7.2
10.8
14.4
18.0
21.6
3.0
4.5
6.0
7.5
9.0
10.5
12.0
13.5
15.0
16.5
18.0
19.5
21.0
22.5
7.4
9.8
12.3
14.8
17.2
19.7
22.1
24.6
3.3
6.6
9.9
13.2
16.5
19.8
2.4
3.6
4.8
6.0
7.2
8.4
9.6
10.8
12.0
13.2
14.4
15.6
16.8
18.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
1S
2S
3S
4S
5S
6S
2
3
4
5
6
7
8
9
10
11
12
13
14
15
LiFe
NiCd/NiMH
Pb
5.0
3.0
2.0
1.5
1.2
1.0
5.0
3.0
2.0
1.5
1.2
1.0
20.0
20.0
20.0
20.0
19.0
16.0
20.0
20.0
20.0
20.0
19.0
16.0
4.2
8.4
12.6
16.8
21.0
25.2
4.1
8.2
12.3
16.4
20.5
24.6
3.7
7.4
11.1
14.8
18.5
22.2
3.6
7.2
10.8
14.4
18.0
21.6
1S
2S
3S
4S
5S
6S
1S
2S
3S
4S
5S
6S
LiPo
LiIon
5.0
3.5
2.3
1.7
1.4
1.2
5.0
5.0
4.2
3.3
2.8
2.4
2.1
1.9
1.7
1.5
1.4
1.3
1.2
1.1
3.4
2.5
2.0
1.7
1.5
1.3
1.1
1.0
Charge Current (A)
Charging Power 400W
For the maximum charging rate, please follow battery manufacturer’s instruction strictly.
Ultimate 400W Ultimate 400W
