Skyrc Maestro T1000 User manual

SK-100182
V1.1
AC/DC Dual Balance Charger/Discharger
Instruction Manual

Introduction
Specifications
Warning
Standard Battery Parameters
Operation
Parallel Charge
External Discharge
Charger Master
Battery Analyzer
DC Power
Optional Parts
Charging Settings
System Setting
Errors and Warnings
Package
Firmware Upgrade Notice
Conformity Declaration
Warranty and Service
01
02
03
03
04
04
05
06
06
07
08
08
09
10
10
11
11
12
SKYRC T1000 Maestro Instruction Manual

.01 SKYRC T1000 Maestro
SKYRC T1000 Maestro Instruction Manual
Introduction
Greetings and thank you for your purchase of SkyRC T1000 Dual Balance Charger. As a new
member of the T family, T1000 will take you on an exciting and delightful journey in the world
of model aircraft and RC car.
T1000 has independent dual ports and supports most batteries in the RC industry. As a dual
input charger, the T1000 can be used for various charging scenarios, while the handle increases
portability. The meticulously designed interface and its powerful functions make it stands out
from the crowd, leaving your choices out of the way.
Wishing you a pleasant experience with this charger.
For first-time use, please read the instructions, warnings, and safety tips carefully.
Incorrectly charging a battery or using the charger in the wrong way can cause a fire
or explosion.

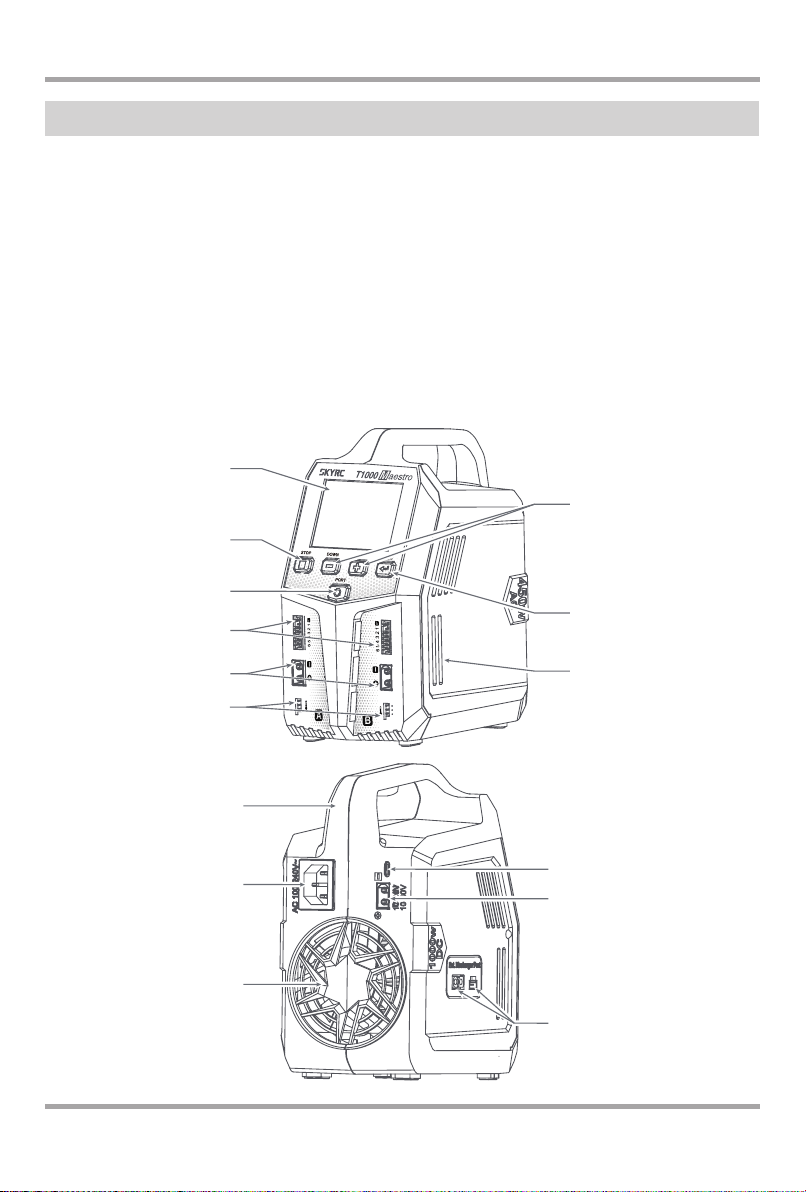

LCD Display
Scroll Through the Main Menu
Stop Any Charge Processes
Switch Between
Port A, B.
Balance Port
Output Socket
Temperature Sensor Port
Carrying Handle
AC Input 100-240V
Smart Ventilation Fan
Alter Values
See the Status of Individual
Cells in Balance Charge Mode
Resume or Start
Charge Processes
Ventilation Slot
Type-C
DC Input
External Discharge Port

SKYRC T1000 Maestro 02.
SKYRC T1000 Maestro Instruction Manual
Specifications
Item Option Specication
Model T1000
Input voltage
AC 100-240V (50/60Hz)
DC 10-30V
Input current 35A MAX
Charge power
AC 450W MAX
DC 1000W MAX
Discharge power
Main port 10W
Balance port 37W MAX
External discharge 350W MAX
Charge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb 0.1-20.0A
Parallel 20.0-35.0A
Discharge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb 0.1-2.0A
External discharge
* Working with external discharger BD350
which can be purchased separately.
0.1-40.0A
Balance current LiPo/LiFe/LiIon/LiHV 1.5A MAX
Battery type
LiPo/LiFe/LiIon/LiHV 1-6S
NiMH/NiCd 4-15S
Pb 3S/6S/12S
Operation
LiPo/LiFe/LiIon/LiHV Balance, Charge, Discharge,
Storage, Parallel
NiMH/NiCd Charge, Cycle, Re-peak,
Discharge
Pb Normal, AGM Charge, Cold
Charge, Discharge
DC output
Voltage 5-27V
Current 1.0-15.0A
Size L*W*H 190.3*153.5*100mm
Net Weight 1370g

.03 SKYRC T1000 Maestro
SKYRC T1000 Maestro Instruction Manual
Standard Battery Parameters
Never leave charging batteries unattended during use.
Never charge batteries overnight.
Never attempt to charge dead, damaged, or wet battery packs.
Never attempt to charge a battery pack containing different types of batteries.
Never charge batteries in extremely hot or cold places or place in direct sunlight.
Never charge a battery if the cable has been pinched or shorted.
Never connect the charger if the power cord has been pinched or shorted.
Never attempt to dismantle the charger or use a damaged charger.
Never attach your charger to both an AC and a DC power source at the same time.
Always use the charger with the correct charging and discharging program.
Always use only rechargeable batteries designed for use with this type of charger.
Never use the charger on car seats, carpets, or similar surfaces.
Always operate the charger away from flammable and explosive materials.
!
!
!
!
!
!
!
!
!
!
!
!
!
Warning
Failure to exercise caution while using this product and comply with the following
warnings could result in a product malfunction, electrical issues, excessive heat,
FIRE, and ultimately injury and property damage.
T1000 is not intended for use by persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning the use of the charger by a person responsible for their safety.
LiPo LiIon LiFe LiHV NiMH NiCd Pb
Nominal
voltage 3.7V/cell 3.6V/cell 3.3V/cell 3.7V/cell 1.2V/cell 1.2V/cell 2.0V/cell
Max. charge
voltage 4.2V/cell 4.1V/cell 3.6V/cell 4.35V/cell 1.5V/cell 1.5V/cell 2.4V/cell
Storage
voltage 3.8V/cell 3.7V/cell 3.3V/cell 3.90V/cell N/A N/A N/A
Allowable fast
charge current ≦1C ≦1C ≦4C ≦1C 1C-2C 1-2C ≦0.4C
Min. discharge
voltage 3.0-3.3V/cell 2.9-3.2V/cell 2.6-2.9V/cell 3.1-3.4V/cell 0.1-1.1V/cell 0.1-1.1V/cell 1.8~2.0V/cell
Select the correct operating procedure in accordance with the battery parameters.
Incorrect settings may cause the battery to burn or even explode.

SKYRC T1000 Maestro 04.
SKYRC T1000 Maestro Instruction Manual
Operation
Parallel Charge
Be familiar with the key instructions and operations before starting the operation.
Notice:
Upon completion, disconnect the battery from the charger.
The Parallel mode is available only for lithium batteries, which cannot be used for other types of
batteries.

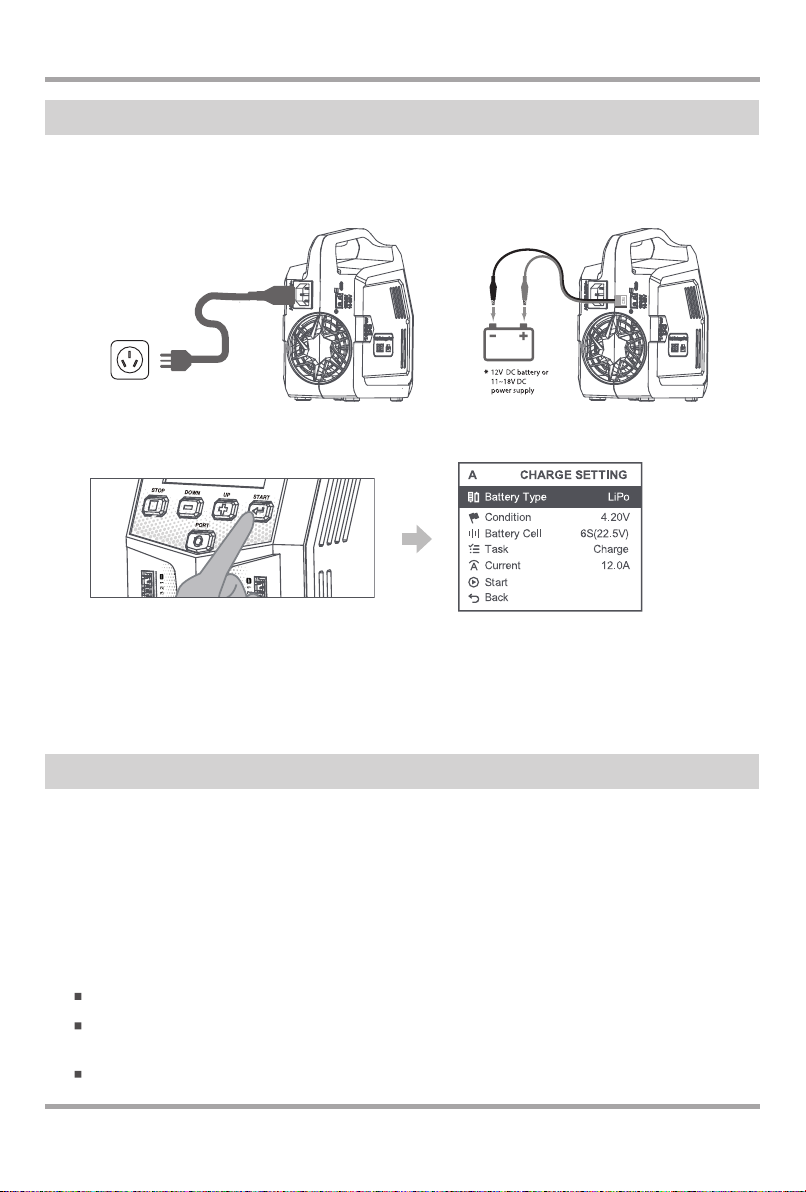

Connect the AC or DC power source, and T1000 powers up and enters the main interface;
From the main interface, press the Start button to enter the charging settings;
(To switch A/B ports, press the Port button.)
Set proper cut-off voltage, as well as the correct battery type, number of batteries, and task
program. In the case of lithium batteries, balance charging is highly recommended;
Start the program after setting up.
Select the correct battery type (LiPo/LiFe/LiIon/LiHV);
Choose the option of Parallel charge;
Adjust the charging current (20.0-35.0A is adjustable);
Start the program after setting up.
Ensure that AC and DC power is not connected simultaneously;
With the single port, charging power is 450W; with the dual ports, charging power is
intelligently distributed;
Before connecting the battery, turn on the charger;
1.
1.
2.
2.
3.
3.
4.
4.

.05 SKYRC T1000 Maestro
SKYRC T1000 Maestro Instruction Manual
External Discharge
Notice:
Upon connecting the power supply, T1000 automatically powers up and enters the main
interface;
T1000 is capable of external discharge. A discharge current of 40.0A can be reached with
BD350 discharger connected.
Select Discharge: set the cut-off voltage, the discharge current, and the number of cells;
Connect BD350 discharger to T1000;
Connect the battery to
T1000 on Port A;
Start the program after setting up.
BD350 discharger is not included and must be purchased separately.
External discharge is available only on Port A;
1.
4.
2.
3.
5.

SKYRC T1000 Maestro 06.
SKYRC T1000 Maestro Instruction Manual
Charger Master
Battery Analyzer
T1000 is capable of charging and discharging through the computer. Various parameters,
including charge time and capacity, can be displayed visually, as well as charge current and
voltage in a curve.
In addition, battery performance can be analyzed through the Charger Master.
T1000 is capable of analyzing the battery performance with BD350 discharger connected,
helping players choose a more suitable battery for competitions and gain better achievements.
Download the latest Charger Master onto your desktop.
Unzip and open it after downloading;
Launch the Charger Master and select Battery Analyzer on the top left;
Power on your T1000;
PC Interface
Connect T1000 to your computer via a USB type-C cable;
On the top left of the Charger Master, choose the option of Charge;
Set the parameters on the corresponding ports. Click to start the program after
setting up.
1.
1.
Select
2.
3.
4.
5.

.07 SKYRC T1000 Maestro
SKYRC T1000 Maestro Instruction Manual
DC Power
Up to ten groups of test data are visualized as curves, which are clear at a glance for players.
Specify the battery type, discharge current, cut-off voltage, and other parameters;
Click New Test to start the testing after setting up;
When the first test completes, click Append Test to start the second test. The third and
further tests follow suit.
On the main interface, hold the Start button for seconds to enter the system setting.
Select the option of DC Power, then adjust the output voltage and current.
Press Start to activate the power function after setting up.
Connect your desired DC equipment.
2.
2.
1.
3.
3.
4.
4.
Notice:
On the DC Power interface, press the Port button to switch A/B ports;
XT60
Current
12.0VVoltage
Start
15.0A
Back

SKYRC T1000 Maestro 08.
SKYRC T1000 Maestro Instruction Manual

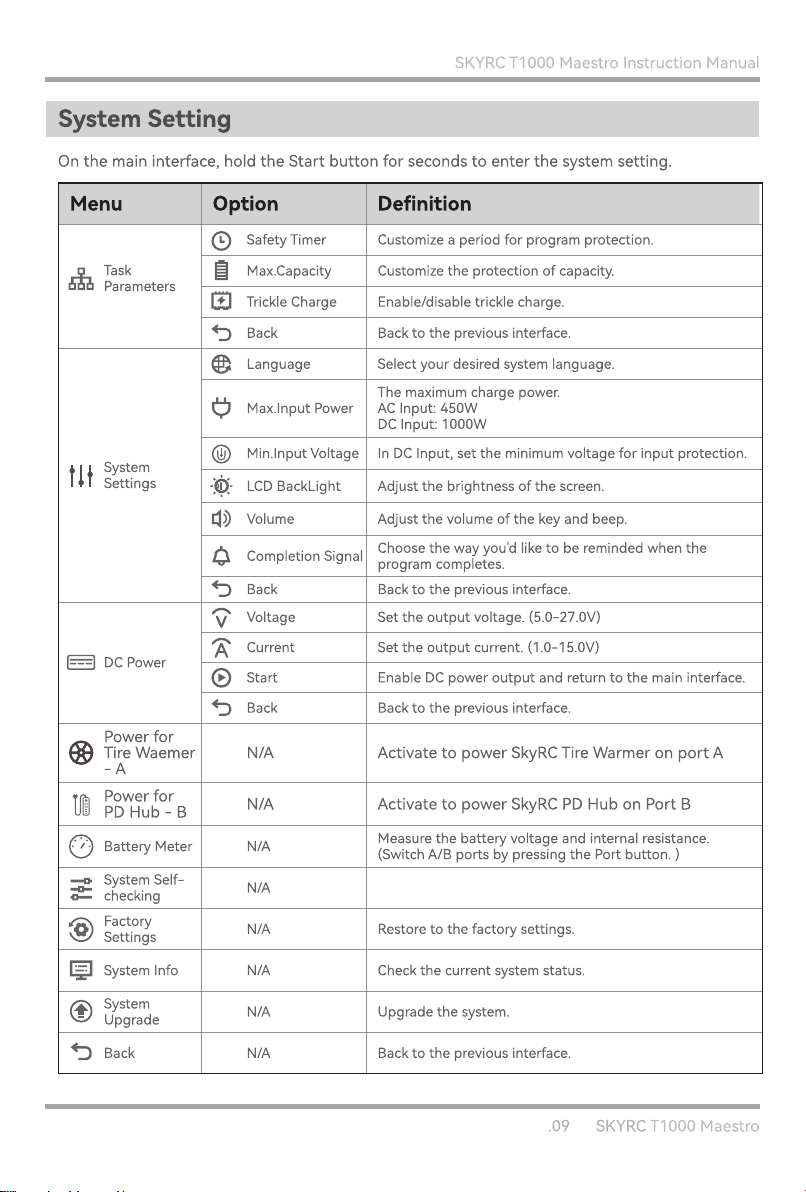

Charging Settings
Optional Parts
On the main interface, press the Start button to enter charging settings, in which you can switch
A/B ports by pressing the Port button.
BD350 Discharger
SK-600147-01
PCH-150 Charging Board
SK-600148-01
Parallel Charging Cable
SK-600023-19
Menu Denition
Batte Type Select your desired batte type. (LiPO, LiIon, LiFe, LiHV, Pb, NiMH, NiCd)
Battery Cell Select the number of batte cells corresponding to the batte type. (Li-xx: 1-6S,
Ni-xx: 1-15S, Pb: 3S/6S/12S)
Task Select the program to be peormed. (Balance CHG, Charge, Storage, Discharge,
Parallel, etc.)
Condition Set the cut-o voltage as per the task.
Current Set the charge or discharge current.
Start Sta the current program.
Back Back to the main inteace.
XT60 XT60 XT60

SKYRC T1000 Maestro 10.
SKYRC T1000 Maestro Instruction Manual
Errors and Warnings
Package
1*T1000 unit
In the event of a fault, the charger will display an error message and sound an alarm.
1*User manual 1*AC power cord
Error Message Explanation
Error: DC Input Low! DC input voltage is lower than preset!
Error: DC Input High! DC input voltage is higher than preset!
Error: Battery Break! The batte may be broken!
Cell Error The cells do not match.
Battery Type Error! The batte type is wrong!
Error: Overcharge! The batte is overcharged!
Error: Over Time! The program is timed out!
Error: Internal Temp. Too High! The internal temperature is high!
Error: Batte Temp. Too High! The batte temperature is high!
Error: Over Load! The charger is overloaded!
Error: Reversed Polarity The batte connection is reversed.
Error: Fully Charged The batte is fully charged already!
Error: Outlet Overload The output is overloaded.
Error: Balance Connection Break The balance connection disconnects.
Error: Cell Volt Di. The voltage dierence between each cell is high.
Error: AC to DC Too Low! The input voltage is too low.
Error: Power Setting Error The DC power setting is incorrect.

.11 SKYRC T1000 Maestro
SKYRC T1000 Maestro Instruction Manual
Conformity Declaration
Firmware Upgrade Notice
SkyRC T1000 satisfies all relevant and mandatory CE directives and FCC Part 15 Subpart B.
To recover from a firmware upgrade failure, please follow these steps:
The waiting takes about 5 minutes.
This symbol means that you must dispose of electrical from the general household waste
when it reaches the end of its useful life. Take your charger to your local waste collection
point or recycling center. This applies to all countries of the European Union, and other
European countries with a separate waste collection system.
Hold the STOP and START buttons simultaneously, then connect the power cord; T1000 will
power on with a blue screen notice.
Connect T1000 to your computer via a Type-C USB cable;
Launch the Charger Master on your computer;
When the status shows CONNECTED, click to check for new firmware;
Click to upgrade after detecting a new firmware;
Wait for the progress bar to finish and reach 100%;
1.
2.
3.
4.
5.
6.
EN 60335-1
EN 60335-2-29
EN 55014-1
EN 55014-2
EN 61000-3-2
EN 61000-3-3
FCC Pa
Subpa 15B
Household and similar electrical appliances - Safety -
Pa 1: General requirements
Household and similar electrical appliances – Safety – Pa
2-29: Paicular requirements for batte chargers.
Electromagnetic compatibility – Requirements for household
appliances, electric tools and similar apparatus - Pa 1:
Emission
Electromagnetic compatibility – Requirements for household
appliances, electric tools and similar apparatus – Pa 2:
Immunity Product Family Standard
Electromagnetic compatibility (EMC) – Pa 3-2: – Limits for
harmonic current emissions (equipment input current up to
and including 16 A per phase)
Electromagnetic compatibility (EMC) - Pa 3-3:
Limitation of voltage supply systems for equipment with
rated current ≤ 16 A.
Title 47 Telecommunication
PART 15 - RADIO FREQUENCY DEVICES
Subpa B - Unintentional Radiators
Conform
Conform
Conform
Conform
Conform
Conform
Conform
Test Standards Title Result

SKYRC T1000 Maestro 12.
SKYRC T1000 Maestro Instruction Manual
Warranty and Service
This charger is designed and approved exclusively for use with the types of battery stated in this
Instruction Manual. SkyRC accepts no liability of any kind if the charger is used for any purpose
other than that stated. We are unable to ensure that you follow the instructions supplied with
the charger, and we have no control over the methods you employ for using, operating, and
maintaining the device. For this reason, we are obliged to deny all liability for loss, damage, or
costs that are incurred due to the incompetent or incorrect use and operation of our products,
or which are connected with such operation in any way. Unless otherwise prescribed by law,
our obligation to pay compensation, regardless of the legal argument employed, is limited to
the invoice value of those SkyRC products which were immediately and directly involved in the
event in which the damage occurred.
We guarantee this product to be free of manufacturing and assembly defects for a period of one
year from the time of purchase. The warranty only applies to material or operational defects,
which are present at the time of purchase. During that period, we
will repair or replace free of service charge for products deemed defective due to those causes.
This warranty is not valid for any damage or subsequent damage arising as a result of misuse,
modification, or as a result of failure to observe the procedures outlined in this manual.
The warranty service is valid in China only.
If you need warranty service overseas, please contact your dealer in the first instance, who
is responsible for processing guarantee claims overseas. Due to high shipping costs, and
complicated custom clearance procedures to send back to China, please understand that
SkyRC can't provide warranty service to overseas end users directly.
If you have any questions which are not mentioned in the manual, please feel free to send an
email to inf[email protected]
Liability Exclusion
Warranty and Service
Note:
1.
2.
3.

.13 SKYRC T1000 Maestro
SKYRC T1000 Maestro Instruction Manual
This content is subject to change.
Latest version can be downloadedfrom www.skyrc.com
lf you have any question about this document,please contact SkyRC by sending a message
to [email protected]
All Rights Reserved.

SKYRC T1000 Maestro 14.
SKYRC T1000 Maestro Instruction Manual
[Version 1.1] 7504-1692-02
Manufactured by
SKYRC TECHNOLOGY CO., LTD.
www.skyrc.com
RoHS
.
2022 SkyRC Trchnology Co., Ltd. All Rights Reserved
The manual is subject to change without notice;
please refer to our website for the latest version!
