Skyrc Super Rider SR4 User manual

TABLE OF CONTENTS 目 录
REQUIRED TOOLS FOR ASSEMBLY
装配工具……………………………………………………………………………………………………………………………………..………………………
ASSEMBLY PROCEDURE
装配过程…………………………………………………………………………………………………………………………………………………………….
PART LIST
零件列表…………………………………………………………………………………………………………………………………………………………….
02
03
27
37
37
Avoid working on a deep pile carpet. It is
difficult to find some small components, such as
screw, if you drop them into it.
To prevent parts from rolling off and protect the
working surface, you could put all the small
parts into a container.
Avoid running the bike in cold weather. Low
temperature may cause plastic and metal parts
brittle. What’s more, the grease and oil become
thick which may cause poor performance.
Test fit all parts before attaching them to the
bike.
HELPFUL HINTS FOR ASSEMBLY
1.
2.
3.
4.
安装提示
尽量不要在长毛地毯上操作摩托车，如果零配件，
例如螺丝，掉进地毯，很难找到。
为了不让零件滚落，最好将所有部件放在容器里。
尽量避免在天冷的时候操作摩托车。低温会引起塑
料机金属部件会变脆，容易折断。而油也会变浑
浊，影响摩托车性能。
在固定各部件之前，请确保各部件之间完全吻合。
1.
2.
3.
4.
SKYRC is unable to ensure that the user will follow
the instructions supplied with the bike, nor can
SKYRC control how the bike is assembled,repaired,
operated and maintained. For this reason, SKYRC
cannot be held responsibility for damage, loss, or
injury caused by the use of materials different from
what is indicated in the manual, or from the
improper use of the product. From the moment the
buyer begins the assembly progress, he is
assuming the responsibility of any consequence
resulting from misuse or assembly. If customer
can't accept this, please return the product to the
place of purchase. The returned item should be
new, unused and with complete package.
IMPORTANT NOTICE
本公司无法保证用户完全遵照说明书指示操作，
也不能确保客户后续能正确安装/改装/维修、恰当操作
及妥善保养。因此，本公司不承担任何由于以下情况
造成的破损、损失及人身伤害的责任：
1. 用户使用与说明书描述不符的材料或者配件；
2. 用户操作或者使用不当。
从客户开始安装摩托车的那一刻起，客户将自行
承担由于使用不当造成的任何后果。如果客户不能接
受此条款，请将摩托车退回购买处。注意，退回的摩
托车必须全新，未使用，且包装完好。
注意事项
TROUBLE SHOOTING
疑难解答……………………………………………………………………………………………………………………………………………………………..
WARRANTY
保修条款……………………………………………………………………………………………………………………………………………………………..
01

REQUIRED TOOLS FOR ASSEMBLY装配工具
Nut driver
Phililips Screwdriver
Caliper
Hex wrench
1.5mm
2.0mm
2.5mm
3.0mm
5.5mm
7.0mm
8.0mm
Cable tie
Scissors
20wt 70wt
Shock Oil
302
Tire rubber
Side cutter
六角扳手
螺丝刀
十字螺丝刀
卡尺
Needle nose pliers 尖嘴钳
剪刀
斜口钳 绑带
Threadlocker 螺丝胶
减震油
轮胎胶
02

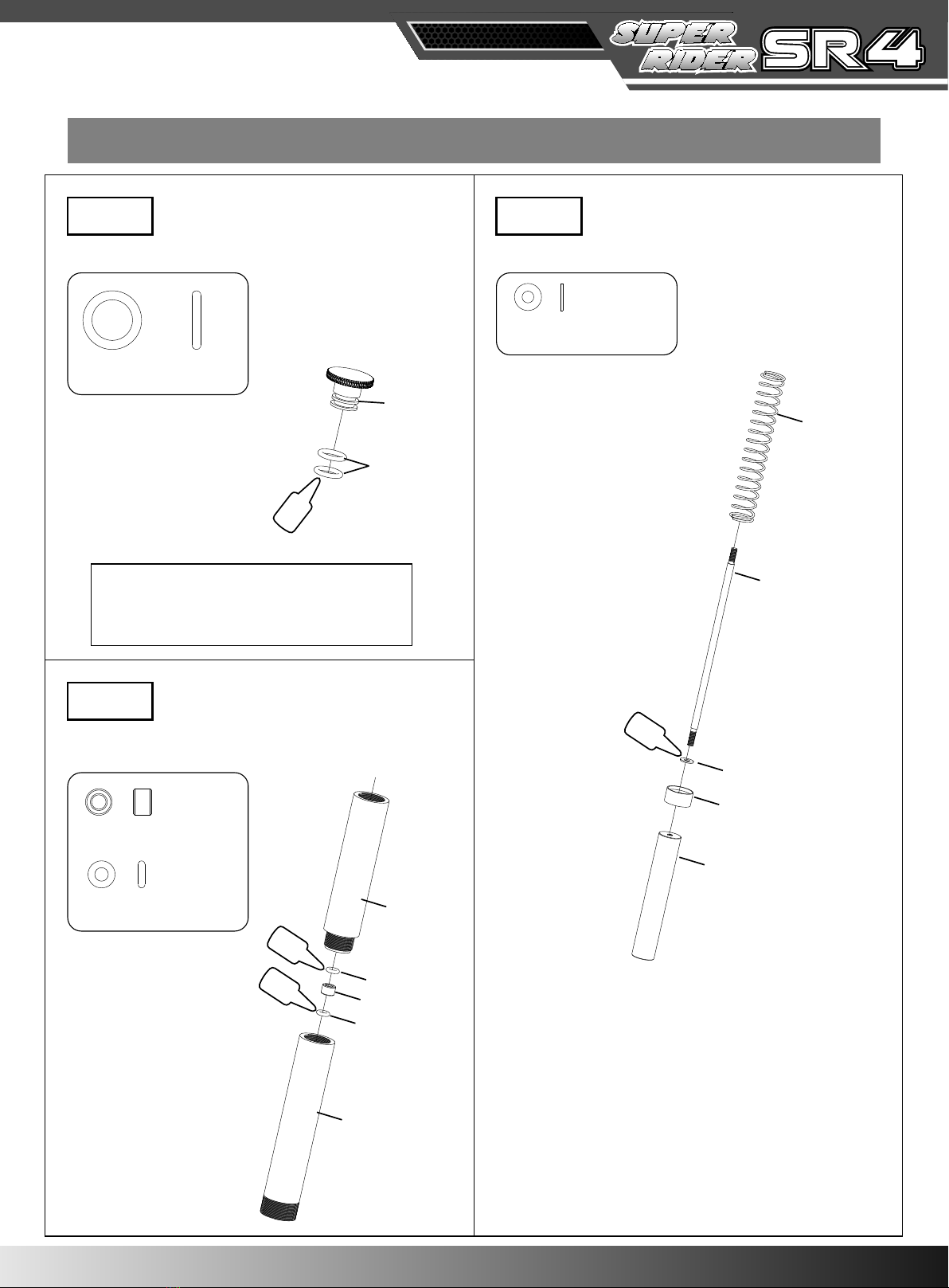

ASSEMBLY PROCEDURE装配过程
RB-A029
RB-A032
ø3.2xø5.9x4T ..................1
FW 3xø ø6x1.5T ................2
Step2
RB-A003
RB-A032
RB-A032
RB-A029
OIL
OIL
RB-A004
RB-A005
RB-A034
RB-A030
RB-A008
RB-A034
FW ø2.6xø6x0.5T ..............1
Step3
LOCK
RB-A001
RB-A033
OIL
RB-A033
FW 9xø ø13x2T ...............2
Step1
Note:It will be easier to assemble if you add oil
to the ring (RB-A033) before installation.
提示：如果在O型密封圈上添加润滑油，安装更
为容易
RB-A002
03

RB-A034
RB-A028
RB-A035
RB-A034
RB-A028
RB-A035
ø2.5xø11.9x2T .................1
M2.5防松镙母 ..................1
FW ø2.6xø6x0.5T .............1
Step4
RB-A041
RB-A031
RB-A006
ø12.9xø8.9x2T .................1
ø10.2xø14x4.5T .................1
M4x10PH........................1
Step5
RB-A031
RB-A007
RB-A006
RB-A009
RB-A041
LOCK
04

RB-A041
RB-A040
RB-A011
RB-A022
M4x10PH........................2
M3x10PH........................6
M3x10PH........................6
Brg.ø6xø13x5ZZ.............1
Step6
RB-A010
RB-A041
RB-B003
RB-A040
RB-A022
RB-A018
RB-A017
RB-A040
RB-A041
RB-A011
LOCK
LOCK
04 05

OIL
RB-A042
RB-A043
M3x5TS............................4
RB-A042
Step7
RB-A042
RB-A044
M3x5TS............................2
RB-A042
Step8
0506

RB-A025
RB-A045
RB-A019 RB-A023
RB-A020
RB-A021
RB-A022
RB-A036
RB-A021
RB-A022
RB-A022
RB-A036
RB-A021
M3x8TS..............................5
Collar6x10x5.3...................2
Brg.ø6xø13x5ZZ................2
Step9
RB-A038
RB-A036
RB-A024
RB-A039
RB-A036
RB-A024
M3x8TS..............................4
M4防松镙母........................2
Step10
LOCK
Note: Please secure the rim and the tire with
tire rubber after finishing assembly.
提示:安装完成后请将轮毂与轮胎用轮胎胶
固定
06 07

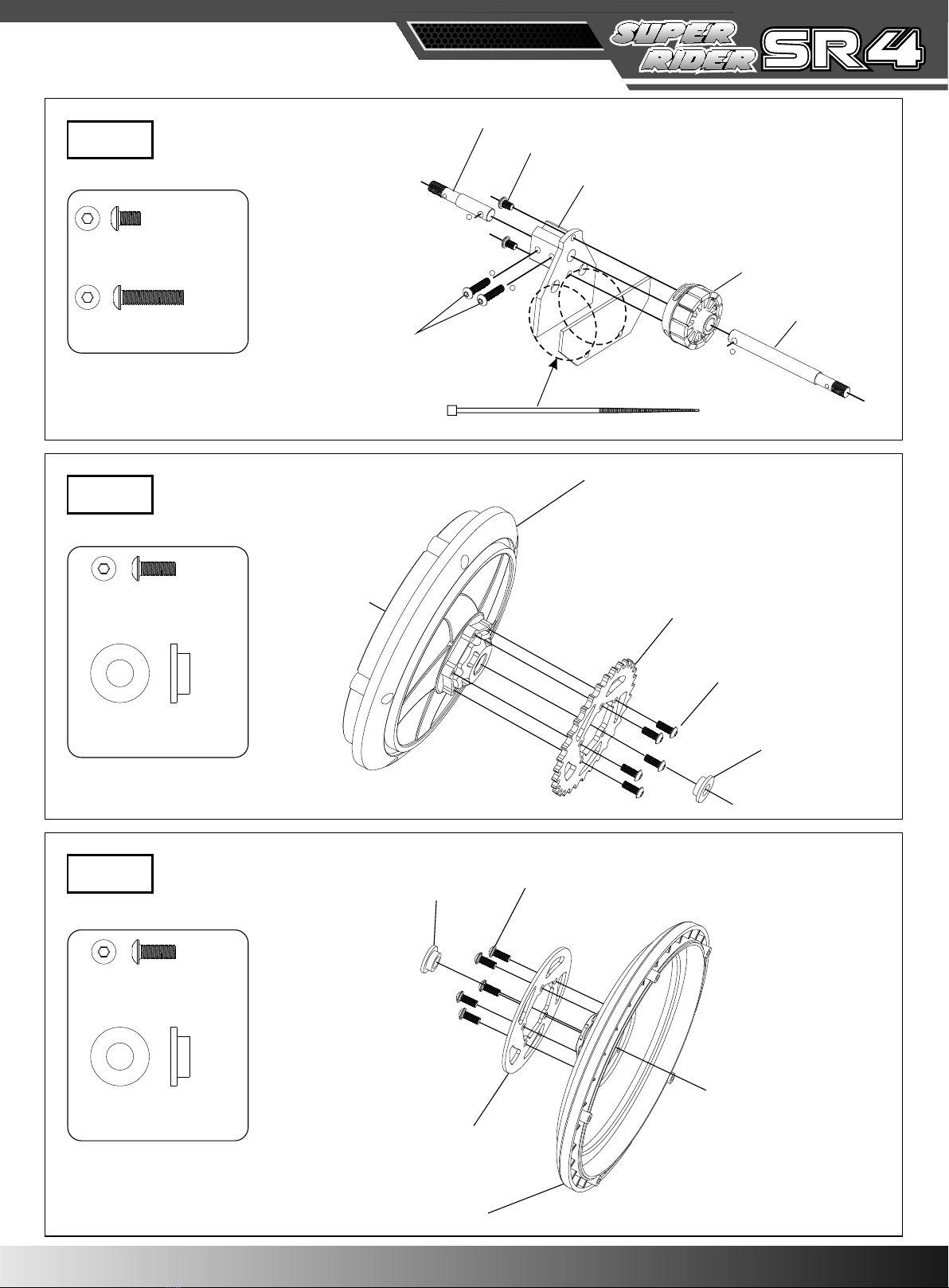

RB-A036
RB-E004
RB-A023
RB-E001
RB-A036
RB-E004
M3x8TS..............................5
ø6xø13x4T.........................1
Step13
RB-E002
RB-E012
RB-A036
RB-E004
RB-A036
RB-E004
M3x8TS..............................5
ø6xø13x4T.........................1
Step12
RB-A042
RB-B044
M3x14TS............................2
M3x5TS..............................2
Step11
１
１
２
RB-E003
RB-A042
RB-E005
RB-E009
RB-E006
RB-B044
２
0708

RB-A022
RB-E011
RB-B044
RB-B044
RB-A022
RB-E011
M3x14TS............................5
ø6xø8x0.5T......................3
Brg.ø6xø13x5ZZ................2
Step15
08 09

Step16
RB-E018
RB-E013
LOCK
Note: Please secure the rim and the tire with
tire rubber after finishing assembly.
提示:安装完成后请将轮毂与轮胎用轮胎胶
固定
0910

RB-B039
RB-B006
RB-B047
RB-B033
RB-B007
RB-B047
RB-B039
M2.5x6TS............................4
M2.5x6................................2
Step17
RB-B013
RB-B043
RB-B044
RB-B045
RB-B018
RB-B001
RB-B020
RB-B017
RB-B012
RB-B043
RB-B002
RB-B044
RB-B043
RB-B045
RB-B018
RB-B012
M3x14TS............................4
M3x10TS............................8
ø3xø7x2T............................4
M3x7...................................4
Collar9x4.2x27...................2
Step18
RB-B010
10 11

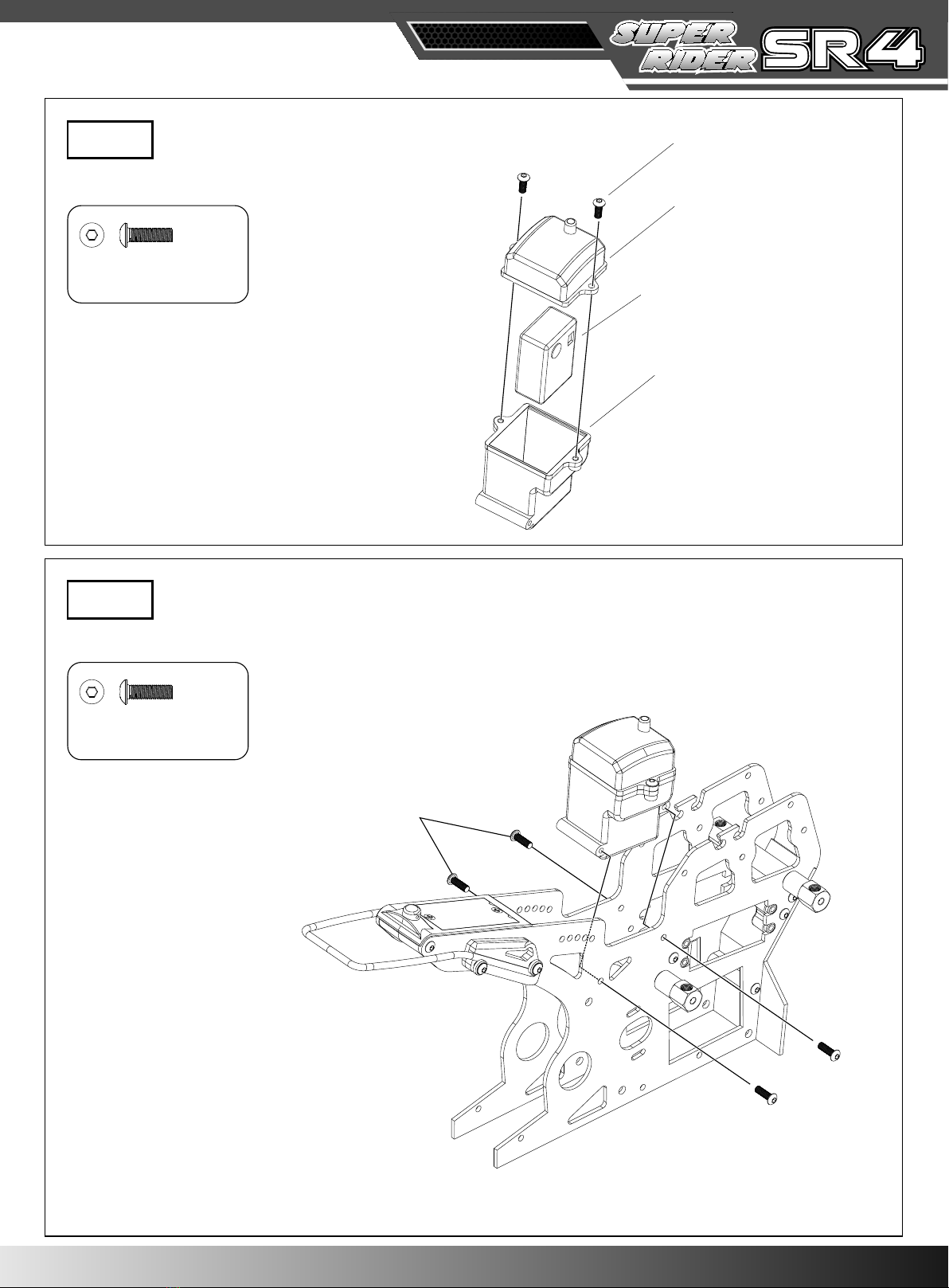

RB-B035
RB-H005
RB-B034
RB-B043
RB-B043
M3x10TS............................2
Step19
RB-B043
RB-B043
M3x10TS............................4
Step20
1112

RB-B031
RB-A037
RB-B029
RB-B028
RB-B030
RB-B026
RB-B025
RB-B027
RB-B037
RB-A037
RB-B030
RB-B037
RB-B027
RB-B029
RB-B028
M4x3SS..............................2
FW ø6xø8x1.5T..................2
E-ring ø4.............................1
ø2.5x15.2 needle pin..........1
Brg. ø6xø15x5zz................2
FW ø15xø23x6T................2
Step22
LOCK
LOCK

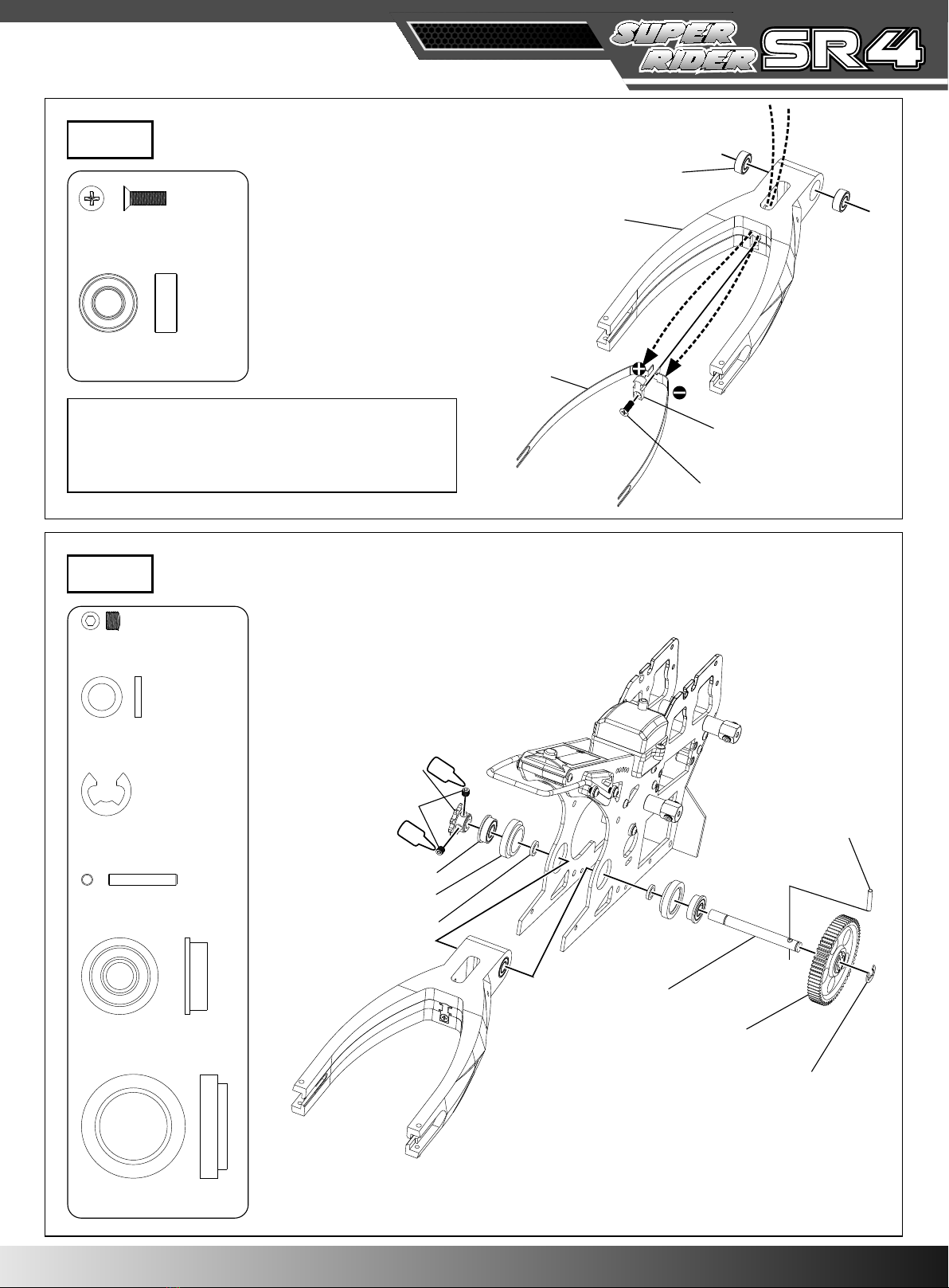

RB-A022
RB-C009
M3x8TS.............................1
Brg.ø6xø13x5ZZ................2
Step21
RB-A022
RB-C001
RB-C005
RB-C004
RB-C009
Caution:Solder the positive and negative wires of the ESC
with the copper sheet before assembly. Pay
attention to the polarity of the ESC wires.
注意：安装之前请将电子调速器的正负极线和铜片焊接，
注意正负极方向。
12 13

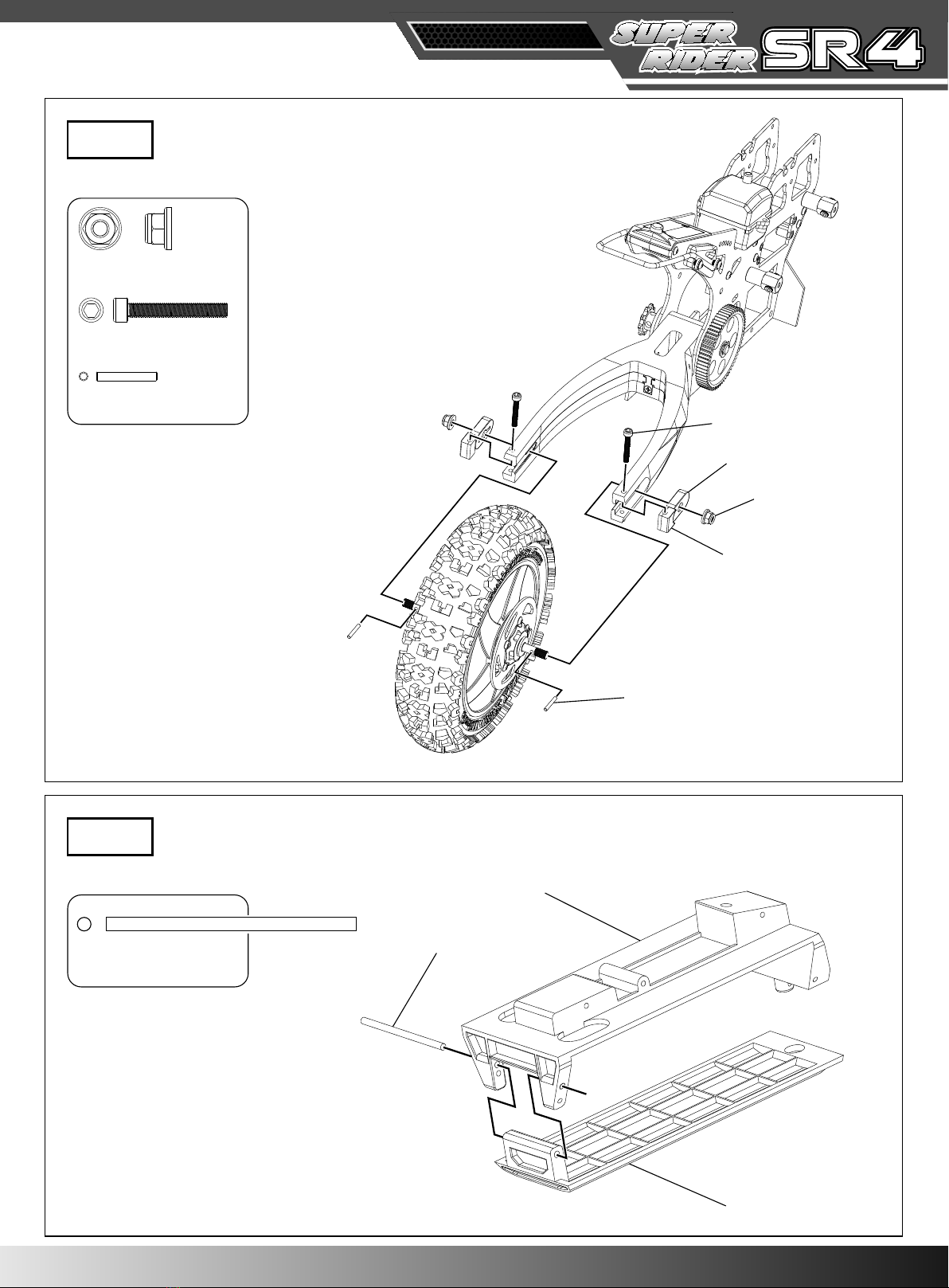

RB-C002
RB-E015
RB-C003
RB-E014
RB-C007
RB-E014
RB-E015
RB-C007
M4防松镙母........................1
M3x22PH........................2
ø2x13.5 needle pin.............2
Step23
RB-B021
RB-B038
RB-B022
RB-B038
ø3x55.5 needle pin.............1
Step24
1314

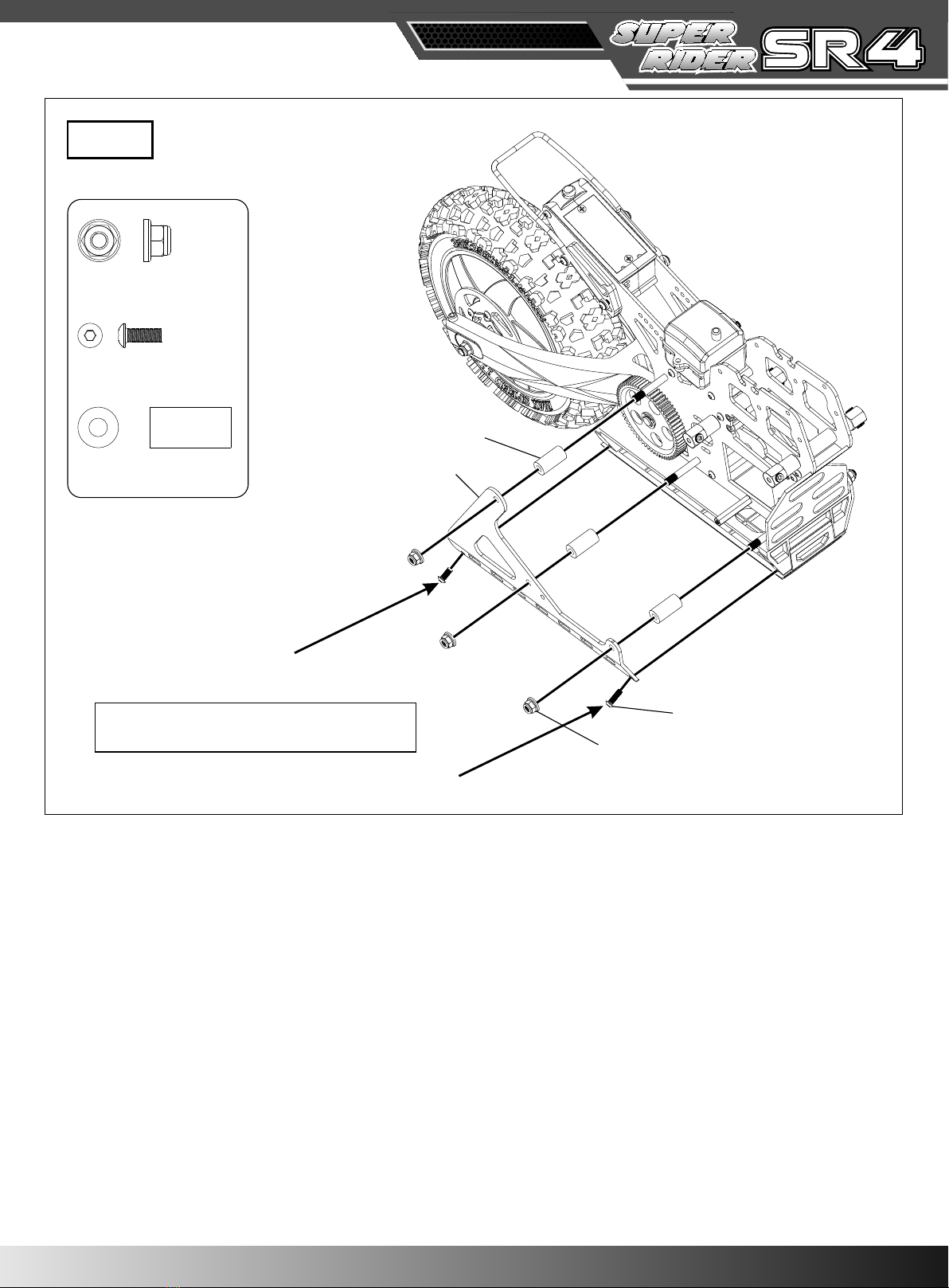

RB-B012
RB-B016
RB-B015
RB-A036 RB-A024
RB-B012
RB-B012
Collar9x4.2x27...................3
RB-A036
M3x8TS..............................2
RB-A024
M4防松镙母........................3
RB-B012
Collar4.1x9x18...................3
Step26
RB-B041
RB-B043
RB-B041
RB-B043
M3x10TS............................4
ø2x13.5 needle pin.............2
Step25
RB-B023
14 15

RB-B016
RB-B024
RB-A036
RB-A024
RB-A036
M3x8TS..............................2
RB-A024
M4防松镙母........................3
RB-B012
Collar4.1x9x18...................3
Step27
注意:镙丝安装方向
Caution: Pay attention to the direction of the screw.
1516

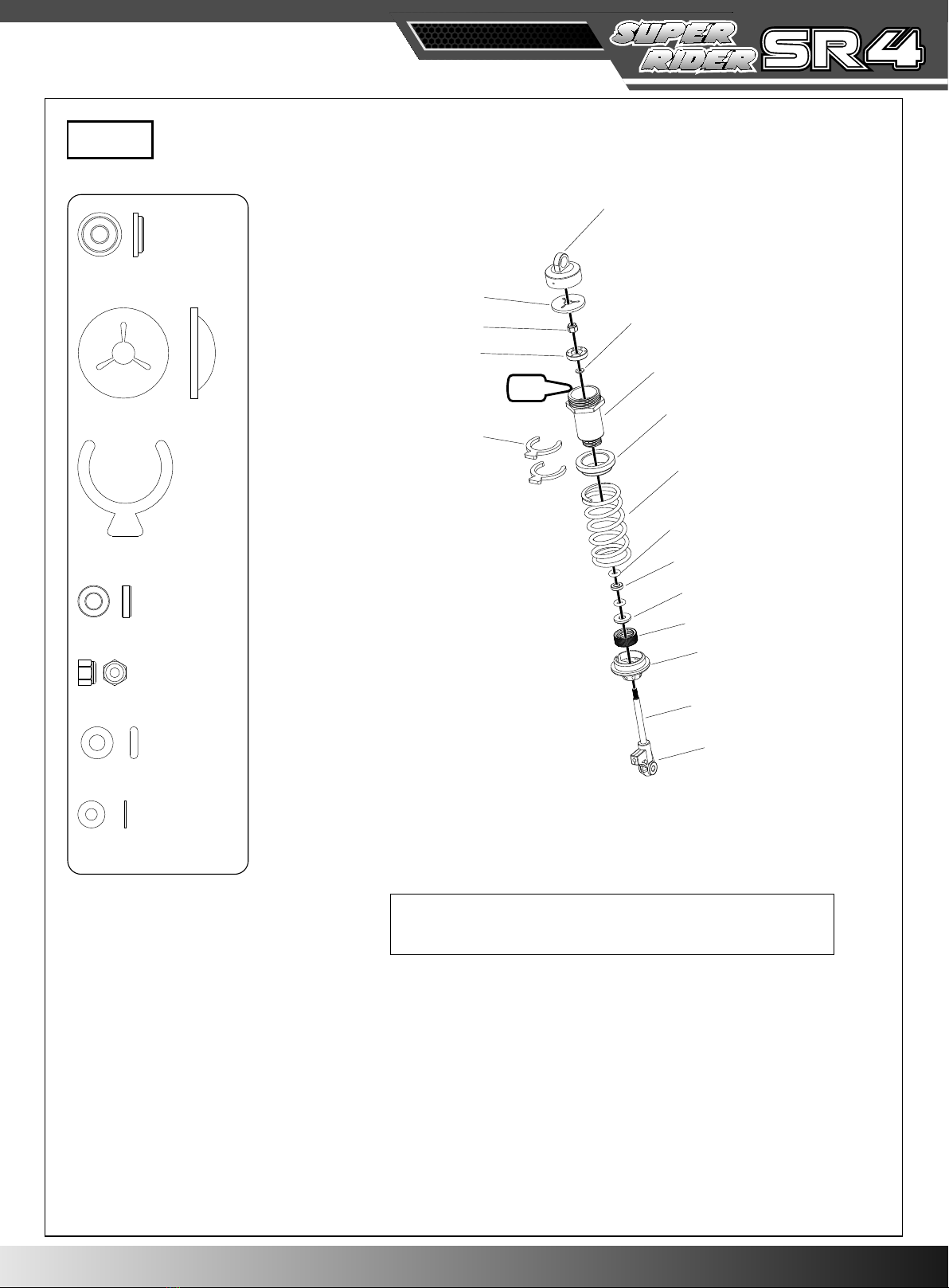

OIL
RB-F001
RB-A034
RB-F002
RB-F006
RB-F013
RB-F005
RB-F004
RB-F008
RB-F009
RB-F007
RB-F012
RB-F011
RB-F010
RB-F014
RB-F003
RB-F015
RB-F010
FWø20X2.5T...................1
RB-F008
FWø9.7Xø2.5X2.25T........1
RB-F015
E-ringø16..........................3
RB-F004
FWø3.5xø7x2T..................3
RB-F014
M2.5防松镙母...................3
RB-F005
FWø3.5xø7x1.8T...............3
RB-A034
FW ø2.6xø6x0.5T .............1
Step28
NOTE: The user could adjust the effect of the rear suspension according to
different racing ground by instralling shock body spacer.
提示：用户可根据实际路况使用垫片调节后避震强度。
16 17

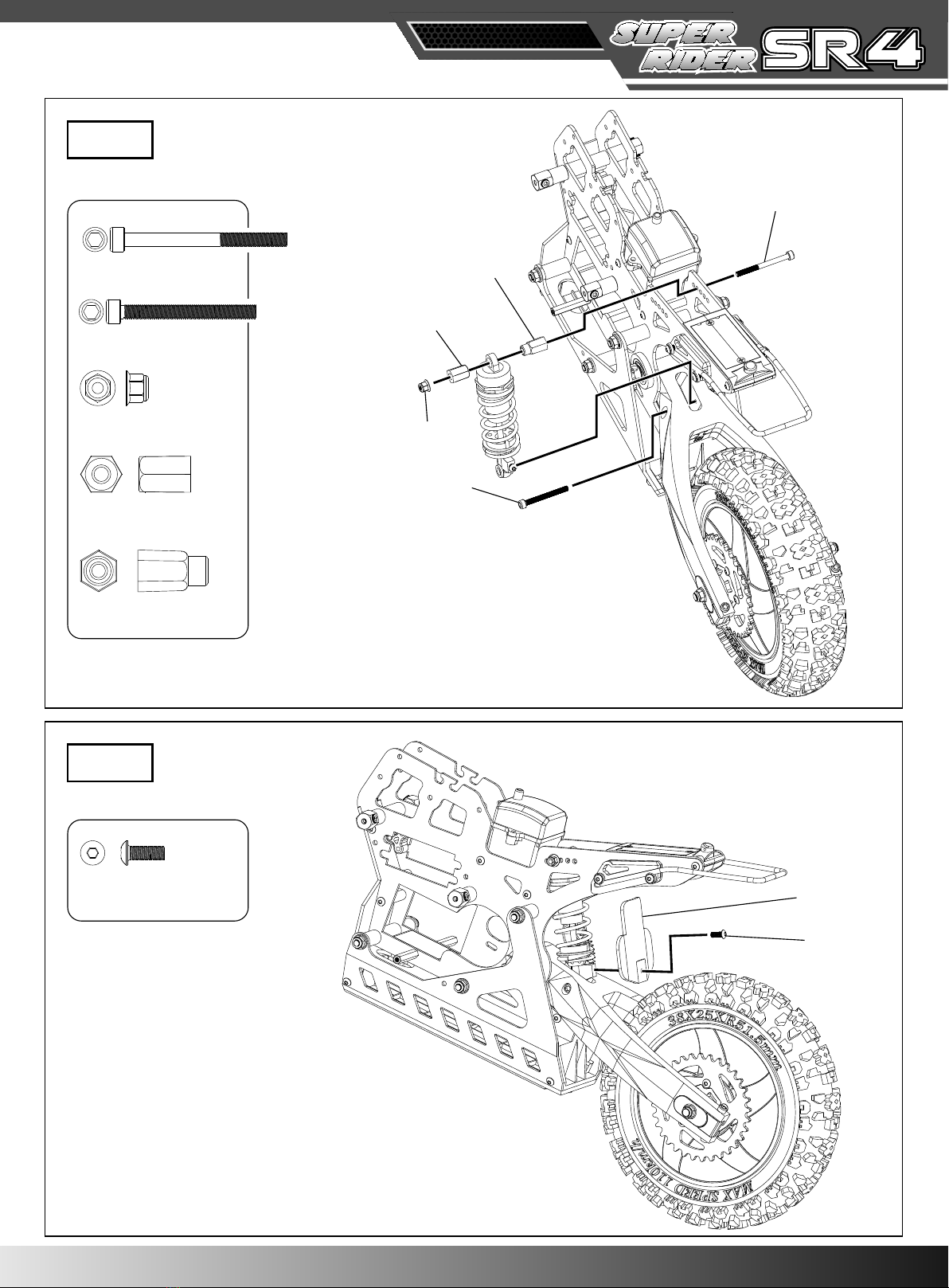

RB-D002
RB-D003
RB-D001
RB-C008
RB-D005
RB-D001
M2x36PH..........................1
RB-C008
M3x30PH..........................1
RB-D005
M3防松镙母...................3
RB-D003
8x9x13...........................3
RB-D003
8x9x15.5.........................3
Step29
RB-A036
RB-D004
RB-A036
M3x8TS..............................2
Step30
1718

RB-B043
RB-B010
RB-B043
M3x10TS............................4
RB-B010
Collar2.6x6x27..................2
Step31
RB-B043
RB-B005
RB-B036
RB-B043
M3x10TS............................2
Step32
18 19
